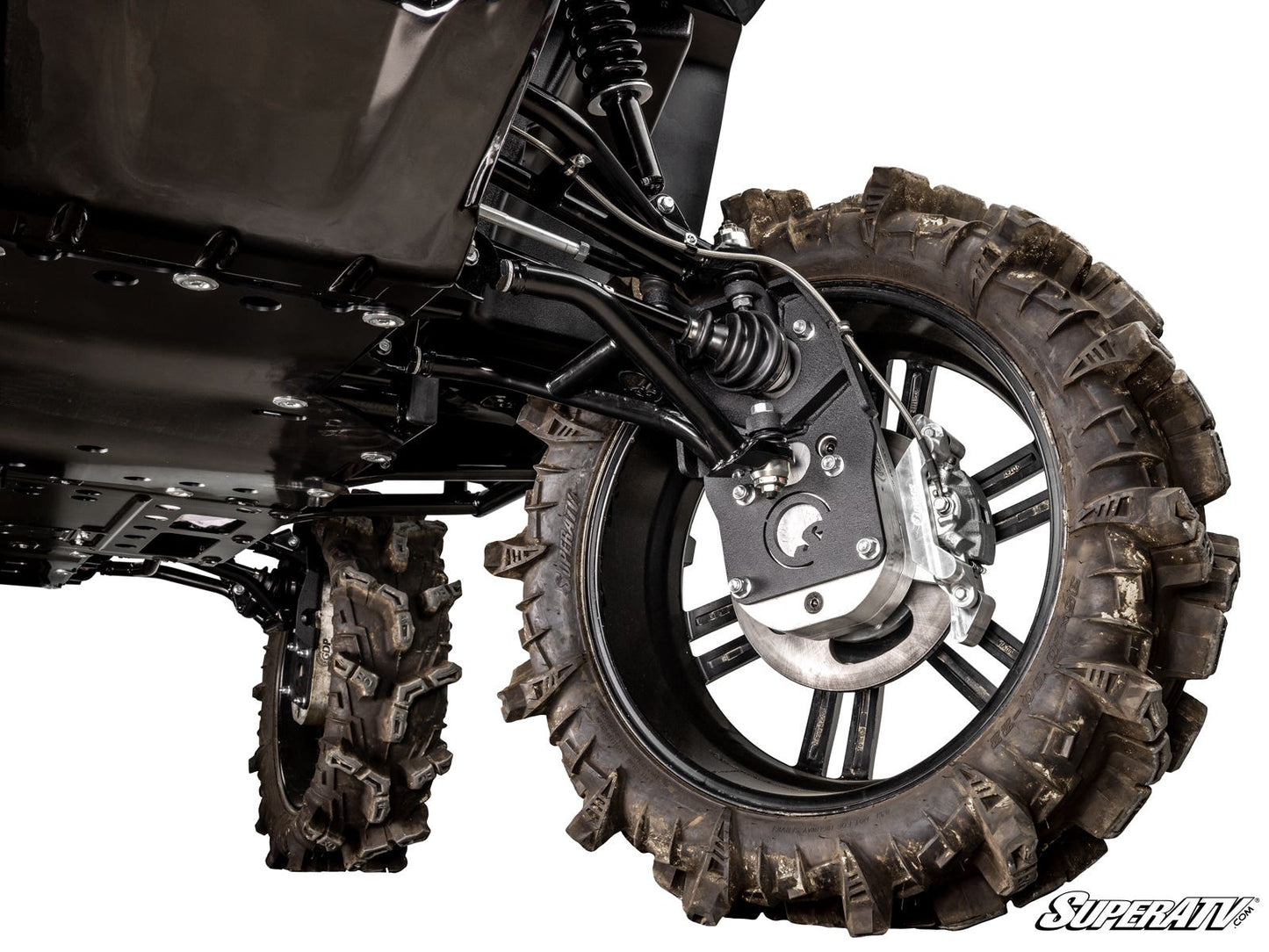

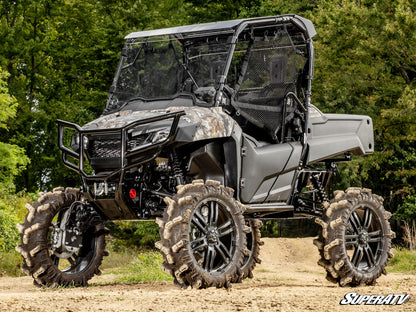

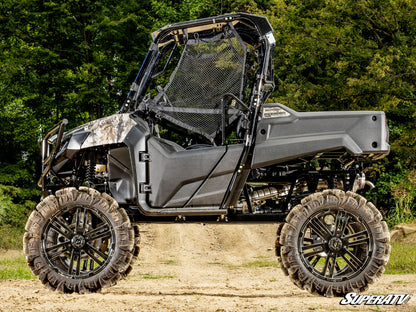

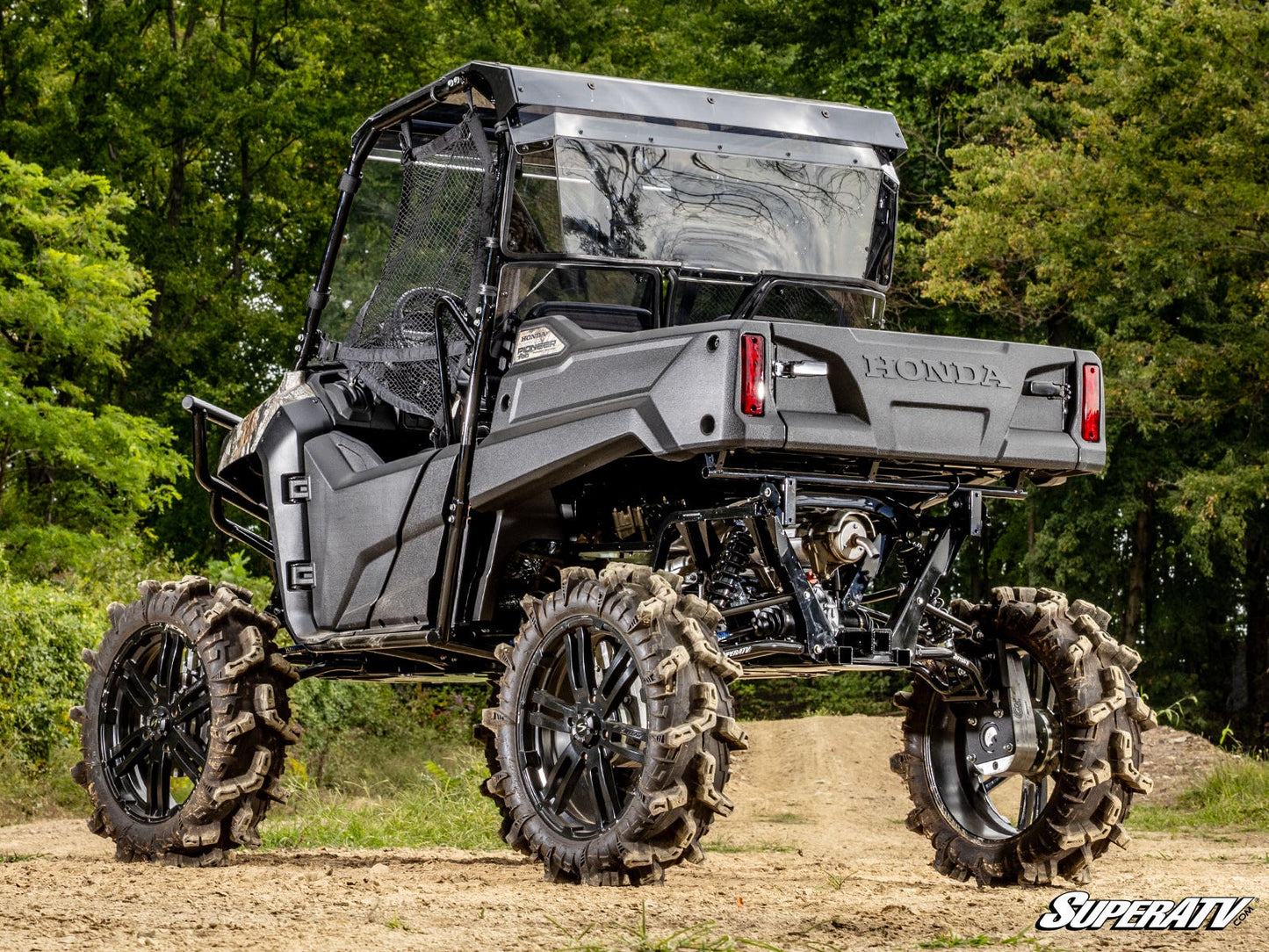

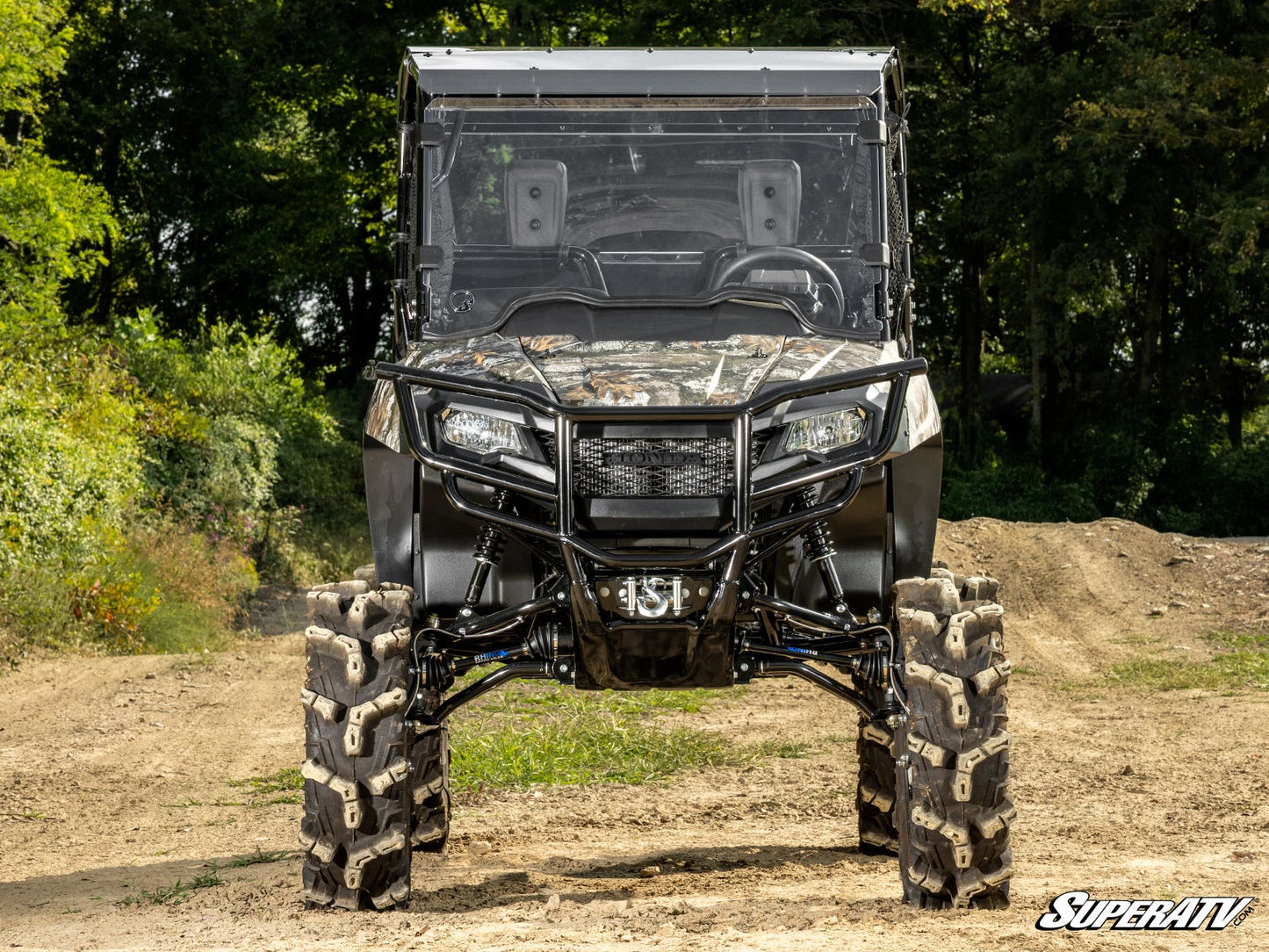

Upgrade Your Ride with Huge 8” Honda Pioneer 500 Portals The Honda Pioneer 500 is an extremely capable machine—but that doesn’t mean it
can do everything. Upgrade your rig with SuperATV’s Honda Pioneer 500 8”
Portal Gear Lift from SuperATV. It gives you a gigantic lift kit and gear
reduction in one powerful package. The gear reduction gives you the torque you
need to take on mud, creeks, trails, rocks—GDP Portals from SuperATV help you
dominate all terrains.
- Gives you an 8” lift and a gear reduction in
one package - 45% or 60% gear reduction
- Maintains OEM
suspension angles - REQUIRES aftermarket suspension to clear 22” wheels
and matching tires
45% or 60% Gear Reduction A 45% or 60% gear reduction is extremely powerful. A gear reduction
provides the torque you need for tricky rock crawls, the muscle to turn
gigantic tires, and the strength to dominate the deepest mud pits.

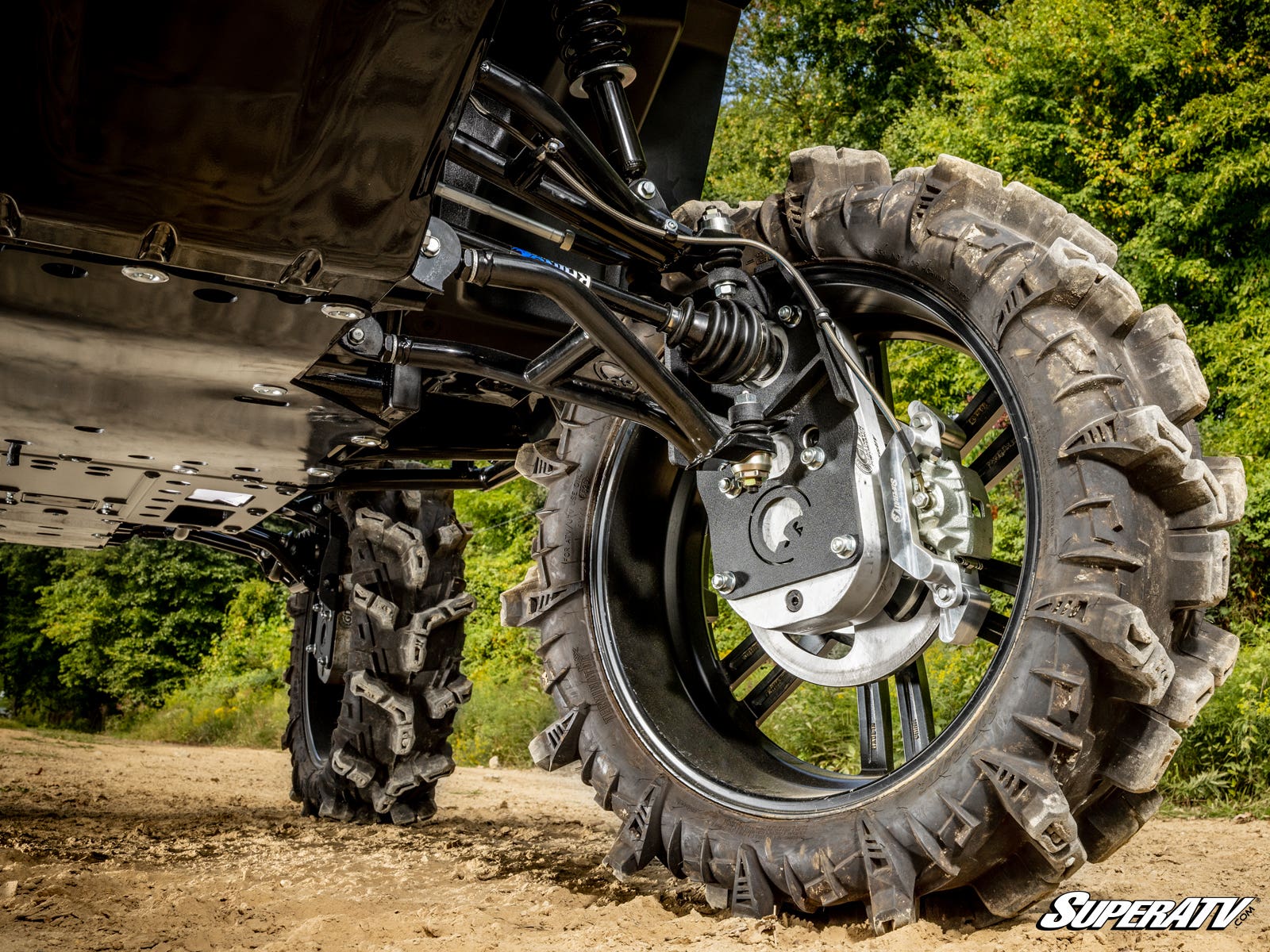

GDP Portals Save Your Drivetrain Our Honda Pioneer 500
portals put the gear reduction directly in the hub. This protects your entire
drivetrain—your diff, prop shaft, and transmission won’t experience any extra
wear and tear. Plus they maintain your stock suspension geometry, so you won’t
overextend your axles.
Honda Portals That Are Built
Tough GDP Portals are built to be the toughest. They use 5/16”
advanced steel alloy backing plates and precision-engineered aluminum housings
so you can ride the way you want.
- Our housings are reinforced for
gear retention and optimized for oil flow - Advanced steel alloy
backing plates are stronger than chromoly - Enhance with Portal Blood —gear
oil formulated for GDP Portals - There are no gimmicks and no vents
because vents do more harm than good—we know because we tested them
Advanced Gaskets, Seals, and Bearings Our portals
use:
- Advanced gaskets and O-rings with excellent oil resistance and
low deterioration rates - A sealed input gear and double-lipped output
seal - 100% sealing coverage throughout so you can forget about oil
leaks - Double-angular contact output bearings to prevent premature
wear - Roller idler and drive bearings to maintain perfect gear
meshing
Top-Rated Customer Service Still
need a little help getting exactly what you need? No worries—we’ve got a
dedicated team just for portal support. Give us a call so we can get the
perfect set of portals in your hands today.
REQUIRES
Aftermarket Suspension These Pioneer 500 portals require a 22”
wheel and tires to match. That means these portals MUST be paired with offset
A-arms or a suspension lift kit not offered by SuperATV.
8”
Portal Gear Lift Includes: - (4) Assembled portal hub boxes
complete with 9310 gears, seals, output shaft, gaskets, and thrust
bearings - (4) Universal hubs and precision-ground stainless steel
slotted rotors with lugs - (4) Specialized steel alloy backing
plates - (2) Steel caliper mounting plates
- (4) Caliper adapter
plates - Steering stop kit
- Extended brake lines
- All
required hardware, including recessed castle nut socket
| Max Tire Size Recommendations |
| Max Tire Size | Required
Suspension Setup with GDP Portals |
| 32" |
Stock |
If you need help
figuring out which gear reduction is right for you, check out our portal gear reduction
calculator.
| Max tire
sizes are measured at full compression and full turn. The given tires sizes
are the largest we fit without rubbing. With minor trimming or a small amount
of rub, larger tire sizes can be used. |
Patent #
8,985,264, 11,015,681, 11,299,042, 11,554,662, 12,005,776
FEATURE
- Cast aluminum housing
- Cool, quiet, precision-ground gears
made from 9310 alloy billet steel - 1.5 in. diameter 4340 hardened
steel drive shaft - Housings use gaskets or O-rings that don’t let
anything through - Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Lighter than the
competition
Fitment
- Honda Pioneer 500 : 2015+
Wheel
Requirements: - 22” or larger wheel required. Therefore, it is
NOT compatible with stock suspension and REQUIRES aftermarket suspension
- Wheels cannot exceed 4.5” backspacing
- Wheels need to have a
center hole of at least 3.25" (82.55 mm) or require a 1” wheel spacer
