Description
PART # TAL-05400

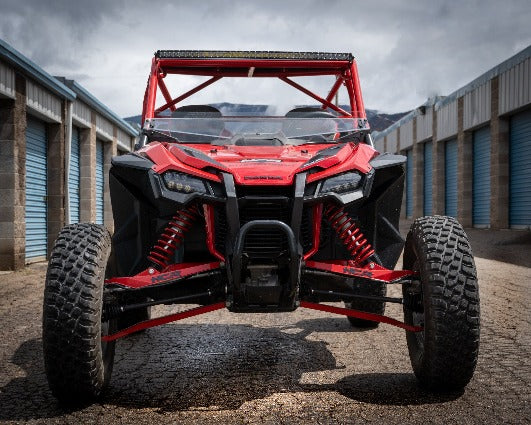

HCR Suspension?s Honda Talon Dual-Sport Long-Travel Suspension System
This system is designed to give you more stability and control in various applications from dunes ,desert and rock crawling . Giving you an edge over stock components.
Features:
- Added Strength and Appeal with the HCR Badge?
- 72″ Width At the Wheel – “Overall Width will depend on the Wheel and Tire Combo”
- Added 3.3″ of Wheel Base – 96″
- Suspension Travel 17.7″ Front 20″ Rear + 1″Wheel Travel
- Front High Clearance Design?
- Rear High Clearance Design 1-5/8″ Added Clearance
- Adds 15 lbs overall , Roughly 3.75 lbs per corner??
- Laser Cut construction for precise fit and finish
- CNC’d Chromoly mounting points for increased integrity
- HCR Custom Alloy. Boasts 30% more strength than Chromoly
- High Clearance Boxed Front A-Arm Design?
- Each piece is Tig Welded by hand for strength and aesthetics
- Re-use of OEM ball joints to maximize low speed steering ease & smooth travel with less maintenance
- High-Clearance Rear Trailing Arms provide an increase of 1.75? in ground clearance
- 100% Proudly Made in the U.S.A
Kit Includes :
- 4 – Front A-Arms
- 2 – Tie Rod Extensions
- 2 – Upper Rear A-Arms
- 2 – Rear Trailing Arms
- 4 – High Clearance radius rods – Anodized Black
- 4 – RCV Axle Bars Only – Reuse Factory CV’s
- 2 – Rear Brake Lines
- Hardware Kit?
** Reuses all Factory Ball Joints and Shocks?
*2 Seat models only
Estimated Install Time 10 hrs?
?
?
