Description
Gen 3 Portals are Geared for All

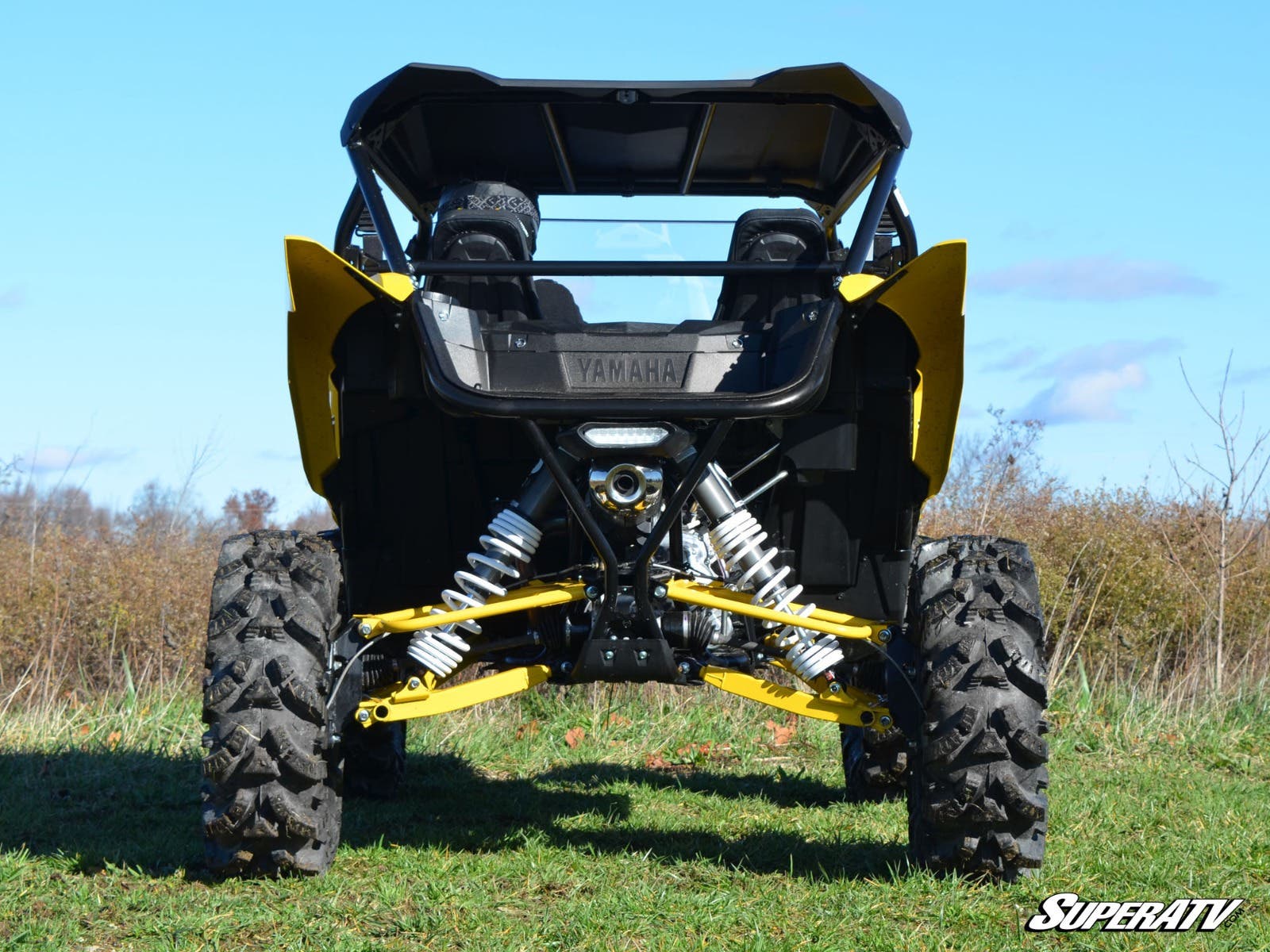

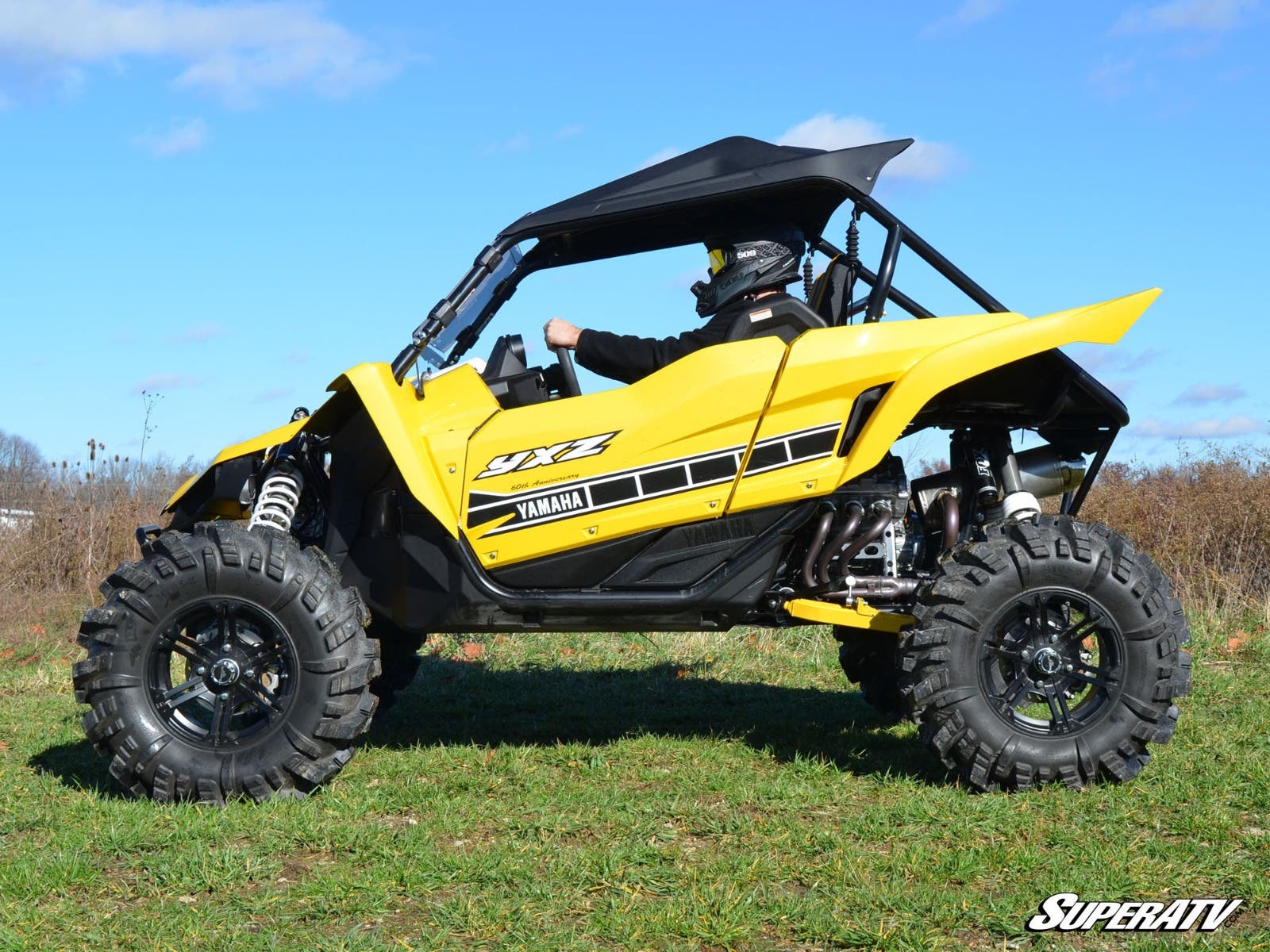

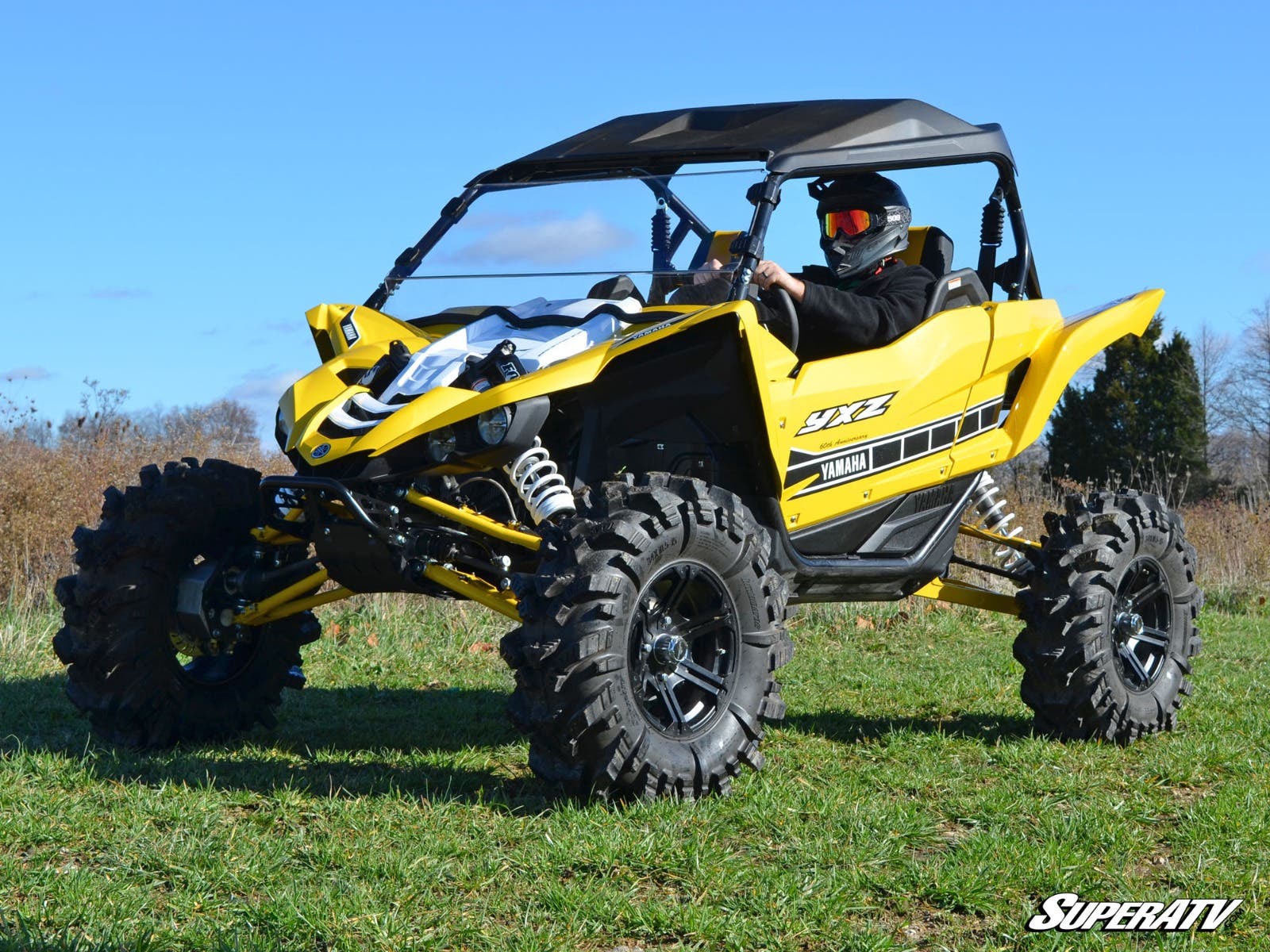

SuperATV’s GDP 4”
Portal Gear Lift for the Yamaha YXZ is Geared for All. Choose from 15% or 30%
gear reductions and cast or billet aluminum housings so you can optimize to
fit your needs.
Perfect for Mud
If you
move up to a 30% gear reduction, you’ll be ready to take on bigger, sloppier
mud holes. That boost in torque means you can dominate monster bounty holes
without getting stuck. The lift gives you room for bigger tires so you can
take your YXZ mud monster over-the-top. When you’re done with the mud, a 30%
gear reduction can get you through trails, roads, and rocks just as easily.
Perfect for Rocks
Put 4” portals and a
30% gear reduction on your machine and get the torque you need crawl over
rocks like they’re not even there. You’ll have the clearance to get over
anything without scratching up your skid plate, and you’ll have room to run
bigger tires. These portals are built for boulders.
Perfect for Trails
Get 4” portals and a 15% gear
reduction on your YXZ and take on the trail less traveled. You’ll cruise
through the trail and fly past those technical hills or washouts easily thanks
to that extra torque. It’ll show you what your machine is really capable of.
Learn more about how tire size and gear reduction can unleash your
machine’s potential.

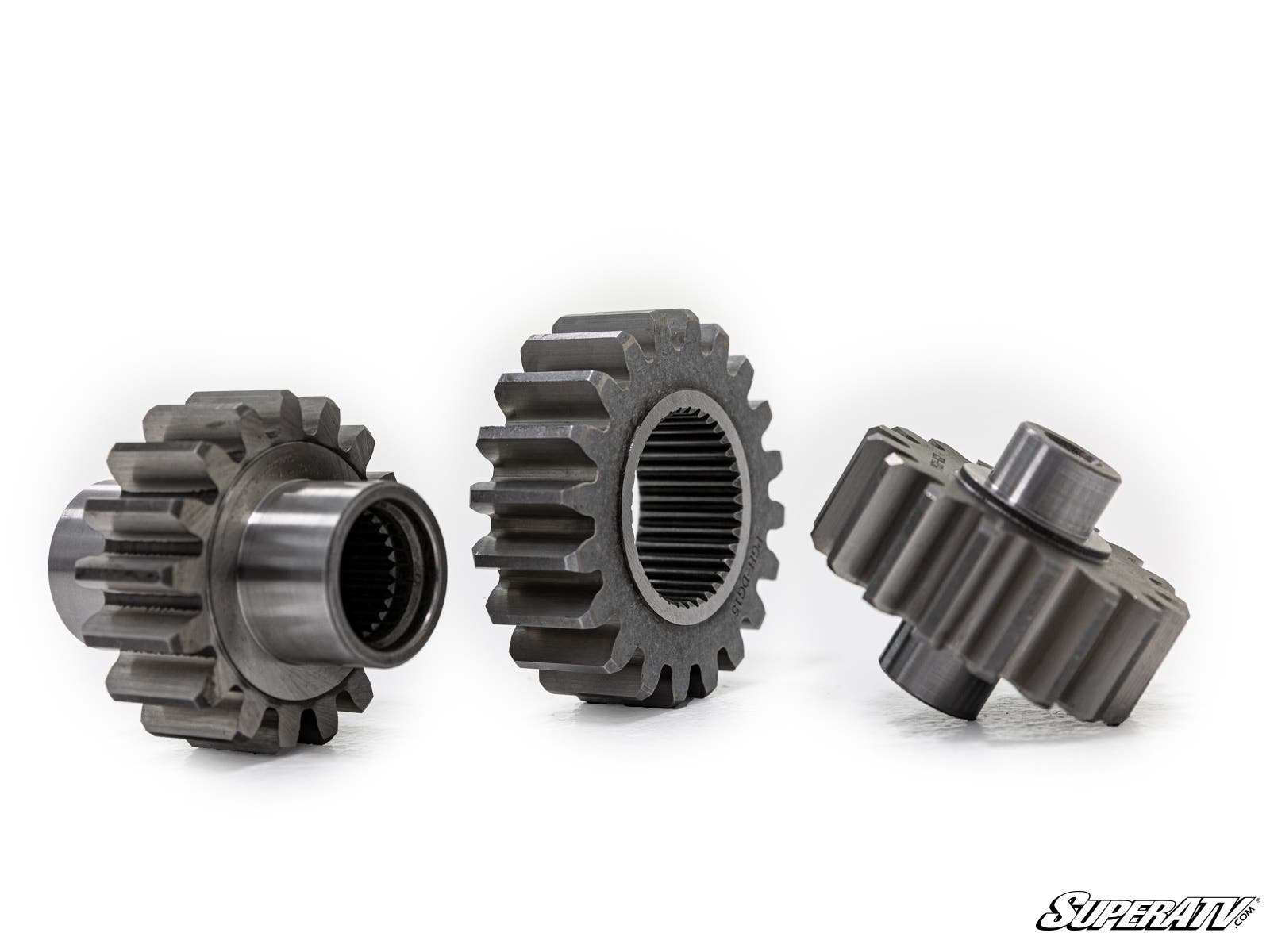

Better Gears
Our
gears are precision ground and made with 9310 billet steel alloy for high
strength and high speed. That means they’re cool and quiet even when you’re
hammering down the throttle on the road, and they have strength to withstand
every ride.
Stronger Housings by Design
We dare you to find housings stronger than what we make for our GDP portals.
Just like everything else that goes into this product, our housings are well
researched and long tested. And you get a choice—go with cast or USA-made,
CNC-machined 6061 billet aluminum. Regardless of what you pick, you’re getting
portal housings with strength and reliability that is unmatched.
- Our
housings are reinforced in all the right places - They’re built with
better oil flow and gearing forces in mind - There are no gimmicks and
no vents because vents do more harm than good—we know because we tested
them
Advanced Gaskets and Seals
Whether you go with cast or billet, both housings use:
- Advanced
gaskets with excellent oil resistance and a lower deterioration rate than
Kevlar gaskets - A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
Top-Rated Customer Service
Still need a
little help getting exactly what you need? We’ve got a dedicated team just for
portal support. Give us a call so we can get the perfect set of portals in
your hands today.
| Max Tire Size Recommendations for 4” Portal Gear Lift | ||
|---|---|---|
| Max Tire Size | Required Suspension Setup with 4″ Portals | |
| 32″ | Stock | If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator. |
Max tire sizes are measured at full compression and full turn. The given tire sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used. |
Patent #
11,299,042
FEATURE
- Available with billet or cast aluminum housing
- Cool, quiet,
precision ground gears made from 9310 alloy billet steel - Increases
width by 4 in. per side (8 in. total) - 1.5 in. diameter 4340 hardened
steel drive shaft - No leak bearings and seals
- Universal hub
fits all major bolt patterns - Comes complete with all hardware,
backing plates, brakes lines and instructions
Fitment
- Yamaha YXZ : 2016+
Wheel Requirements:
- 14” or larger wheel required
- 14″ & 15″ wheels cannot exceed
4.5″ backspacing - 16″ and larger wheels cannot exceed 5″
backspacing - If using factory 14″ wheels, you must run 2″ wheel
spacers - Not compatible with dual beadlock wheels
- Wheels need
to have a center hole of at least 3.25″ (82.55mm) or require a 1” wheel
spacer
