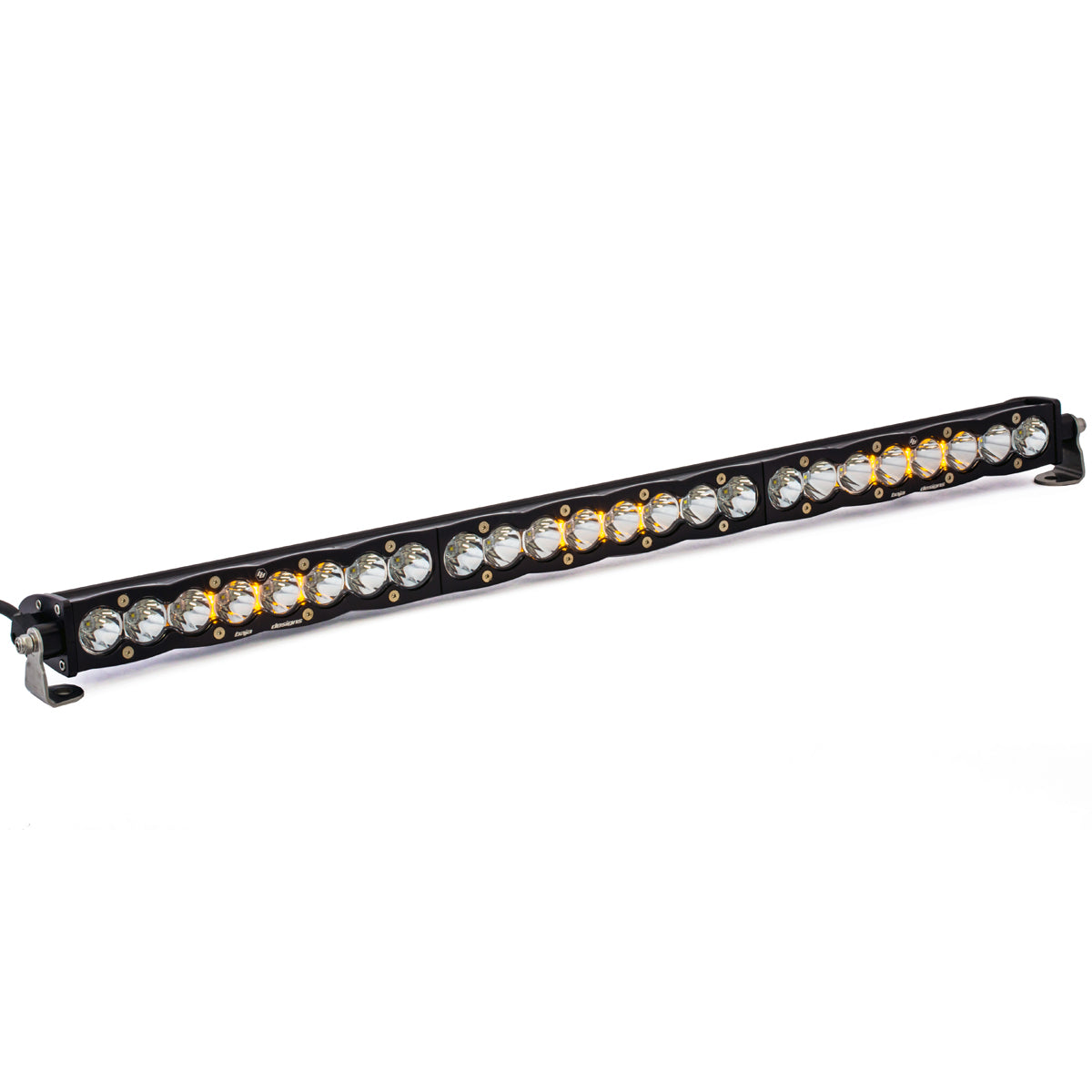

30 Inch LED Light Bar Spot Pattern S8 Series Baja Designs
30 Inch LED Light Bar Spot Pattern S8 Series Baja Designs
Search matches make and model, not model year.
We don't have year-by-year fitment listed for this part yet. If you're not certain it fits your machine, ask us first — it takes a minute and saves a return.
Not sure? Text your year, make and model to 719-428-6837 or use Build Concierge and we'll confirm the right part. Freight-heavy parts can't be returned cheaply, so it's worth asking.
Couldn't load pickup availability
Why Buy From SxS Network?
Located at Pikes Peak International Raceway, home of Adrenaline Park and Peak Adrenaline. We run many of these parts on our personal Maverick R and X3 rigs.
Not sure what fits your build? Call or text Tim directly at 719-428-6837. Real riders, real advice — no call centers.
Based in Fountain, CO. Support a Colorado business that actually rides.
Most orders placed before 2 PM MT ship same day (business days).
Product Description
Baja Designs latest LED light bar comes with a few new perks! Enjoy the clean aluminum frame with 13,560 lumens of pure power, low amp draw of 9.99 amps, and nearly 50,000 hours of LED life. The S8 also features upgraded reflectors, an amber backlit feature, and new scalloped housing design. The S8 is backed by our 30 Day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in purchase protection!
Light Pattern:Spot: Our High Speed Spot optic is a longer and narrower beam Focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
Baja Designs Features:
- Satisfactions Guarantee 30 Day Money Back Guarantee
- Limited Lifetime Warranty Complete Purchase Protection
- uService Replaceable Lenses And Optics
- ClearView All The Light, Right Where You Need It.
- MoistureBlock Waterproof, Rain Proof, Submersible
- CopperDrive Only LED Driven At 100 percent
- 5000K Daylight Less Driver Fatigue, Natural Color
- Specifications:
- Lumens: 13,560 Utilizing 24 Cree LEDs
- Wattage/Amps: 120W / 9.99A
- Dimensions: 30 x 3 x 1.6 inch
- Weight: 6.5 lbs
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft and Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
Includes:
S8 30 inch LED Light Bar
Mounting Brackets
