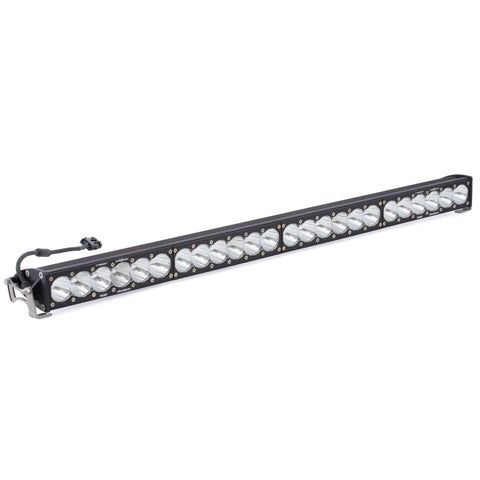

40 Inch LED Light Bar High Speed Spot Pattern OnX6 Arc Racer Edition Baja Designs
40 Inch LED Light Bar High Speed Spot Pattern OnX6 Arc Racer Edition Baja Designs
Search matches make and model, not model year.
We don't have year-by-year fitment listed for this part yet. If you're not certain it fits your machine, ask us first — it takes a minute and saves a return.
Not sure? Text your year, make and model to 719-428-6837 or use Build Concierge and we'll confirm the right part. Freight-heavy parts can't be returned cheaply, so it's worth asking.
Couldn't load pickup availability
Why Buy From SxS Network?
Located at Pikes Peak International Raceway, home of Adrenaline Park and Peak Adrenaline. We run many of these parts on our personal Maverick R and X3 rigs.
Not sure what fits your build? Call or text Tim directly at 719-428-6837. Real riders, real advice — no call centers.
Based in Fountain, CO. Support a Colorado business that actually rides.
Most orders placed before 2 PM MT ship same day (business days).
Product Description
At speeds 110 MPH and above, the factory lighting on your vehicle will be left in the dust. Our OnX6 Racer Edition LED light bars are designed to project far enough to keep up with the high speeds of your performance vehicle. With its secret mad scientist design, the 40-inch OnX6 Racer Edition gives racers the competitive advantage when maintaining high speeds through and around brutal off-road obstacles. The 40-inch OnX6 Light Bar comes with our industry-first 30-day Satisfaction Guarantee and Limited Lifetime Warranty.
Light Pattern: High Speed Spot: A longer and narrower 6 degree beam Focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.(Lighting Zone 4 and 5)
Baja Designs Features:
- Satisfactions Guarantee 30 Day Money Back Guarantee
- Limited Lifetime Warranty Complete Purchase Protection
- uService Replaceable Lenses And Optics
- ClearView All The Light, Right Where You Need It.
- MoistureBlock Waterproof, Rain Proof, Submersible
- CopperDrive Only LED Driven At 100 percent
- 5000K Daylight Less Driver Fatigue, Natural Color
Specifications:
- Wattage/Amps: 252W / 21A
- Dimensions: 40 x 4.29 x 2.69 inch
- Weight: 15.05 lbs
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft and Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
Includes:
OnX6 40 inch LED Light Bar Racer Edition
Mounting Brackets
