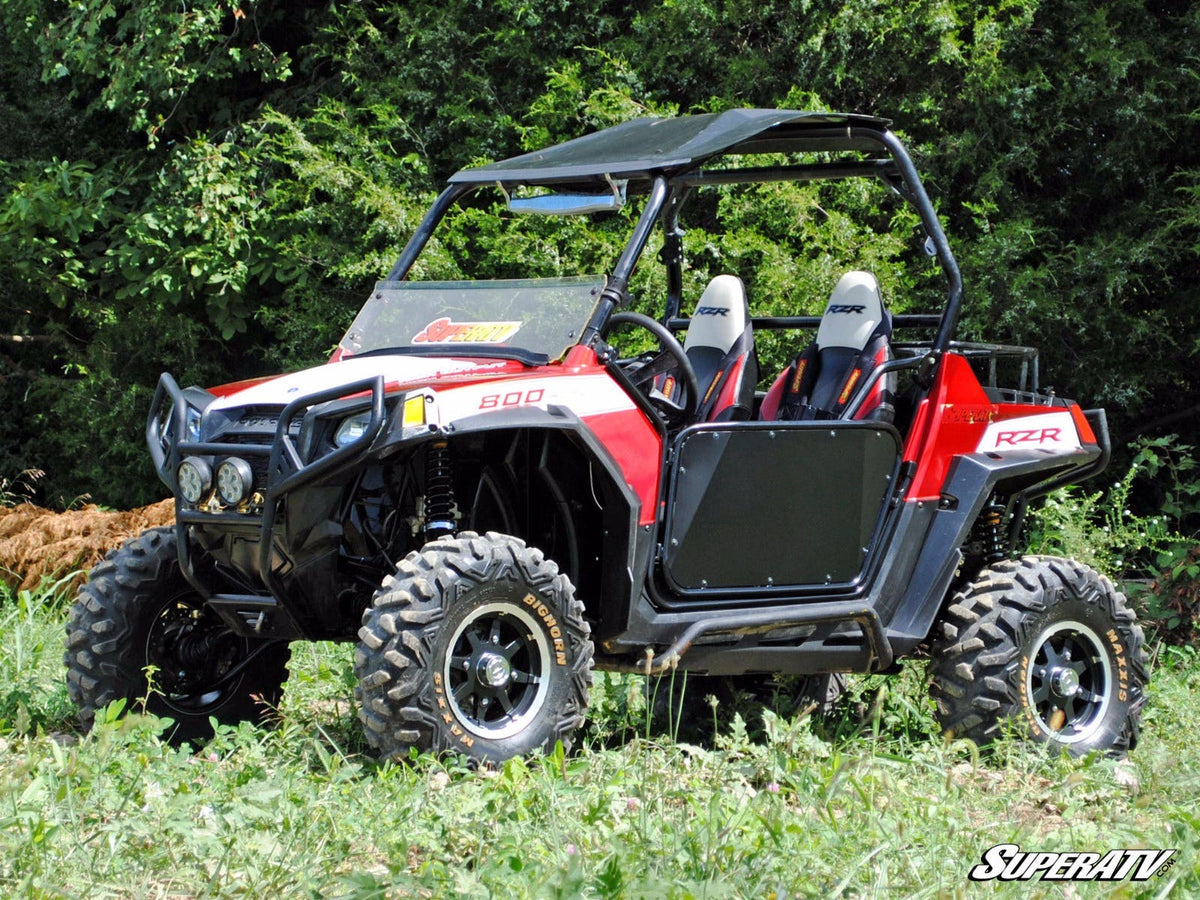

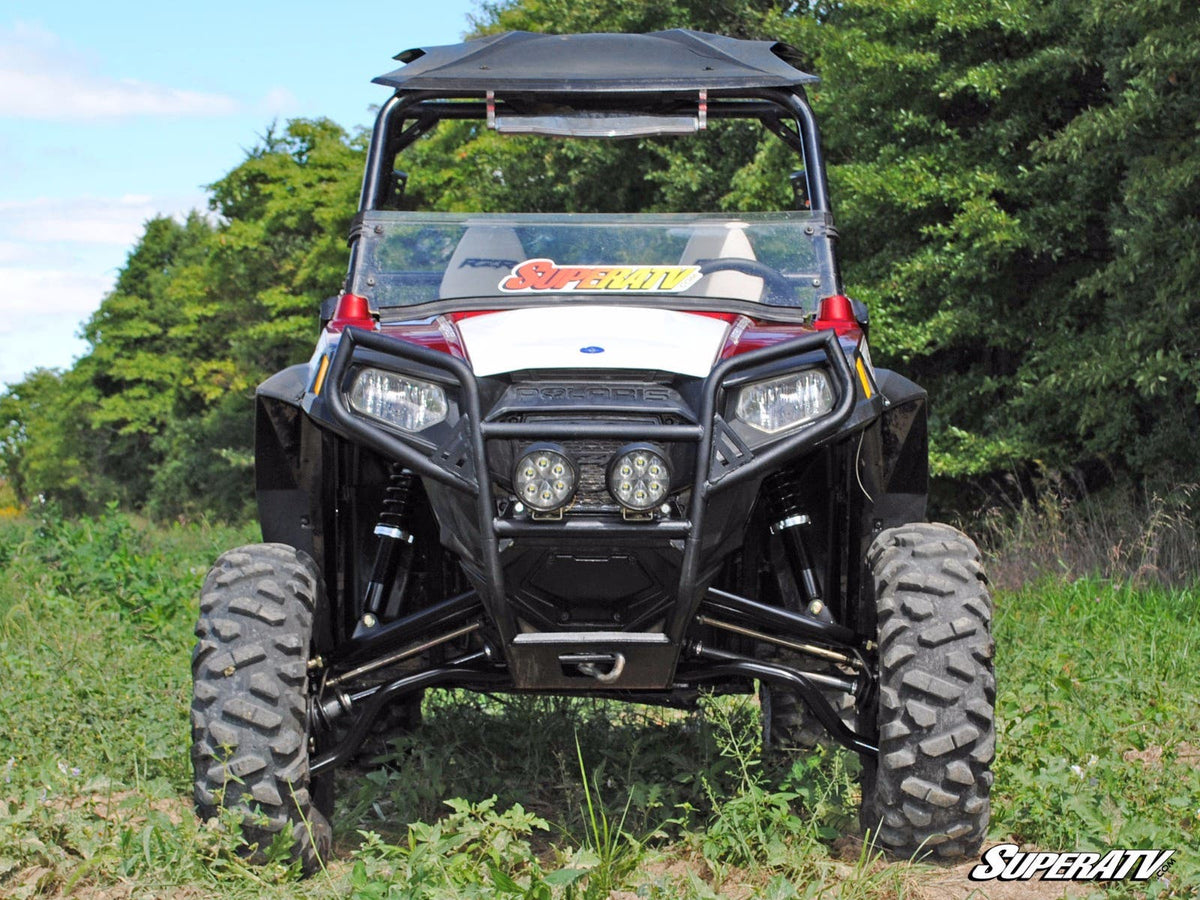

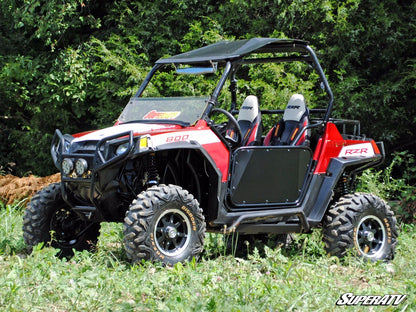

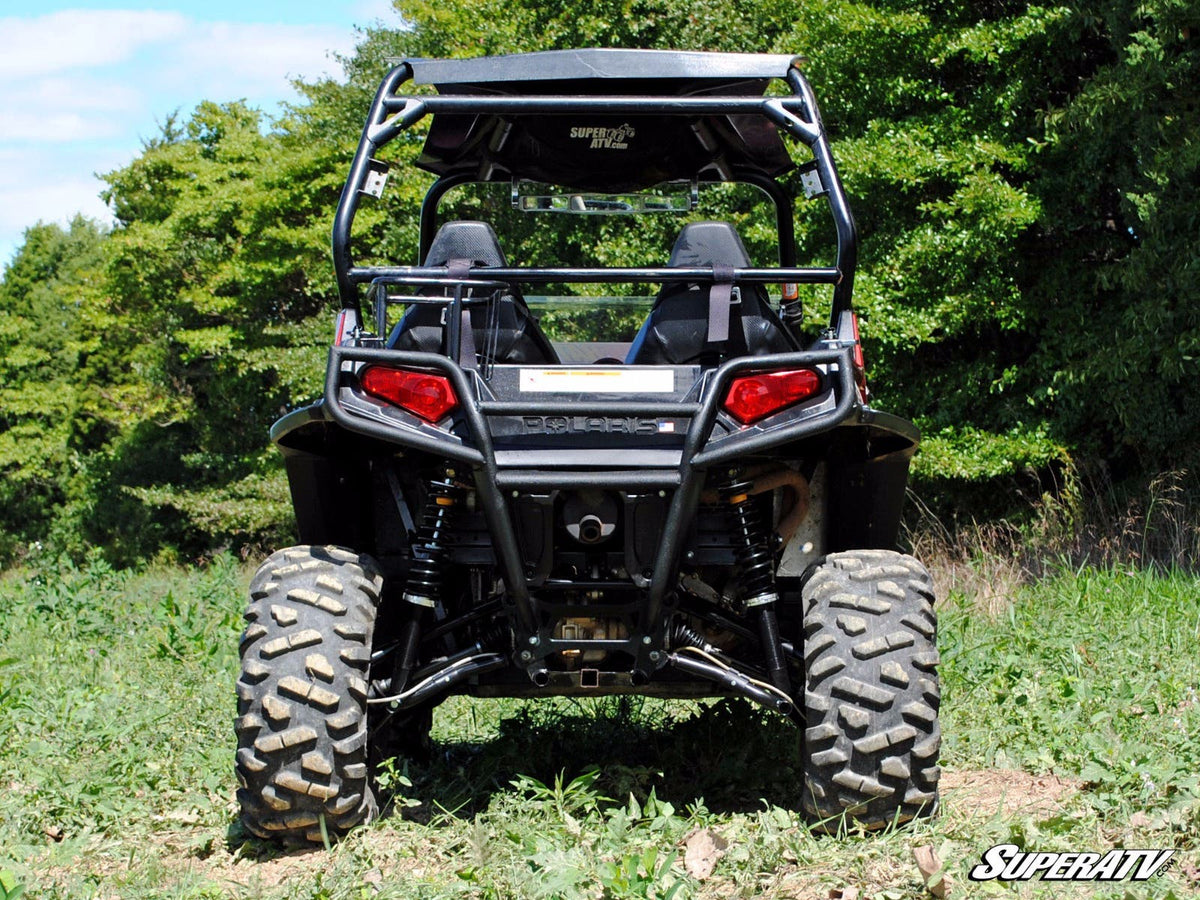

Turn Your RZR 800 into a More Capable Machine

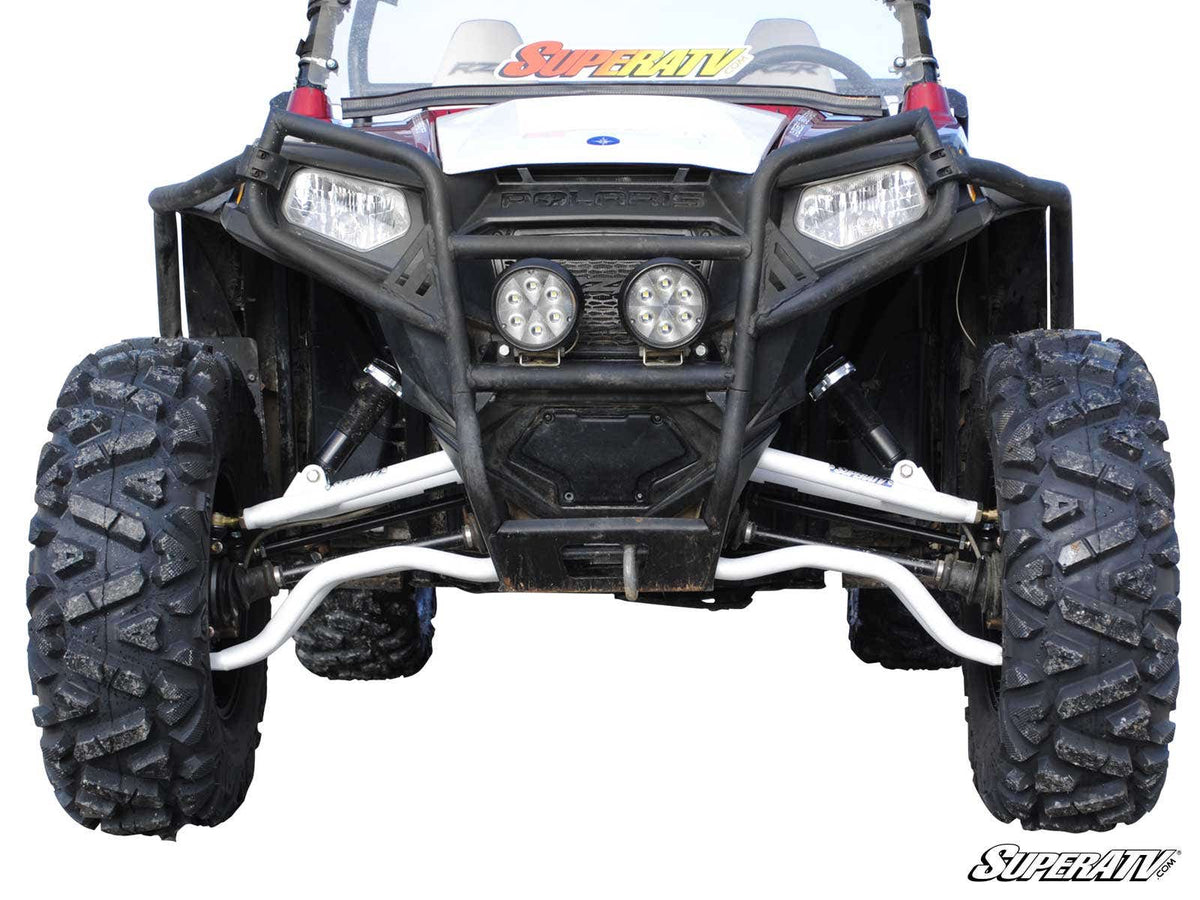

Ready to hit the track? We took the traditional and made it EXCEPTIONAL. Upgrade your Polaris RZR 800 to RZR S 800 suspension with SuperATV’s 5” Long Tavel Kit. You get a 10” wider suspension width (60” total) and better clearance thanks to front and rear high-clearance A-arms. The result is a smooth, stable ride capable of serious performance no matter where you ride.
+10” total width (60” total)
Optional 1.5” forward and rear offset options
12” of ground clearance
Comes with everything you need
The SuperATV Difference
We know what you want, and we know how you want it. That’s why SuperATV’s Suspension Conversion Kit comes complete with 4 Rhino brand axles. It’s built strong so you can push it harder than your stock machine which means more fun and better performance. With 12” of ground clearance and 12” of wheel travel, you can cruise right over whoops, jumps, and hills with maximum control. Get it with the stock wheelbase or a 1.5” front and rear offset (3” total) for increased front to back stability.
Installs Easily on your RZR 800
This kit comes with everything you need for quick easy install—we include everything to completely rebuild your UTV suspension apart from ball joints and A-arm bushings. That means you get A-arms, tie rods, axles, swaybar links and a sway bar, all built better than stock. So get loaded and get rolling.
Comes with Rhino Brand Axles
We make Rhino Brand Axles with heavy-duty 4340 chromoly steel for superior strength and a longer fatigue life. We designed our CVs to eliminate a break-in period and give you higher articulation angles. Get lifted and ride with confidence knowing these Rhino Axles will take you through mud, dunes, and ditches.
Upgrade to Rhino 2.0 Axles
If you’re like us, you like to keep that pedal pinned as much as possible. You’re the kind of rider we made Rhino 2.0 Axles for. They take your conversion kit to the next level with maximized components and hardened chromoly steel construction. The oversized CVs give you 40°+ articulation angles and the beefier shaft gives you unmatched strength. Altogether, they’re nearly twice as strong as the stock equivalent. Plus, they’re backed by an 18-month warranty.
Features
- Converts your RZR 800 to RZR S 800 width
- Stock Wheelbase (0) or (1.5") 1.5" front and 1.5" rear offset for longer wheel base
- 12" ground clearance
- 12" wheel travel
- High-clearance A-arms
- Includes 4 SuperATV Axles (Rhino or Rhino 2.0)
- Re-uses your existing stock RZR 800 length shocks
- Does not include lower ball joints
- Utilizes rear sway bar
- Must re-use existing bushings or order new ones from SuperATV
- Includes steering stop kit
Rhino 2.0 Features
- 100% stronger than stock
- Massive 4mm increase in size
- Constructed of 4340 chromoly steel and finished with a proprietary heat treatment
- Industry leading 18-month warranty
- Field and lab tested for extreme strength and endurance
- CAD drawn for expert precision
- 18-month warranty
- Rhino Brand Axles Features
- High articulation angles
- Industry leading 4340 chromoly shaft for unmatched longevity
- Precision engineered cage and housing for reduced friction and a smooth range of motion
- Synthetic grease to keep CVs cool each time you ride
- 1-year warranty
Fitment (per SuperATV)
Polaris RZR 800 : 2008-2014 Polaris RZR S 800 : 2009-2014 Polaris RZR 4 800 : 2010-2014
Installation instructions (PDF)
Ships free from SuperATV. Price is SuperATV's current price.
