Why You’ll Love It
4” Portal Lift adds ground clearance directly at the hubs 15% or 30% Gear Reduction adds torque and relieves drivetrain stress Selectable Idler Setup lets you choose dual- or single-idler gearing Cast or Billet Housings let you choose the construction that fits your build Limited Lifetime Warranty protects your purchase
Dual Idlers and Tons of Performance
If you want to redefine your Can-Am Commander with unstoppable power and performance, you need SuperATV’s 4” GDP Portal Gear Lift. You get to choose a 15% or 30% gear reduction and whether you want a cast or billet housing. Love big tires and big mud holes? Get a 30% reduction. Prefer keeping your tires closer to stock for trail riding? Go with a 15% reduction. And if you drive like mad and regularly bust up your parts, upgrade to dual idlers for ultimate strength. Ride the way you want where you want—GDP will take you there.

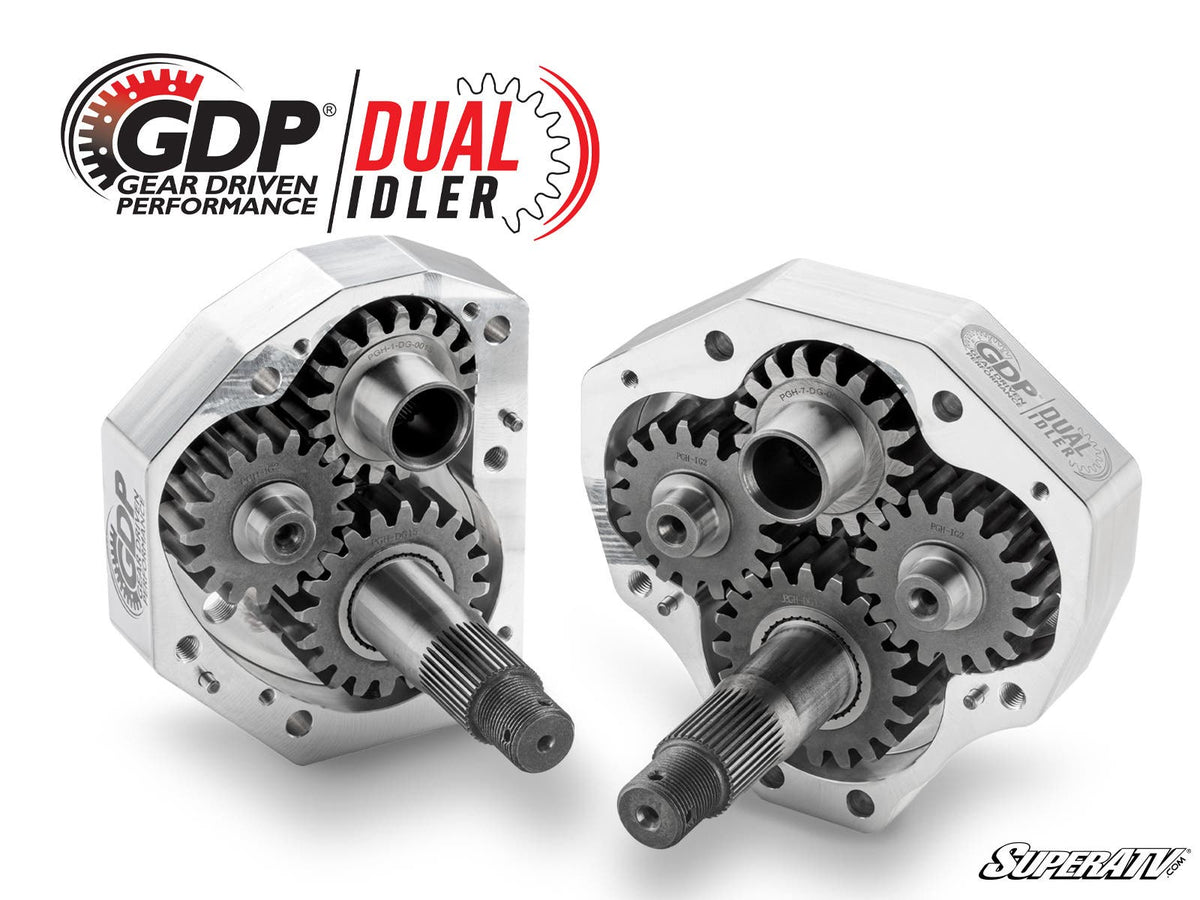

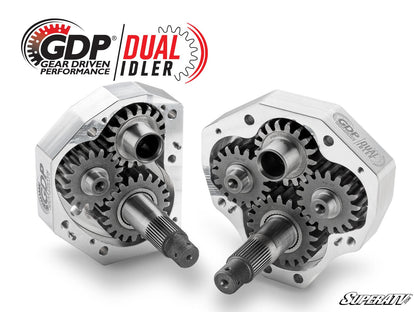

What is a Dual Idler?
Perfection takes time. After years of research and development, we’ve made our dual idler gear portals unlike any other. By placing a second idler gear in the portal box, the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears don’t do a thing if they’re not mated perfectly, though. Precision CNC grinding ensures ours do. Our gears are made from the industry’s toughest 9310 steel alloy. Didn’t think dual idlers mattered? With GDP’s quality and experience, they finally do.
Enhance Your Ride Through Any Terrain
Whether you dominate the dunes, trails, or mud pits, GDP will make your experience better. A 15% gear reduction will give you faster rides that pack enough torque to get wild, and the 30% option is perfect for gearing down and going big with monster tires. And if you’re the kind of rider who regularly pushes your machine to its breaking point, you’ll want to grab some dual idlers. Our Can-Am Commander portals have all the strength you need to push it to the limits.
A Gear Reduction That Protects Your Drivetrain
Portals put their gear reduction right in the hub. At the same time that it’s boosting your torque, it’s also protecting your drivetrain. It reduces stress on your axles, differential, prop shaft, and transmission so you can ride harder than stock and do less damage than stock.
Stronger Portals Through and Through
GDP Portals are the strongest on the planet, so if you’re wondering whether they can handle the trail abuse you’re used to, rest assured they can. They’re available in cast and billet aluminum housings that come paired with our 5/16” backing plates. Thanks to our robust construction using an advanced steel alloy, you get absolutely unbeatable Commander portals.
Our housings are reinforced for gear retention and optimized for oil flow
Advanced steel alloy backing plates are stronger than chromoly
Enhance with Portal Blood—gear oil formulated for GDP Portals
There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
Advanced Gaskets, Seals, and Bearings
Our portals use
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
- Double-angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing

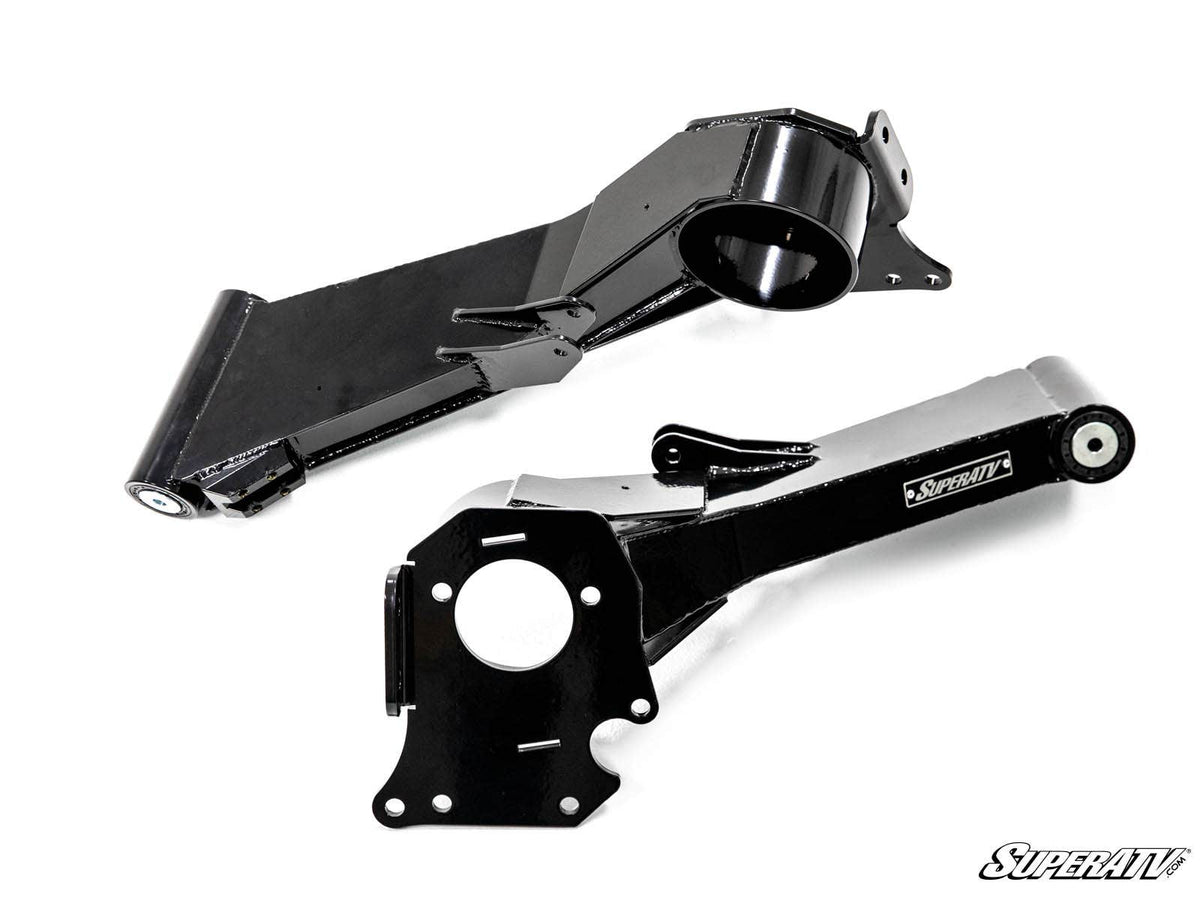

- 2011-2020 Models Get Extended Trailing Arms Designed for Rhino Axles
The 2011-2020 Commander portals come with 4” extended rear trailing arms. That extended wheelbase gives you more stability and clearance for larger tires, and the trailing arms come complete with all bearings. Because of that longer wheelbase, these portals require Rhino or Rhino 2.0 axles. They’re built for the high articulation you get with a longer wheelbase, and their chromoly shaft and CV joints make them super strong and durable for any riding application.
Complete the Package with a Frame Stiffener
Portals and monster tires are fun, but they can place additional stress on your machine’s frame. To make your suspension bulletproof, we recommend adding a SuperATV Frame Stiffener when you install your new Can-Am portals!
Top-Rated Customer Service
Still need a little help getting exactly what you need? We’ve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.
4” Portal Gear Lift Includes
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (2) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (2) Caliper adapter plates (2011-2020 models only)
- (2) Steel steering arms
- (2) 4” extended rear trailing arms with backing plates (2011-2020 models only)
- Extended brake lines (Except for PGH-7-14-303-02)
- All required hardware, including recessed castle nut socket
NOTE: 2011-2020 models require Rhino or Rhino 2.0 axles.
2011-2020 Can-Am Commander Portal Max Tire Sizes
Tire Size Required Suspension Setup with 4" Portals
29" Stock
32" 1.5" Forward Front A-Arms
32" 2.5" Lift Kit
36" 1.5" Forward Front A-Arms and 2.5" Lift Kit
If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator.
Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.
2021+ Can-Am Commander Portal Gear Max Tire Sizes
Tire Size Required Suspension Setup with 4" Portals
34" Stock
If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator.
Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.
Patent # 11,299,042
Patent # 11,318,787
Features
- Available with billet or cast aluminum housings
- Dual idler gear configuration maximizes strength
- Cool, quiet, precision ground gears made from 9310 alloy billet steel
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use advanced gaskets that don’t let anything through
- Universal hubs can be set up to work with the following bolt patterns: 4/156, 4/137, 4/115, and 4/110
- Gear reduction reduces stress on your drivetrain
- Dual idler gear configuration adds a 3/4” front and rear offset—1.5” total extension
- Lighter than the competition
Fitment (per SuperATV)
Can-Am Commander 800 : 2011-2020 Can-Am Commander 800 Max : 2016-2020 Can-Am Commander DPS with 220mm rotor : 2018 Can-Am Commander XT with 220mm rotor : 2018 Can-Am Commander 1000 : 2011-2020 Can-Am Commander 1000R DPS : 2021+ Can-Am Commander 1000R XT : 2021+ Can-Am Commander 1000R XTP : 2021+ Can-Am Commander 1000R XMR : 2022+ Can-Am Commander Max 1000 : 2014-2020 Can-Am Commander Max 1000R DPS : 2021+ Can-Am Commander Max 1000R XT : 2021+ Can-Am Commander Max 1000R XT-P : 2023+ Can-Am Commander Max 1000R XMR : 2024+
NOTES (2011-2020 models)
- Not compatible with SuperATV 6" lift kit
- Not compatible on Commanders with factory air shocks
- Requires Rhino or Rhino 2.0 axles
Wheel Requirements
- 14” or larger wheel required
- Wheels cannot exceed 5” backspacing
- Not compatible with dual beadlock wheels
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer
Installation instructions (PDF)
Ships free from SuperATV. Price is SuperATV's current price.
