Can-Am Commander Extended Rear Trailing Arms

Can-Am Commander Extended Rear Trailing Arms
Take your
Commander to the next level with SuperATV's +4 extended rear trailing arms.
Get an additional 4" of wheelbase and take your Commander to places it's never
been before! Perfect for larger tires, improved hill climbing stability, and
exceptional performance. SuperATV's arms are skillfully designed to maintain
factory alignment. What does this mean for you? No added wear and tear on
important components such as axles and tires! We make it strong with heavy-
duty laser-cut steel plating and we back it with a Lifetime Warranty? With our
trailing arms you can push the envelope and ride harder than you ever have
before—SuperATV’s got your back. To give your machine the Ultimate clearance
and fit up to 33” tires pair with 2.5" Lift Kit and our High Clearance Forward
A-Arms.

Includes PreInstalled Bearings

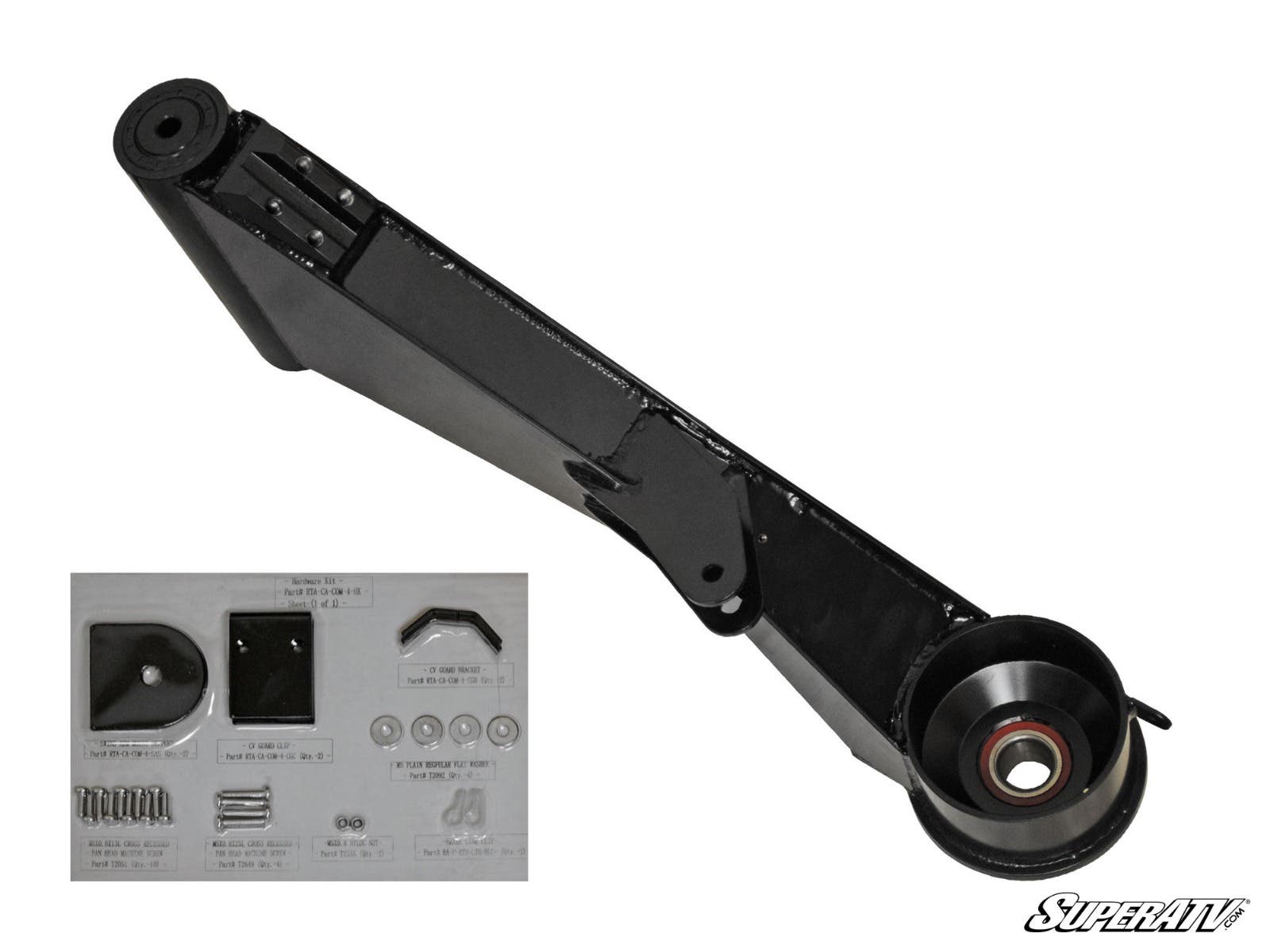

You get the complete package with SuperATV +4 extended trailing arms. Each kit
includes 10 preinstalled bearings giving you a hassle-free, at home
installation and no need to pay extra to have your old bearings exchanged. We
give you 8 swing arm pivot bearings and 2 wheel bearings, a $380 value
preinstalled free for you!

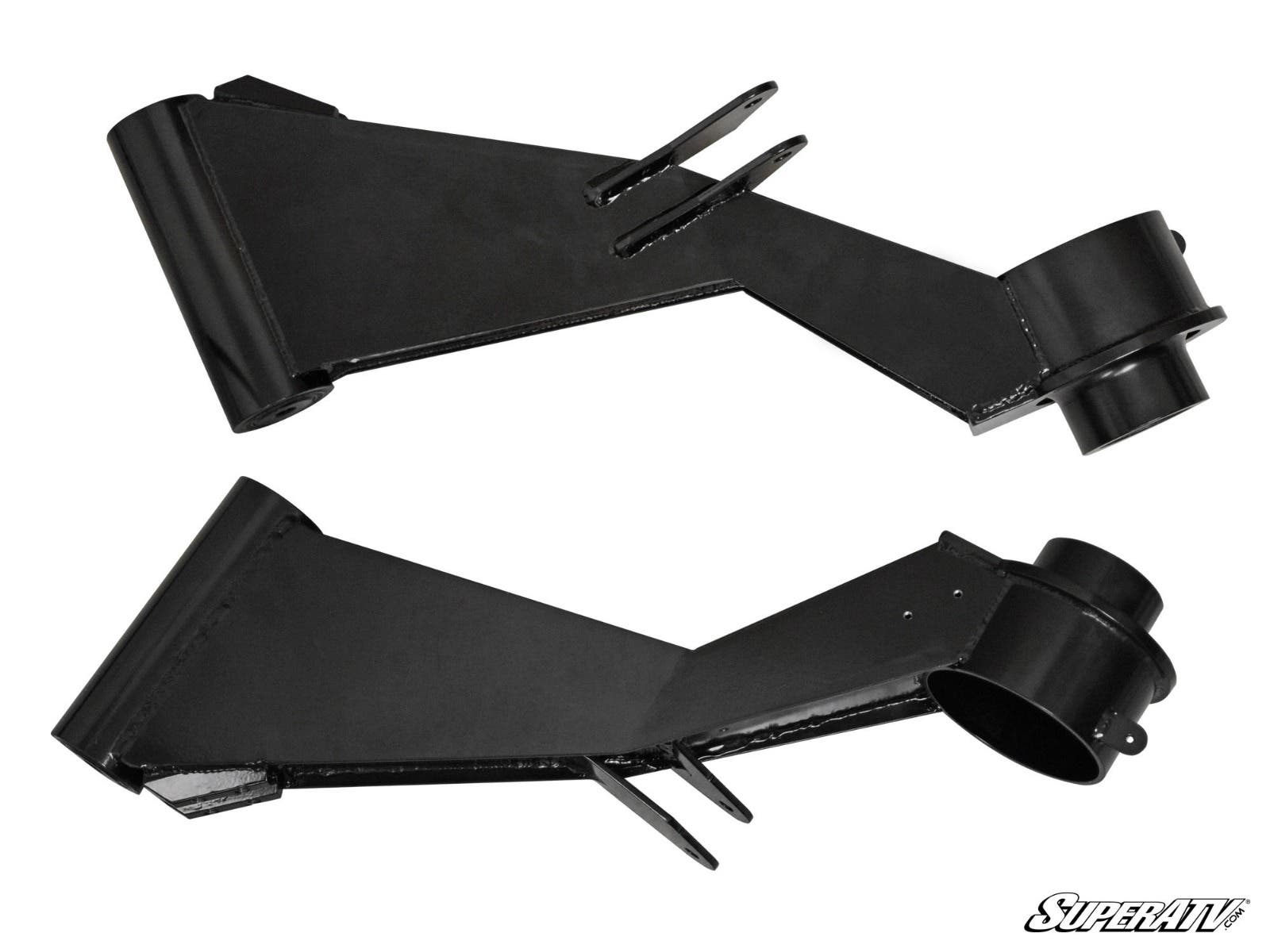

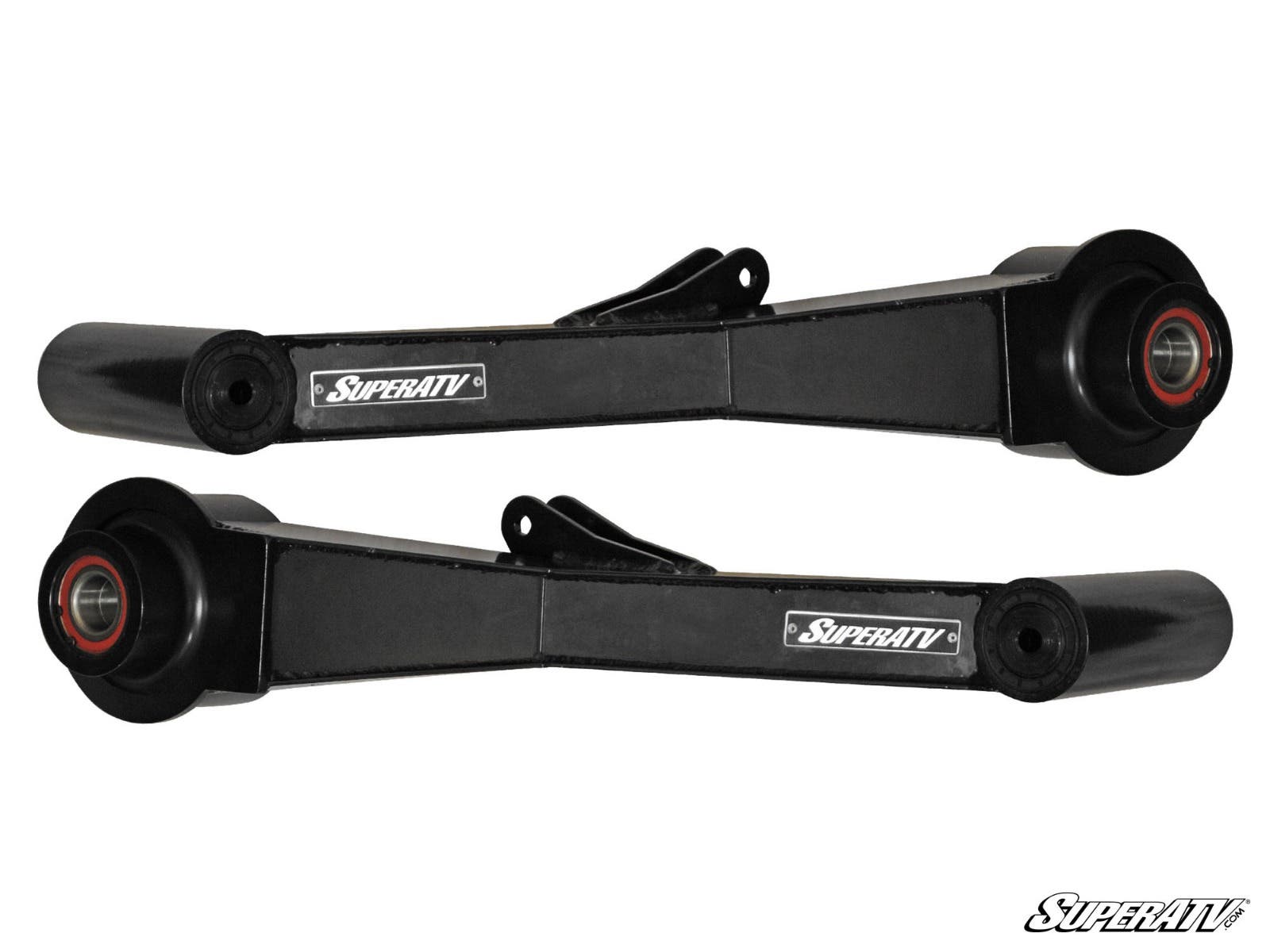

To ensure we deliver a product that
exceeds your expectations, SuperATV's extended trailing arms are carefully
crafted in state of the art CAD software, TIG welded and finished with a high-
quality powder coat to show off your ride. Backed by a Lifetime Warranty,
these arms designed to withstand whatever abuse you can put them through.

Better with Rhino Axles
Rhino and Rhino 2.0
axles are a perfect companion for Commander 4” Rear Trailing Arms. They have
ultra-high 40°+ articulation so they can handle the extra length and have the
strength to match. Rhino and Rhino 2.0 axles are the only axles that have been
fully tested with these trailing arms and won’t bind or break at full
extension. Get the best high-articulation axle out there with Rhino and Rhino
2.0 axles.

The Commander rear trailing arms are designed to be
used with Rhino Brand Axles.

Suspension Setup	Max Tire Size
High Clearance Forward Offset A Arms w/ Extended Trailing Arms	32"
2.5" Lift Kit & High Clearance Forward Offset A Arms w/ Extended Trailing Arms	33"

Suspension Notes:
12" or smaller wheels require 1" Wheel Spacers in the rear of the machine. The Rear Trailing Arms will NOT work with Air Shocks.

FEATURE

• Extends wheelbase by 4 inches
• Run up to 32" rear tires with
  no lift!
• Compatible with lift kits
• Includes 10
  preinstalled bearings
• Maintains factory alignment
• Reuses
  factory sway bar
• UV-resistant gloss black powder coat finish


• Backed by a Lifetime Warranty!

Fitment

• Can-Am Commander 800 : 2011-2020
• Can-Am Commander 1000 :
  2011-2020

NOTE:

• Does NOT fit MAX
  models
• 12" or smaller wheels require 1" Wheel Spacers in the rear of
  the machine


• Does NOT work with Air Shocks
• Requires Rhino or Rhino
  2.0 axles
