Upgrade to RackBoss 2.0 No matter how nice you are to
your rig, every rack and pinion wears out eventually—except ours. If you want
an upgrade that’s built to last, get SuperATV’s Can-Am Defender HD5 RackBoss
2.0 Rack and Pinion. Our patented X24 technology and unique dual-bushing
design reduce wear by over 50% compared to stock. RackBoss 2.0 is the perfect
rack and pinion for upgrades like huge tires, big lifts, or anything that adds
lots of weight. If you want the best of the best, you can trust SuperATV.
Dual-Bushing Design Hard work is hard on your
machine. We built RackBoss 2.0 to keep up. Our X24 tech uses durable PTFE
bushings on both ends that remove play from the internal gears and tension
spring. Eliminating unneeded movement reduces wear and tear.
We
include a built-in grease fitting for maintenance after a weekend of rough
riding in the mud and muck. Altogether, this RackBoss 2.0 easily lasts twice
as long as any other rack and pinion.

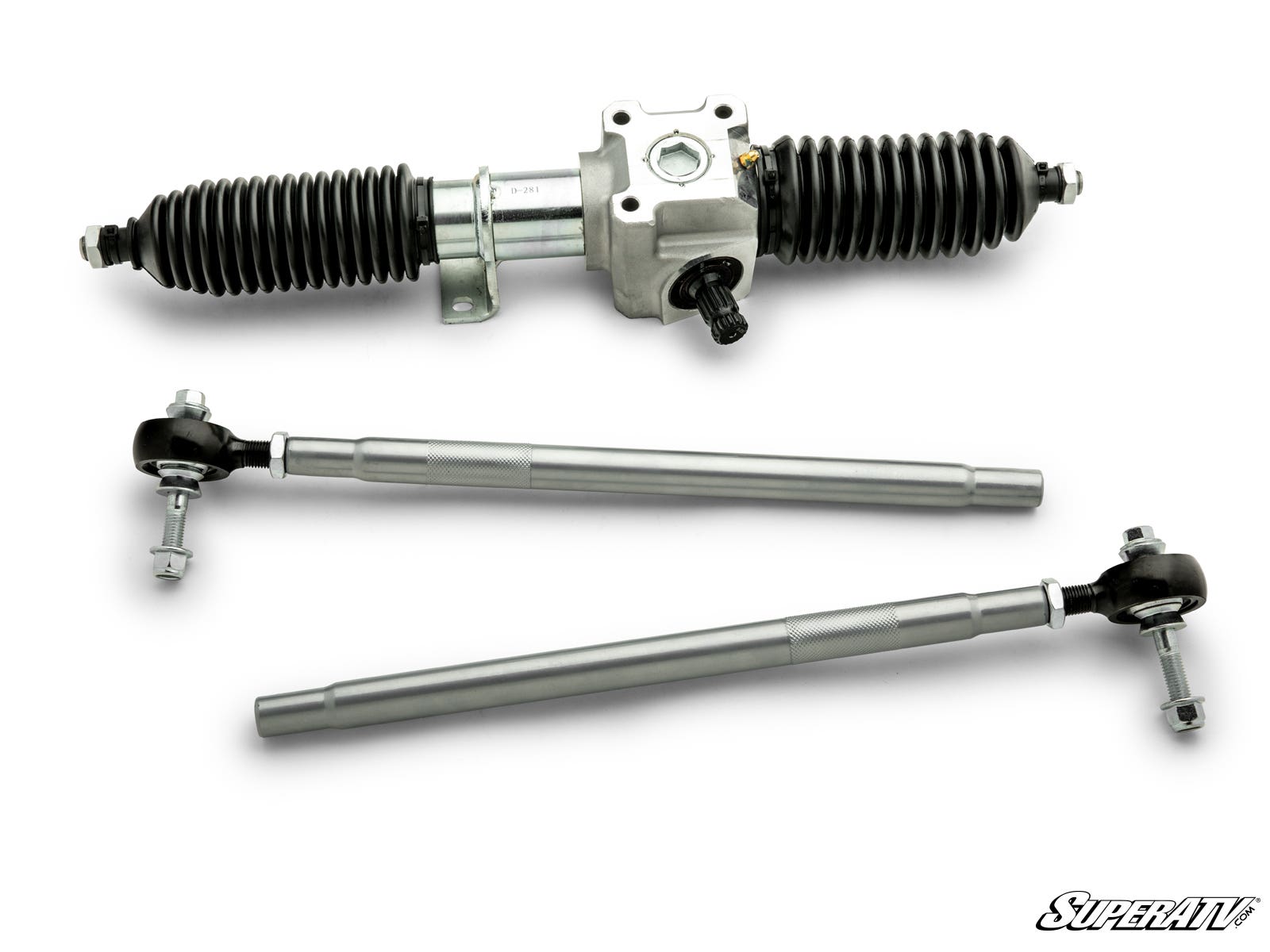

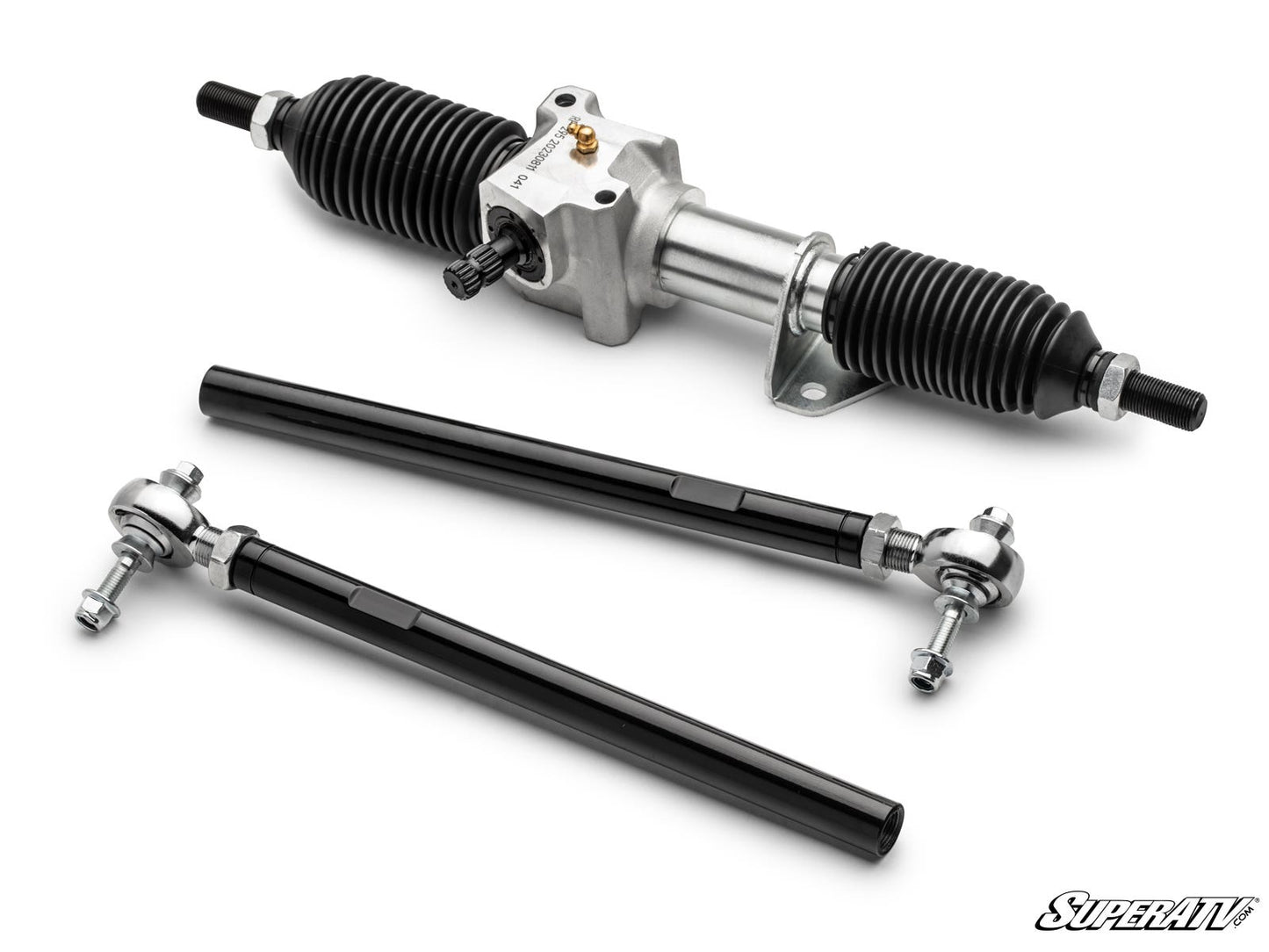

Swaged Tube Tie Rods
When it comes to strength and weight balance, our swaged steel
tube tie rods are an ideal option. The swaged design greatly enhances the
toughness of the 7/8” diameter tubing. They’re also equipped with 16 mm inner
ball and sockets, along with 14 mm outer tie rod ends, giving you extra
strength in crucial areas. If you’re a casual rider looking for enhanced
performance compared to your stock setup, these tie rods are exactly what
you’re looking for.

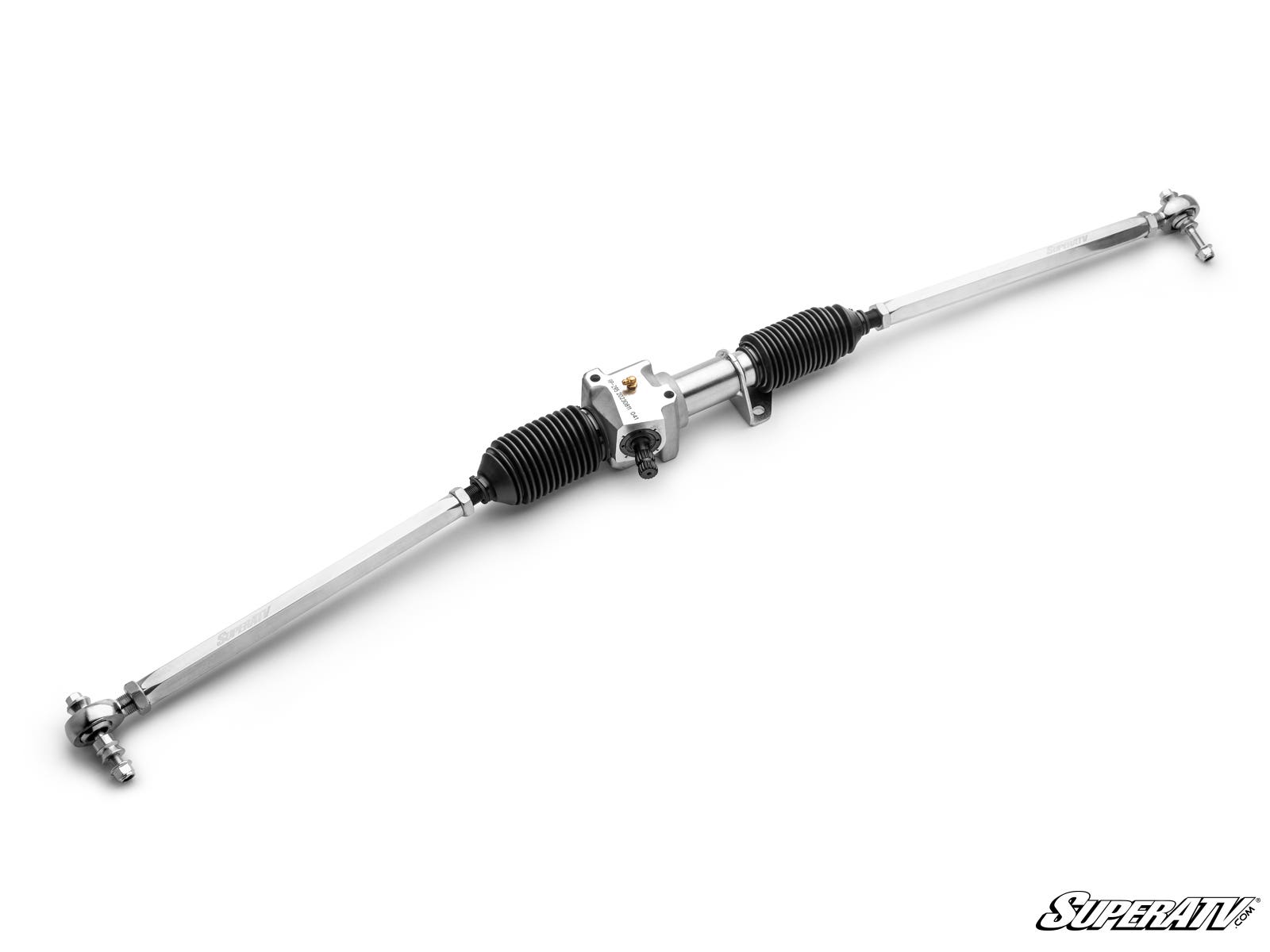

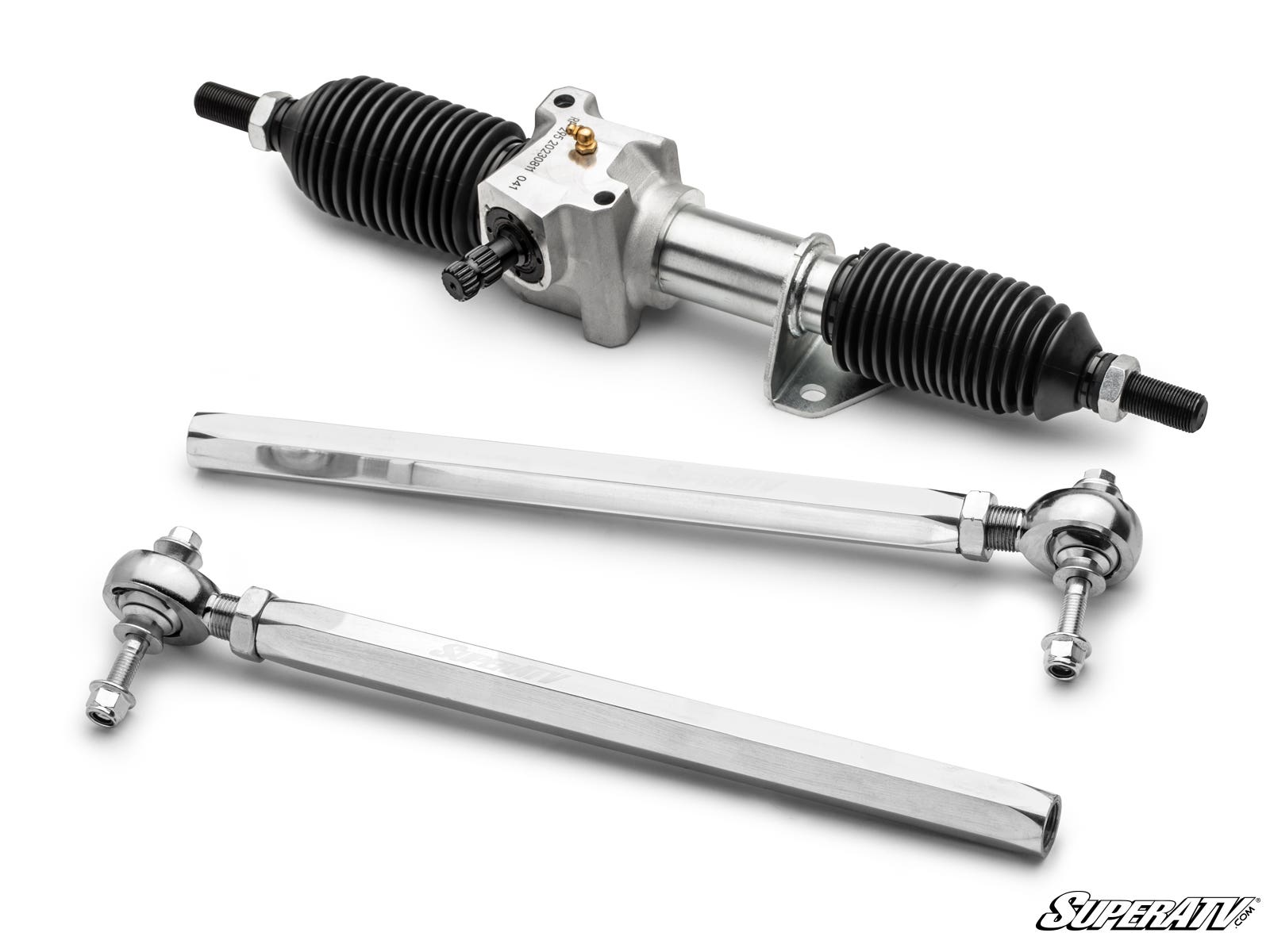

Solid Steel Bar Tie Rods You want to make sure you have a tie rod that can withstand how you ride—our
solid steel bar tie rods are the way to go. They’re made with 1” diameter
steel bars. And they’re paired with bigger and better 3/4” outer heim joint
tie rod ends. That’s not all—they also have adjustable inner tie rod ends that
use 3/4” rod threads and 16 mm rack threads. What does all that mean? They’re
built for hard rides and can handle heavy hits.
| | RackBoss 2.0 Swaged Tie Rod | RackBoss 2.0 Solid Steel Tie Rod |
X24 Tech Dual-Bushing
Design | ✔ | ✔ |
Inner Ball and Socket
Thread Diameter | 14 mm rod threads, 16 mm
rack threads | 3/4” rod threads, 16 mm rack
threads |
Outer Tie Rod End
Thread Diameter | 14 mm | 3/4” |
Tie
Rod Material | Steel tube | Solid steel bar |
| Greasable | ✔ | ✔ |
Inner
Boots | ✔ | ✔ |
Steering Stop
Kit | ✔ | ✔ |
Misalignment Bushings,
Tie Rod Studs, & Hardware | ✔ | ✔ |
Patent No. 11,345,393
FEATURE
- Heavy-duty dual PTFE bushings:
- Designed with X24 Tech
- Prevents wear
- Reduces slop
- Improves overall
durability
- Available tie rod options:
- Swaged
steel tube - Solid steel bar
- Solid steel tie rods
use: - 3/4” outer tie rod ends
- Rebuildable inner tie rod ends
that use 3/4” rod threads and 16 mm rack threads
- Swaged
tube tie rods use: - 14 mm outer tie rod ends
- Rebuildable
inner tie rod ends that use 14 mm rod threads and 16 mm rack threads
- 65% larger housing than stock
- Over 50% less wear than
OEM after 15,000 cycles - Grease fitting for rack gears
Fitment
- Can-Am Defender HD 5 : 2017-2021
- Can-Am Defender HD 5 DPS :
2017-2019
Replaces OEM Part#: 709402317 and
709401509
