Get Control Over Your Steering It's only a matter of
time before your worn-out Defender rack becomes another thing on your to-do

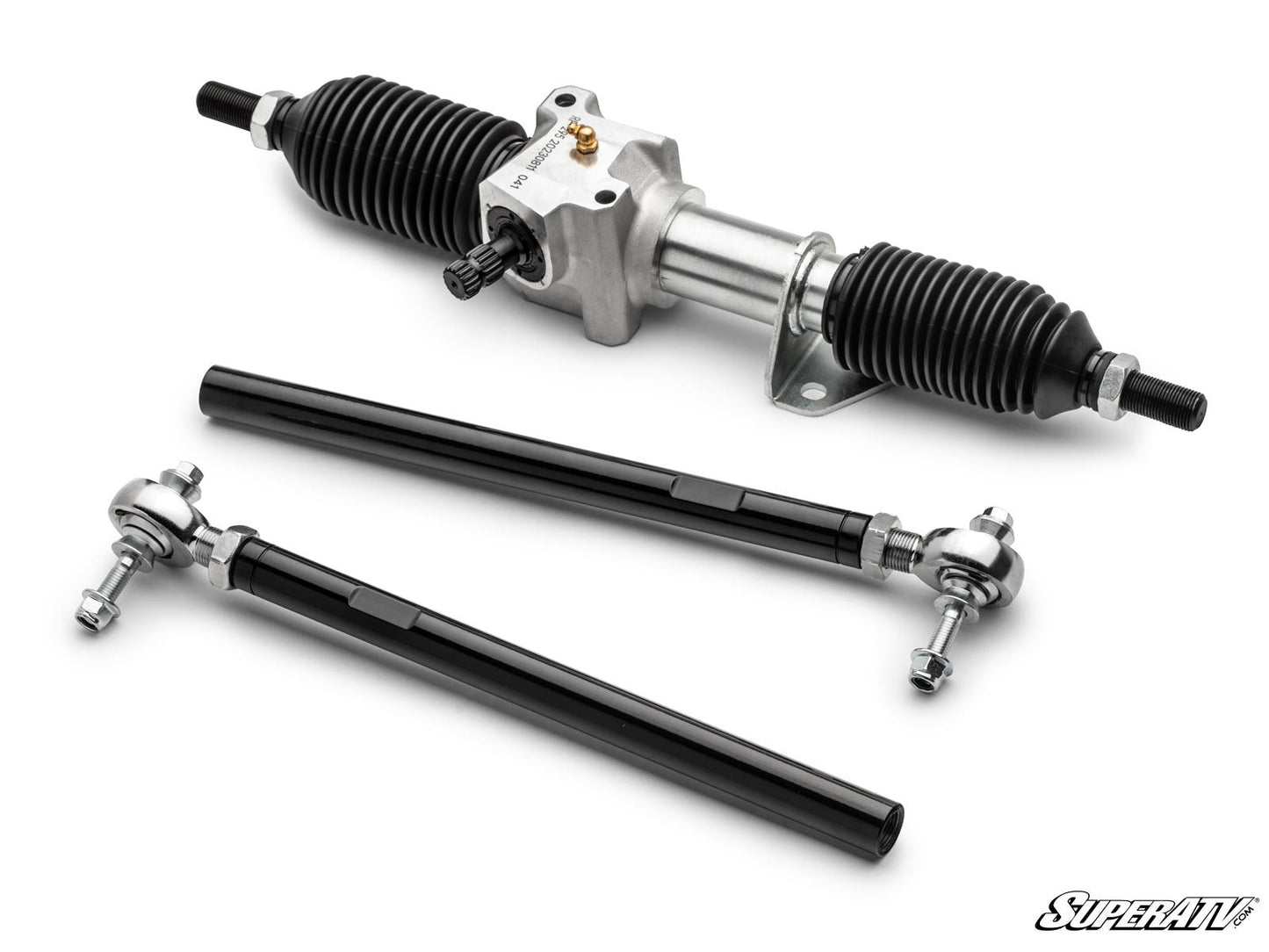

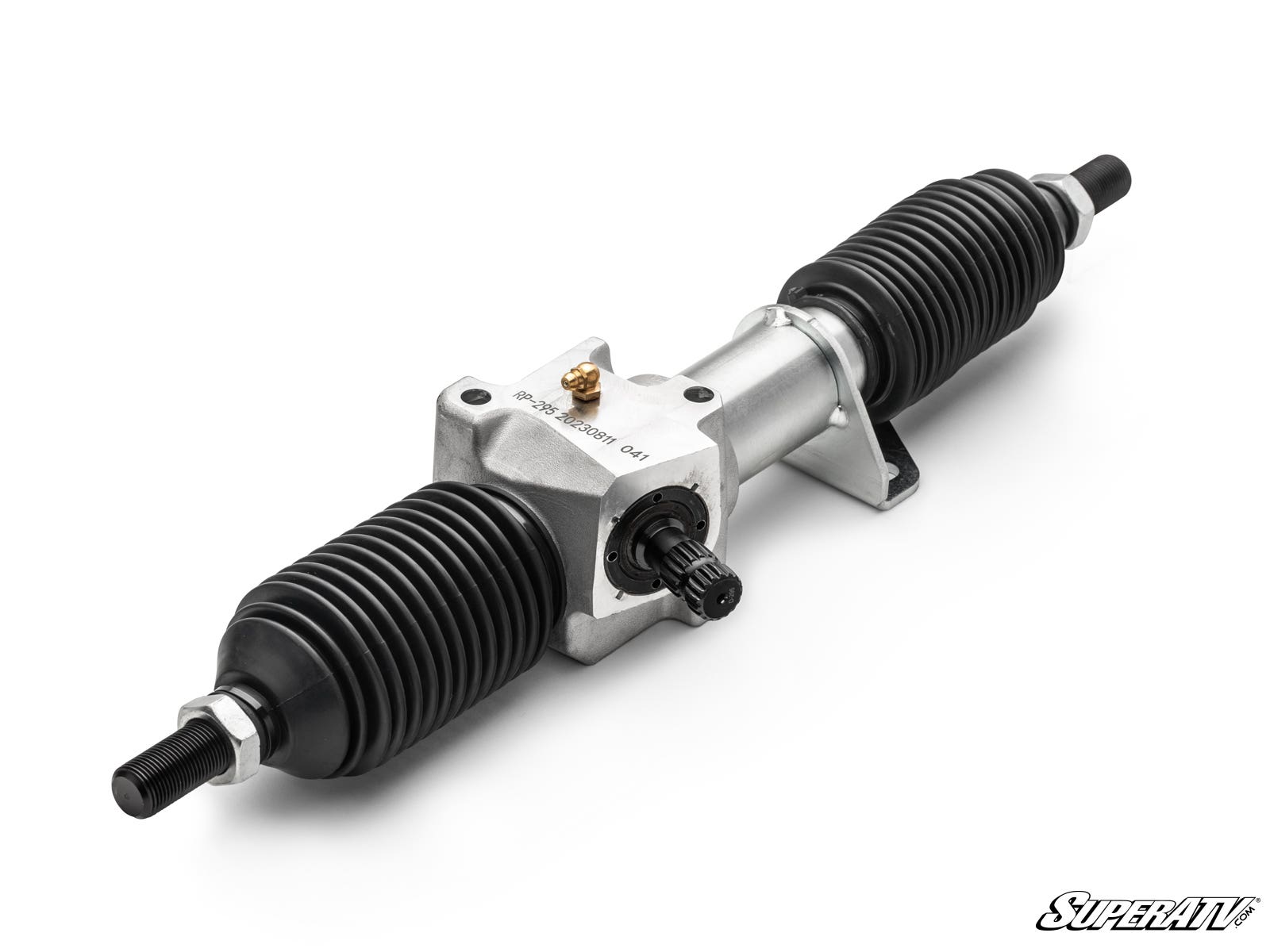

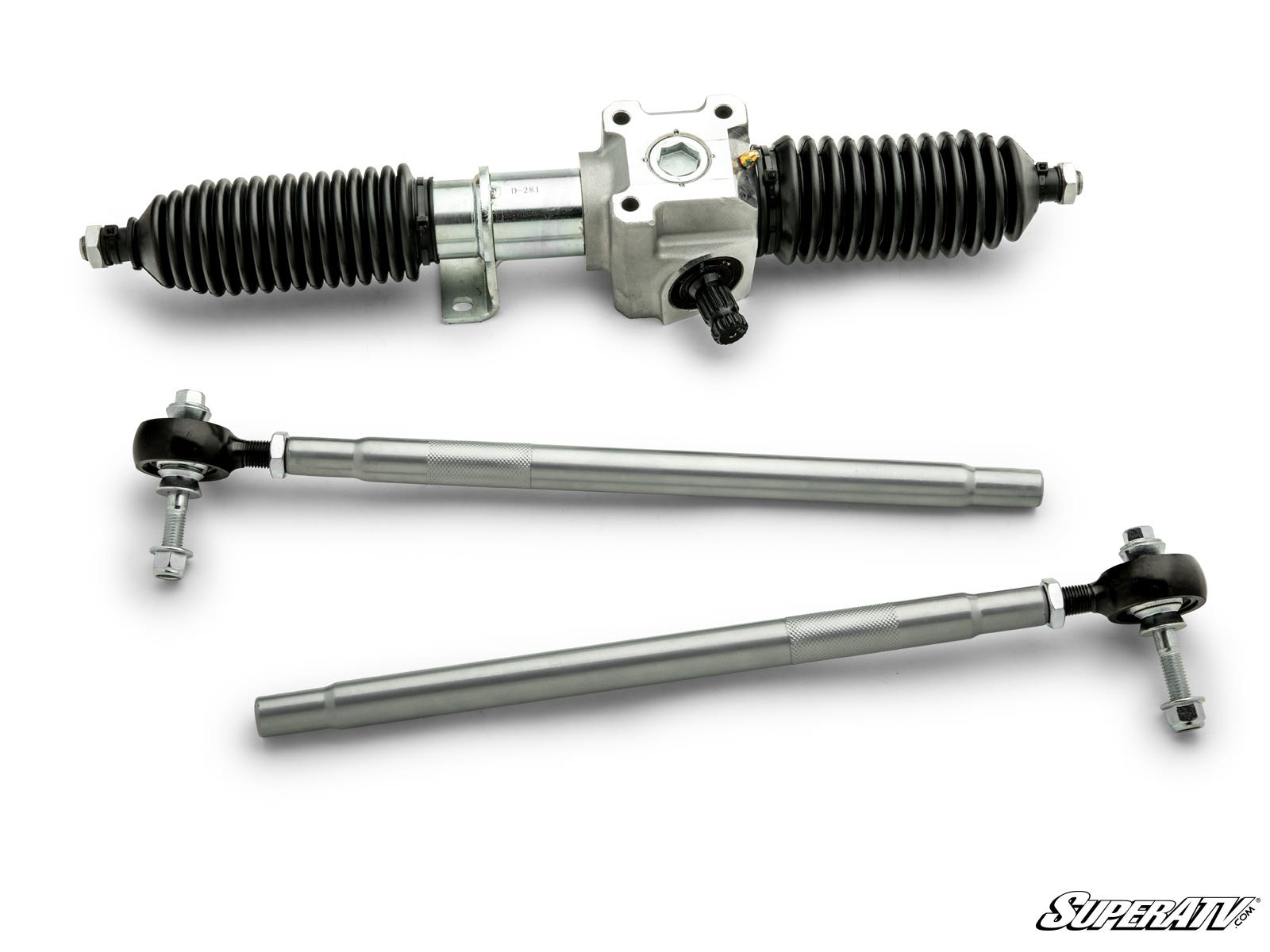

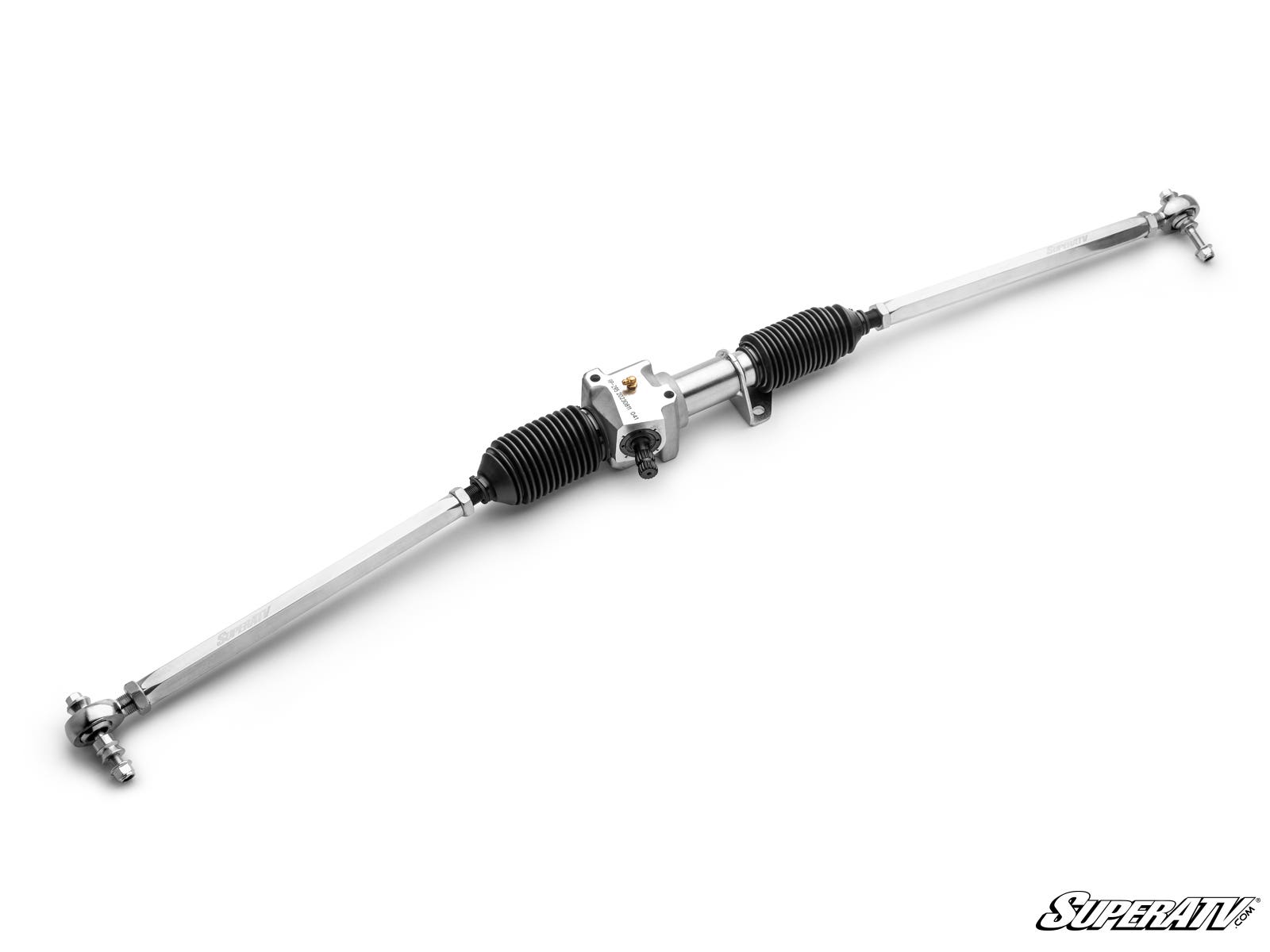

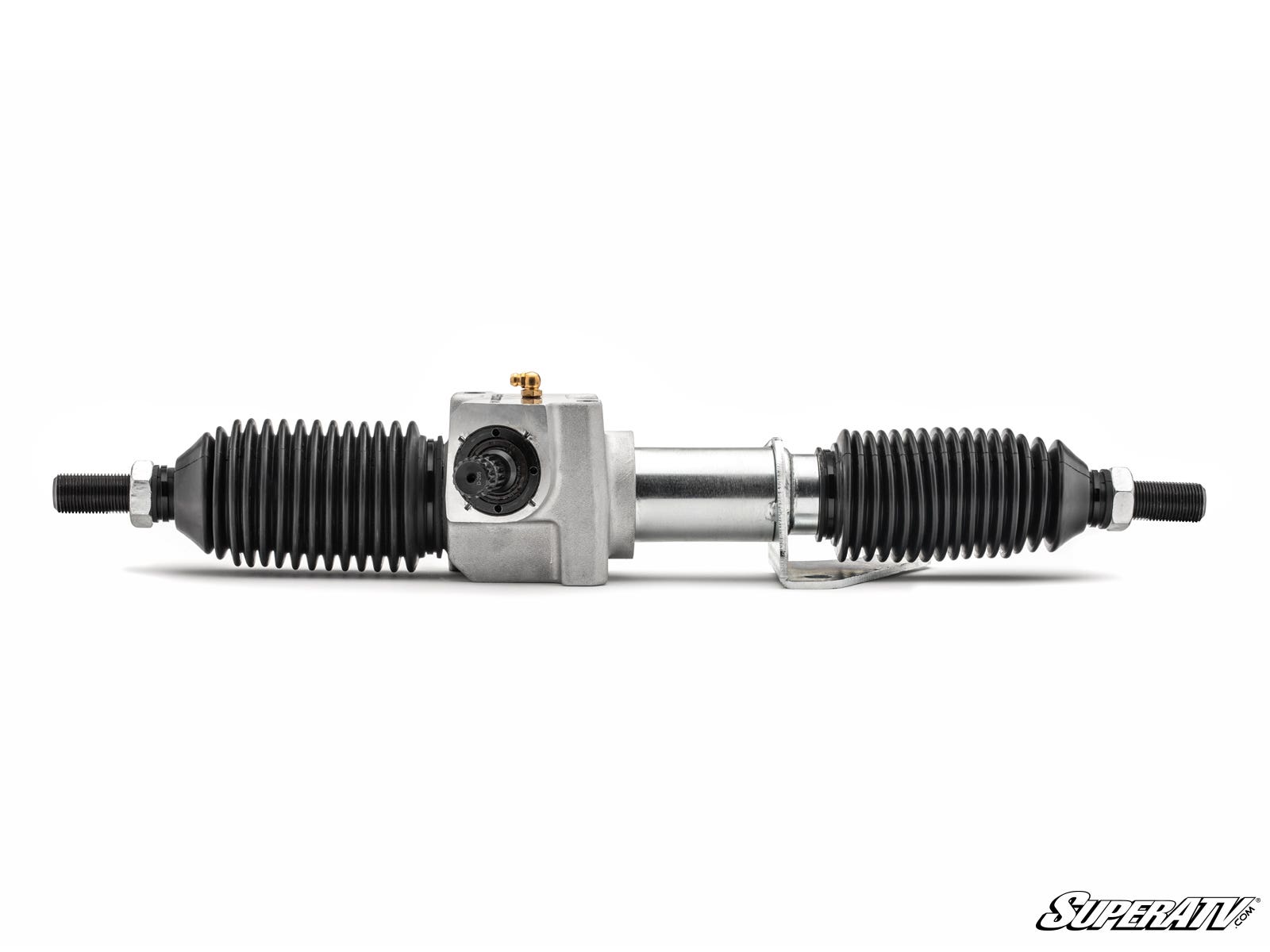

list. Replace it with the best-of-the-best: SuperATV's Can-Am Defender HD7
RackBoss 2.0 Rack and Pinion. Our patented X24 Tech incorporates bushings at
both ends of the rack, decreasing wear by more than 50% compared to stock.
Installing RackBoss 2.0 gives you reliable performance that will carry you
through the hardest jobs.
Innovative X24 Technology and Dual
Bushings Our dual PTFE bushing design eliminates the typical
wear and tear on a rack and pinion. With our X24 Tech, you get bushings at
both rack ends. This allows RackBoss 2.0 to handle big hits with larger tires
without wearing out quickly. The built-in grease fittings let you kick out all
the gunk that piles up when you go wild in the mud.
Swaged
Tube Tie Rods Our steel swaged tube tie rods maximize strength
without adding weight. The innovative swaged design enhances the longevity of
the 7/8" diameter tubing. And the 15 mm inner ball and sockets and 15 mm outer
tie rod ends improve and upgrade strength in the weakest spots. They're an
absolute must-have.

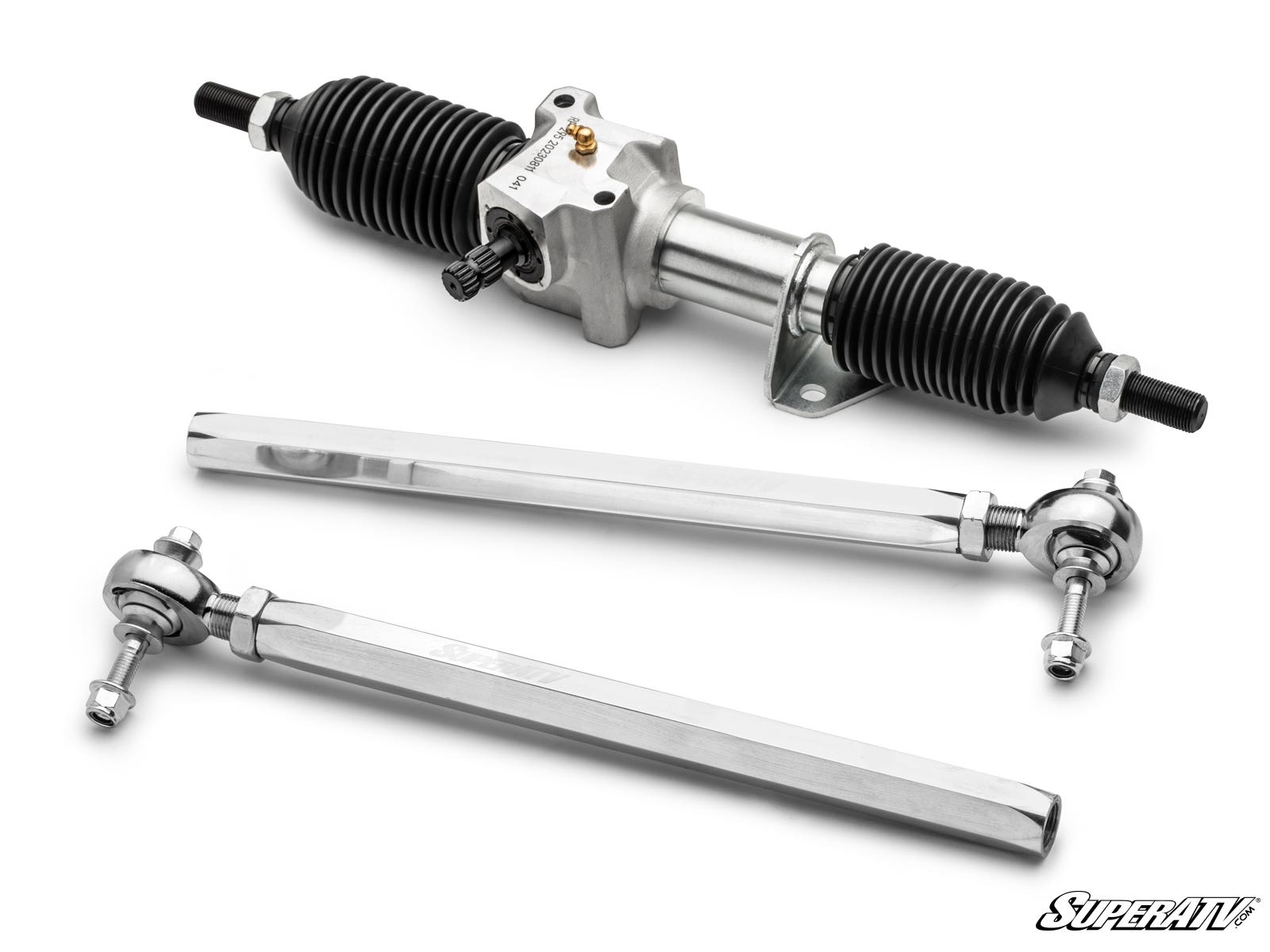

Solid Steel Bar Tie Rods You'll need a tough tie rod that matches your riding style. Our solid steel
bar tie rods are the top tier. They're crafted from 1" thick steel bars and
come with robust 3/4" outer heim joint tie rod ends. But that's not the end of
it—they also feature adjustable inner tie rod ends with 3/4" rod threads and
16 mm rack threads. What does this all mean? It means they're built to endure
rough rides and handle heavy blows.
| | RackBoss 2.0
Swaged Tie Rod | RackBoss 2.0 Solid Steel Tie Rod |
| X24 Tech Dual-Bushing Design | ✔ | ✔ |
Inner Ball and Socket Thread
Diameter | 14 mm rod threads, 16 mm rack
threads | 3/4” rod threads, 16 mm rack threads |
Outer Tie Rod End Thread
Diameter | 14 mm | 3/4” |
Tie Rod
Material | Steel tube | Solid steel bar |
| Greasable | ✔ | ✔ |
Inner
Boots | ✔ | ✔ |
Steering Stop
Kit | ✔ | ✔ |
Misalignment Bushings,
Tie Rod Studs, & Hardware | ✔ | ✔ |
Patent No. 11,345,393
FEATURE
- Heavy-duty dual PTFE bushings:
- Designed with X24 Tech
- Prevents wear
- Reduces slop
- Improves overall
durability
- Available tie rod options:
- Swaged
steel tube - Solid steel bar
- Solid steel tie rods
use: - 3/4” outer tie rod ends
- Rebuildable inner tie rod ends
that use 3/4” rod threads and 16 mm rack threads
- Swaged
tube tie rods use: - 14 mm outer tie rod ends
- Rebuildable
inner tie rod ends that use 14 mm rod threads and 16 mm rack threads
- 65% larger housing than stock
- Over 50% less wear than
OEM after 15,000 cycles - Grease fitting for rack gears
Fitment
- Can-Am Defender HD 7 : 2022+
- Can-Am Defender HD 7 DPS :
2022+ - Can-Am Defender MAX HD 7 : 2022+
Replaces OEM Part#: 709402317 and 709401509
