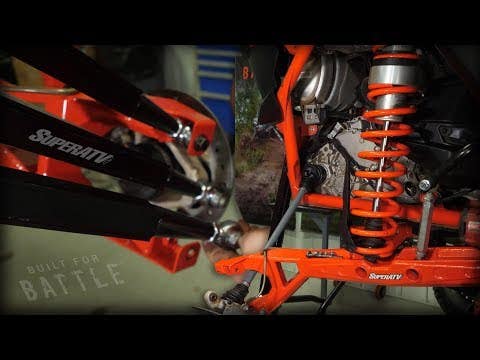

Can-Am Maverick X3 Boxed Radius Arms

Strength and Simplicity

SuperATV’s Boxed Radius Arms for the Can-Am Maverick X3 are made with reinforced pivot joints, heavy-duty steel, and internal gussets. They come pre-adjusted to OEM specs and include all new bushings. That means you can you install in a breeze and hit the trail hard. These rear radius arms are designed for the decisive rider that doesn’t let off the gas for the sake of his UTV.

Boxed and Gusseted for Maximum Strength

Our radius rods are made with the 1/8” heavy-duty steel plating and internal gussets. We designed it like an I-beam for unbeatable strength. The pivot joints are reinforced and gusset to make sure the typical stress points won’t break. Even the frame mount is engineered to be as strong as possible. What’s that do for you? Hit bigger jumps, climb wilder hills, and navigate rougher rock gardens—these radius arms are up for the task.

Easy Installation

SuperATV does the extra work for you by adjusting the heavy-duty heim joints to match stock specs, and we include all new bushings in the box. They’re ready to install right out of the box so you can get back to riding ASAP, and still have the camber adjustability you need if you decide to add a lift or larger tires. UTVs are about riding, not working in the garage.

Can-Am Maverick boxed Rear Radius Rods feature a Lifetime Warranty!

Features

• Made with 1/8” Heavy-duty steel plating
• Internal gusseting for maximum strength
• Reinforced pivot joints for added strength in high stress areas
• Heavy-duty 5/8 x 18 heim joints
• Includes all new bushings
• Heim joints pre-adjusted to match factory specs
• Heavy-duty frame mount design
• UV-resistant Powder Coating
• Lifetime Warranty!*
• *The heims included in this kit are considered wear and tear items, and SuperATV extends a 30 day warranty to the original purchaser that each and every one be free from manufacturer's defects.

Fitment (per SuperATV)

64” Models Can-Am Maverick X3 900 : 2018 Can-Am Maverick X3 Turbo : 2017-2020 Can-Am Maverick X3 Turbo R : 2018-2020 Can-Am Maverick X3 X DS Turbo R : 2017-2020 Can-Am Maverick X3 DS Turbo R : 2021 Can-Am Maverick X3 X DS Turbo RR : 2020-2021 Can-Am Maverick X3 X MR Turbo : 2018-2021 Can-Am Maverick X3 X RC Turbo : 2018-2021 Can-Am Maverick X3 MAX Turbo : 2017-2020 Can-Am Maverick X3 MAX Turbo R : 2018-2020 Can-Am Maverick X3 MAX X DS Turbo : 2017-2019 Can-Am Maverick X3 MAX X DS Turbo R : 2020 Can-Am Maverick X3 MAX DS Turbo R : 2021 Can-Am Maverick X3 DS Turbo 64 : 2022+ Can-Am Maverick X3 DS Turbo RR 64 : 2022+ Can-Am Maverick X3 X DS Turbo RR 64 : 2022+ Can-Am Maverick X3 X RC Turbo RR 64 : 2022+ Can-Am Maverick X3 X MR Turbo RR 64 : 2022+ Can-Am Maverick X3 MAX DS Turbo 64 : 2022+ Can-Am Maverick X3 MAX DS Turbo RR 64 : 2022+ Can-Am Maverick X3 MAX X DS Turbo RR 64 : 2022+ 72" Models Can-Am Maverick X3 X RC Turbo R : 2018-2020 Can-Am Maverick X3 X RC Turbo RR : 2020-2021 Can-Am Maverick X3 X RS Turbo R : 2017-2020 Can-Am Maverick X3 RS Turbo R : 2021 Can-Am Maverick X3 X RS Turbo RR : 2020-2021 Can-Am Maverick X3 X MR Turbo R : 2018-2019 Can-Am Maverick X3 X MR Turbo RR : 2020-2021 Can-Am Maverick X3 MAX X RS Turbo : 2017-2020 Can-Am Maverick X3 MAX X RS Turbo R : 2018-2020 Can-Am Maverick X3 MAX RS Turbo R : 2021 Can-Am Maverick X3 MAX X RS Turbo RR : 2020-2021 Can-Am Maverick X3 MAX X MR Turbo R : 2019-2021 Can-Am Maverick X3 MAX X MR Turbo RR : 2020-2021 Can-Am Maverick X3 MAX X DS Turbo RR : 2020-2021 Can-Am Maverick X3 RS Turbo RR 72 : 2022+ Can-Am Maverick X3 X RS Turbo RR 72 : 2022+ Can-Am Maverick X3 X RS Turbo RR w/ Smart-Shox 72 : 2022+ Can-Am Maverick X3 X RC Turbo RR 72 : 2022+ Can-Am Maverick X3 X MR Turbo RR 72 : 2022+ Can-Am Maverick X3 MAX RS Turbo RR 72 : 2022+ Can-Am Maverick X3 MAX X RS Turbo RR 72 : 2022+ Can-Am Maverick X3 MAX X RS Turbo RR w/ Smart-Shox 72 : 2022+ Can-Am Maverick X3 MAX X MR Turbo RR 72 : 2022+ NOTE: Compatible with both 6 and 8 bolt rear suspension configurations

Installation instructions (PDF)

Ships free from SuperATV. Price is SuperATV's current price.
