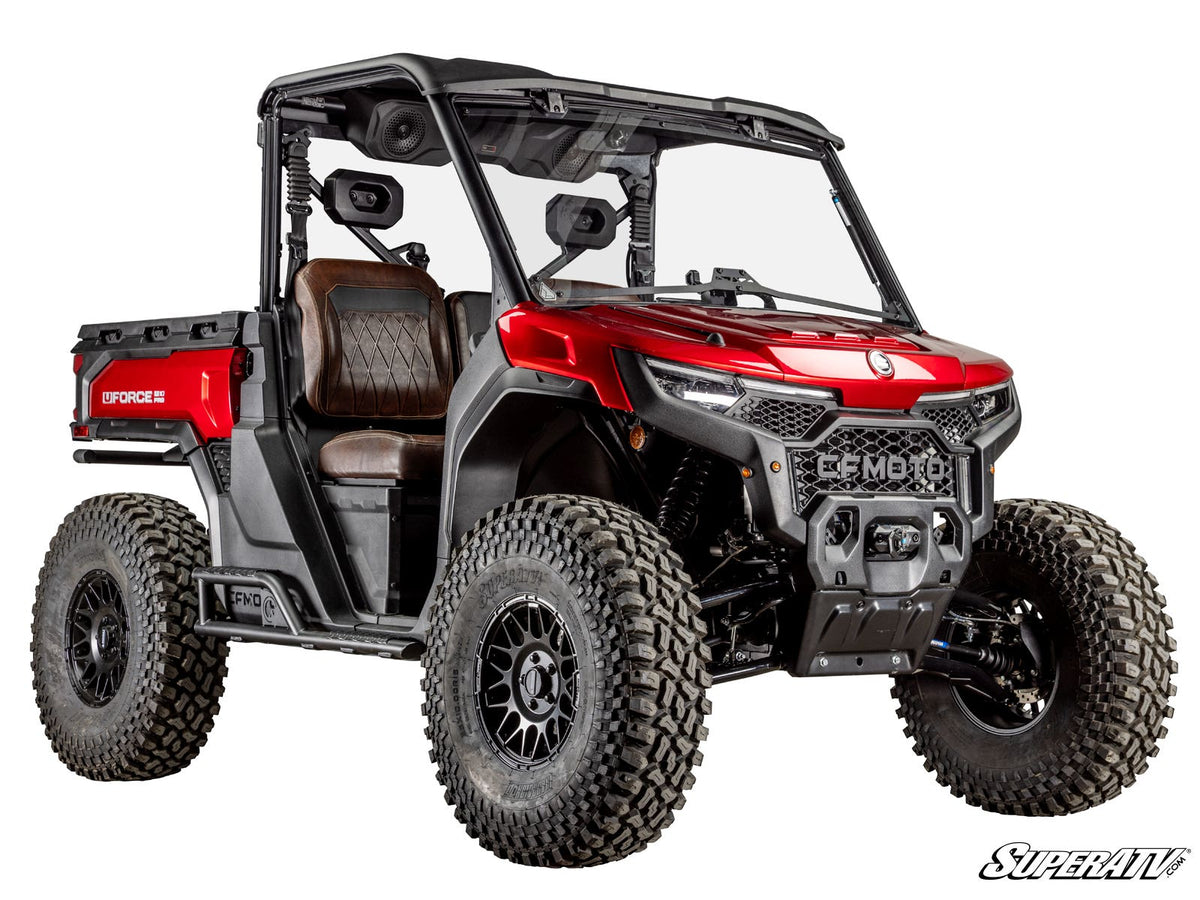

A UForce U10 Pro Long Travel Kit That Gives You More Control

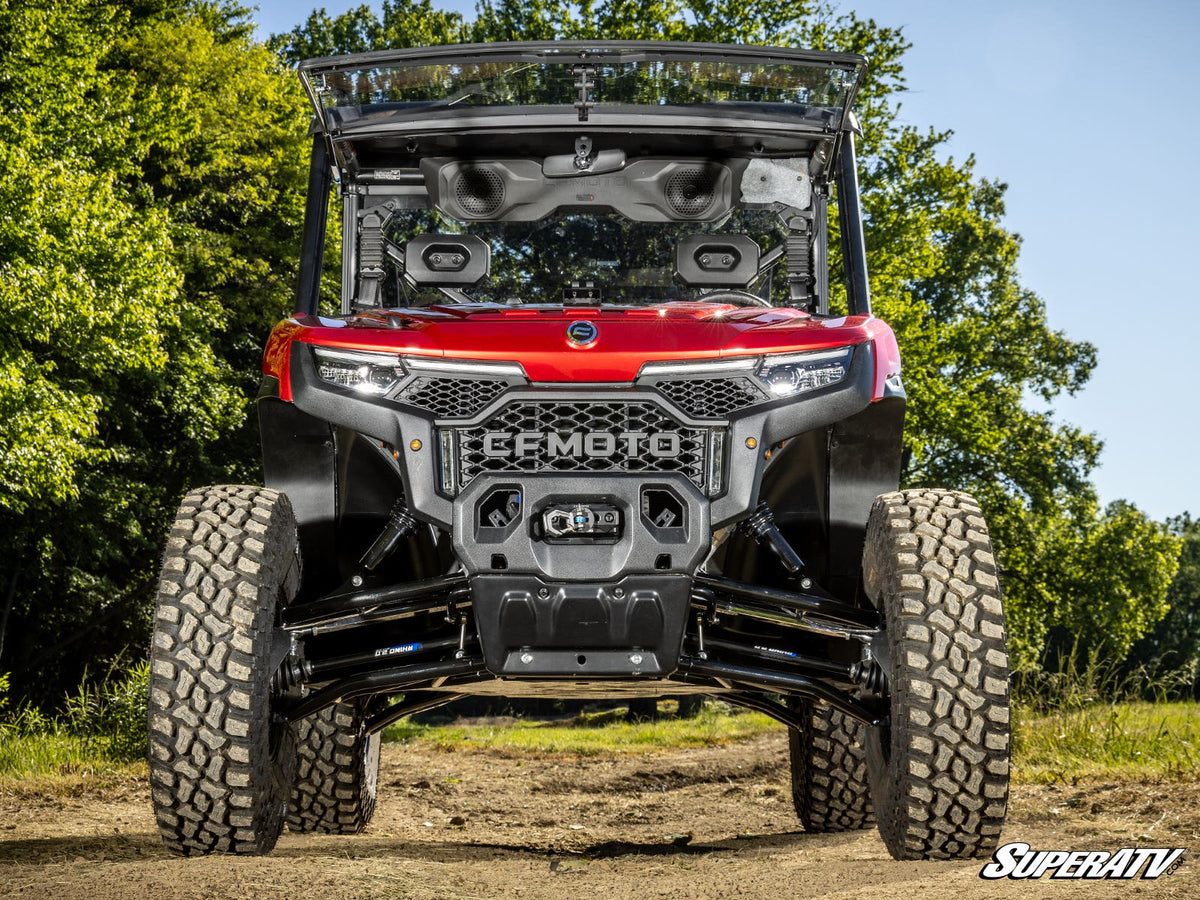

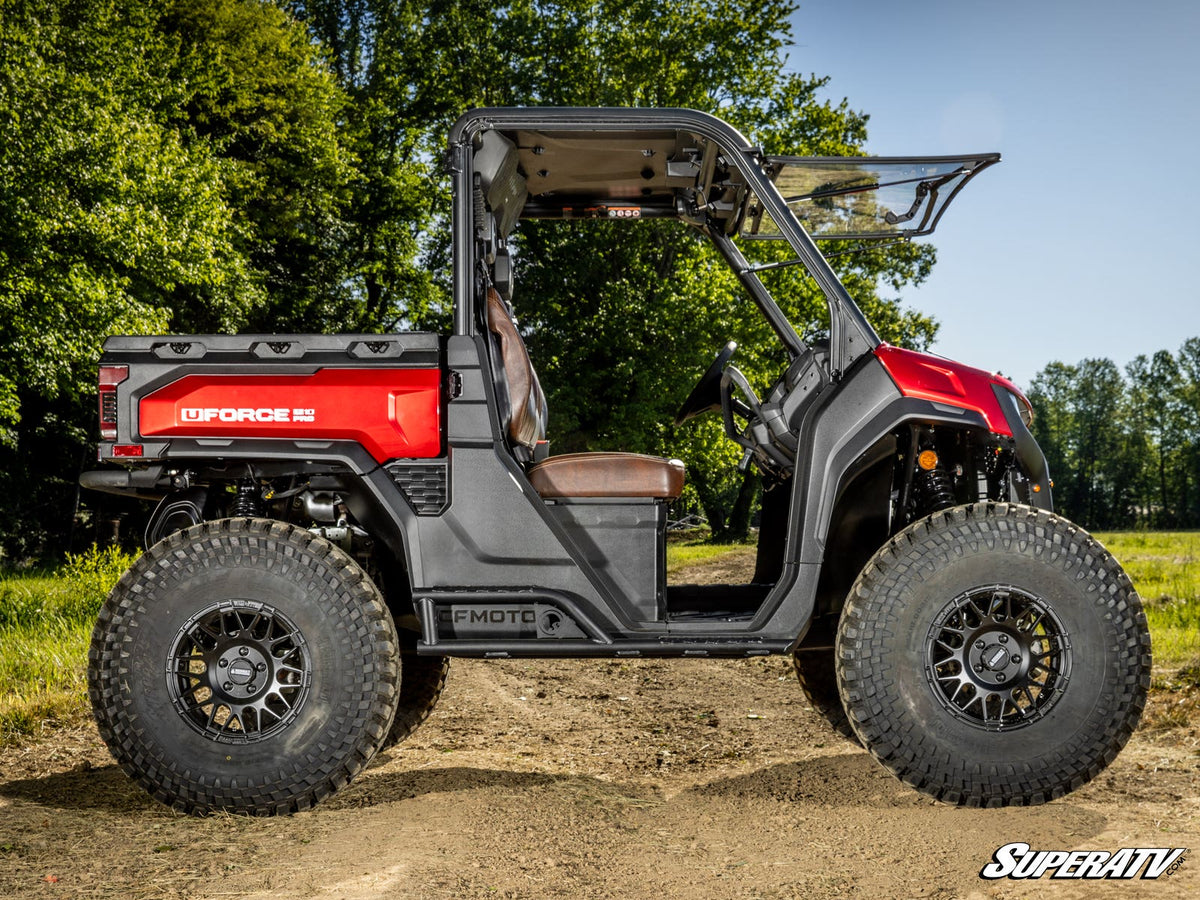

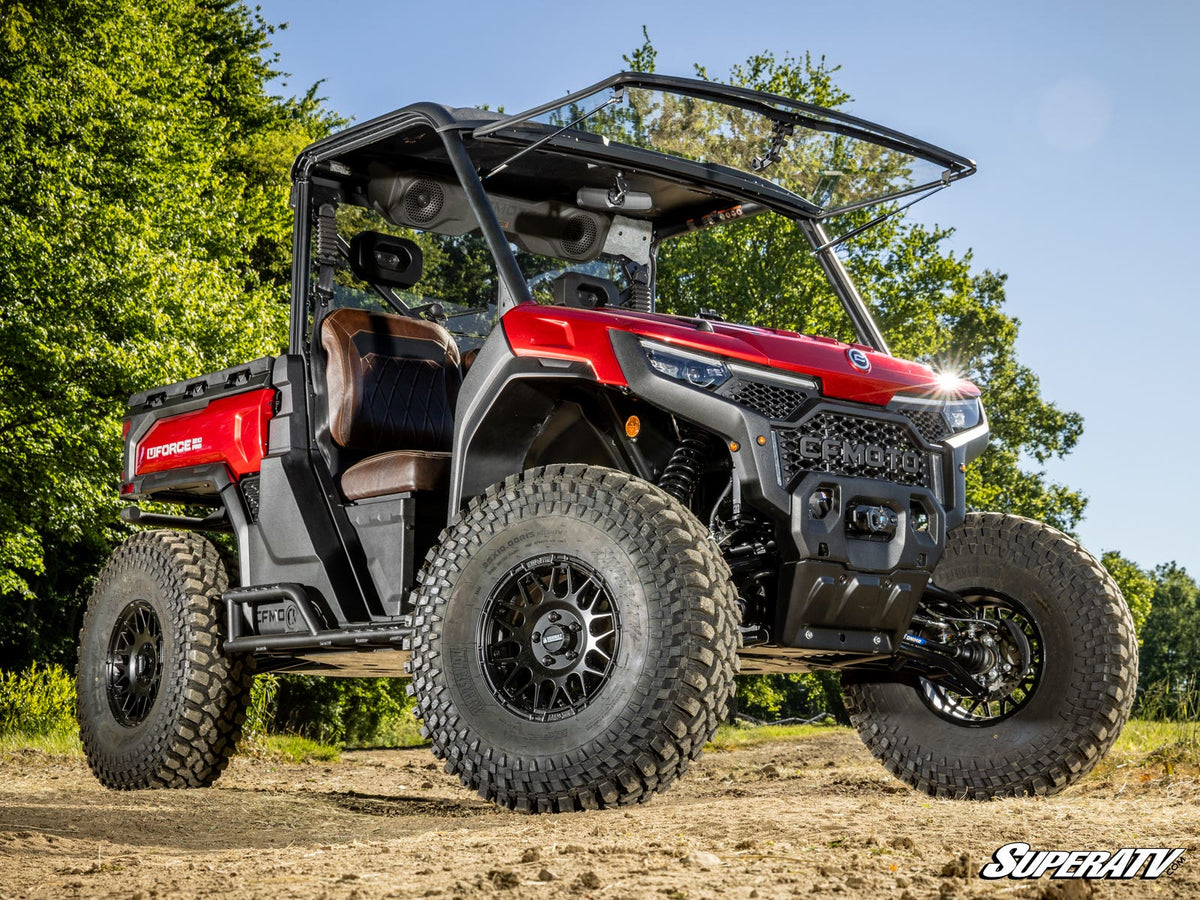

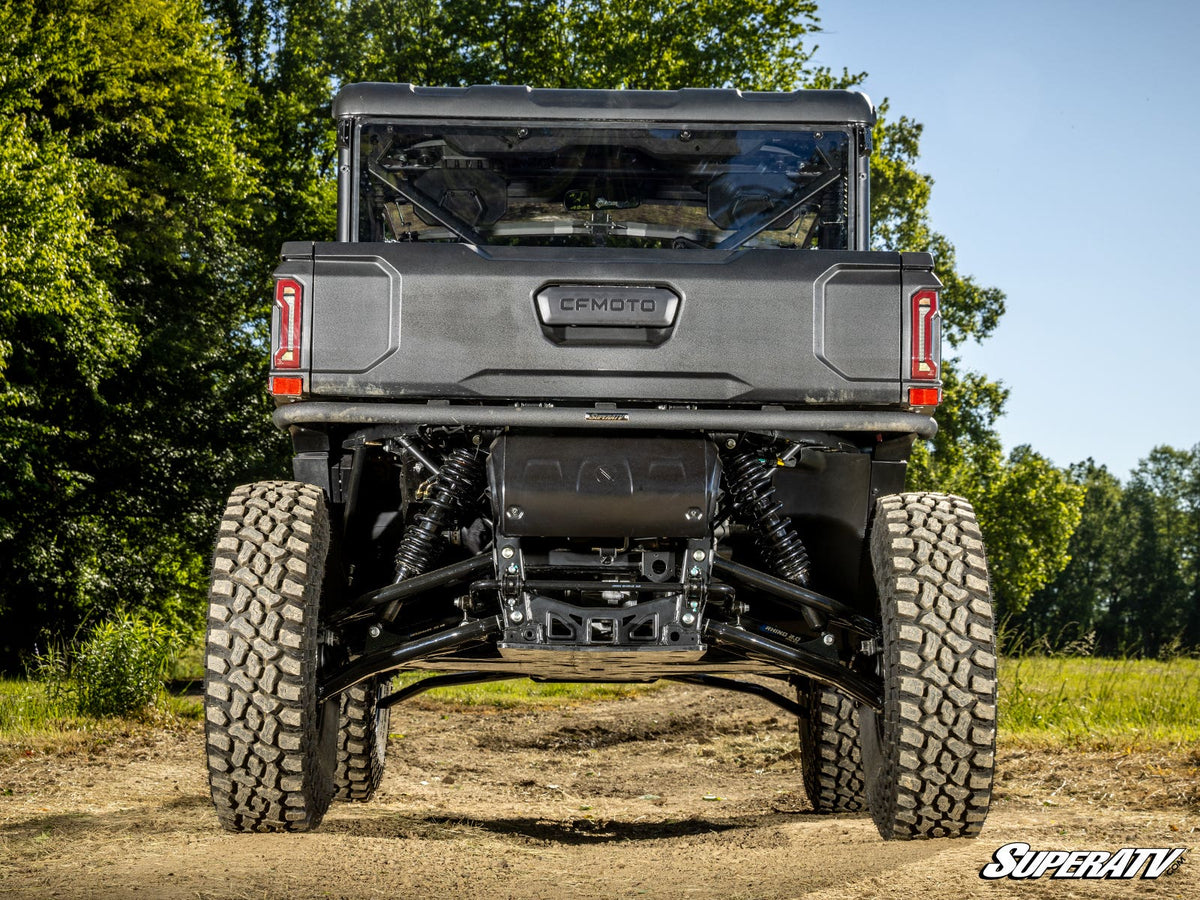

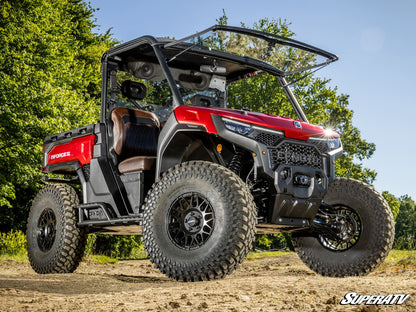

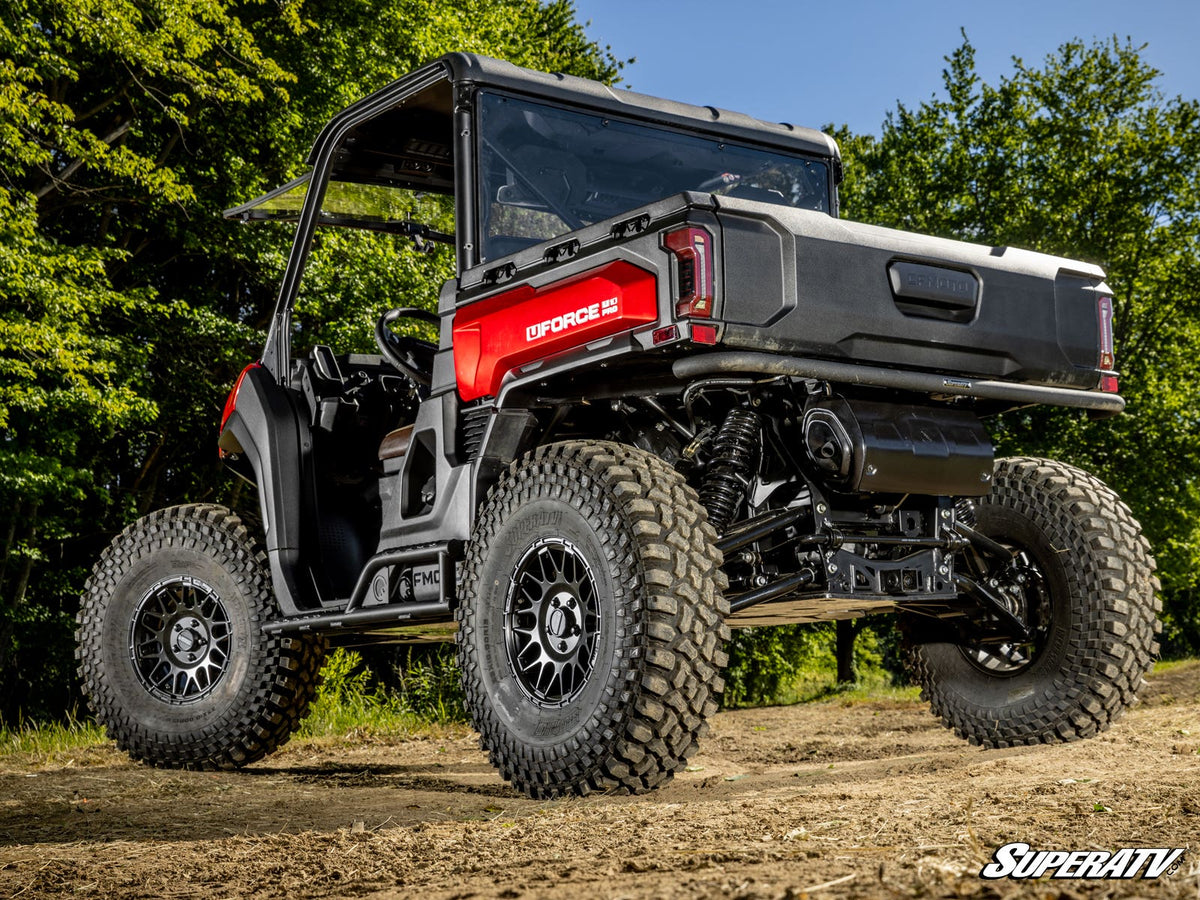

Push your CFMOTO UForce U10 Pro to the limit with SuperATV’s 4” Long Travel Kit. This kit transforms your machine into a true off-road beast by widening your stance by 4” per side (8” overall), adding a 1.5” forward offset in the front and rear, and giving you the room to mount massive 35” tires. If you want stability, ground clearance, and unbeatable strength, you can’t beat this long travel kit.
High-Quality Parts
This U10 Pro kit comes with everything you need for a straightforward install. It includes A-arms, tie rods, axles, bushings, and four Rhino 2.0 axles—all built tougher than stock. The only thing you’ll need to handle separately is the ball joints, which can be ordered preinstalled for an even easier setup.

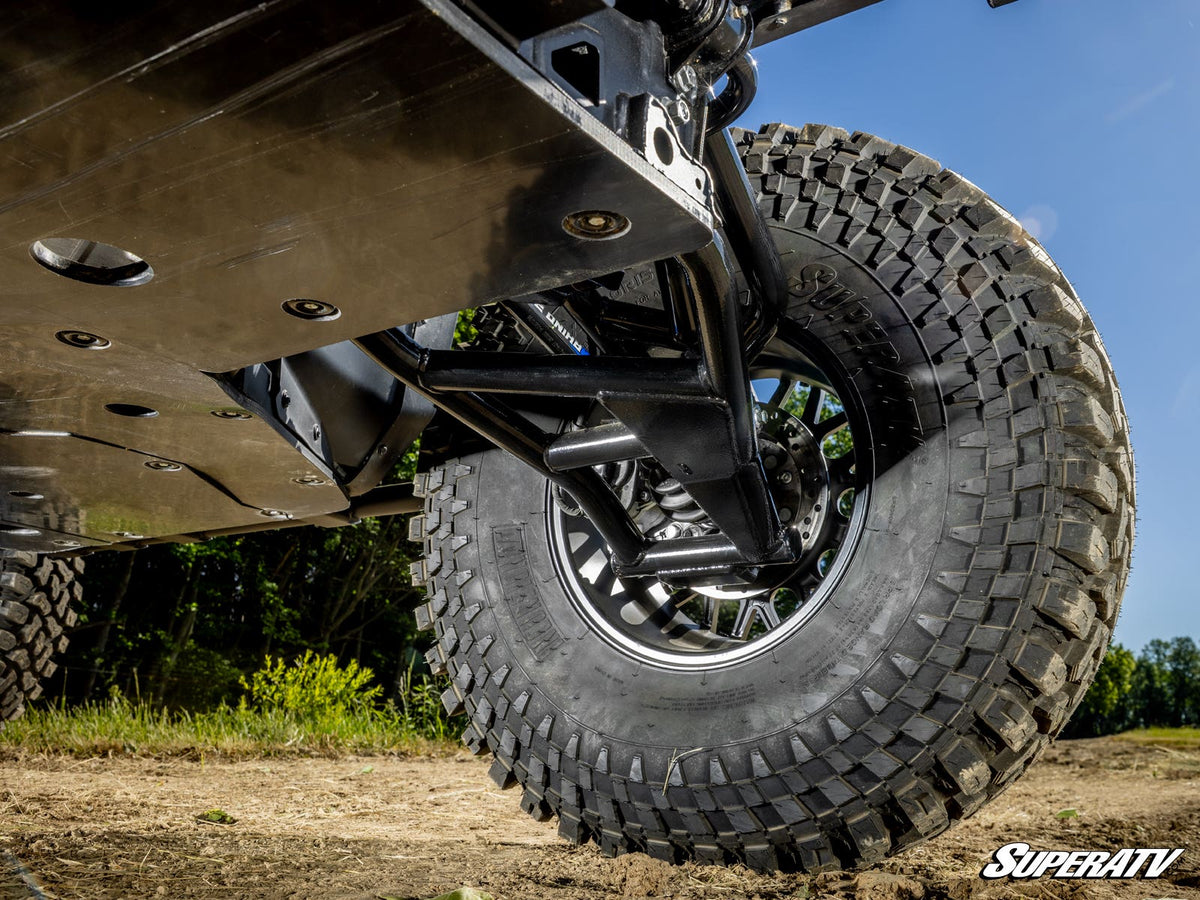

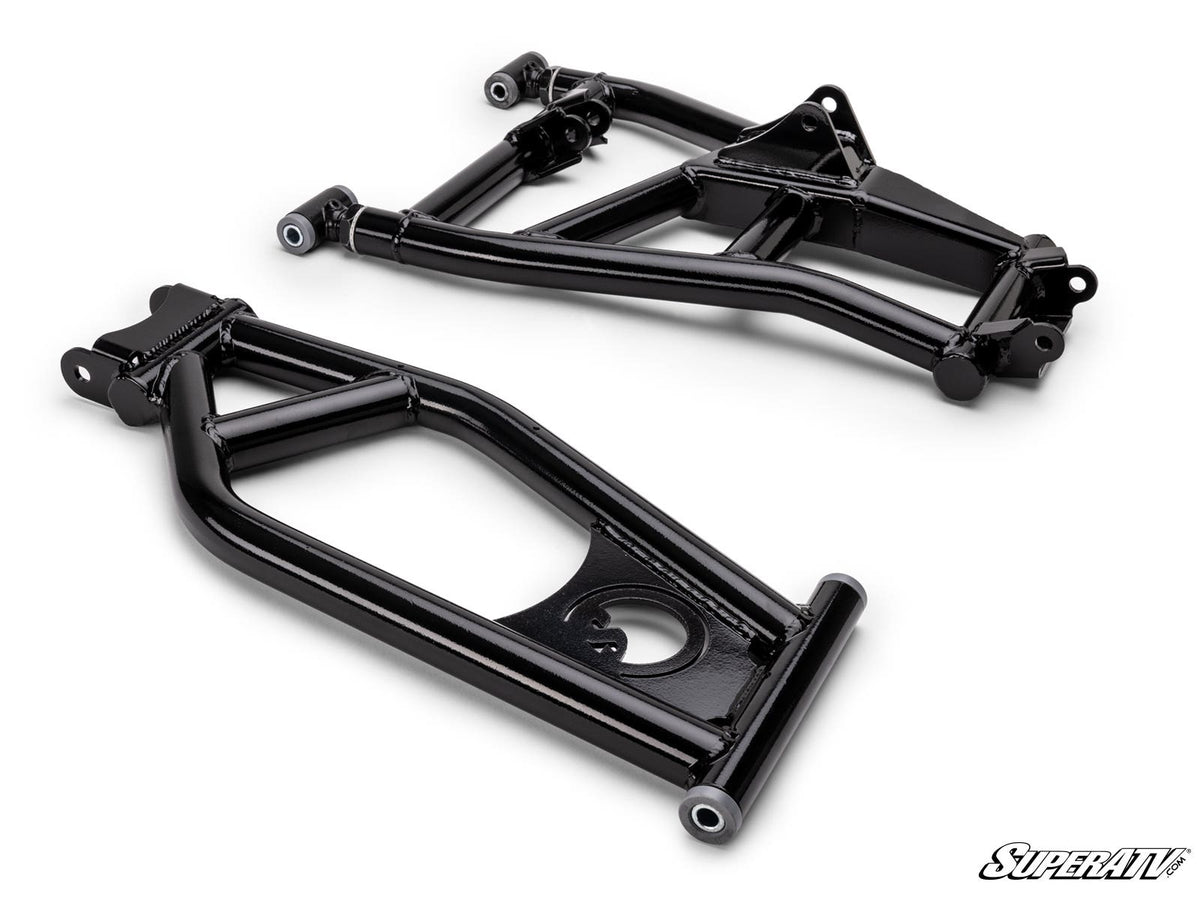

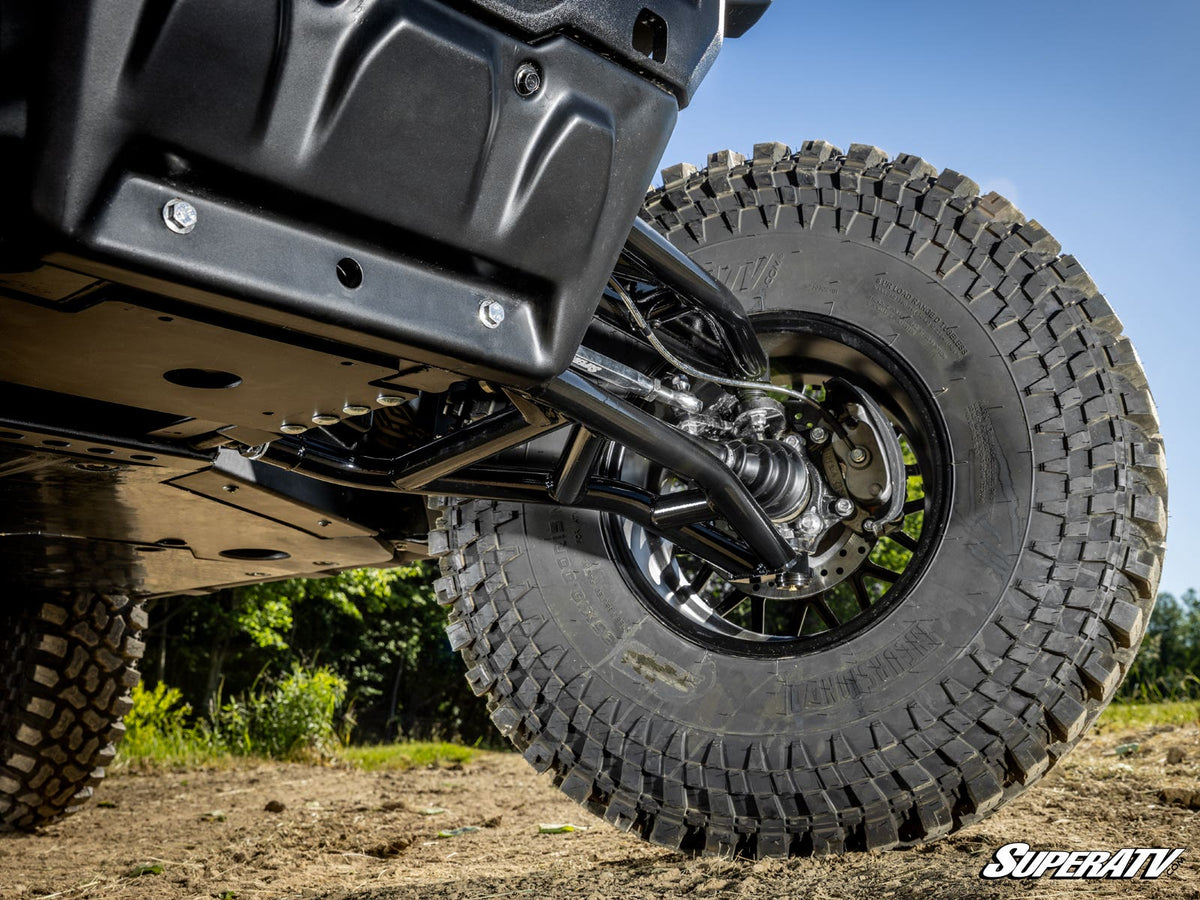

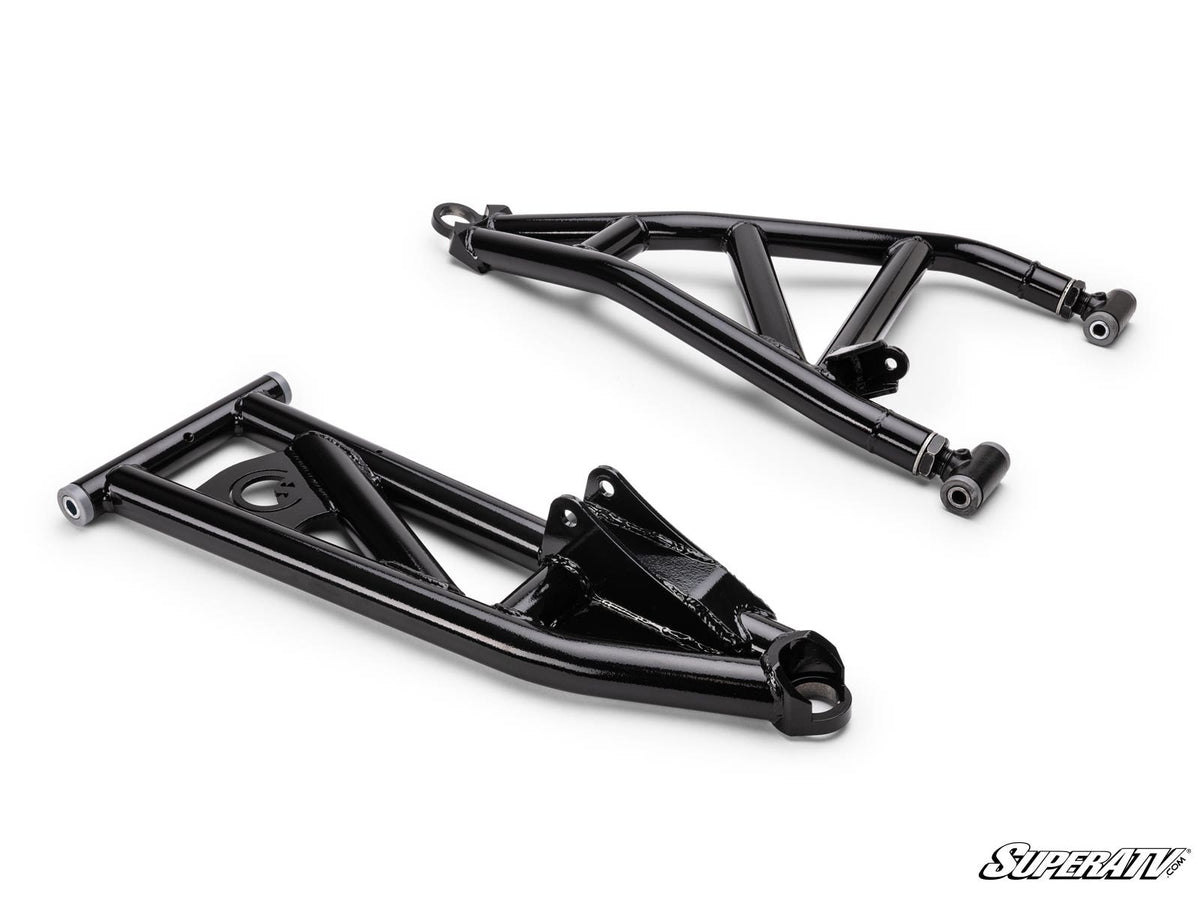

Ultra-Strong Atlas Pro A-Arms
Our UForce U10 Pro Atlas Pro A-arms are built to handle serious abuse while still looking sharp on your machine. They’re made with 38 mm OD tubing and reinforced with 1/4” wall DOM at the shock mounts for maximum strength where it matters most. Plus, 3.5 mm chromoly tubing is used throughout the rest of the design to keep things tough without unnecessary weight. A UV-resistant powder coat finish helps them stay looking new ride after ride.
UHMW Bushings
We include our heavy-duty UHMW bushings because they’re built to outlast and outperform stock in every way. They self-lubricate and stay smooth under pressure. The result is less wear, tighter-feeling suspension, and a ride that stays consistent even after hard use and rough terrain.

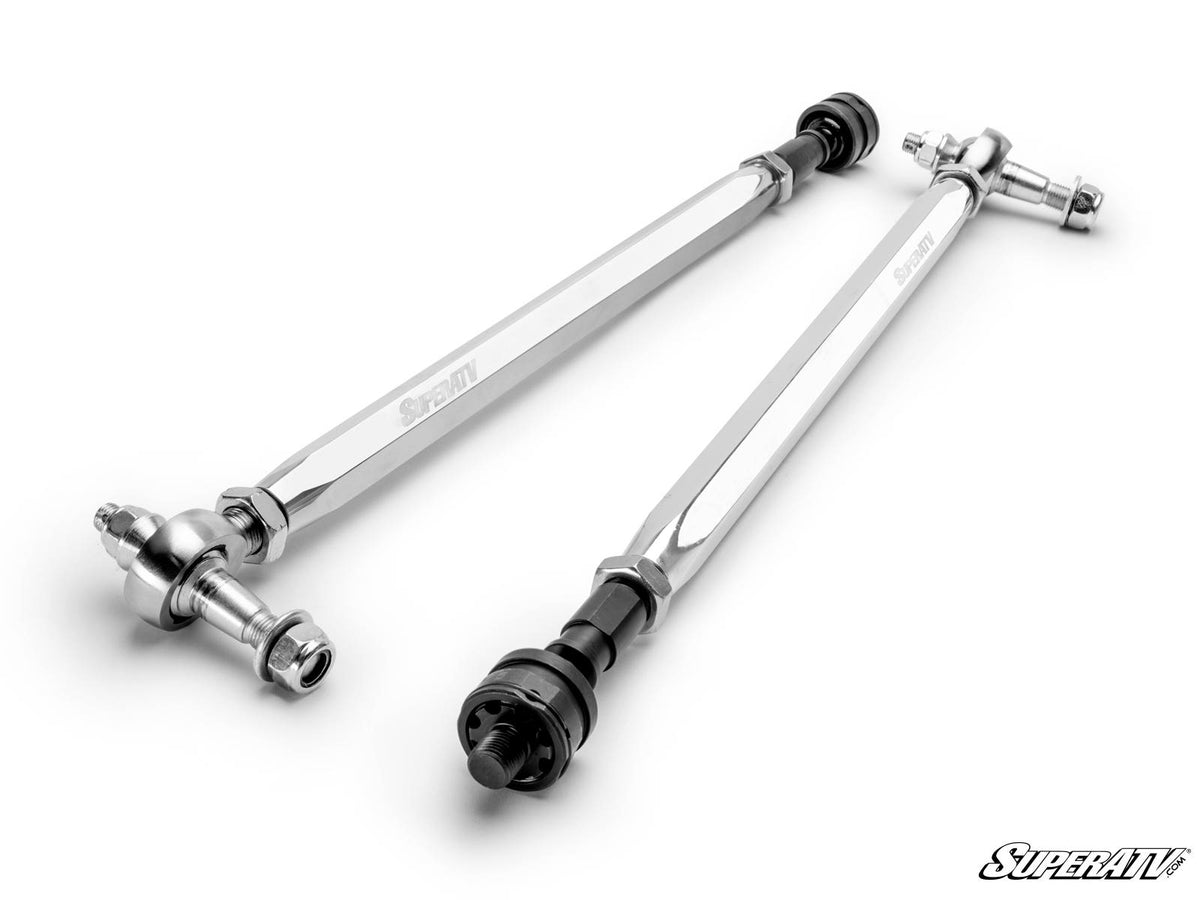

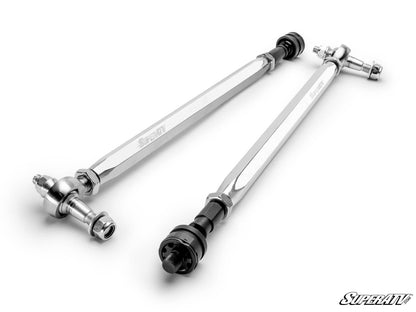

Billet Aluminum Hex Tie Rods
When you’re pushing your U10 Pro harder, your steering has to keep up. Our billet aluminum hex tie rods deliver serious strength without adding unnecessary weight, so you get precise, confident handling on rough trails. They’re paired with heat-treated chromoly tie rod ends to reinforce the most vulnerable point of your steering system. The result is a setup built to handle hard use without backing down.

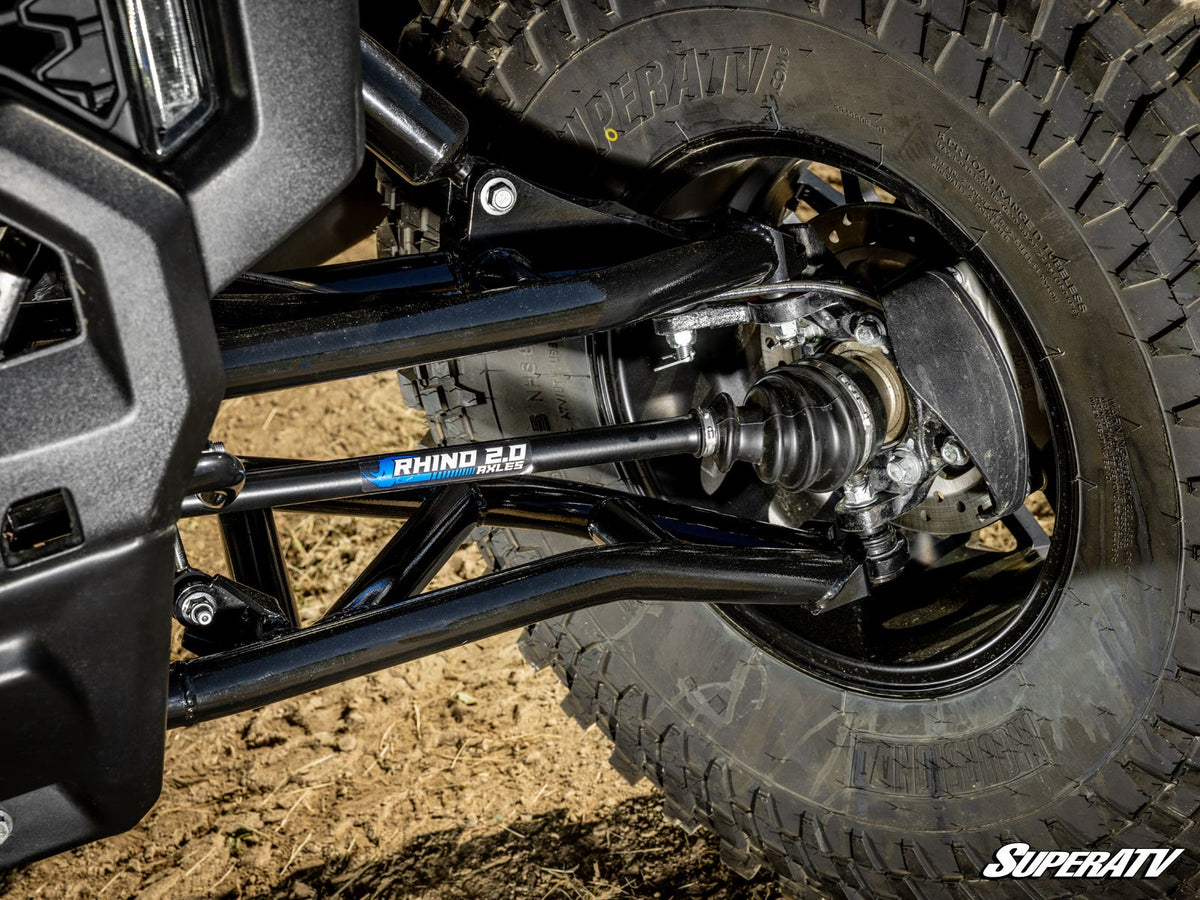

Industry-Leading Rhino 2.0 Axles
We can’t call it the ultimate long travel kit without including our industry-leading Rhino 2.0 axles. They’re built to be stronger than stock, with a larger shaft size for added durability. We make them from 4340 chromoly steel, so they’re ready to handle serious abuse in demanding terrain. Plus, their high-articulation design helps keep CV temperatures down for more consistent, reliable performance when things get rowdy.
Upgrade to SDi Terrain Master 2.1 Shocks
SDi Terrain Master 2.1 shocks offer improved control and consistency for aggressive riding and big suspension setups. High-flow pistons, piggyback reservoirs, and an oversized compression adjuster allow precise tuning while maintaining predictable performance on demanding terrain. Plus, they’re built with lightweight aluminum and hardened, chrome-coated shafts, so they can handle added travel and wild rides.
Add Preinstalled Ball Joints
Skip the extra shop time and cost and get straight to riding by ordering your UForce U10 Pro long travel kit with preinstalled ball joints. You won’t be stuck pressing out worn parts or reassembling everything. It’s a faster install with fewer headaches and less money spent—so you can spend more time on the trail.
NOTE: You must reuse your stock ball joints if you don’t select the preinstalled ball joint option at checkout.
Heavy-Duty Ball Joints
Our heavy-duty ball joints are built to handle whatever you throw at them. They’re made from super-strong 4340 VAR steel and are zinc plated to resist wear and tear. They’re adjustable and feature easy-access grease zerks, making maintenance simple. They can withstand twice the force of a stock ball joint.
Keller Ball Joints
Keller Ball Joints have a two-piece design that eliminates the need for a snap ring. They thread directly onto your A-arms like a nut and bolt, making them nearly impossible to pull out. They’re built with a tough chromoly steel stud and an advanced tool-steel body, so they’re ideal for larger machines, bigger tires, and heavier rides. Plus, they’re greaseable and rebuildable, so you can keep them running smoothly for the long haul.
Features
- Made of 1.5” diameter tubing
- Adds 4” to each side (8” overall)
- Increases width from 64” to 72”
- 1.5” offset in the front and rear
- Fit up to a 35” tire
- Includes preinstalled UHMW bushings
- Comes with everything you need to install and go
- Preadjusted pivot blocks for perfect camber
- Atlas Pro A-Arms
- Adds a 1.5” offset
- 1.5” tubing is larger than stock
- Includes UHMW bushings
- Steering stop kit included
- UV-resistant powder coat finish
- Easy to install
- Backed by a lifetime warranty
- Pairs perfectly with GDP Portals
- Billet Aluminum Hex Tie Rods
- Solid 6061-T6 billet aluminum tie rods for maximum strength, performance, and style
- Uses heat-treated chromoly steel monoball tie rod ends
- Stock length replacement
- Easily adjustable without disassembling
- Tie rods backed by a lifetime warranty
- Rhino 2.0 Axles
- Stronger than stock
- Increased shaft size
- Constructed of 4340 chromoly steel and finished with a proprietary heat treatment
- Industry-leading 18-month warranty
- Field and lab tested for extreme strength and endurance
- CAD drawn for expert precision
- 18-month warranty
- SDI TM 2.1 Shocks
- Large bore compression adjuster
- Billet aluminum T6 pistons
- Quick adjust preload ring
- All-aluminum construction
- Hardened chrome shafts
- Lightweight barrel springs
- PTFE-lined bearings
- Fully rebuildable design
Fitment (per SuperATV)
CFMOTO UForce U10 Pro : 2025+ CFMOTO UForce U10 Pro Highland : 2025+ CFMOTO UForce U10 Pro XL : 2025+ CFMOTO UForce U10 Pro XL Highland : 2025+
Installation instructions (PDF)
