Why You’ll Love It
6” Portal Lift adds ground clearance directly at the hubs 30% or 45% Gear Reduction adds torque and relieves drivetrain stress Cast or Billet Housings let you choose the construction that fits your build 9310 Steel Gears pair with a hardened 4340 drive shaft for strength Limited Lifetime Warranty protects your purchase
Beef Up Your UForce U10 Pro with GDP Portals
You see a deep mud pit or rocky hill, but you’re worried your CFMOTO UForce U10 Pro won’t make it. SuperATV’s 6” Portal Gear Lift will give you the confidence to conquer any terrain. Get next-level performance with a kit that gives you a lift and gear reduction all in one. Pick a 30% or 45% gear reduction to boost your torque, and choose between tough cast or billet housings for unbeatable strength.
Take on Any Terrain

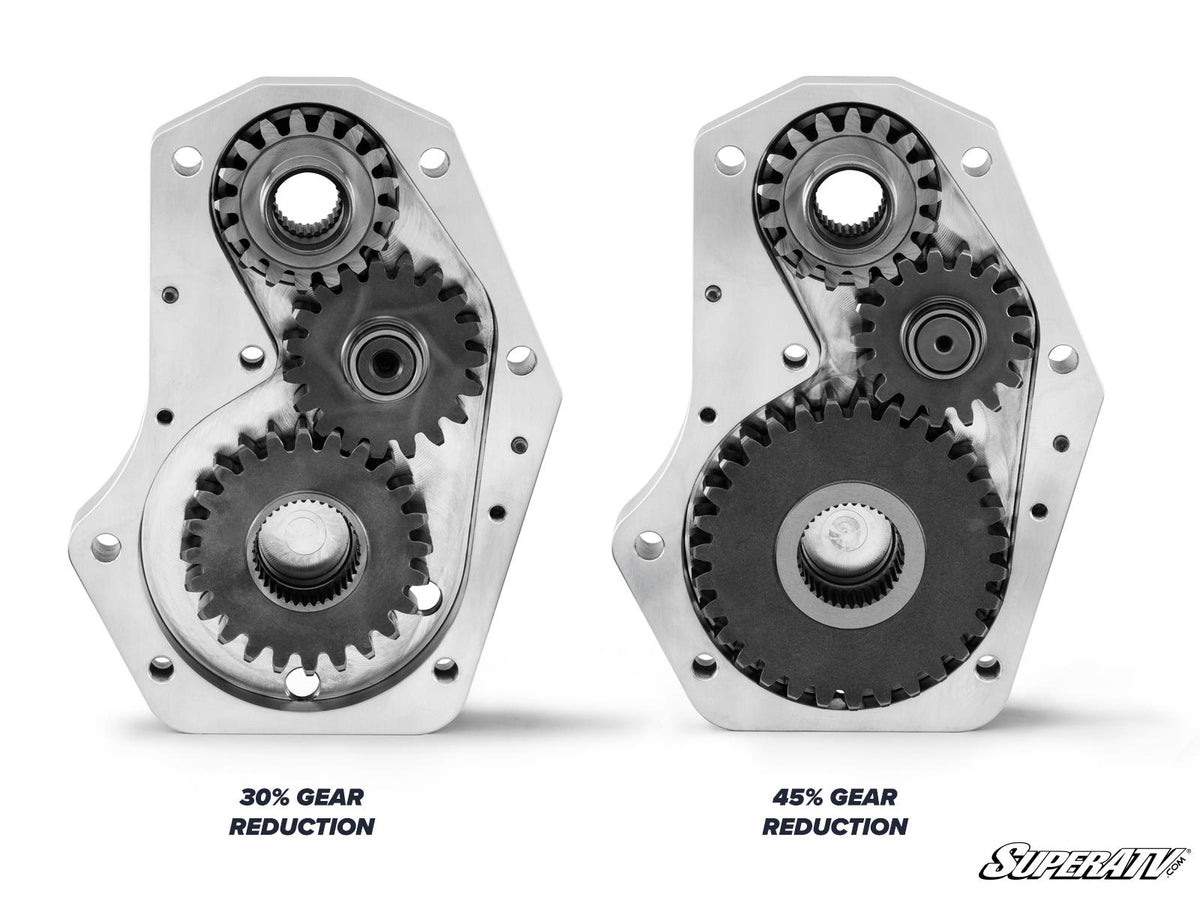

GDP Portals let you ride the way you want without compromise. Choose the 30% gear reduction for extra torque while keeping your speed on trails and dunes. Need serious power for big tires, mud, or rocks? The 45% reduction is the way to go. For anyone who pushes their UForce U10 Pro hard, portals are a must-have.
Your Drivetrain Stays Protected
With the gear reduction built right into the wheel hub, GDP portals do the heavy lifting for your drivetrain. That means your axles, differential, prop shaft, and transmission don’t have to fight to turn those big tires.
GDP is Built for Battle
Our portals are built to take on the abuse your UForce U10 Pro can. You can choose between cast or billet housings. They’re both tough enough to take a serious beating. To take them to the next level, we include strong steel alloy plates. So you can ride hard with confidence.

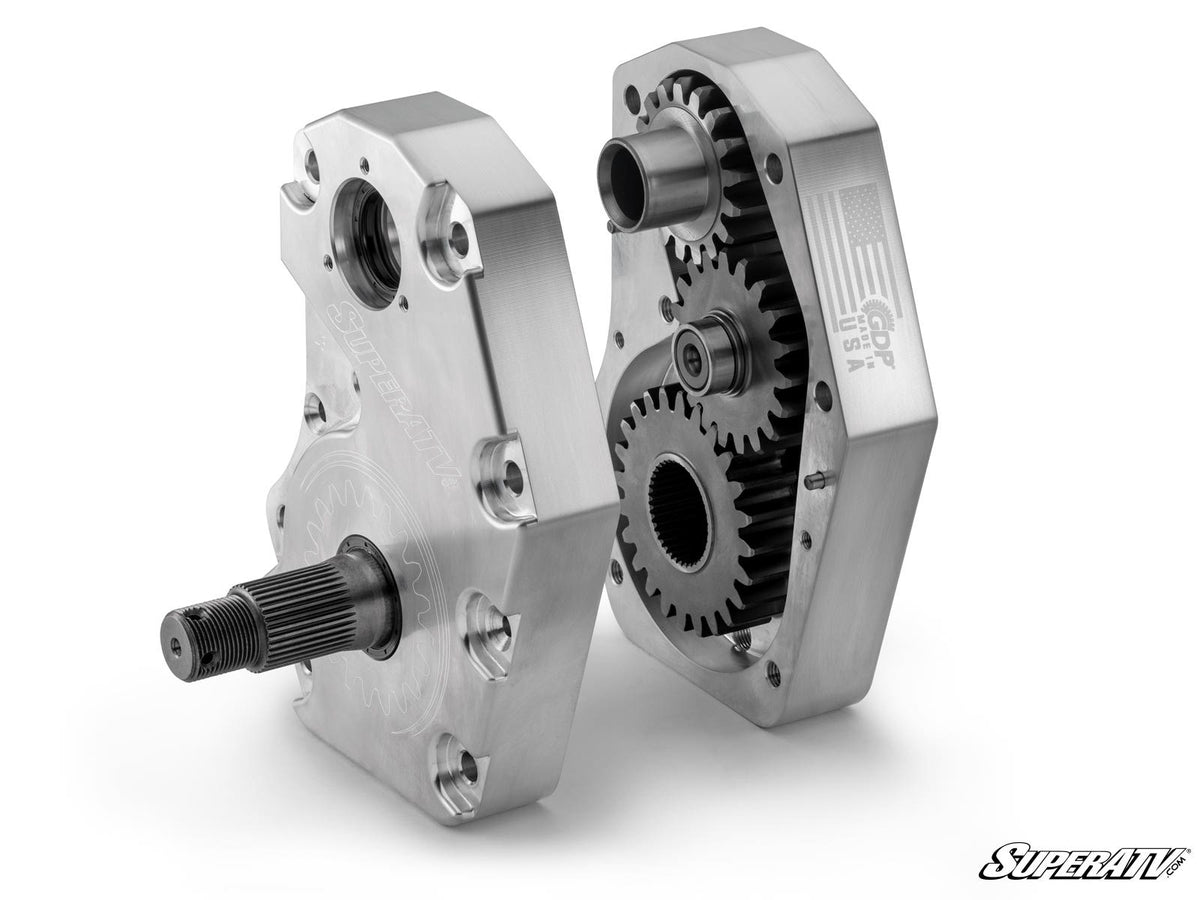

Our housings are reinforced for gear retention and optimized for oil flow
Advanced steel alloy backing plates are stronger than chromoly
Enhance with Portal Blood—gear oil formulated for GDP Portals
There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
Advanced Gaskets, Seals, and Bearings
Our portals use
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
- Double-angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
- Get Extra Reinforcement with a Frame Stiffener
Rough riding and added weight can wreak havoc on your machine’s frame if it’s not properly reinforced. That’s why we strongly recommend adding a SuperATV Frame Stiffener when installing your new portals. It adds all the support you need to tackle hard rides in confidence.
Top-Tier Support
If you need help deciding what GDP Portals will work best for you and your CFMOTO UForce U10 Pro, give us a call. We have technicians on call to help you pick what will work for your choice of terrain.

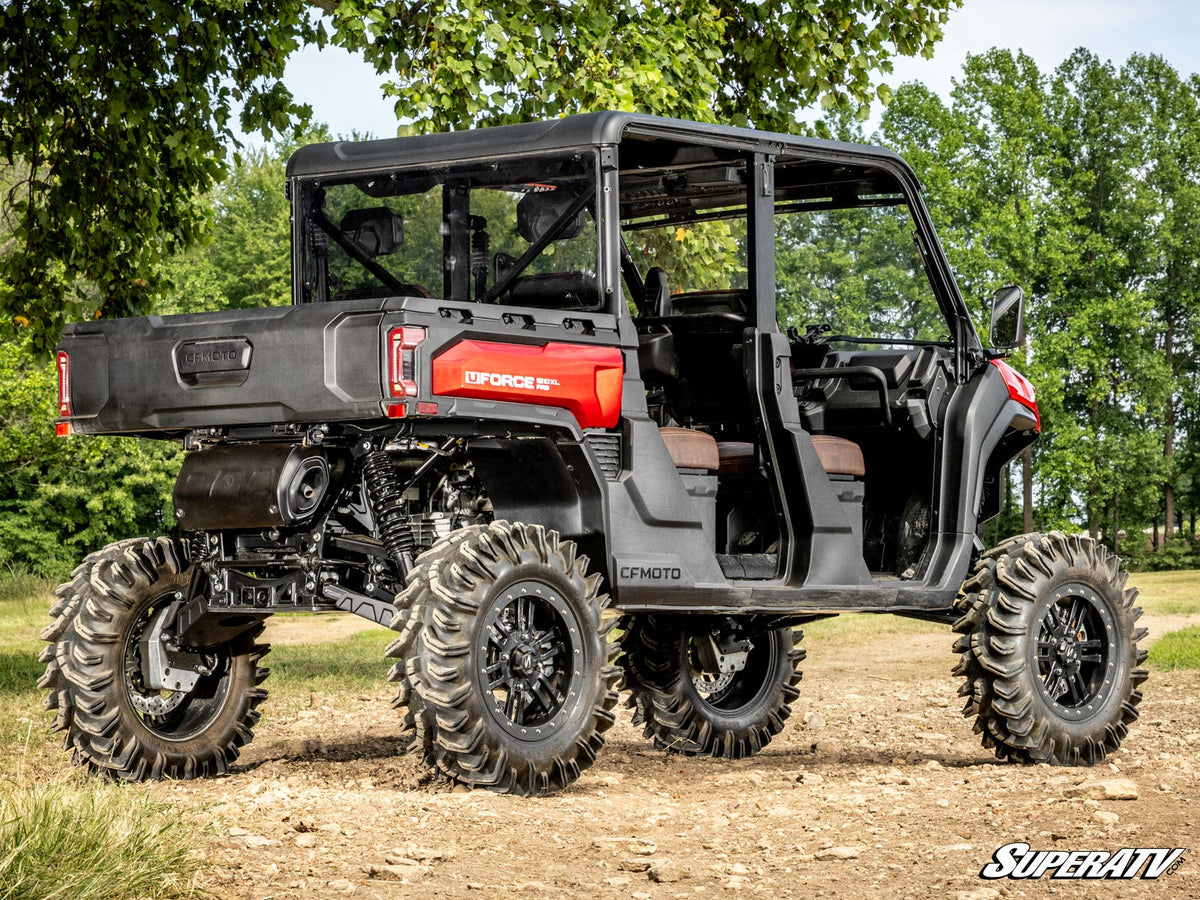

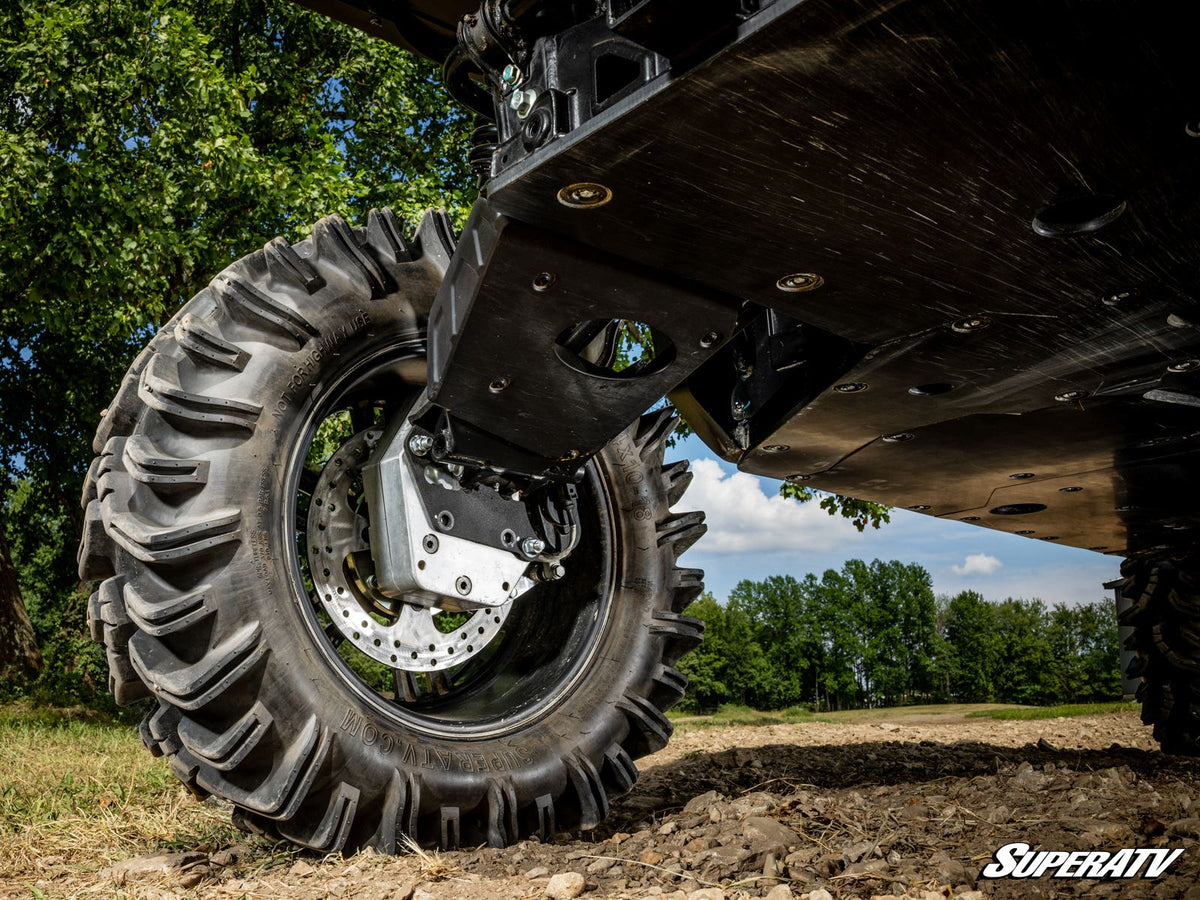

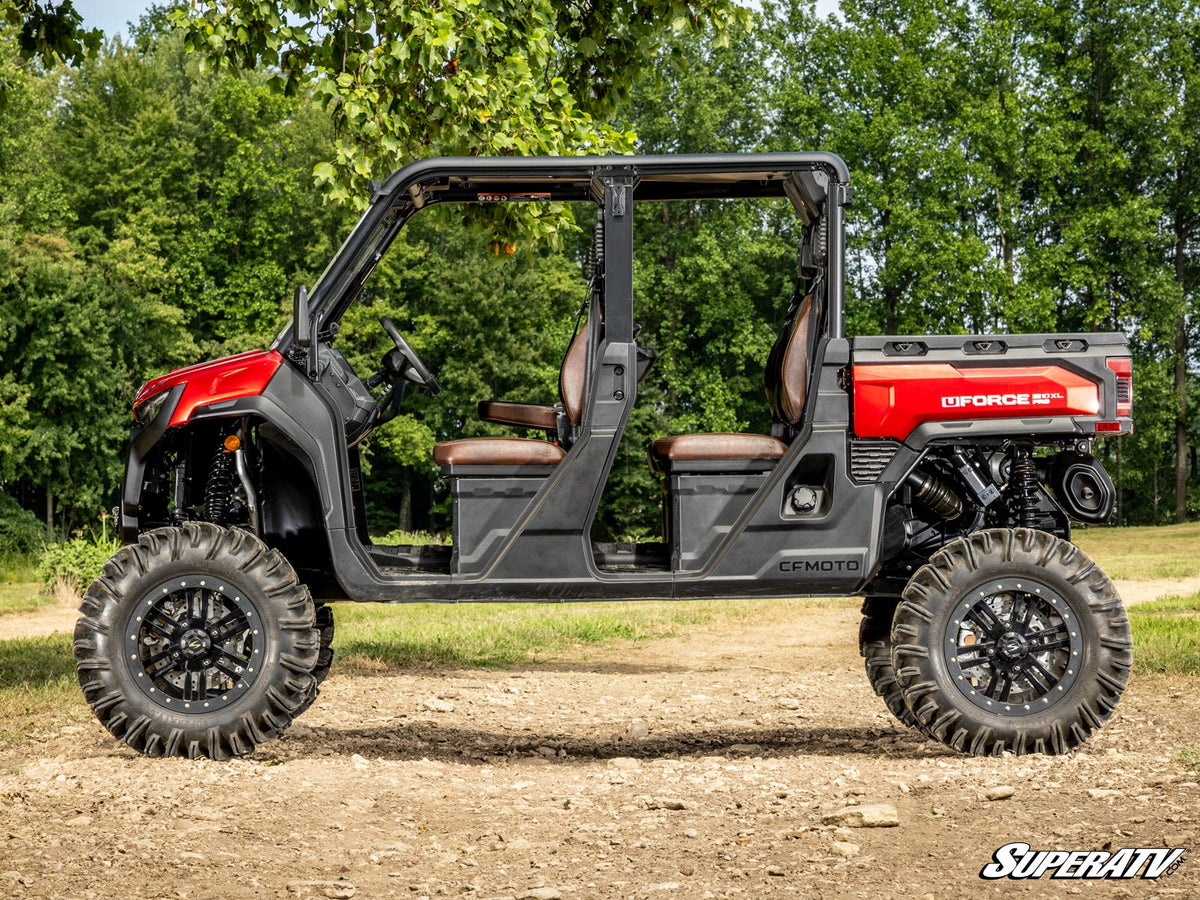

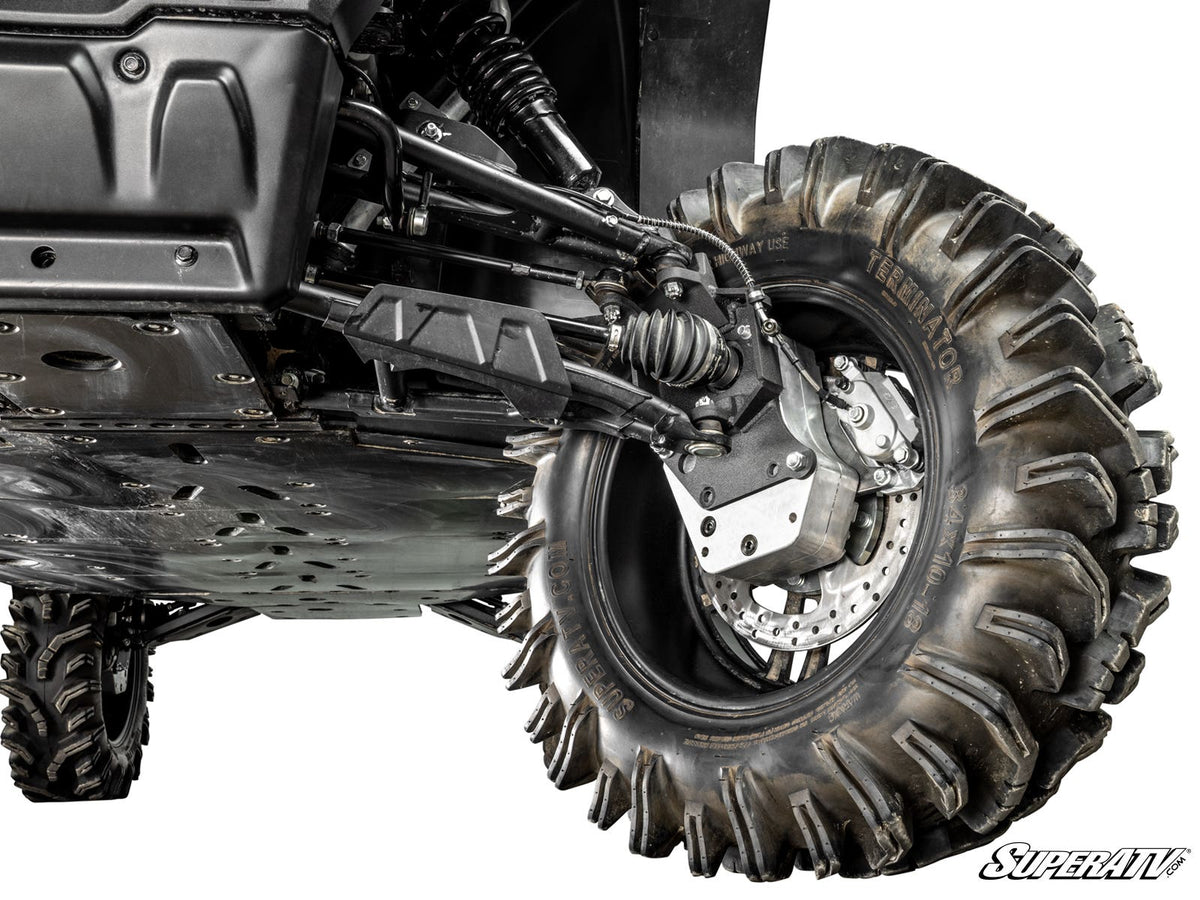

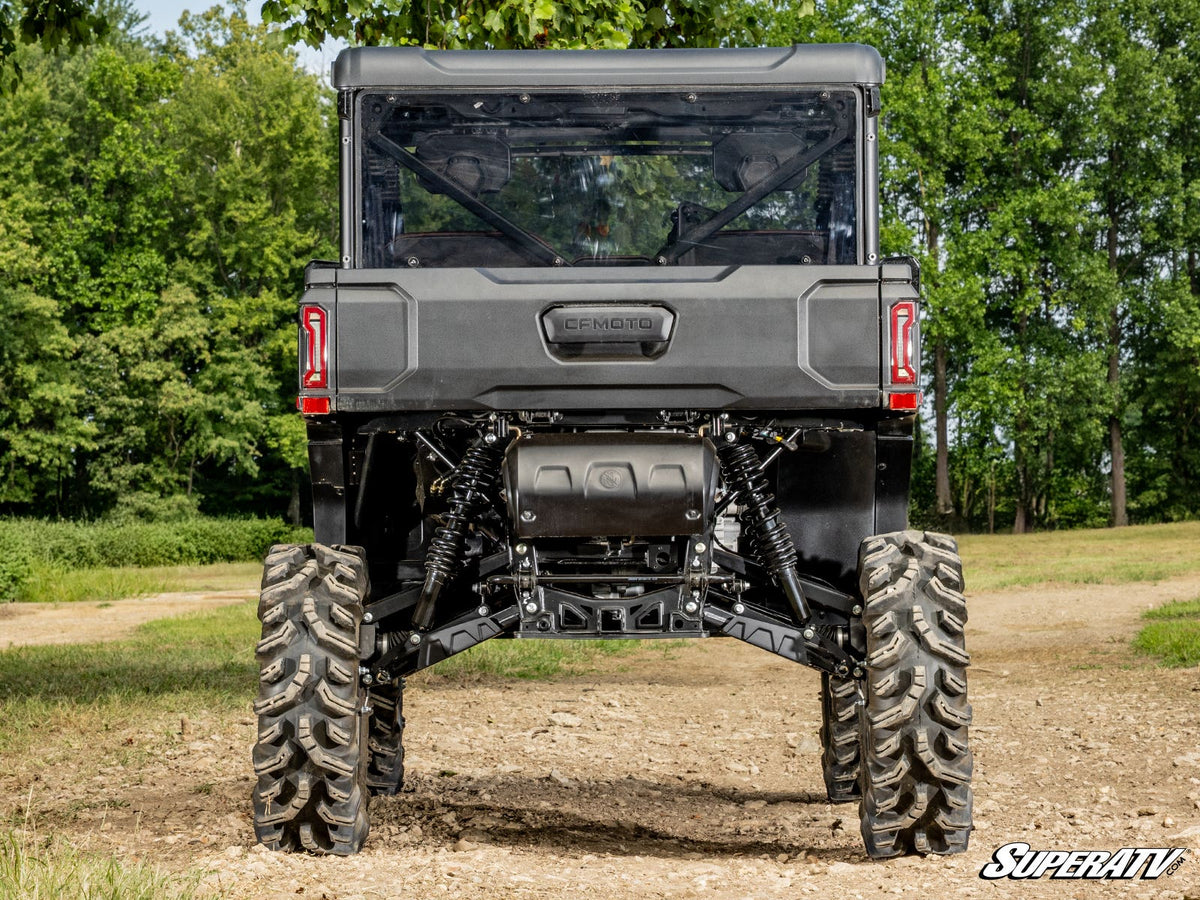

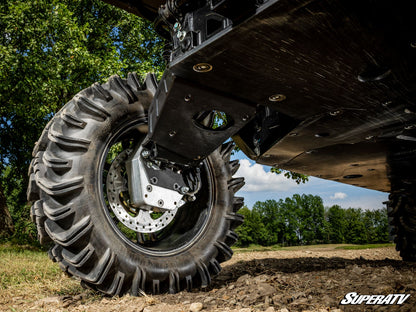

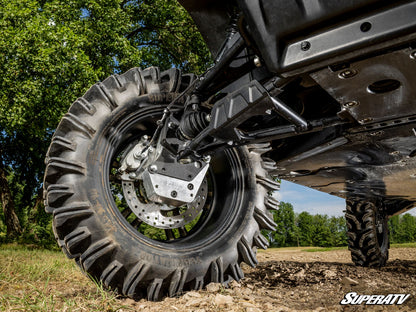

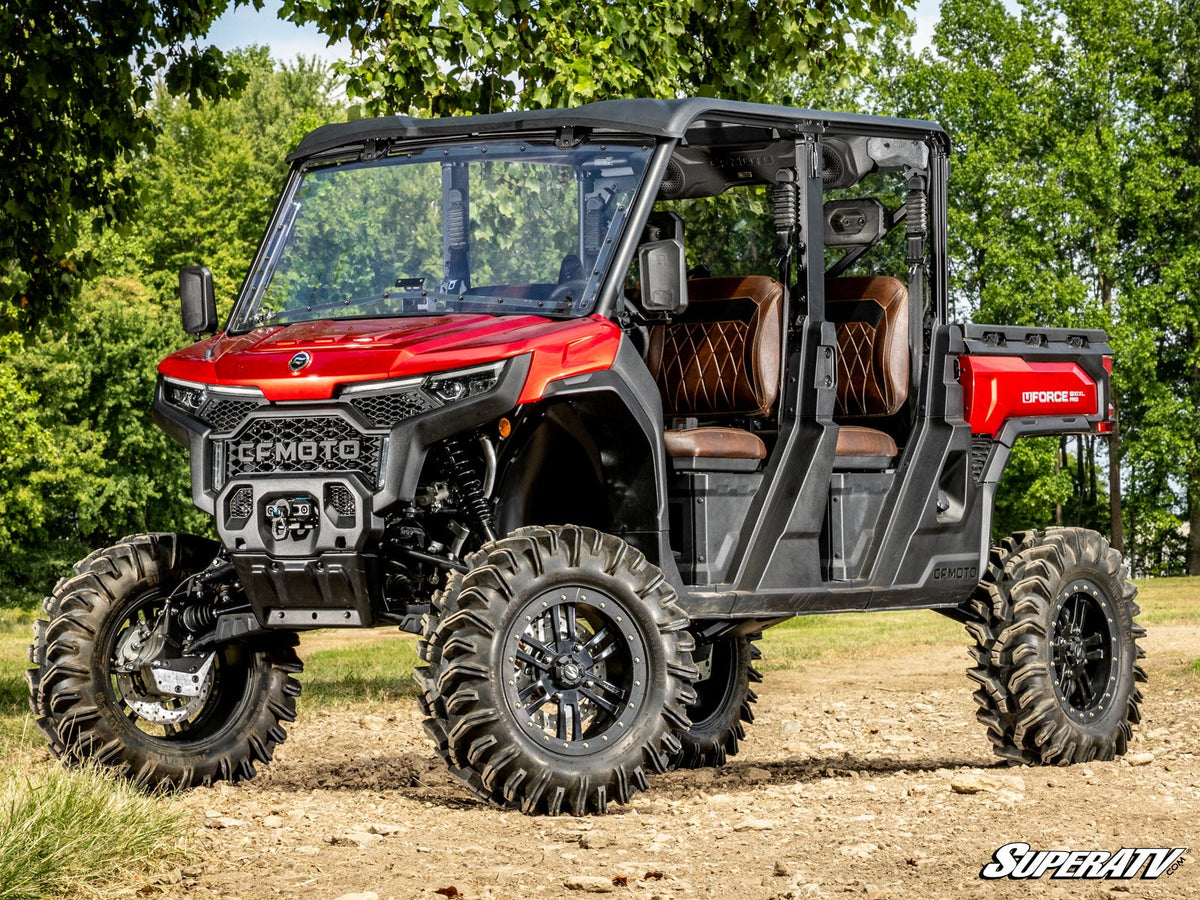

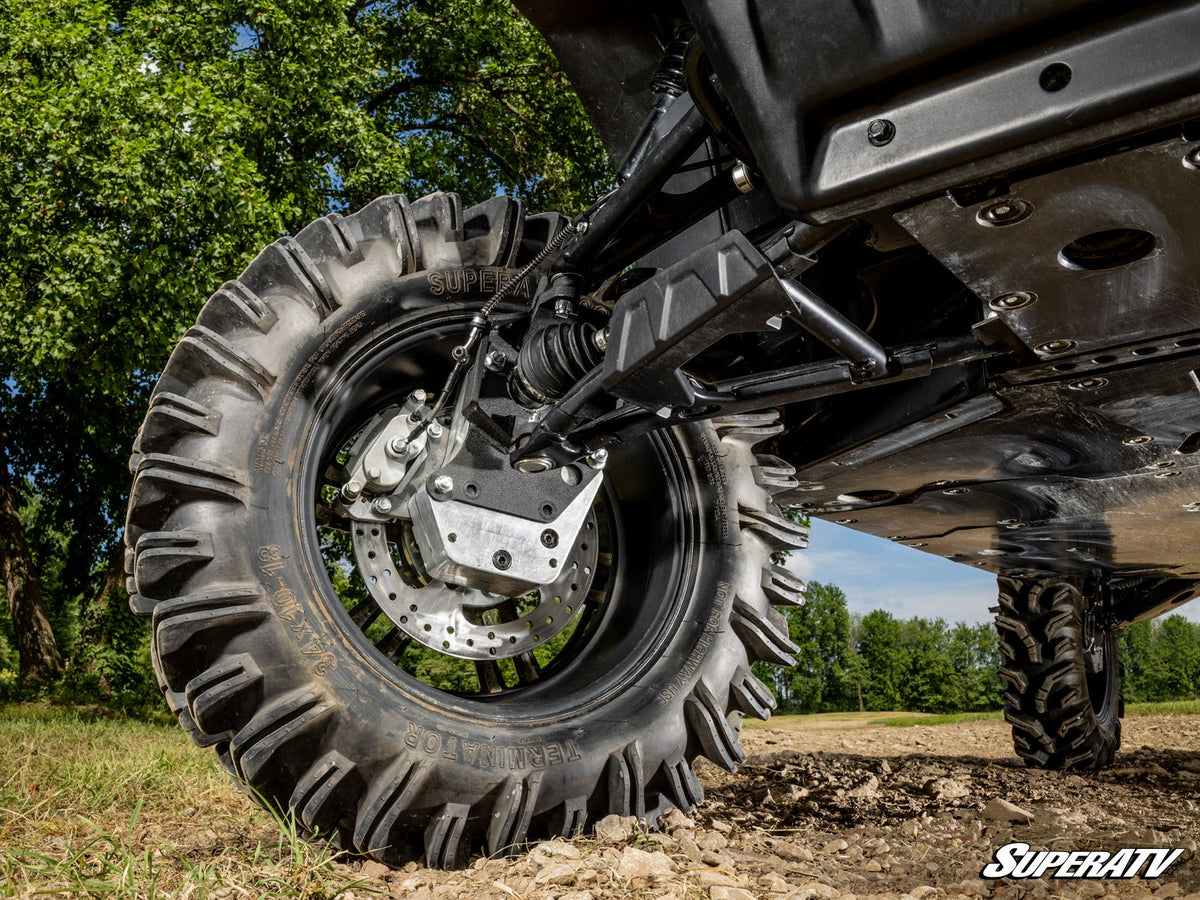

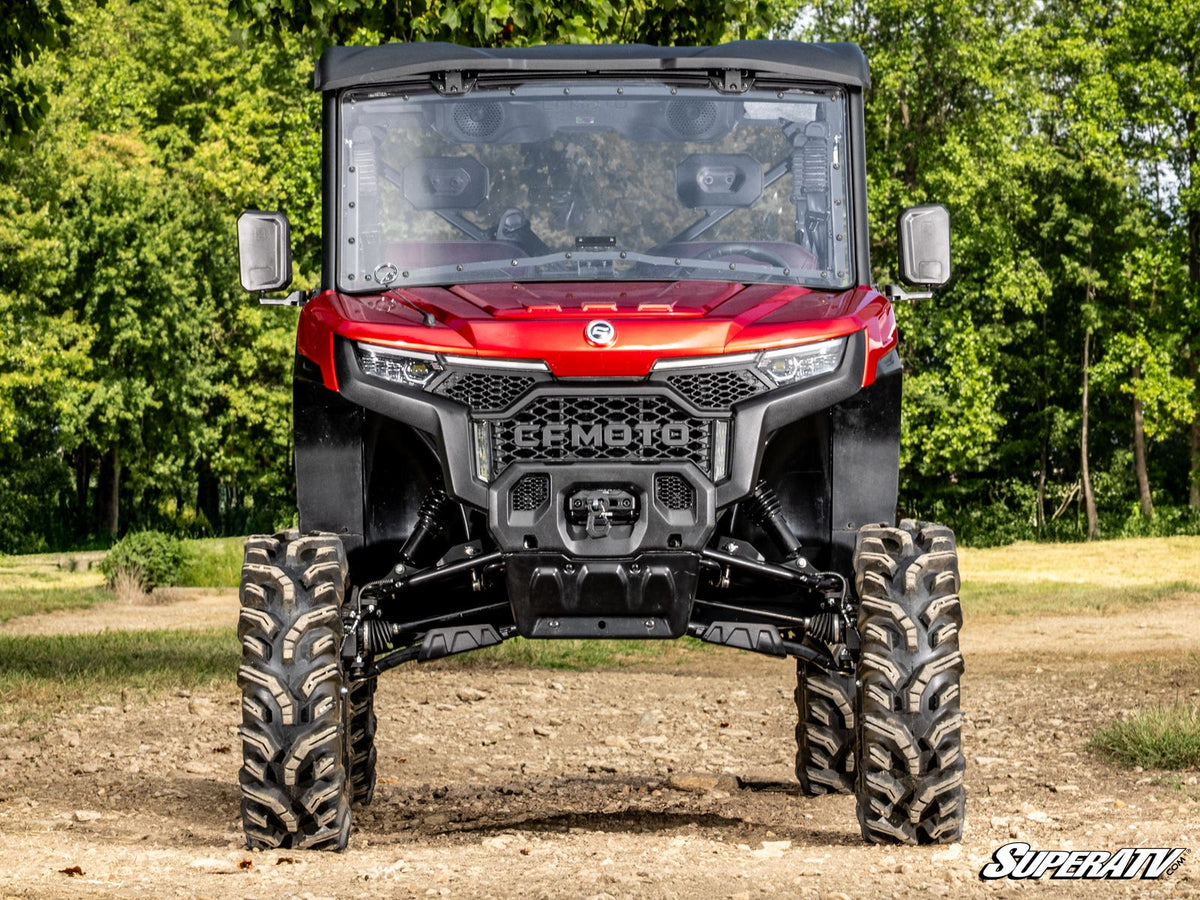

CFMOTO UForce U10 Pro 6” Portal Gear Lift Includes
- (4) Assembled portal hub complete with 9310 gears, seals, output shaft, advanced gaskets, and thrust bearings
- (4) Universal hubs and stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (2) Front caliper adapters
- (2) Rear caliper adapters
- (12) Shims
- (4) Drive gear spacers
- Upper and lower A-arm mount assemblies
- Extended brake lines
- All required hardware, including recessed castle nut socket
- CFMOTO UForce U10 Pro Max Tire Size
- Max Tire Size
- Required Suspension
- 32"
- Stock suspension
- 34"
- 1.5" Forward Offset A-Arms
If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator.
Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.
Features

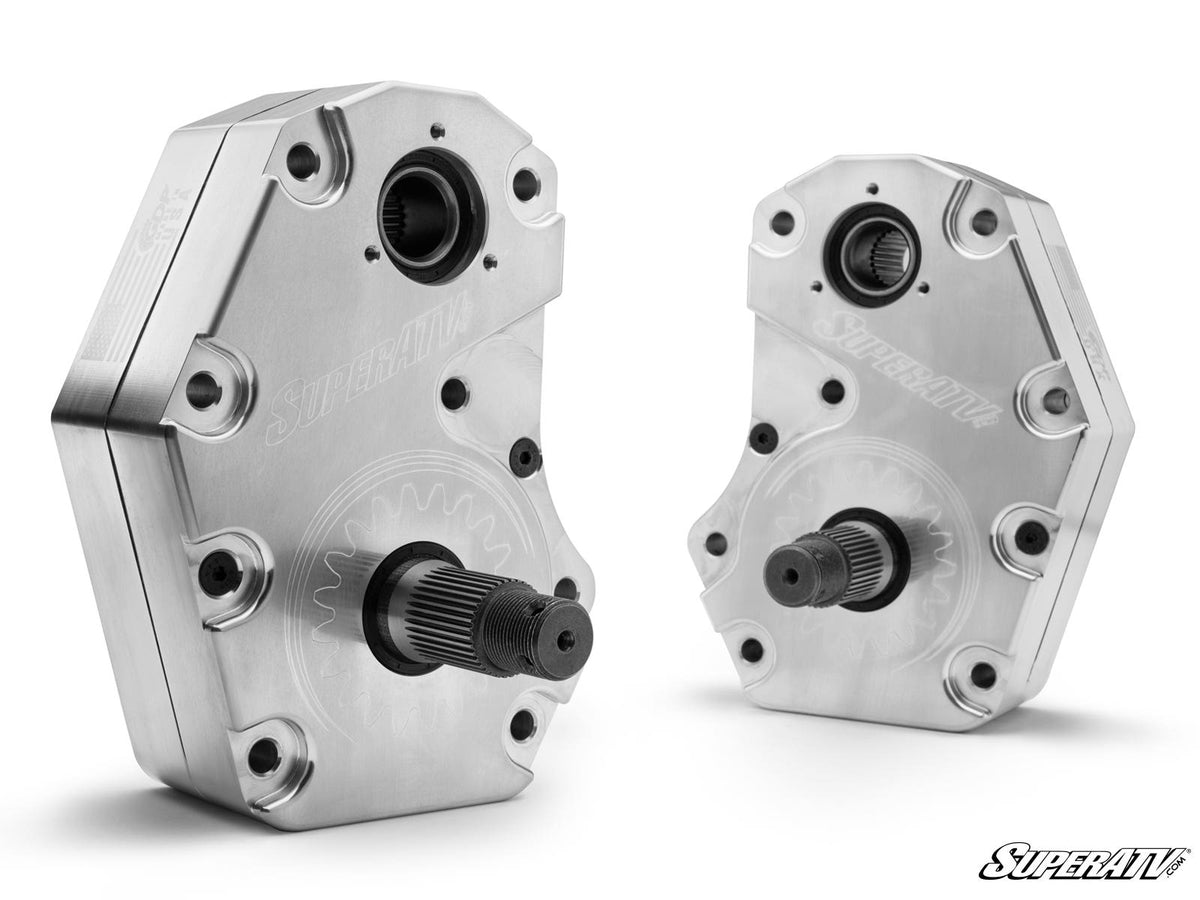

- Available with billet or cast aluminum housing
- Cool, quiet, precision-ground gears made from 9310 alloy billet steel
- Increases width by 3.2” per side (6.4” total)
- 1.5” diameter 4340 hardened steel drive shaft
- No leak bearings and seals
- Universal hub fits all major bolt patterns
- Comes complete with all hardware, backing plates, brakes lines and instructions
Fitment (per SuperATV)
CFMOTO U10 Pro : 2025+ CFMOTO U10 Pro Highland : 2025+ CFMOTO U10 Pro XL : 2025+ CFMOTO U10 Pro XL Highland : 2025+
Wheel Requirements
- 18” or larger wheel required
- 18” wheels cannot exceed 4-1/2” backspacing
- 20” and larger wheels cannot exceed 5” backspacing
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer
Installation instructions (PDF)
