Why You’ll Love It
4” Portal Lift adds ground clearance directly at the hubs 15% or 30% Gear Reduction adds torque and relieves drivetrain stress Selectable Idler Setup lets you choose dual- or single-idler gearing Cast or Billet Housings let you choose the construction that fits your build Limited Lifetime Warranty protects your purchase

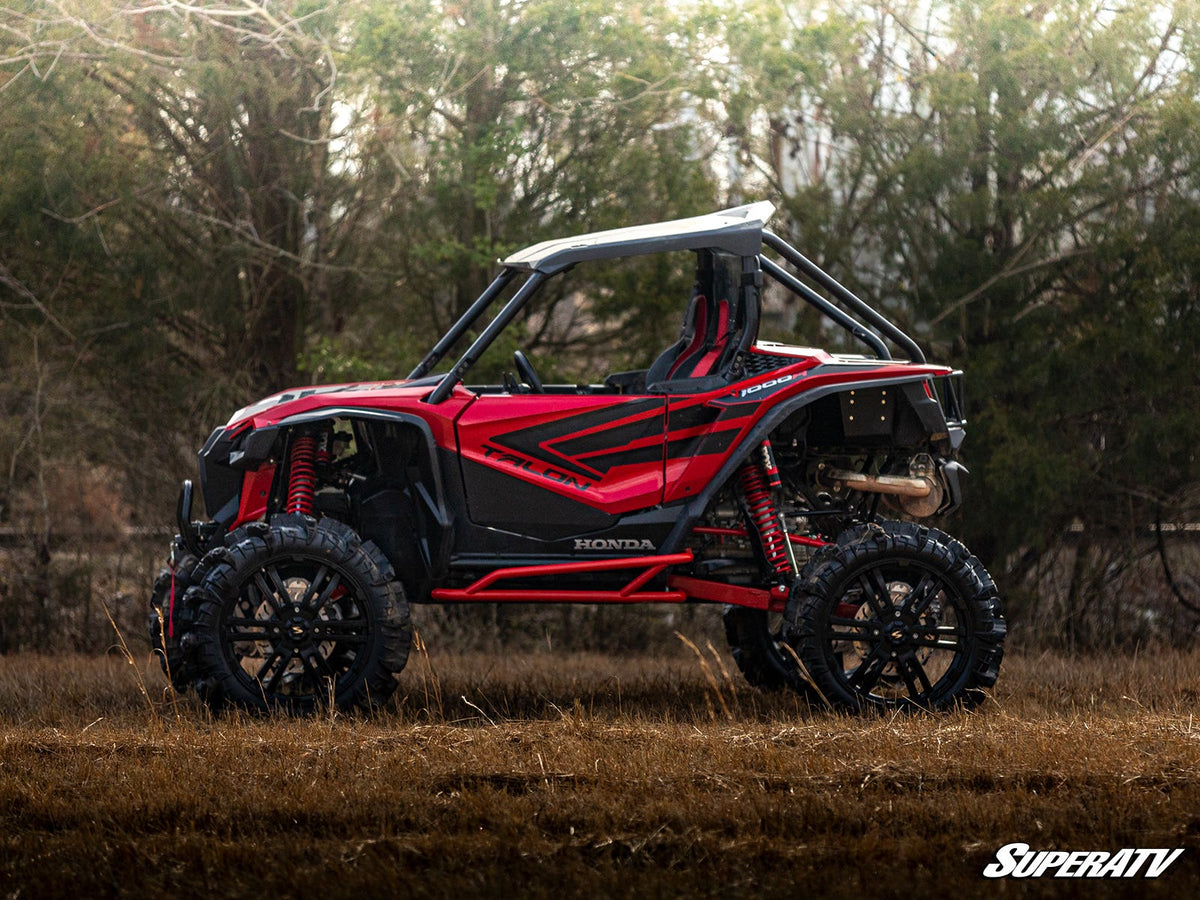

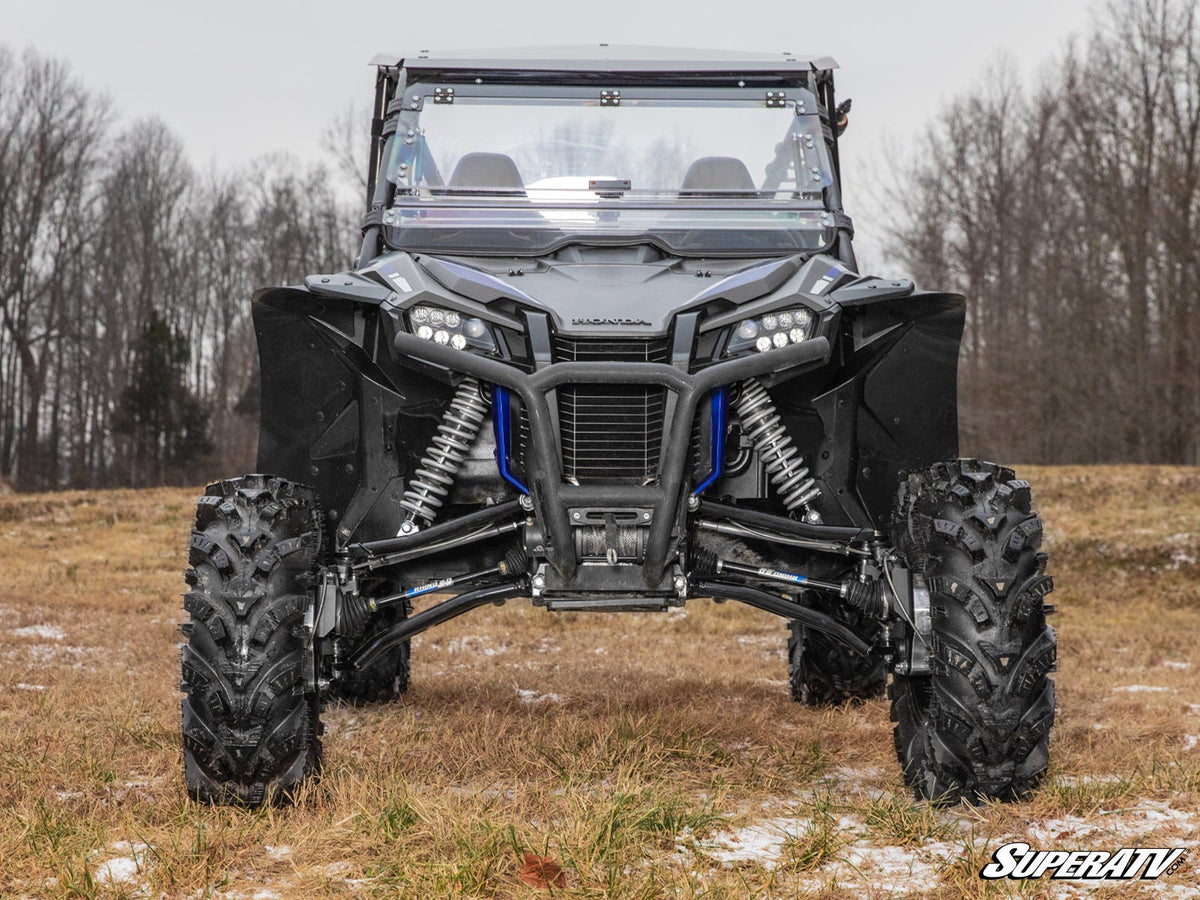

GDP Portals Will Transform your Talon
Your ride style is as unique as you are, which is why we don’t make “one size fits all” portals. With SuperATV’s Gen 3 4” Portal Gear Lift, you’ve got options for your Honda Talon 1000R. First off, you tell us which gear reduction you want—a 30% reduction is perfect for big tires and even bigger torque, while 15% is ideal for smooth, precise trail riding. You can opt for dual idlers for maximum strength and choose between cast or billet aluminum housings. No matter what you choose, you get a portal gear lift that just can’t be beat.

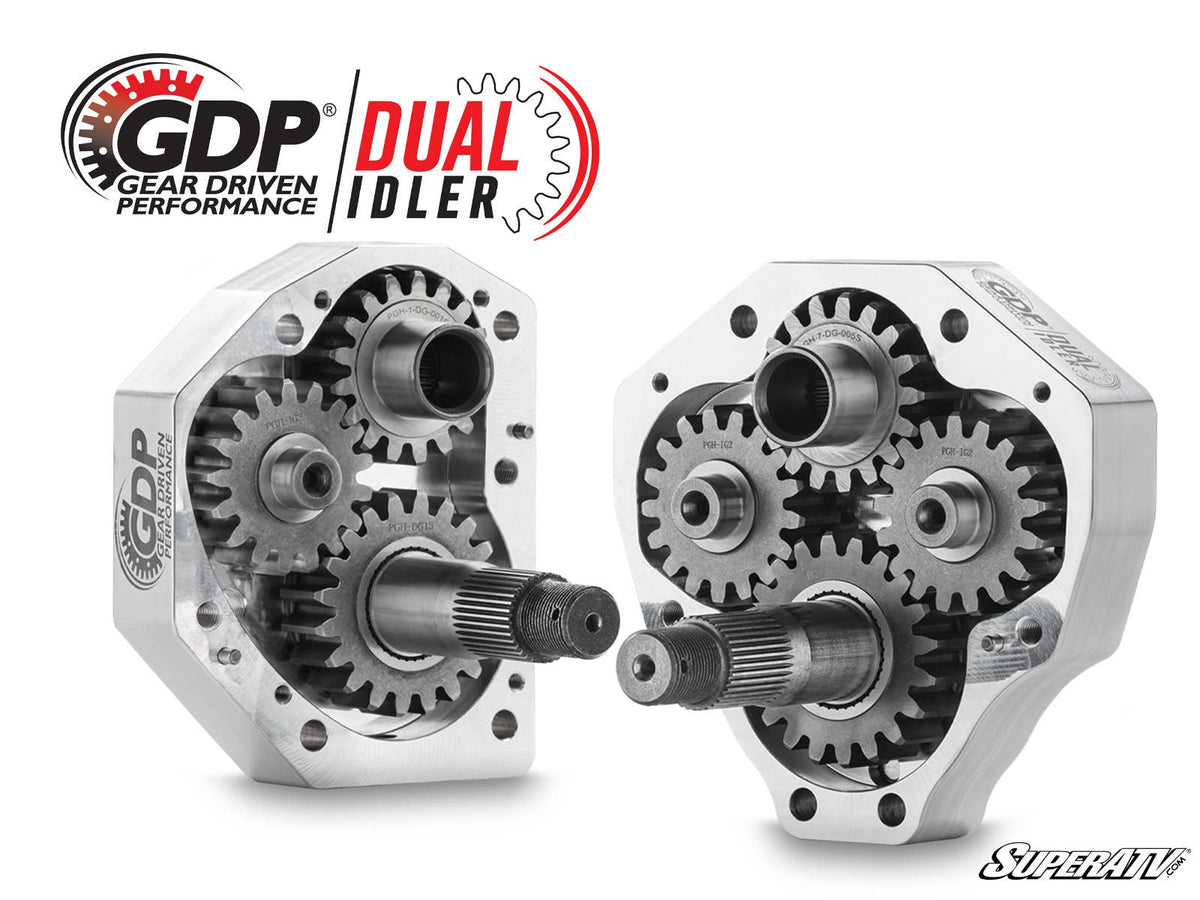

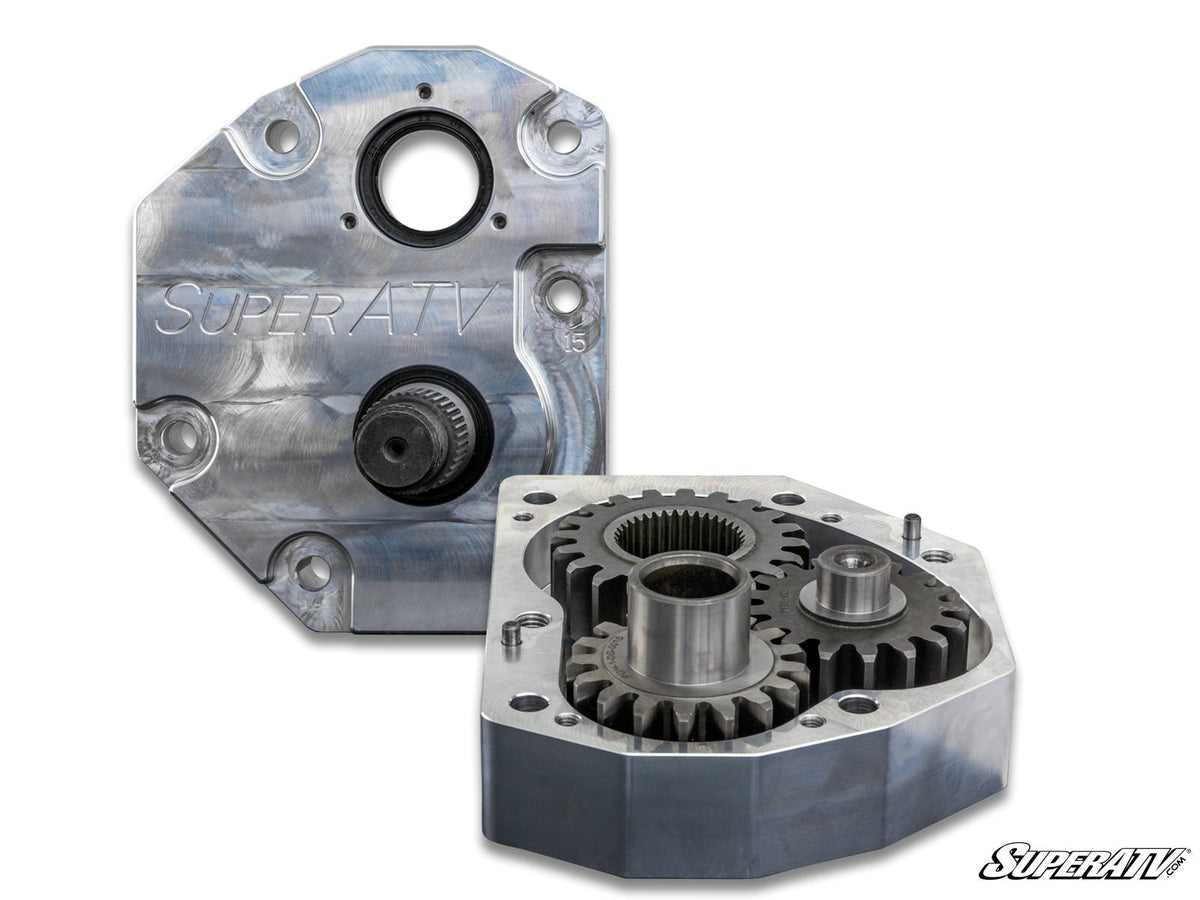

What Is a Dual Idler®?

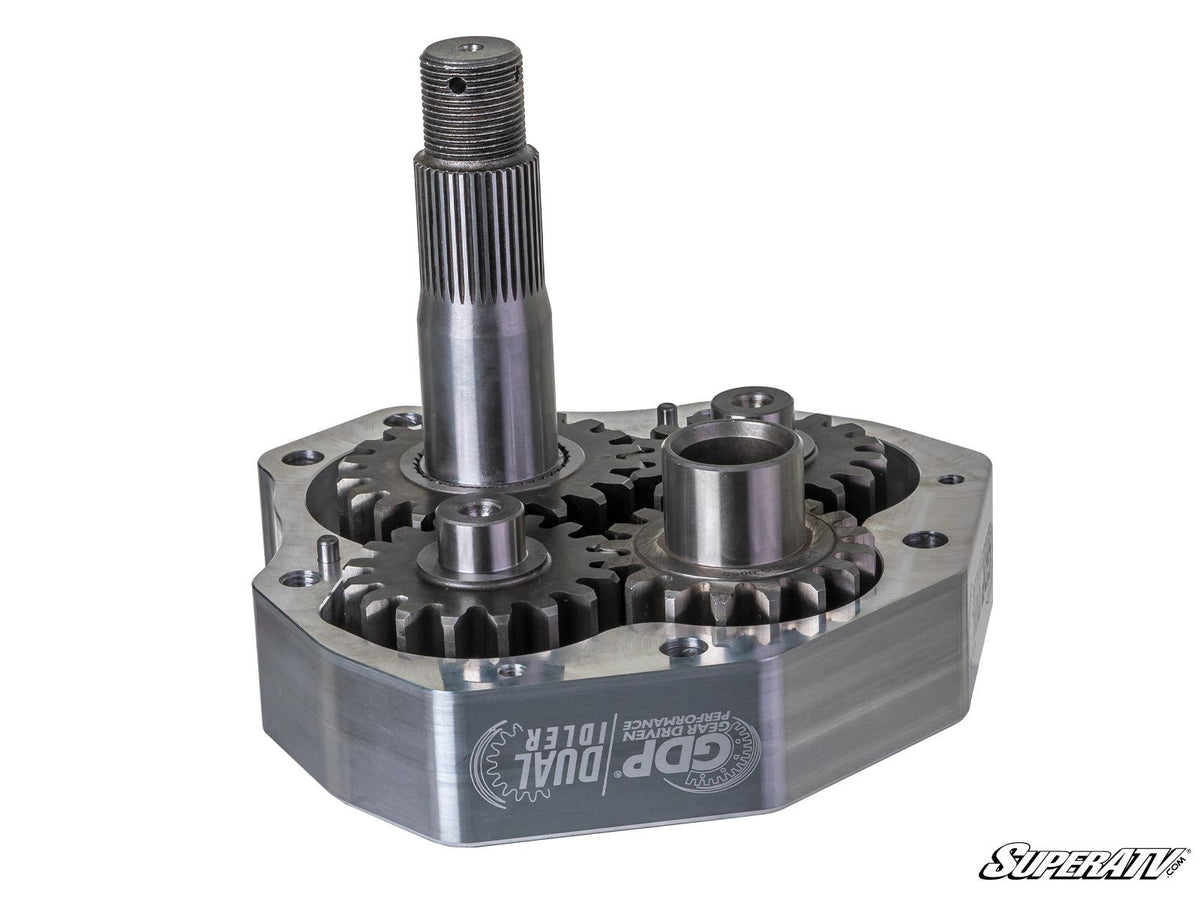

Perfection takes time. After years of research and development, we’ve made our dual idler gear portals unlike any other. By placing a second idler gear in the portal box, the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears don’t do a thing if they’re not mated perfectly, though. Precision CNC grinding ensures ours do. Our gears are made from the industry’s toughest 9310 steel alloy. Didn’t think dual idlers mattered? With GDP’s quality and experience, they finally do.
Perfect for Any Rider
You haven’t truly experienced mud if you haven’t tackled the bogs while riding on GDP portals with a 30% gear reduction. Getting slowed down by thick, peanut-butter mud will be a thing of the past with the torque boost that GDP gives you. Our 30% gear reduction is great everywhere, but if you want the fastest lifted Talon you can get, go with 15%. It gives you punchy power and a higher top speed.
A Gear Reduction That Protects Your Drivetrain

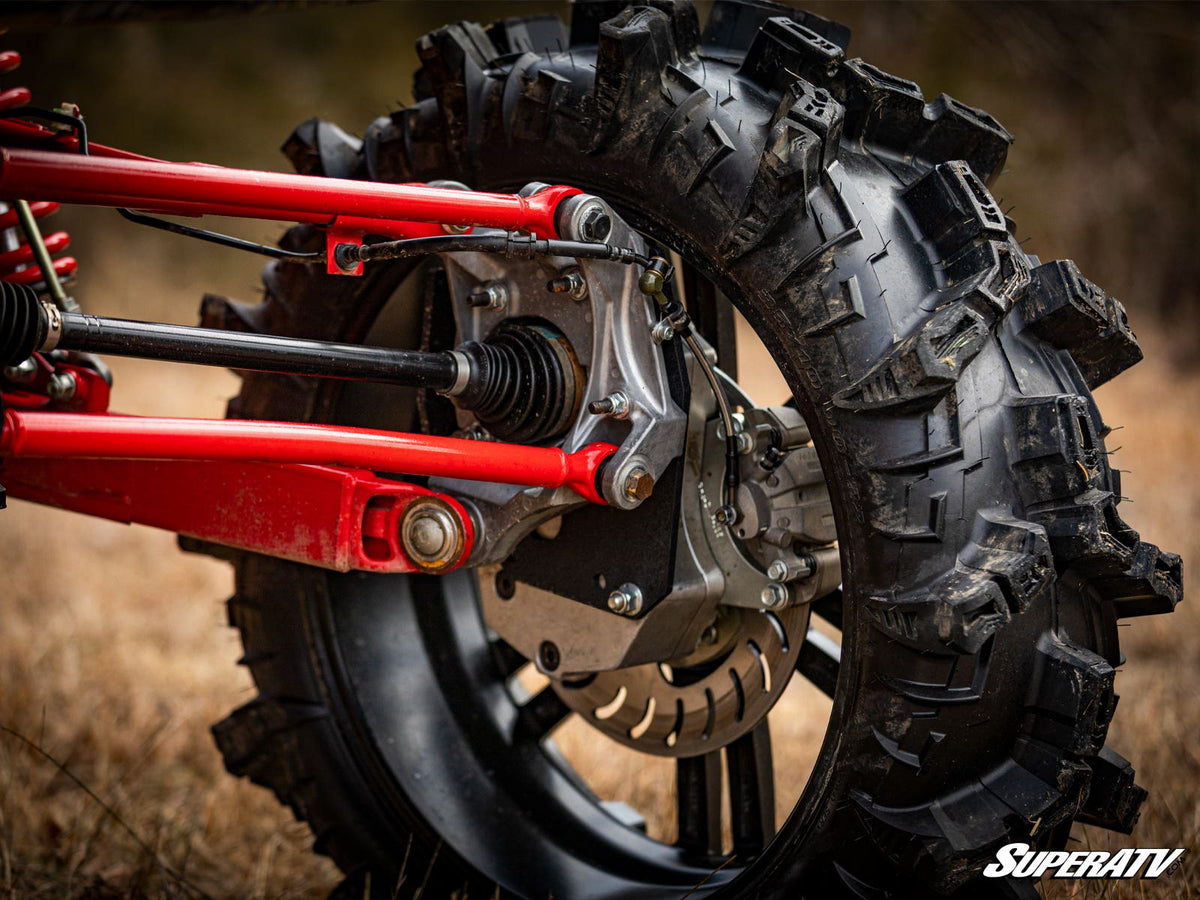

A huge advantage of portal gear lifts is how they put the lift right in the hub, which doesn’t put additional or unnecessary stress on your drivetrain. This lets you ride harder and tackle bigger obstacles without messing up your machine’s most vital parts.
The Strength You Need

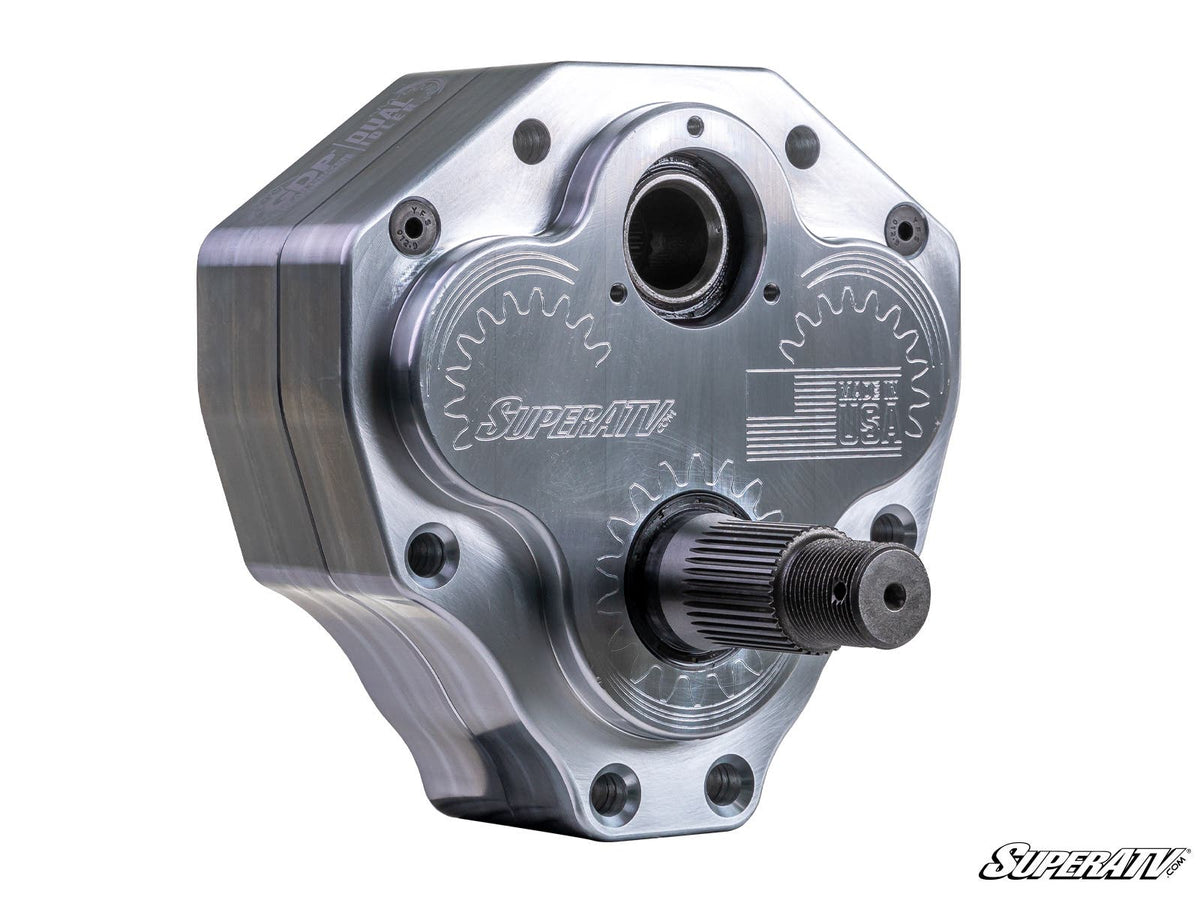

We’ve done enough research on portals to understand what can make or break them. That’s why you won’t find housings or backing plates stronger than what we use for our GDP portals. You get the choice of cast or billet aluminum housings to go with you 5/16” advanced alloy backing plates. No matter what, you get unmatched strength and reliability.
Our housings are reinforced for gear retention and optimized for oil flow
Advanced steel alloy backing plates are stronger than chromoly
Enhance with Portal Blood—gear oil formulated for GDP Portals
There are no gimmicks and no vents because vents do more harm than good—we know because we tested them

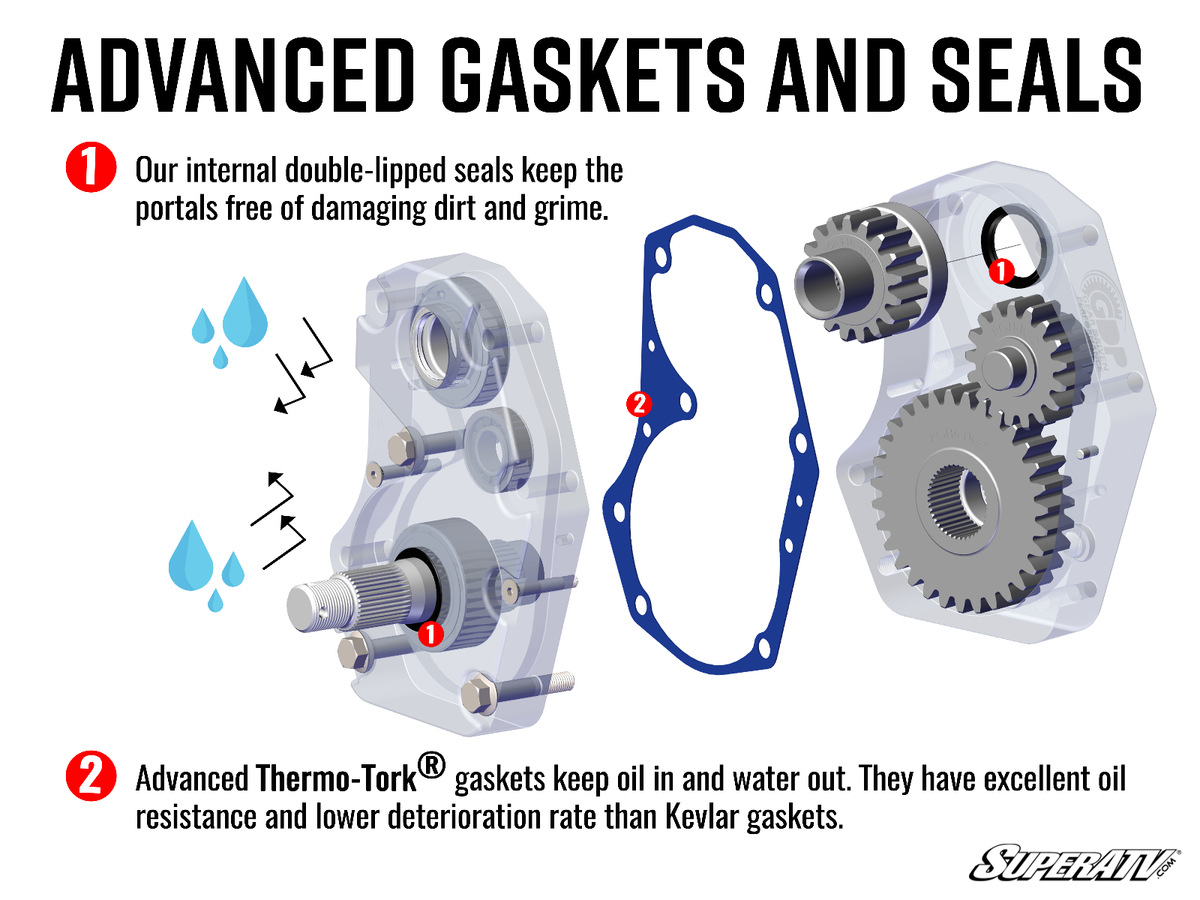

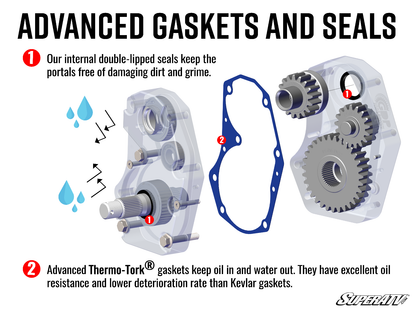

Advanced Gaskets, Seals, and Bearings
Our portals use
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
- Double-angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
- Reinforce Your UTV with a Frame Stiffener
Your Honda Talon is a powerhouse of a UTV. It’s built for high-octane action and hard rides. It’s also tough enough to handle 4” portals. But, if you add another lift, big tires, and heavy passengers, there’s a chance you could bend your frame. So for you go-big-or-go-home types, we recommend adding a heavy-duty steel frame stiffener to your ride. It’ll make sure your Talon stays good as new.
Top-Rated Customer Service
Still need a little help getting exactly what you need? We’ve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.
4” Portal Gear Lift Includes
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings

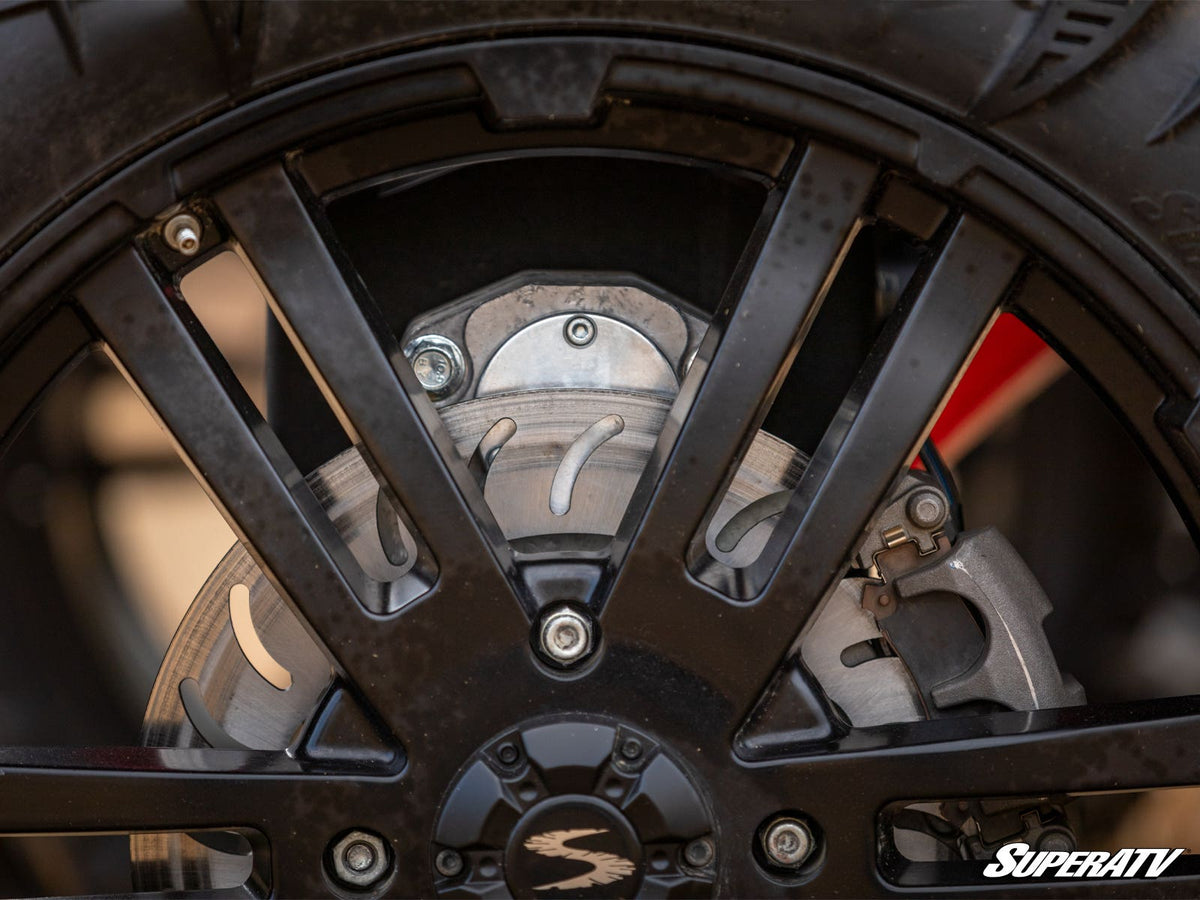

- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (8) Caliper mounting plate shims
- (2) Steel steering arms
- (2) Rear adapter plates
- (2) Preinstalled lower ball joints
- Extended brake lines
- All required hardware, including recessed castle nut socket
- Frame stiffener (must select at checkout)
- Honda Talon 1000R Portal Gear Reduction Recommendations
- Max Tire Size
- Required Suspension Setup with 4” Portals
- 37"
- Stock
- 38"
- 3" Lift Kit
If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator.
Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.
Patent # 11,299,042
Patent # 11,318,787
Features
- Available with billet or cast aluminum housing
- Dual idler gear configuration maximizes strength
- Cool, quiet, precision ground gears made from 9310 alloy billet steel
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use advanced gaskets or O-rings that don’t let anything through
- Universal hubs can be set up to work with the following bolt patterns: 4/156, 4/137, 4/115, and 4/110
- Gear reduction reduces stress on your drivetrain
- Dual idler gear configuration adds a 3/4” front and rear offset—1.5” total extension
- Lighter than the competition
Fitment (per SuperATV)
Honda Talon 1000R : 2019+ Honda Talon 1000R-4: 2023+
Wheel Requirements
- 14” or larger wheel required
- Cannot exceed 5” backspacing
- Not compatible with dual beadlock wheels
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer
Installation instructions (PDF)
