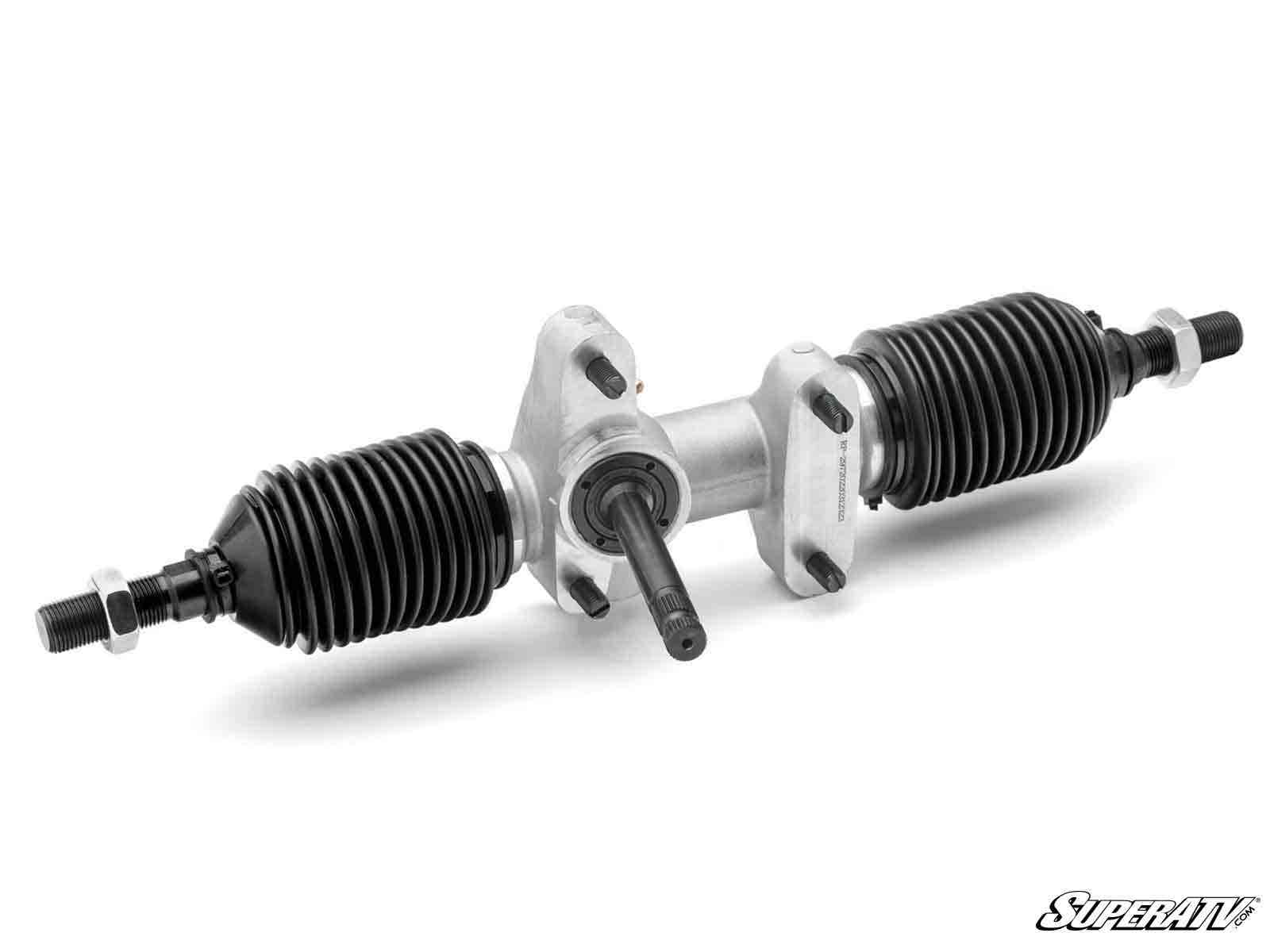

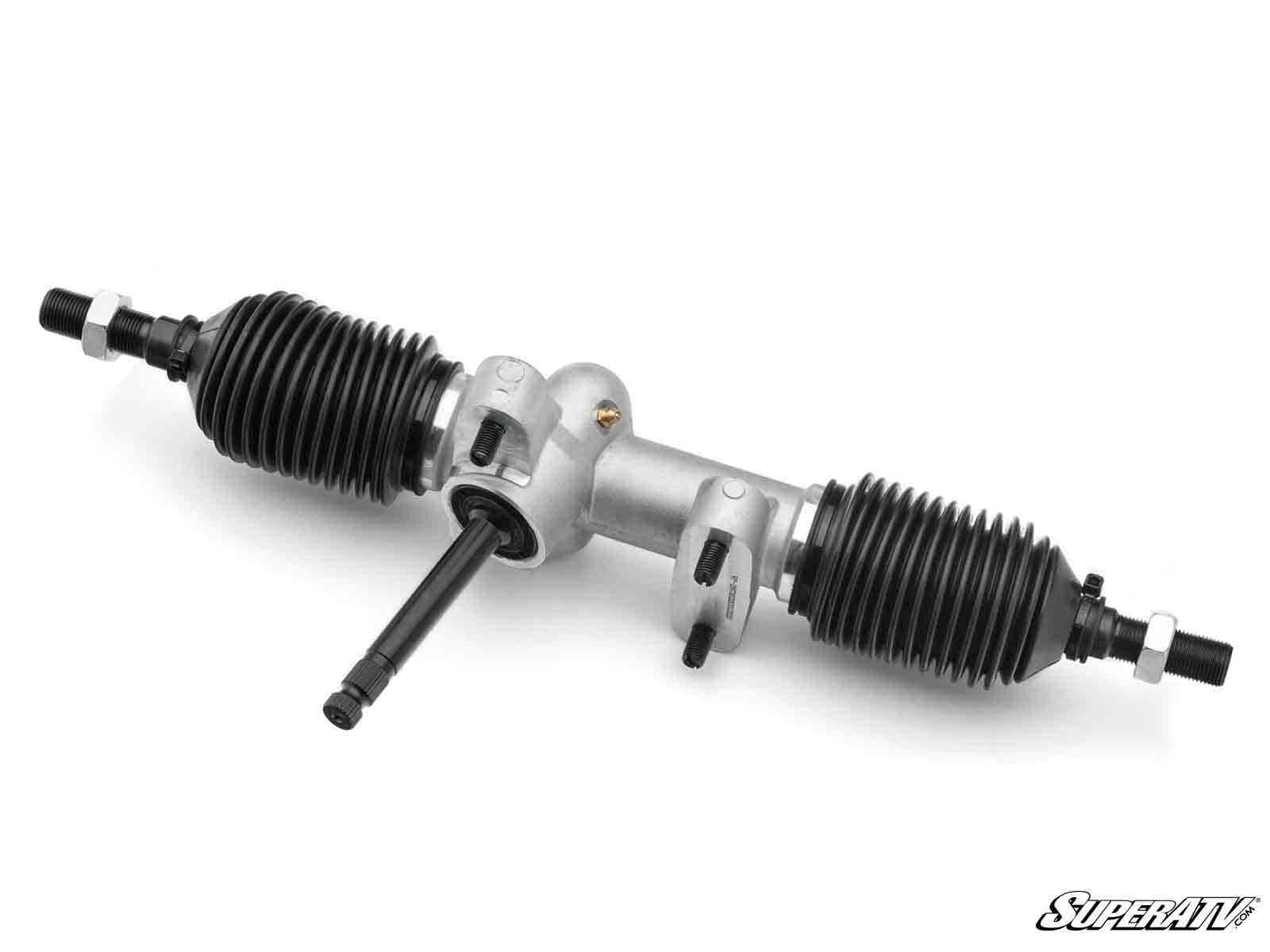

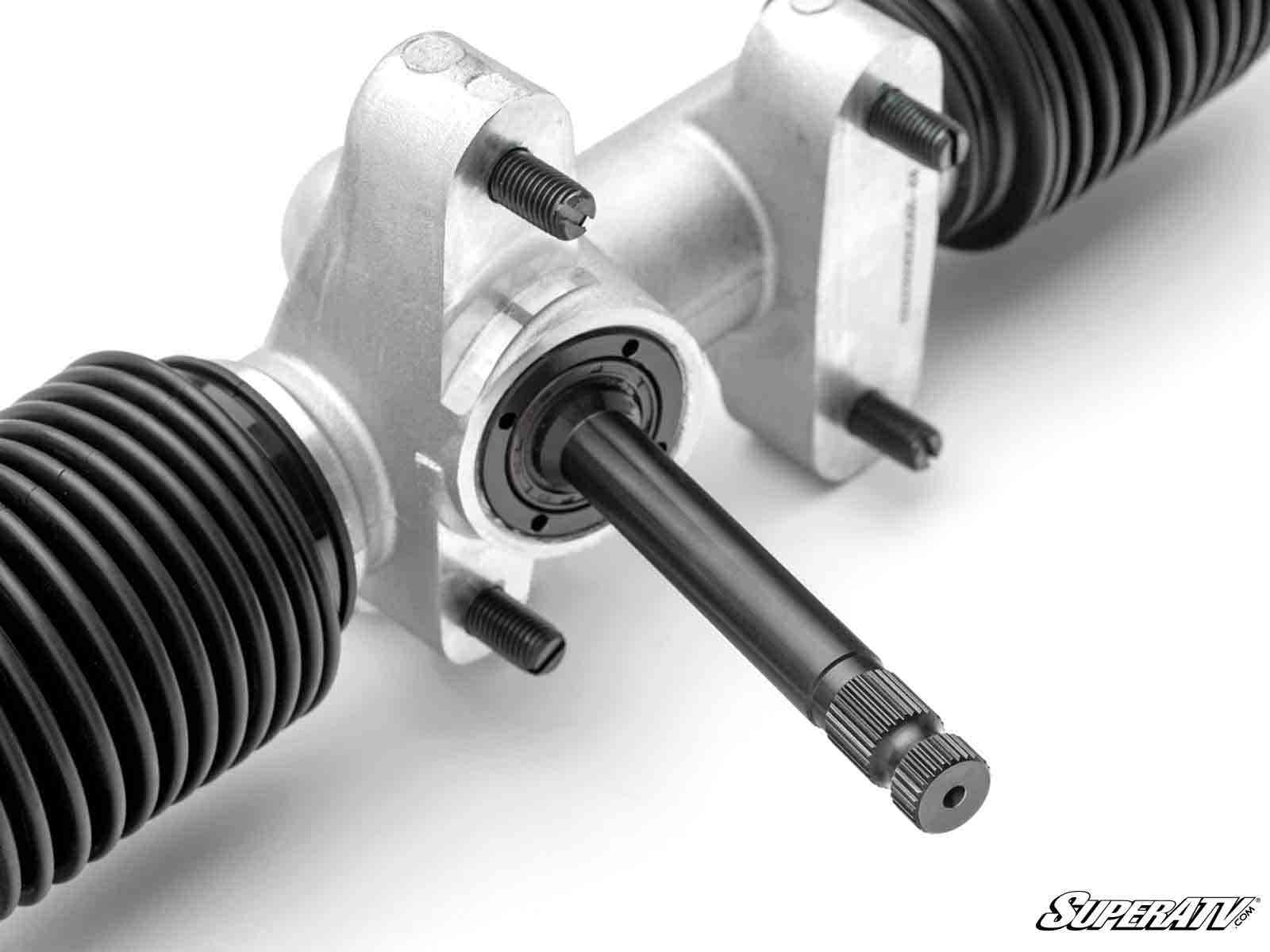

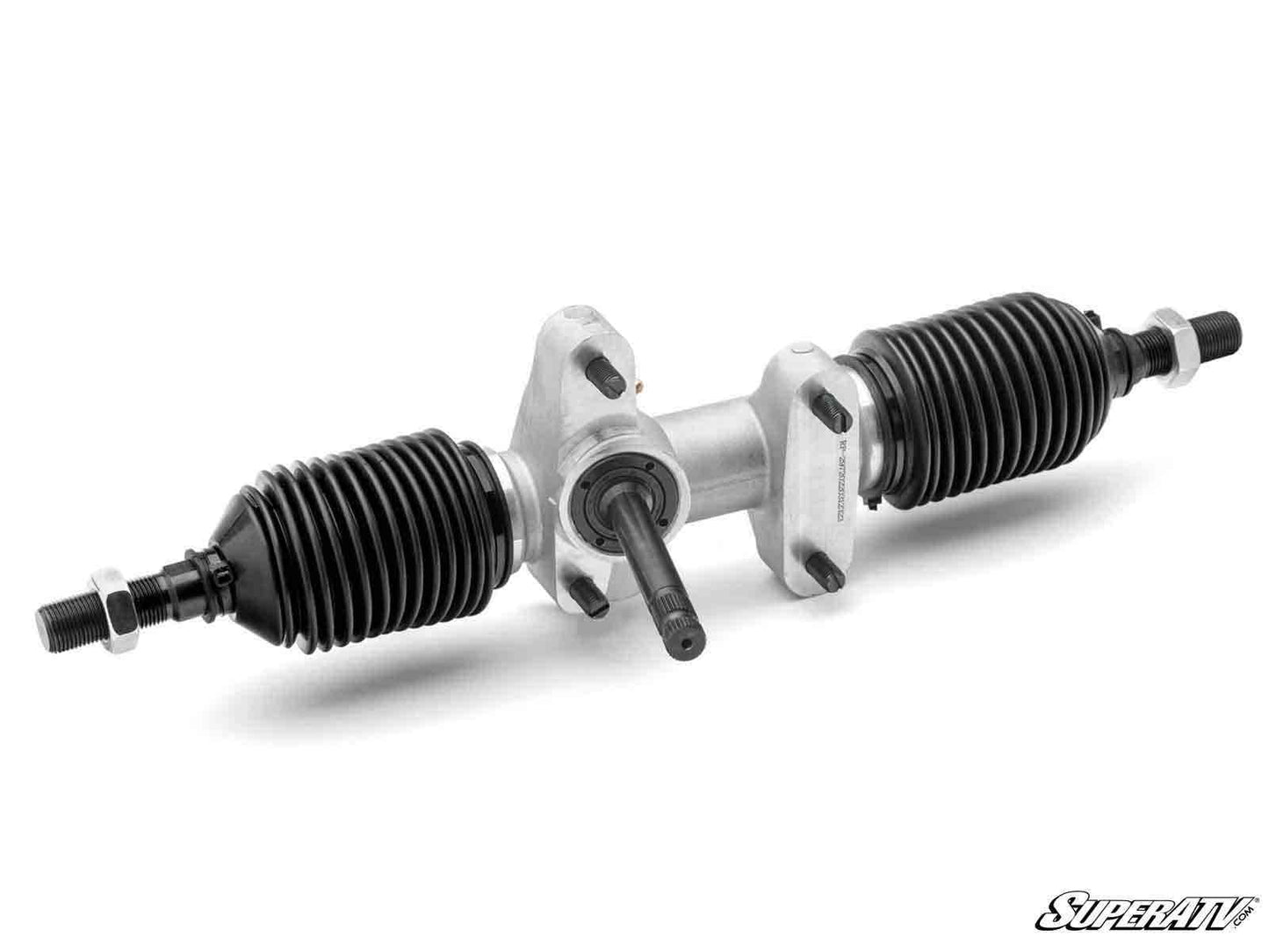

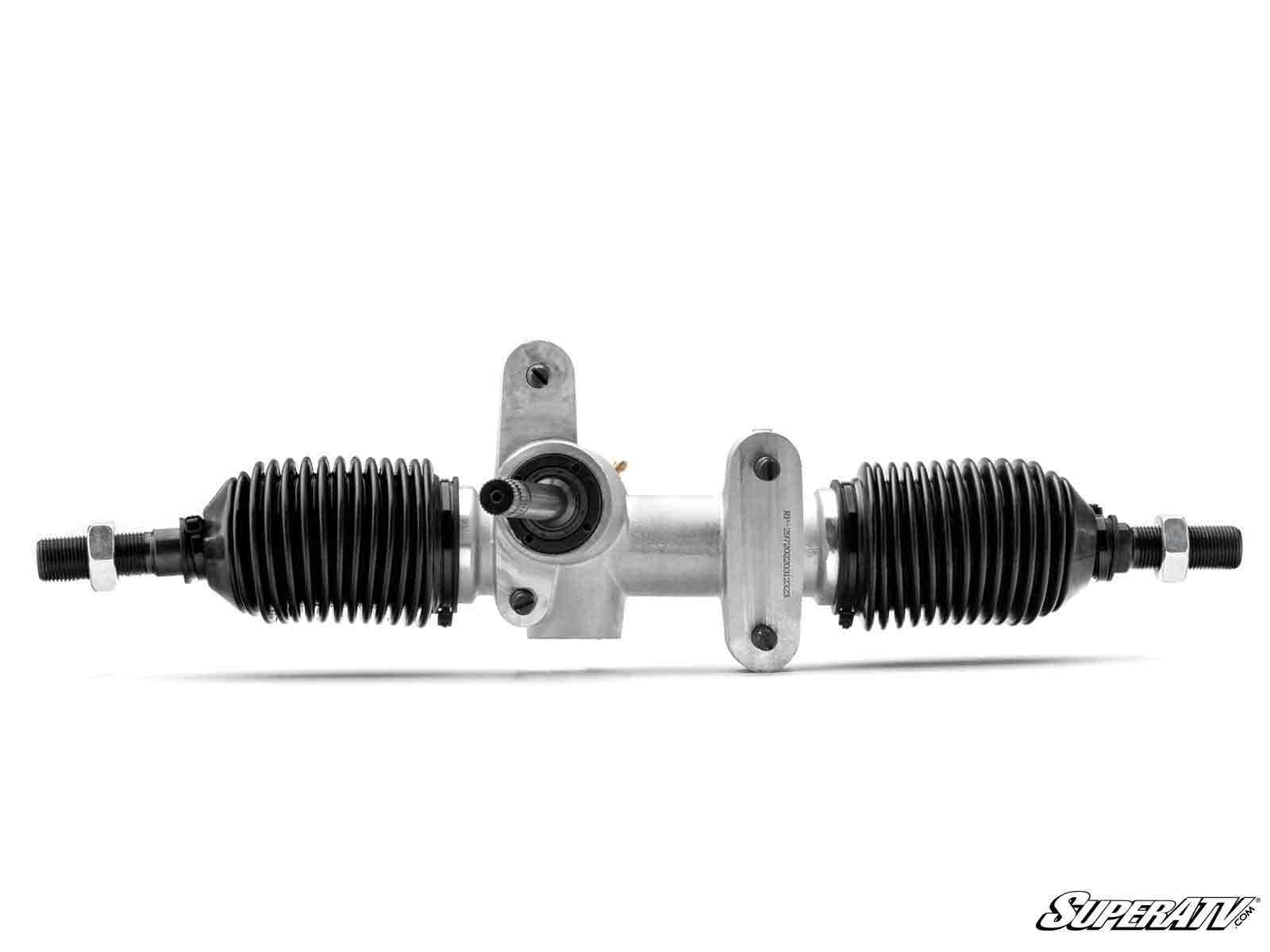

RackBoss 2.0 Is the Best Rack We’ve Ever Made The more
you beat on your Talon, the less responsive your steering gets. It happens to
every rack eventually. But not anymore. Upgrade to SuperATV’s Honda Talon
1000R RackBoss 2.0 Rack and Pinion. It’s an upgraded version of our original
RackBoss that uses X24 Tech—a unique dual-bushing design that reduces wear by
over 50%. It’s built for the big tires and wicked terrain that would sideline
most rigs.

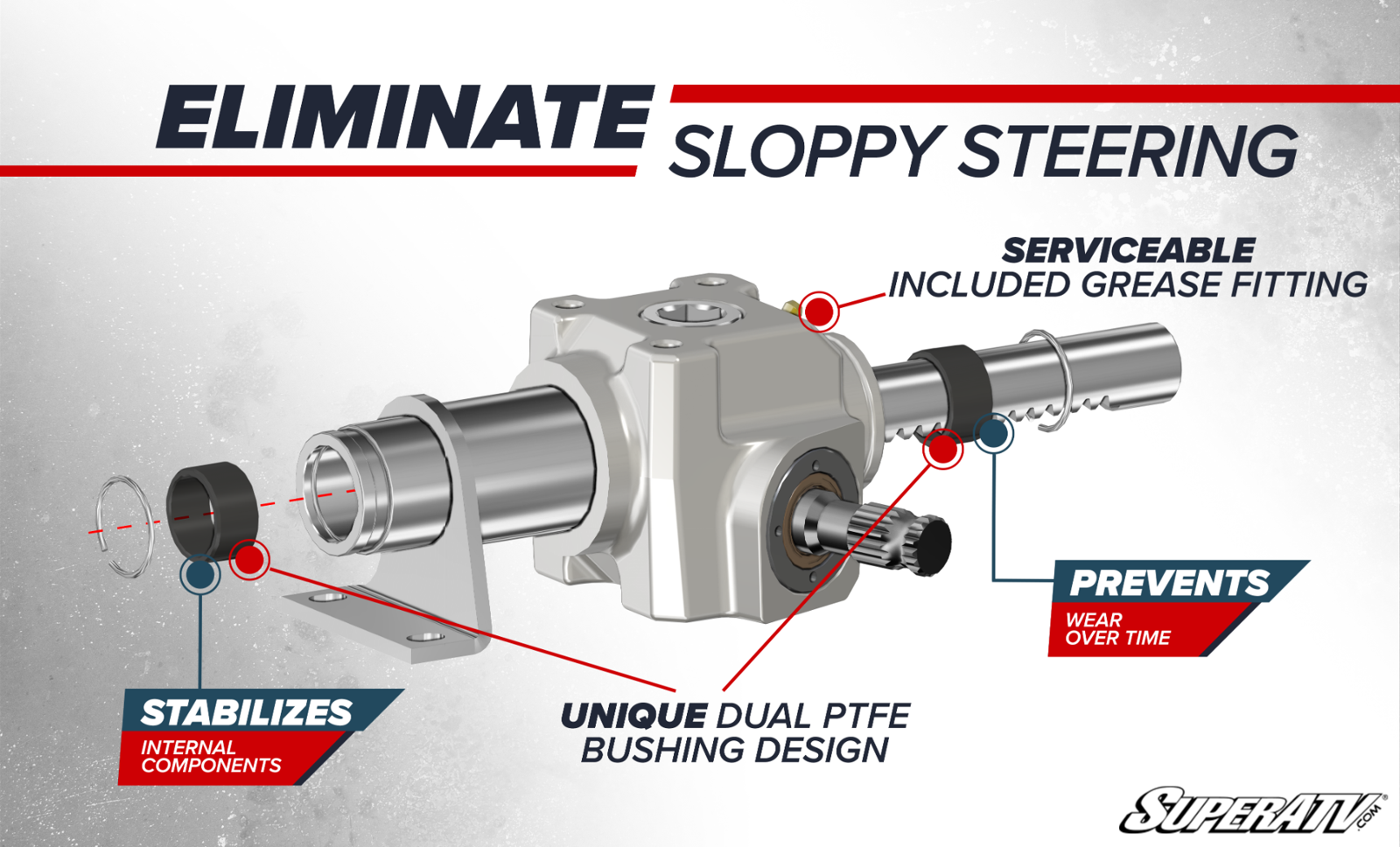

Boosted Durability with a Dual-Bushing
Design RackBoss 2.0 removes almost all unwanted internal play by
using our X24 dual bushing design. With heavy-duty PTFE bushings positioned at
both ends of the rack, the rack gear and tension spring are nearly motionless.
Without extra play, you can ride harder with bigger, heavier upgrades and
still see less wear than a stock Honda 1000R steering rack. That durability is
boosted even more with the inclusion of a grease zerk that makes it easy to
keep it running smooth.

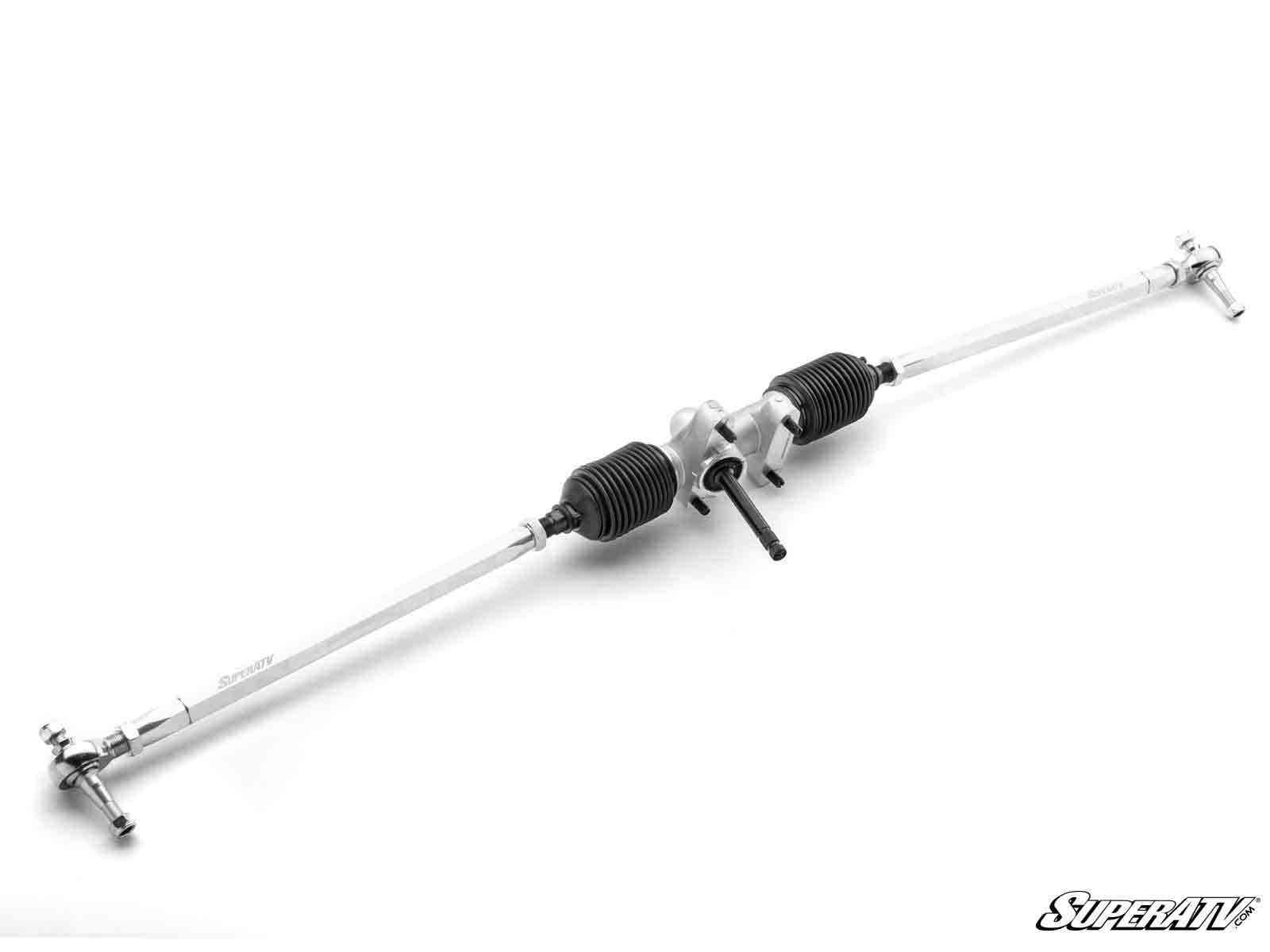

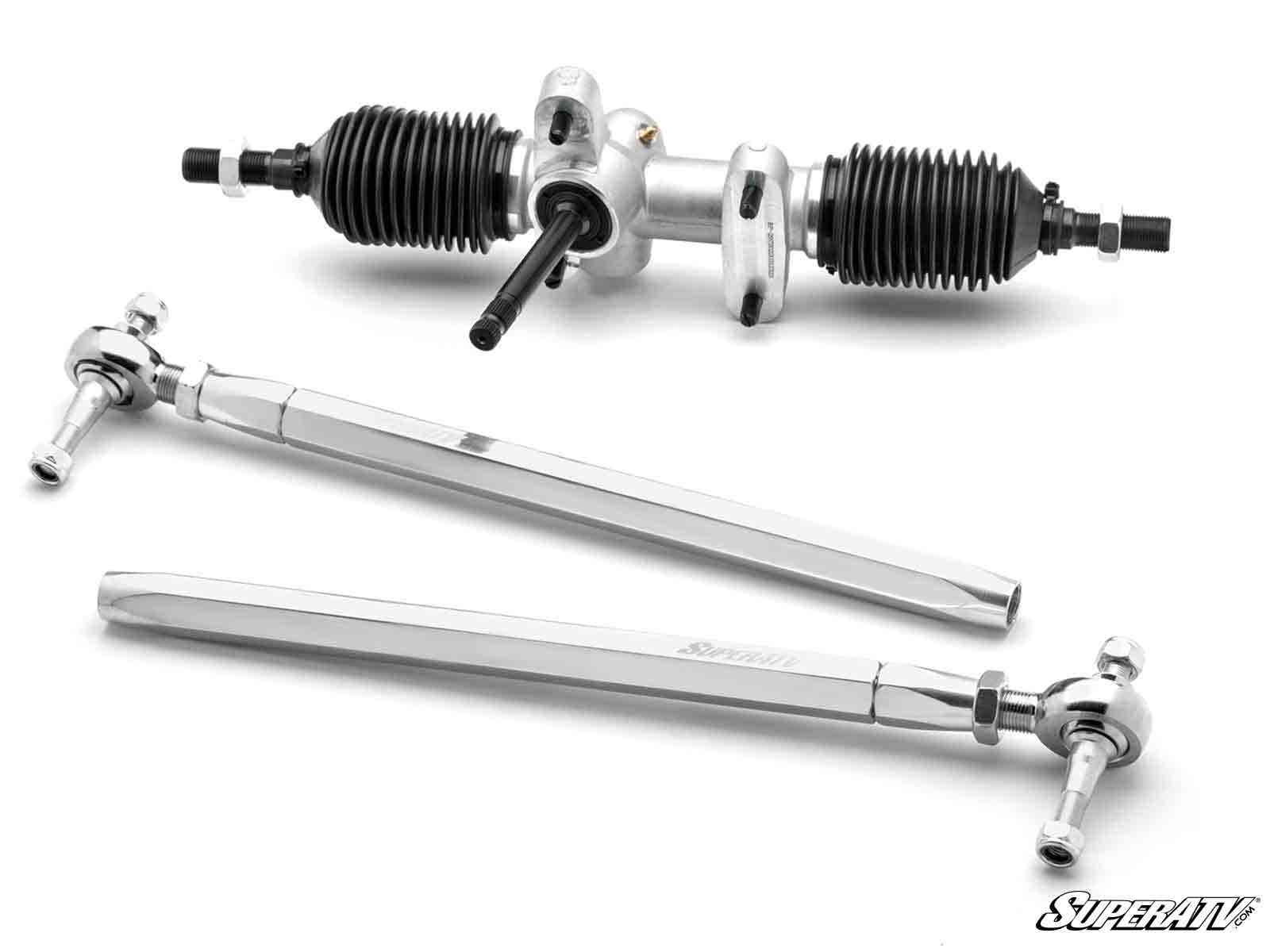

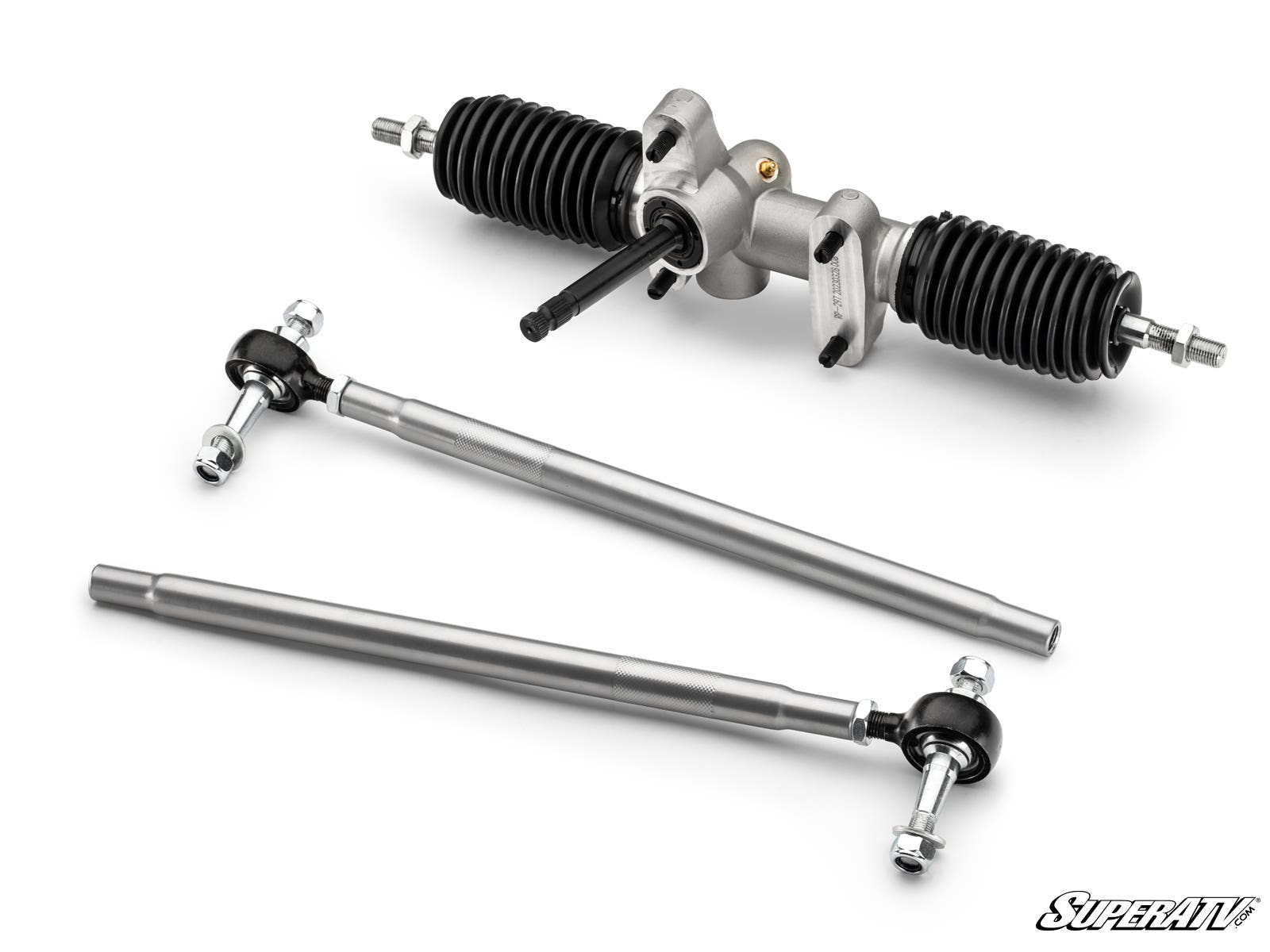

Swaged Tube Tie Rods Our steel swaged tube tie rods give you exceptional strength in a lightweight
package. The flared-out design makes the 7/8" diameter tubing even more
durable. Plus the tie rod ends are made stronger to eliminate stock’s biggest
weak spot. With massive 16 mm rack threads and 14 mm rod threads, these tie
rods rank among the industry's toughest.

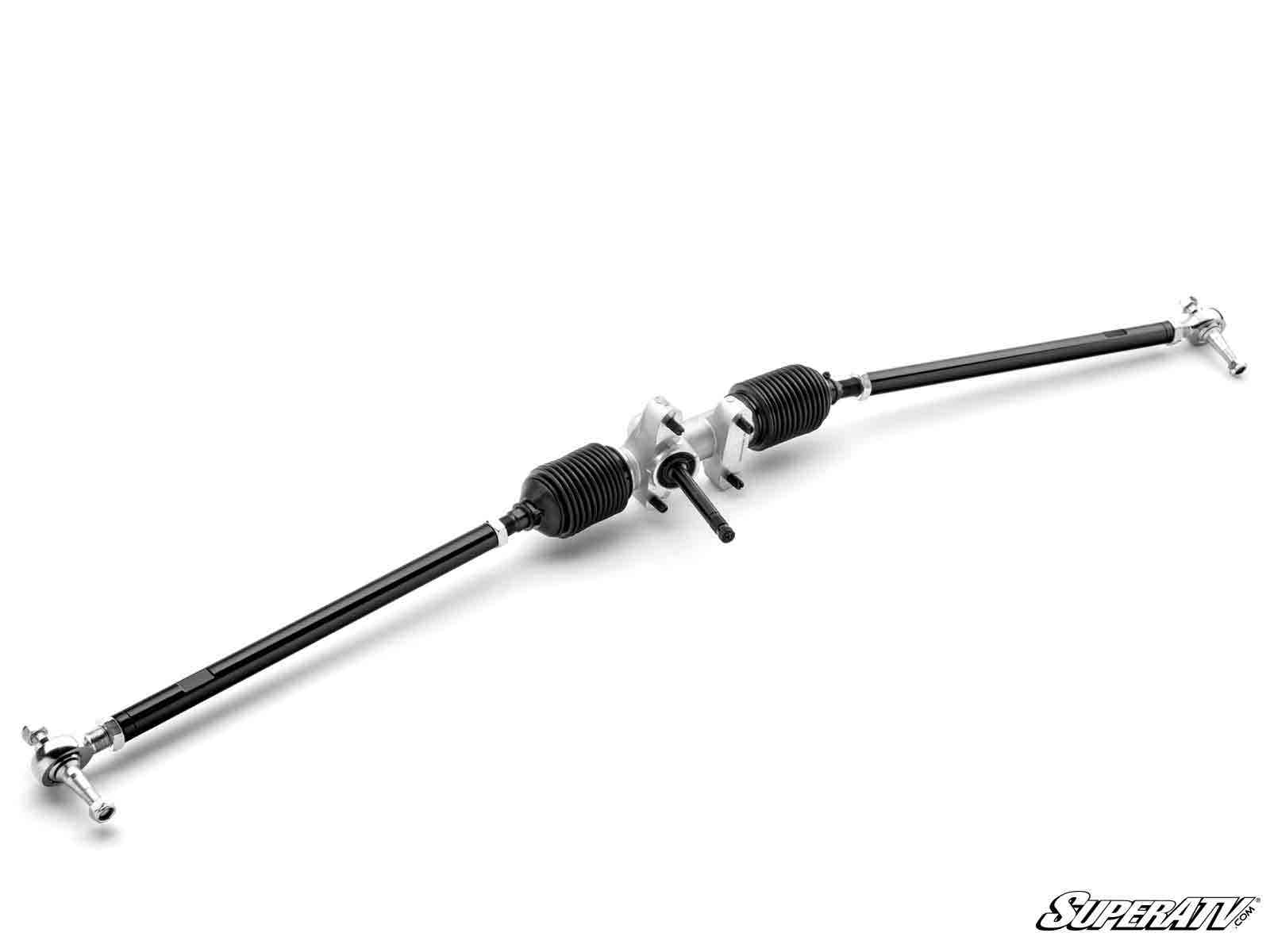

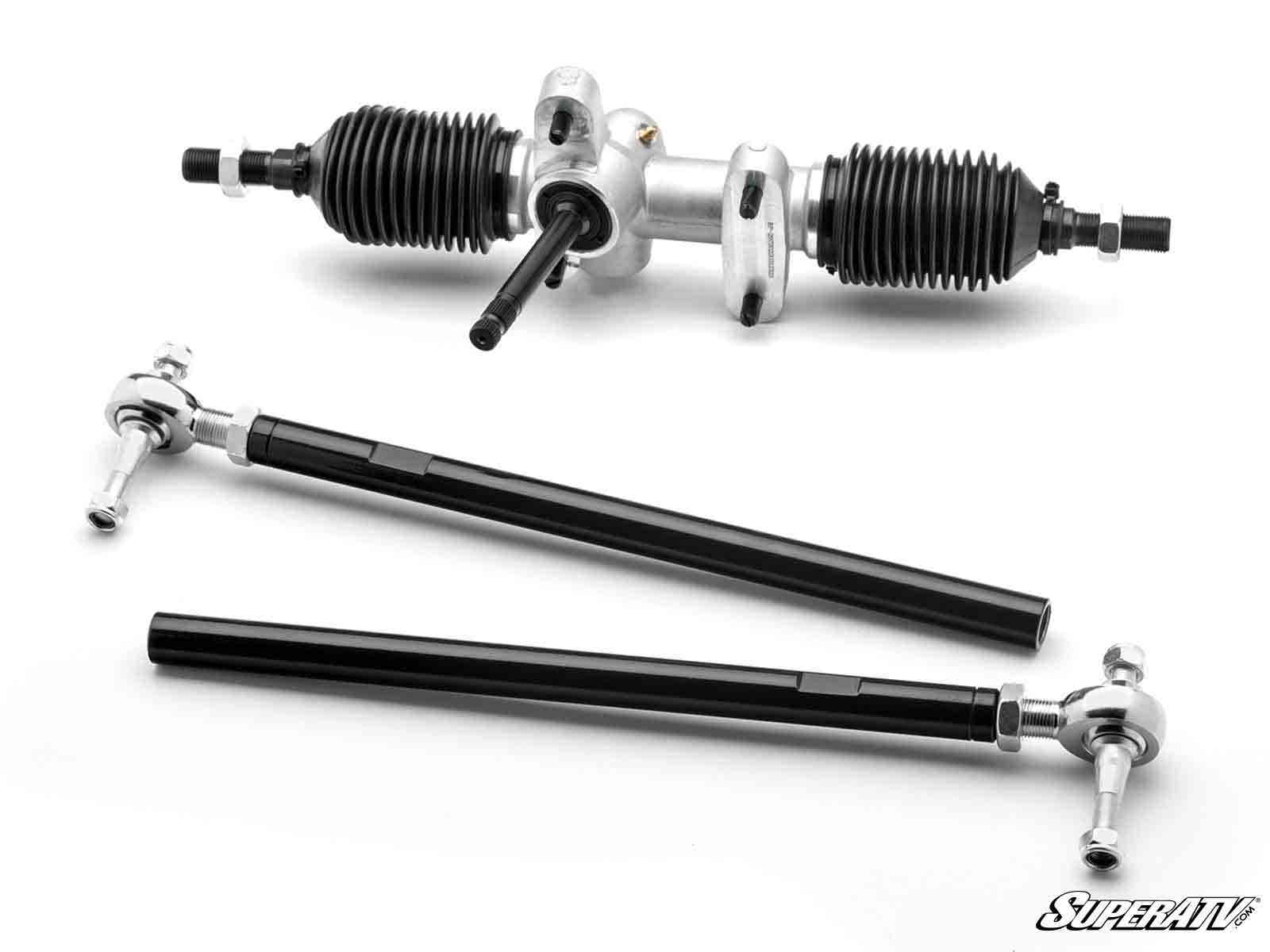

Solid Steel Bar Tie
Rods Our solid steel tie rods are made with 1” diameter bar and
paired with our industry-leading chromoly tie rod ends. Our heim joint ends
use massive 3/4” threads to make them as beefy as possible, and our
rebuildable inner ball and sockets have 16 mm rack threads to bolster
durability. With all that strength, you can ride better and longer than ever.
| | RackBoss 2.0 Swaged Tie Rod | RackBoss 2.0 Solid Steel Tie
Rod |
X24 Tech Dual-
Bushing Design | ✔ | ✔ |
Inner Ball and Socket
Thread Diameter | 14 mm rod threads, 16 mm
rack threads | 3/4” rod threads, 16 mm rack
threads |
Outer Tie Rod End
Thread Diameter | 14 mm | 3/4” |
Tie
Rod Material | Steel tube | Solid steel bar |
| Greasable | ✔ | ✔ |
Inner
Boots | ✔ | ✔ |
Steering Stop
Kit | ✔ | ✔ |
Misalignment Bushings,
Tie Rod Studs, & Hardware | ✔ | ✔ |
Patent No. 11,345,393
FEATURE
- Heavy-duty dual PTFE bushings:
- Designed with X24 Tech
- Prevents wear
- Reduces slop
- Improves overall
durability
- Available tie rod options:
- Solid steel
bar - Swaged tube
- Swaged tube tie rods use:
- 14 mm outer tie rod ends
- Rebuildable inner tie rod ends that use
14 mm rod threads and 16 mm rack threads
- Solid steel tie
rods use: - 3/4” outer tie rod ends
- Rebuildable inner tie rod
ends that use 3/4” rod threads and 16 mm rack threads
- 65%
larger housing than stock - Over 50% less wear than OEM after 15,000
cycles - Grease fitting for rack gears
Fitment
- Honda Talon 1000R : 2019+
- Honda Talon 1000R-4 : 2023+
Replaces OEM Part#: 53840-HL6-A51 and
53840-HL6-A11
NOTE - Not compatible with
SuperATV 8" lift kit - Not compatible with models that have Live Valve
Shocks
