Why You’ll Love It

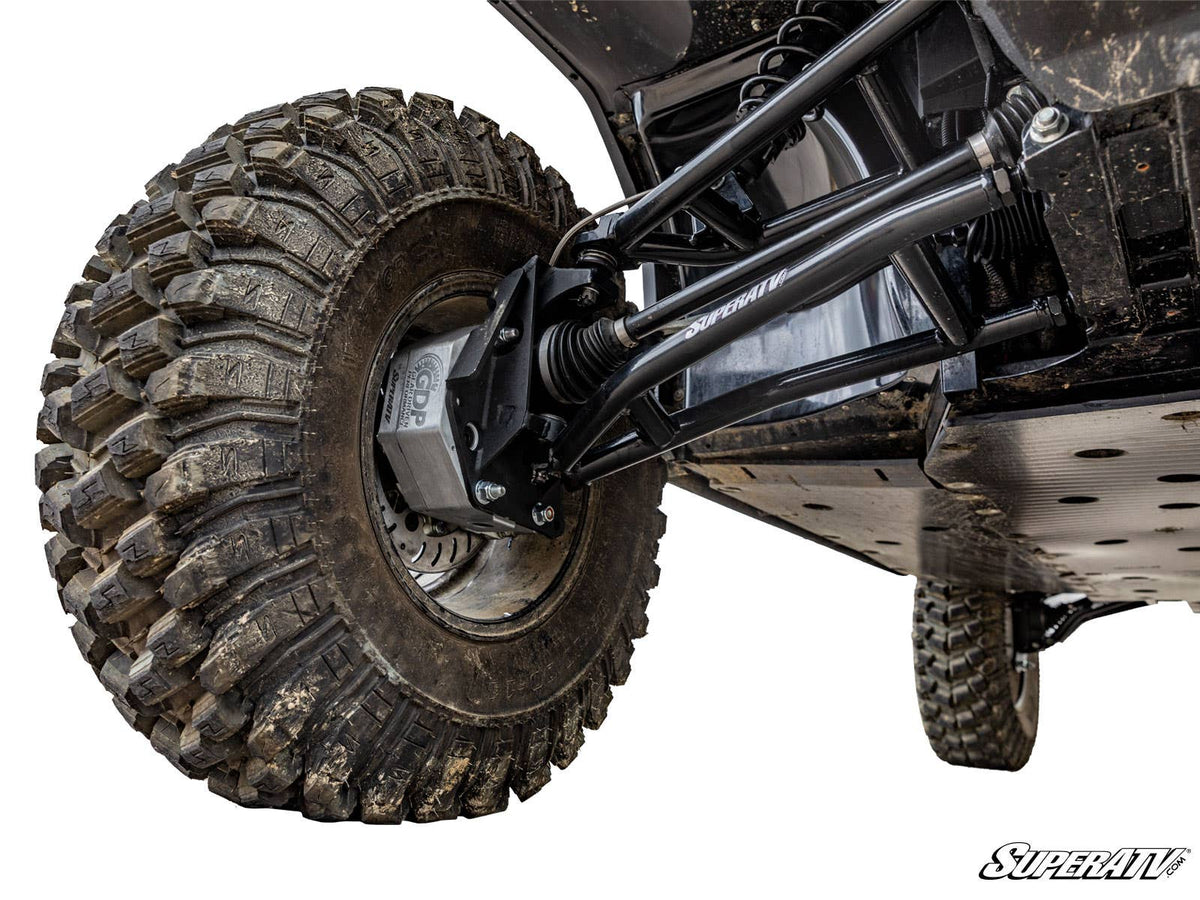

4” Portal Lift adds ground clearance directly at the hubs 15% or 30% Gear Reduction adds torque and relieves drivetrain stress Cast or Billet Housings let you choose the construction that fits your build 9310 Steel Gears pair with a hardened 4340 drive shaft for strength Limited Lifetime Warranty protects your purchase
Gen 3 Portals are Geared for All

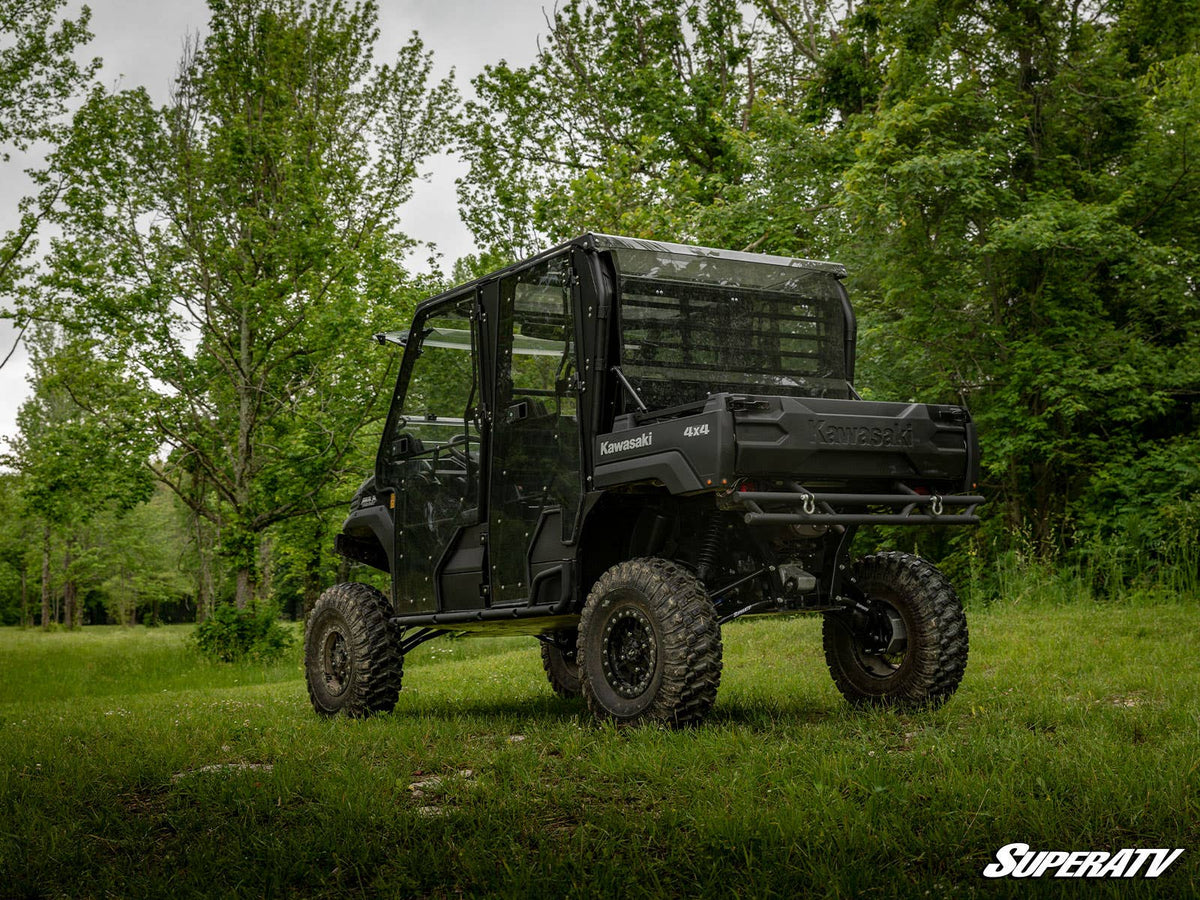

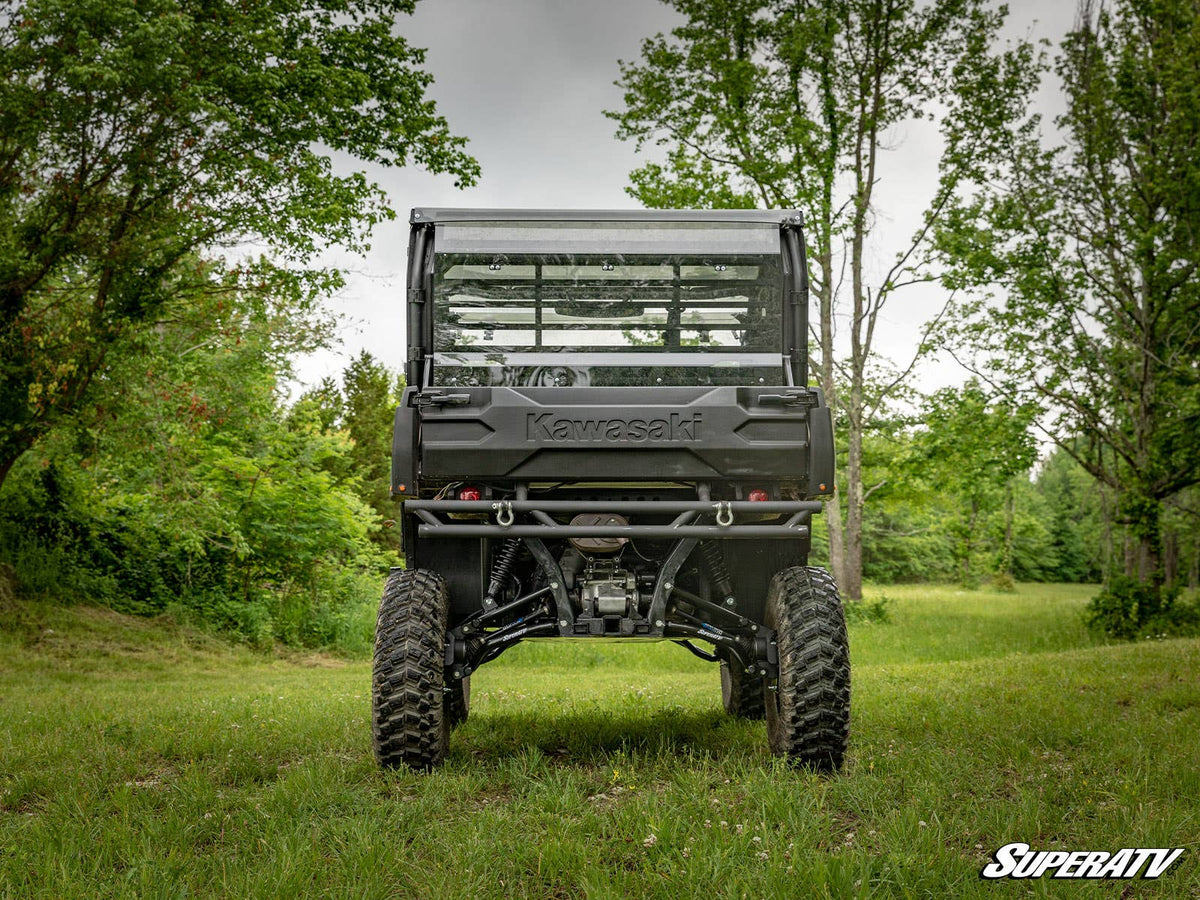

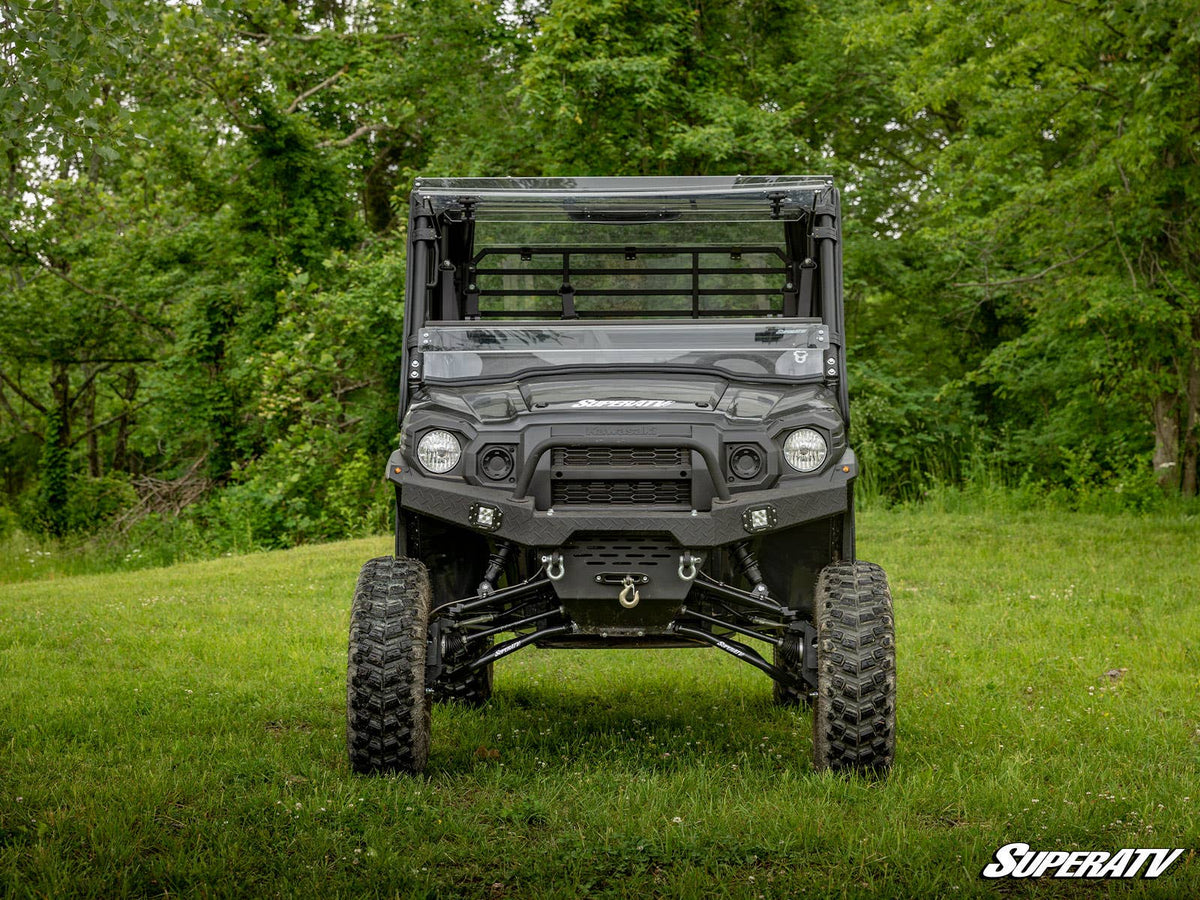

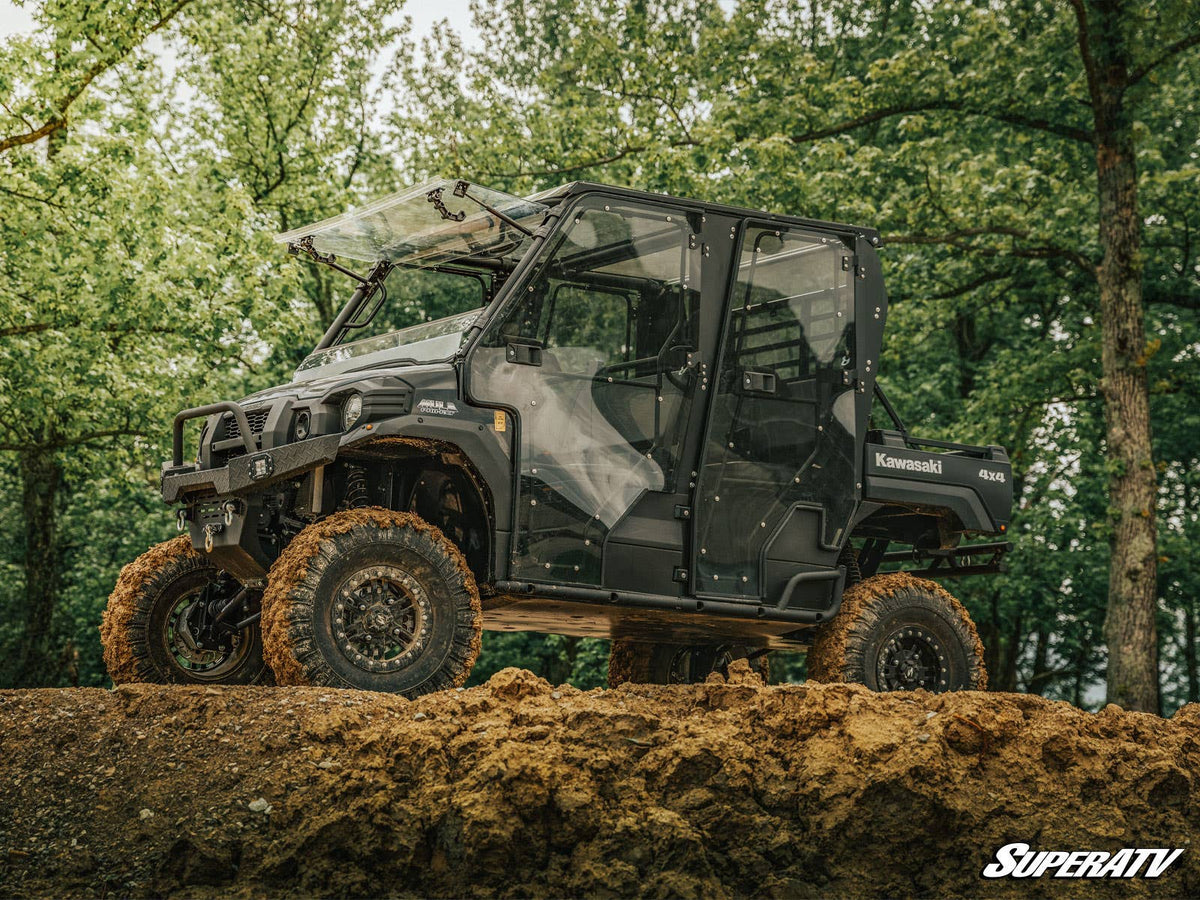

SuperATV’s GDP 4” Portal Gear Lift for the Kawasaki Mule Pro is geared for all. What do we mean by that? Our 4” portal lift is available with 15% or 30% gear reductions. You get the gear reduction you need for the ride you want.
Perfect for Mud
Get a 30% gear reduction and start muddin’. With a massive boost to torque, you can turn bigger tires that chew through the thickest bounty holes. When you gear down and go big, your machine will turn into a mud monster. Plus, with a 30% gear reduction you can still use it on the road and tear up trails and rocks.
Perfect for Rocks
Put 4” portals and a 30% gear reduction on your machine and get the torque you need to crawl over rocks like they’re not even there. You’ll have the clearance to get over anything without scratching up your skid plate, and you’ll have room to run bigger tires. These portals are built for boulders.
Perfect for Farming
Get 4” portals and a 15% gear reduction on your Mule. You’ll have clearance to get over brush, sticks, and debris without issue. Plus, you’ll have the gear reduction to push through ruts and ditches easily all while towing a trailer full of tools. You’ll still have enough speed to cruise down the road between fields.
Perfect for Trails
Get 4” portals and a 15% gear reduction on your machine and blaze a new trail. You’ll keep that high speed and leave your friends in the dust when you hit a hill or dirt shelf. A little lift and a little extra torque will bring out your machine’s true potential.
Learn more about how tire size and gear reduction can unleash your machine’s potential.

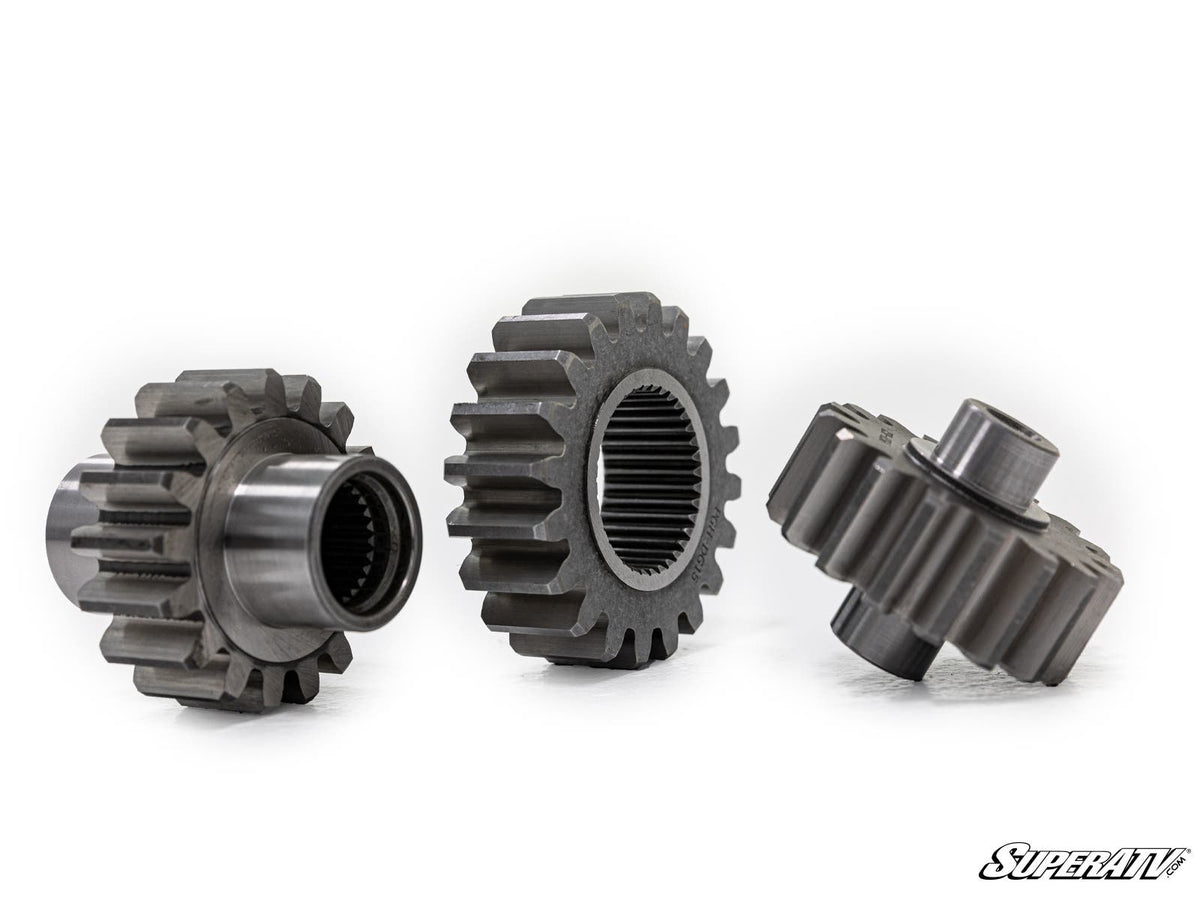

Better Gears

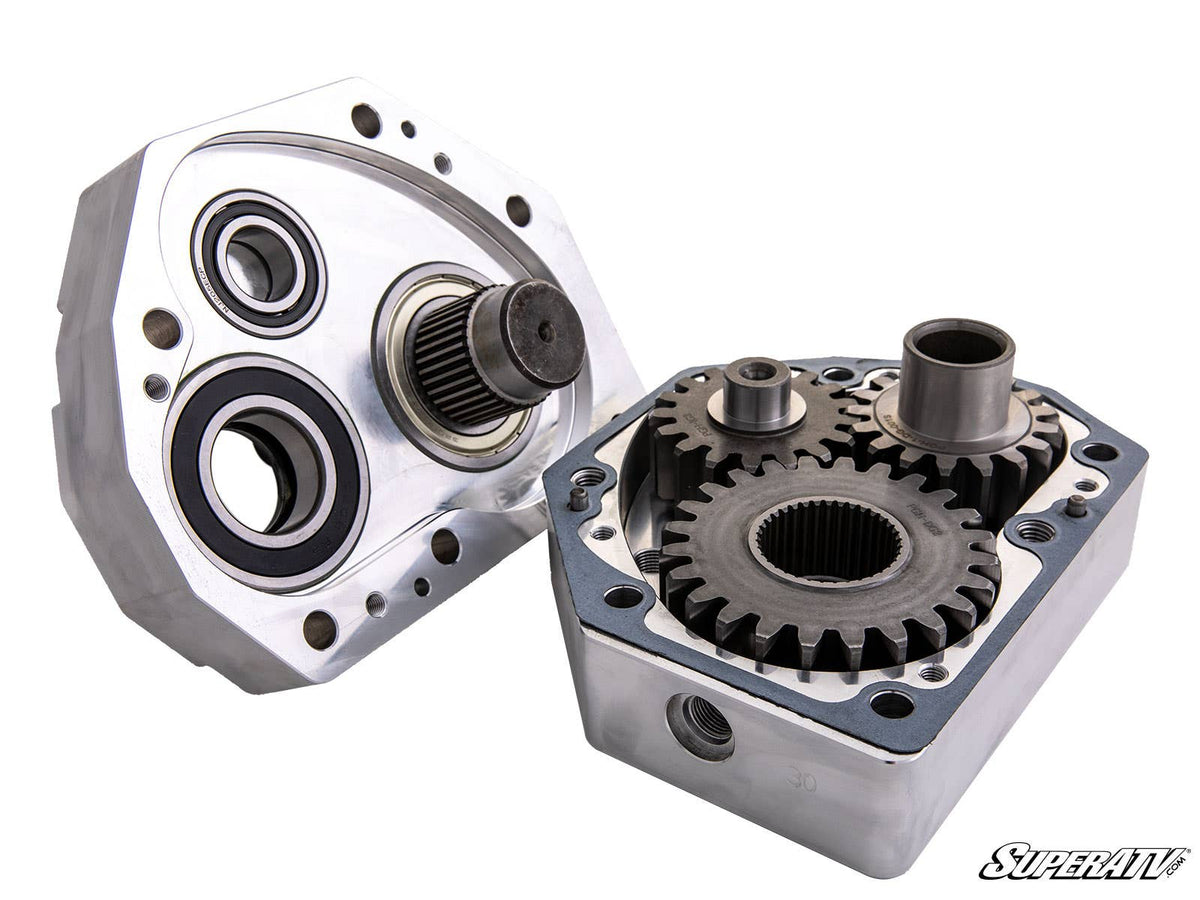

Our gears are precision ground and made with 9310 billet steel alloy for high strength and high speed. That means they’re cool and quiet even when you’re hammering down the throttle on the road, and they have strength to withstand every ride.

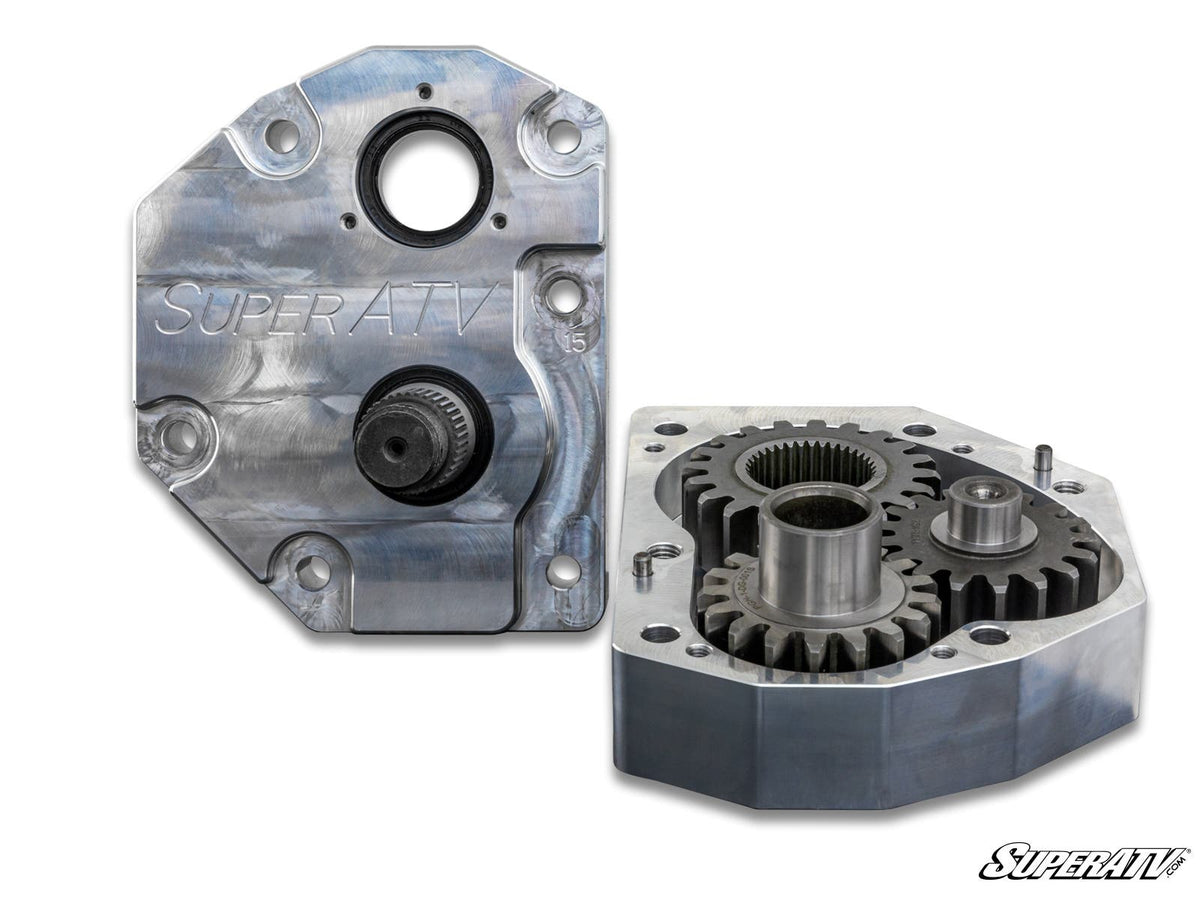

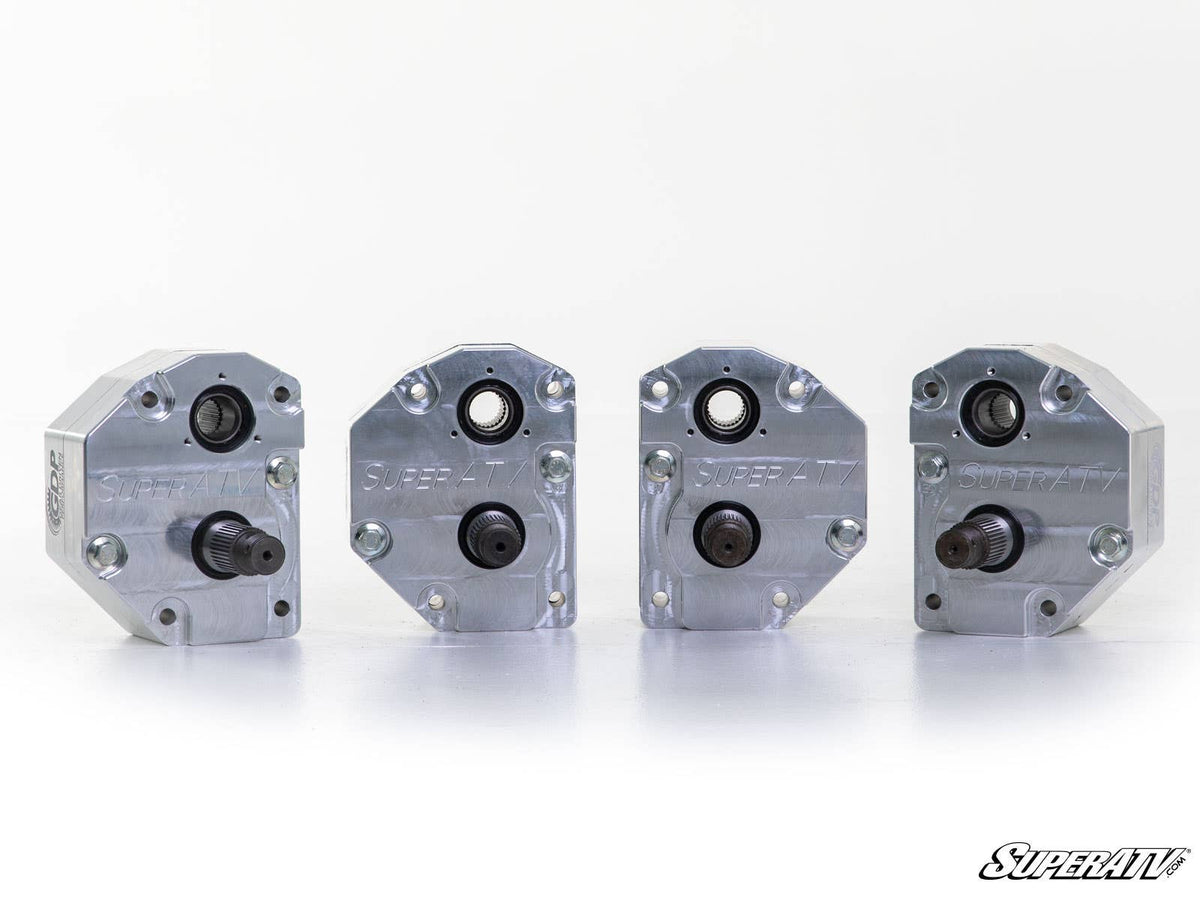

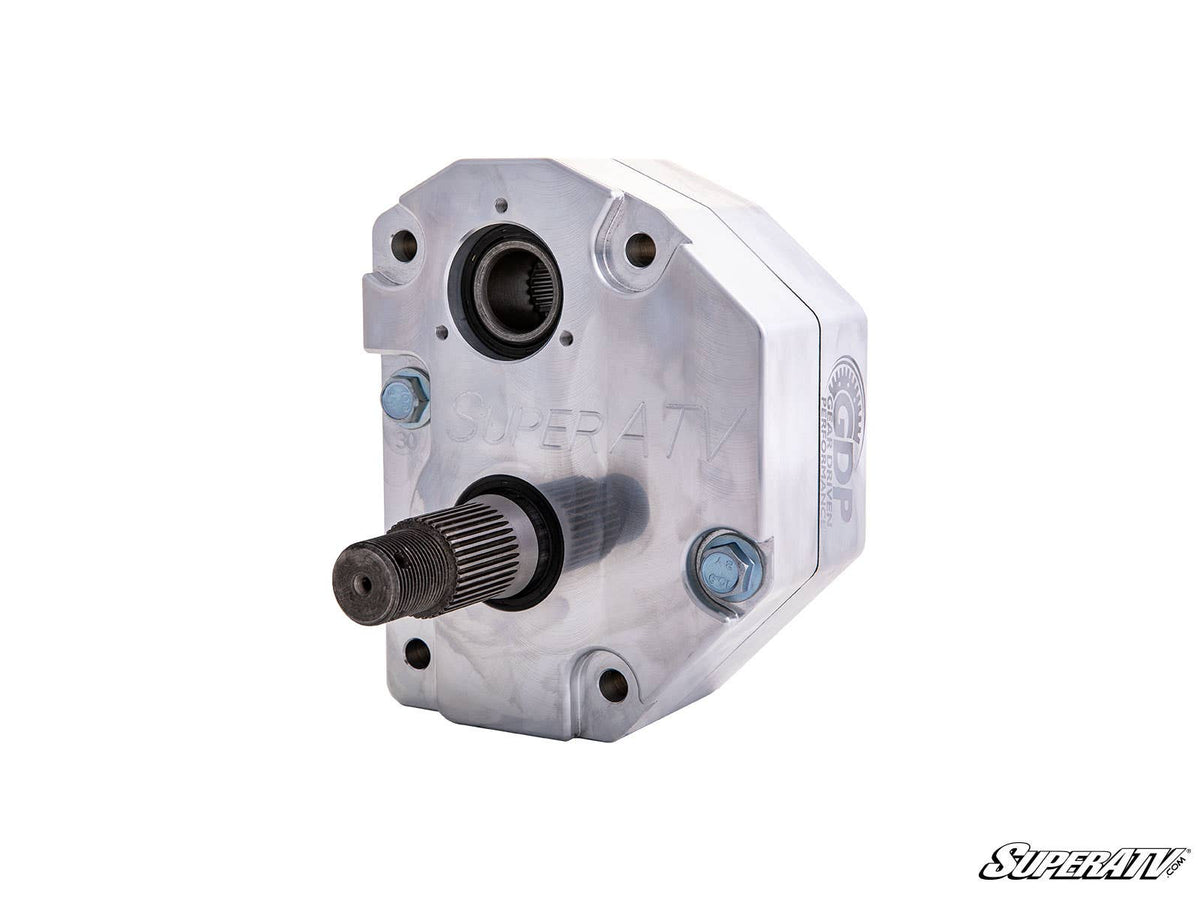

Stronger Housings by Design
Trust us when we say we’ve done our research. We’ve seen what makes housings fail—you know, those designs and materials that give off a “what not to do” vibe. And we do the opposite of that. Our housings are stronger, smarter, and more dependable by design. Whether you go with cast or our USA-made and CNC-machined 6061 billet aluminum, you’re getting portal housings that offer unmatched strength and reliability.
Our housings are reinforced in all the right places
They’re built with better oil flow and gearing forces in mind
There are no gimmicks and no vents because vents do more harm than good—we know because we tested them

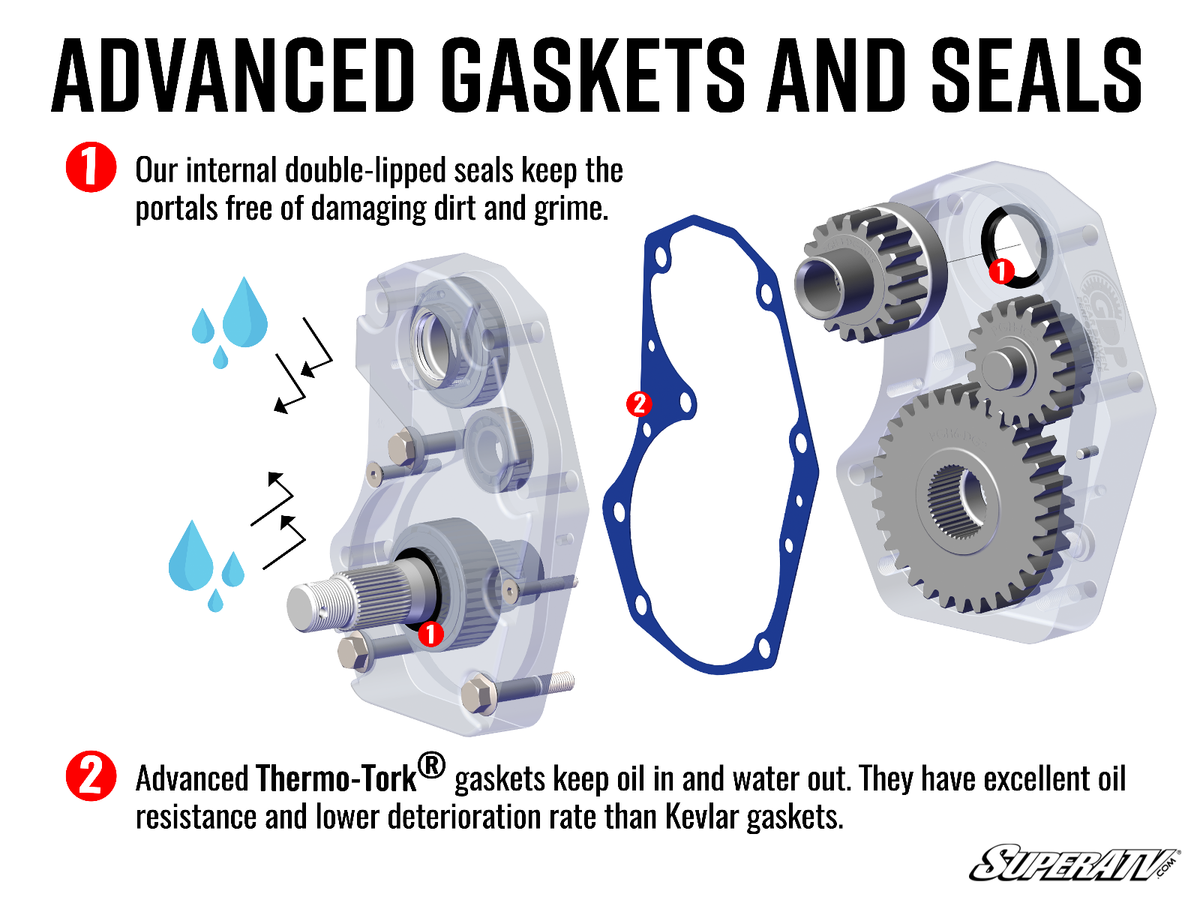

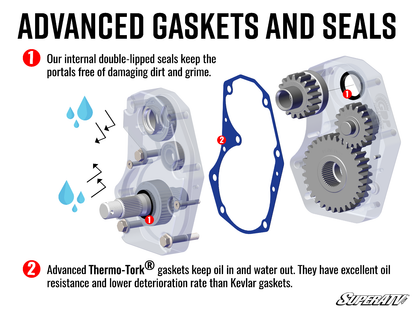

Advanced Gaskets and Seals
Whether you go with cast or billet, both housings use
- Advanced gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
- Top-Rated Customer Service
Still need a little help getting exactly what you need? We’ve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.
Kawasaki Mule Pro Portal Gear Reduction Recommendations
Tire Size Required Suspension Setup with 4" Portals Recommended 4" Portal Gear Reduction
Up to 27" Stock 15%
28" 2" Lift Kit 15%
Up to 27" 1.5" Forward Front A-Arms 15%
28" to 30" 1.5" Forward Front A-Arms and 1.5" Offset Rear A-Arms 30%
28" to 30" 1.5" Forward Front A-Arms and 1.5" Offset Rear A-Arms with 2" Lift Kit 30%
Gear reductions listed are general guidelines to maintain factory top speed. Installing a larger than recommended gear reduction will result in extra torque and lower top speed. Give us a call for more information.
Patent # 11,299,042
Features
- Available with billet or cast aluminum housing
- Cool, quiet, precision ground gears made from 9310 alloy billet steel
- Increases width by 4 in. per side (8 in. total)
- 1.5 in. diameter 4340 hardened steel drive shaft
- No leak bearings and seals
- Universal hubs can be set up to work with the following bolt patterns: 4/156, 4/137, 4/115, and 4/110
- Comes complete with all hardware, backing plates, brake lines, and instructions
Fitment (per SuperATV)
Kawasaki Mule Pro DX : 2016+ Kawasaki Mule Pro DXT : 2016+ Kawasaki Mule Pro FX : 2016-2023 Kawasaki Mule Pro FXR : 2018-2023 Kawasaki Mule Pro FXT : 2015-2023 Kawasaki Mule Pro FXT Ranch Edition : 2016-2023
Wheel Requirements
- 14” or larger wheel required
- Cannot exceed 5” backspacing
- Not compatible with dual beadlock wheels
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer
Installation instructions (PDF)
Ships free from SuperATV. Price is SuperATV's current price.
