Why You’ll Love It
4” Portal Lift adds ground clearance directly at the hubs 15% or 30% Gear Reduction adds torque and relieves drivetrain stress Cast or Billet Housings let you choose the construction that fits your build 9310 Steel Gears pair with a hardened 4340 drive shaft for strength Limited Lifetime Warranty protects your purchase
Gen 3 Portals are Geared for All

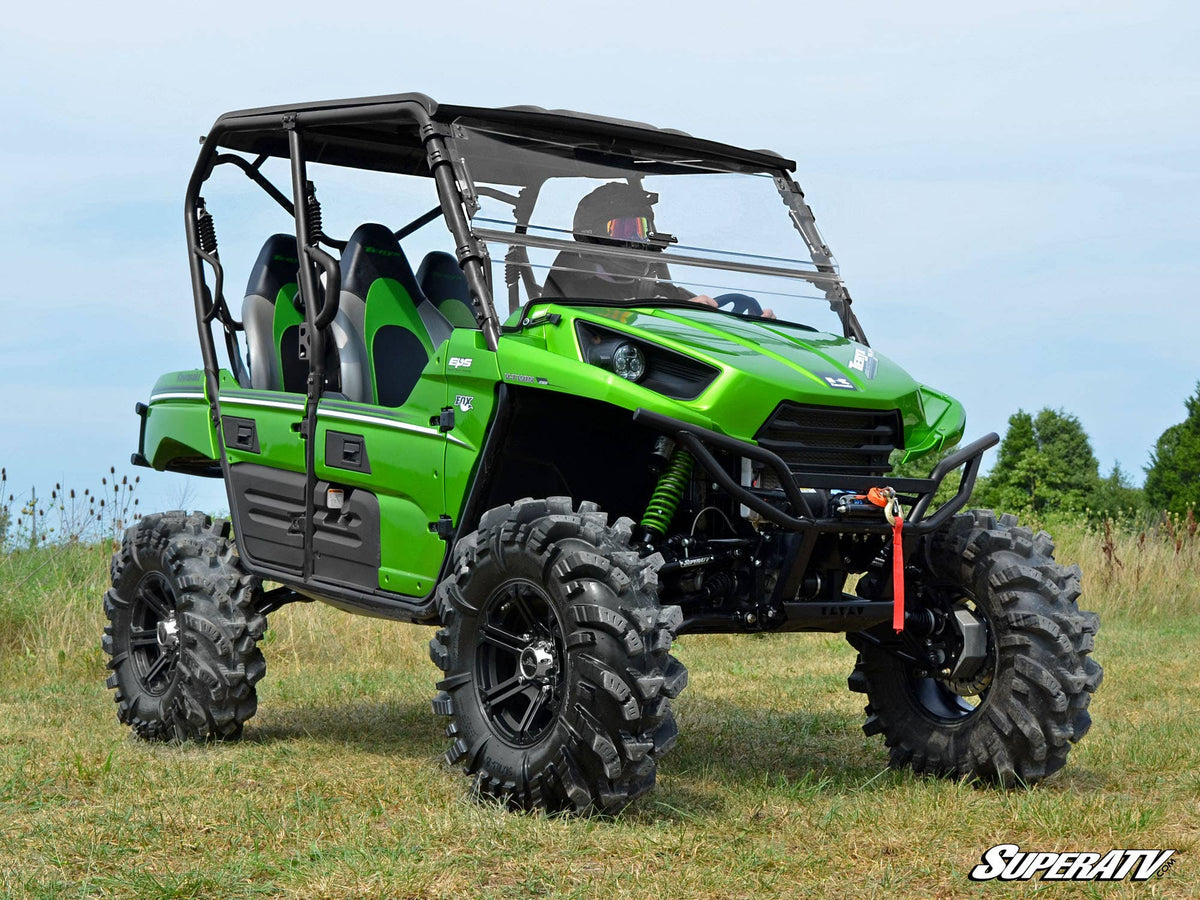

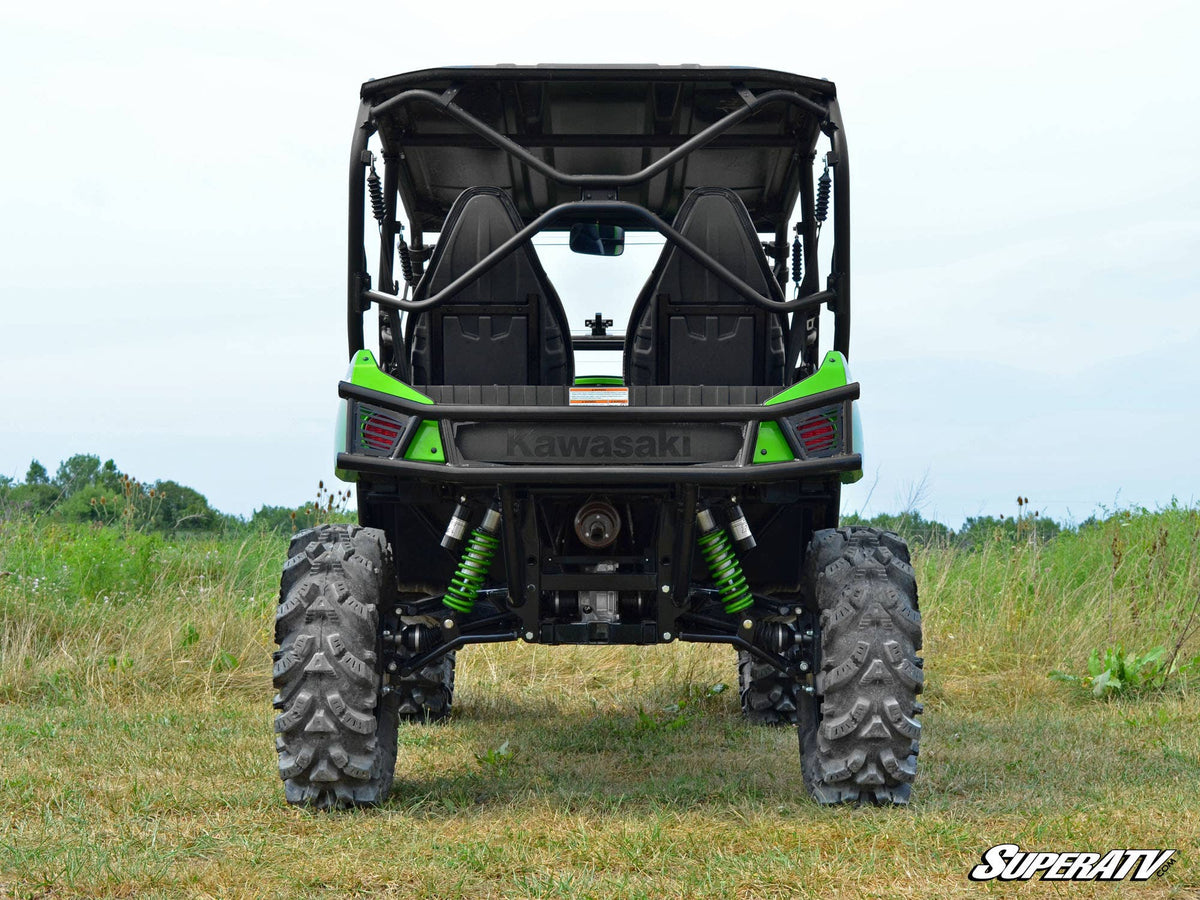

SuperATV’s GDP 4” Portal Gear Lift for the Kawasaki Teryx is Geared for All. Choose from 15% or 30% gear reductions and cast or billet aluminum housings so you can optimize for the riding you love most.
Perfect for Mud
If you move up to a 30% gear reduction, you’ll be ready to take on bigger, sloppier mud holes. That boost in torque means you can dominate monster bounty holes without getting stuck. The lift gives you room for bigger tires so you can turn your Teryx into the ultimate party wagon. When you’re done with the mud, a 30% gear reduction can get you through trails and rocks just as easily.
Perfect for the Rocks
Put 4” portals and a 30% gear reduction on your machine and get the torque you need crawl over rocks like they’re not even there. You’ll have the clearance to get over anything without scratching up your skid plate, and you’ll have room to run bigger tires. These portals are built for boulders.
Perfect for Trails
Get 4” portals and a 15% gear reduction on your Teryx and take on the trail less traveled. Creek crossings and hills won’t know what hit them when you roll up with all that torque. It brings out your UTV’s true power.
Perfect for Work
Get 4” portals and a 15% gear reduction on your Teryx. You’ll have clearance to get over the ditches and debris around your property and you’ll have the gear reduction to push through ruts and ditches easily all while towing a trailer full of tools. Plus, you’ll still have enough speed to cruise down the road.
Learn more about how tire size and gear reduction can unleash your machine’s potential.

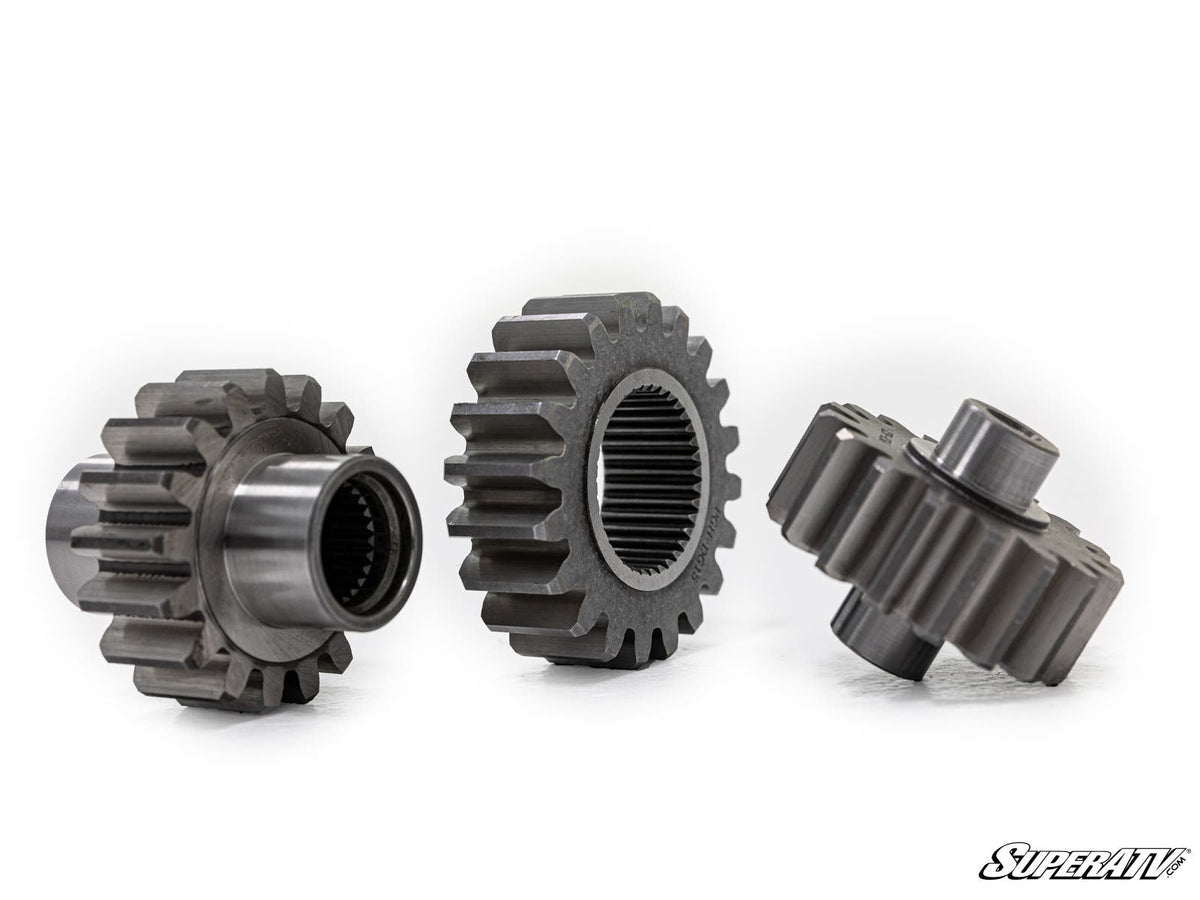

Better Gears
Our gears are precision ground and made with 9310 billet steel alloy for high strength and high speed. That means they’re cool and quiet even when you’re hammering down the throttle on the road, and they have strength to withstand every ride.

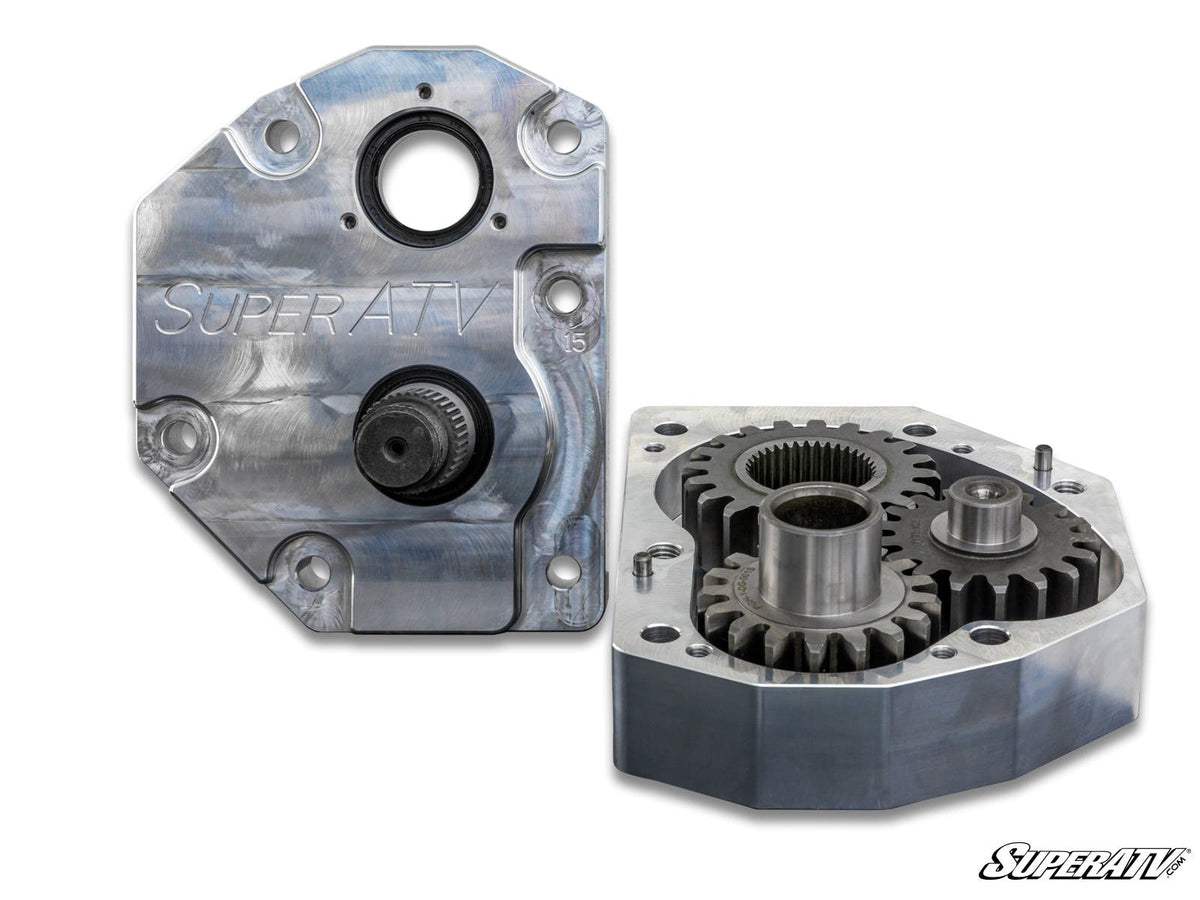

Stronger Housings by Design
Try as you might, you won’t find housings stronger than what we use on our GDP portals. Our housings are smarter, stronger, and more reliable by design. So whether you choose cast or USA-made and CNC-machined 6061 billet aluminum, you’re getting housings that offer unmatched strength and dependability. We’ve got the experience and the riders on the trail to back it up.
Our housings are reinforced in all the right places
They’re built with better oil flow and gearing forces in mind
There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
Advanced Gaskets and Seals
Whether you go with cast or billet, both housings use
- Advanced gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
- Top-Rated Customer Service
Still need a little help getting exactly what you need? We’ve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.
Kawasaki Teryx Portal Gear Reduction Recommendations
Tire Size Required Suspension Setup with 4" Portals Recommended 4" Portal Gear Reduction
Up to 26" Stock 15%
27" to 29" 2" Lift Kit 15%
30" to 32" 1.5" Forward Front A-Arms 15%
30" to 32" 1.5" Forward Front A-Arms and 2" Lift Kit 15%
33" to 40" 6" Lift Kit 30%
Gear reductions listed are general guidelines to maintain factory top speed. Installing a larger than recommended gear reduction will result in extra torque and lower top speed. Give us a call for more information.
Patent # 11,299,042
Features
- Available with billet or cast aluminum housing
- Cool, quiet, precision ground gears made from 9310 alloy billet steel
- Increases width by 4 in. per side (8 in. total)
- 1.5 in. diameter 4340 hardened steel drive shaft
- No leak bearings and seals
- Universal hubs can be set up to work with the following bolt patterns: 4/156, 4/137, 4/115, and 4/110
- Comes complete with all hardware, backing plates, brakes lines and instructions
Fitment (per SuperATV)
Kawasaki Teryx 4 : 2012+ Kawasaki Teryx : 2014+ NOTE: Not compatible with SuperATV AtlasPro Boxed A Arms
Wheel Requirements
- 14” or larger wheel required
- 14” wheels cannot exceed 4-1/2” backspacing
- 15” and larger wheels cannot exceed 5” backspacing
- Not compatible with dual beadlock wheels
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer
Factory Teryx wheels are hub centric. When using our Portal Gear Lifts you MUST run aftermarket lug centric wheels. Almost all aftermarket wheels are lug centric
Installation instructions (PDF)
Ships free from SuperATV. Price is SuperATV's current price.
