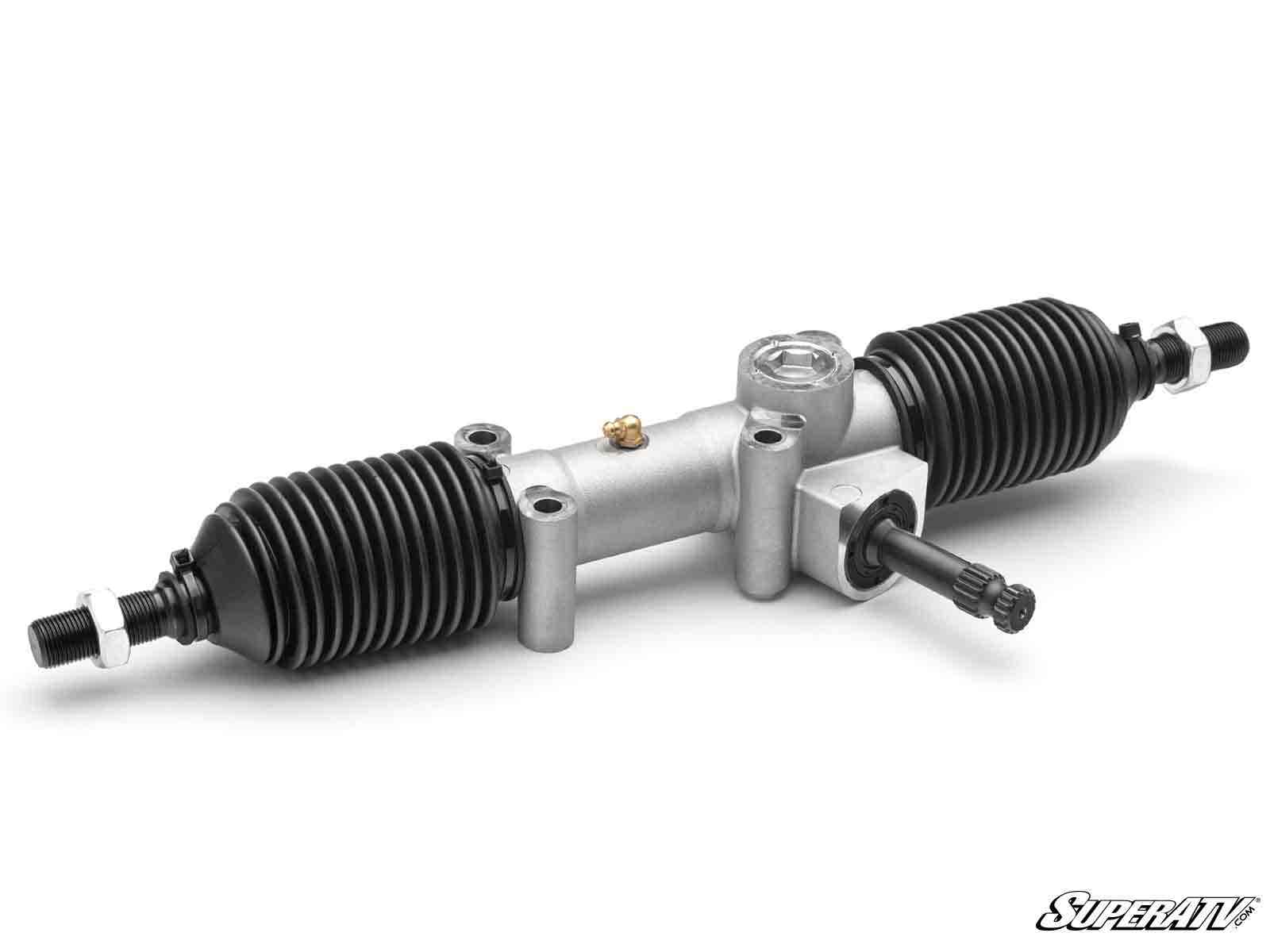

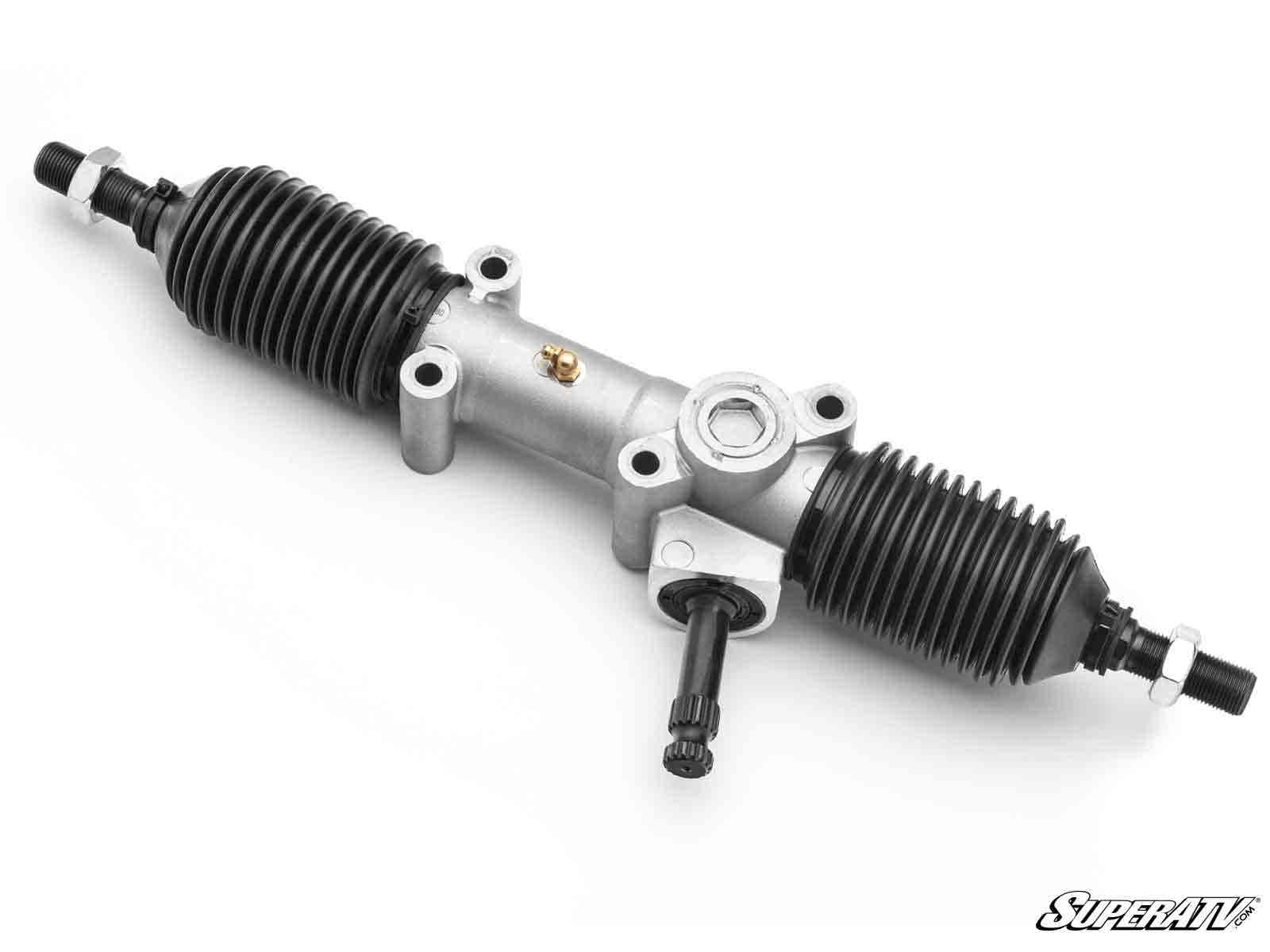

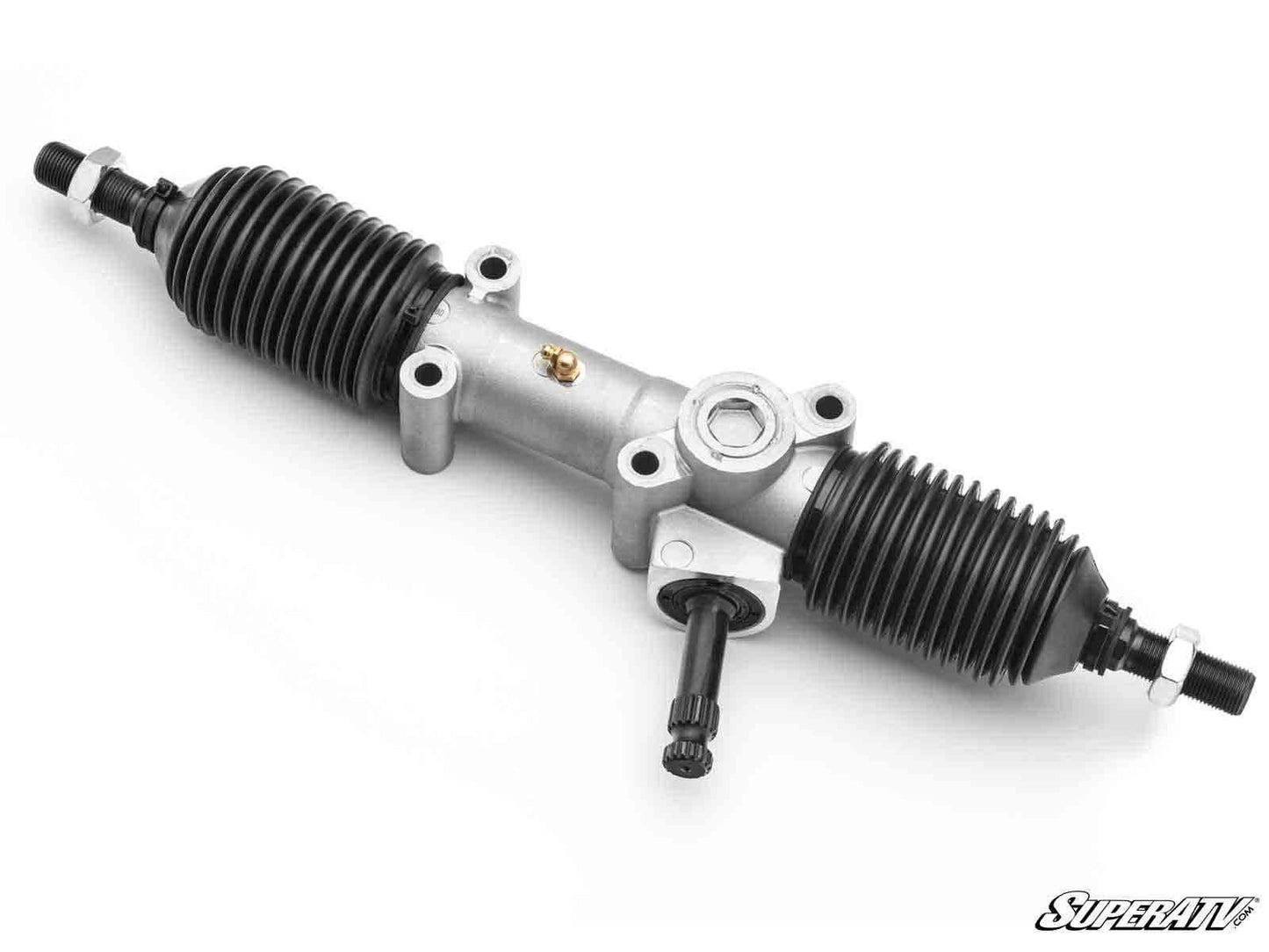

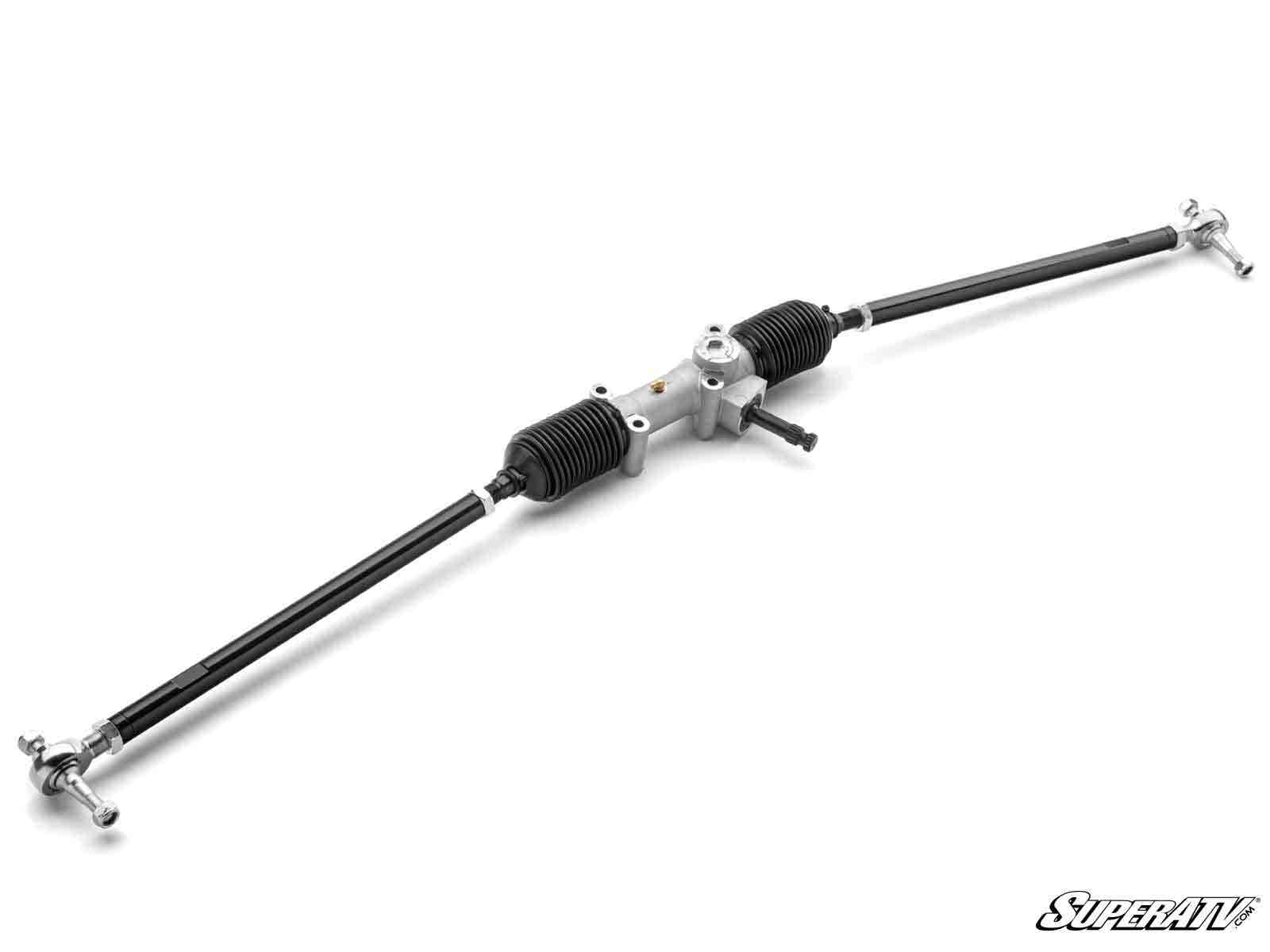

Unbeatable RackBoss 2.0 The rack and pinion is one of
those parts you forget about until it’s not working correctly. If you never
want to deal with replacing it again, upgrade to SuperATV’s Kawasaki Teryx KRX
1000 RackBoss 2.0 Rack and Pinion. Our X24 Technology uses a unique dual-
bushing design to reduce wear and tear by over 50%, making RackBoss 2.0 the
only rack and pinion that’ll never break down. It was made for you to run big
tires and make huge upgrades without sacrificing your steering. If you’re
serious about taking on the toughest terrain, you need RackBoss 2.0.

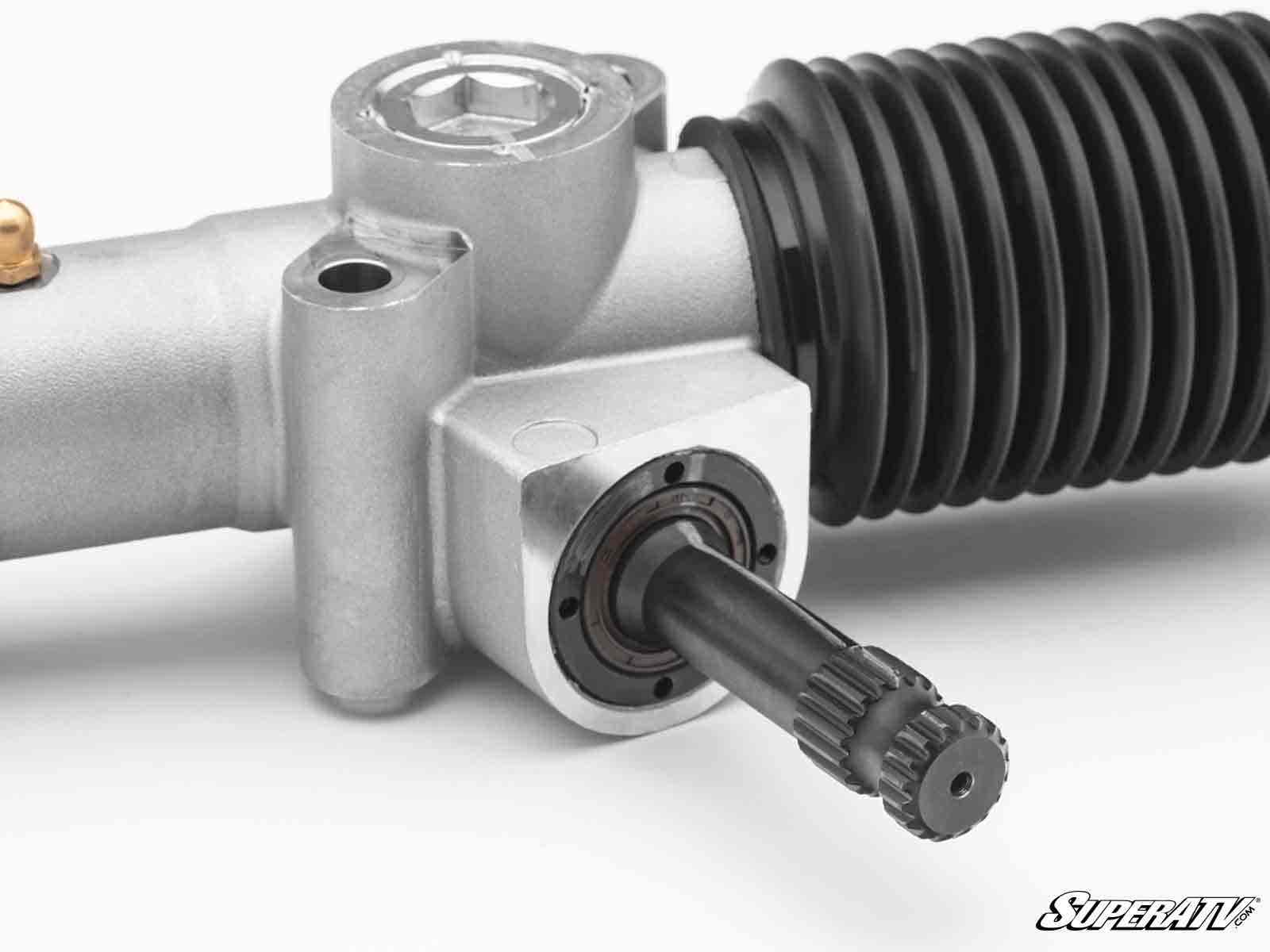

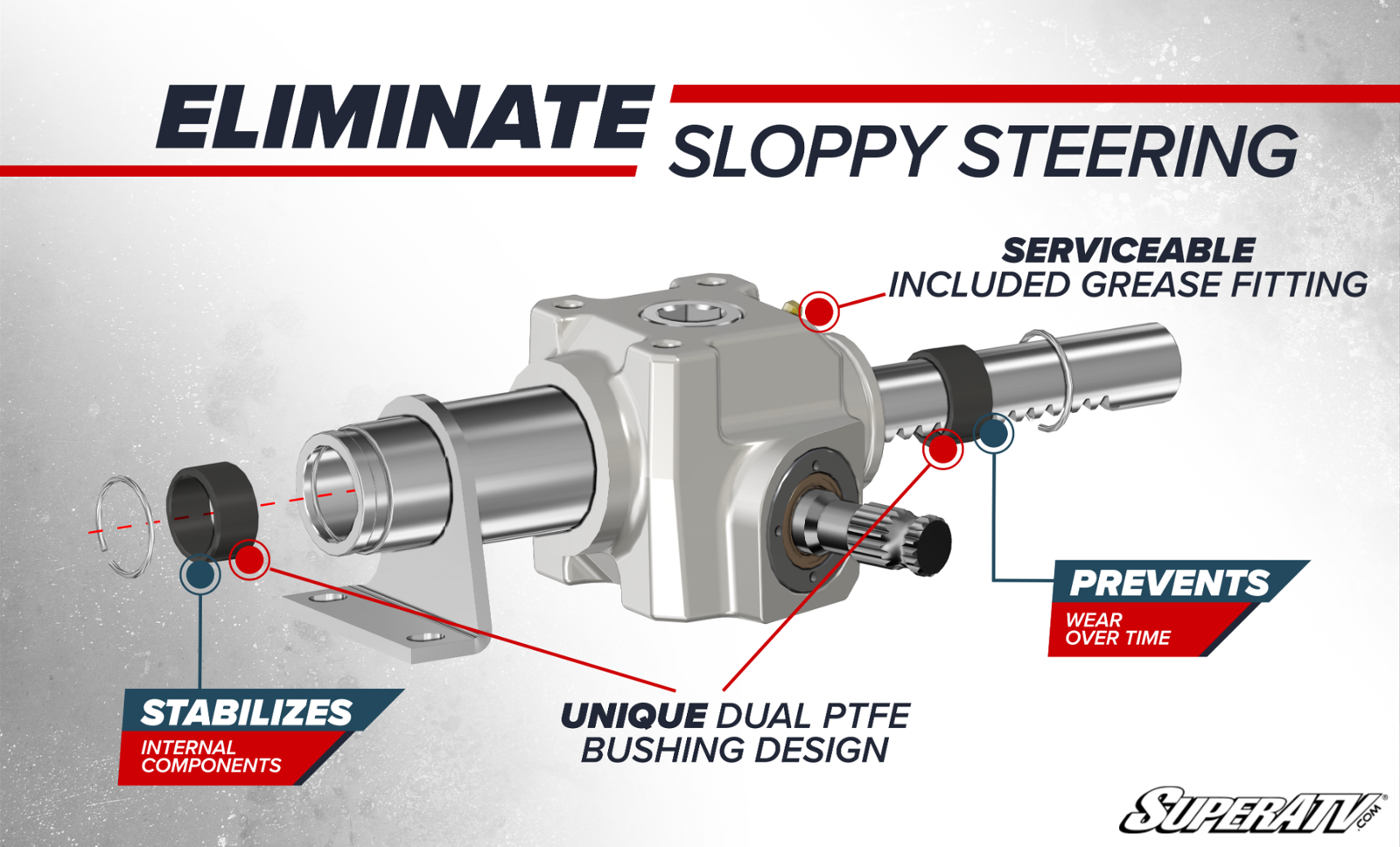

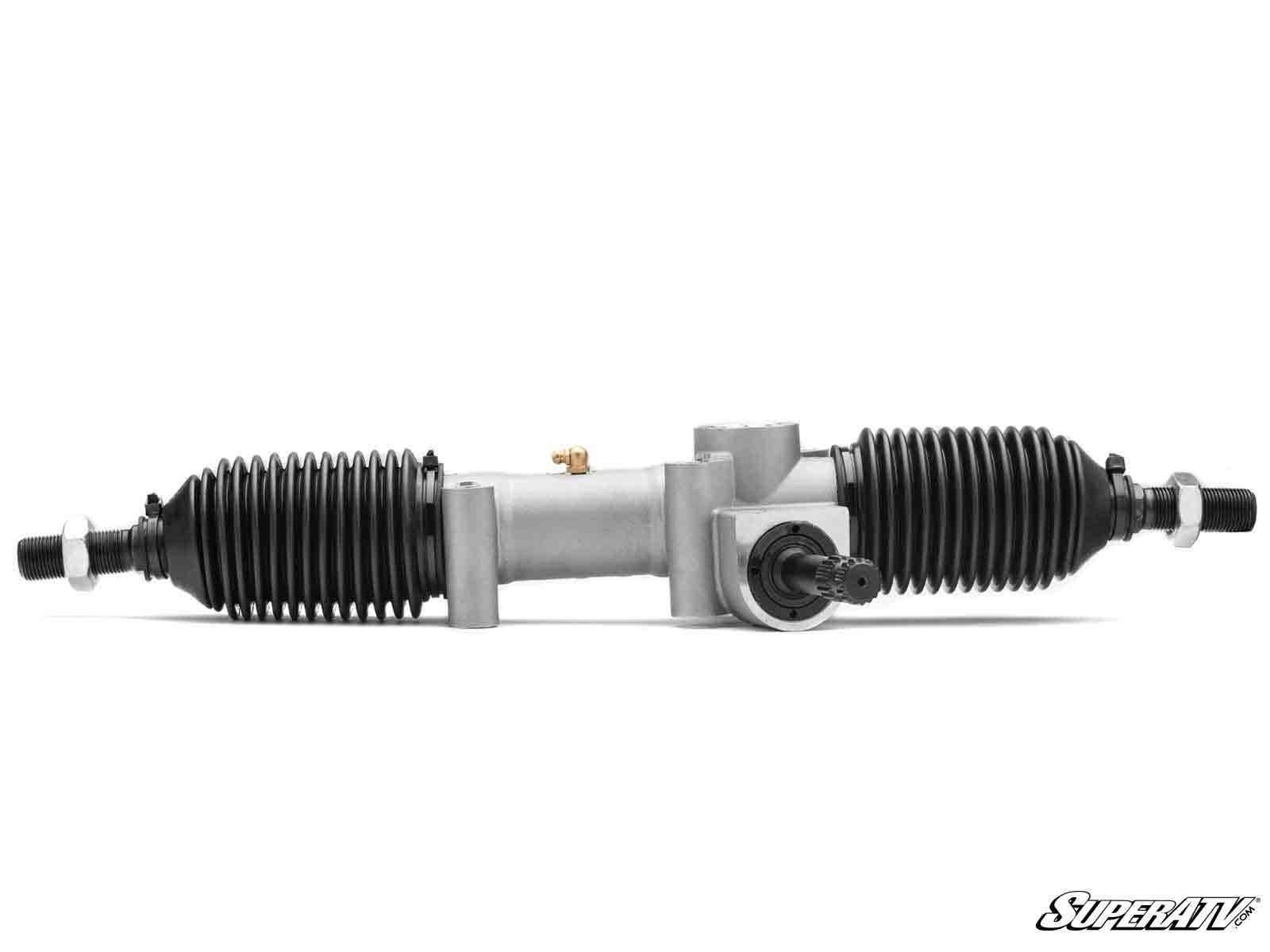

Dual-Bushing for Durability The RackBoss 2.0 is designed
to dominate. It uses our X24 Technology, which eliminates extra movement from
internal parts with heavy-duty PTFE bushings at both ends of the rack. That
saves your tension spring by reducing unnecessary stress. Overall, X24
Technology reduces wear and tear by 50%. It also includes a specially designed
grease fitting for easy access to relubricate after a day of heavy mud and
water riding. Basically, that means our rack and pinion lasts longer, even
after endless abuse. Get more out of your UTV with RackBoss 2.0.

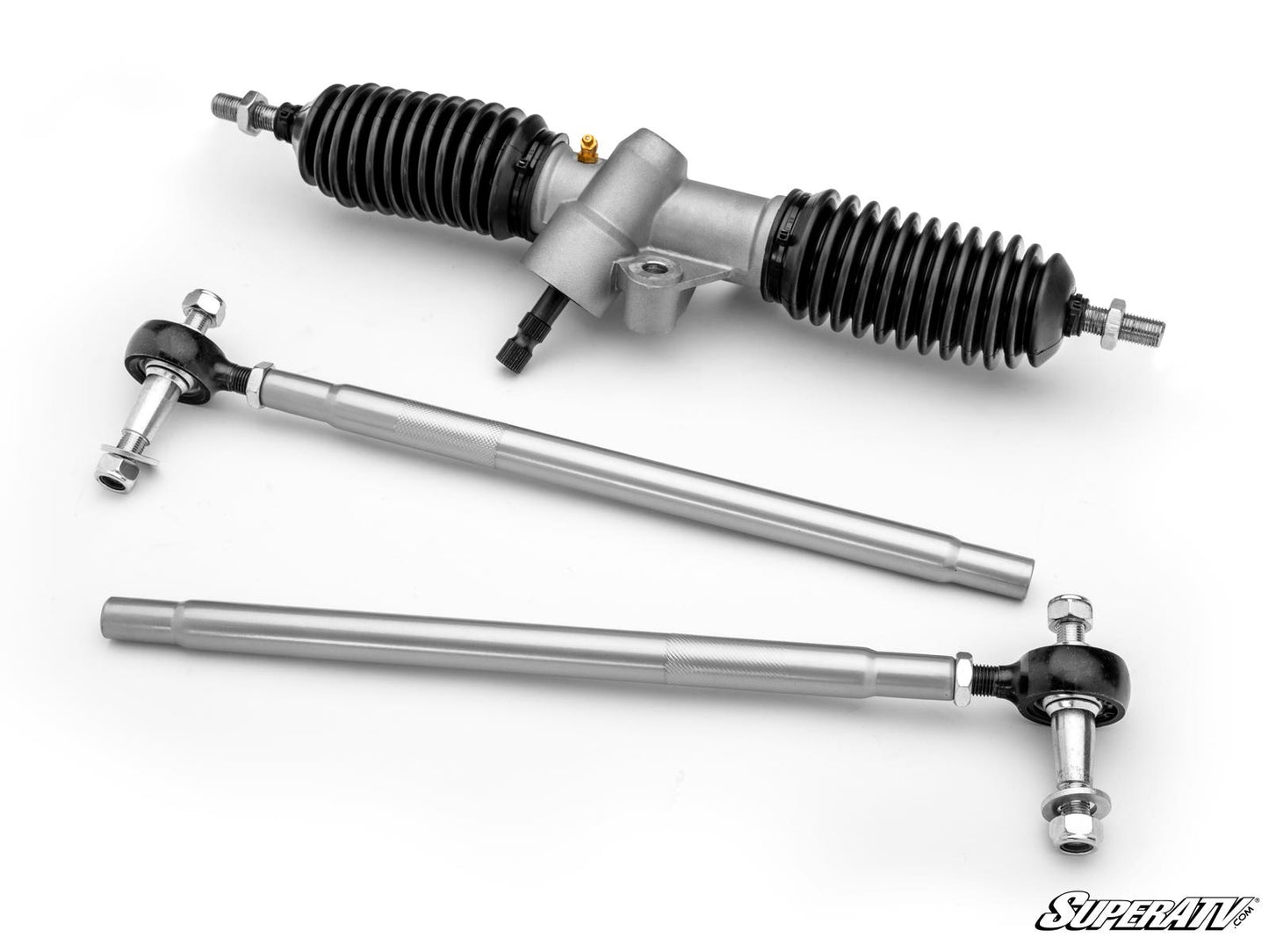

Swaged Tube Tie Rods Swaged tube tie rods offer a
combination of strength and lightweight design. The 7/8” diameter tubing
flares out to make them even tougher. They use massive 16 mm inner ball and
sockets and 14 mm outer tie rod ends. That makes the weakest OEM spot stronger
than ever. They’re perfect for casual riders who never want to break down.

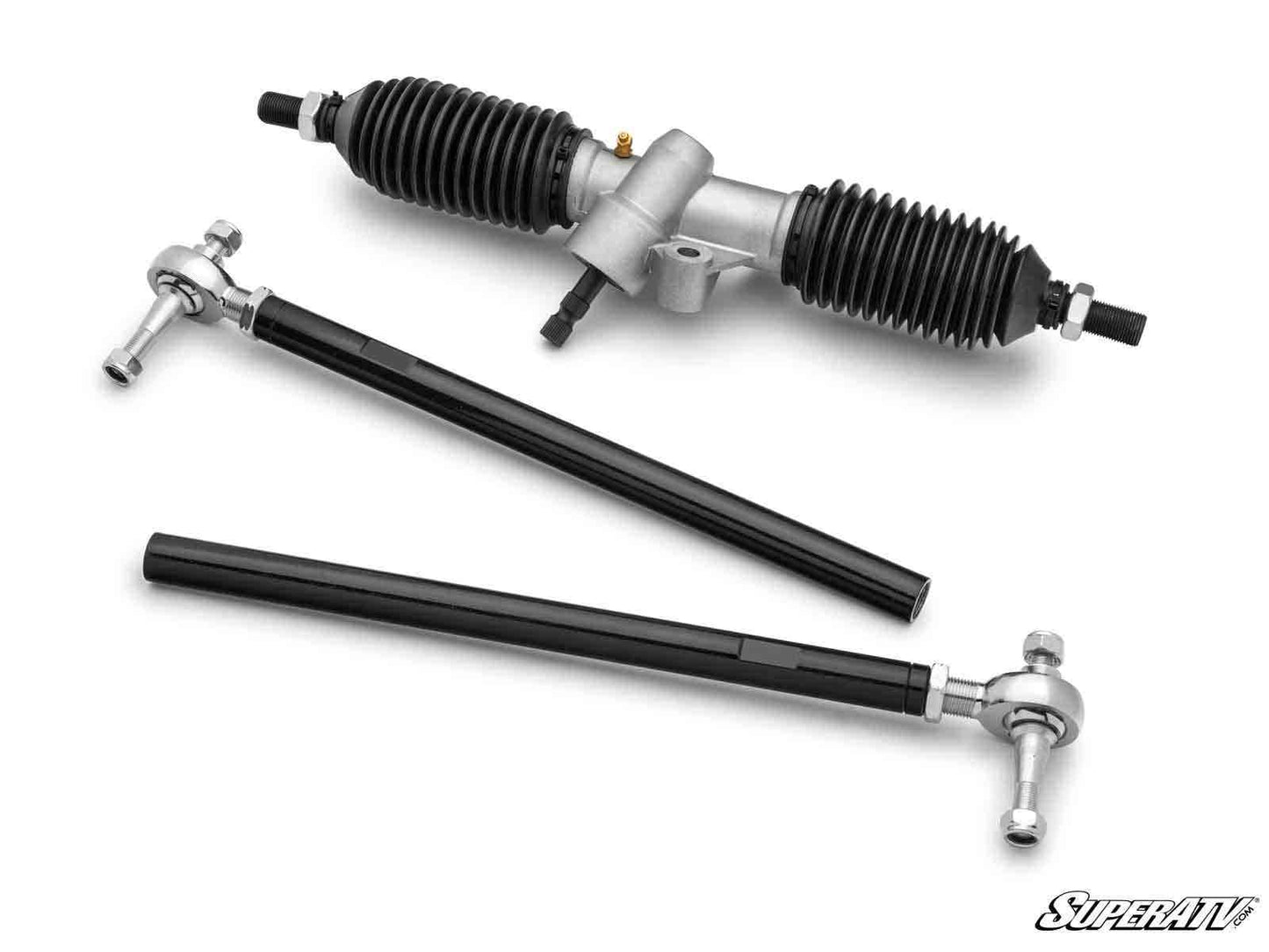

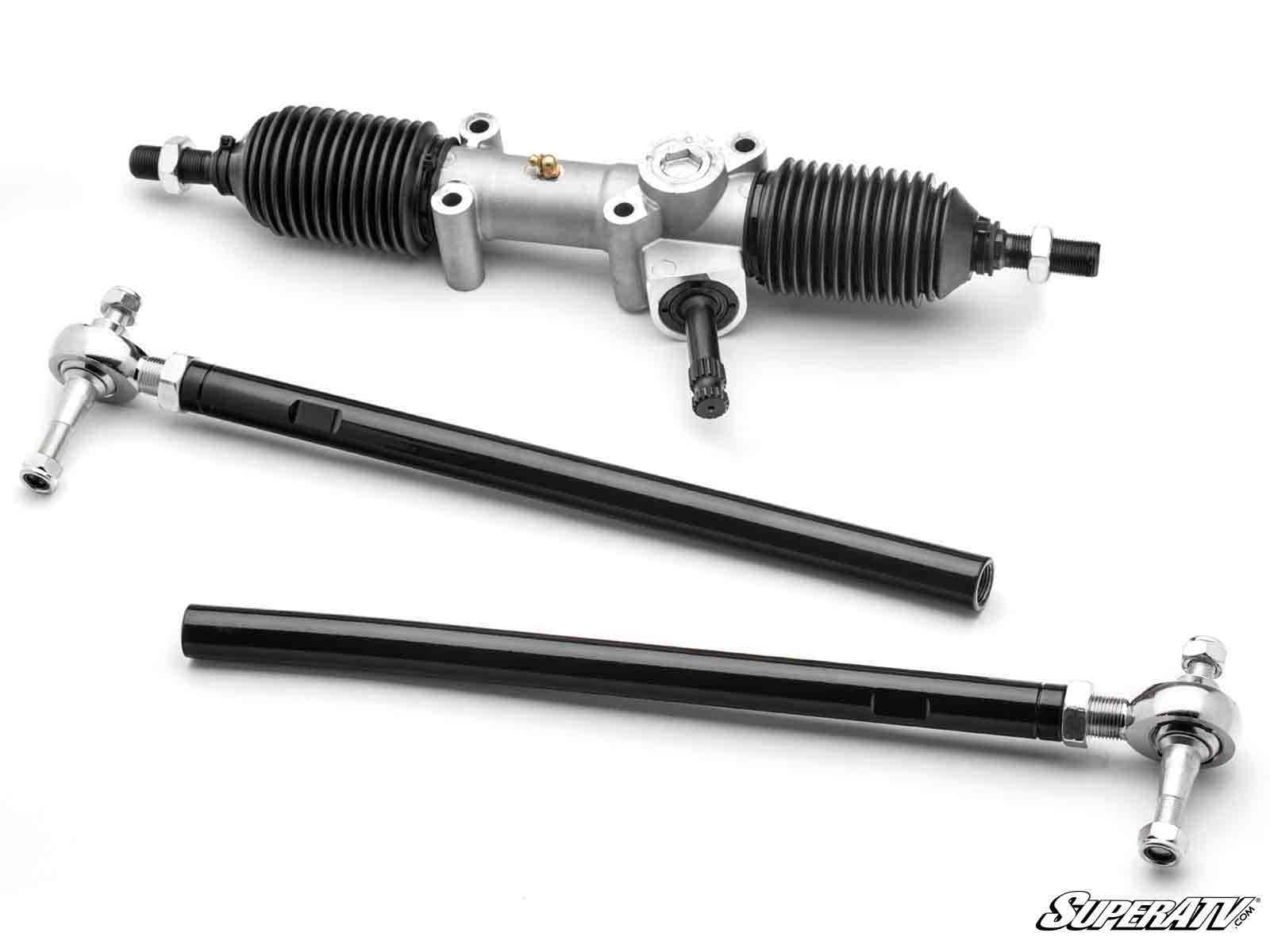

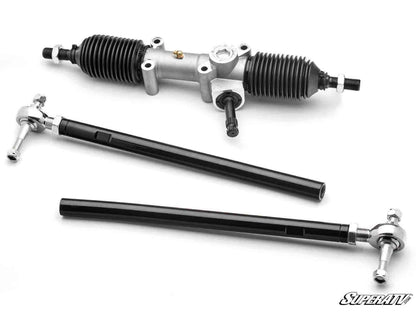

Solid Steel Bar Tie Rods There’s a reason why
people say “tough as steel,” and it’s the same reason we chose steel for these
tie rods. We use heavy-duty 1” diameter solid bar tie rods that are powder
coated to eliminate rust and corrosion. We also use heavy-duty heim joints for
superior articulation and adjustability—and better support for larger tires.
Beefy 16 mm rack threads and 3/4” rod threads reinforce the weakest points on
most tie rods for unbeatable strength and reliability. If you need a hardcore
rack and pinion for your Teryx, look no further.

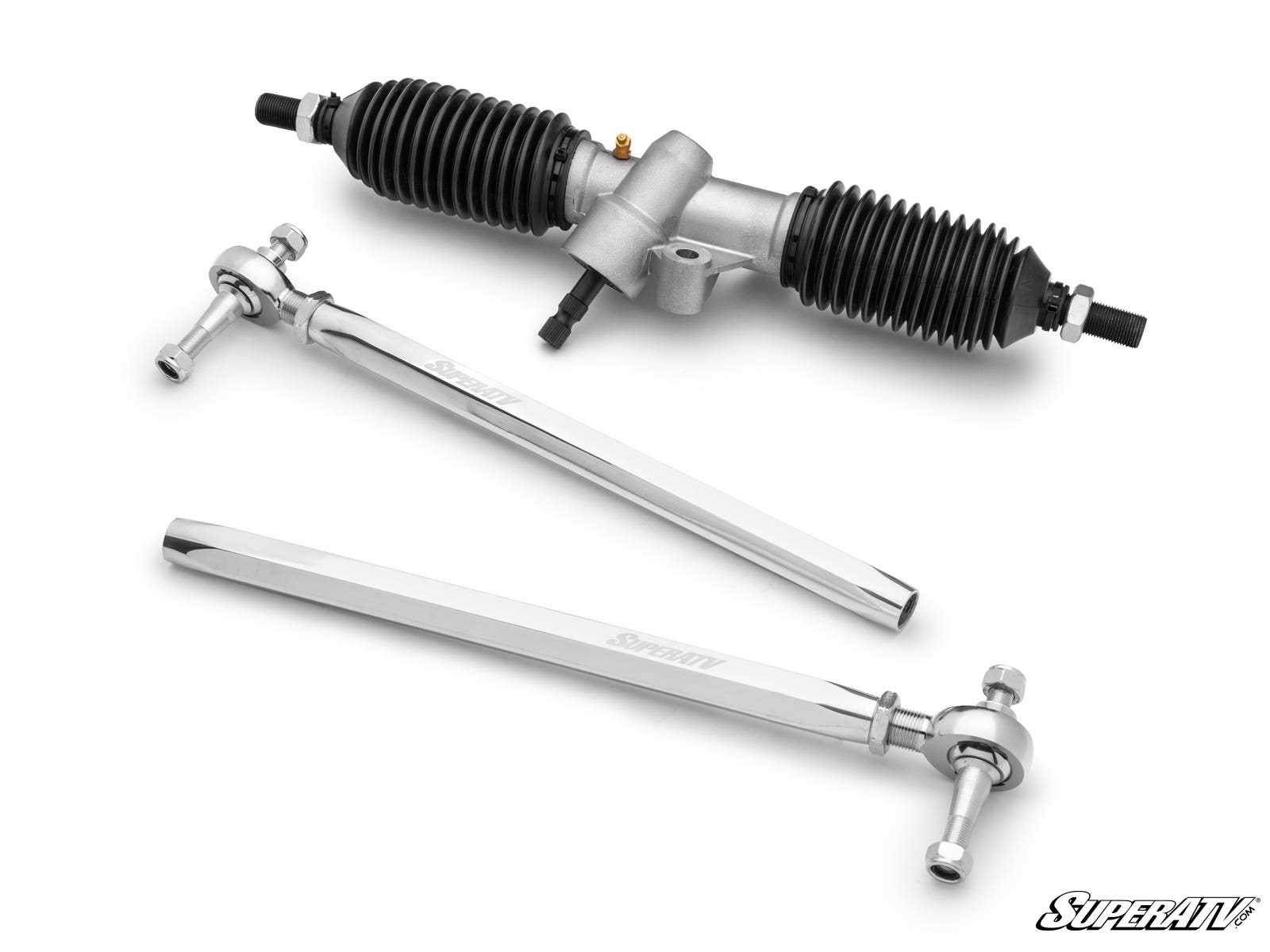

Billet
Aluminum Hex Tie Rods Our billet aluminum rods are nothing like
you’ve ever seen before. They give you a polished billet finish combined with
a tough hex design. And they’re incredibly strong despite being lightweight.
We pair them with our oversized tie rod ends that use 3/4” rod threads and 16
mm rack threads. It’s a win-win—you get the performance you’re looking for and
the style to match.
| | RackBoss 2.0 Swaged Tie
Rod | RackBoss 2.0 Solid Steel Tie Rod | RackBoss 2.0 Billet Tie Rod |
X24 Tech Dual-Bushing
Design | ✔ | ✔ | ✔ |
| Inner Ball and Socket Thread Diameter | 14 mm rod threads, 16 mm rack threads | 3/4” rod threads, 16 mm rack threads | 3/4” rod threads, 16 mm rack threads |
| Outer Tie Rod End Thread Diameter |
14 mm | 3/4” | 3/4” |
Tie
Rod Material | Steel tube | Solid steel bar | 6061 Billet
aluminum |
| Greasable | ✔ | ✔ | ✔ |
| Inner Boots | ✔ | ✔ | ✔ |
| Steering Stop Kit | ✔ | ✔ | ✔ |
Misalignment Bushings,
Tie Rod Studs, & Hardware | ✔ | ✔ | ✔ |
Patent No. 11,345,393
FEATURE
- Heavy-duty dual PTFE bushings:
- Designed with X24 Tech
- Prevents wear
- Reduces slop
- Improves overall
durability
- Available tie rod options:
- Swaged
steel tube - Solid steel bar
- Billet aluminum hex
- Solid steel and billet aluminum tie rods use:
- 3/4” outer
tie rod ends - Rebuildable inner tie rod ends that use 3/4” rod threads
and 16 mm rack threads
- Swaged tube tie rods use:
- 14 mm outer tie rod ends
- Rebuildable inner tie rod ends that use
14 mm rod threads and 16 mm rack threads
- 65% larger
housing than stock - Over 50% less wear than OEM after 15,000
cycles - Grease fitting for rack gears
Fitment
- Kawasaki Teryx KRX 1000 : 2020-2022
Replaces
OEM Part#: 39191-0034
