LED Light Pods Wide Cornering Pattern Pair Squadron Pro Series Baja Designs
LED Light Pods Wide Cornering Pattern Pair Squadron Pro Series Baja Designs
Couldn't load pickup availability
Why Buy From SxS Network?
Located at Pikes Peak International Raceway, home of Adrenaline Park and Peak Adrenaline. We run many of these parts on our personal Maverick R and X3 rigs.
Not sure what fits your build? Call or text Tim directly at 719-428-6837. Real riders, real advice — no call centers.
Based in Fountain, CO. Support a Colorado business that actually rides.
Most orders placed before 2 PM MT ship same day (business days).
Product Description

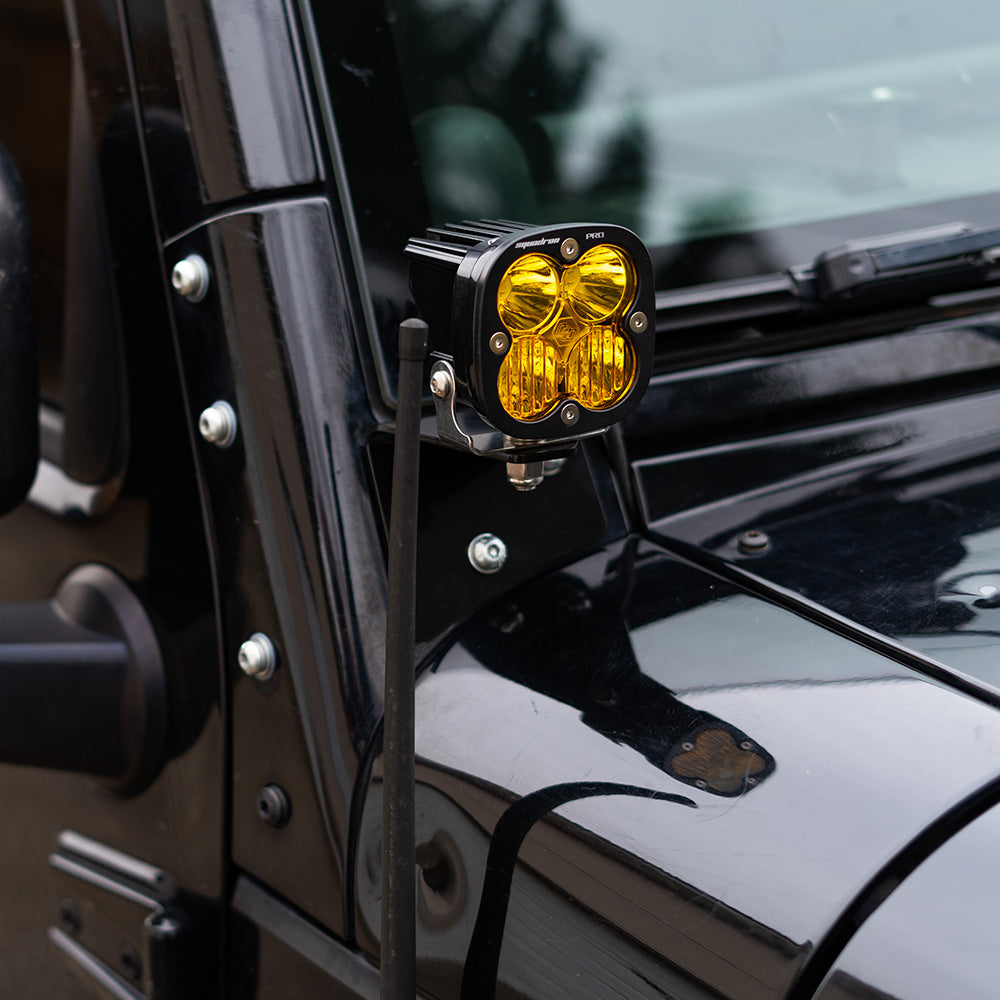

Light up the night with a Squadron Pro LED light pair from Baja Designs. Don't let the compact size of these 3 Inch light pods fool you as they will fit almost anywhere you need auxiliary lighting on your truck, Jeep, SUV, UTV, and any other vehicle that needs lights.
While compact in size the Squadron Pro is equipped with a sleek black gloss aluminum housing that outshines the competition through both appearance and performance using next-generation LEDs pushing out 4,095 lumens.
Our 30-Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection. USPTO Reg No. 5,766,659
- Satisfaction Guarantee 30-Day Money Back Guarantee
- Limited Lifetime Warranty Complete Purchase Protection
- uService Replaceable Lenses And Optics
- ClearView All
- Light, Right Where You Need It
- MoistureBlock Waterproof, Rain Proof, Submersible
- CopperDrive Only LED Driven At 100 Percent
- 5000K Daylight Less Driver Fatigue, Natural Color
Specifications (per light):
- Lumens: 4,900 Utilizing 4 Cree LEDs
- Wattage/Amps: 40W / 2.90A
- Dimensions: 3.07" x 2.77" x 3.07"
- Weight: 12 ounces
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Hard Anodized & Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)
Includes:
- (2) Squadron Pro LED Lights
- Mounting Brackets
- Wiring Harness
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 Degree) and spot (9 Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 Degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
Spot: A longer and narrower 9 Degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
Work/Scene: Excellent work light or scene light with an extremely smooth 120 Degree circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7)
