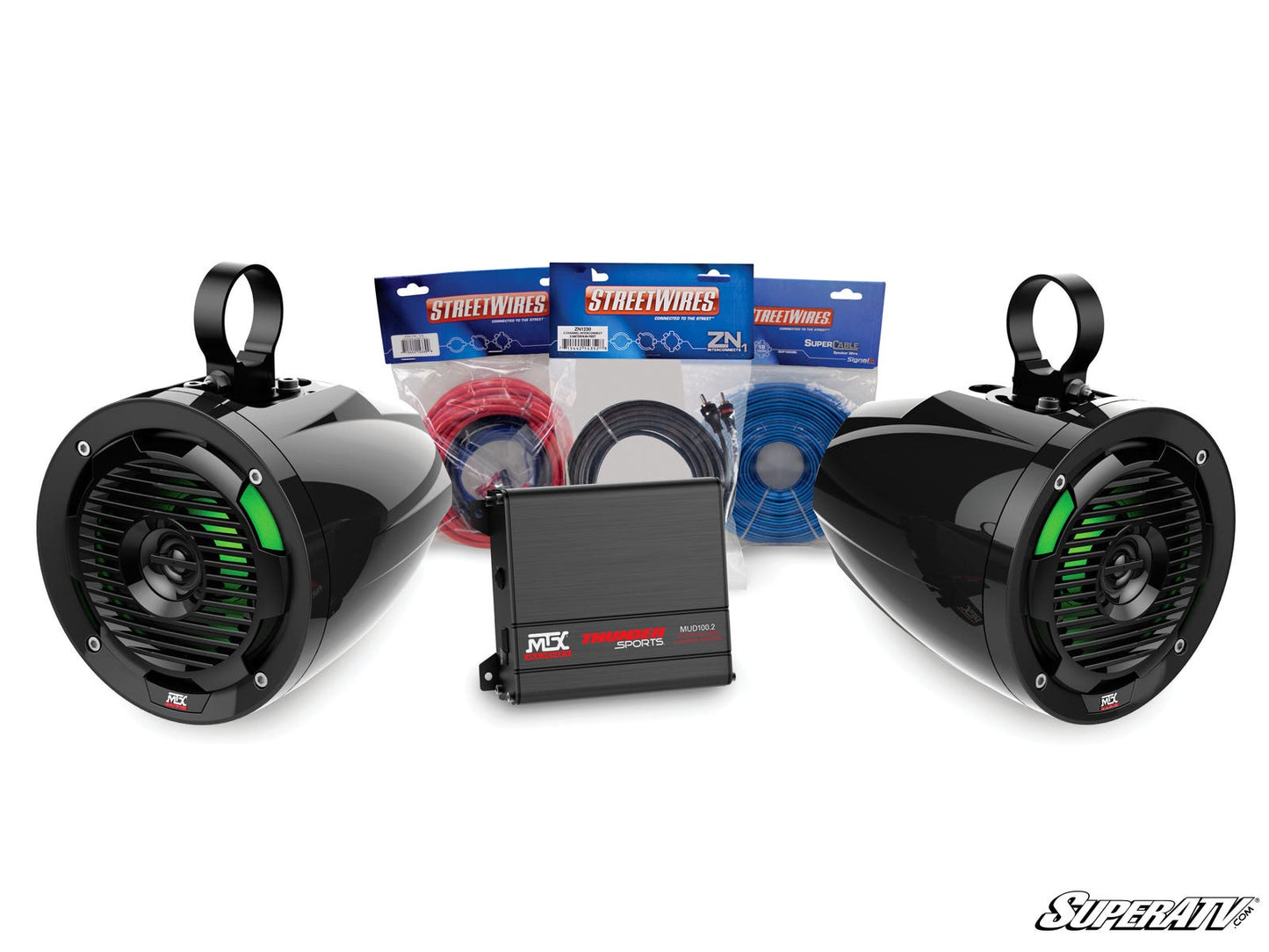

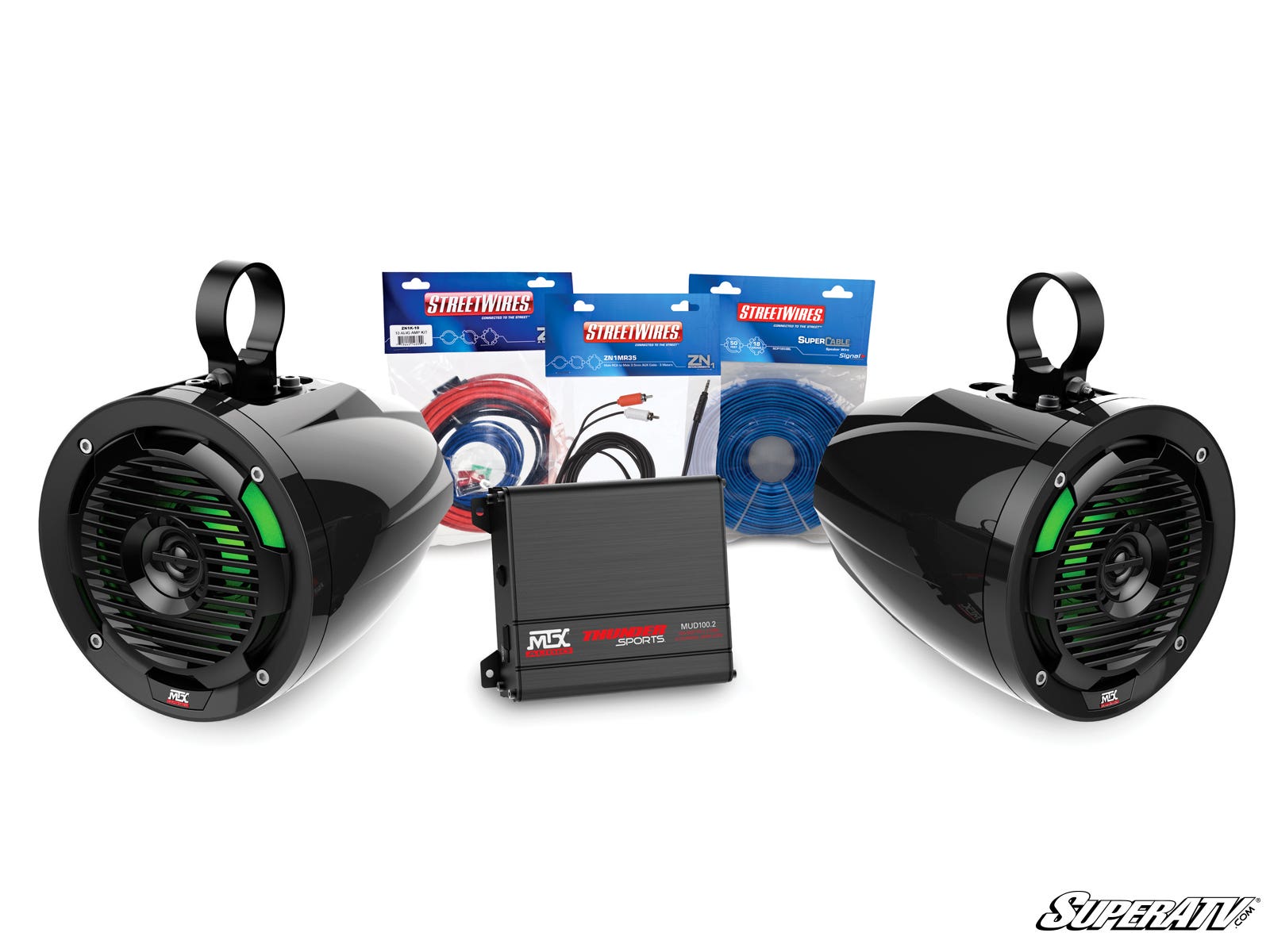

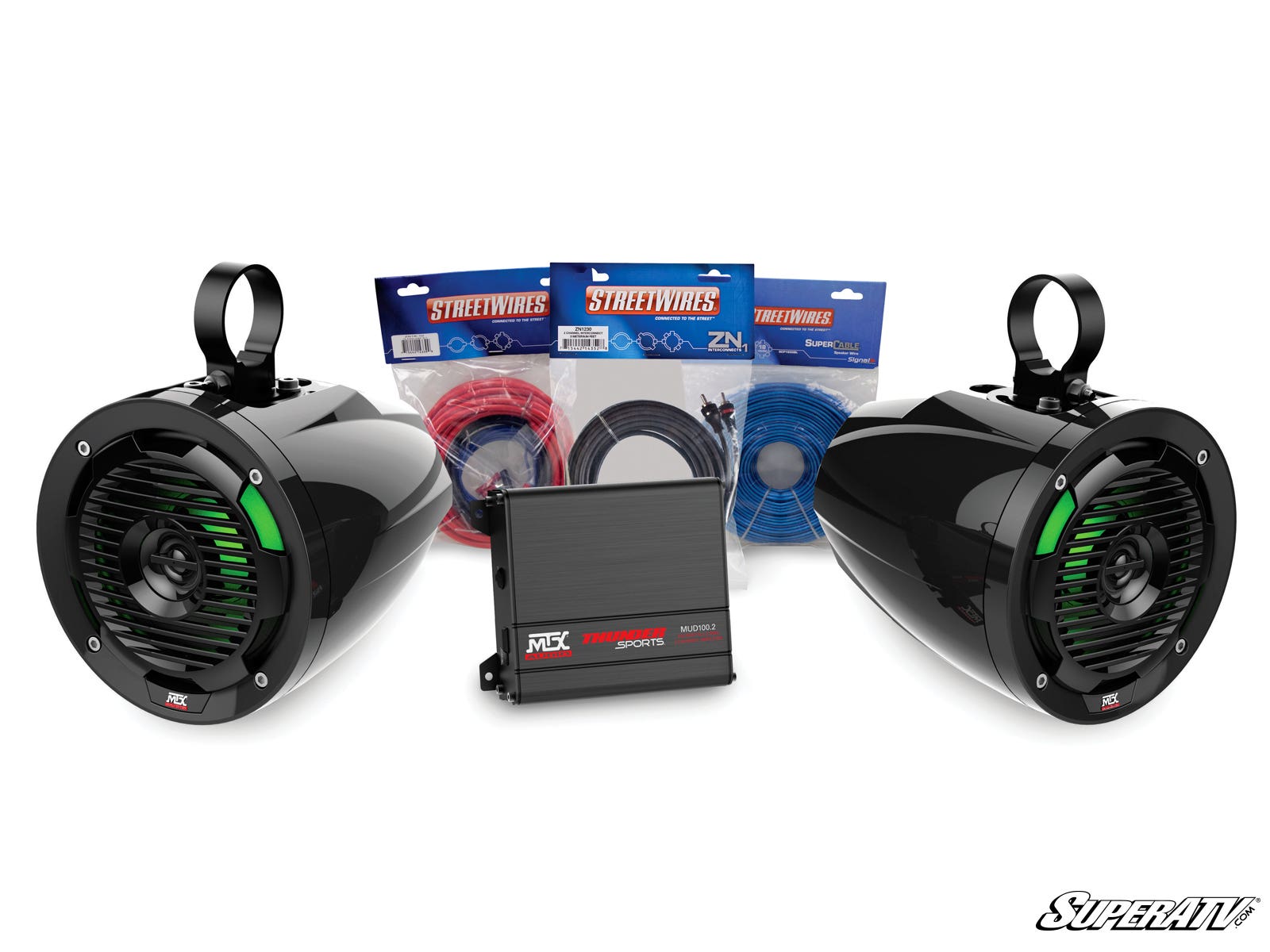

All-in-One Kit for Awesome Sound Looking for an all-in-
one kit to pump your jams out on the trail? We’ve got just what you need:
MTX’s UNI-1-ADDON or UNI-1-AUX Amplifier and Roll Cage Speaker Kit. It fits
all tubes between 1.75” and 2”, making it nearly universal. This kit comes
with an MTX MUD100-2 amplifier, two 6.5” speaker pods, and all the wiring you
need. This kit is compatible with any source—you can choose between RCA or 3.5
mm headphone jack connections. Whether you’re cruising in a Jeep, UTV, or
another machine, these speakers will have everybody rocking and rolling with
you.

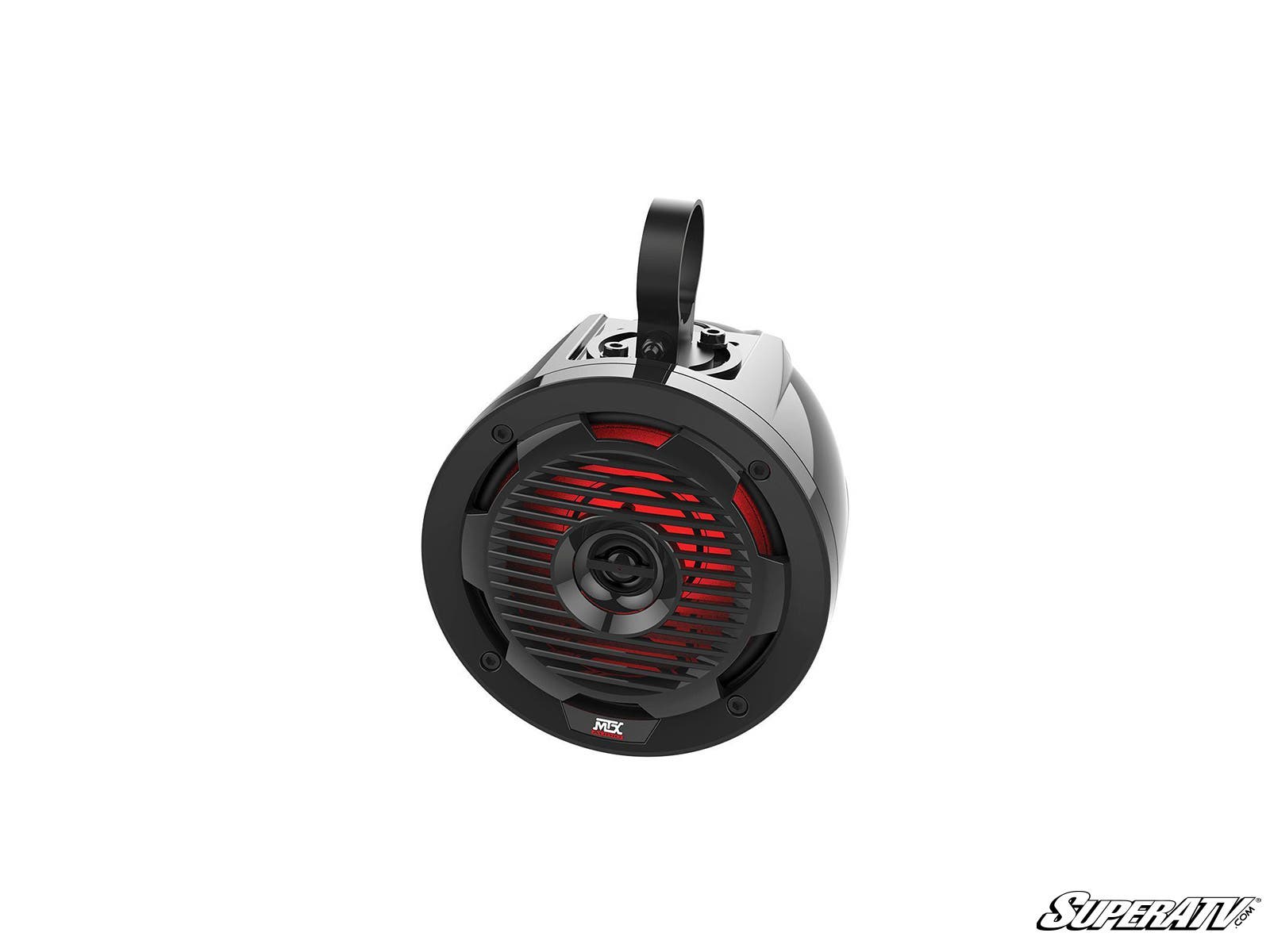

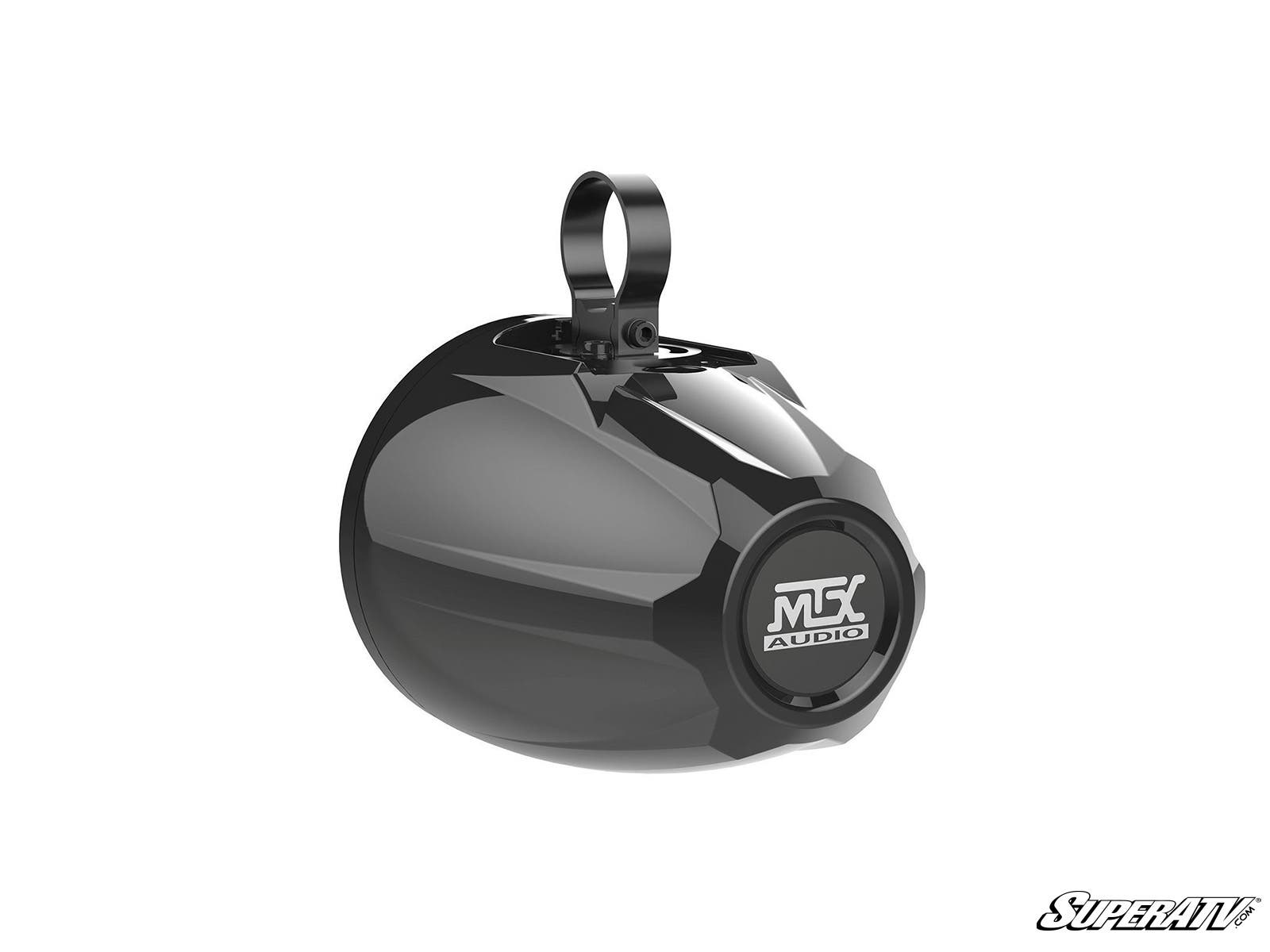

Speakers to Fit Your Cage With this kit,
you get two 6.5” weather-resistant speaker pods. They’re impact resistant and
have integrated RGB lighting for maximum head-turning potential. Thanks to
adjustable clamps that mount easily to 1.75”, 1.85”, or 2” bars, you’ll be
ready to set the ride’s soundtrack without working too hard to install it.
|
Speaker Specs | |
| Speaker Size | 6.5",
2-Way |
| Sensitivity | 86dB |
Impedance | 86dB |
| Frequency Response |
70Hz-20kHz |
| Dimensions | 9.34" x 7.09" x
8.76" |

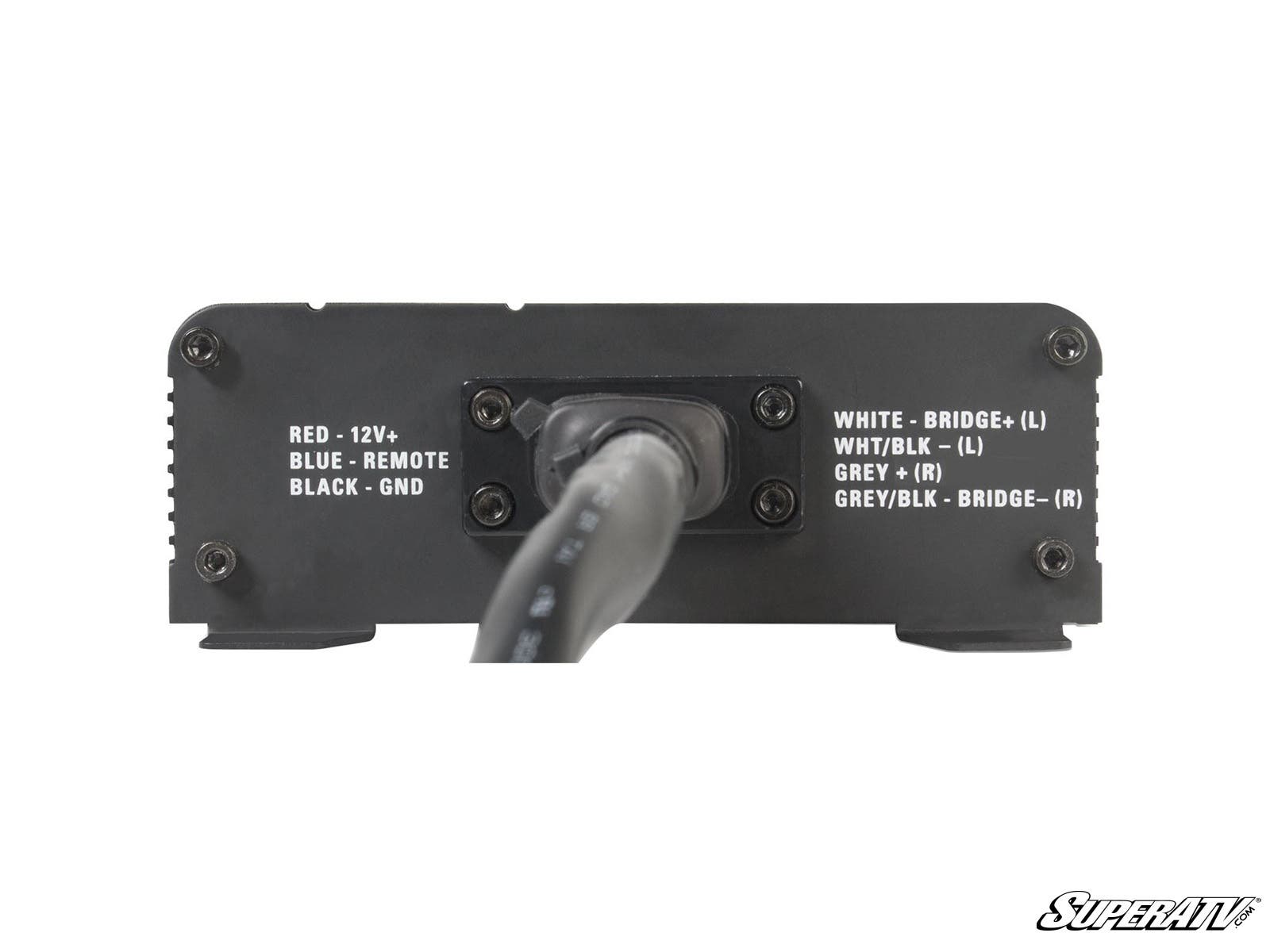

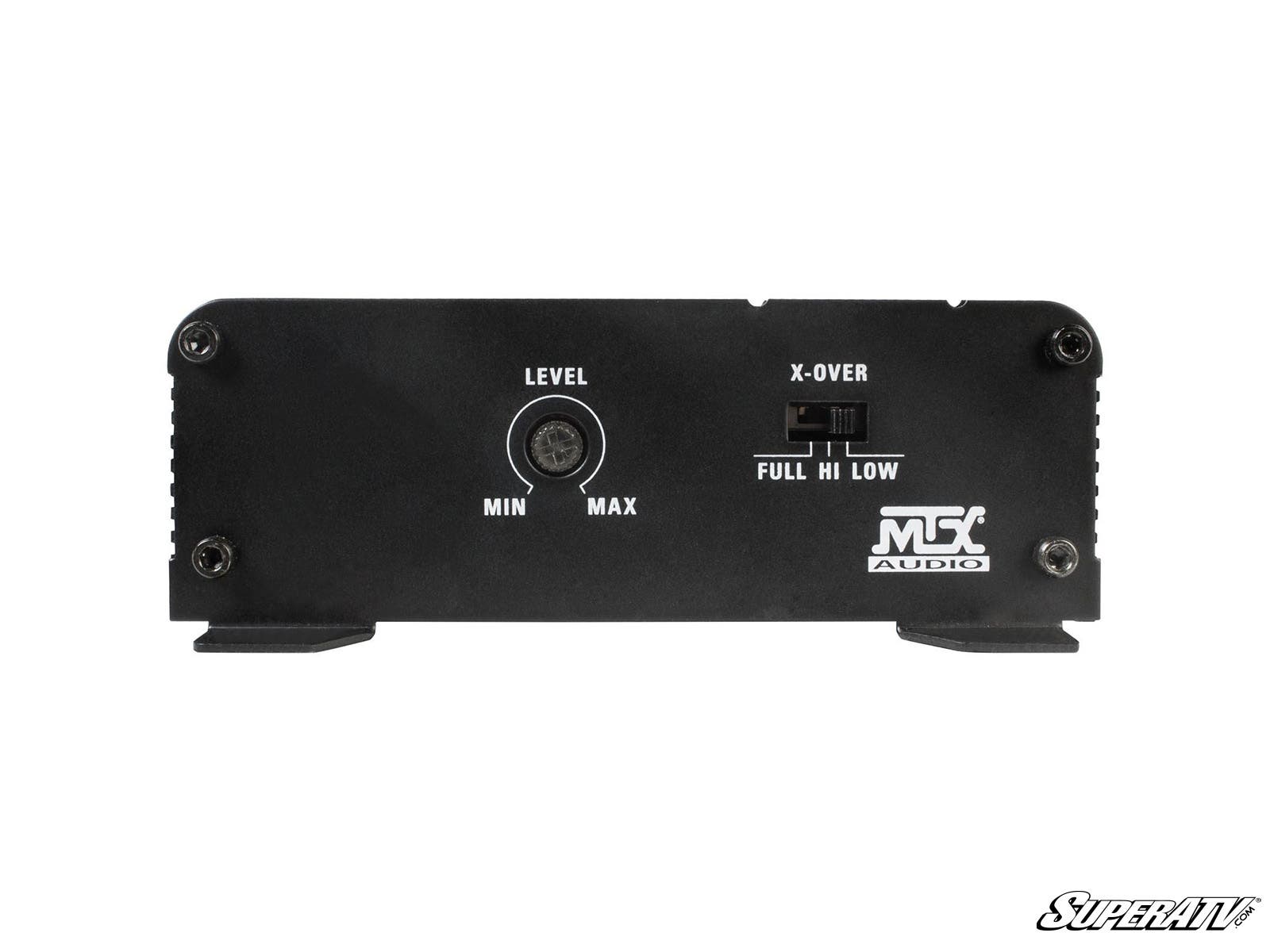

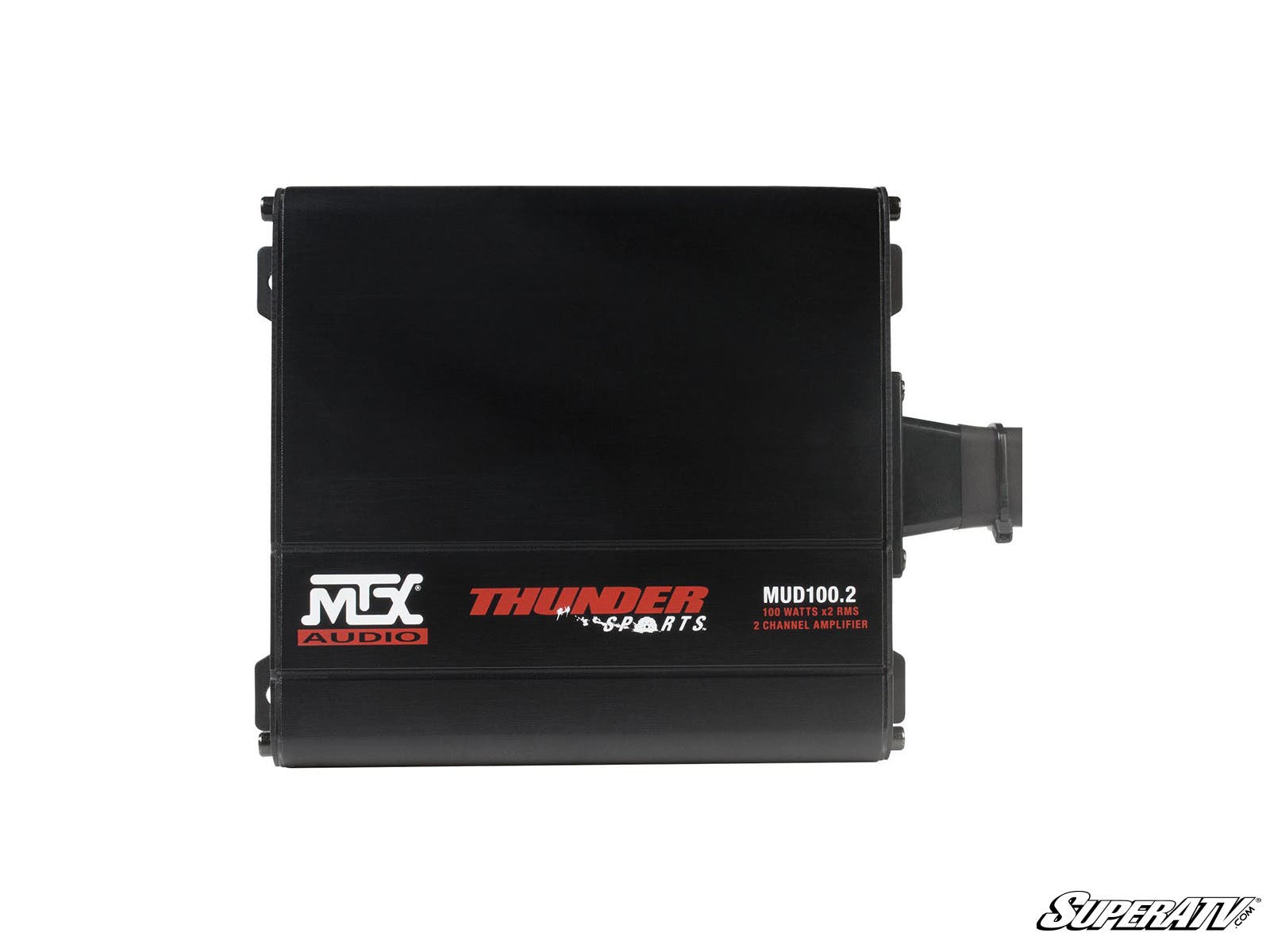

Small But Might Amplifier This kit comes with MTX’s MUD100-2 amplifier. It’s small, but it packs a major
punch in the sound department! That small size makes it more convenient for
mounting on smaller machines and it’s corrosion and weather-resistant for
maximum longevity. And 200 watts RMS power is enough to run these speaker pods
and then some.
|
| Amplifier Specs | |
| Description |
2-Channel |
| Sensitivity | 86dB |
4Ω RMS Power Output | 50W x 2 Channels |
2Ω RMS
Power Output | 100W x 2 Channels |
| Topology |
Full Range Class D |
| THD | <1.0% |
Frequency Response | 20Hz - 20kHz |
Crossover | Fixed HPF/LPF @ 80Hz, 12dB/Oct |
Max
Sensitivity | 200mV |
| Maximum Input Signal |
5V |
| Dimensions | 4.65" x 5.71" x 1.61" |

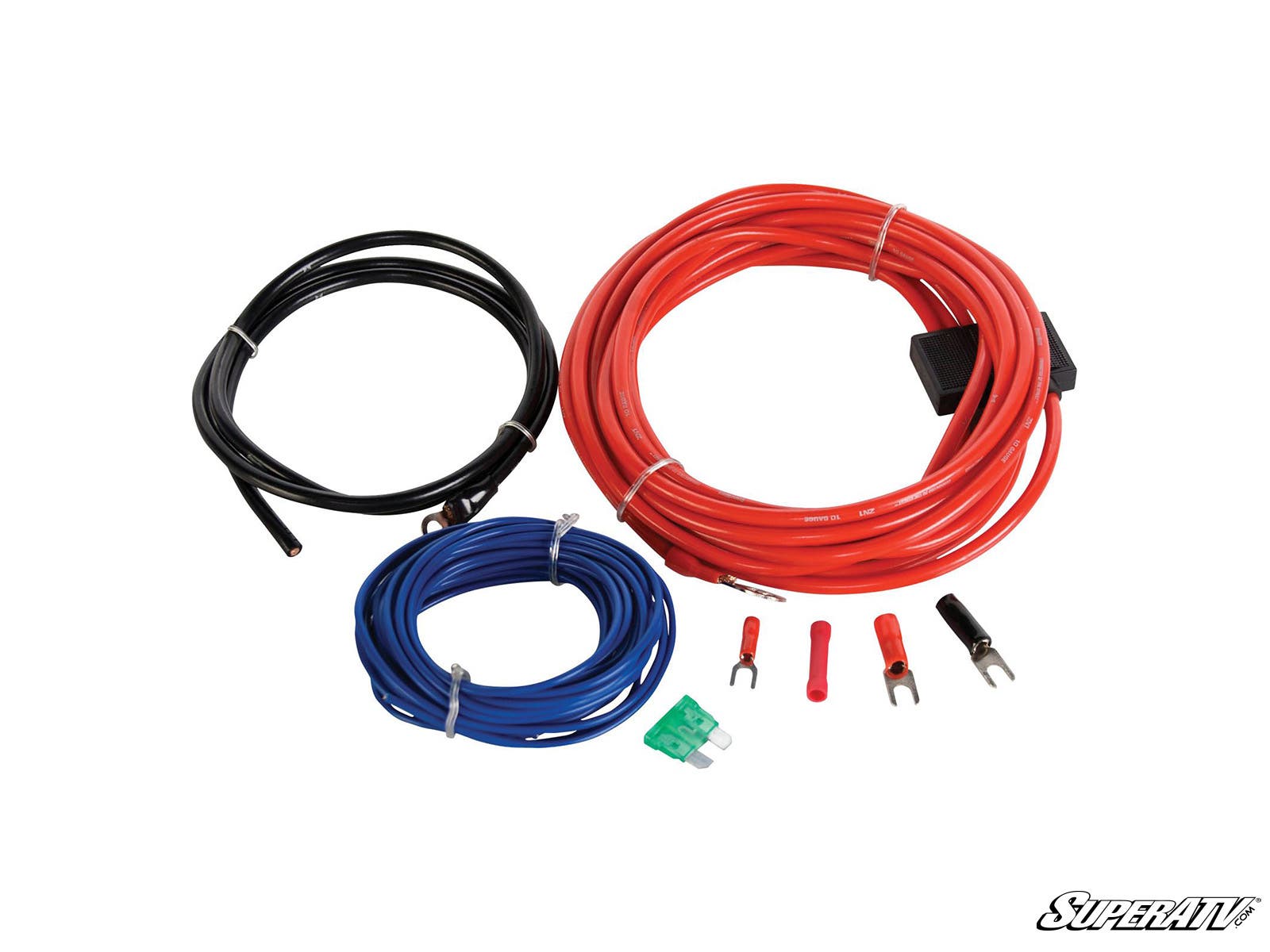

All the Wires and Cables You Need MTX includes all the wiring you need to get your speaker pods up and running.
You get a power kit to connect the amp to the battery, a stereo cable
connector from your source to the amp, and 18 gauge speaker wires.
Wiring Kit Includes - 3m (9.8') 10 AWG Red Power Cable
with ATC Fuse Holder - 3m (9.8') 10 AWG Black Ground Cable
- 3m
(9.8') 22 AWG Remote Wire - 10 AWG Ringer Terminal 5/16”
- 10
AWG Ring Terminal 3/16” - (2) 10 AWG Spade Connectors
- 18 AWG
Red Butt Connector - 30A ATC Fuse
FEATURE
Amplifier - Compact design
- Corrosion-
resistant circuit board - High and low pass crossovers for use with
full-range speakers or subwoofers - High and low-level inputs allow
connection to both speaker and RCA input signals - 2Ω Stable
- 2
Channels - Footprint fits most OEM motorcycle radios
- Full
Range class D topology - Bridgeable
Speakers - Weather resistant
- (2) 6.5" Speaker
Pods - 2-way
- Fits bars between 1.75” and 2”
- Internal
crossover network - Impact resistant
- Integrated RGB
lighting
Fitment
RCA Outputs: UNI-1-ADDON uses RCA outputs and is compatible
with any RCA source.
3.5mm Jack:UNI-1-AUX uses a

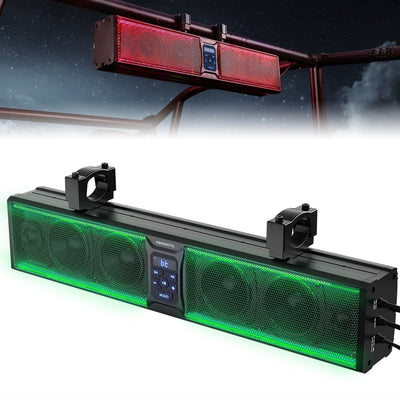

3.5 mm headphone jack and is compatible with MTX 6 Speaker Universal Sound
Bar, MTX Universal Bluetooth Receiver/Remote, and MTX AWBTSW Bluetooth Rocker
Switch.
