Product Description

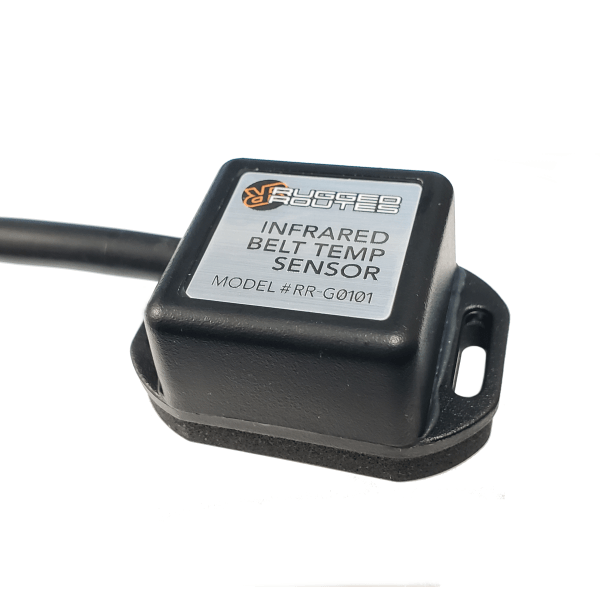

GPS Infrared Belt Temperature Gauge Sensor by Rugged Routes

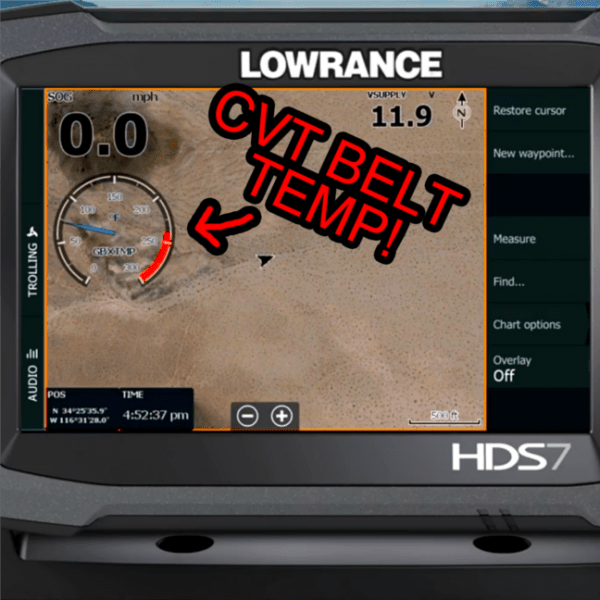

This infrared belt temp sensor is an easy install accessory for Lowrance HDS and Elite FS GPS Units. It simply connects to the N2K network just like a Point-1 Baja Antenna, and displays your CVT Belt Temp right on the Lowrance GPS screen. Keep an eye on your belt temp in order to adjust your driving style or as an aid in clutch tuning for prolonging the life of your CVT Belt.

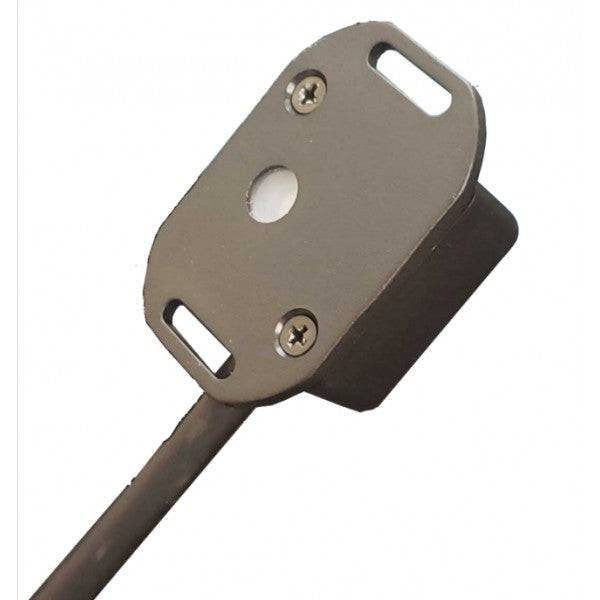

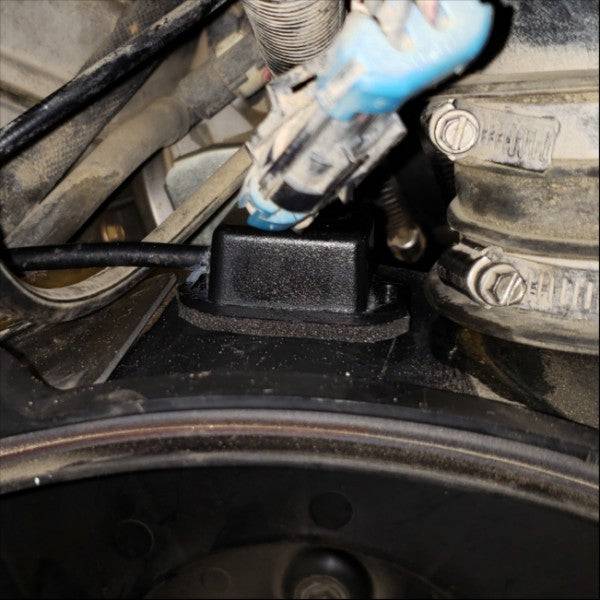

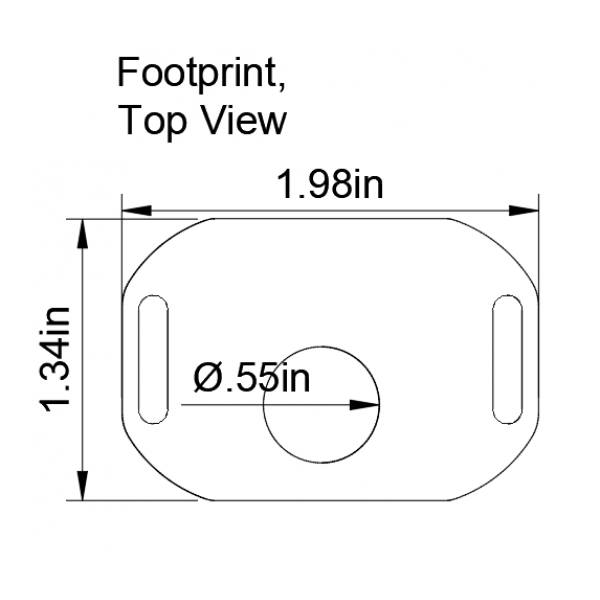

Simply drill a 3/8" - 1/2" hole in the plastic belt cover above the center of your belt and stick the sensor on. The sensor is a small cube & contours to the belt cover with a 3/16" thick waterproof closed cell foam & easily sticks on with a high strength waterproof adhesive by 3M.
Install on a clean plastic surface, hold down for 30 seconds and wait 24 hours to fully adhere. Check out the instructional video on the tab above.
Compatible with Gen2 or Newer HDS Units, and Elite 7" Or Larger.
Not Compatible with Elite-5 Ti or Trophy models.

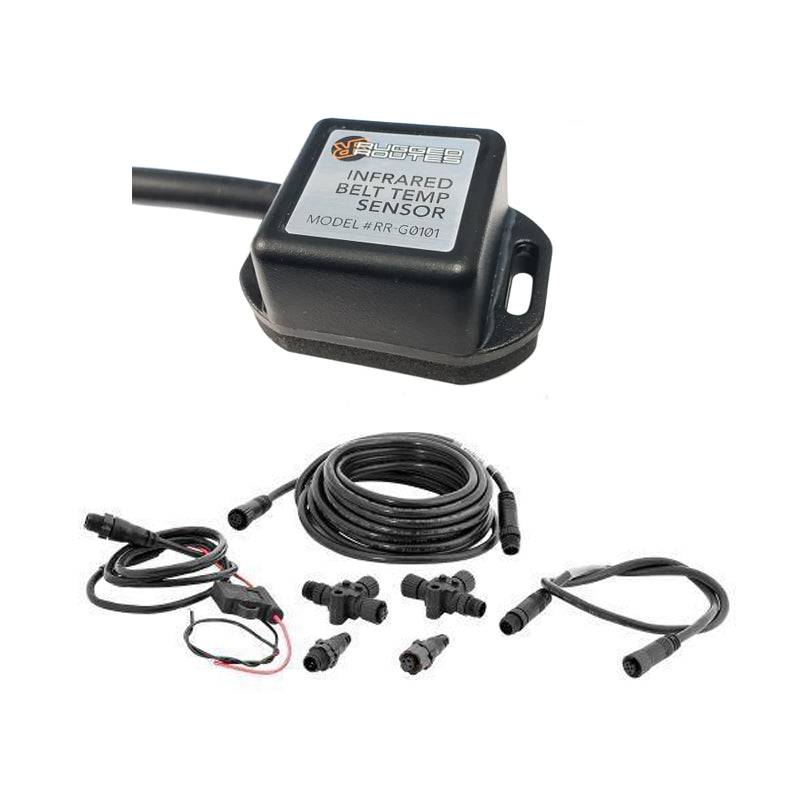

Belt Temp Sensor Only does not included needed NMEA Connectors, extension cables or power cables.
