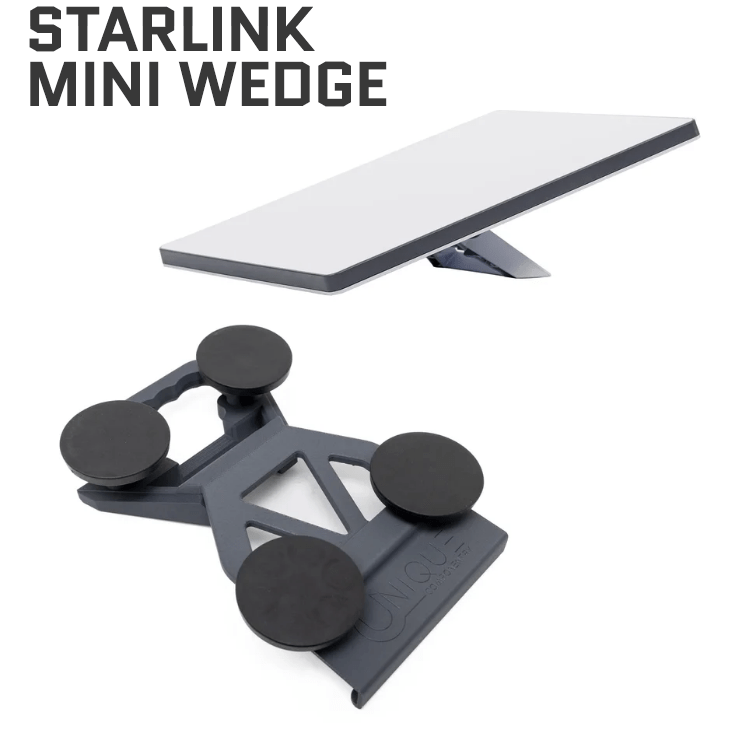

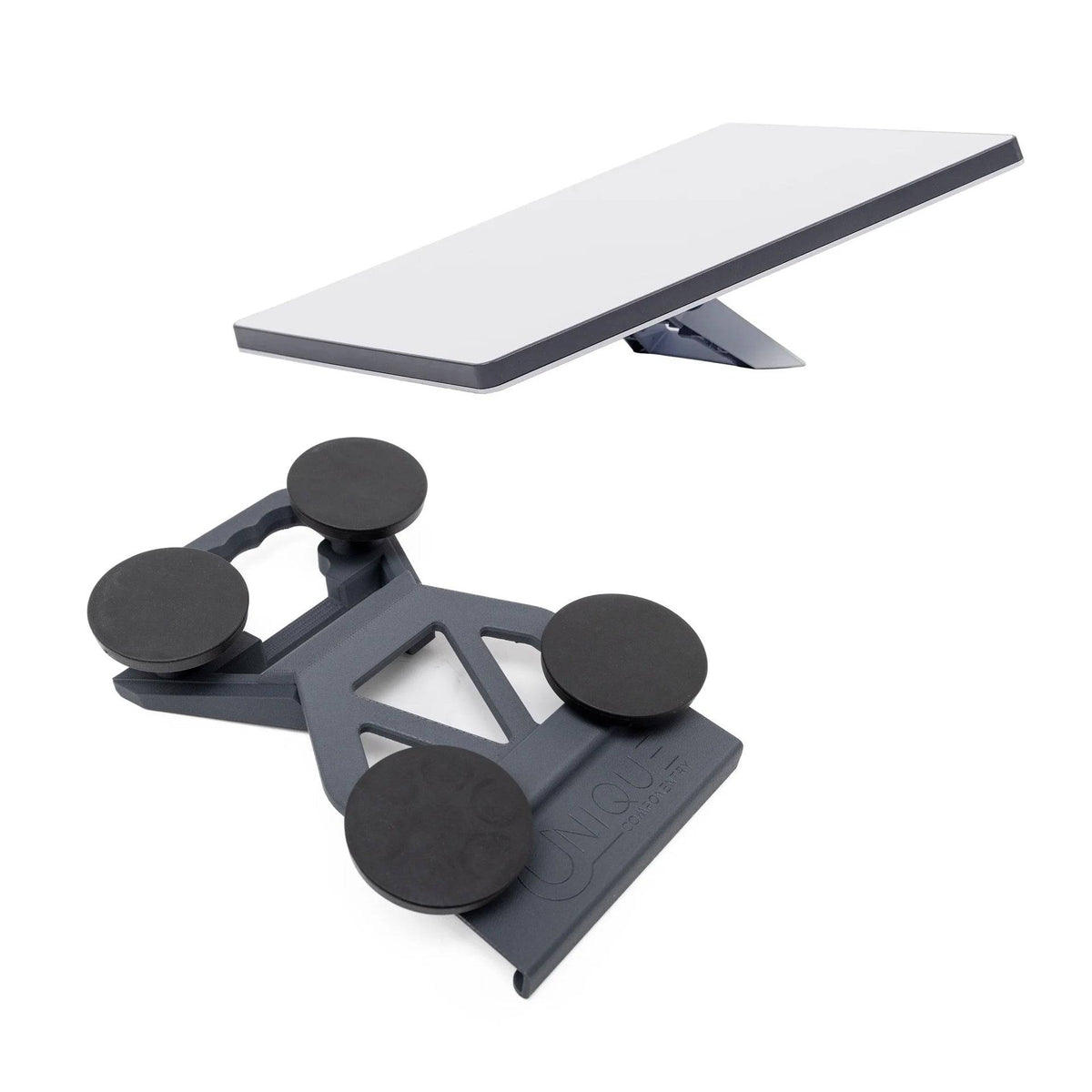

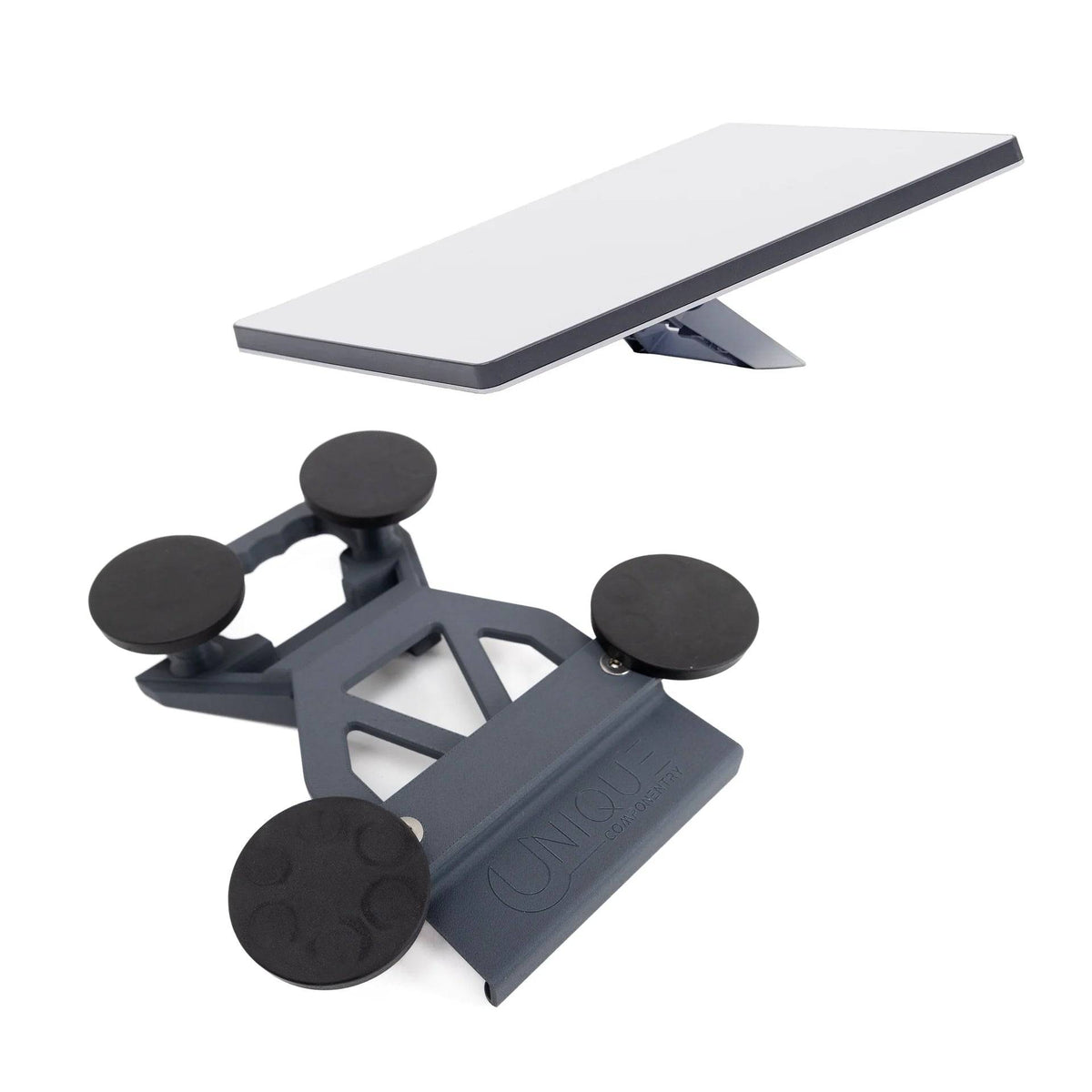

PCI Starlink package complete with a new (Unactivated) Starlink Mini Antenna Dish and Unique Componentry Wedge Mount.

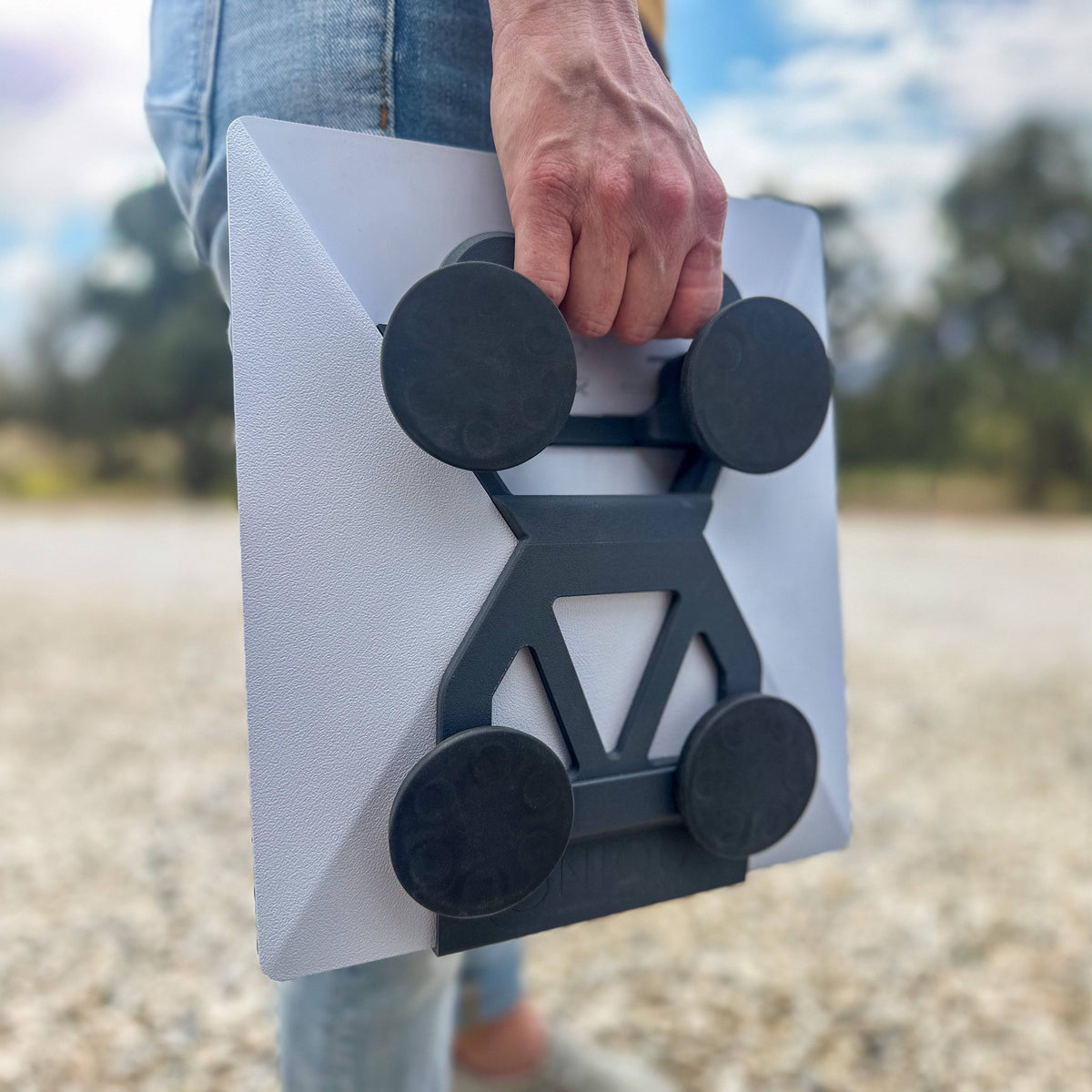

Starlink Mini is a compact, portable kit that can easily fit in a backpack, designed to provide high-speed, low-latency internet on the go. It includes a built-in WiFi router, lower power consumption, DC power input, and max download speeds over 100 Mbps.

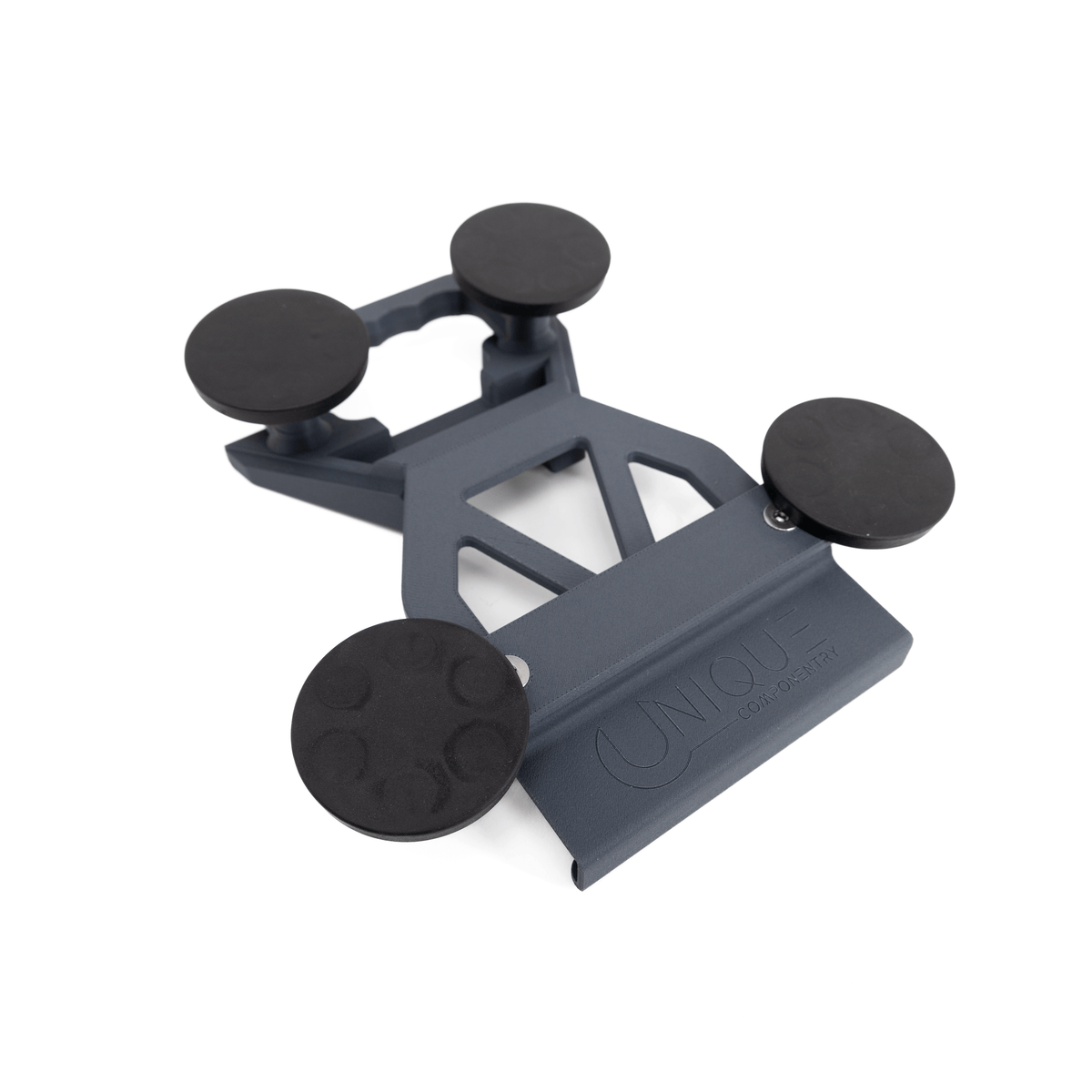

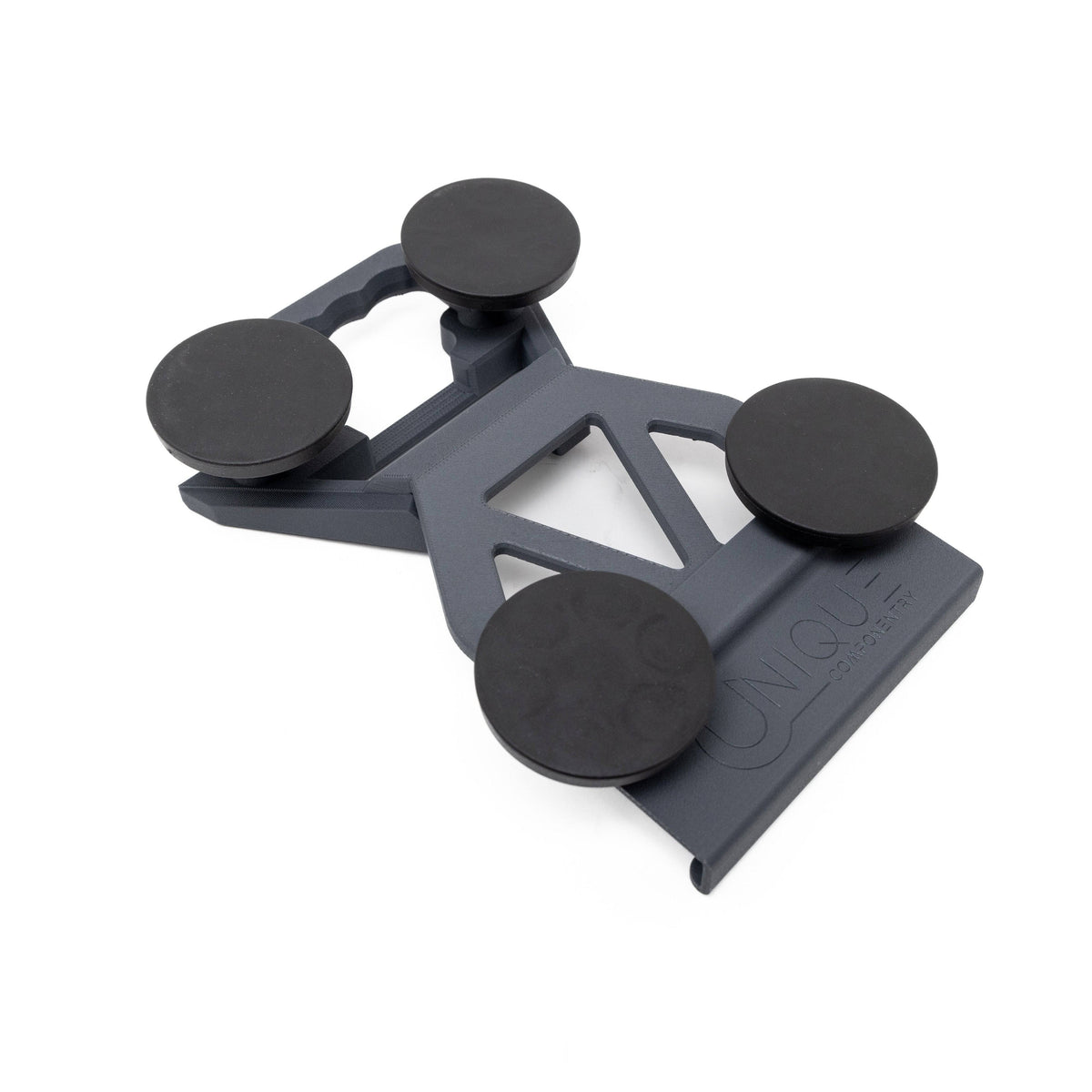

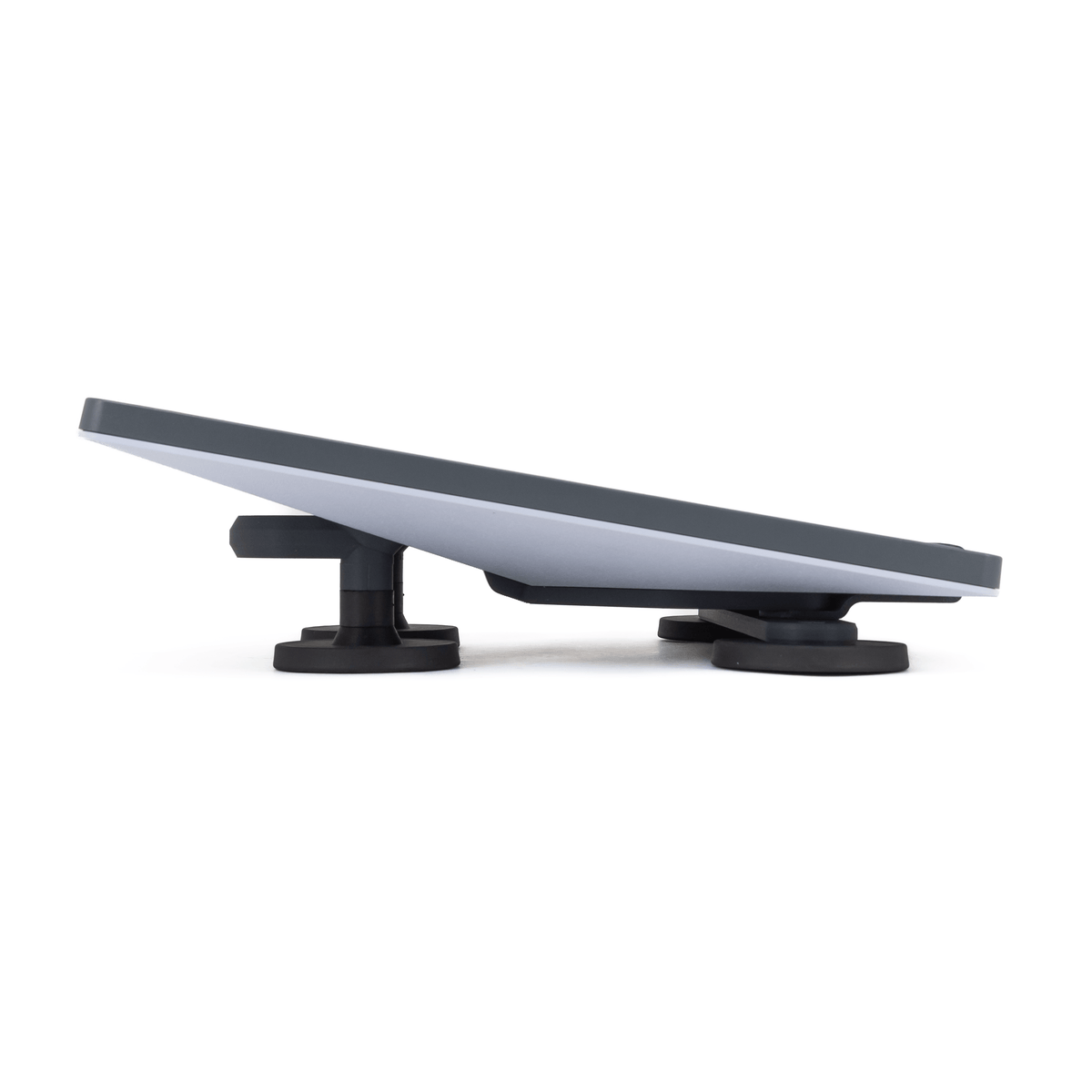

Crafted from durable carbon fiber and stainless hardware, the Unique Componentry Starlink Mini Wedge Mount features magnetic feet for secure installation. It's engineered to provide a secure and stable hold for your Starlink Mini, ensuring reliable and efficient satellite internet connectivity.

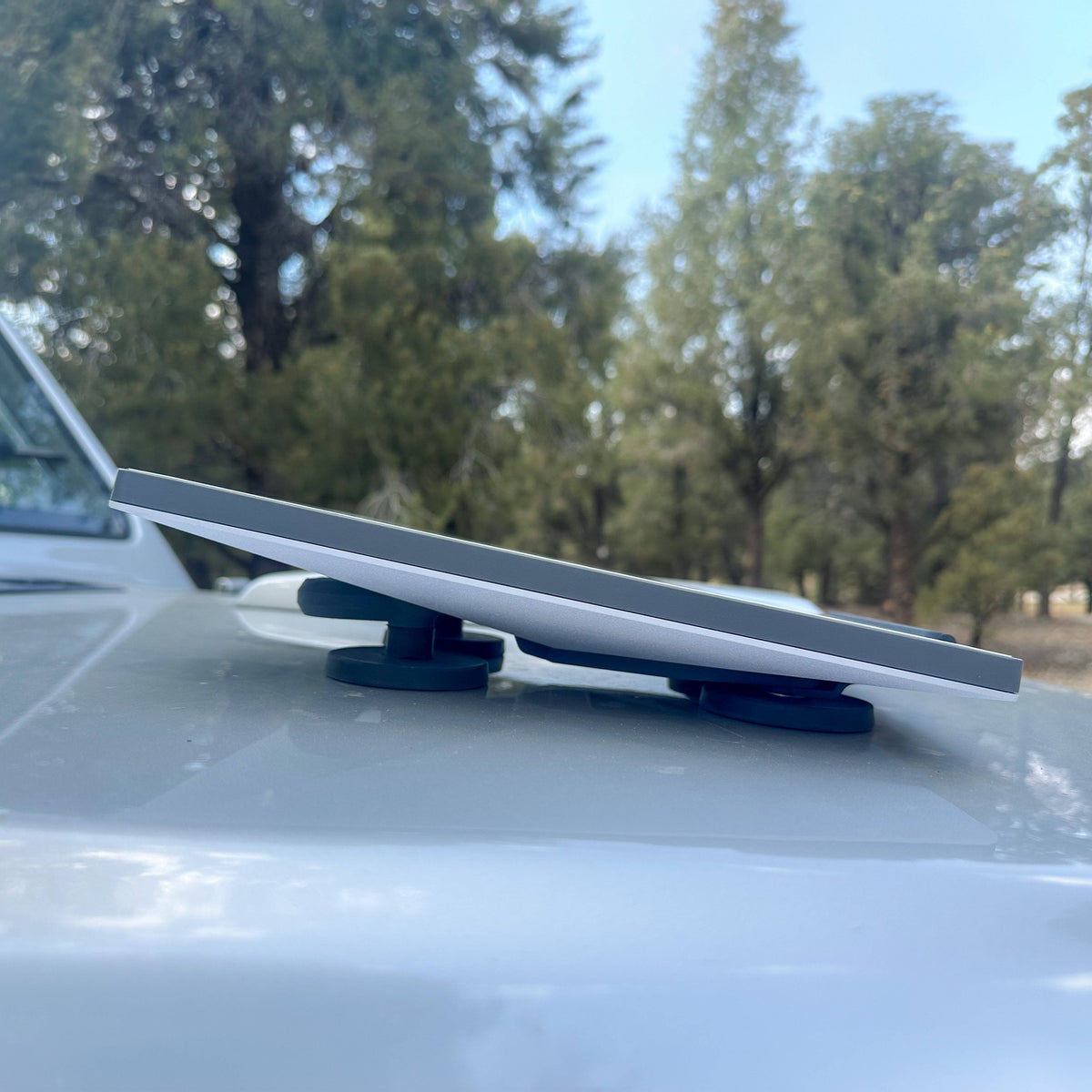

We have two versions available. The mini mount is perfect for flat metal surfaces of a sun roof with the addition of 4 Steel plates. For aluminum body, ribbed roofs, select the Aluminum body mount, complete with a template for easy mounting and steel plates included.
*Starlink Service Sold Separately. You will receive instructions with your device for activation. These are USA devices. There are roam service plans available to allow use in Mexico and Canada, but they need to be activated with a US address or may be subject to a region activation fee. Read more about outside region activation fees here.
THIS MOUNT FITS VERY SECURELY TO YOUR STARLINK MINI DISH AND IS NOT INTENDED FOR FREQUENT REPEATED UNINSTALL AND REINSTALLATION ON THE DISH.
Starlink Satellite Antennas are FINAL SALE
Starlink product pricing is subject to change. We are not provided with price protection by Starlink, and therefore cannot extend price adjustments to our customers. All Starlink product sales are final. By purchasing this item, you acknowledge and agree that we are unable to offer refunds, credits, or discounts in the event of a sale or price decrease.
For service, please download this form.
Downloads
Mini Setup Guide
Specifications
Stock Starlink Mini Specs:
| Package Weight |
6.73 kg (14.83 lbs) |
| Package Dimensions |
430 x 334 x 79 mm (16.92 x 13.14 x 3.11 in) |
| Antenna |
Electronic Phased Array |
| Field of View |
110 ° |
| Orientation |
Software Assisted Manual Orienting |
| Weight |
1.10 kg (2.43 lb) antenna only
1.16 kg (2.56 lb) with Kickstand
1.53 kg (3.37 lb) with Kickstand & 15 m Cable |
| Environmental Rating |
IP67 Type 4 with DC Power Cable and Starlink or PCI Plug/Cable installed |
| Operating Temperature |
-30°C to 50°C (-22°F to 122°F) |
| Wind Speed |
Operational: 96 kph+ (60 mph+) |
| Snow Melt Capability |
Up to 25mm / hour (1 in / hour) |
| Power Consumption |
Average: 25-40W |
| Input Rating |
12-48V 60W |
| USB PD Requirement |
100W, 20V/5A Minimum |
| Wi-Fi Technology |
802.11a/b/g/n/ac |
| Generation |
WiFi 5 |
| Radio |
Dual Band 3 x 3 MU-MIMO |
| Ethernet Ports |
One (1) Latching Ethernet LAN port with Starlink Plug |
| Coverage |
Up to 112 m² (1,200 ft²) |
| Security |
WPA2 |
| Power Indicator |
LED | rear face plate, lower left corner |
| Mesh Compatibility |
Compatible with all Starlink mesh systems *Not compatible with 3rd party mesh systems |
| Devices |
Connect up to 128 devices |
Ships direct from PCI Race Radios (Cypress, CA).
