Why You’ll Love It
8” Portal Lift adds maximum ground clearance directly at the hubs 45% or 60% Gear Reduction adds torque and relieves drivetrain stress Heavy-Duty Aluminum Housings stand up to demanding off-road use 9310 Steel Gears pair with a hardened 4340 drive shaft for strength Limited Lifetime Warranty protects your purchase
Gear Down and Go Big

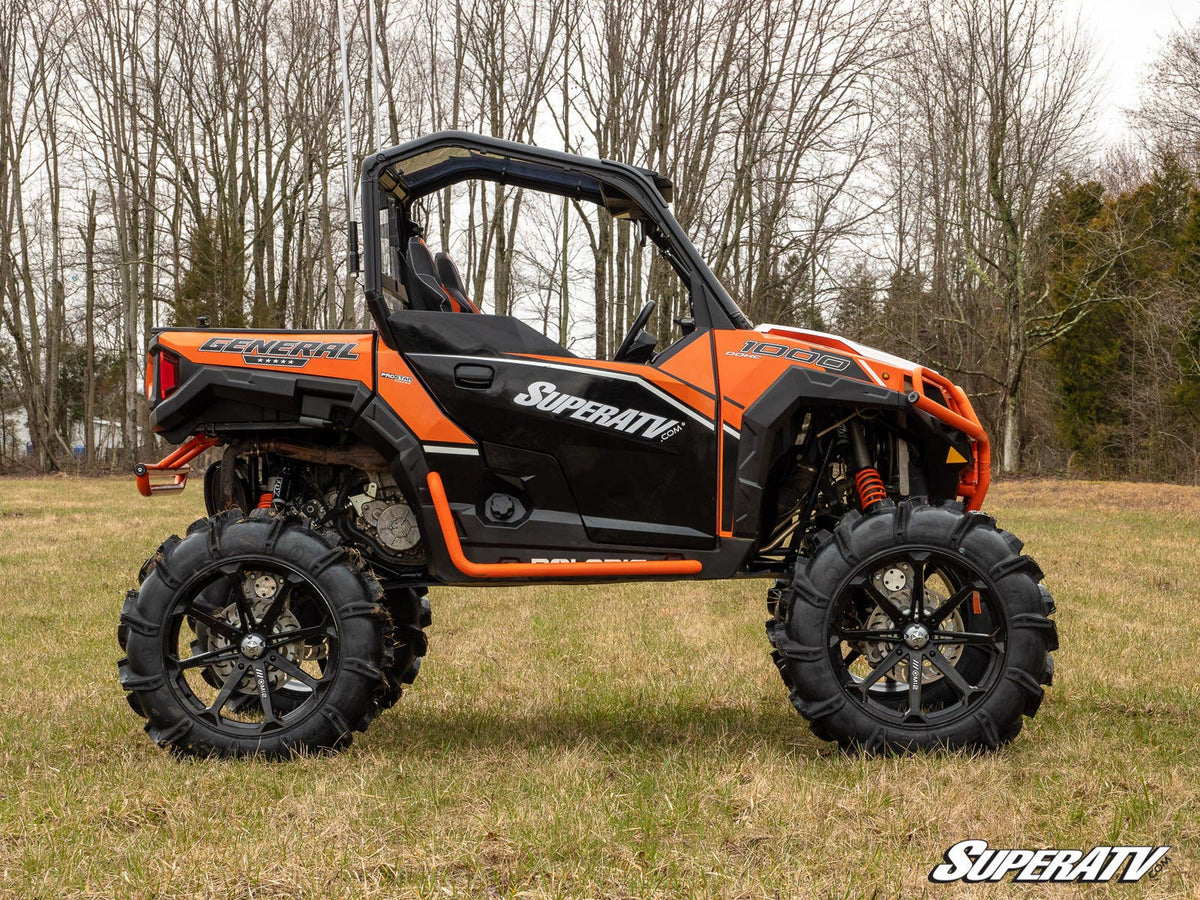

Your Polaris General can get work done when it needs to, but deep down you know you bought your General for some fierce mud flingin' action. With SuperATV’s 8” GDP Portal Gear Lift installed, you can take your side-by-side to another level. That huge increase in ground clearance paired with its torque-boosting 45% or 60% gear reduction gives you the ability to clear bigger rocks and power through thicker mud. With an 8” GDP Portal Kit, nothing’s gonna stop you.
GDP—the Most Trusted Name in Portals
So how many people let GDP transform their ride? More people than any other portal system. There are thousands riding on portals every weekend tearing up mud parks and bombing down trails. With total ride hours numbering in the hundreds of thousands, you know that GDP is the must mud-proven portal kit you can get.
Perfect for Mud
Did we mention 8” portals are great for muddin'? Getting lifted means you have room for big mud tires and your General can cruise over deep mud instead of plowing right through. The 45% or massive 60% gear reduction means you get tons of torque back to turn those tires so you’ll have no issue pushing through the thickest peanut butter mud.
A Gear Reduction That Protects Your Drivetrain
GDP puts the gear reduction right in the portal hub, which means it comes after your drivetrain. That makes this gear reduction reduce the stress on your axles, differential, prop shaft, and transmission. So ride harder than stock and cause less wear with GDP.
Learn more about how tire size and gear reduction can unleash your machine’s potential.
Unmatched Gear Material
Our top-of-the-line gears are made from precision-ground 9310 alloy steel so they mate perfectly each and every time. That gives you super quiet portals no matter how hard you ride. Not to mention they’re bulletproof. They’re built for battle and built for luxury.
Stronger Housings by Design
Our portal housings are built on the back of experience. We’ve done more field testing than anybody else and we know what makes our box stronger. So whether you go with cast aluminum or choose USA-made billet aluminum with a slick CNC-machined look, you’re getting portal boxes that can stand up to everything out on the trail.
Our housings are reinforced in all the right places
They’re built with better oil flow and gearing forces in mind
There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
The Strongest Portal Backing Plates You Can Get
There’s nothing stronger than our backing plates. What makes them so good? They’re built with an advanced steel alloy that’s stronger than chromoly steel. And at 5/16” thick, these hand-welded plates won’t fold over or break even after years of hard riding. In fact, they’re probably the strongest thing on your machine.
Advanced Gaskets and Seals
Whether you go with cast or billet, both housings use
- Advanced gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
- A sealed input gear and double-lipped output seal
- Rubber O-rings that completely seal the housings
- 100% sealing coverage throughout so you can forget about oil leaks
- Bearings That Rock
Bearings that can take abuse are just as important as gears. That’s why our output bearings are double-angular contact bearings. They keep your output shaft running true when you’re loaded down with a heavy machine and when your smashing into rocks and stumps. From top to bottom, GDP is built for battle.
Universal Hubs and Slotted Rotors
Our precision-ground, stainless steel slotted rotors stay cool to give you the braking power you need when you need it. They come with 4/156, 4/137, 4/115, and 4/110 bolt patterns and lugs. These are the most popular bolt patterns so no matter what side-by-side wheels you get your hands on, they’ll work on these hubs. We invented the tapered output shaft that our hubs attach to, which provides a more secure lock that won’t wobble or wear over time.
Reinforce Your UTV with a Frame Stiffener
An 8” portal kit is a heavy-duty piece of hardware for heavy-duty machines, and as awesome as the General is, it’s not quite up to snuff. That’s why we highly recommend a frame stiffener. Trust us—we’ve hit enough bumps to know that bending a stock frame can happen. Don’t do it. Get a frame stiffener.
Top-Rated Customer Service
Still need a little help getting exactly what you need? We’ve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.

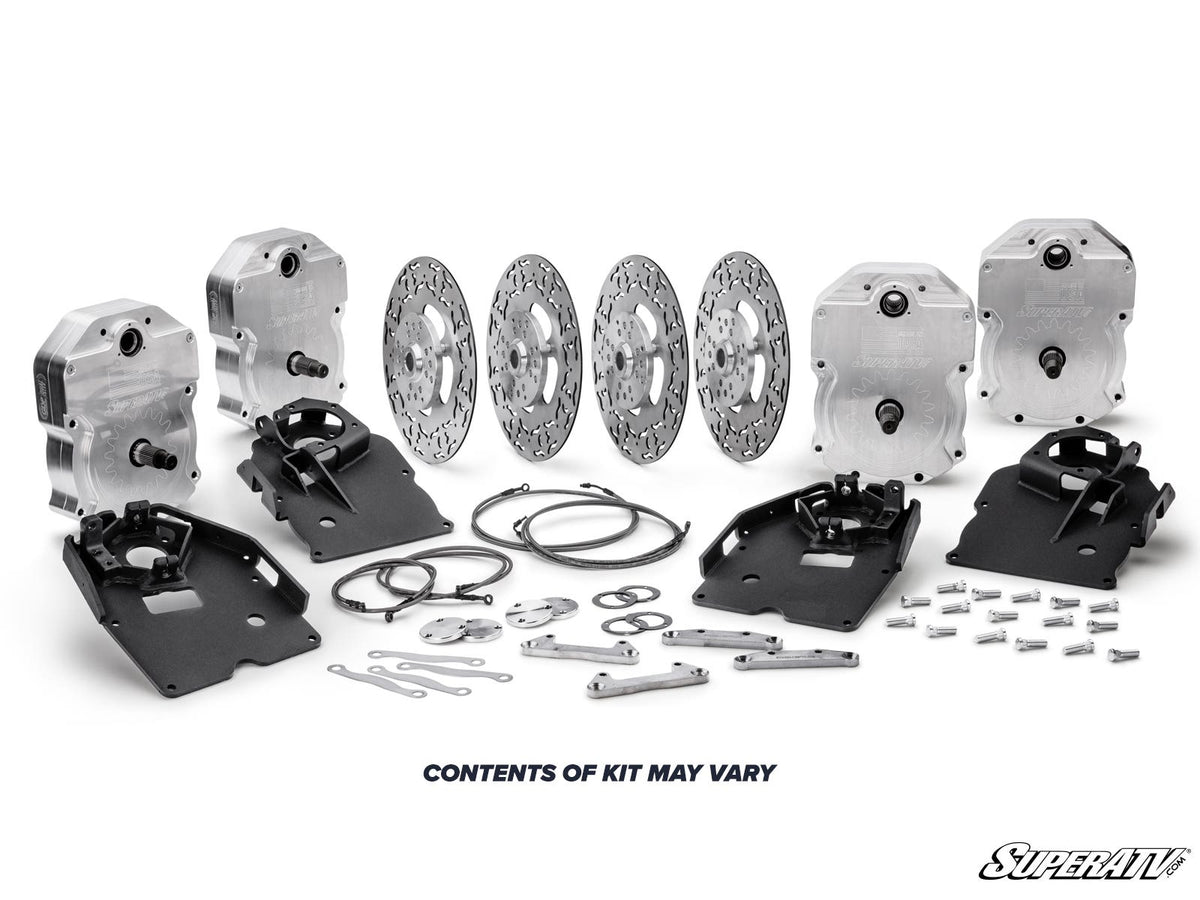

8” Portal Gear Lift Includes
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- Extended brake lines
- All required hardware, including recessed castle nut socket
- Patent # 11,299,042
- Polaris General Portal Gear Suspension Recommendations
- Max Tire Size
- Required Suspension Setup with 8" Portals
- 34"
- Stock
- 35"
- 3" Lift Kit
- 37"
- 1.5" Forward Front A-Arms
- 38"
- 1.5" Forward Front A-Arms and 3" Lift Kit
- 48"
- 7-10" Lift Kit
If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator.
Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.
Features
- Available with billet or cast aluminum housing
- Cool, quiet, precision ground gears made from 9310 alloy billet steel
- 1.5 in. forward and rear offset
- Increases width by 4 in. per side (8 in. total)
- 1.5 in. diameter 4340 hardened steel driveshaft
- Housings use advanced gaskets and rubber O-rings that don’t let anything through
- Universal hubs can be set up to work with the following bolt patterns: 4/156, 4/137, 4/115, and 4/110
- Gear reduction reduces stress on your drivetrain
Fitment (per SuperATV)
Polaris General : 2016+ Polaris General 4 : 2017+ NOTES: Does not fit 2020+ Polaris General XP 1000 or XP 4 1000
Wheel Requirements
- 22" or larger wheel required
- Wheels cannot exceed 5" backspacing
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer
Installation instructions (PDF)
