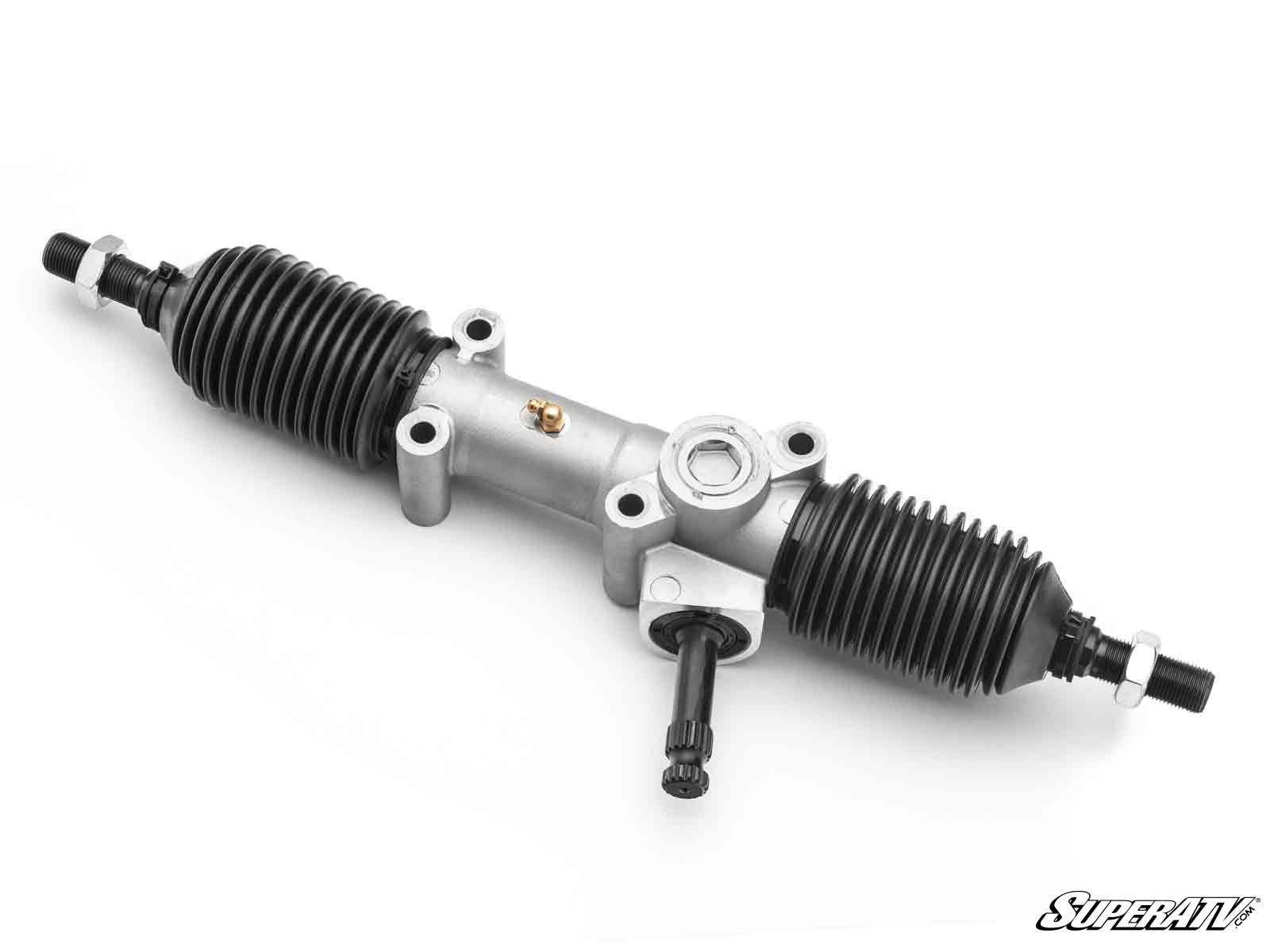

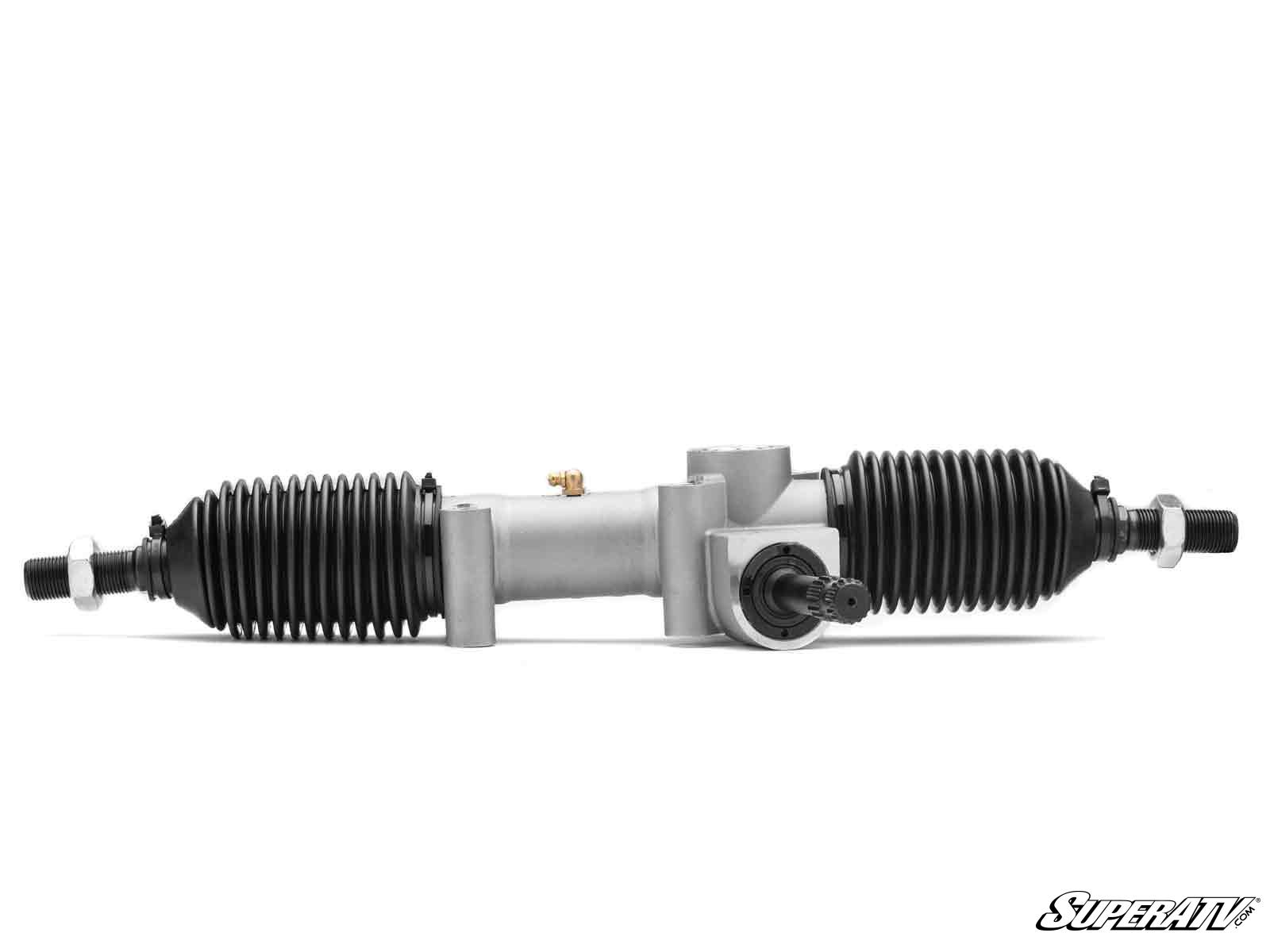

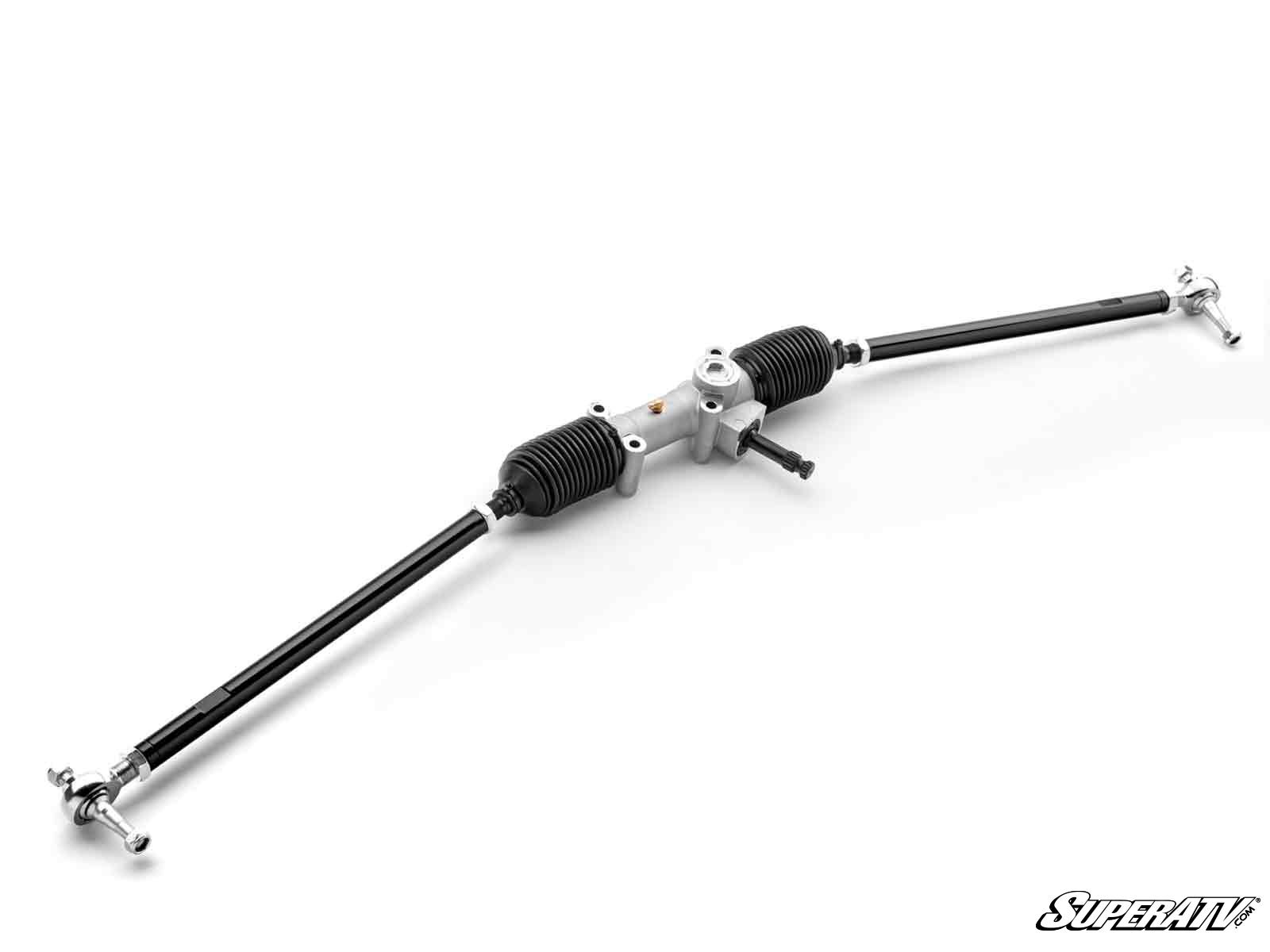

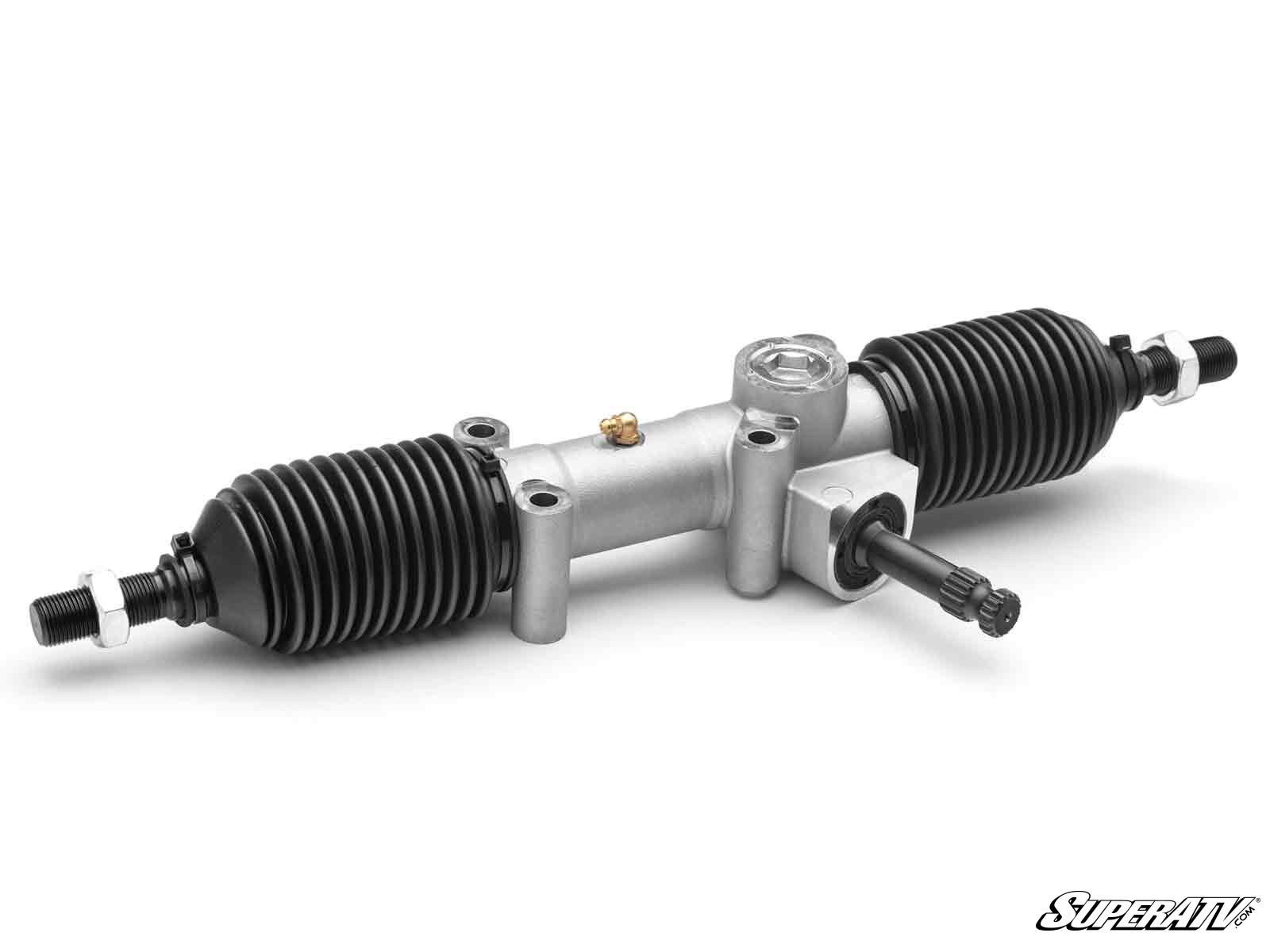

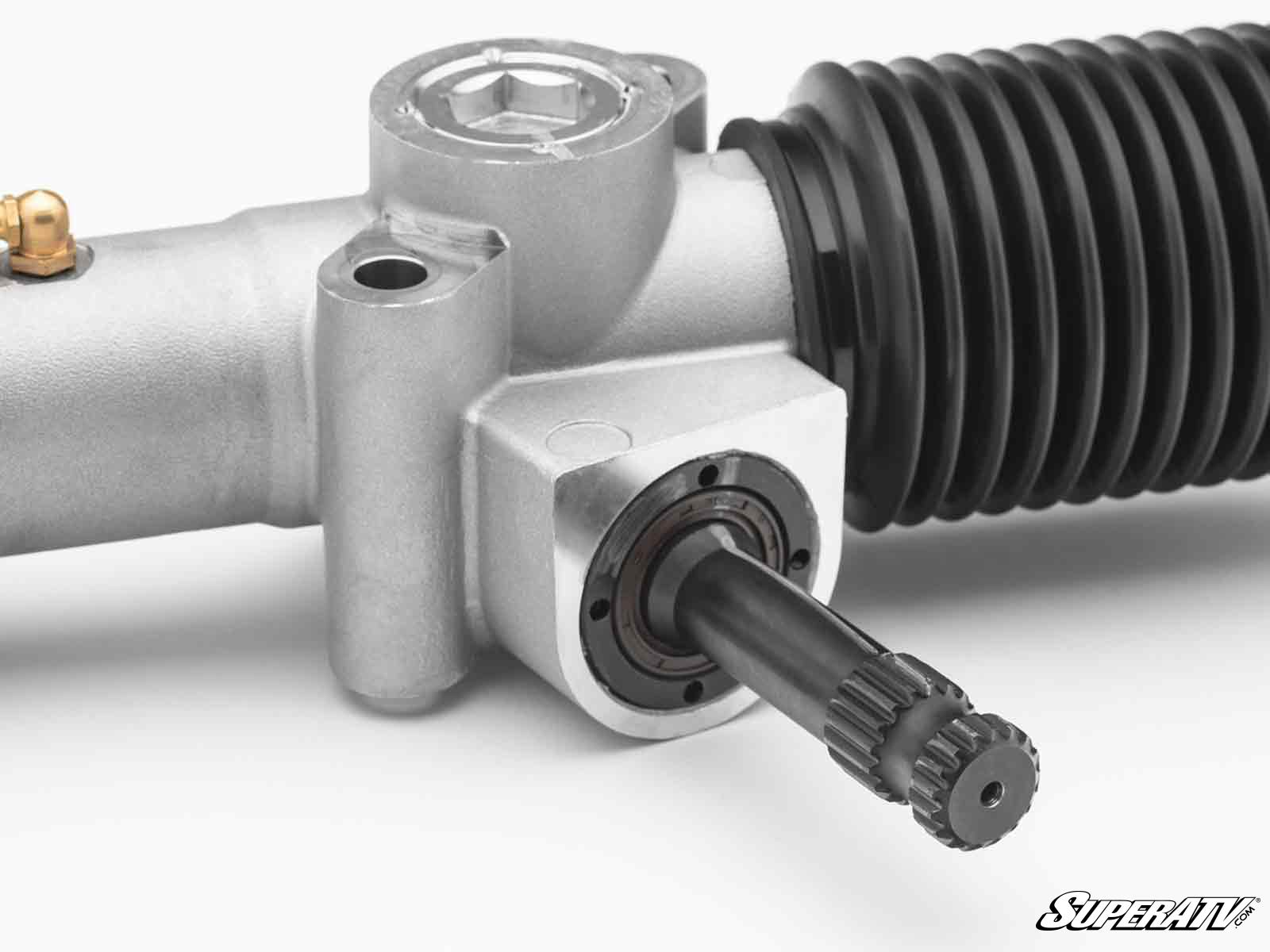

It Doesn’t Get Any Better than RackBoss 2.0 You can use
your Polaris General for every kind of job and take it on every adventure.
That means that your stock steering rack is gonna wear out and make your
handling feel loose eventually. That’s why you need our RackBoss 2.0 Rack and
Pinion on your Polaris General XP 1000. It’s a better rack that’s designed to
outlast everything else on the market thanks to our X24 Technology. Our design
reduces wear by over 50% so you can ride all you want, even with massive
tires. Your steering will be tight and responsive for years and years.
Your General XP 1000 Needs X24 Tech Our X24 Tech
takes our General XP 1000 RackBoss 2.0 to the next level. It’s a dual-bushing
design that uses PTFE bushings at both ends of the rack to reduce movement in
the gearset and tension spring. The result is up to 50% less wear and tear on
the rack and tighter handling—no more shaky steering. Plus, it’s greaseable,
so you can keep it clean and lubricated.

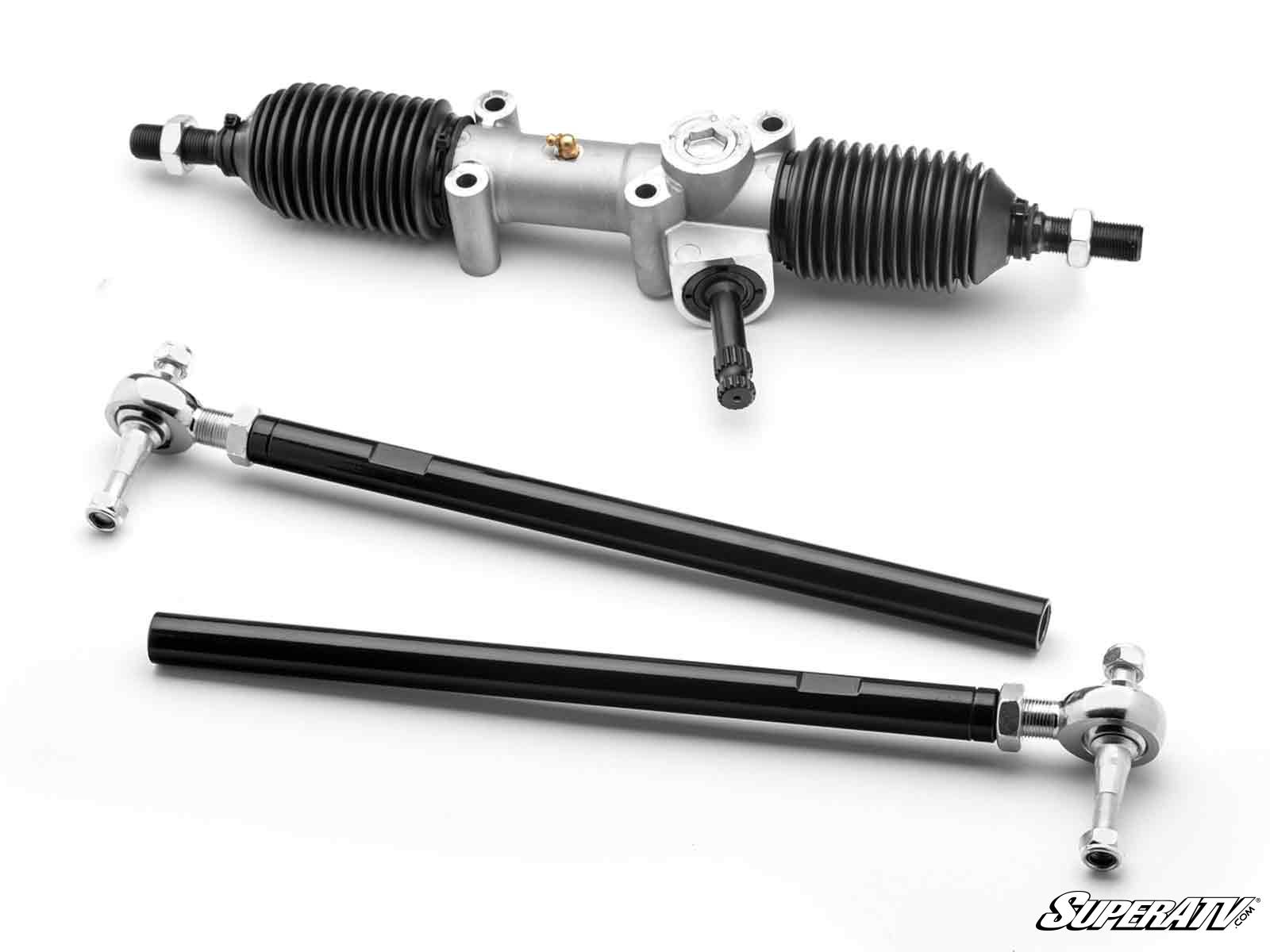

Solid Steel Bar Tie
Rods Our 1” diameter steel bar tie rods give your General XP
1000’s steering rack the strength it needs to go hard. Whether you’re hauling
big loads or navigating nasty washouts with massive tires, you can count on
them to hold strong. The rods are paired with beefy tie rod ends that have
3/4” rod threads and 16 mm rack threads. That’s serious strength for serious
riders.

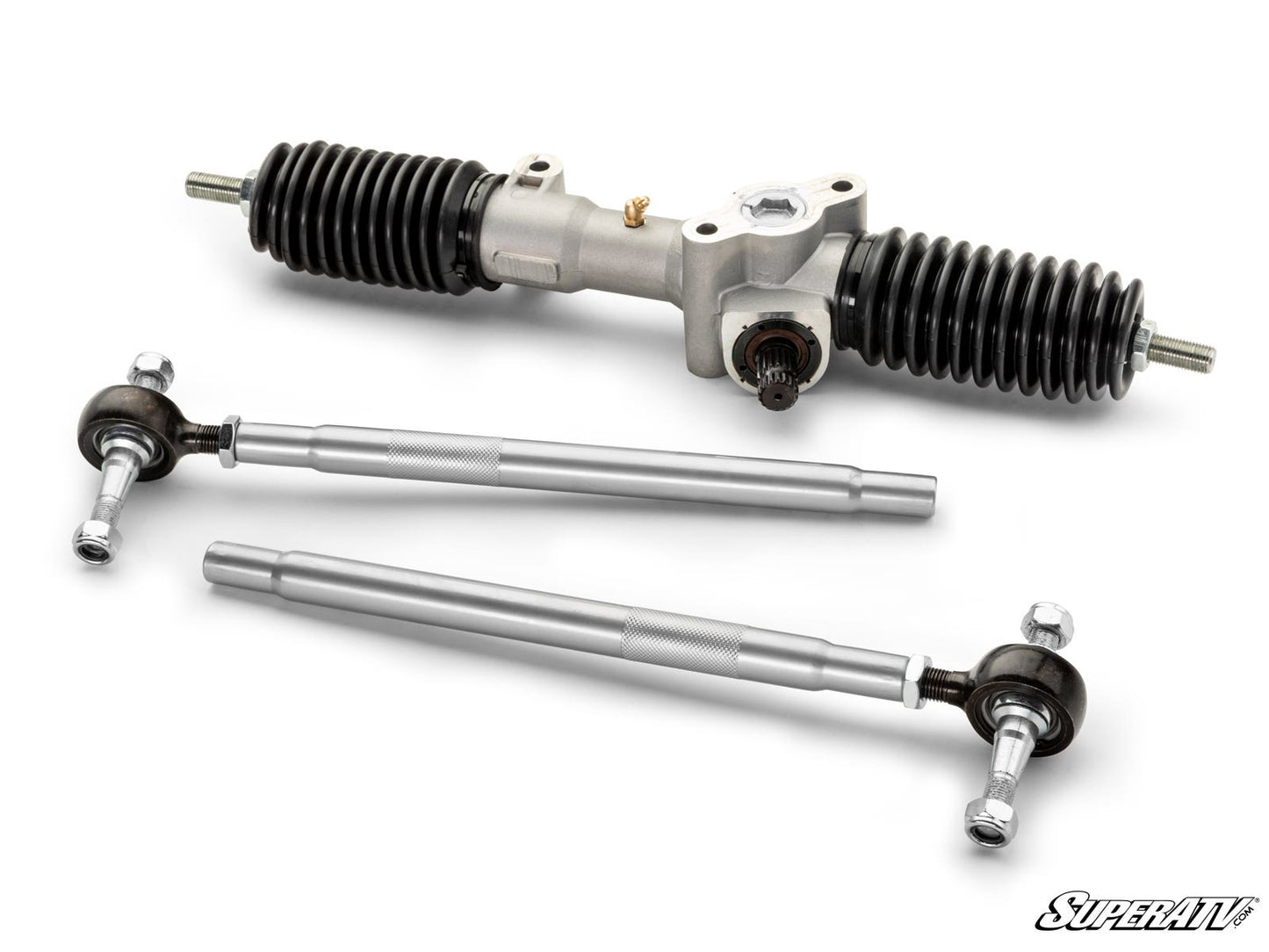

Swaged Tube Tie Rods The swaged tube
tie rods are 1” in diameter, delivering impressive strength compared to OEM.
Each tie rod end uses beefy heim joints with 16 mm rack threads and 14 mm rod
threads for total reliability. Our swaged tube tie rods are designed to endure
the most abusive rides year after year.
| | RackBoss 2.0
Swaged Tie Rod | RackBoss 2.0 Solid Steel Tie Rod |
| X24 Tech Dual-Bushing Design | ✔ | ✔ |
Inner Ball and Socket Thread
Diameter | 14 mm rod threads, 16 mm rack
threads | 3/4” rod threads, 16 mm rack threads |
Outer Tie Rod End Thread
Diameter | 14 mm | 3/4” |
Tie Rod
Material | Steel tube | Solid steel bar |
| Greasable | ✔ | ✔ |
Inner
Boots | ✔ | ✔ |
Steering Stop
Kit | ✔ | ✔ |
Misalignment Bushings,
Tie Rod Studs, & Hardware | ✔ | ✔ |
Patent No. 11,345,393
FEATURE
- Heavy-duty dual PTFE bushings:
- Designed with X24 Tech
- Prevents wear
- Reduces slop
- Improves overall
durability
- Available tie rod options:
- Solid steel
bar - Swaged tube
- Swaged tube tie rods use:
- 14 mm outer tie rod ends
- Rebuildable inner tie rod ends that use
14 mm rod threads and 16 mm rack threads
- Solid steel tie
rods use: - 3/4” outer tie rod ends
- Rebuildable inner tie rod
ends that use 3/4” rod threads and 16 mm rack threads
- 65%
larger housing than stock - Over 50% less wear than OEM after 15,000
cycles - Grease fitting for rack gears
Fitment
- Polaris General XP 1000 : 2020+
- Polaris General XP 4 1000 :
2020+
Replaces OEM Part#: 1824924
