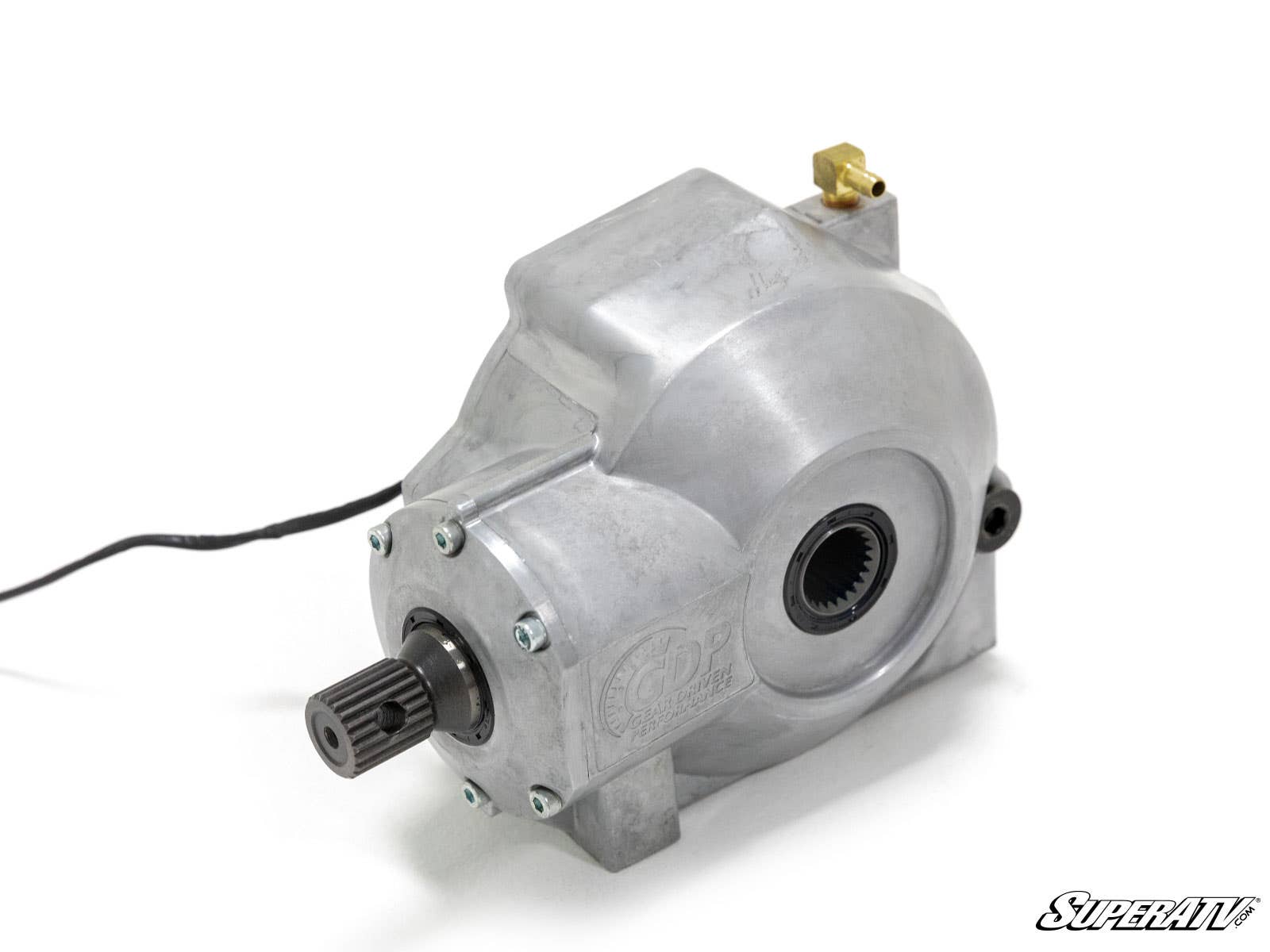

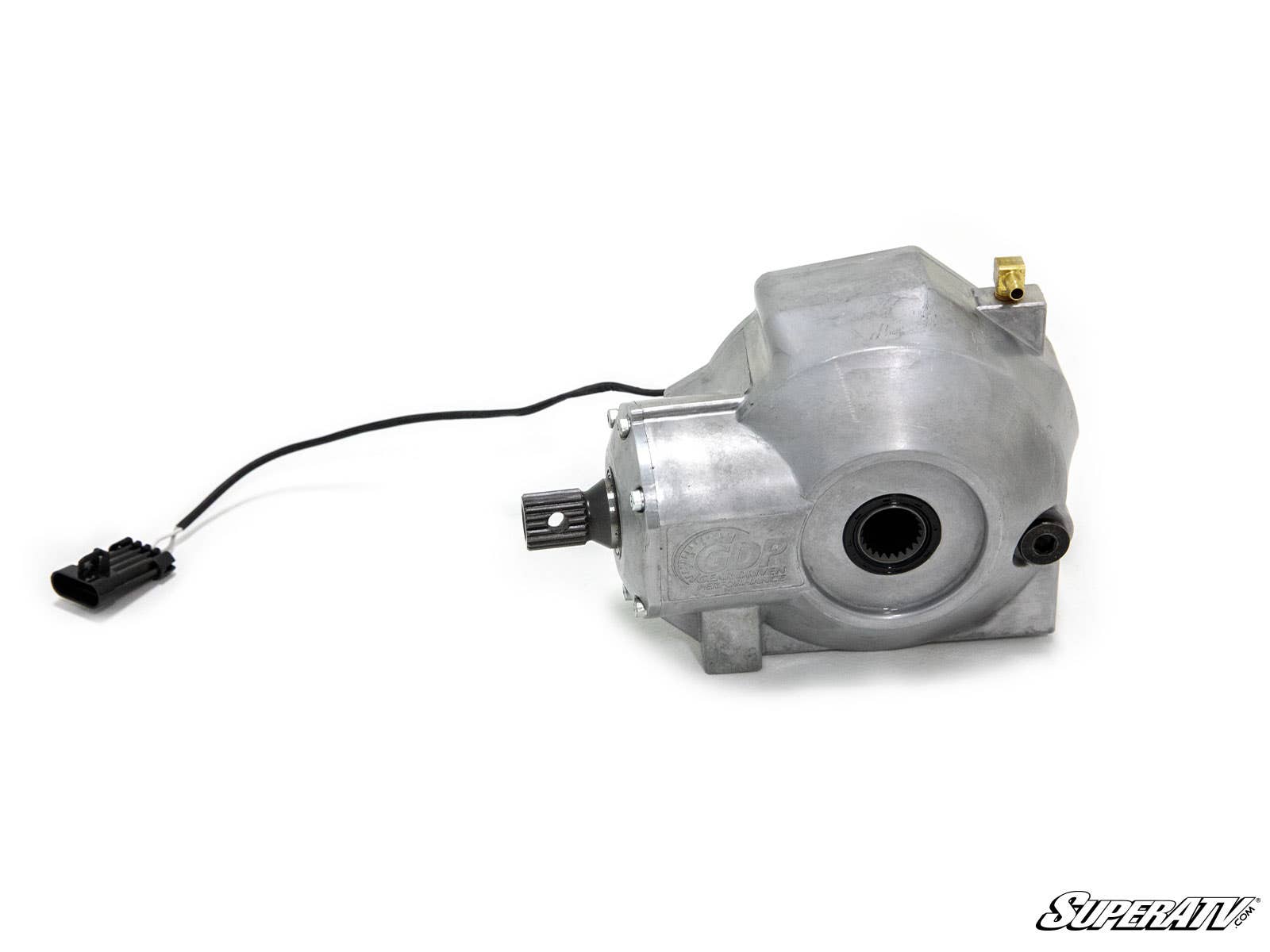

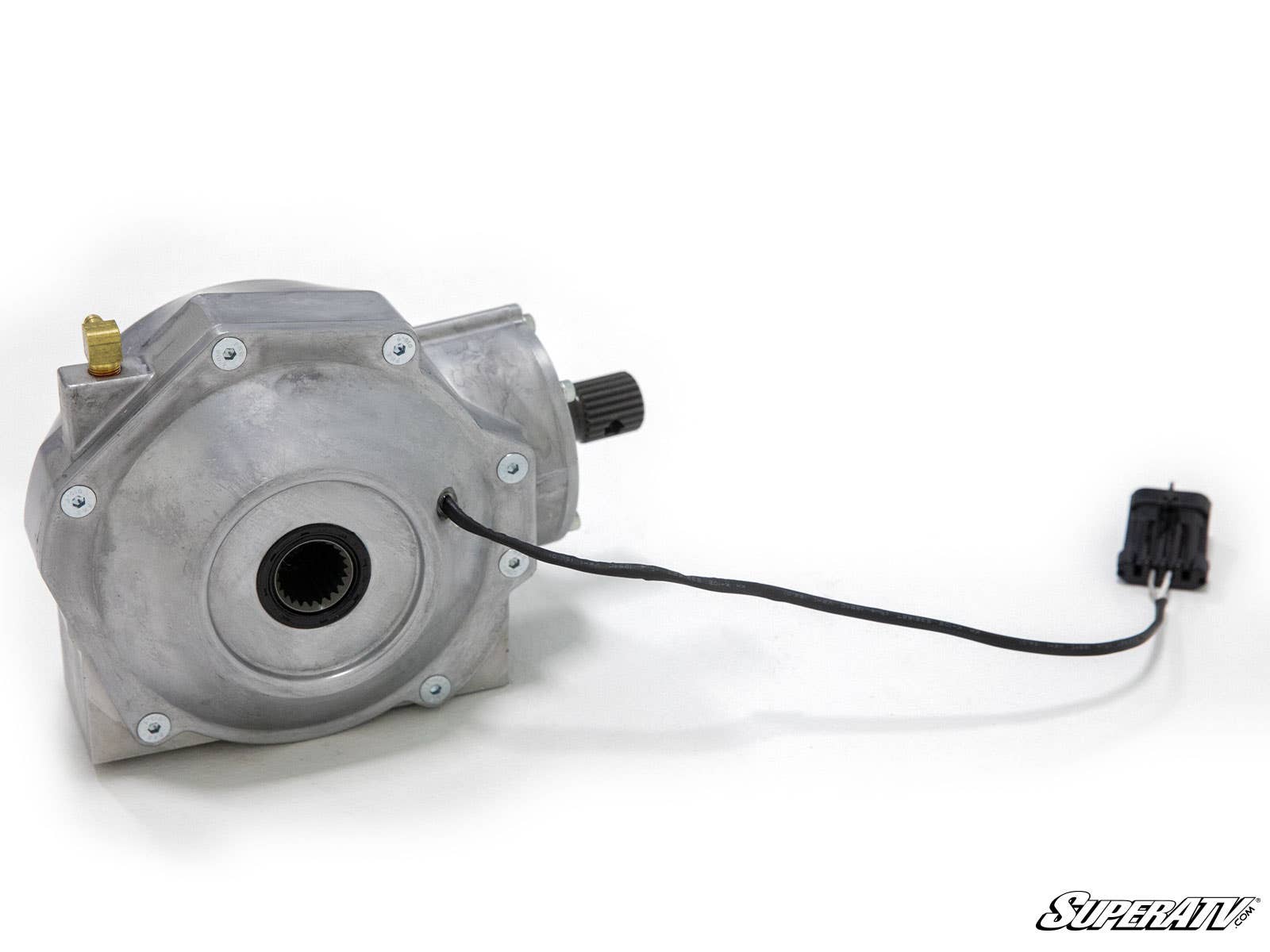

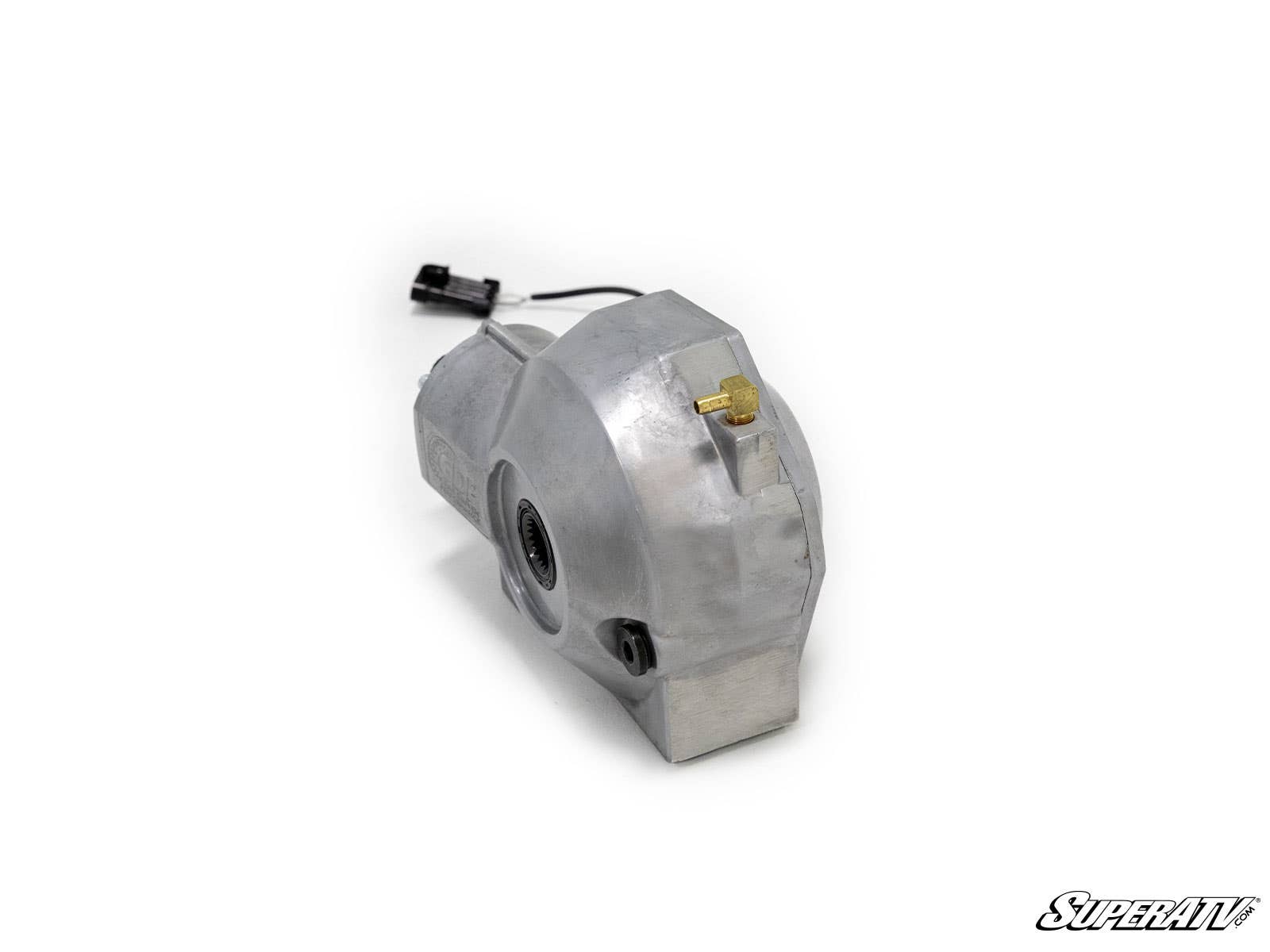

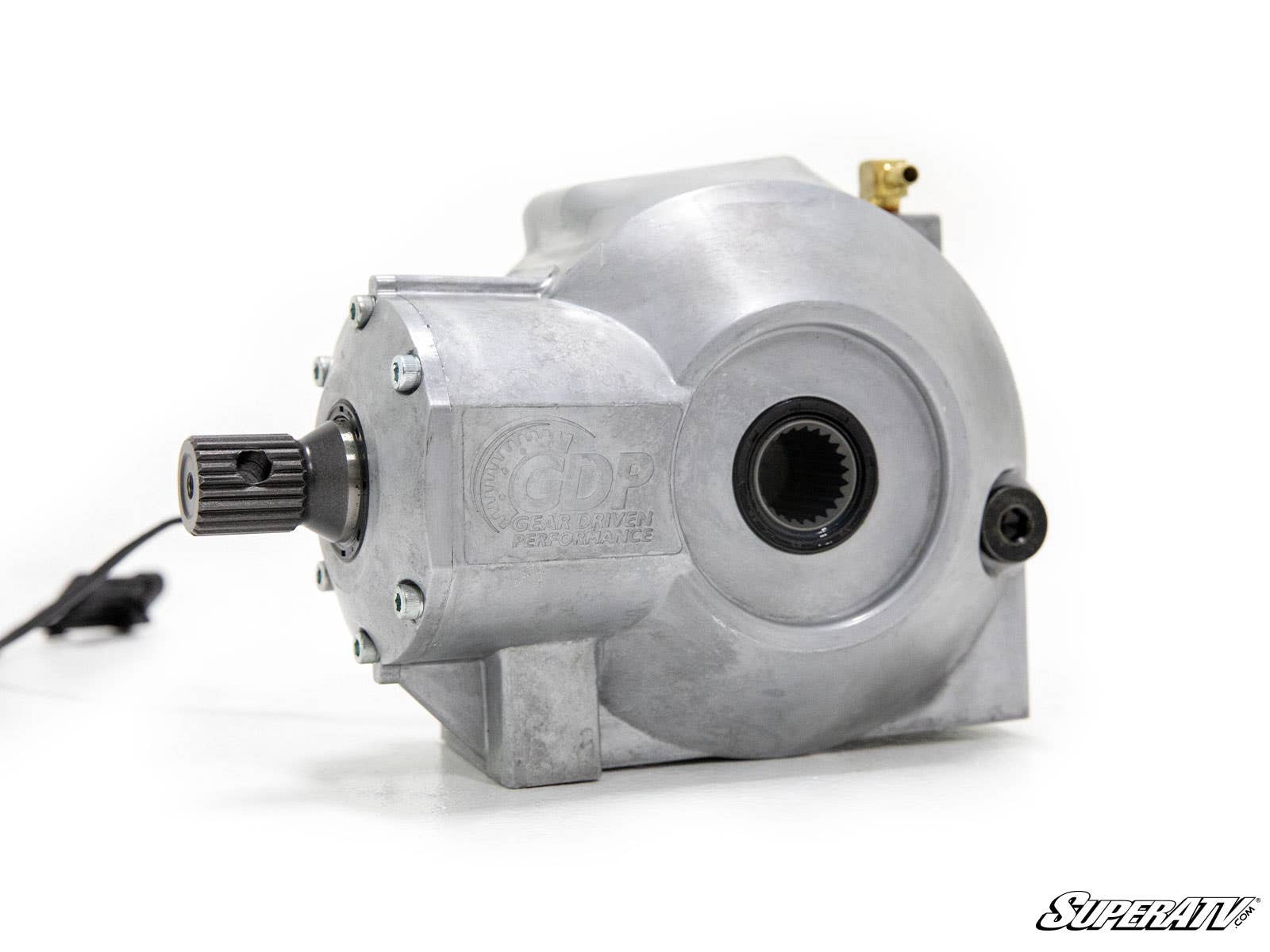

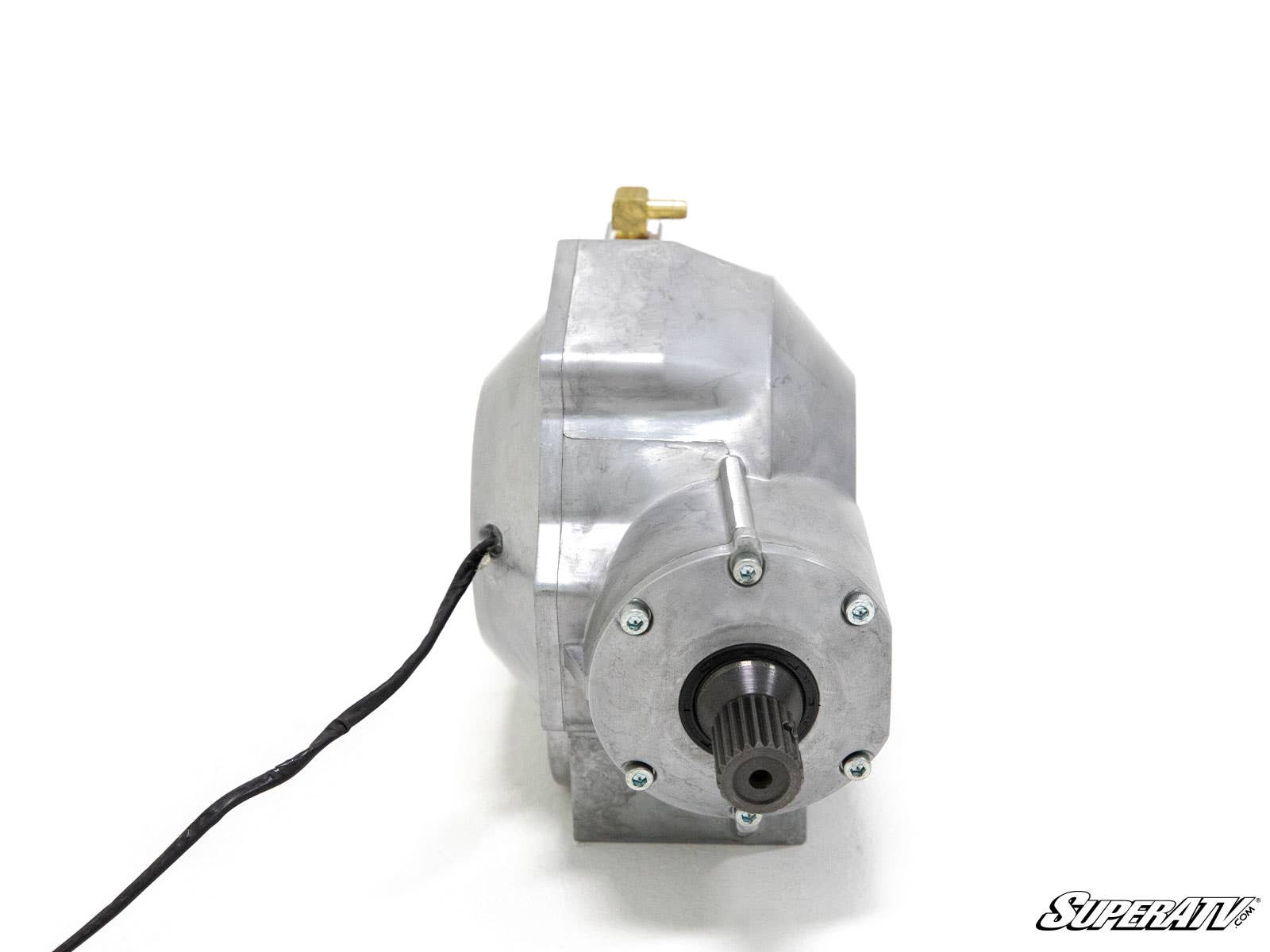

A Complete Pro XD Diff SuperATV’s aftermarket Polaris
Pro XD Complete Differential is a replacement and an upgrade all in one. You
get the same powerful performance you expect from OEM plus a massive upgrade
in strength. And you can only get it from SuperATV.
A New
Differential That’s Better than OEM Our replacement diff comes
fully assembled and ready to install. You get a new heavy-duty billet aluminum
case, thicker gears, bushings, seals, hubs, sprague, armature, and wiring. We
use 7075-T6 aircraft grade aluminum for the sprague carrier for unbeatable
strength and impressive durability. No matter how hard you ride, our
differential can handle infinite differential lock engagements without wearing
out. We took all the weakest parts of the OEM diff and beefed them up, giving
you the strongest Polaris Pro XD diff you can find.
Hobbed
Gears Are Quiet and Smooth Our complete Polaris Pro XD front
differential uses hobbed gears for the ring and pinion gears. Why does that
matter? Hobbed gears are cut and finished with perfect precision you can’t get
with other gear-making methods. The result is perfectly mating gear teeth that
run smooth with almost no noise or vibration. It makes your ride more
comfortable and boosts long-term durability.
Stronger
Mounting We’ve beefed up our differential case by using helical
inserts in the mounting threads. These inserts make it virtually impossible
for the mounting bolts to wallow out or pull out over time. OEM has feet-like
mounting locations, while ours mounts to a single block built into the body of
the diff. We also thickened the pinion gear tube to make sure it can stand up
to every bump, jar, and torque load. We use a bolt-on cap to retain the pinion
bearing instead of a snap ring, making it easier to service your diff without
breaking the seal.
Completely Assembled Differential
Includes: - Cast aluminum differential housing
- Sprague carrier w/ rollers and patented springs
- Ring and pinion
gears - Axle hubs
- Armature plate
- Backlash spacer
- Magnet and wiring
- Threadlocker
- Hardware and
instructions
FEATURE
- Ships completely assembled and ready to install—just add oil
- The only aftermarket complete Polaris differential
- Same
performance as stock with stronger construction - 3/8" thick pinion
gear tube walls - Hob-cut ring and pinion gears
- Utilizes
aircraft grade aluminum sprague carrier - Cast case
- Bolt-on
cap gives easy access to pinion gear and bearing - Mounting locations
are made stronger with additional material
Fitment
- Polaris Pro XD : 2022+
- Polaris Pro XD Crew : 2019+
- Polaris Pro XD Crew Diesel : 2020+
- Polaris Pro XD Diesel :
2022+
Replaces OEM Part Number: 1334264
Required Lubricant: AMSOIL Synthetic ATV/UTV
Front Drive Fluid (AUFDQT)
OR
Polaris Demand Drive Fluid
(2877922)
