A Steering System You Can Count On Your Polaris Ranger
900 Diesel is built for hard work, and break time isn’t on the schedule.
That’s why you can’t wait for your stock rack to wear out and ruin your

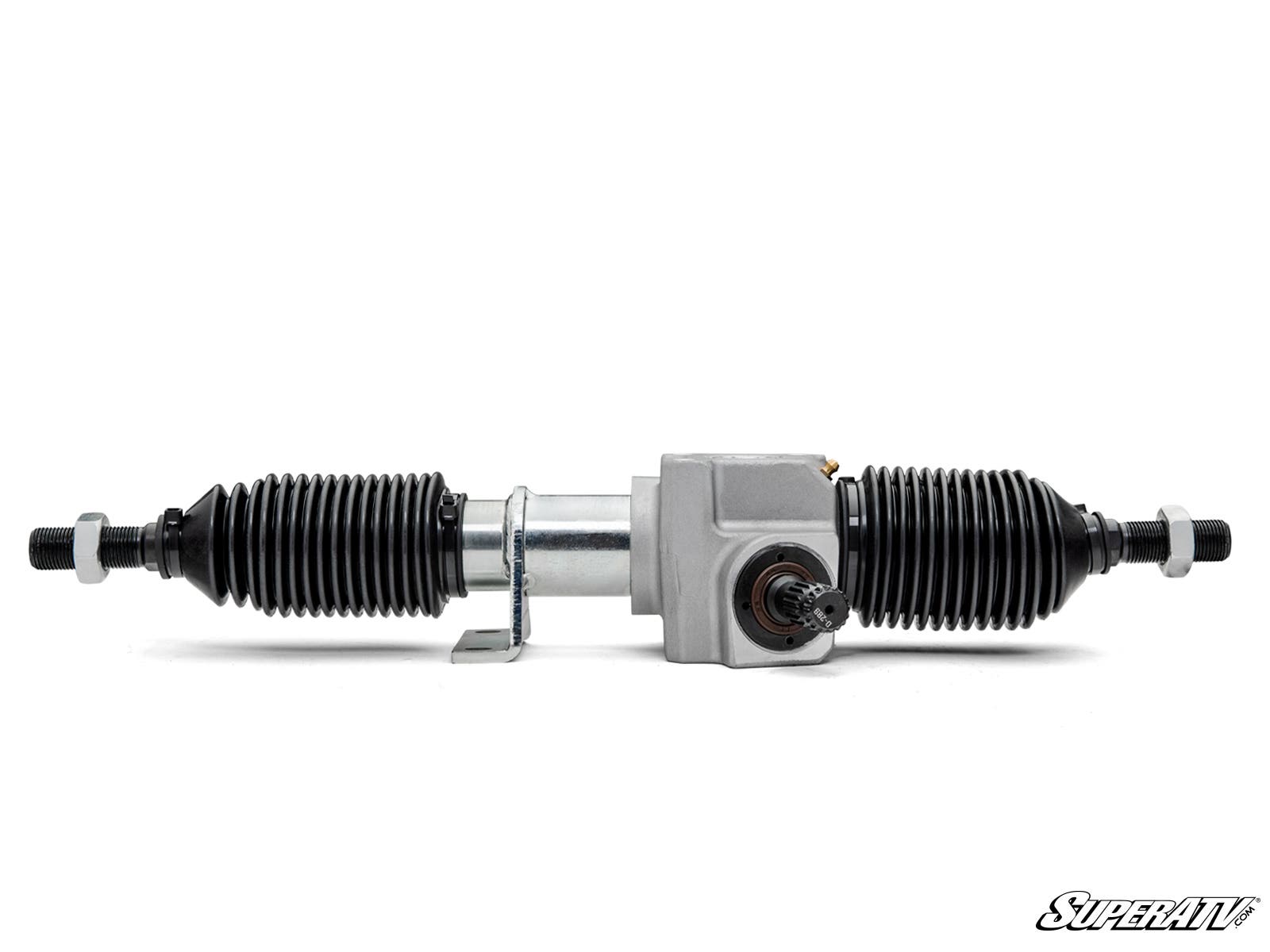

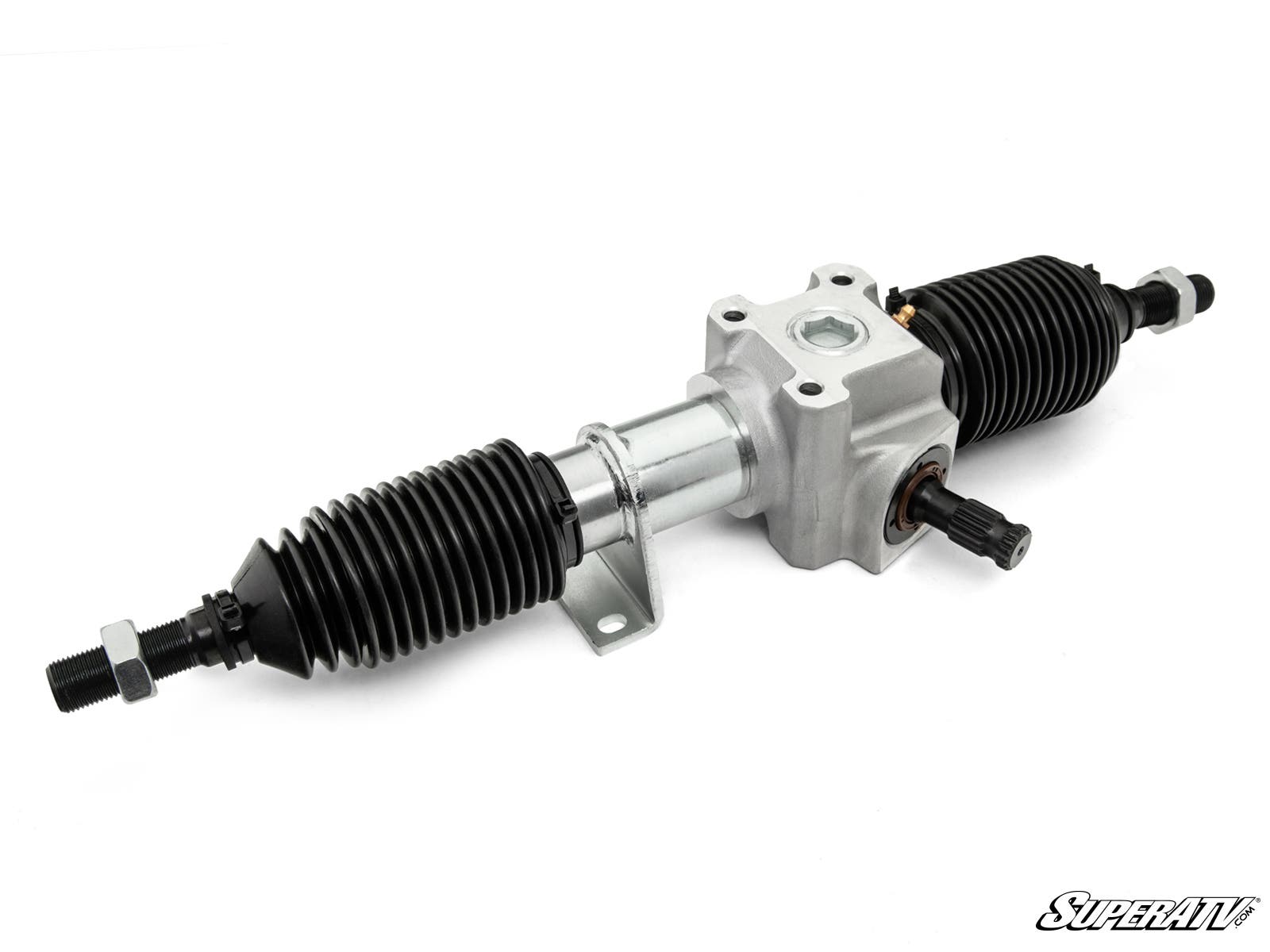

handling. Upgrade to SuperATV’s RackBoss 2.0 Rack and Pinion. Our X24 tech
uses dual bushings to reduce wear by over 50%. When you push your machine
hard, RackBoss 2.0 is there to keep you in control.
Dual-

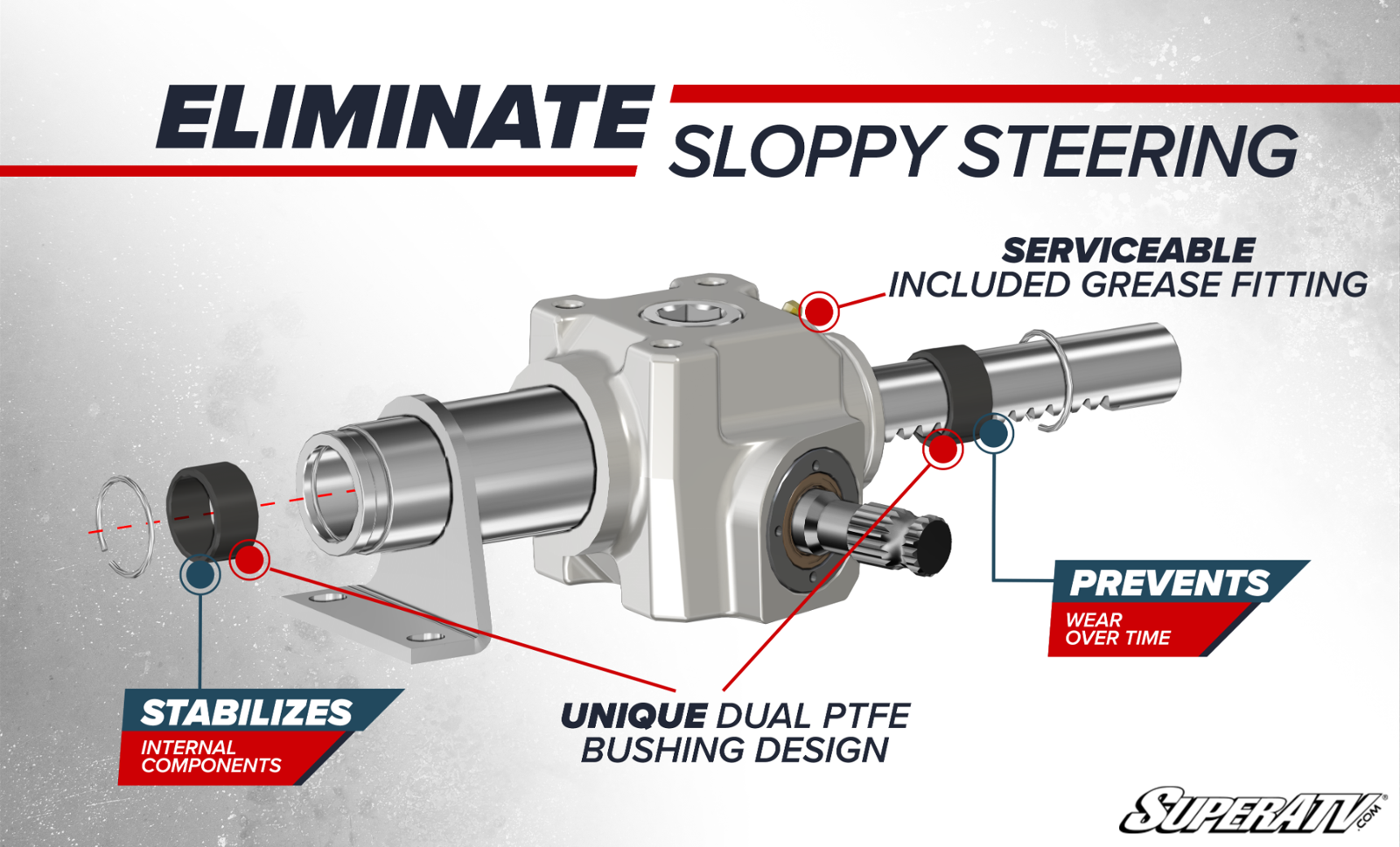

Bushing Design Hard work is hard on your machine. We built
RackBoss 2.0 to keep up. Our X24 tech uses durable PTFE bushings on both ends
that remove play from the internal gears and tension spring. Eliminating

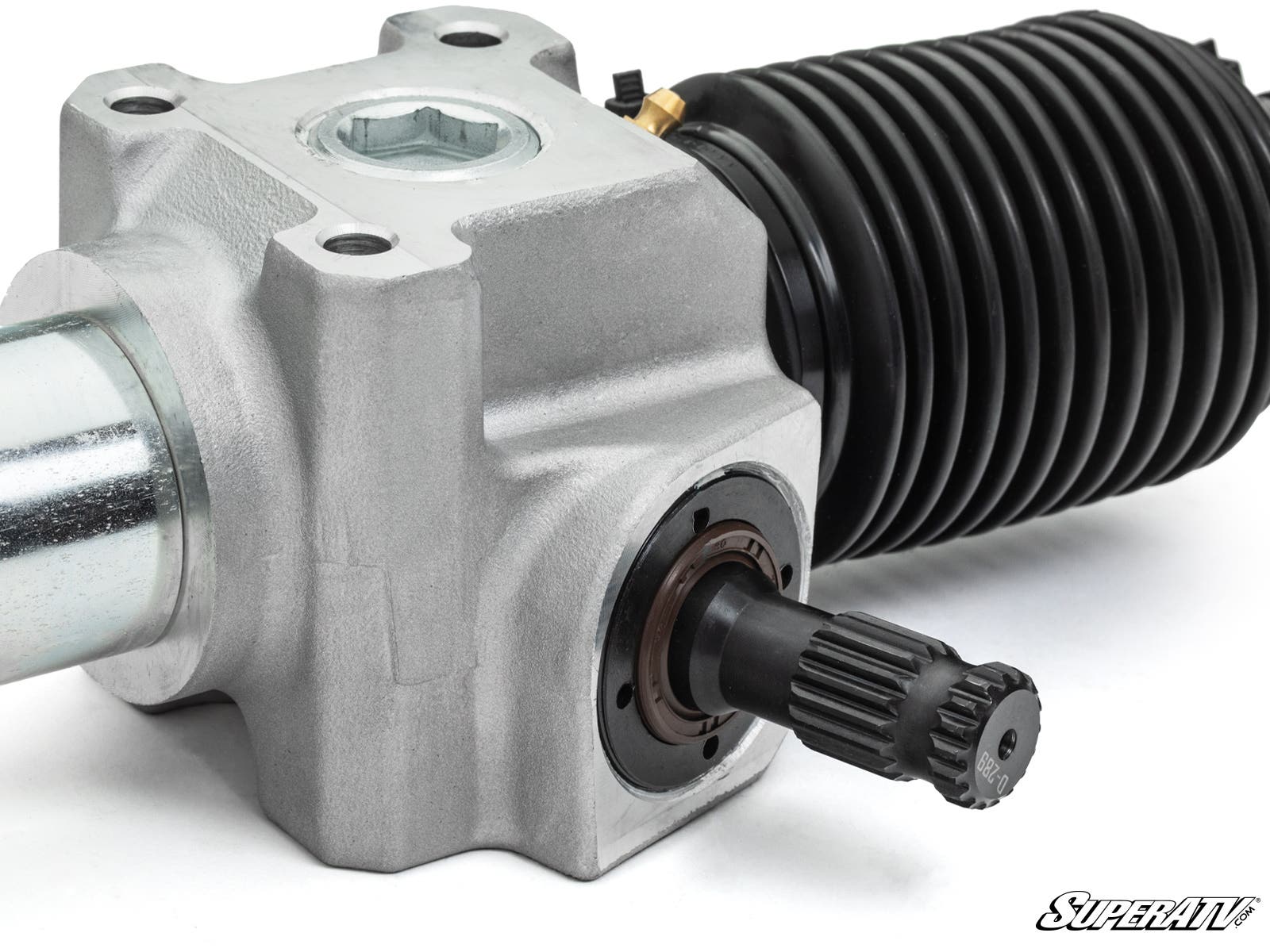

unneeded movement reduces wear and tear. We include a built-in grease fitting
for maintenance after a weekend of rough riding in the mud and muck.
Altogether, this RackBoss 2.0 easily lasts twice as long as any other rack and
pinion.

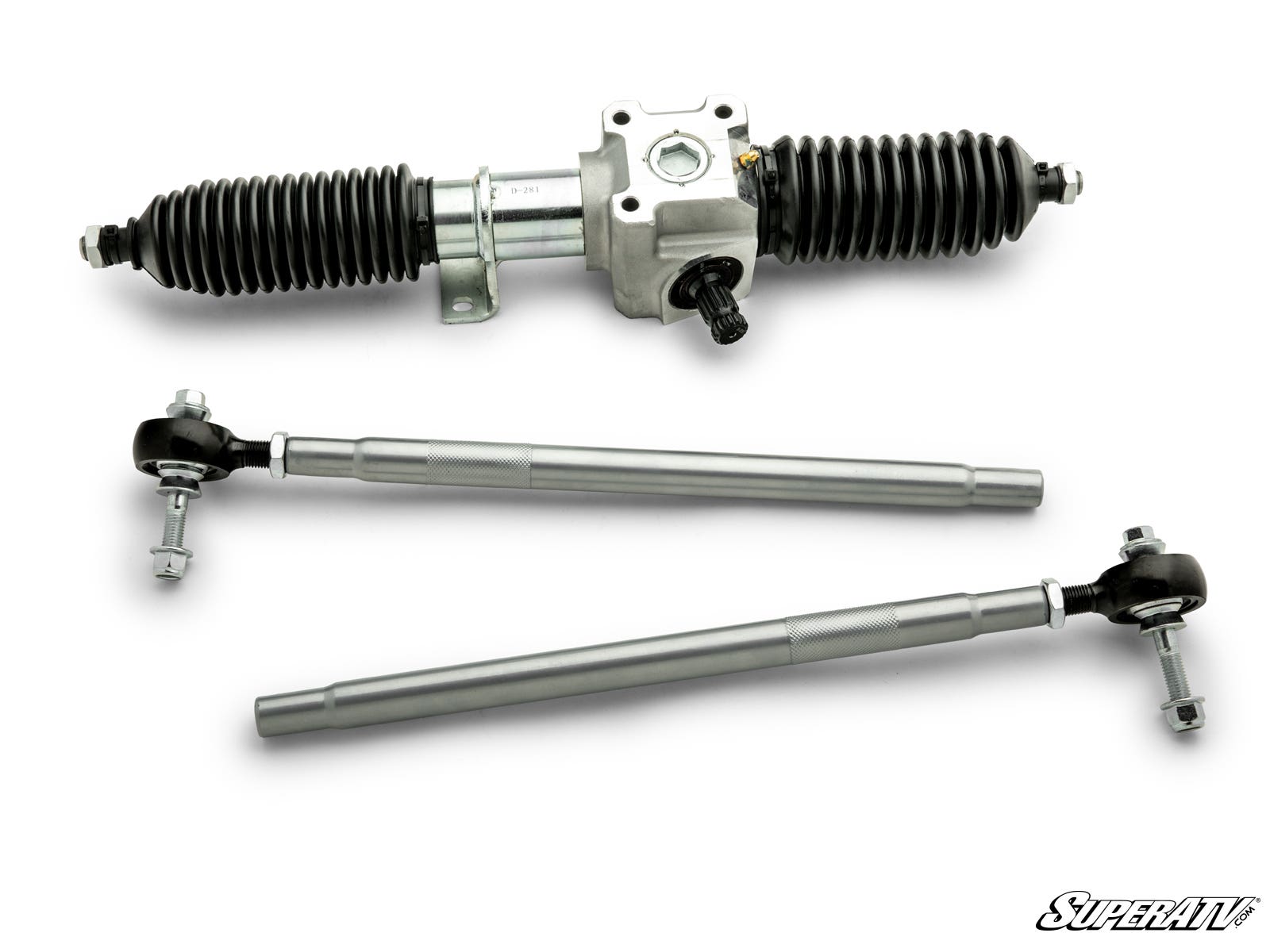

Swaged Tube Tie Rods Our swaged tube
tie rods are tough and light. Their signature flare-out design boosts their
strength beyond what the 7/8” diameter tubing could achieve otherwise. They’re

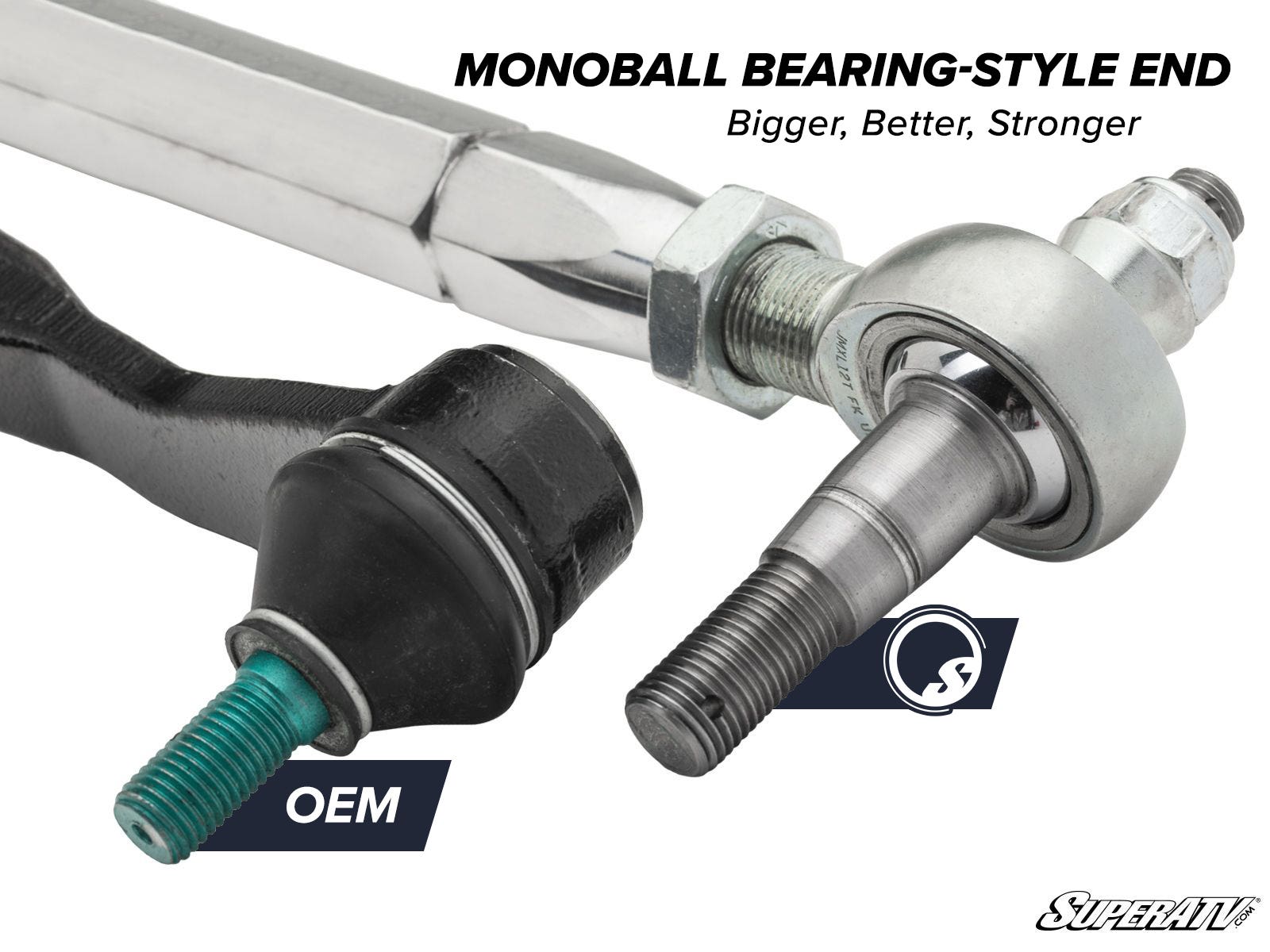

made even tougher with our beefed-up tie rod ends. Our heim joint outer tie
rod ends use 14 mm rod threads, and our rebuildable inner ball and sockets use
14 mm rod threads along with 16 mm rack threads. They’re as tough as they
come.

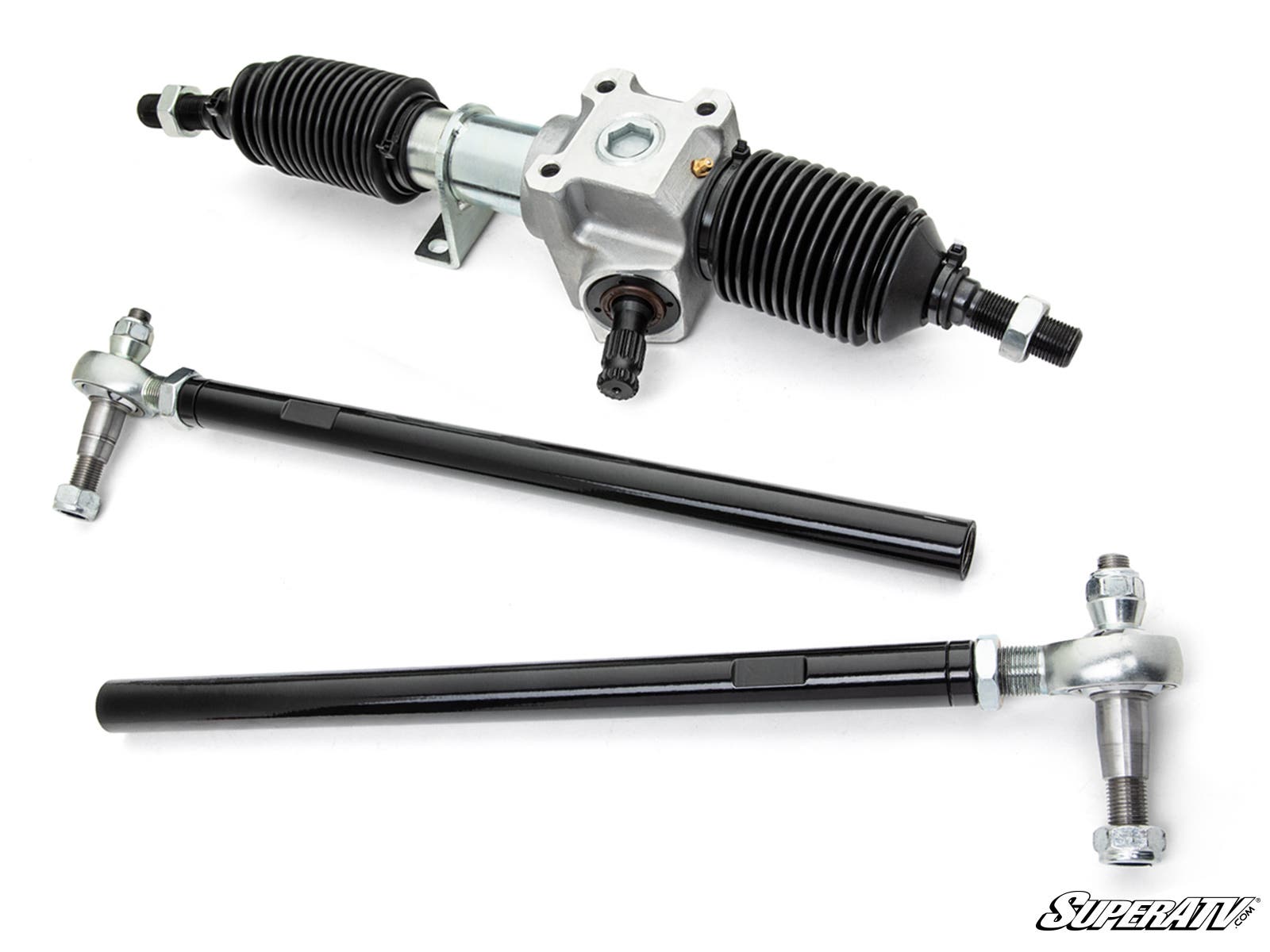

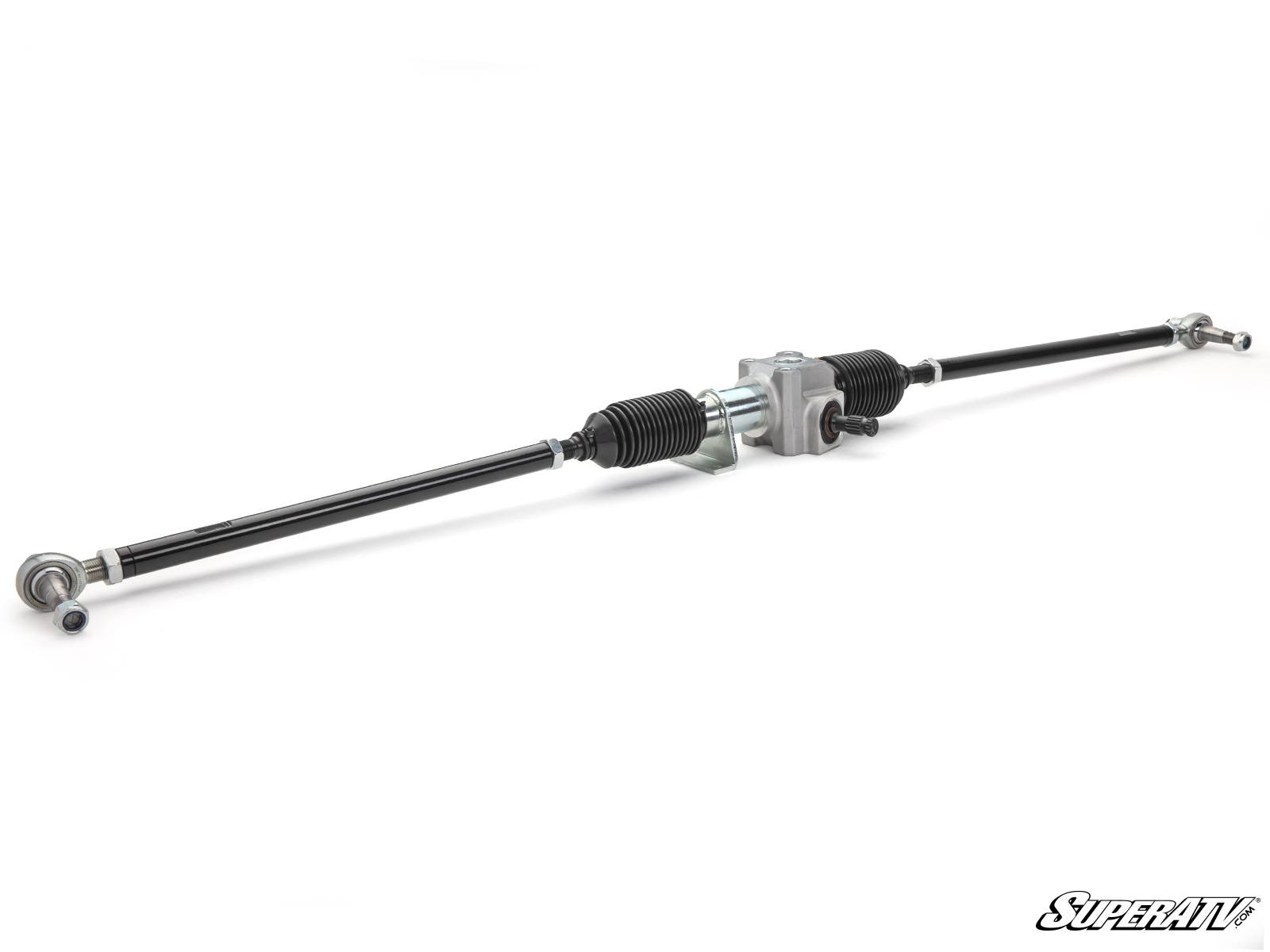

Solid Steel Bar Tie Rods Our solid steel
bar tie rods are big, beefy, and guaranteed not to break for a lifetime.
They're made with 1" diameter steel bars. And they’re paired with bigger and
better tie rods that have 3/4" outer heim joint tie rods. They also use
rebuildable inner tie rods that use 3/4" rod threads and 16 mm rack threads.
What does all that mean? Your rack’s weakest points are stronger than ever.
| | RackBoss 2.0 Swaged Tie Rod | RackBoss 2.0 Solid Steel Tie
Rod |
X24 Tech Dual-
Bushing Design | ✔ | ✔ |
Inner Ball and Socket
Thread Diameter | 14 mm rod threads, 16 mm
rack threads | 3/4” rod threads, 16 mm rack
threads |
Outer Tie Rod End
Thread Diameter | 14 mm | 3/4” |
Tie
Rod Material | Steel tube | Solid steel bar |
| Greasable | ✔ | ✔ |
Inner
Boots | ✔ | ✔ |
Steering Stop
Kit | ✔ | ✔ |
Misalignment Bushings,
Tie Rod Studs, & Hardware | ✔ | ✔ |
Patent No. 11,345,393
FEATURE
- Heavy-duty dual PTFE bushings:
- Designed with X24 Tech
- Prevents wear
- Reduces slop
- Improves overall
durability
- Available tie rod options:
- Steel
swaged tube - Solid steel bar
- Solid steel tie rods
use: - 3/4” outer tie rod ends
- Rebuildable inner tie rod ends
that use 3/4” rod threads and 16 mm rack threads
- Swaged
tube tie rods use: - 14 mm outer tie rod ends
- Rebuildable
inner tie rod ends that use 14 mm rod threads and 16 mm rack threads
- 65% larger housing than stock
- Over 50% less wear than
OEM after 15,000 cycles - Grease fitting for rack gears
Fitment
- Polaris Ranger 900 Diesel : 2011-2014
- Polaris Ranger 900
Diesel Crew : 2011-2014
Replaces OEM Part #:1823795
