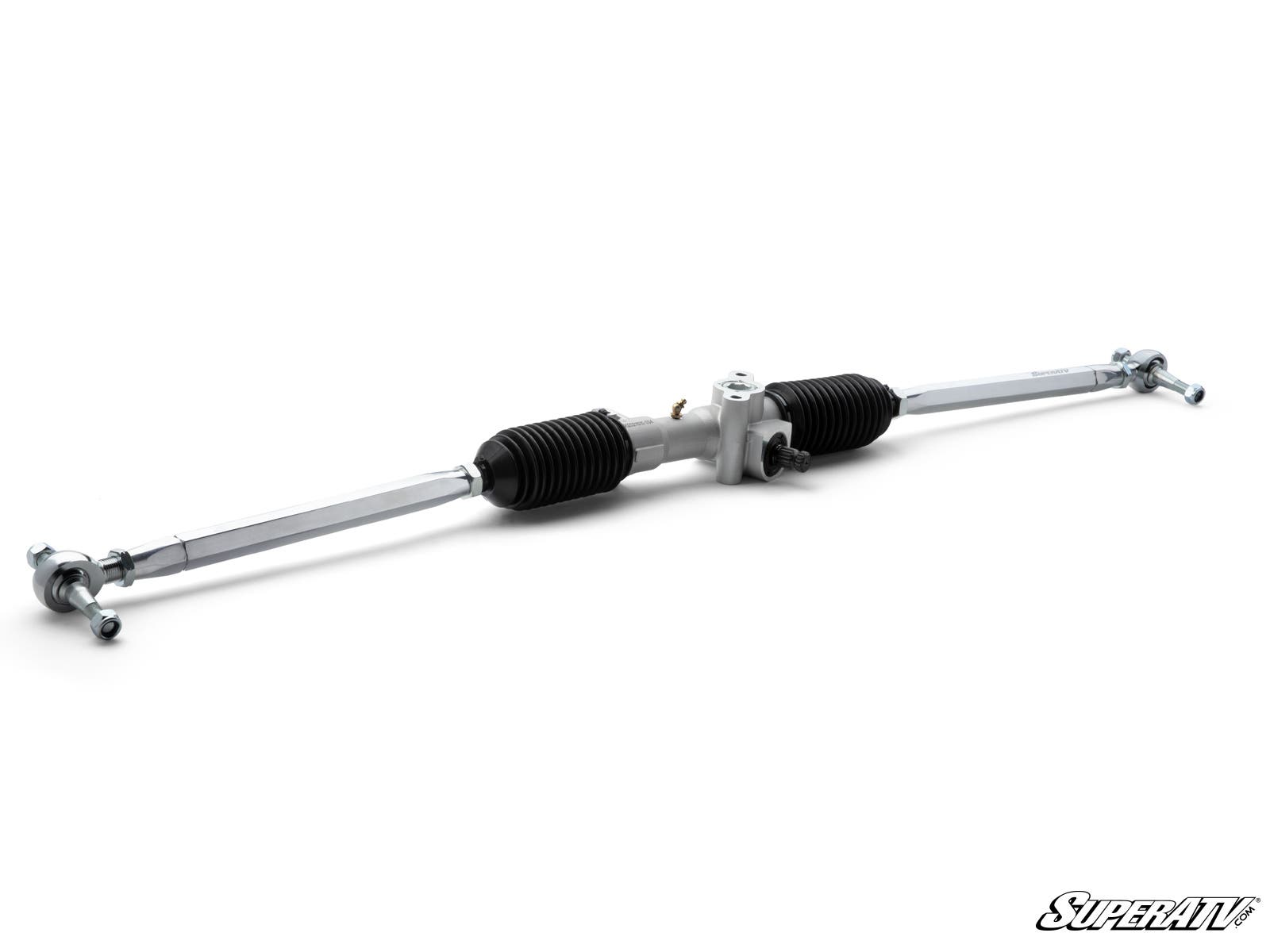

RackBoss 2.0 Raises the Bar It doesn’t matter whether
you ride hard or take it easy on your XP Kinetic—the stock steering rack is
gonna wear out and make your handling feel loose eventually. That’s why we
built a better rack. Install our RackBoss 2.0 Rack and Pinion on your Polaris
Ranger XP Kinetic—it’s designed to outlast everything on the market. Our X24
technology reduces wear by over 50%, so you can go big and go hard. Your
steering will be tight and responsive no matter what.
- X24 dual-
bushing design limits wear - Oversized tie rod end threads
- Your choice of tie rods

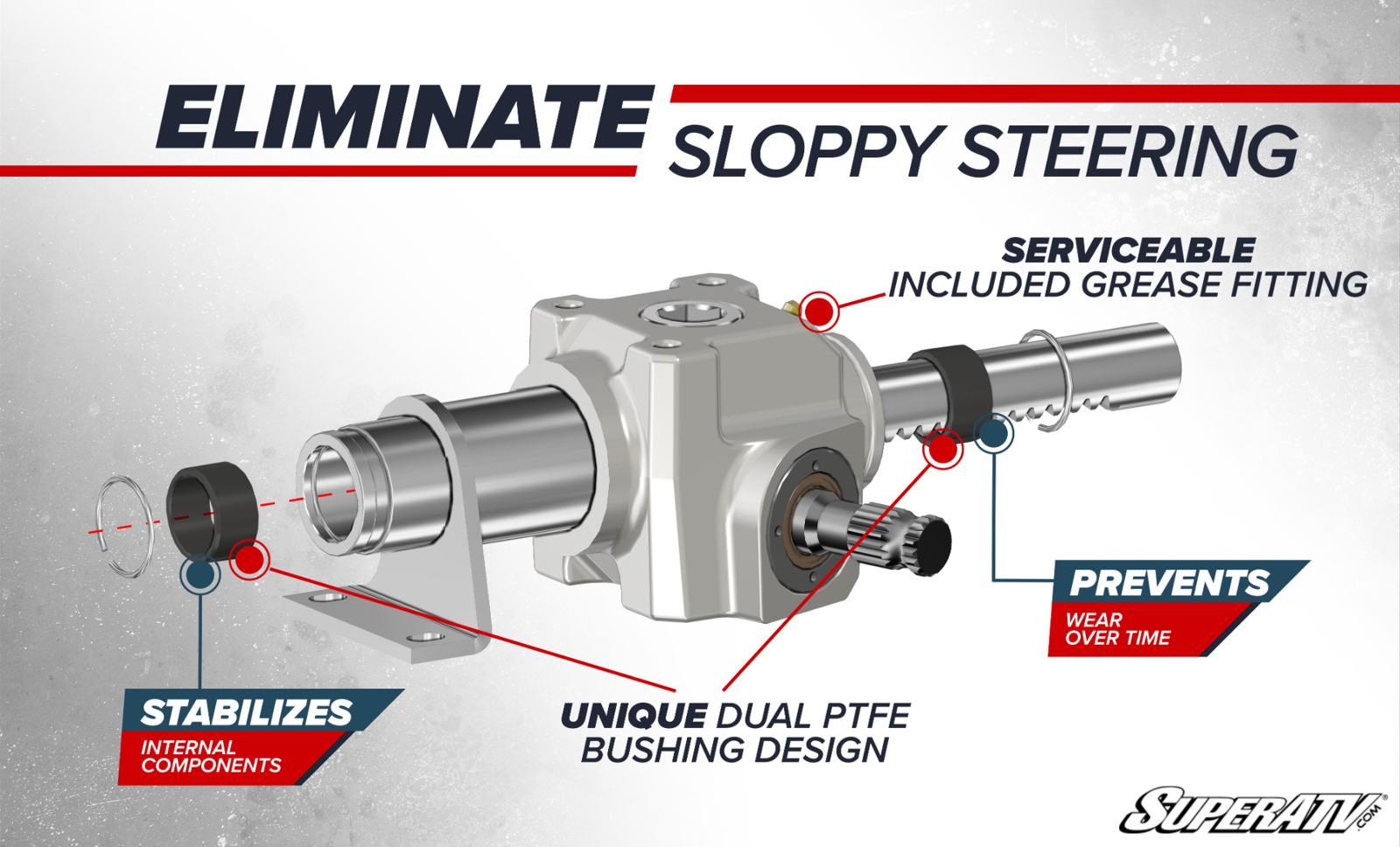

X24 Tech Is
Unbeatable Our X24 tech separates RackBoss 2.0 from everything
else on the market. This dual-bushing design uses PTFE bushings at both ends
of the rack to limit movement in the gears and tension spring. The result is a
more than 50% reduction in wear compared to stock. Plus, the rack is
greaseable, so you can keep it clean and lubricated.

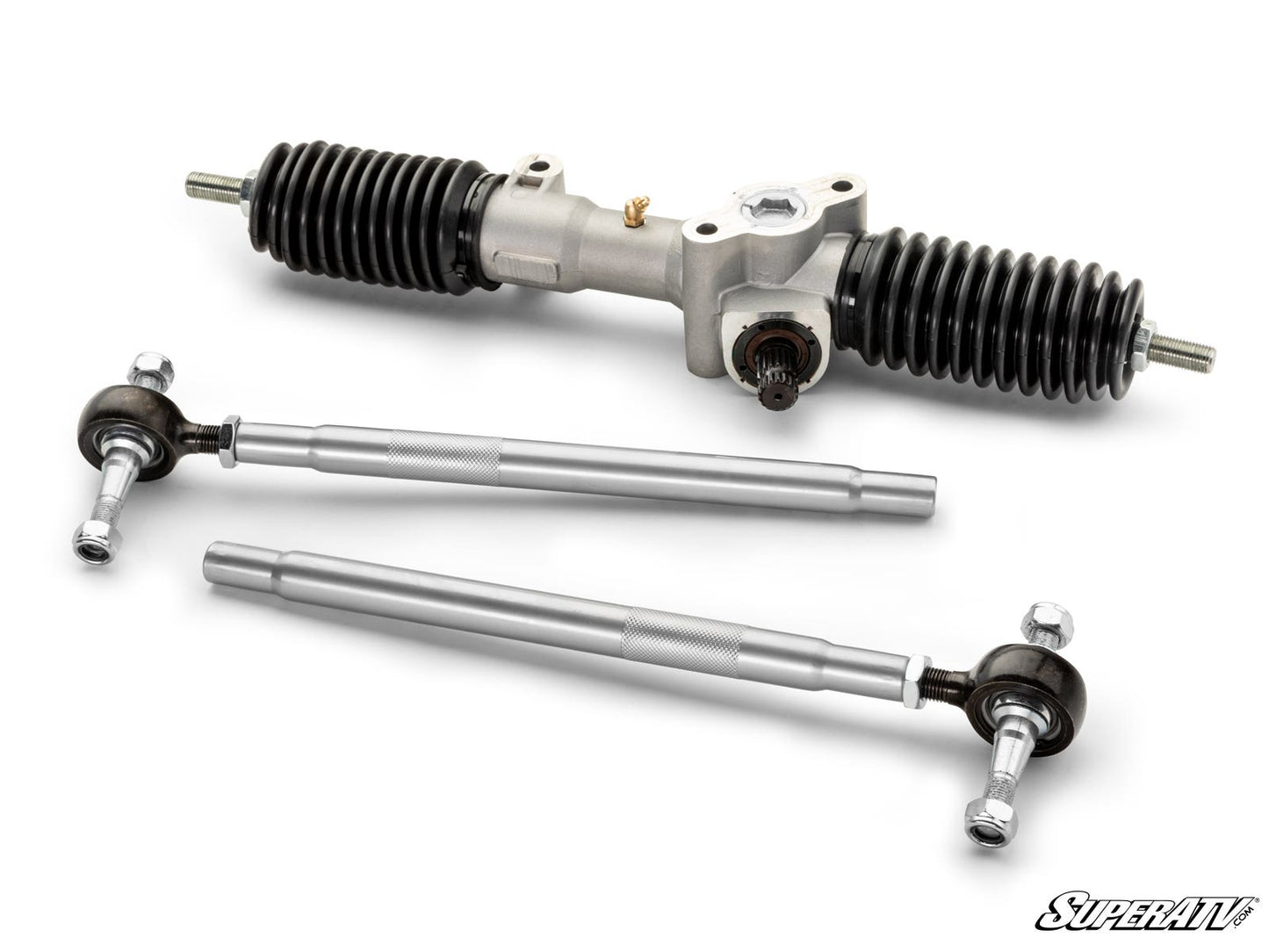

Swaged
Tube Tie Rods Our swaged tube tie rods are built for tough but
lightweight performance. The flared-out design boosts strength beyond what a
standard 7/8” tube would have. They come paired with our beefed-up tie rod

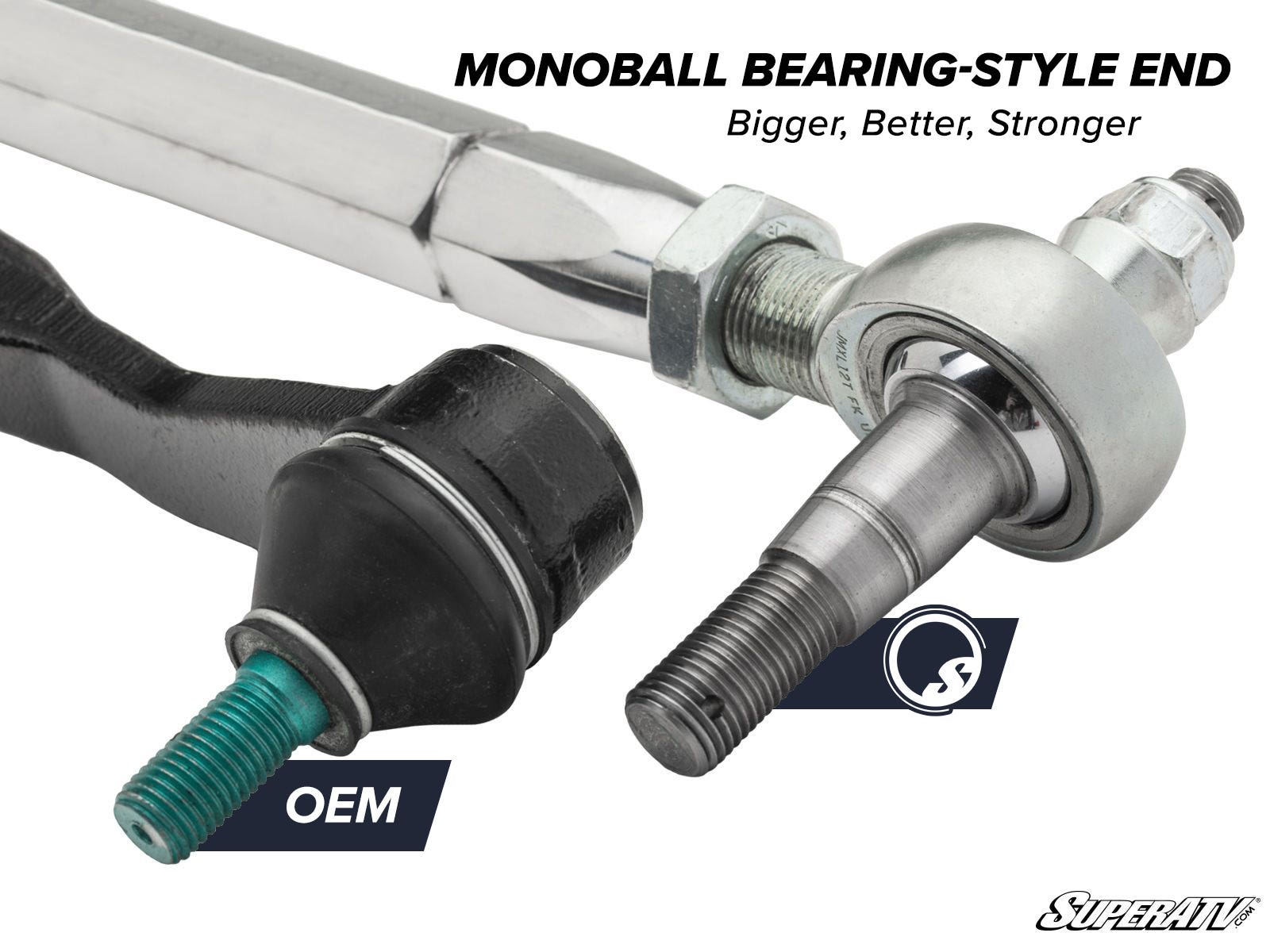

ends that have oversized threads to eliminate the stock weak spots. The inners
use 16 mm rack threads and 3/4” rod threads, and the outers have 14 mm
threads.

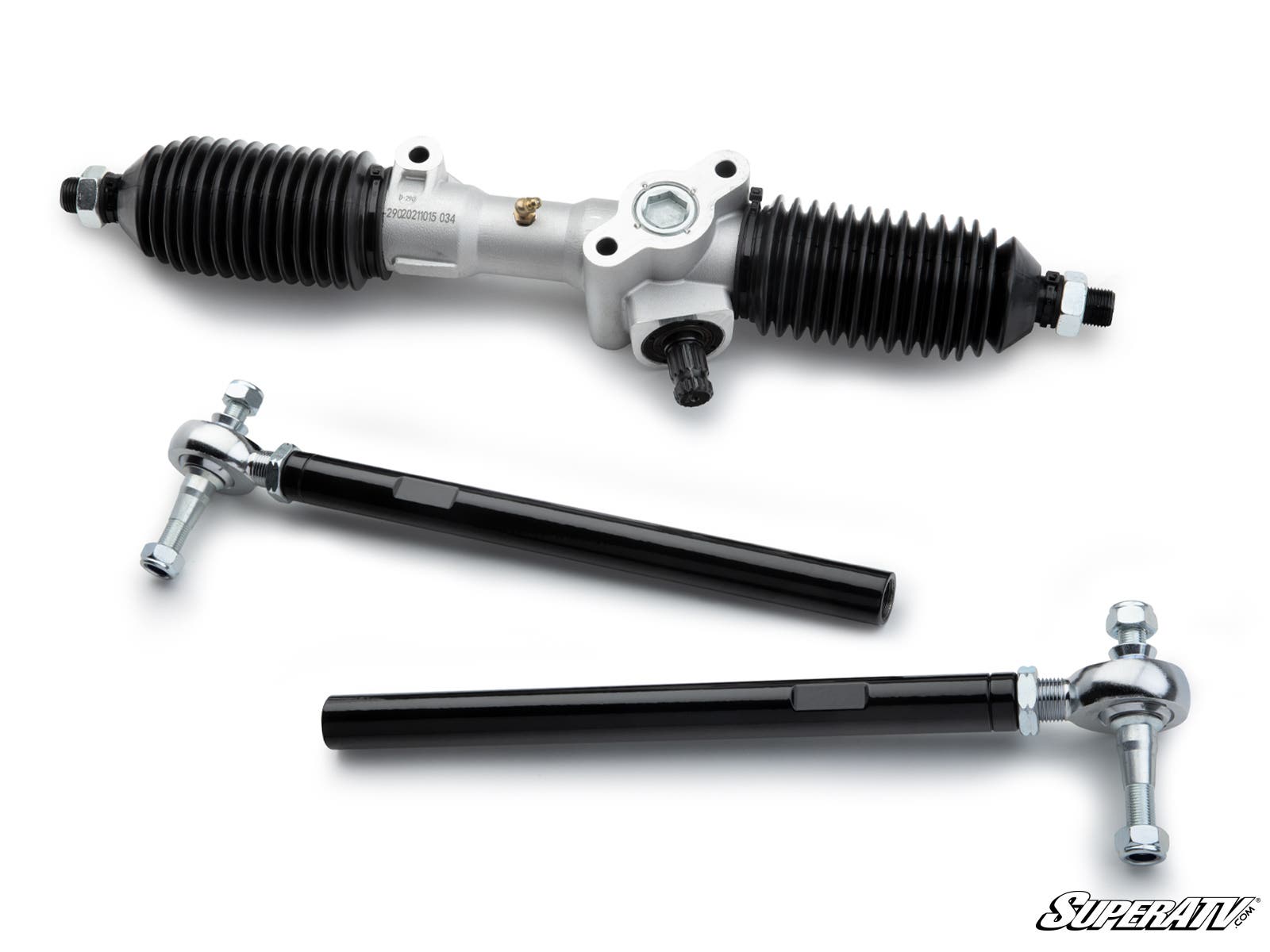

Solid Steel Bar Tie Rods Our solid
steel bar tie rods give you tons of strength for rougher rides. They’re
perfect for sloppy mud holes, boulder fields, and everything in between. The
1” diameter steel rod is paired with beefy tie rod ends that have 3/4” rod
threads and 16 mm rack threads. That’s serious strength for serious riders.

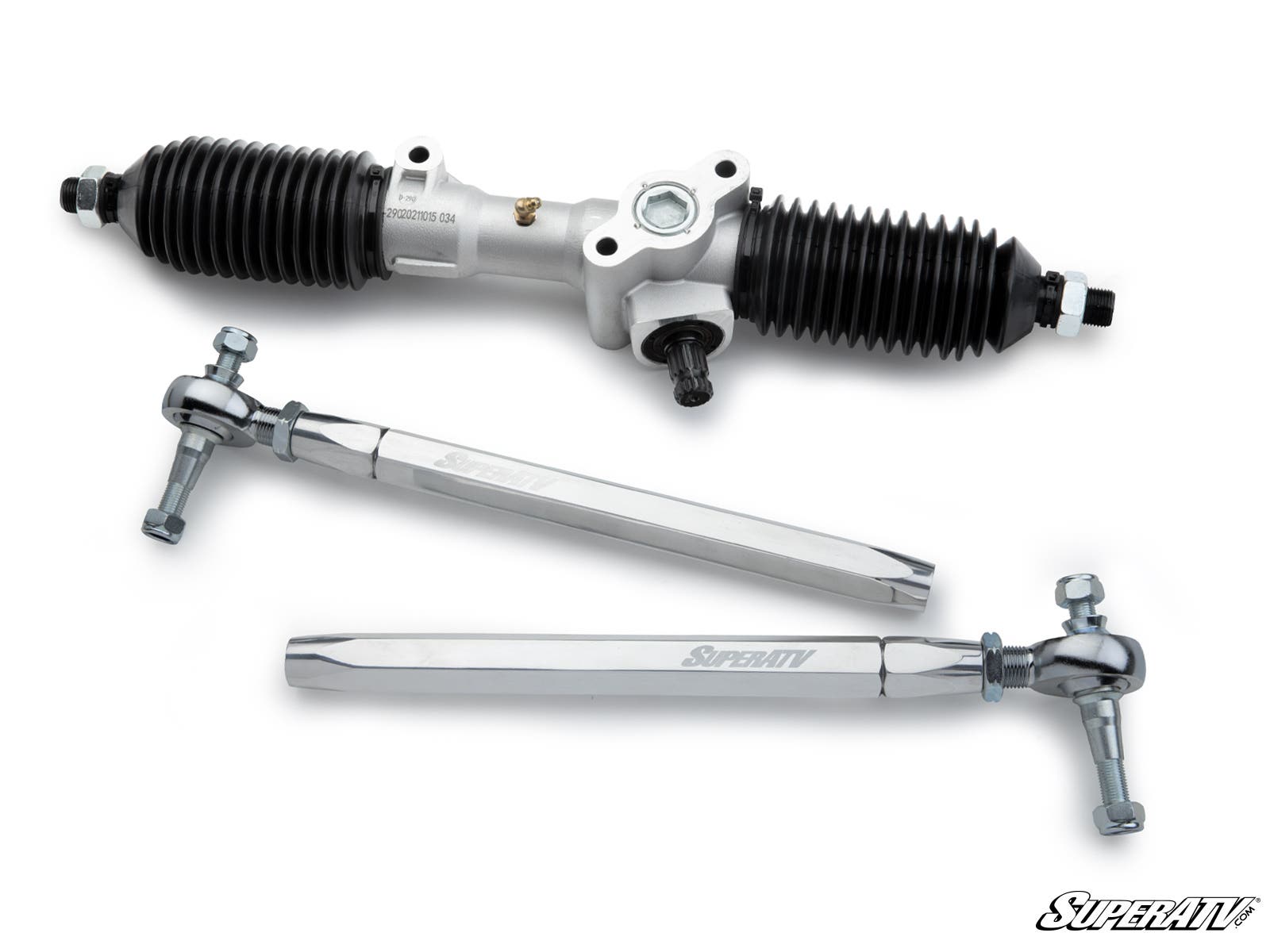

Billet Aluminum Hex Tie Rods For the
strongest, lightest, and best-looking tie rods you can get for your Kinetic,
look no further than our billet aluminum hex tie rods. The polished aluminum
hex design is a head turner, but it backs up that style with extreme
durability and low weight. They come with our awesome tie rod ends that have
3/4” rod threads and 16 mm rack threads. These rods are the best of the best.
| | RackBoss 2.0 Swaged Tie Rod | RackBoss 2.0 Solid Steel Tie
Rod | RackBoss 2.0 Billet Tie Rod |
| Price | $399.95 | $499.95 | $599.95 |
X24 Tech Dual-
Bushing Design | ✔ | ✔ | ✔ |
| Tie Rod Material | Steel
tube | Solid steel bar | 6061 Billet aluminum |
| Inner Ball and Socket Thread Diameter | 14 mm rod threads, 16 mm rack threads | 3/4” rod threads, 16 mm rack threads | 3/4” rod threads, 16 mm rack threads |
| Outer Tie Rod End Thread Diameter |
14 mm | 3/4” | 3/4” |
| Greasable | ✔ | ✔ | ✔ |
| Inner Boots | ✔ | ✔ | ✔ |
| Steering Stop Kit | ✔ | ✔ | ✔ |
Misalignment Bushings,
Tie Rod Studs, & Hardware | ✔ | ✔ | ✔ |
Patent No. 11,345,393
FEATURE
- Heavy-duty dual PTFE bushings:
- Designed with X24 Tech
- Prevents wear
- Reduces slop
- Improves overall
durability
- Available tie rod options:
- Swaged
tube - Solid steel bar
- Billet aluminum hex
- Solid steel and billet aluminum tie rods use:
- 3/4” outer tie rod
ends - Rebuildable inner tie rod ends that use 3/4” rod threads and 16
mm rack threads
- Swaged tube tie rods use:
- 14 mm
outer tie rod ends - Rebuildable inner tie rod ends that use 3/4” rod
threads and 16 mm rack threads
- 65% larger housing than
stock - Over 50% less wear than OEM after 15,000 cycles
- Grease
fitting for rack gears
Fitment
- Polaris Ranger XP Kinetic : 2023+
Replaces
OEM Part#: 1825060
