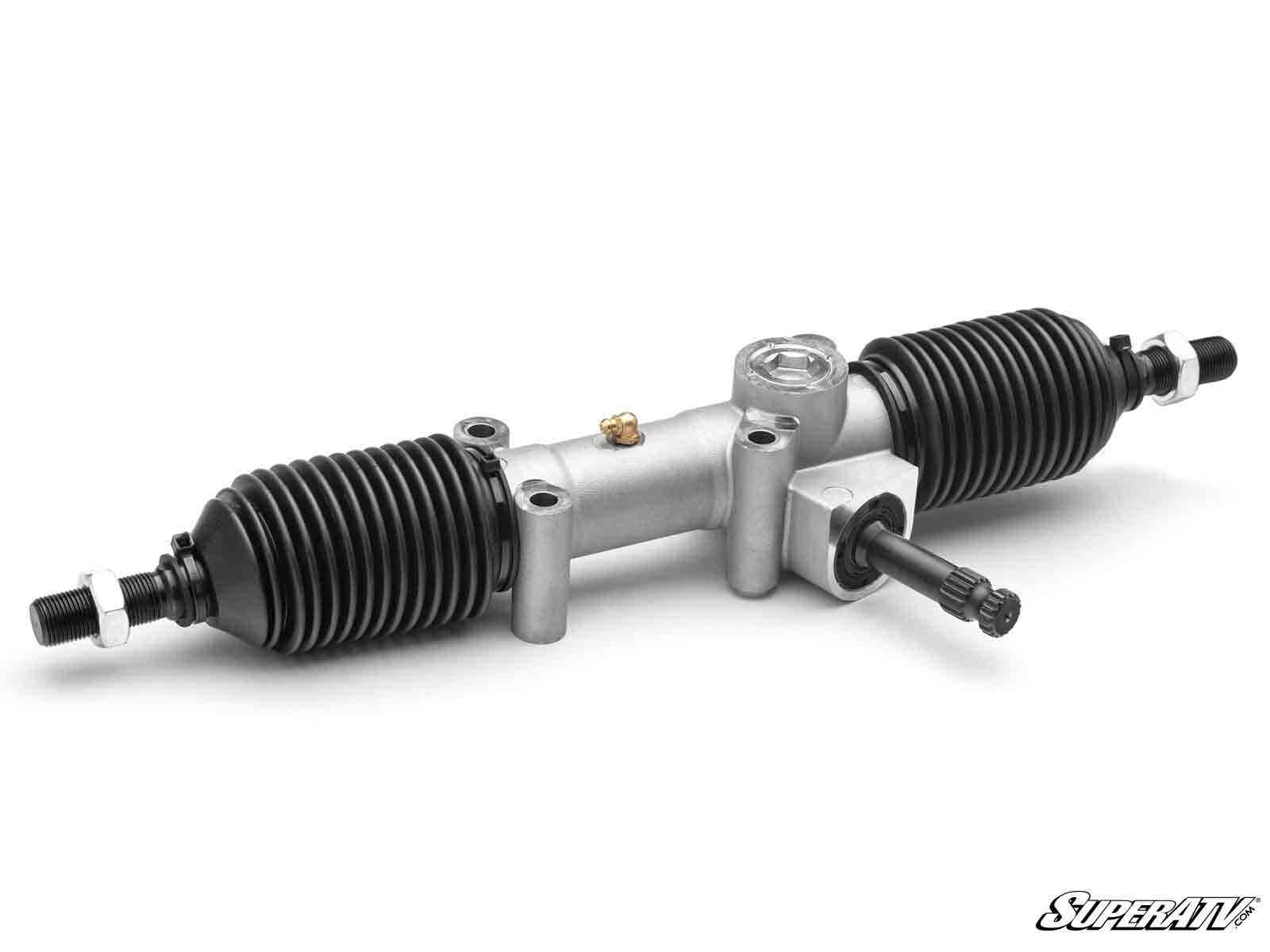

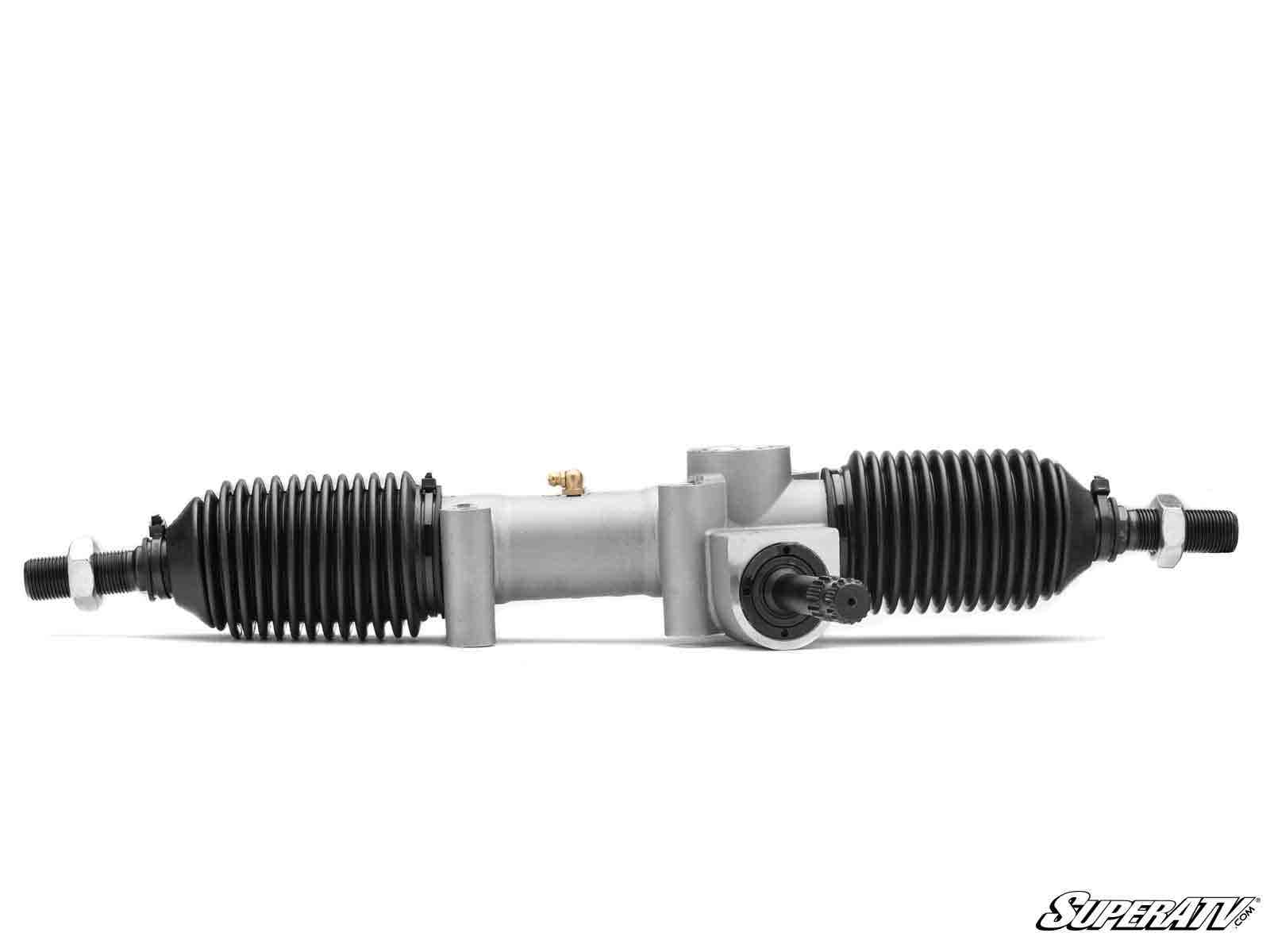

Product Description
Your PRO XP’s
rack has an end date. No matter what you do, eventually it will loosen up and
your steering will get less responsive. That’s why upgrading to SuperATV’s
Polaris RZR PRO XP RackBoss 2.0 Rack and Pinion is a no-brainer. We built on
the strengths of our original RackBoss to deliver a rack that’s tougher and
more durable. Our innovative X24 Tech gives it over 50% less wear than stock.
With RackBoss 2.0 installed, you can ride with bigger tires on rougher rides
and still stay in control.

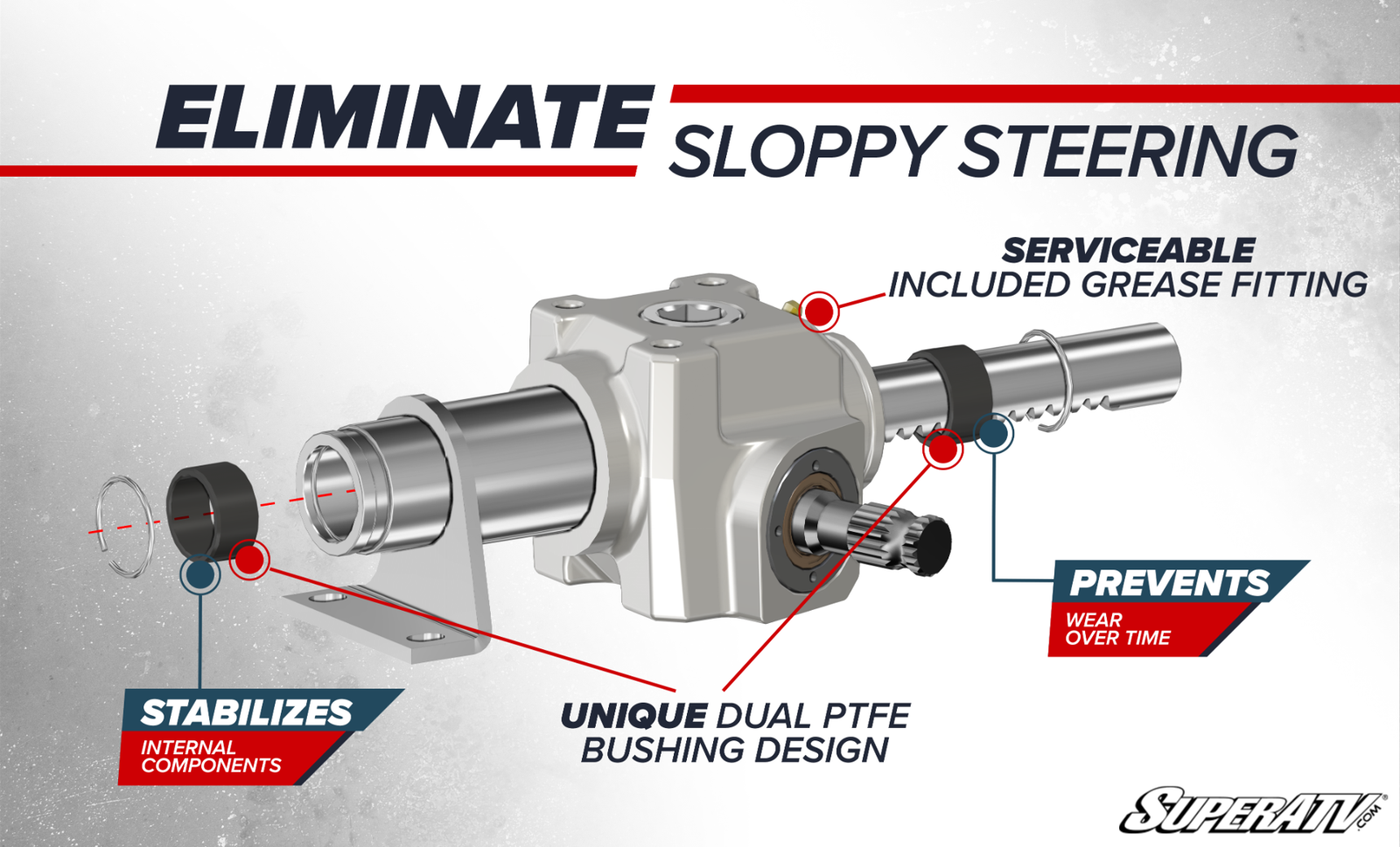

Built With X24 Tech
We use our unique X24 Tech to take our durability to the next level. Its dual-
bushing design means RackBoss 2.0 uses heavy-duty PTFE bushings at each end of
the rack to virtually eliminate internal play. With little unintended internal
movement, you can install big lifts and tires while you wheel with a lead

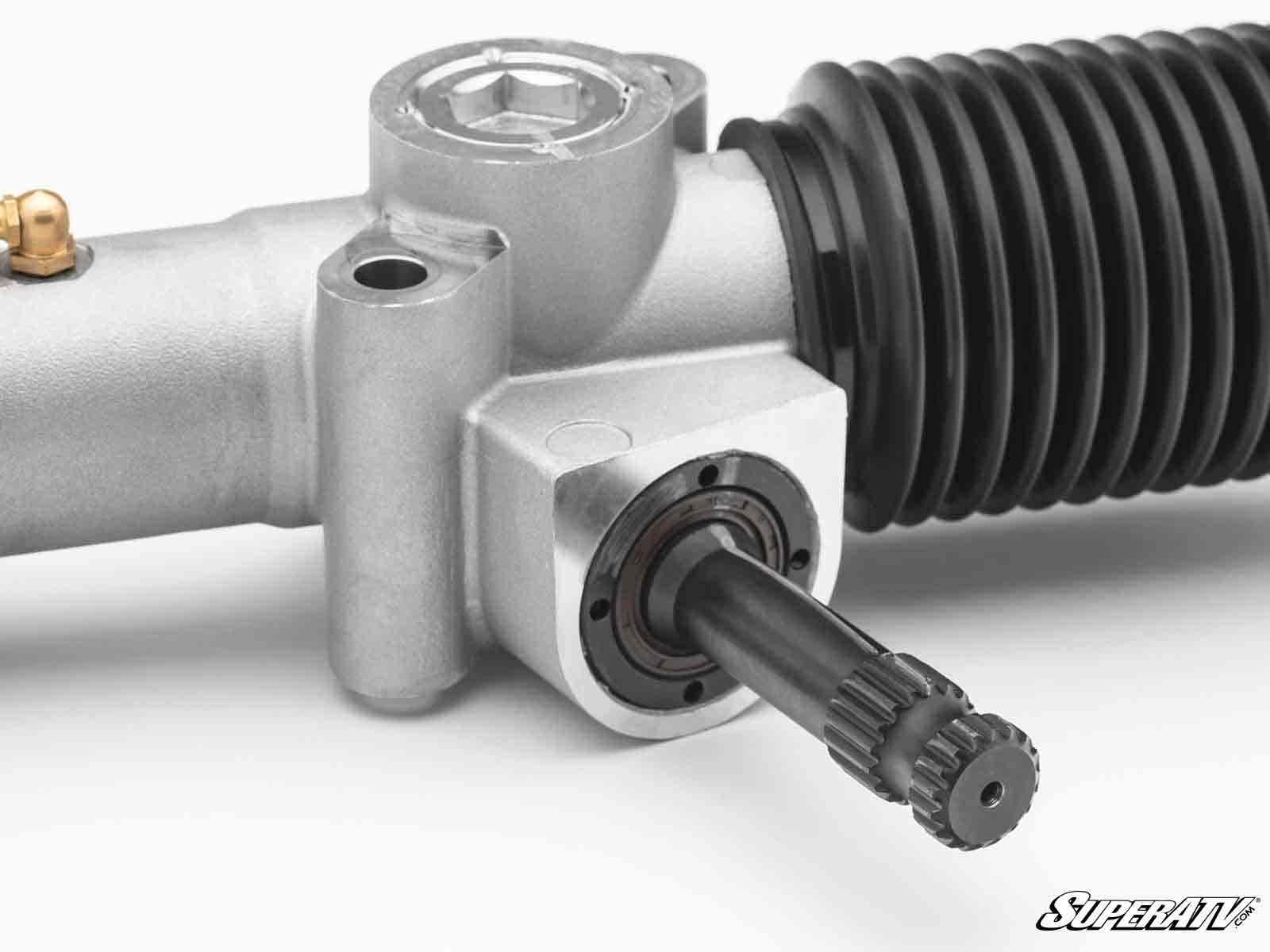

foot. And since it also has a built-in grease fitting, you can ride like wild
knowing you’ll have reliable steering day after day.

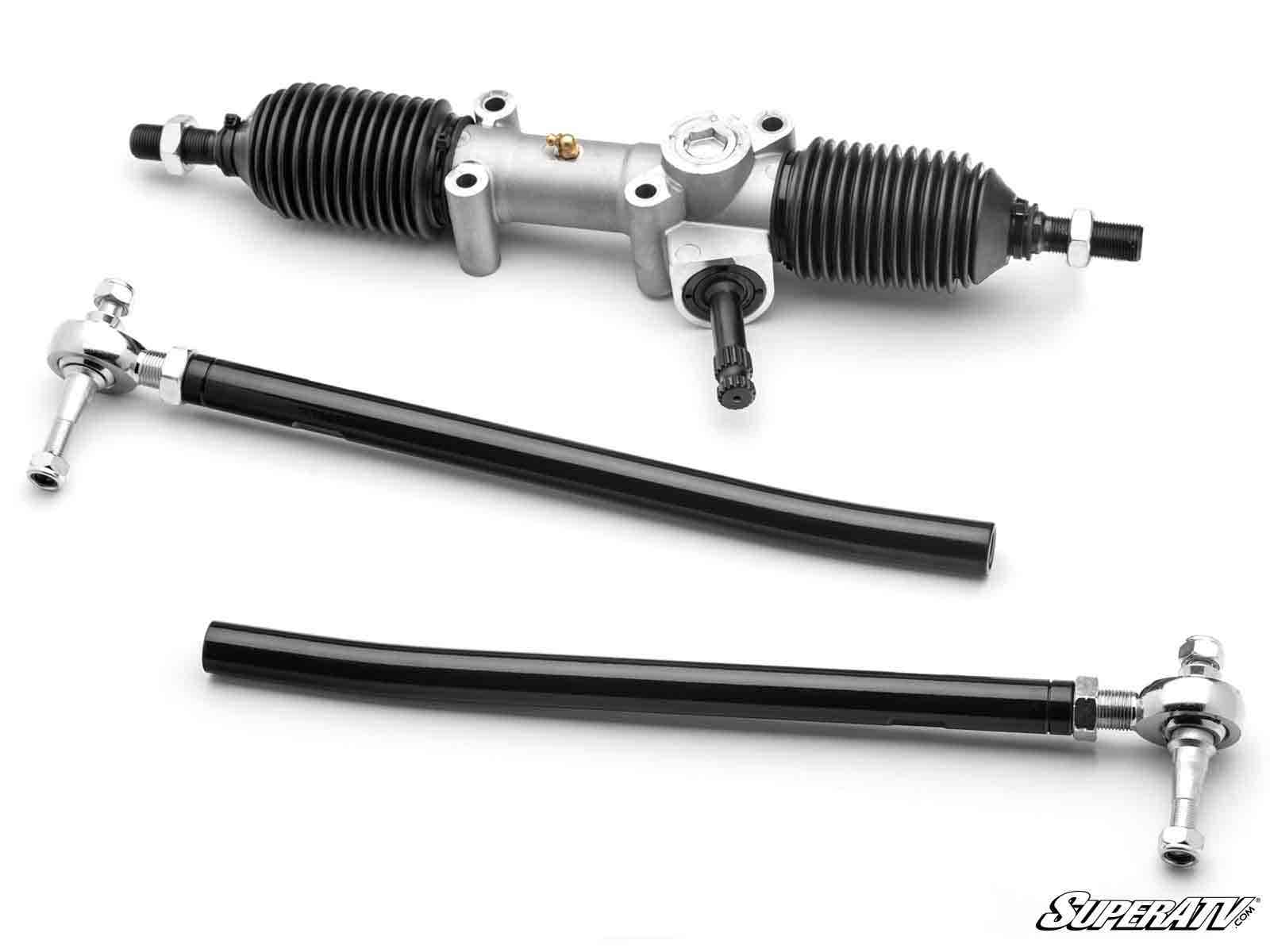

Swaged
Tube Tie Rods
Our swaged tube tie rods are super sturdy but
lightweight. The 7/8” diameter tubing flares out to boost its strength even
more and comes paired with tougher tie rod ends. They have huge 16 mm rack
threads and 14 mm rod threads that are the toughest you can get. This kit will
keep you in control.

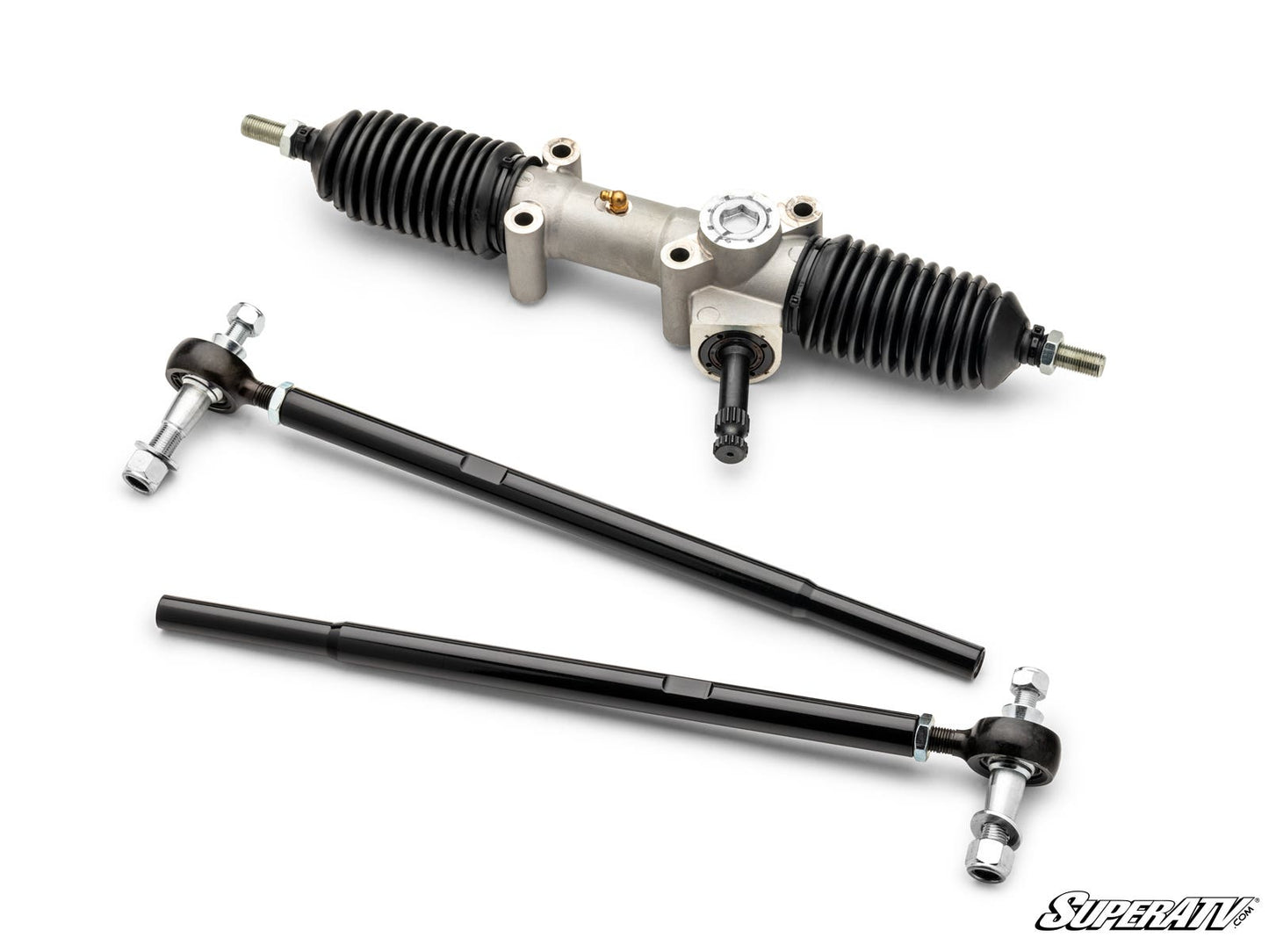

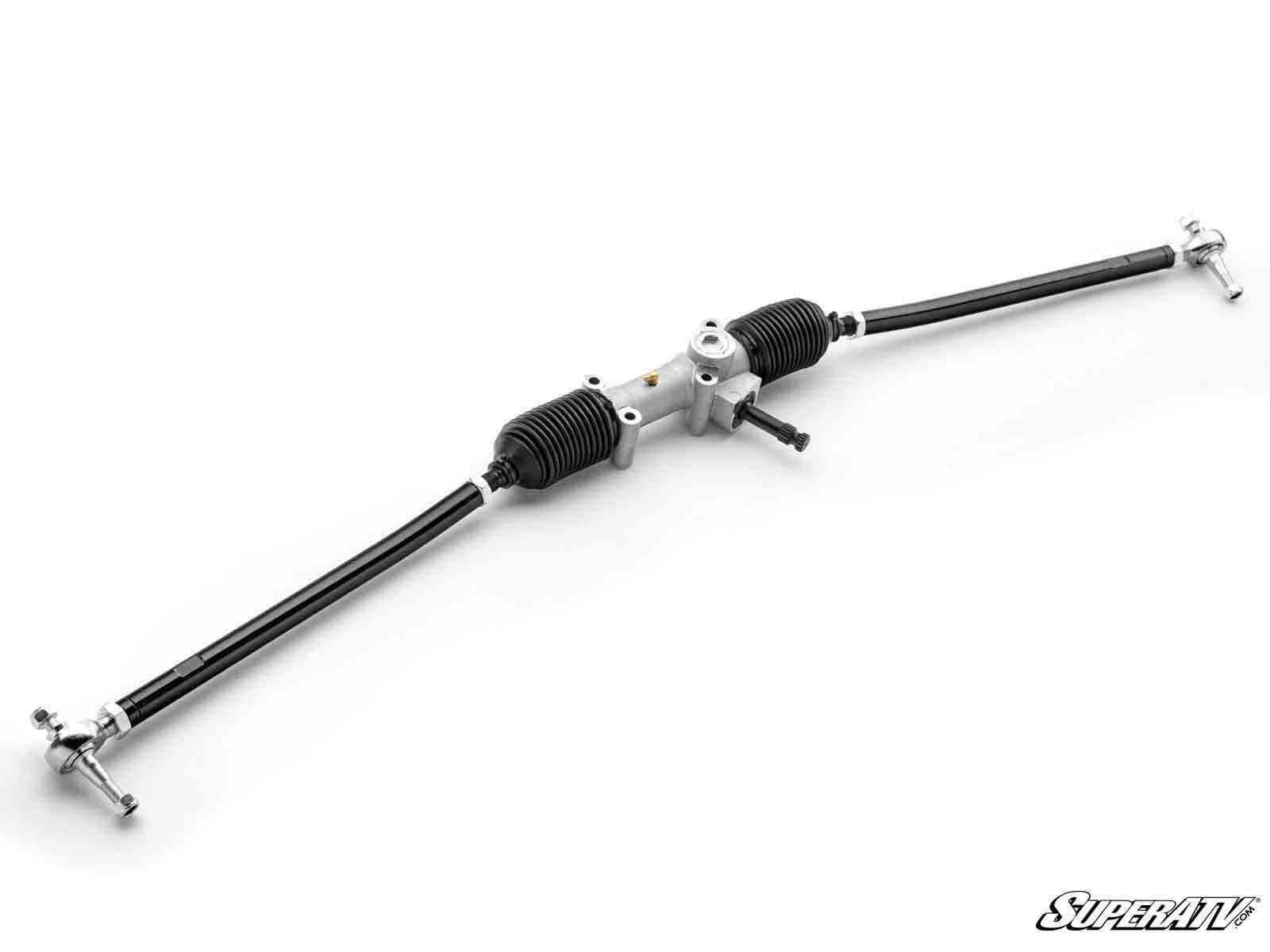

Solid Steel Bar Tie Rods
For a beefy tie rod setup, you want to go with solid steel bar tie rods.
They’re made with 1” diameter steel bars that are paired with bigger, better
tie rods you’ll love—3/4” outer heim joint tie rods and rebuildable inner tie
rods that use 3/4” rod threads and 16 mm rack threads. They’re built for hard
hits, big tires, and wild rides.

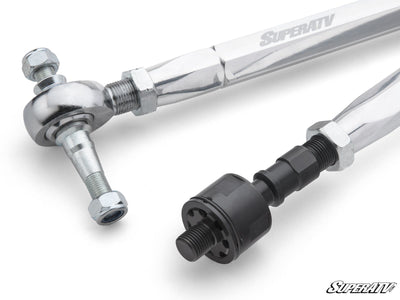

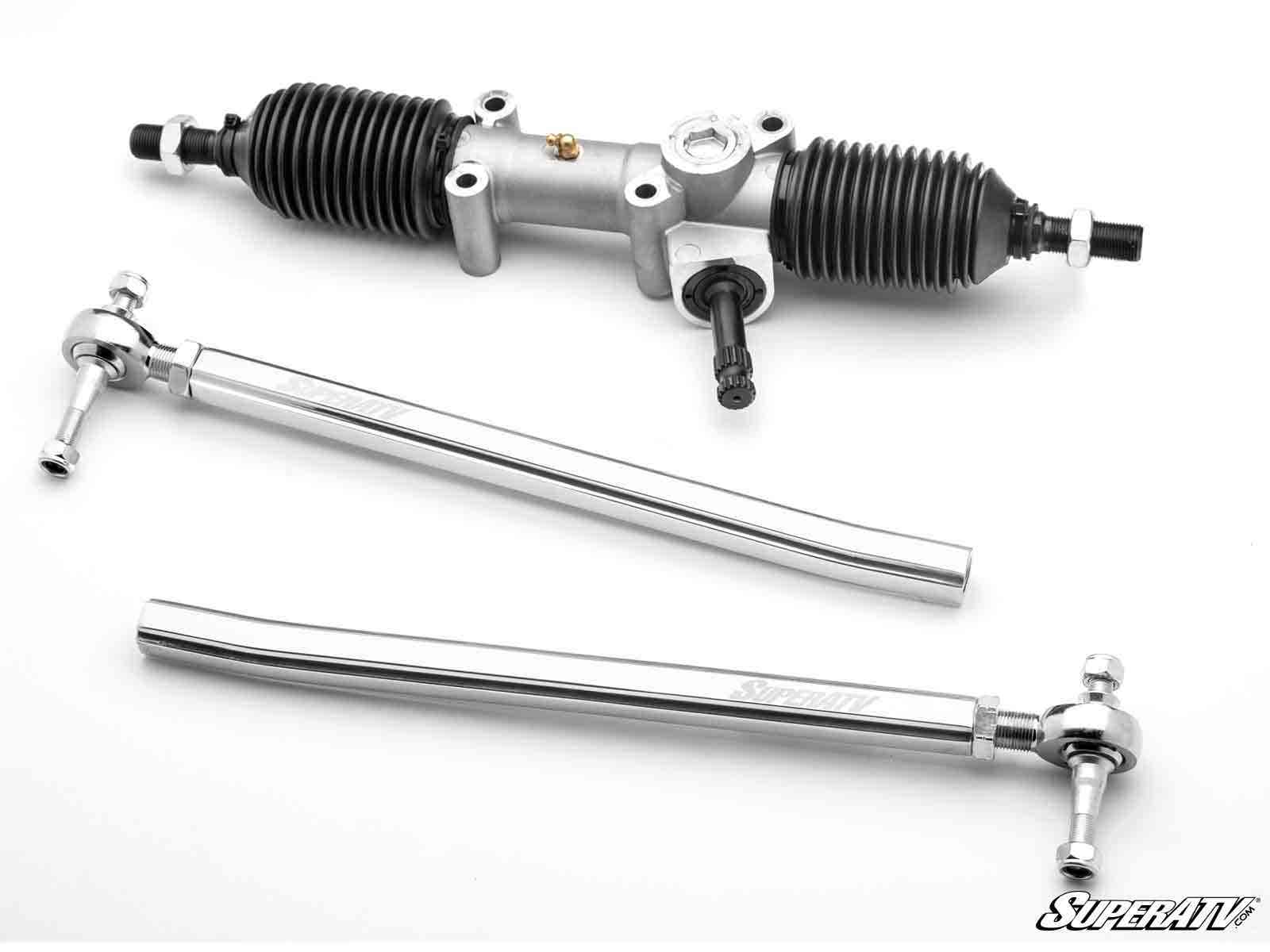

Polished Billet Aluminum
Rods
Our billet aluminum rods are the best of the best. They
give you a polished billet finish combined with a tough square design. Not to
mention, they’re incredibly strong despite their light weight. We pair them
with our oversized tie rod ends that use 3/4” rod threads and 16 mm rack
threads. You get the style to stand out and the performance to back it up.
| RackBoss 2.0 Swaged Tie Rod | RackBoss 2.0 Solid Steel Tie Rod | RackBoss 2.0 Billet Tie Rod | |
| X24 Tech Dual-Bushing Design | ✔ | ✔ | ✔ |
| Inner Ball and Socket Thread Diameter | 14 mm rod threads, 16 mm rack threads | 3/4” rod threads, 16 mm rack threads | 3/4” rod threads, 16 mm rack threads |
| Outer Tie Rod End Thread Diameter | 14 mm | 3/4” | 3/4” |
| Tie Rod Material | Steel tube | Solid steel bar | 6061 Billet aluminum |
| Greasable | ✔ | ✔ | ✔ |
| Inner Boots | ✔ | ✔ | ✔ |
| Steering Stop Kit | ✔ | ✔ | ✔ |
| Misalignment Bushings, Tie Rod Studs, & Hardware | ✔ | ✔ | ✔ |
Patent No. 11,345,393
FEATURE
- Heavy-duty dual PTFE bushings:
- Designed with X24 Tech
- Prevents wear
- Reduces slop
- Improves overall
durability
- Available tie rod options:
- Swaged
steel tube - Solid steel bar
- Billet aluminum hex
- Swaged
- Solid steel and billet aluminum tie rods use:
- 3/4” outer
tie rod ends - Rebuildable inner tie rod ends that use 3/4” rod threads
and 16 mm rack threads
- 3/4” outer
- Swaged tube tie rods use:
- 14 mm outer tie rod ends
- Rebuildable inner tie rod ends that use
14 mm rod threads and 16 mm rack threads
- 65% larger
housing than stock - Over 50% less wear than OEM after 15,000
cycles - Grease fitting for rack gears
Fitment
- Polaris RZR PRO XP : 2020+
- Polaris RZR PRO XP 4 : 2020+
Replaces OEM Part#: 1824946
