Why You’ll Love It
4” Portal Lift adds ground clearance directly at the hubs 15% or 30% Gear Reduction adds torque and relieves drivetrain stress Cast or Billet Housings let you choose the construction that fits your build 9310 Steel Gears pair with a hardened 4340 drive shaft for strength Limited Lifetime Warranty protects your purchase
Gen 3 Portals are Geared for All

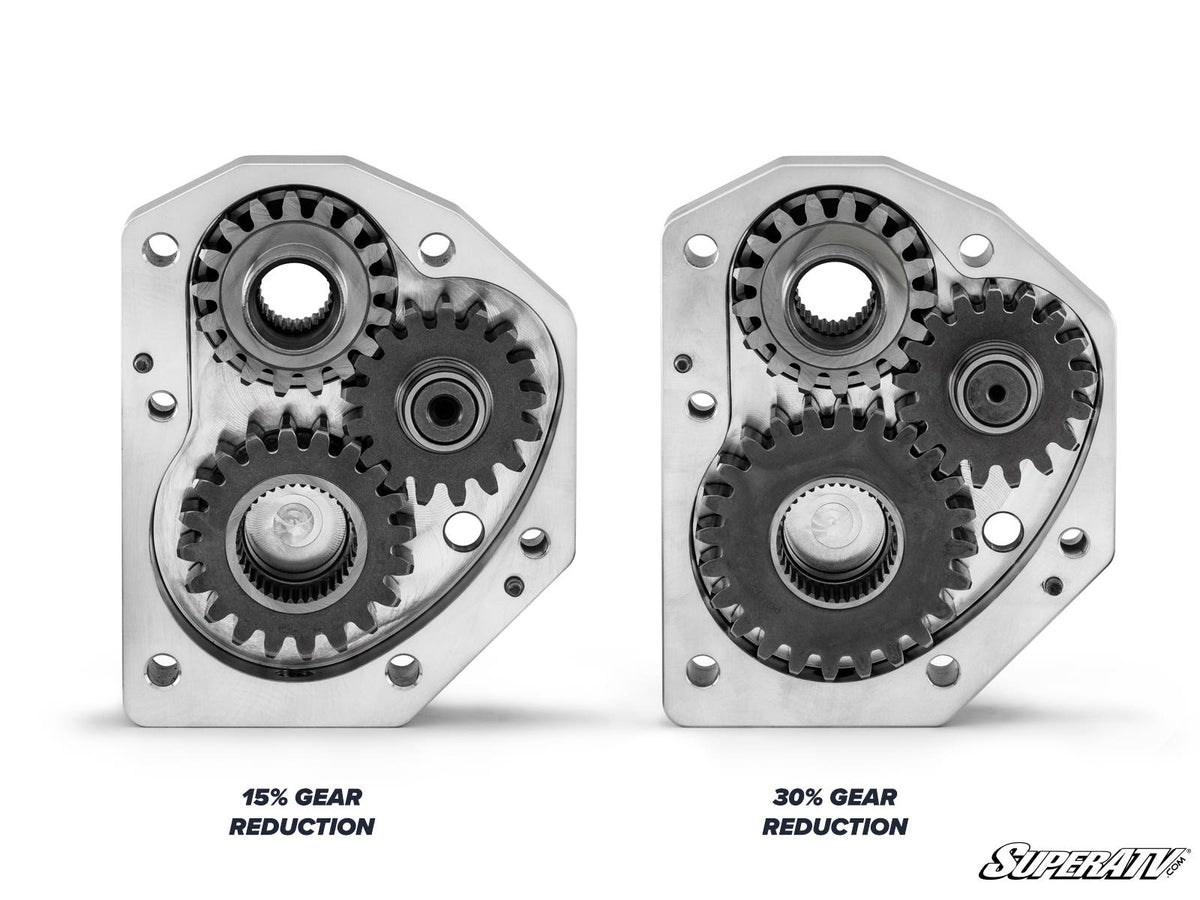

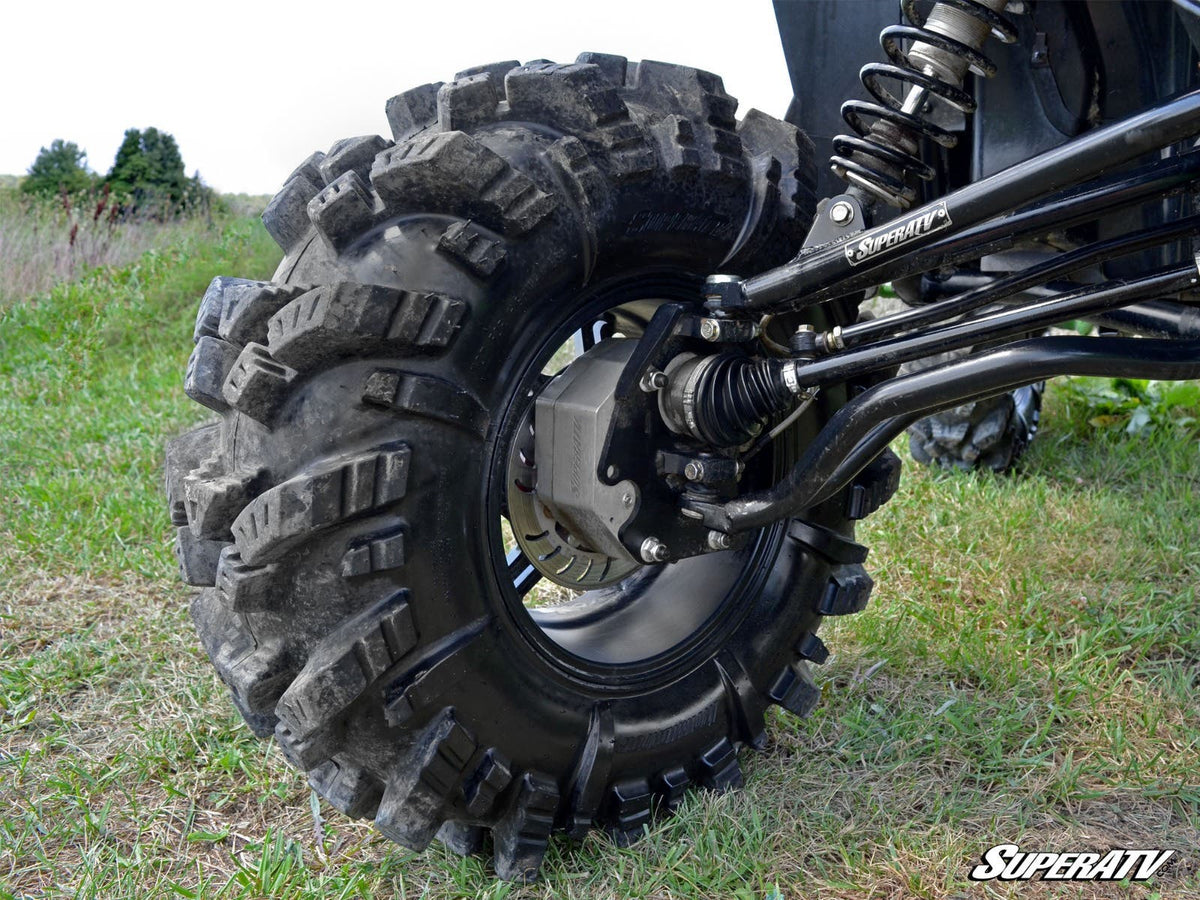

SuperATV’s GDP 4” Portal Gear Lift for the Polaris RZR XP 900 is Geared for All. What do we mean by that? Our 4” portal lift is available with 15% or 30% gear reductions. You can get exactly what you want for your riding style and preferred riding environment.
Perfect for Mud
Get a 30% gear reduction and start flingin’ mud. With a massive boost to torque, you can turn bigger tires that chew through the thickest bounty holes. When you gear down and go big, your machine will turn into a mud monster. Plus, with a 30% gear reduction you can still use it on the road and tear up trails and rocks.
Perfect for Rocks
Put 4” portals and a 30% gear reduction on your machine and get the torque you need crawl over rocks like they’re not even there. You’ll have the clearance to get over anything without scratching up your skid plate, and you’ll have room to run bigger tires. These portals are built for boulders.
Perfect for Trails
Get 4” portals and a 15% gear reduction on your Polaris RZR 900 and take on the trail less traveled. You’ll keep that high speed and leave your friends in the dust when you hit a hill or dirt shelf. It’ll bring out your UTV’s true power.
Learn more about how tire size and gear reduction can unleash your machine’s potential.
Better Gears

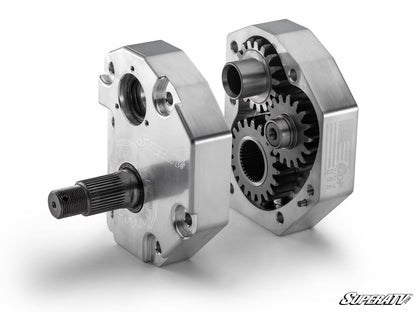

Our gears are precision ground and made with 9310 billet steel alloy for high strength and high speed. That means they’re cool and quiet even when you’re hammering down the throttle on the road, and they have strength to withstand every ride.
Stronger Housings by Design

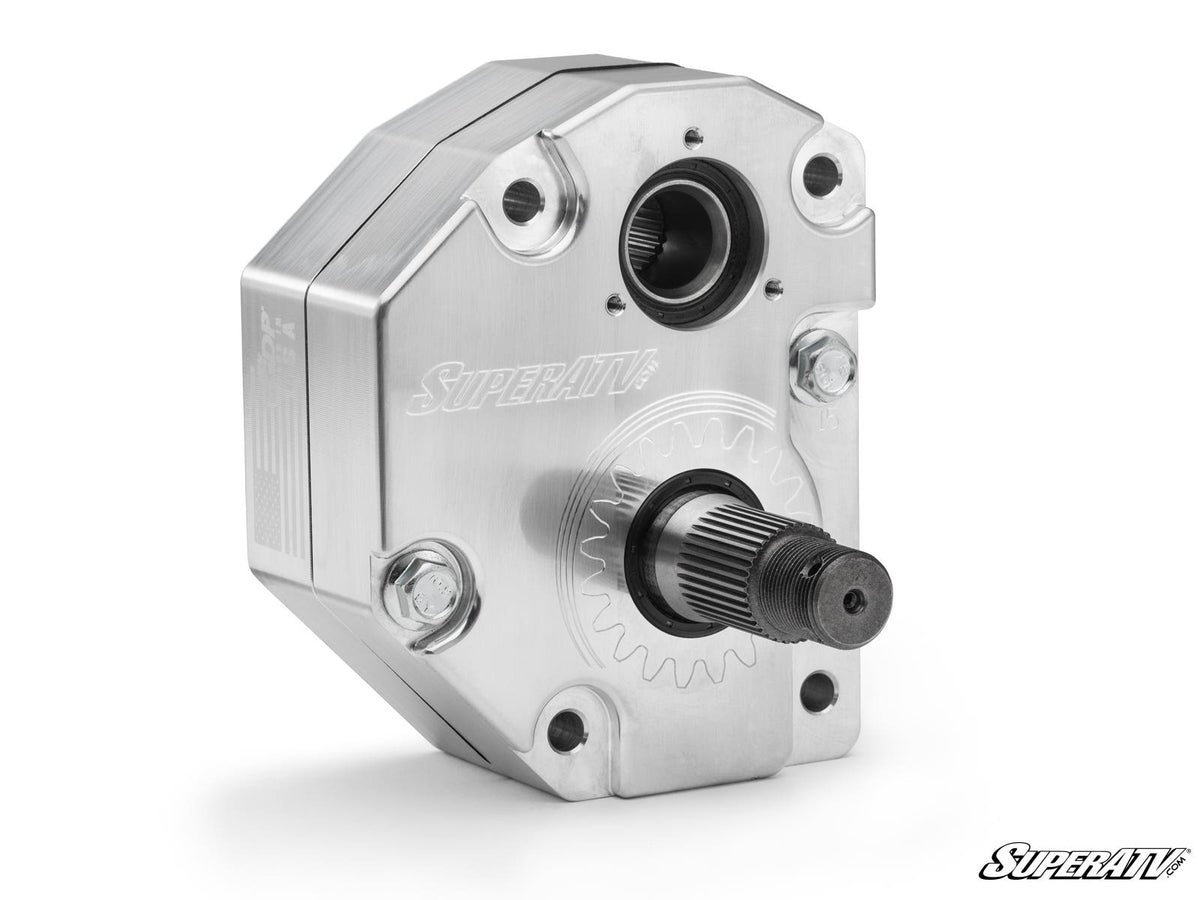

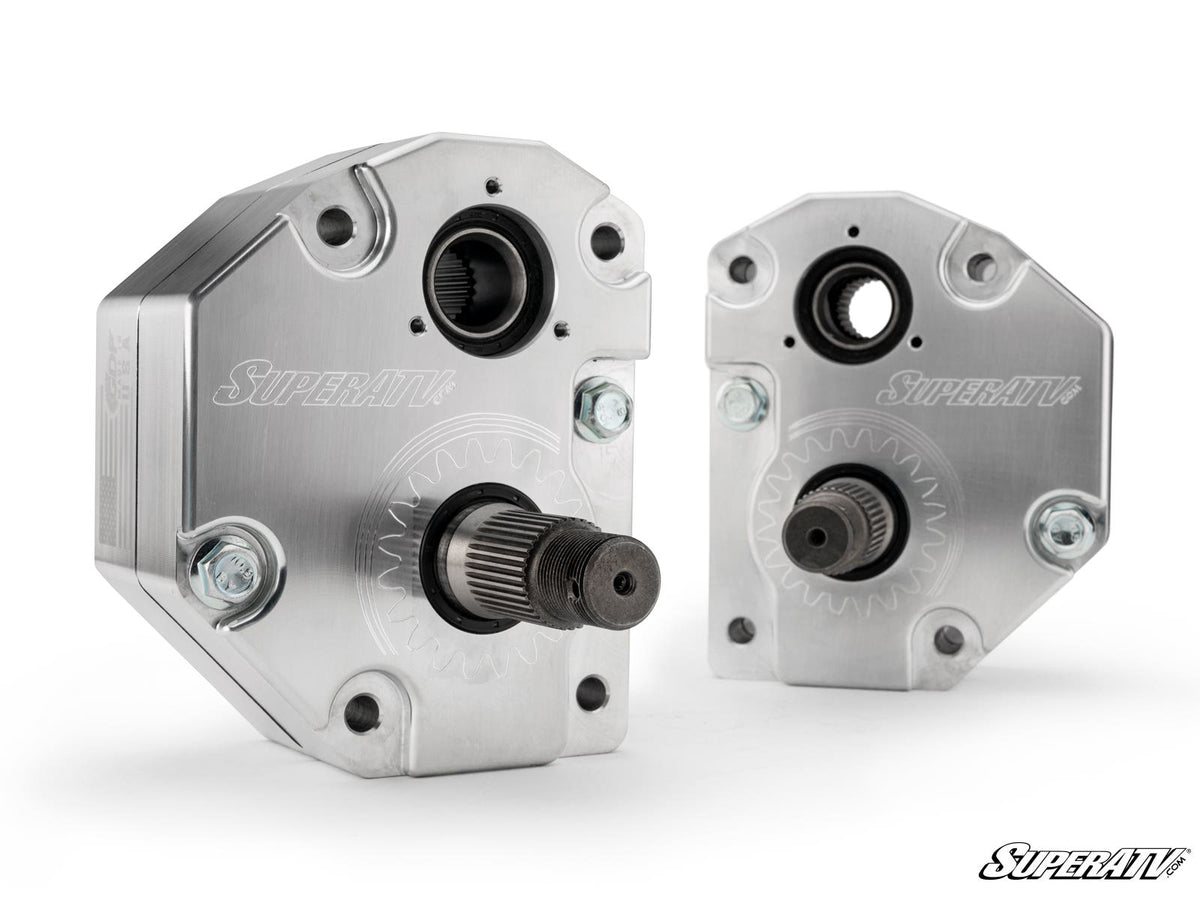

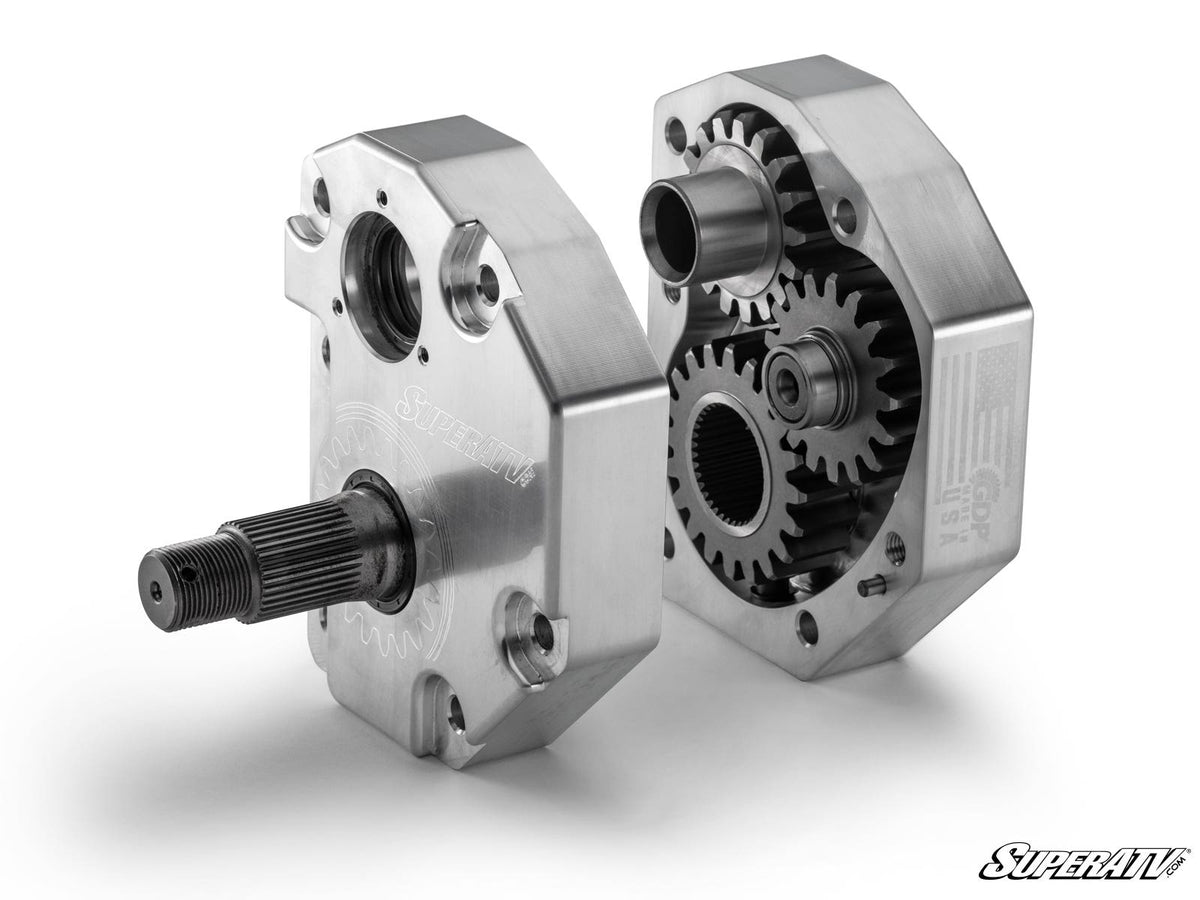

Try as you might, you won’t find housings stronger than what we use on our GDP portals. Our housings are smarter, stronger, and more reliable by design. So whether you choose cast or USA-made and CNC-machined 6061 billet aluminum, you’re getting housings that offer unmatched strength and dependability. We’ve got the experience and the riders on the trail to back it up.
Our housings are reinforced in all the right places
They’re built with better oil flow and gearing forces in mind
There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
Advanced Gaskets and Seals
Whether you go with cast or billet, both housings use
- Advanced gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
- Top-Rated Customer Service
Still need a little help getting exactly what you need? We’ve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.
Polaris RZR XP 900 Portal Gear Reduction Recommendations
Tire Size Required Suspension Setup with 4" Portals Recommended 4" Portal Gear Reduction
Up to 25" Stock 15%
Up to 26" 3-5" Lift Kit 15%
Up to 28" 1.5" Forward Front A-Arms 15%
29" to 30" 1.5" Forward Front A-Arms and 3-5" Lift Kit 15%
31" to 35" 6" Lift Kit 30%
Gear reductions listed are general guidelines to maintain factory top speed. Installing a larger than recommended gear reduction will result in extra torque and lower top speed. Give us a call for more information.
Patent # 11,299,042
Features
- Available with billet or cast aluminum housing
- Cool, quiet, precision ground gears made from 9310 alloy billet steel
- Increases width by 4 in. per side (8 in. total)
- 1.5 in. diameter 4340 hardened steel drive shaft
- No leak bearings and seals
- Universal hubs can be set up to work with the following bolt patterns: 4/156, 4/137, 4/115, and 4/110

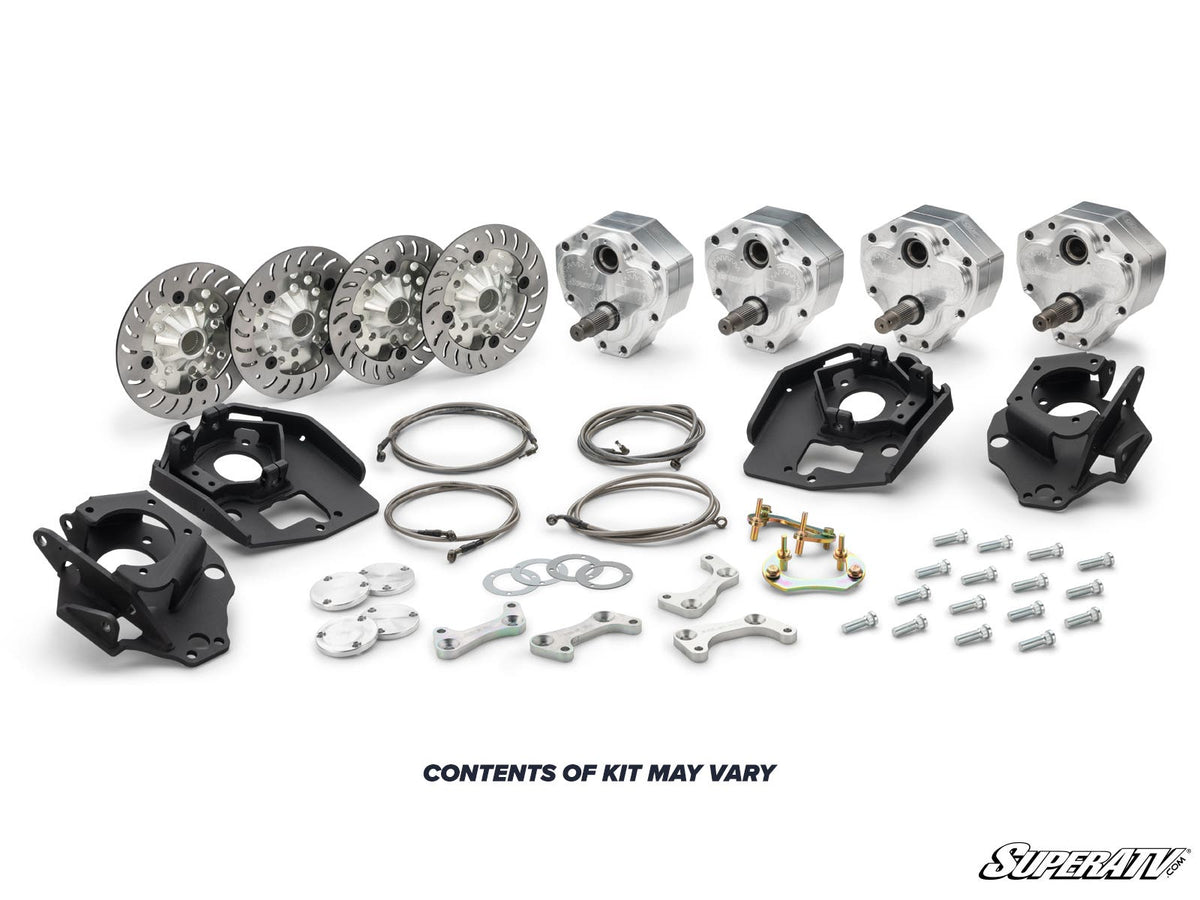

- Comes complete with all hardware, backing plates, brakes lines and instructions
Fitment (per SuperATV)
Polaris RZR XP 900 : 2011-2014 Polaris RZR XP 4 900 : 2012-2014
Wheel Requirements
- 14” or larger wheel required
- 14” & 15” wheels cannot exceed 4-1/2” backspacing
- 16” and larger wheels cannot exceed 5” backspacing
- Not compatible with dual beadlock wheels
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer
Installation instructions (PDF)
Ships free from SuperATV. Price is SuperATV's current price.
