RPM 17-22 X3 120HP to 220HP Complete MAX POWER Upgrade Kit X3 Tuner+Intercooler+Exhaust+Clutch Kit & MORE
RPM 17-22 X3 120HP to 220HP Complete MAX POWER Upgrade Kit X3 Tuner+Intercooler+Exhaust+Clutch Kit & MORE
Search matches make and model, not model year. This part fits:
Radiator fan activation temp lowered from ~200* F to ~165* F
The 2020+ intercooler does NOT utilize the factory top intercooler shroud.
Not sure? Text your year, make and model to 719-428-6837 or use Build Concierge and we'll confirm the right part. Freight-heavy parts can't be returned cheaply, so it's worth asking. Need a factory part instead? We can order OEM parts for any major make.
Couldn't load pickup availability
Why Buy From SxS Network?
Located at Pikes Peak International Raceway, home of Adrenaline Park and Peak Adrenaline. We run many of these parts on our personal Maverick R and X3 rigs.
Not sure what fits your build? Call or text Tim directly at 719-428-6837. Real riders, real advice — no call centers.
Based in Fountain, CO. Support a Colorado business that actually rides.
Most orders leave the manufacturer in 1–2 business days — no middle warehouse, no re-boxing. Ship-by date shown above.
Product Description

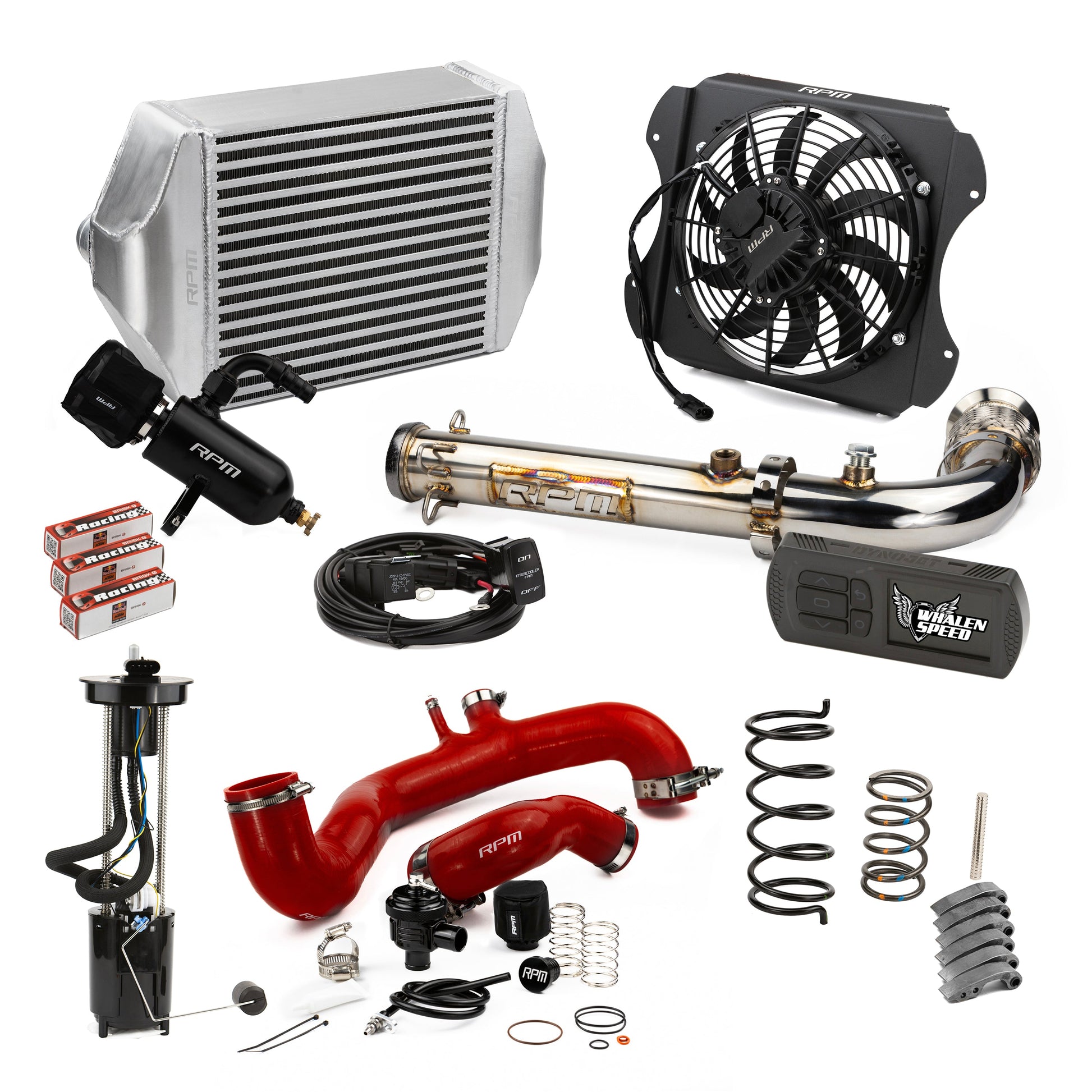

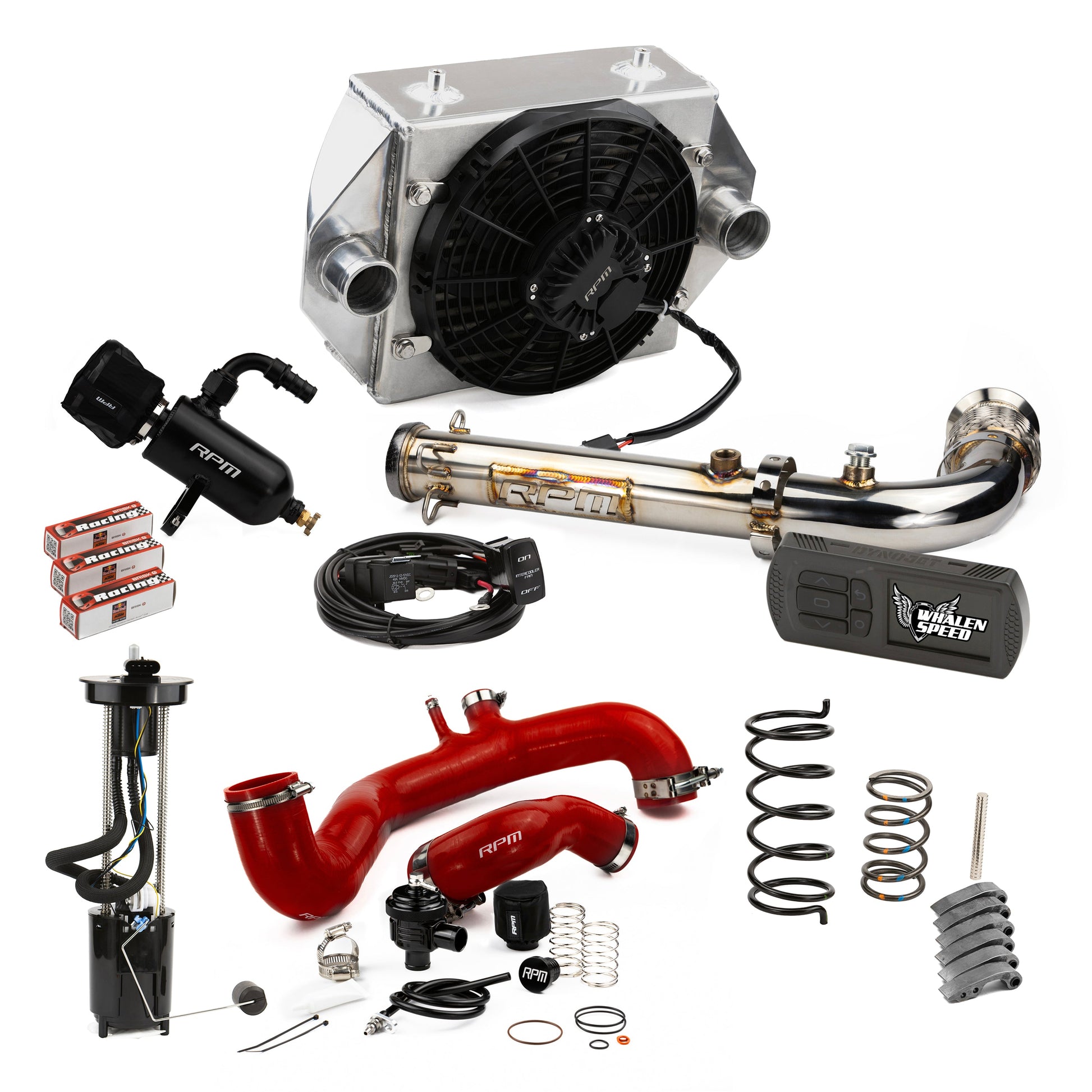

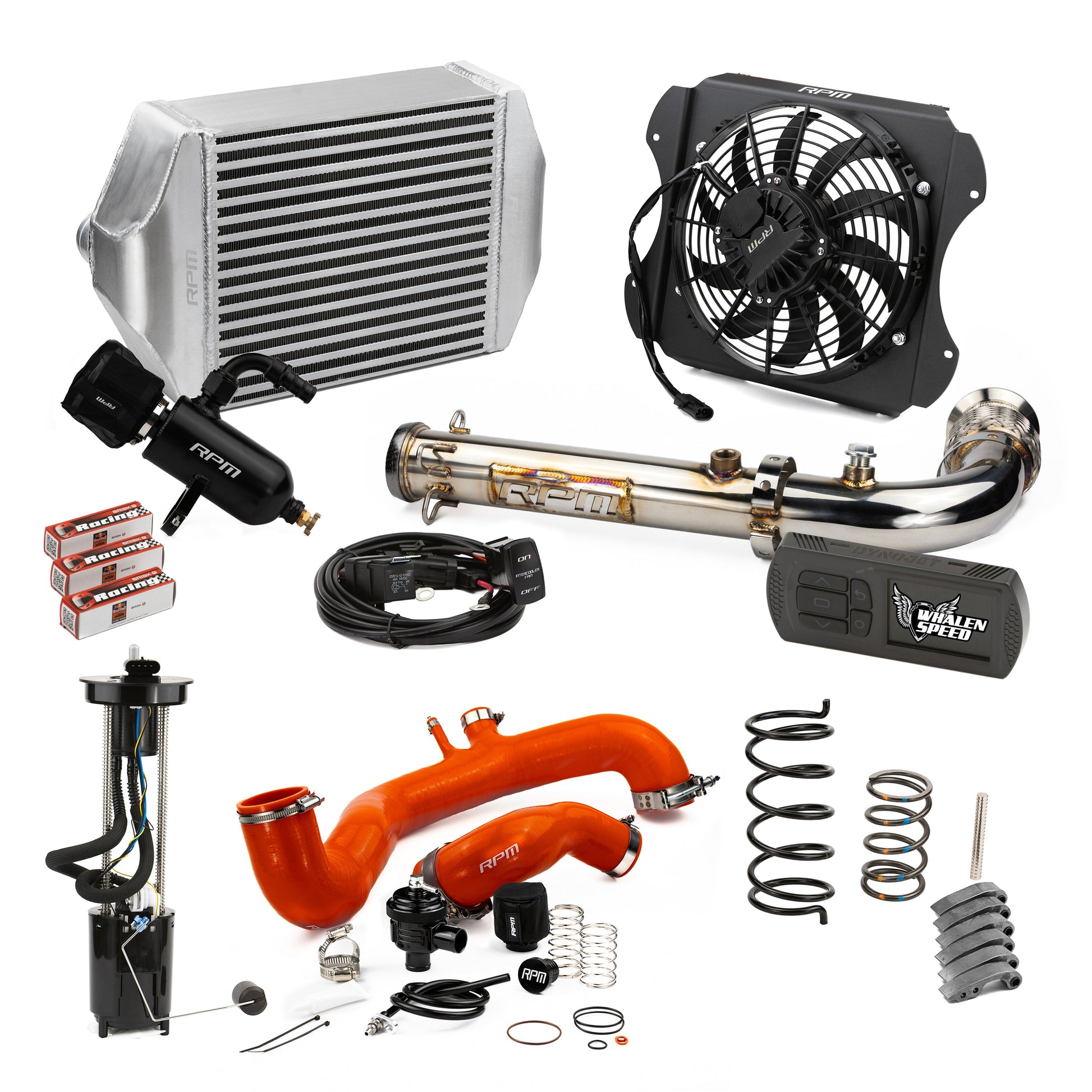

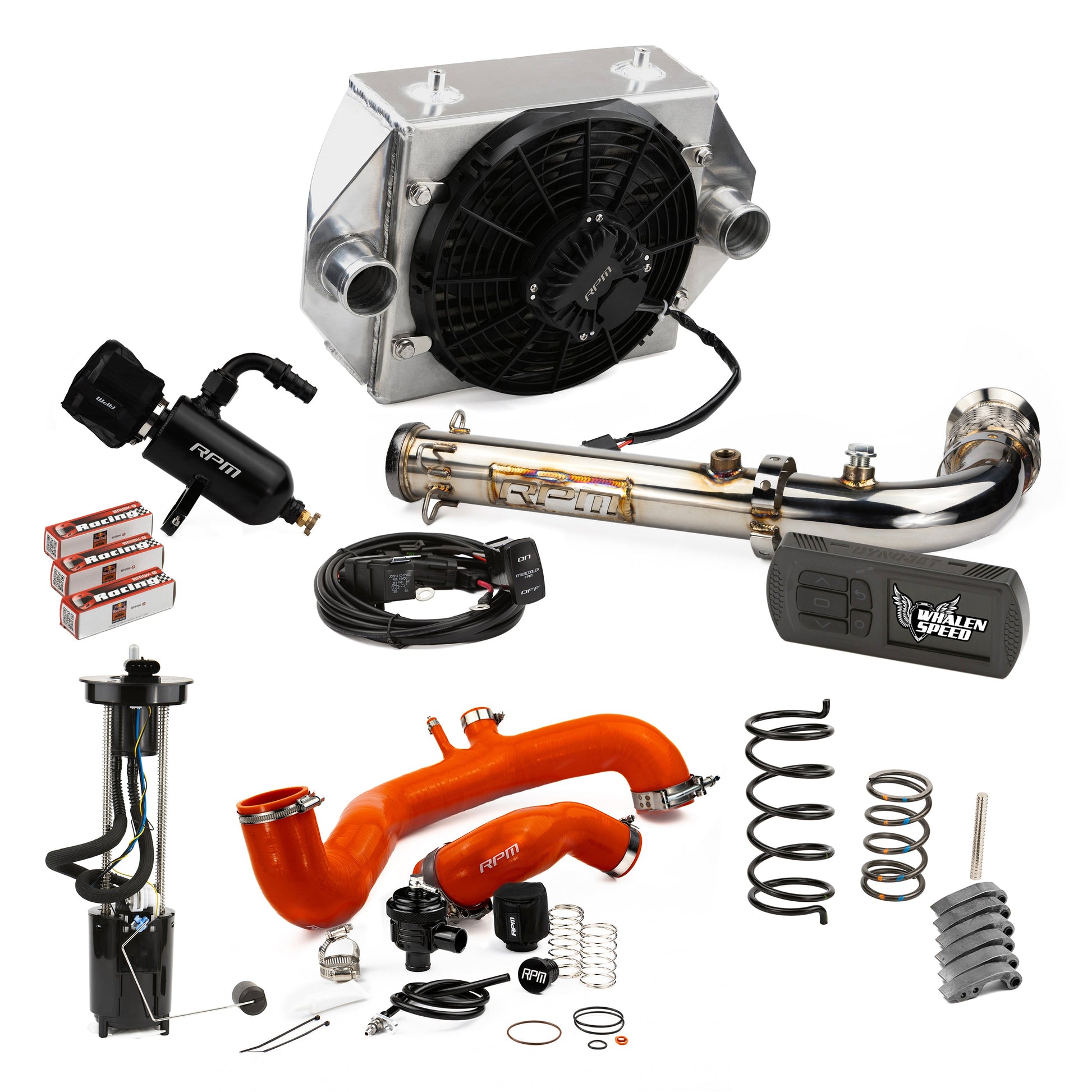

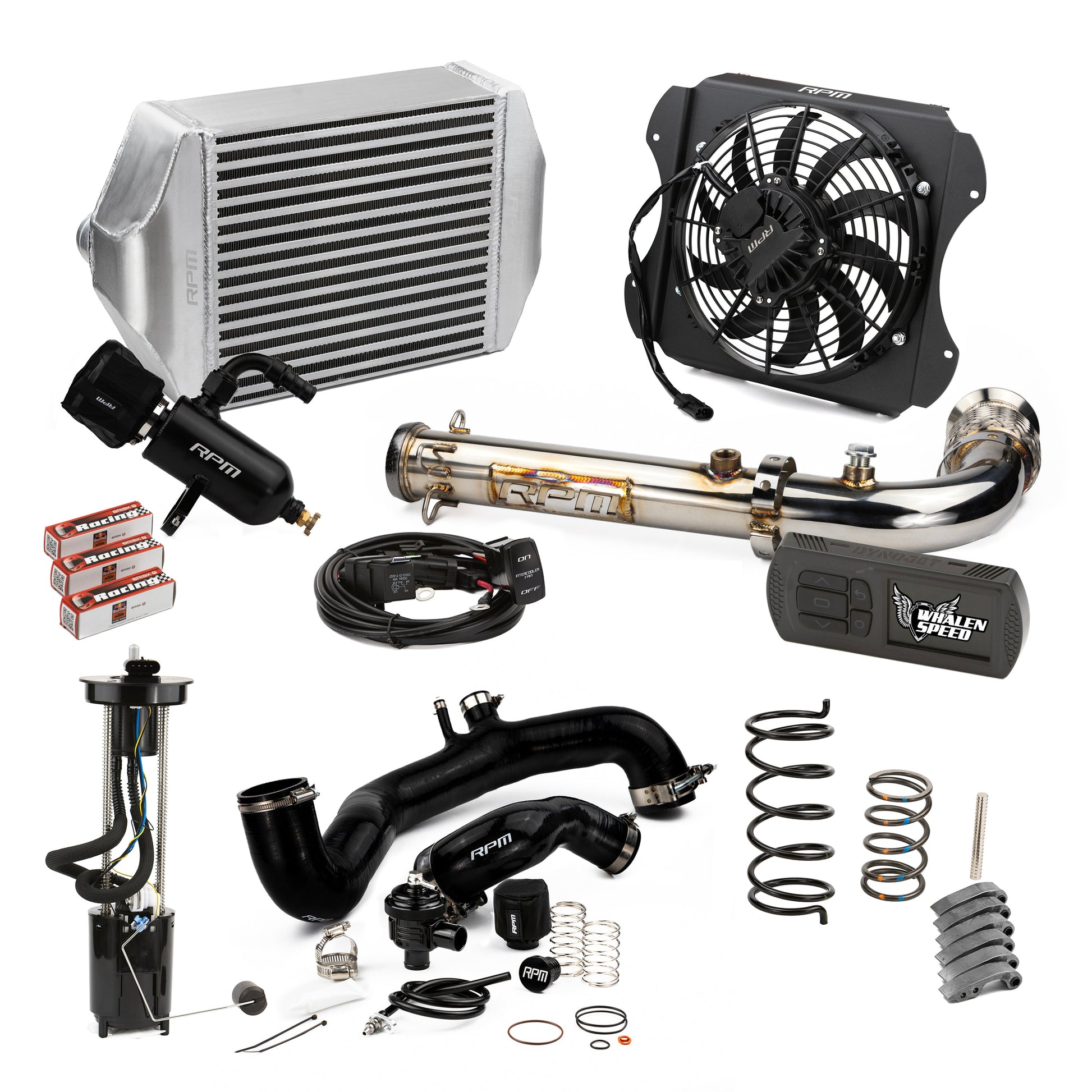

17-22 X3 120HP to 220HP Complete MAX POWER Upgrade Kit X3 Tuner+Intercooler+Exhaust+Clutch Kit & MORE
- PV Tuner with 220HP Whalen Speed Pump Gas 93 & 91 Octane Tunes
- RPM Big Core Polished Intercooler
- RPM Brushless Intercooler Fan and Shroud
- RPM Silicone Charge Tubes
- RPM BOV Kit
-
High Pressure “RR” Fuel Pump Assembly - RPM Intercooler Fan Override Switch
- KWI Full Clutch Kit ~ AO Base Kit
- RPM Spec’d Brisk Spark Plugs
- RPM Big Mouth Cat Delete Pipe
- RPM Black Catch Can Kit
- Brisk Spark Plugs (3)
- Boost pressures are increased up to 17-18 PSI respectively for the octane you choose to run. Crack pressure set to 9 PSI (ensure a minimum of 5 threads exposed on the factory wastegate rod when the jamb nut is tight to ensure the actuator has enough travel to control the wastegate flapper/boost)
- Radiator fan activation temp lowered from ~200* F to ~165* F
- Intercooler fan activation temp lowered from ~140* F to ~95*F
- Torque limits for L raised to 100%, reverse raised to 75%
- Component protection mode for fueling lowered to increase torque and horsepower, especially right after the pedal is floored.
- Ignition timing per cylinder is optimized for maximum power as well as drive-ability, careful consideration was used not only for when at wide open throttle, but as well as cruise, throttle transitions, ect.
- Throttle feel and control is thoughtfully improved, to control through a whoop section, on/off feel in short course style racing or playing in the woods, eco mode is improved but offers the less aggressive pedal for technical rock sections or simply loading on a trailer.
- Speed limits removed, your speed limit is your rev limiter/gear
- Rev limiter raised to 8900 RPM
- Rough road detection is raised to max to prevent power loss.
- Primary and Secondary Charge Tubes
- Washable BOV filter
- 30% More Volume
- Manifold Port for Vacuum/Boost Reference
- Silicone Reference port line ( 18" )
- Simple Bolt On Replacement
- Additional Vacuum Port For Boost Reference or Boost Gauge
- Stainless Steel HD Clamps
- 25mm Billet Plug For Not Running a BOV & Boost Leak Testing
- Gigantic 12"x11"x4" Bar & Plate Core
- Drop in replacement or upgrade, no modifications required
-
The 2020+ intercooler does NOT utilize the factory top intercooler shroud.
- Includes RPM Brushless motor Fan and Shroud
- This will override your intercooler fan settings programmed into the ECU with the switch in place
- When switch is not on, fan will operate normal off ECU settings
- Plug and play design
- Washable Filter
-
Includes Pre Filter
- Dual Interior Baffles
- Drip Free Tool-Less Drain Valve
- Uses Factory Crank Case Hose
- Aluminum Tig Welded Construction
- Easy & Straight Forward Installation & Instructions
- Fits all models, years, and variants of the Maverick X3
- Includes Silicone Cap For OEM Hose’s Location To Be Blocked Off
Cat Delete, Bypass Pipe, Mid Pipe For Can-Am Maverick X3 Turbo ALL Years, R and RR
Features:
- Sport exhaust tone
- Weighs Only 4.8 LBS, 3LB's lighter than stock!
- Extremely lightweight!
- Includes TWO O2 Bungs for those using data loggers!
- O2 bung caps included for those not using them!
- 2.5" piping all the way through
- 100% bolt-on installation
- Uses factory O2 sensor
- All brackets and mounts as on OEM unit
- Lowers heat radiating from the exhaust components
- Adds approximately 6-7 horsepower
- Reuses factory heat shields
- Cat Bypass connects to the OEM or RPM Slip On muffler
- Connects to the OEM or aftermarket mufflers that use the stock style header
If you do not have clutch tools and plan to do this install yourself, we recommend a clutch puller, and spring compression tool. Our spring tool makes exhaust installation much easier as well.
