Why You’ll Love It
6” Portal Lift adds ground clearance directly at the hubs 30% or 45% Gear Reduction adds torque and relieves drivetrain stress Cast or Billet Housings let you choose the construction that fits your build 9310 Steel Gears pair with a hardened 4340 drive shaft for strength Limited Lifetime Warranty protects your purchase
Gen 3 Portals are Geared for All

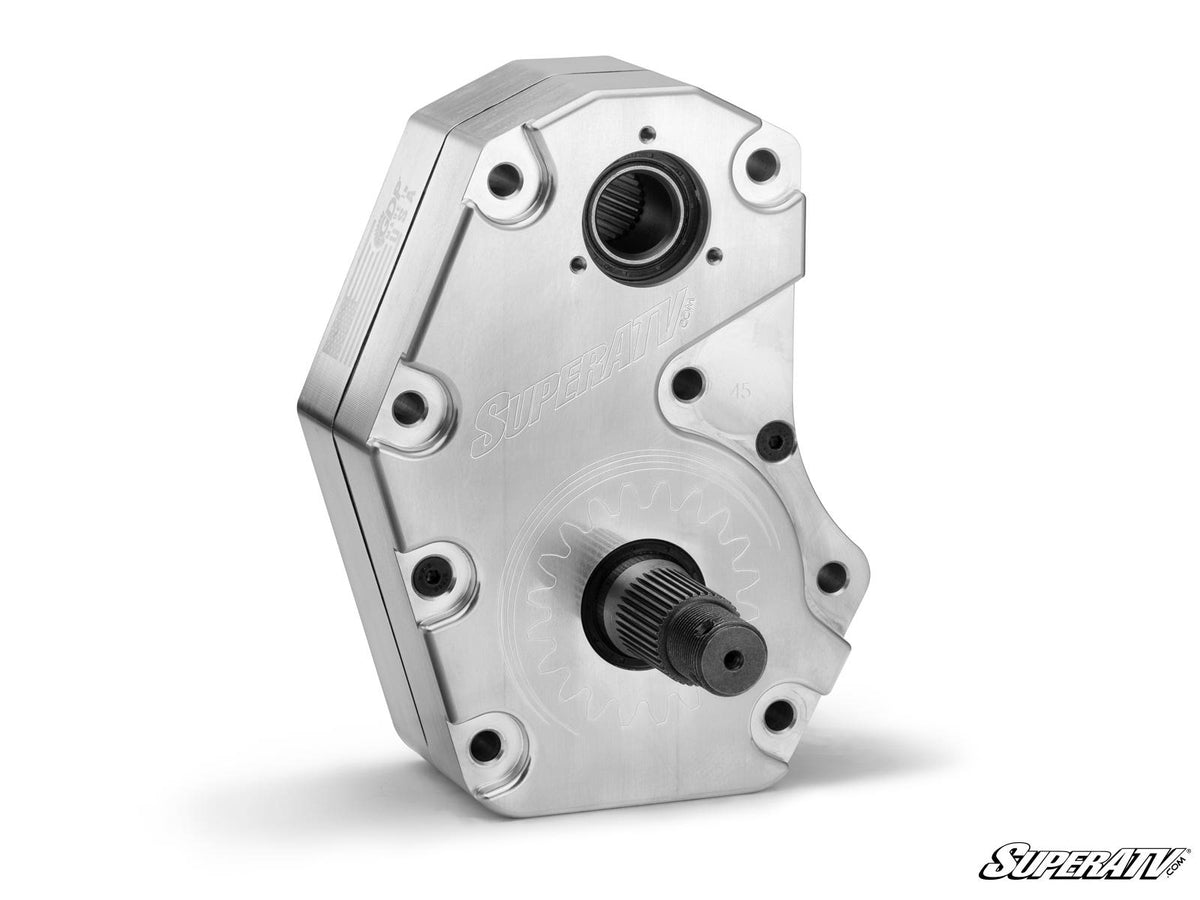

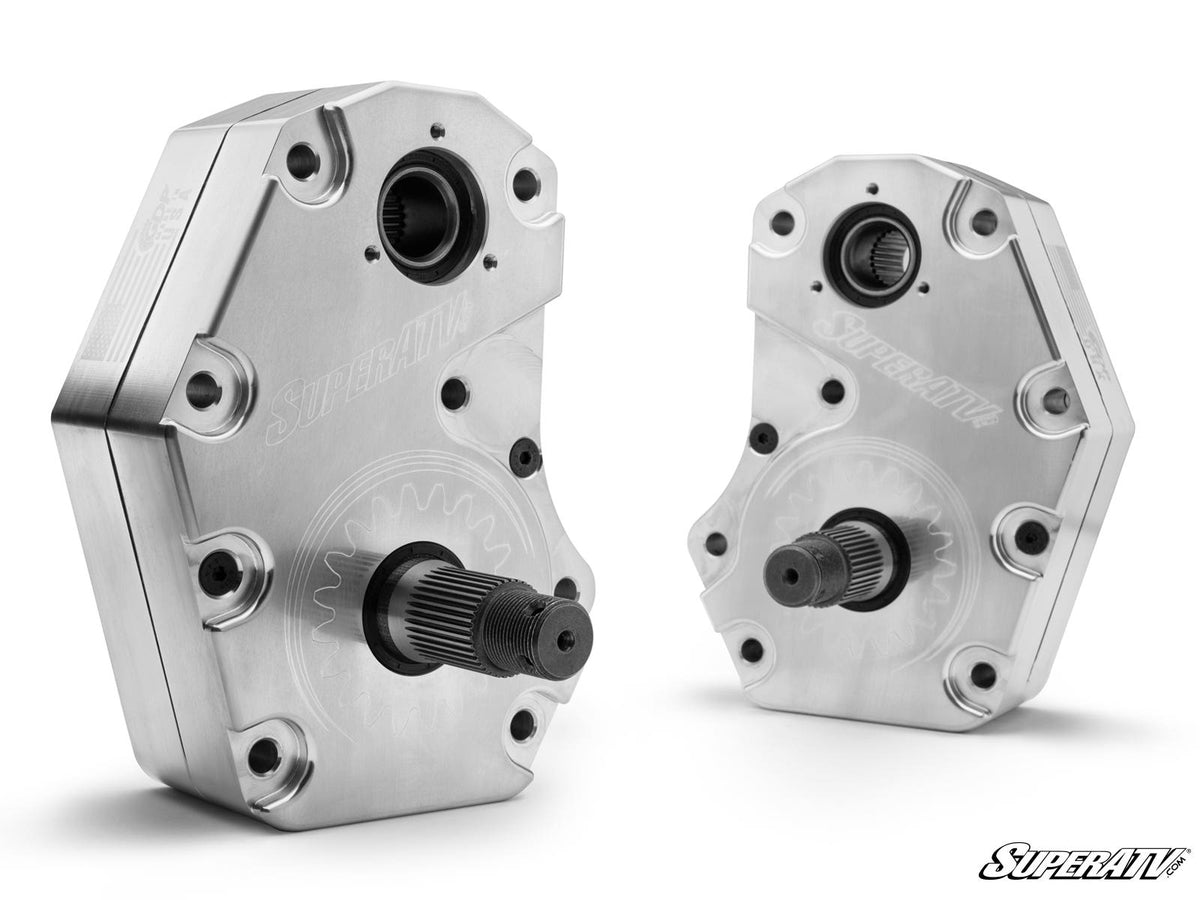

SuperATV’s GDP 6” Portal Gear Lift for the Textron Wildcat XX gives you a lift and a gear reduction in one box. Get the clearance to run bigger tires and the torque you need to turn them. The lift and gear reduction are in the hub which means they maintain suspension geometry and reduce drivetrain stress. Customize by choosing between a 30% or 45% gear reduction and selecting a cast or billet aluminum housing. GDP portals are truly Geared for All.
45% - Perfect for Mud
Install big 6” portals with a 45% gear reduction to get clearance for huge tires and a massive boost in torque. It’ll turn your monster tires like they’re stock and take your Wildcat through the biggest, thickest mud holes you can find. Mud doesn’t stand a chance.
45% - Perfect for Rocks
Get tons of torque to crawl over any rock or boulder you can find by installing a 6” portal box with a 45% gear reduction. With that much power, rock shelves will feel like speed bumps and boulders feel like pebbles. 6” of ground clearance means more room for bigger tires and less belly dragging through rock gardens.

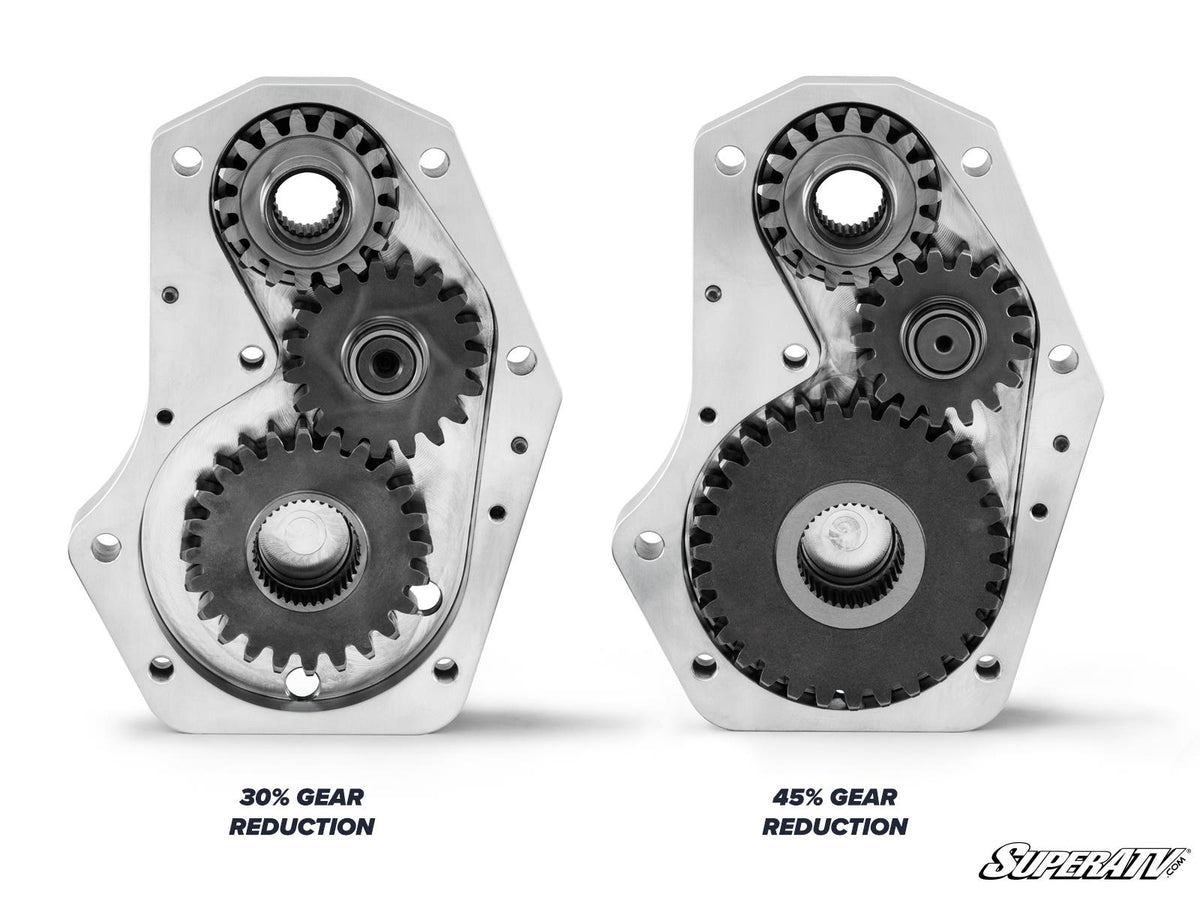

30% – Perfect for Everything
A 30% gear reduction lets you turn bigger tires and gives you the versatility to run mud, dominate trails and hills, and maintain high speed on the road. It gets your power to the ground® to make your UTV punchy and powerful no matter how you roll.
Learn more about how tire size and gear reduction can unleash your machine's potential.
Better Gears

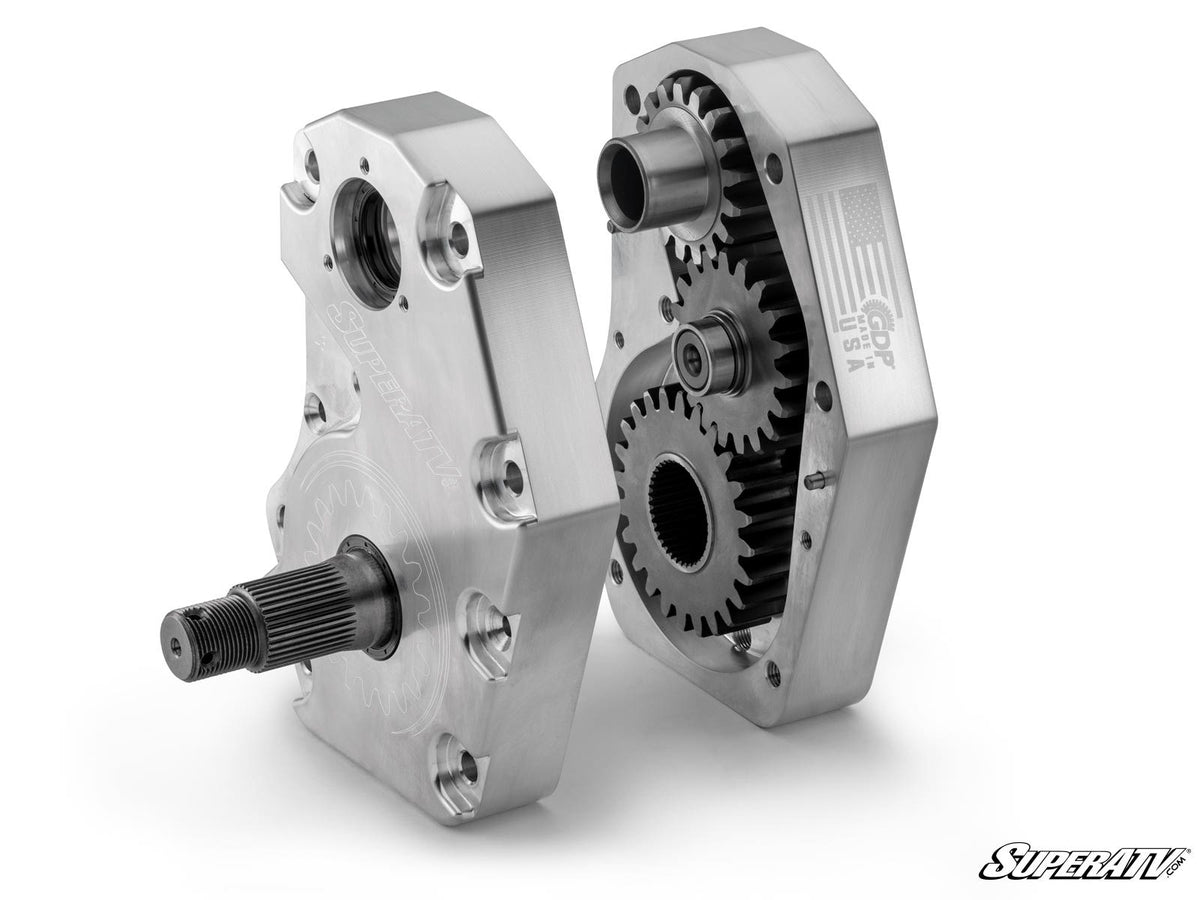

Our gears are precision ground and made with 9310 billet steel alloy for high strength and high speed. That means they’re cool and quiet even when you’re hammering down the throttle on the road, and they have strength to withstand every ride.
Stronger Housings by Design
We know how to make a strong portal housing by design, so no matter what we make them out of, they’re the best. Lucky for you, GDP housing designs are backed by unmatched real-world experience, so you can be confident that you’re getting a kick-ass housing whether you choose cast or USA-made billet aluminum.
Our housings are reinforced in all the right places
They’re built with better oil flow and gearing forces in mind
There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
Advanced Gaskets and Seals
Whether you go with cast or billet, both housings use
- Advanced gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
- Top-Rated Customer Service
Still need a little help getting exactly what you need? We’ve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.
Textron Wildcat XX Portal Gear Reduction Recommendations
Max Tire Size Required Suspension Setup with 6" Portals Recommended 6" Portal Gear Reduction
Up to 36" Stock 30%
Up to 36" 2" lift kit 30%
Gear reductions listed are general guidelines to maximize torque and maintain factory top speed. A larger than recommended gear reduction will result in more torque and lower top speed. Give us a call for more information.
Patent # 11,299,042
Features
- Available with billet or cast aluminum housing
- 9310 alloy billet steel precision ground gears are cool and quiet
- Increases width by 4 in. per side (8 in. total)
- 1.5 in. diameter 4340 hardened steel drive shaft
- No leak bearings and seals
- Universal hubs can be set up to work with the following bolt patterns: 4/156, 4/137, 4/115, and 4/110
- Comes complete with all hardware, backing plates, brake lines, and instructions
Fitment (per SuperATV)
Textron Wildcat XX : 2018+ Tracker XTR1000 : 2020+
Wheel Requirements
- 18” or larger wheel required
- 18" Cannot exceed 4-1/2" backspacing
- 20" Cannot exceed 5” backspacing
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer
Installation instructions (PDF)
Ships free from SuperATV. Price is SuperATV's current price.
