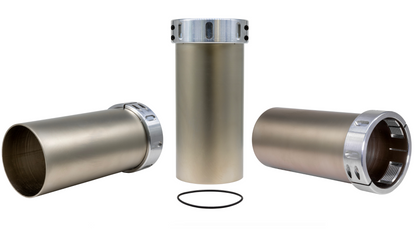

Wear Sleeve Kits

Why Wear Sleeve Kits?
If you’ve invested in high-quality shocks, you understand the importance of keeping them in good working order. Shock bodies are particularly vulnerable to surface wear, especially under the stresses of off-road use and environmental dangers. ALL SPRING PACKAGES, including from factory can cause abrasion and wear on the shock body. As the springs compress through the shock travel, combined with the off-road elements such as dirt and rocks, a damaging effect is created inside the spring divider that slides across the shock body. ALL SHOCKS are affected by this, which is why Shock Therapy developed our industry leading and patented Wear Sleeve Kits—to combat this unavoidable wear and extend the life of your shock body.

Benefits of Wear Sleeve Kits:

Reduces Wear
Wear Sleeves provide a smooth, hardened steel barrier between the shock body and the spring divider. This significantly reduces wear from the environment and minimizes the potential for body damage.

Shields from Environmental Damage
Dirt, debris, mud, and even harsh weather conditions can contribute to shock body wear. Wear Sleeve Kits act as a shield, protecting your shock bodies and keeping them cleaner and less susceptible to premature damage from the elements.

Extends Shock Life
By protecting the shock body, Wear Sleeve Kits reduce the need for costly repairs or replacements of shock bodies Less surface damage means fewer maintenance requirements, allowing you to keep your vehicle on the road—or off it—longer.

Easy DIY Installation
Designed to bolt directly onto your stock Fox or Walker Evans shock bodies, our patented Wear Sleeve Kits are easy to install using our uniquely made two-piece crossover design, making them an excellent and easy DIY upgrade for any UTV shock.

Upgraded Crossover
Our unique and patented Wear Sleeve Kits offer a unique upgrade in our two-piece crossover design. This kit still allows the easy adjustability that our standard billet crossover design allows, leaving you with the same feeling of knowing you can adjust your crossovers with ease.

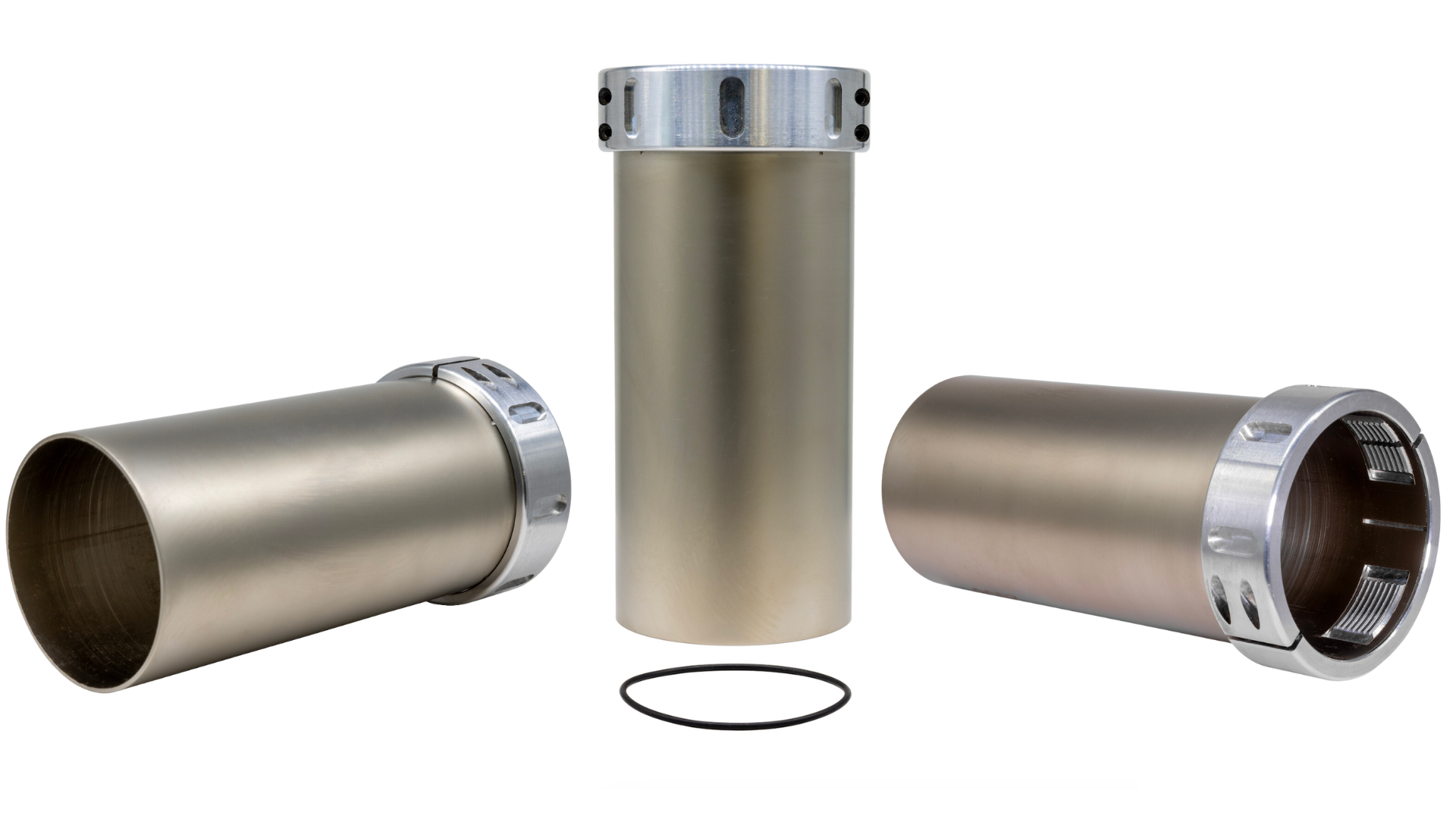

What’s Included?
When you purchase a Wear Sleeve Kit from Shock Therapy, you’ll receive everything you need for a complete shock body protection system:

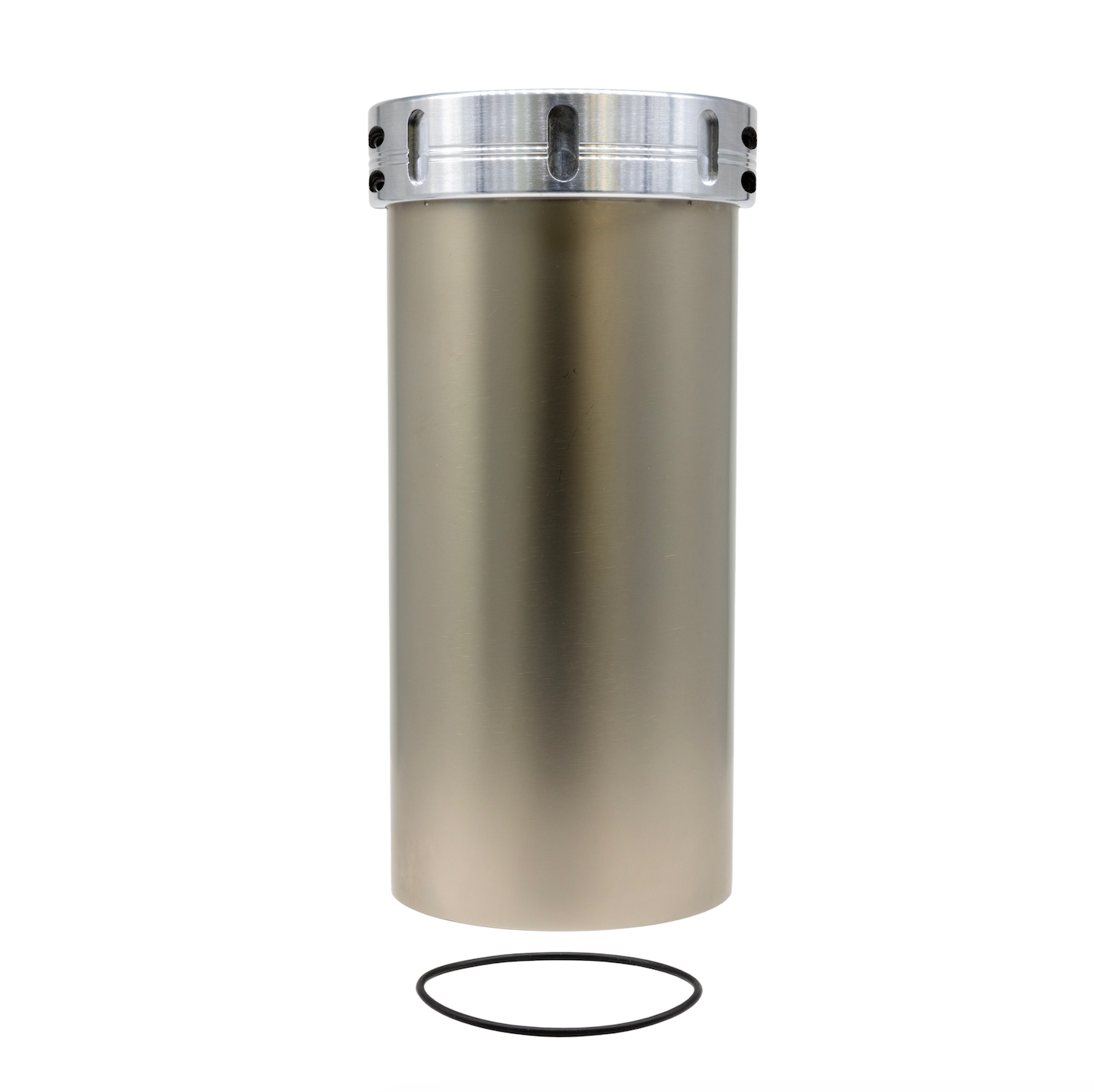

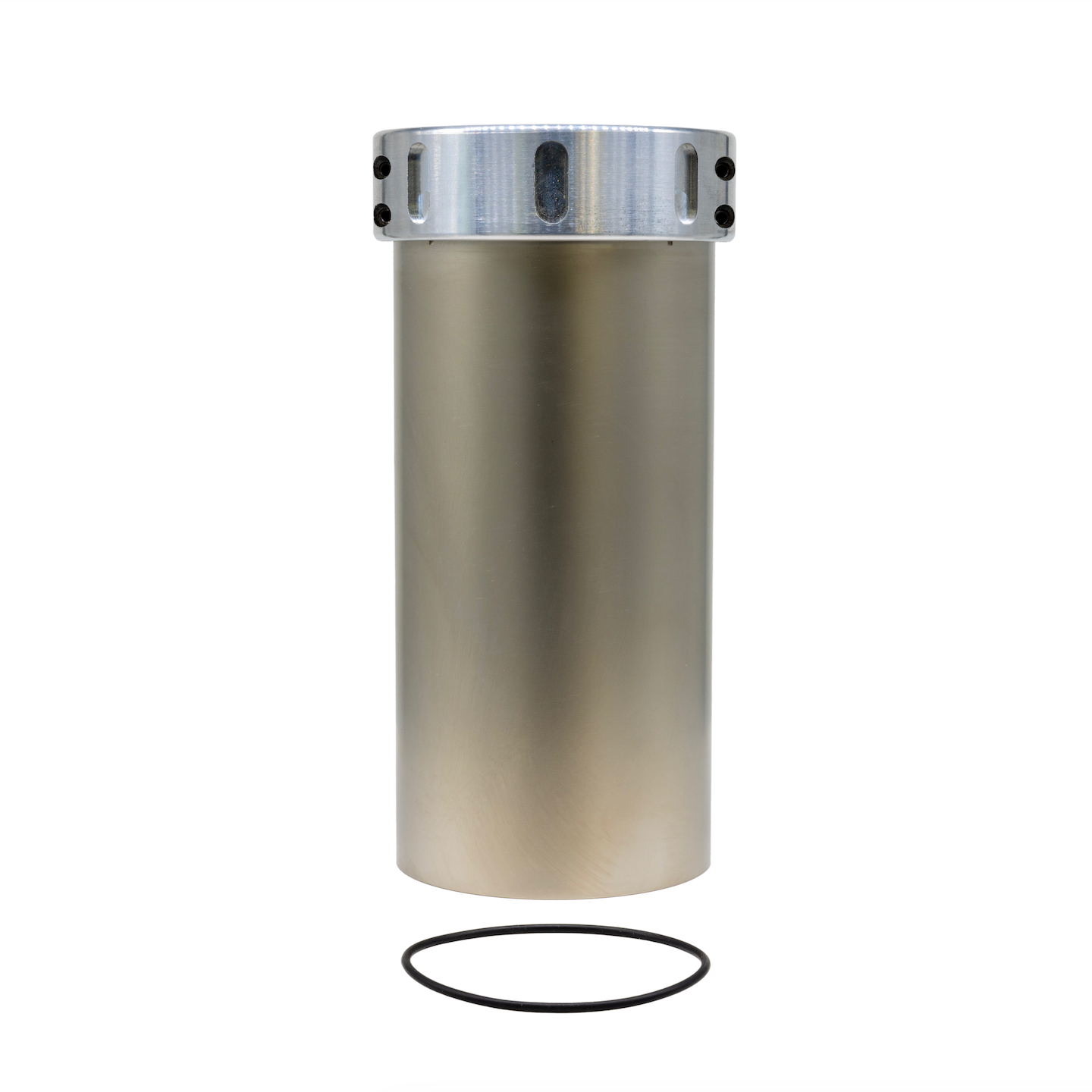

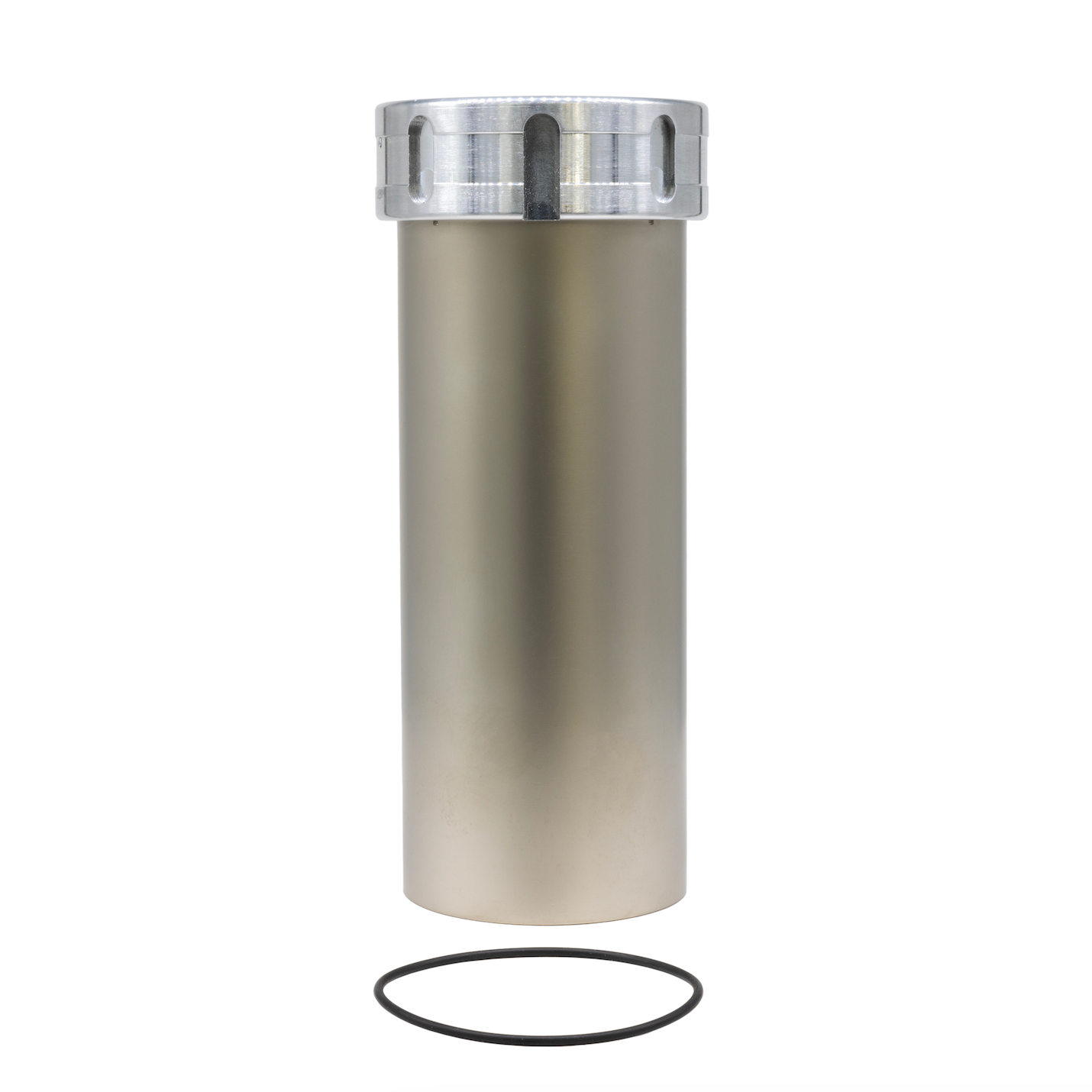

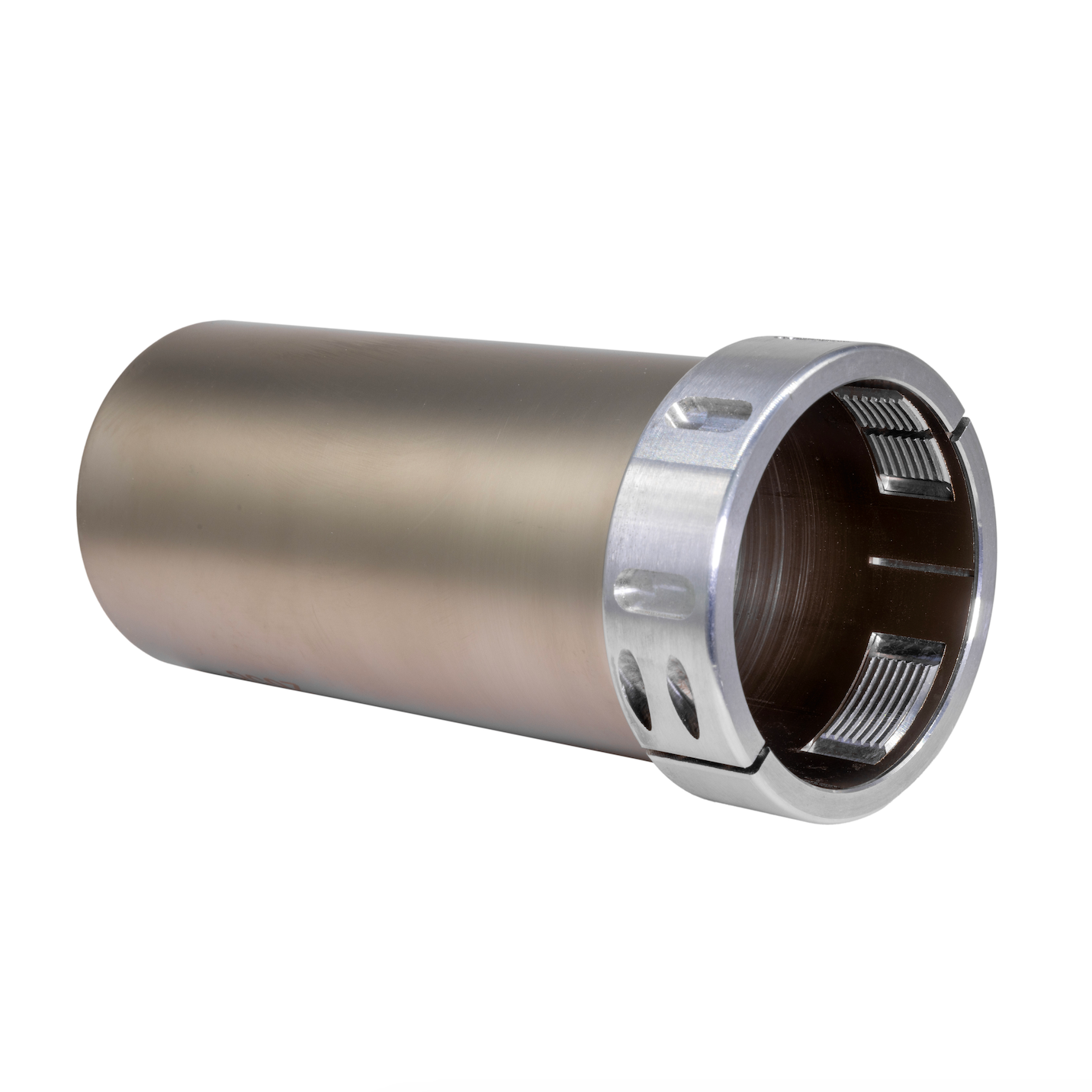

2 x Two-Piece Billet Crossover Rings

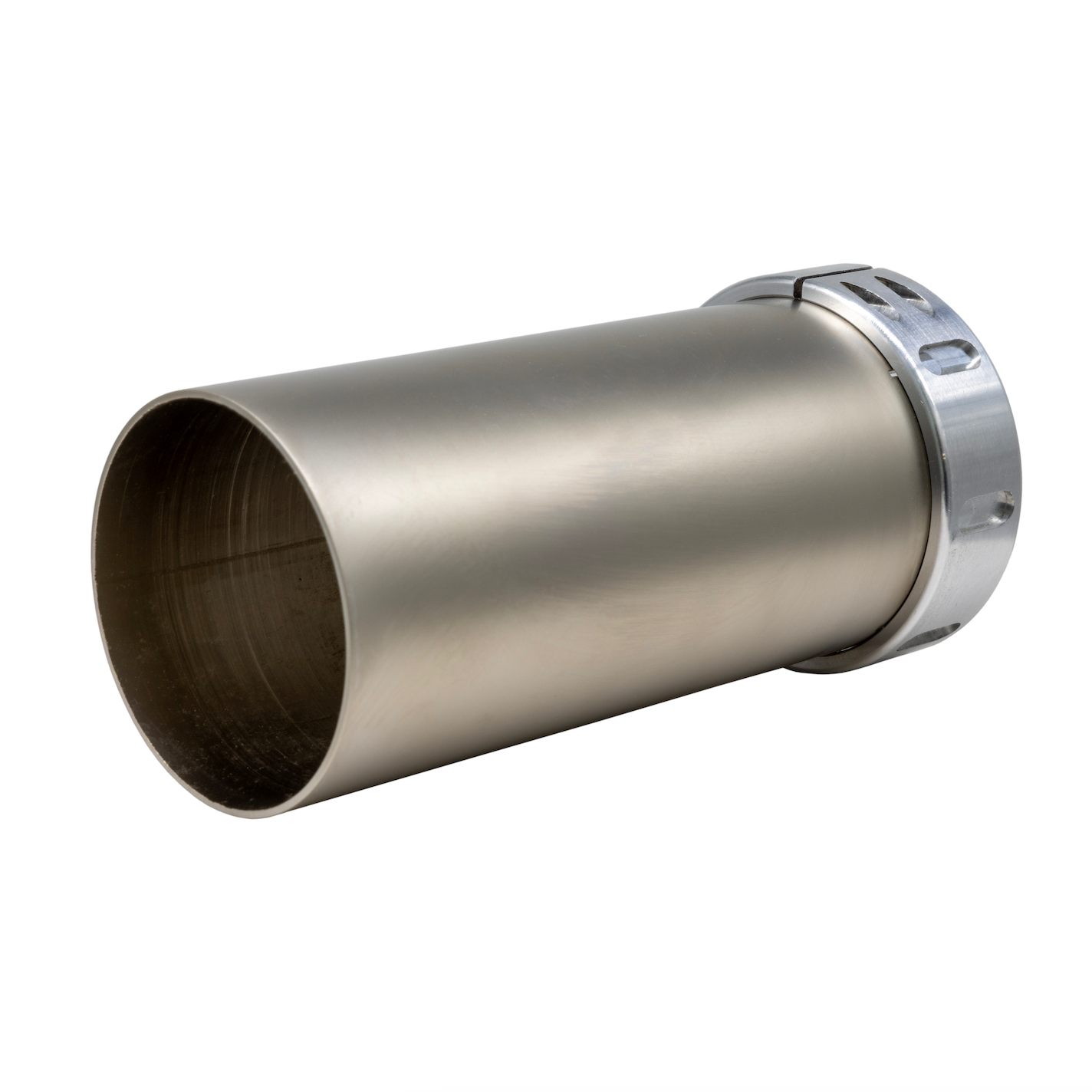

2 x Hardened Steel Wear Sleeves

8 x Crossover Screws

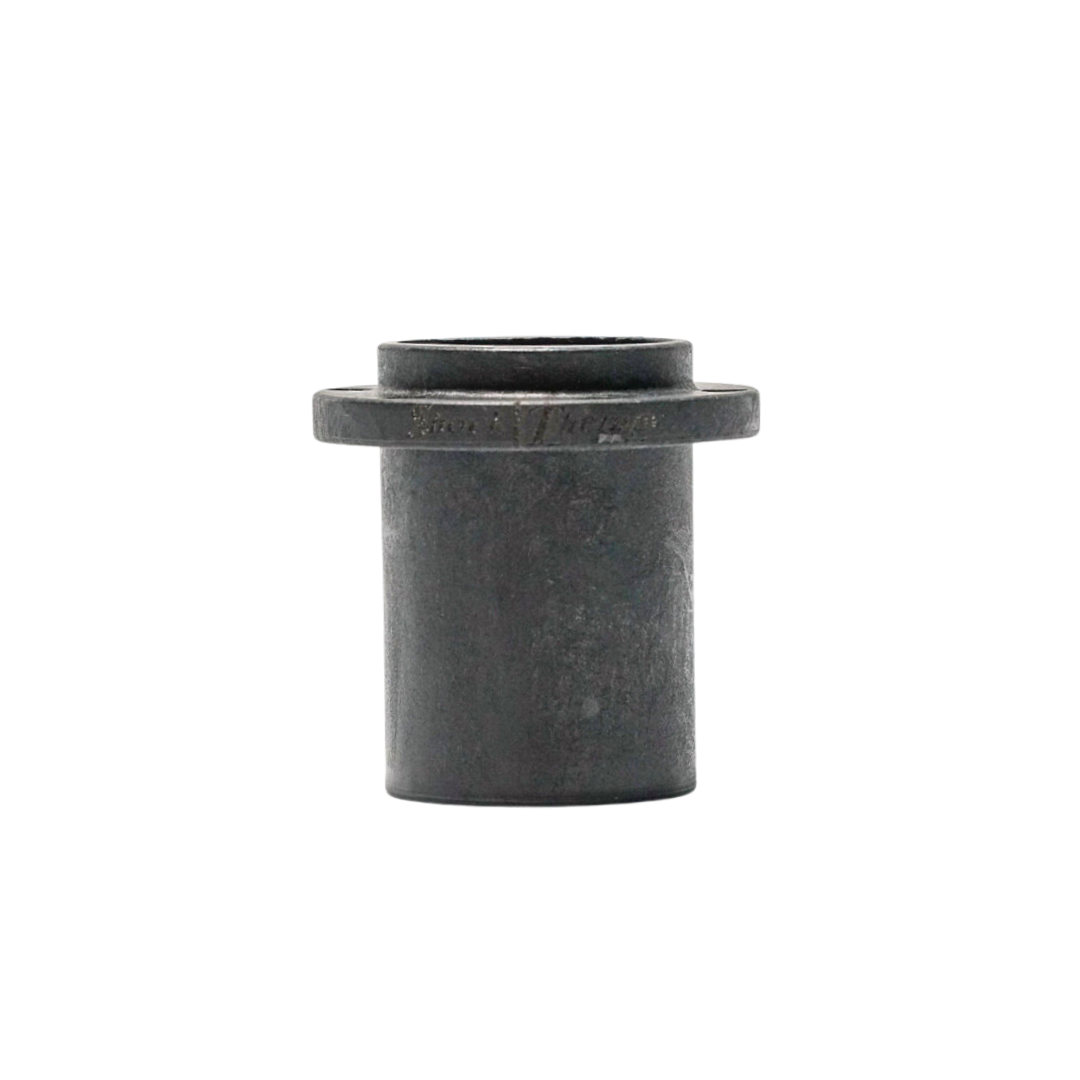

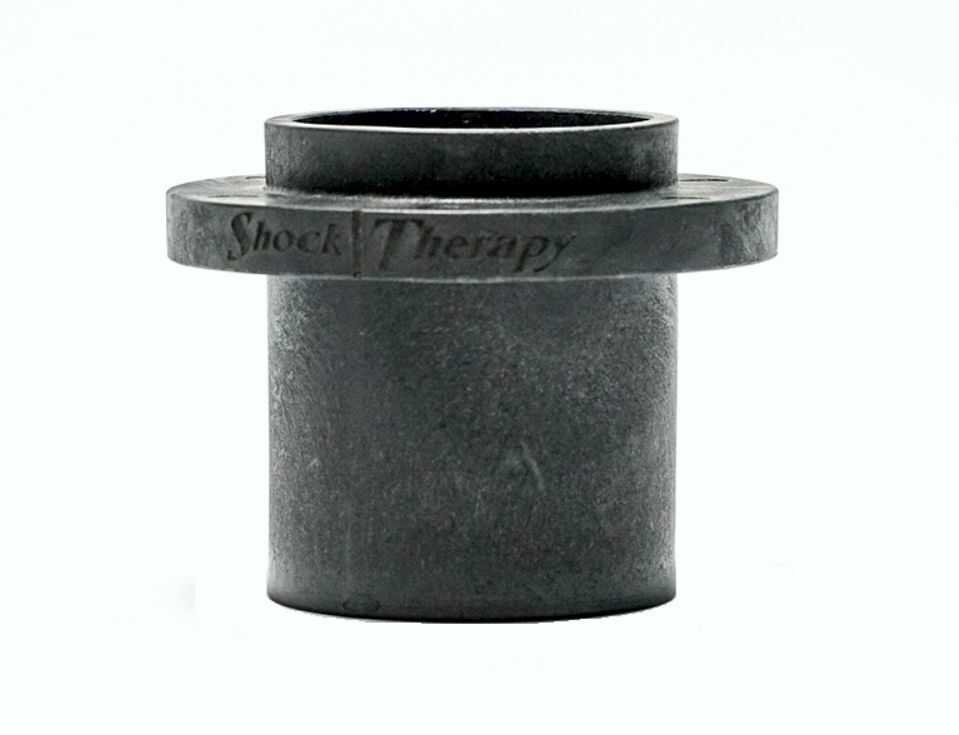

2 x Nylon Spring Dividers

Each kits provides parts for a pair of shocks, not a single shock!

Proudly manufactured in the USA, Shock Therapy’s Wear Sleeve Kits are built to meet the toughest standards and provide a long-lasting solution to shock body wear.

*Please note, when purchasing the wear sleeve kit for a PRO R or TURBO R, the front fork must be removed to install the wear sleeve! We offer a shaft clamp to help with the fork removal here*
The Shock Therapy Difference
As specialists in off-road performance, we know that every part of your suspension system plays a crucial role in overall vehicle performance. Wear Sleeve Kits not only improve the longevity of your shocks but also reduce the impact on your springs and shock dividers. With a lifetime warranty and a patented, industry leading and American-made design, Wear Sleeve Kits offer peace of mind, knowing you’ve invested in quality protection for your shocks.

Get ready to experience a new level of shock protection with Wear Sleeve Kits!

Shock Size Guide for Shock Therapy Wear Sleeve Kits

POLARIS
Shock Make
Front Shock Size
Front Spring Size
Rear Shock Size
Rear Spring Size

800 4 SEAT
Fox
2.0"
2.5"
2.0"
2.5"

XP900 2 SEAT FOX
Fox
2.0"
2.5"
2.0"
2.5"

XP900 2 SEAT W/E
Walker Evans
2.0"
3.0"
2.5"
3.0"

XP900 4 SEAT FOX
Fox
2.0"
2.5"
2.0"
2.5"

XP900 4 SEAT W/E
Walker Evans
2.0"
3.0"
2.5"
3.0"

2014-2016 XP1000 2 SEAT WALKER
Walker Evans
2.0"
3.0"
2.5"
3.0"

2014-2016 XP1000 4 SEAT WALKER
Walker Evans
2.0"
3.0"
2.5"
3.0"

2015 XP1000 FOX EDITION
Fox
2.5"
3.0"
3.0"
3.55"

2016-2018 XPT 2 SEAT FOX
Fox
2.5"
3.0"
3.0"
3.55"

2016-2018 XPT 4 SEAT FOX
Fox
2.5"
3.0"
3.0"
3.55"

900S 2 SEAT FOX
Fox
2.0"
2.5"
2.0"
2.5"

900S 2 SEAT W/E
Walker Evans
2.0"
2.5"
2.0"
2.5"

900S 4 SEAT FOX
Fox
2.0"
2.5"
2.0"
2.5"

900S 4 SEAT W/E
Walker Evans
2.0"
2.5"
2.0"
2.5"

1000S FOX 2 SEAT
Fox
2.0"
2.5"
2.0"
2.5"

1000S WALKER EVANS 2 SEAT
Walker Evans
2.0"
2.5"
2.0"
2.5"

1000S FOX 4 SEAT
Fox
2.0"
2.5"
2.0"
2.5"

1000S WALKER EVANS 4 SEAT
Walker Evans
2.0"
2.5"
2.0"
2.5"

GENERAL 2 SEAT FOX
Fox
2.0"
2.5"
2.0"
2.5"

GENERAL 2 SEAT W/E RESERVOIR SHOCK
Walker Evans
2.0"
2.5"
2.0"
2.5"

GENERAL 4 SEAT FOX
Fox
2.0"
2.5"
2.0"
2.5"

GENERAL 4 SEAT W/E RESERVOIR SHOCK
Walker Evans
2.0"
2.5"
2.0"
2.5"

2017 HIGHLIFTER 2 SEAT
Walker Evans
2.0"
3.0"
2.5"
3.0"

2017 HIGHLIFTER 4 SEAT
Walker Evans
2.0"
3.0"
2.5"
3.0"

900 TRAIL 2 SEAT
Fox
2.0"
2.5"
2.0"
2.5"

2017-2018 XP1000 2 SEAT W/E
Walker Evans
2.0"
3.0"
2.5"
3.0"

2017-2020 XP1000 4 SEAT W/E
Walker Evans
2.0"
3.0"
2.5"
3.0"

2017-2020 HIGHLIFTER 2 SEAT
Walker Evans
2.0"
3.0"
2.5"
3.0"

2017-2020 HIGHLIFTER 4 SEAT
Walker Evans
2.0"
3.0"
2.5"
3.0"

2018-2020 XPT 2 SEAT W/E
Walker Evans
2.0"
3.0"
2.5"
3.0"

2018-2020 XPT 4 SEAT W/E
Walker Evans
2.0"
3.0"
2.5"
3.0"

2018-2019 XPT 2 SEAT FOX IBP
Fox
2.5"
3.0"
3.0"
3.55"

2018-2019 XPT 4 SEAT FOX IBP
Fox
2.5"
3.0"
3.0"
3.55"

2018-2020 XPT DYNAMIX 2 SEAT
Fox
2.5"
3.0"
2.5"
3.0"

2018-2020 XPT DYNAMIX 4 SEAT
Fox
2.5"
3.0"
2.5"
3.0"

2018-2019 TURBO S DYNAMIX 2 SEAT
Fox
2.5"
3.0"
3.0"
3.55"

2018-2019 TURBO S DYNAMIX 4 SEAT
Fox
2.5"
3.0"
3.0"
3.55"

RS1
Walker Evans
2.0"
3.0"
2.5"
3.0"

2018-2019 XP1000 ROCK EDITION W/E
Walker Evans
2.0"
3.0"
2.5"
3.0"

2019-2020 XP1000 2 SEAT W/E
Walker Evans
2.0"
3.0"
2.5"
3.0"

2019-2020 XP1000 4 SEAT W/E
Walker Evans
2.0"
3.0"
2.5"
3.0"

2019+ TURBO S VELOCITY 2 SEAT
Walker Evans
2.5"
3.0"
3.0"
3.55"

2019+ TURBO S VELOCITY 4 SEAT
Walker Evans
2.5"
3.0"
3.0"
3.55"

2019-2024 PRO XP 2 SEAT FOX LIVE VALVE
Fox
2.5"
3.0"
2.55"
3.0"

2019-2024 PRO XP 4 SEAT FOX LIVE VALVE
Fox
2.5"
3.0"
2.55"
3.0"

2019-2024 PRO XP 2 SEAT W/E
Walker Evans
2.0"
3.0"
2.5"
3.0"

2019-2024 PRO XP 4 SEAT W/E
Walker Evans
2.0"
3.0"
2.5"
3.0"

2023 PRO XP SPORT 4 SEAT QS3
Fox
2.1"
3.0"
2.55"
3.0"

2021 GENERAL XP1000 VELOCITY 2 SEAT
Walker Evans
2.0"
3.0"
2.5"
3.0"

2021 GENERAL XP1000 VELOCITY 4 SEAT
Walker Evans
2.0"
3.0"
2.5"
3.0"

2020-2021 TURBO S DYNAMIX 2 SEAT
Fox
2.5"
3.0"
3.05"
3.55"

2020-2021 TURBO S DYNAMIX 4 SEAT
Fox
2.5"
3.0"
3.05"
3.55"

2019-2020 NON-TURBO DYNAMIX 2 SEAT
Fox
2.5"
3.0"
2.5"
3.0"

2019-2020 NON-TURBO DYNAMIX 4 SEAT
Fox
2.5"
3.0"
2.5"
3.0"

PRO R 2 SEAT DYNAMIX
Fox
3.05"
3.75"
N/A
N/A

PRO R 4 SEAT DYNAMIX
Fox
3.05"
3.75"
N/A
N/A

PRO R 2 SEAT WALKER EVANS
Walker Evans
N/A
N/A
3.0"
3.75"

PRO R 4 SEAT WALKER EVANS
Walker Evans
N/A
N/A
3.0"
3.75"

TURBO R 2 SEAT DYNAMIX
Fox
3.05"
3.75"
N/A
N/A

TURBO R 4 SEAT DYNAMIX
Fox
3.05"
3.75"
N/A
N/A

TURBO R 2 SEAT WALKER EVANS
Walker Evans
N/A
N/A
3.0"
3.75"

TURBO R 4 SEAT WALKER EVANS
Walker Evans
N/A
N/A
3.0"
3.75"

2023+ RZR XP 4 SEAT WALKER EVANS
Walker Evans
2.0"
3.0"
2.5"
3.0"

2023+ RZR XP 2 SEAT WALKER EVANS
Walker Evans
2.0"
3.0"
2.5"
3.0"

EXPEDITION 4 SEAT
Fox
2.1"
3.0"
2.5"
3.0"

2022 PRO XP SPORT 2 SEAT QS3'S
Fox
2.1"
3.0"
2.5"
3.0"

EXPEDITION 4 SEAT W/ THUMPER FAB LONG TRAVEL
Fox
2.1"
3.0"
2.55"
3.0"

CAN-AM
Shock Make
Front Shock Size
Front Spring Size
Rear Shock Size
Rear Spring Size

COMMANDER 2 SEAT 2.0
Fox
2.0"
2.5"
2.0"
2.5"

MAVERICK 2.0 2 SEAT
Fox
2.0"
2.5"
2.0"
2.5"

MAVERICK 2.5 2 SEAT
Fox
2.5"
3.0"
2.5"
3.0"

MAVERICK 2.5 4 SEAT
Fox
2.5"
3.0"
2.5"
3.0"

MAVERICK TRAIL/XC 2 SEAT
Fox
2.0"
2.5"
2.0"
2.5"

DS TURBO 2 SEAT
Fox
2.5"
3.0"
2.5"
3.0"

DS TURBO 4 SEAT
Fox
2.5"
3.0"
2.5"
3.0"

2017-2019 X3 BASE 2 SEAT
Fox
2.5"
3.0"
2.5"
3.0"

2017-2019 X3 BASE 4 SEAT
Fox
2.5"
3.0"
2.5"
3.0"

2017-2019 X3 DS 2 SEAT
Fox
2.5"
3.0"
2.5"
3.0"

2017-2019 X3 DS 4 SEAT
Fox
2.5"
3.0"
2.5"
3.0"

2017-2019 X3 RS 2 SEAT
Fox
2.5"
3.0"
3.0"
3.75"

2017-2019 X3 RS 4 SEAT
Fox
2.5"
3.0"
3.0"
3.75"

2017-2019 X3 MR 64" 2 SEAT
Fox
2.5"
3.0"
2.5"
3.0"

2017-2019 X3 RC 64" 2 SEAT
Fox
2.5"
3.0"
2.5"
3.0"

2017-2019 X3 MR 72" 4 SEAT
Fox
2.5"
3.0"
2.5"
3.0"

2017-2019 X3 RC 72" 2 SEAT
Fox
2.5"
3.0"
3.0"
3.75"

X3 900
Fox
2.5"
3.0"
2.5"
3.0"

2020-2021 X3 DS TURBO RR RC2 2 SEAT
Fox
2.5"
3.0"
2.5"
3.0"

2020-2021 X3 DS TURBO RR RC2 4 SEAT
Fox
2.5"
3.0"
2.5"
3.0"

X3 RS TURBO RR 2 SEAT
Fox
2.5"
3.0"
3.0"
3.75"

X3 RS TURBO RR 4 SEAT
Fox
2.5"
3.0"
3.0"
3.75"

2020-2021 X3 MR TURBO RR 64" QS3 2 SEAT
Fox
2.5"
3.0"
2.5"
3.0"

2020-2021 X3 RC TURBO RR 72" 2 SEAT
Fox
2.5"
3.0"
3.0"
3.75"

2020-2021 X3 MR TURBO RR 72" 2 SEAT
Fox
2.5"
3.0"
2.5"
3.0"

2020-2021 X3 DS TURBO R QS3 2 SEAT
Fox
2.5"
3.0"
2.5"
3.0"

2020-2021 X3 DS TURBO R QS3 4 SEAT
Fox
2.5"
3.0"
2.5"
3.0"

2020-2021 X3 RS TURBO R QS3 72" 2 SEAT
Fox
2.5"
3.0"
2.5"
3.0"

2020-2021 X3 RS TURBO R QS3 72" 4 SEAT
Fox
2.5"
3.0"
2.5"
3.0"

2019/2020 MAVERICK 2.5 X-XC 2 SEAT
Fox
2.5"
3.0"
2.5"
3.0"

2019/2020 MAVERICK 2.5 X-MR 2 SEAT
Fox
2.5"
3.0"
2.5"
3.0"

2019/2020 MAVERICK 2.5 X-RC 2 SEAT
Fox
2.5"
3.0"
2.5"
3.0"

2019/2020 MAVERICK 2.0 SPORT/DPS 2 SEAT
Fox
2.0"
2.5"
2.0"
2.5"

2021 X3 RS TURBO RR SMART SHOCK 2 SEAT
Fox
2.5"
3.0"
3.0"
3.75"

2021 X3 RS TURBO RR SMART SHOCK 4 SEAT
Fox
2.5"
3.0"
3.0"
3.75"

2021 COMMANDER XT-P 2 SEAT
Fox
2.5"
3.0"
2.5"
3.0"

2020 MAVERICK SPORT MAX
Fox
2.0"
2.5"
2.0"
2.5"

2021 COMMANDER XT-P 4 SEAT
Fox
2.5"
3.0"
2.5"
3.0"

YAMAHA
Shock Make
Front Shock Size
Front Spring Size
Rear Shock Size
Rear Spring Size

YXZ 1000R BASE RC2
Fox
2.5"
3.0"
2.5"
3.0"

YXZ 1000R SS OR SE X2
Fox
2.5"
3.0"
2.5"
3.0"

WOLVERINE RMAX 1000/SPEC/XT-R 2 SEAT
Fox
2.1"
2.5"
2.1"
2.5"

WOLVERINE RMAX 1000/SPEC/XT-R 4 SEAT
Fox
2.1"
2.5"
2.1"
2.5"

RMAX LIMITED 2 SEAT
Fox
2.1"
2.5"
2.1"
2.5"

RMAX LIMITED 4 SEAT
Fox
2.1"
2.5"
2.1"
2.5"

RMAX SPORT 2 SEAT KIT
Fox
2.1"
2.5"
2.1"
2.5"

TEXTRON
Shock Make
Front Shock Size
Front Spring Size
Rear Shock Size
Rear Spring Size

WILDCAT XX 2 SEAT
Fox
2.5"
3.0"
2.5"
3.0"

KAWASAKI
Shock Make
Front Shock Size
Front Spring Size
Rear Shock Size
Rear Spring Size

KRX 2 SEAT
Fox
2.55"
3.0"
N/A
N/A

KRX 2 SEAT LIVE VALVE
Fox
2.55"
3.0"
N/A
N/A

KRX 4 SEAT LIVE VALVE
Fox
2.55"
3.0"
N/A
N/A

KRX 4 SEAT
Fox
2.55"
3.0"
N/A
N/A

HONDA
Shock Make
Front Shock Size
Front Spring Size
Rear Shock Size
Rear Spring Size

TALON 1000R 4 SEAT
Fox
2.5"
3.0"
2.5"
3.0"

TALON 1000X 2 SEAT
Fox
2.0"
2.5"
2.0"
2.5"

TALON 1000R 2 SEAT
Fox
2.5"
3.0"
2.5"
3.0"

TALON 1000X LIVE VALVE 4 SEAT
Fox
2.5"
3.0"
2.55"
3.0"

TALON 1000X 4 SEAT
Fox
2.0"
2.5"
2.55"
3.0"

TALON 1000R 2 SEAT LIVE VALVE
Fox
2.5"
3.0"
2.55"
3.0"

TALON 1000X 2 SEAT LIVE VALVE
Fox
2.5"
3.0"
2.55"
3.0"

2021+ TALON 1000X NON LIVE VALVE
Fox
2.0"
2.5"
2.0"
2.5"

TALON 1000R 4 SEAT LIVE VALVE
Fox
2.5"
3.0"
2.55"
3.0"
