Small But Mighty This badass amplifier is small but
mighty! It’s compact enough to work on ATVs and motorcycles but powerful
enough to support full-range speakers. And it’s corrosion-resistant so you’ll
be able to rock out anywhere your adventure takes you with this MTX MUD100-2
UTV Amplifier.
2 Powerful Audio Channels Don’t
underestimate this MTX amplifier just because it’s small. It delivers
incredible sound quality using full range class D topology. It includes 2
channels that are powerful enough to deliver 100 watts of RMS per
channel—that’s more than you need to support single or dual full ranger
speakers.
Built with the Outdoors in Mind MTX
designed this amplifier with the outdoors rider in mind. They use a coated
circuit board and sealed control covers to protect the internal electronic

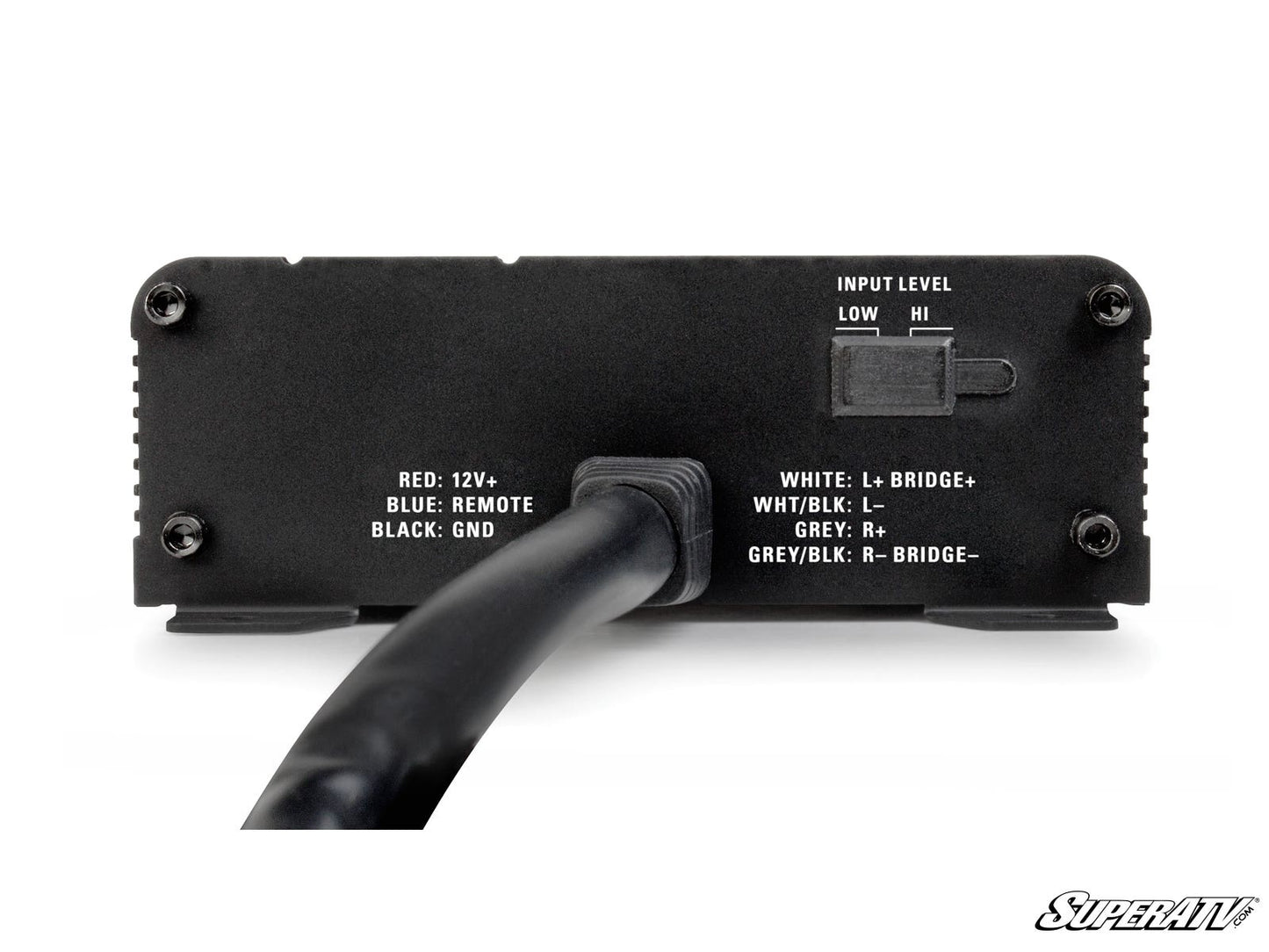

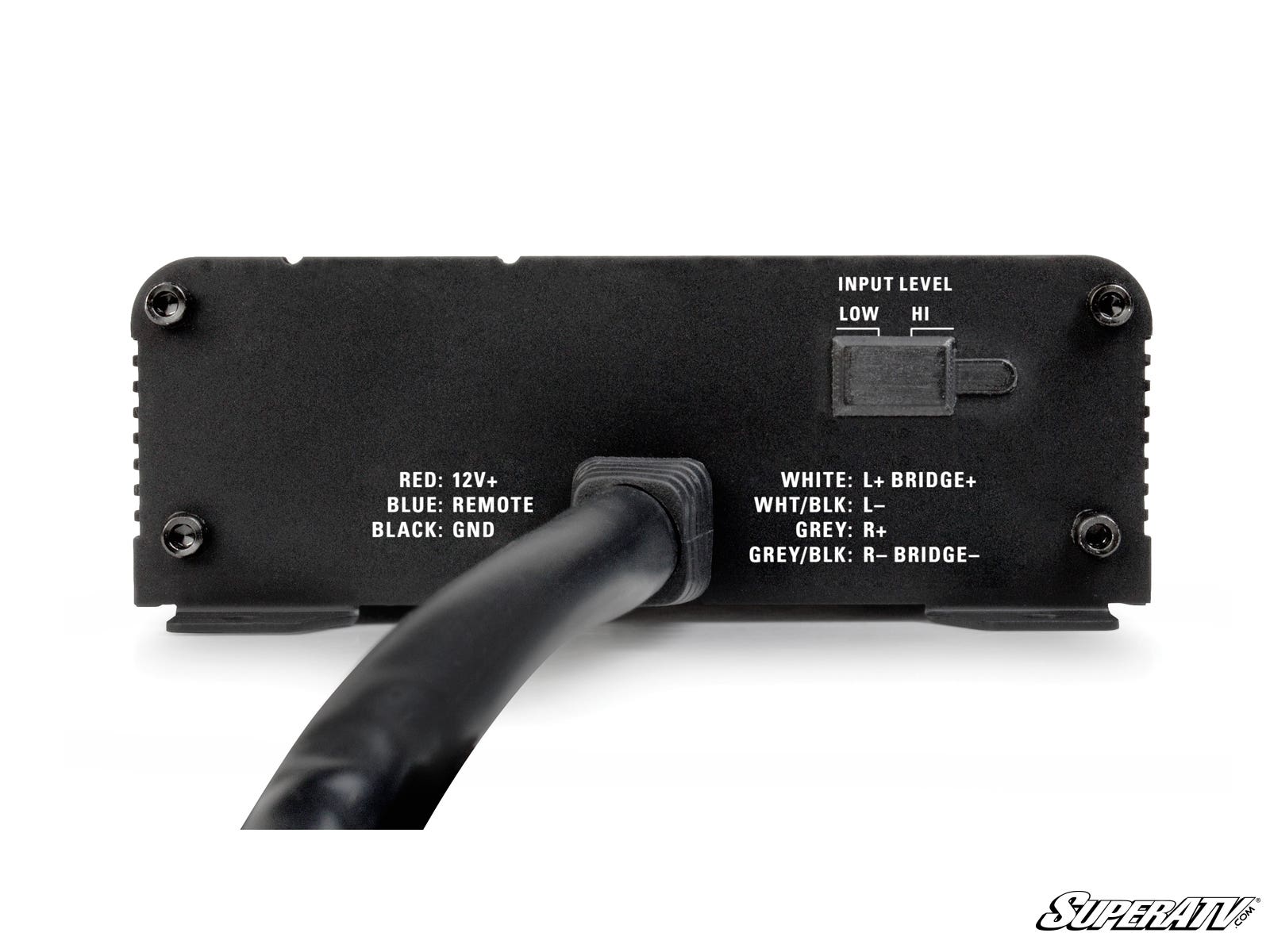

components from corrosion. The power, ground, and signal wires don’t have to
connect directly to the amplifier, providing an extra layer of protection
against mud, dirt, and water.
|
| Specs | |
Description | 2-Channel |
4Ω RMS Power
Output | 50W x 2 Channels |
| 2Ω RMS Power Output |
100W x 2 Channels |
| 4Ω Bridged | 200W x
1-Channel |
| Topology | Full Range Class D |
| THD | <1.0% |
| Frequency Response |
20Hz - 20kHz |
| Crossover | Fixed HPF/LPF @ 80Hz,
12dB/Oct |
| Max Sensitivity | 200mV |
Maximum Input Signal | 5V |
| Height |
4.22" |
| Width | 5.72" |
Depth | 1.86" |
FEATURE
- Compact design
- Corrosion-resistant circuit board

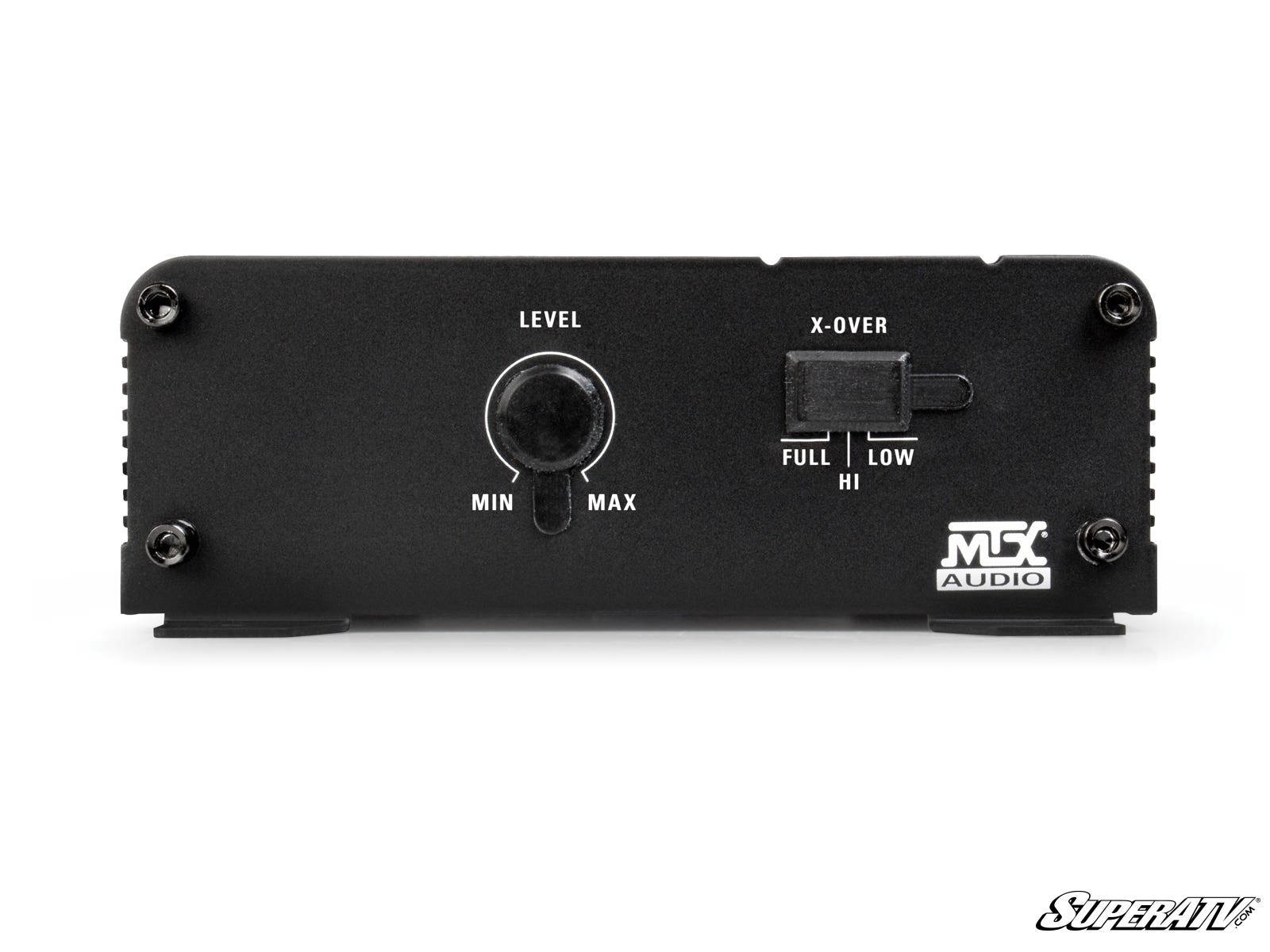

- High and low pass crossovers for use with full range speakers or
subwoofers - High and low level inputs allow connection to both speaker
and RCA input signals - 2Ω Stable
- 2 Channels
- Full
Range class D topology - Bridgeable
