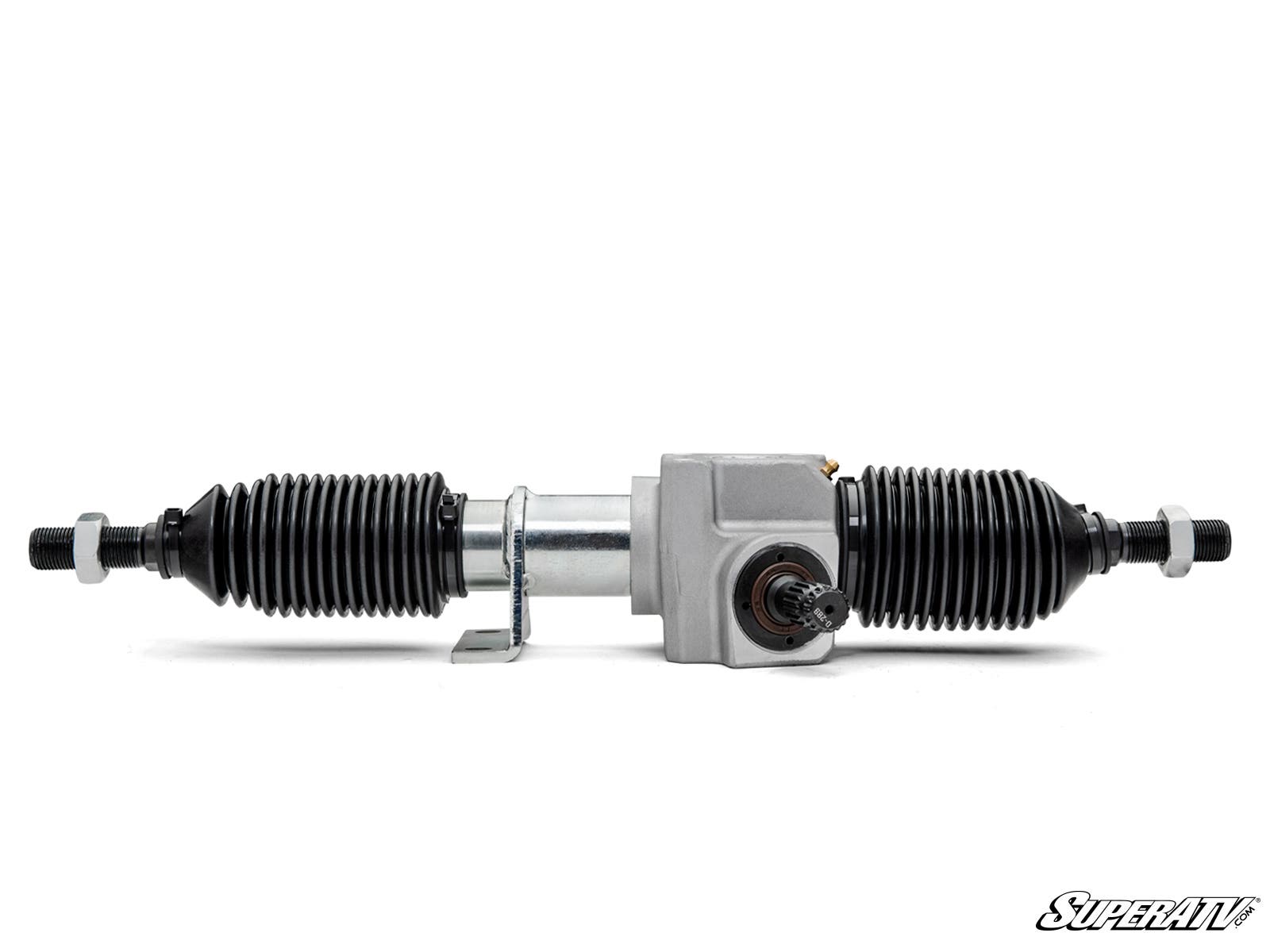

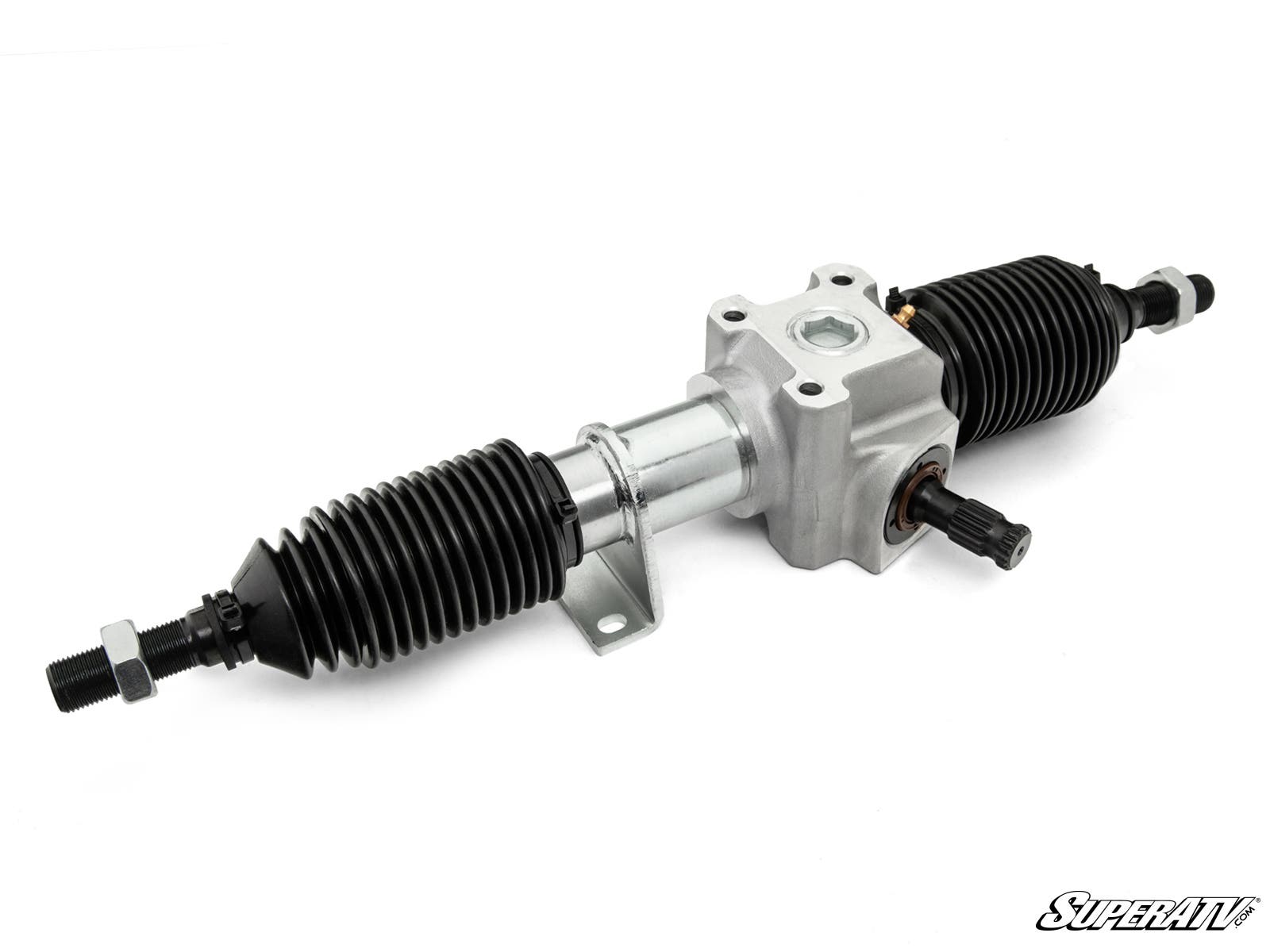

The Steering System You Need You need a steering system
on your Polaris Ranger Full-Size 500 that doesn’t just keep you in control,
but also handles difficult terrain day after day without wearing out. The only
rack that can do that is SuperATV’s RackBoss 2.0 Rack and Pinion and its X24
Tech dual-bushing construction. It gets rid of the sloppy steering you have
with your old stock rack and reduces wear by over 50%. It’ll handle your
massive tires and wild rides for years.
Less Wear and Tear

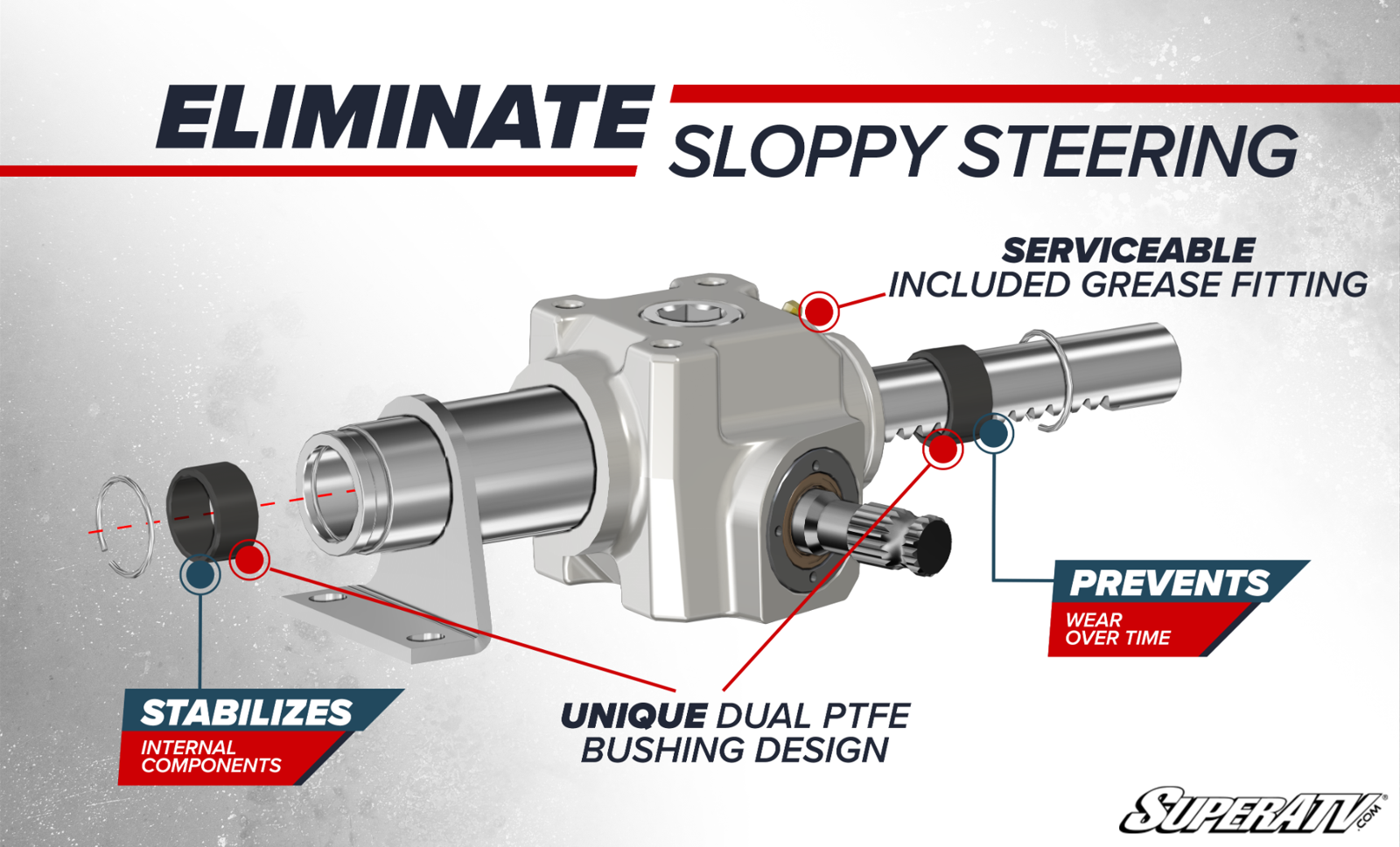

with Our Dual-Bushing Design What makes RackBoss 2.0 so good at
preventing slop? It’s engineered with X24 Tech—heavy-duty PTFE bushings at
both ends of the rack that remove play from the internals. Reducing play also
keeps the tension spring nearly motionless. With little to no unintended
internal movement, this rack can turn massive tires through heavy rides and
hard hits and still stay in like-new condition for years longer than the next

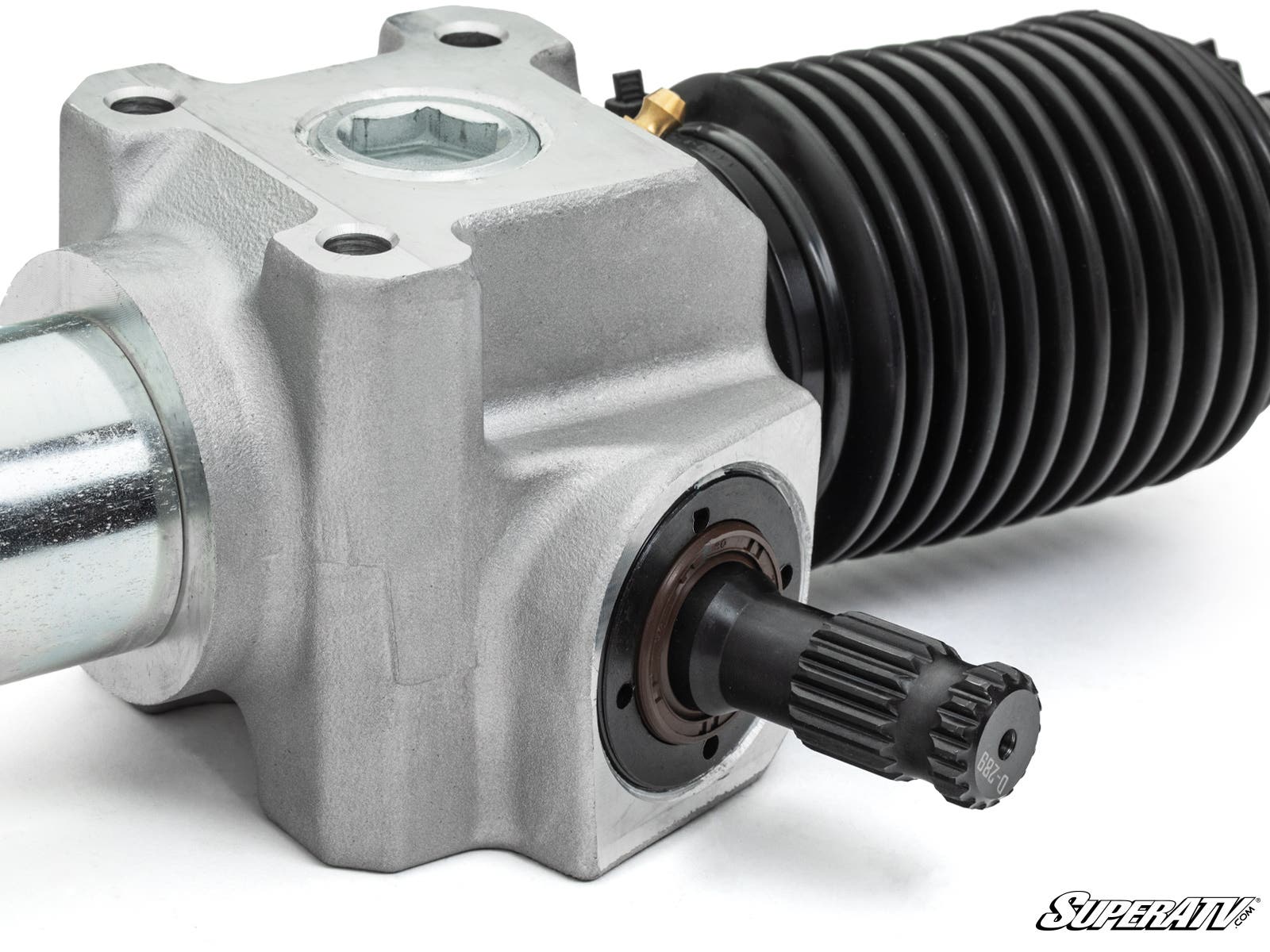

best rack. And with the built-in grease fitting, you can push fresh grease
through after you go deep in mud or water.

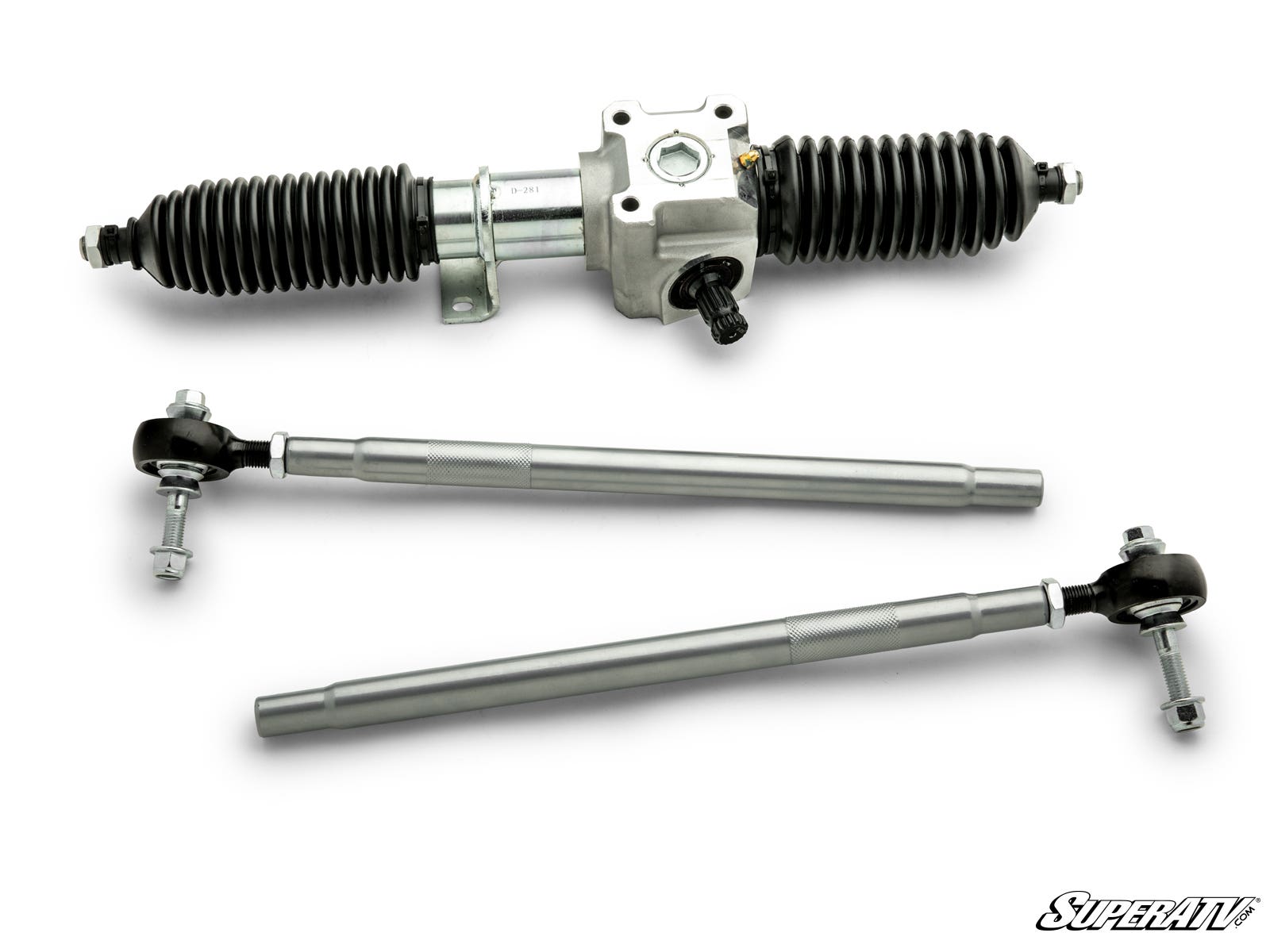

Swaged Tube Tie
Rods Our steel swaged tube tie rods are lightweight but strong.
Our swaged design significantly improves the strength of the 7/8” diameter

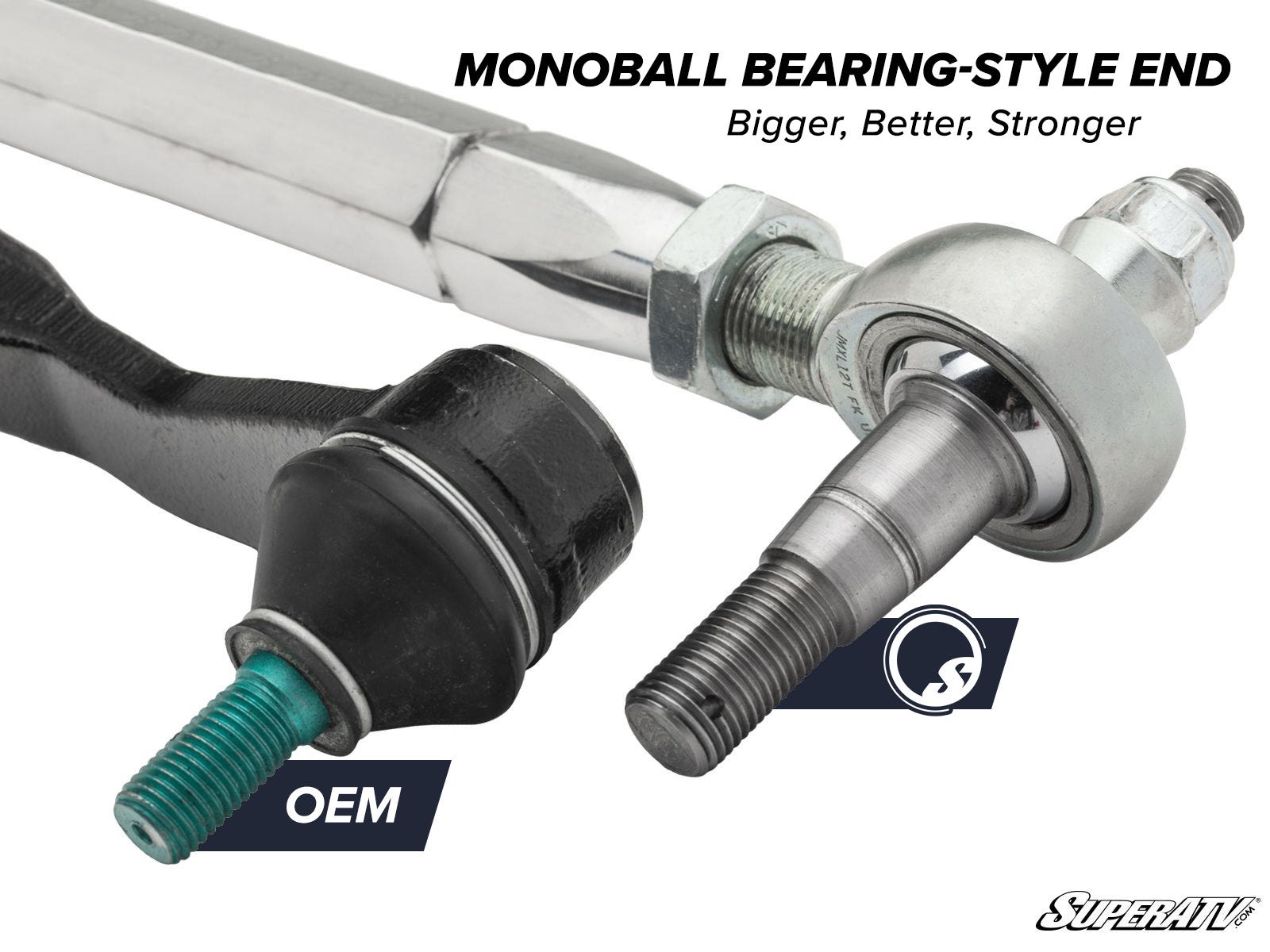

tubing. They feature 16 mm inner ball and sockets along with 14 mm outer tie
rod ends to make sure the weak points are as strong as possible. They’re
perfect for the casual rider that’s tired of their stock performance.

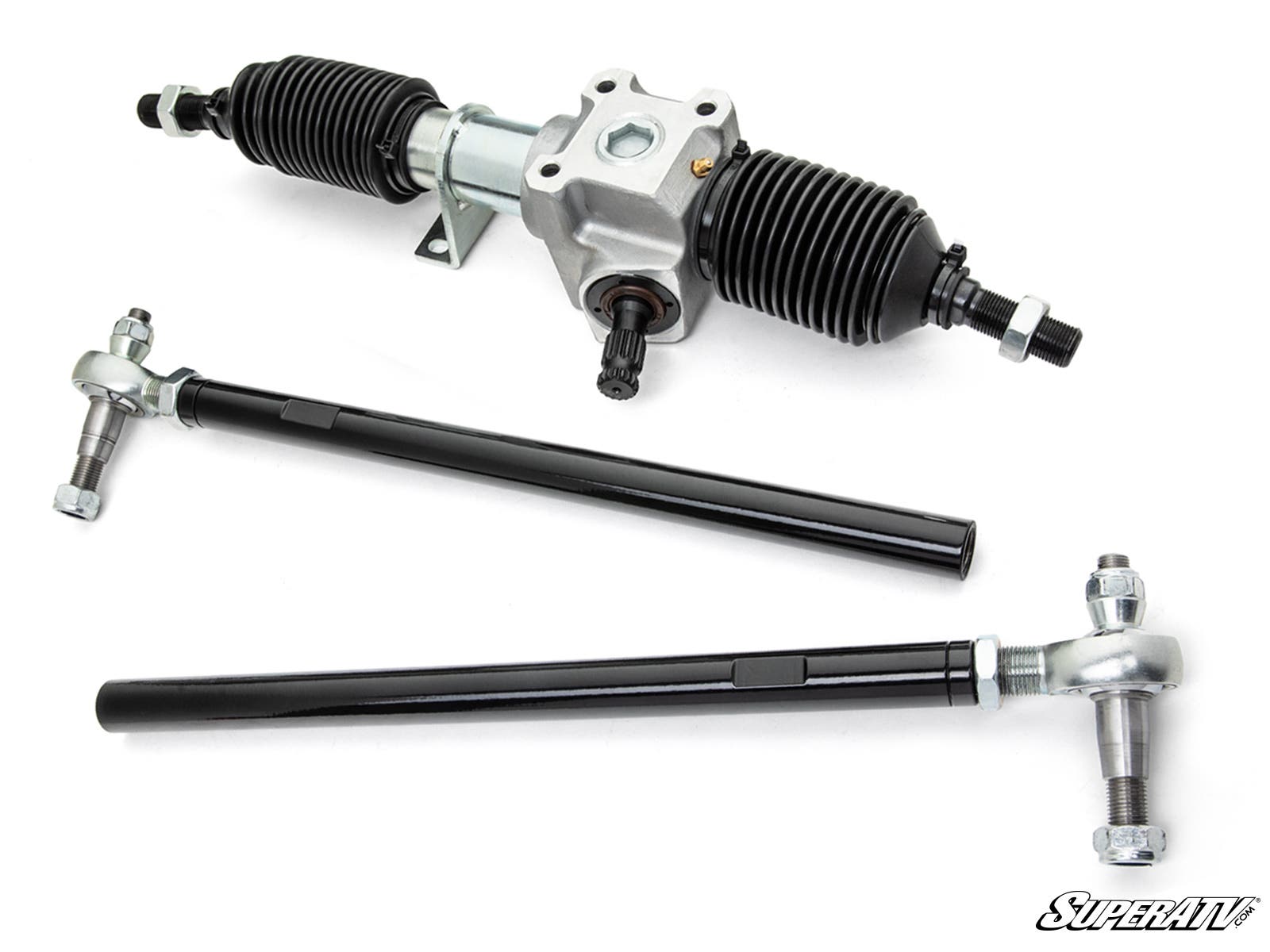

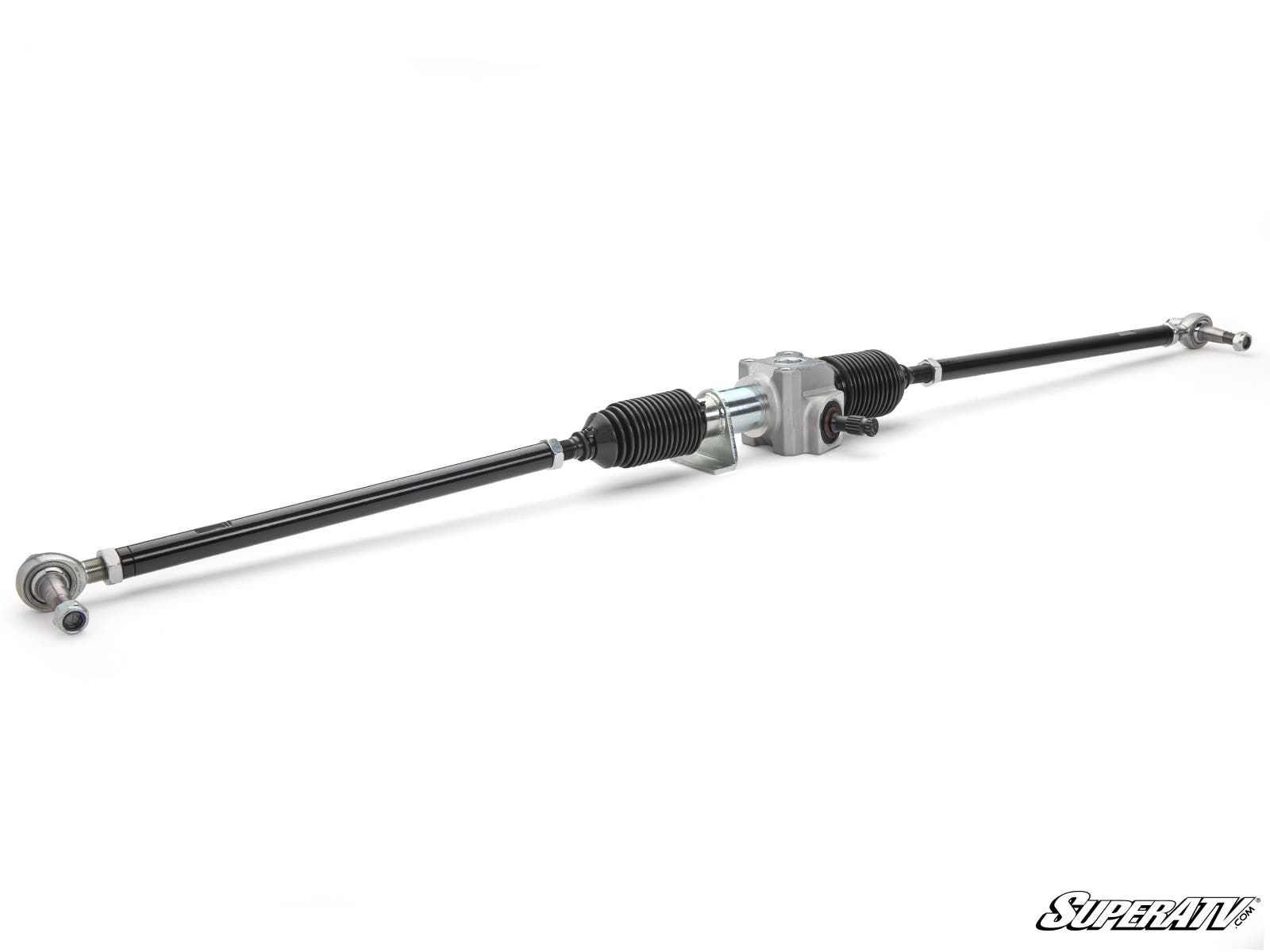

Solid Steel Bar Tie Rods Solid steel bar tie rods
give you the robust strength you need to ride through rough terrain. They’re
perfect for turning big tires through slop and navigating boulder fields. The
1” diameter steel rod is paired with beefy tie rod ends—3/4” outer tie rods
and rebuildable inner tie rods that use 3/4” rod threads and 16 mm rack
threads. All that strength lets you get wild.
| | RackBoss 2.0 Swaged Tie Rod | RackBoss 2.0 Solid Steel Tie Rod |
X24 Tech Dual-Bushing
Design | ✔ | ✔ |
Inner Ball and Socket
Thread Diameter | 14 mm rod threads, 16 mm
rack threads | 3/4” rod threads, 16 mm rack
threads |
Outer Tie Rod End
Thread Diameter | 14 mm | 3/4” |
Tie
Rod Material | Steel tube | Solid steel bar |
| Greasable | ✔ | ✔ |
Inner
Boots | ✔ | ✔ |
Steering Stop
Kit | ✔ | ✔ |
Misalignment Bushings,
Tie Rod Studs, & Hardware | ✔ | ✔ |
Patent No. 11,345,393
FEATURE
- Heavy-duty dual PTFE bushings:
- Designed with X24 Tech
- Prevents wear
- Reduces slop
- Improves overall
durability
- Available tie rod options:
- Steel
swaged tube - Solid steel bar
- Solid steel tie rods
use: - 3/4” outer tie rod ends
- Rebuildable inner tie rod ends
that use 3/4” rod threads and 16 mm rack threads
- Swaged
tube tie rods use: - 14 mm outer tie rod ends
- Rebuildable
inner tie rod ends that use 14 mm rod threads and 16 mm rack threads
- 65% larger housing than stock
- Over 50% less wear than
OEM after 15,000 cycles - Grease fitting for rack gears
Fitment
- Polaris Ranger 500 Full Size : 2009-2010
Replaces OEM Part #: 1823338
