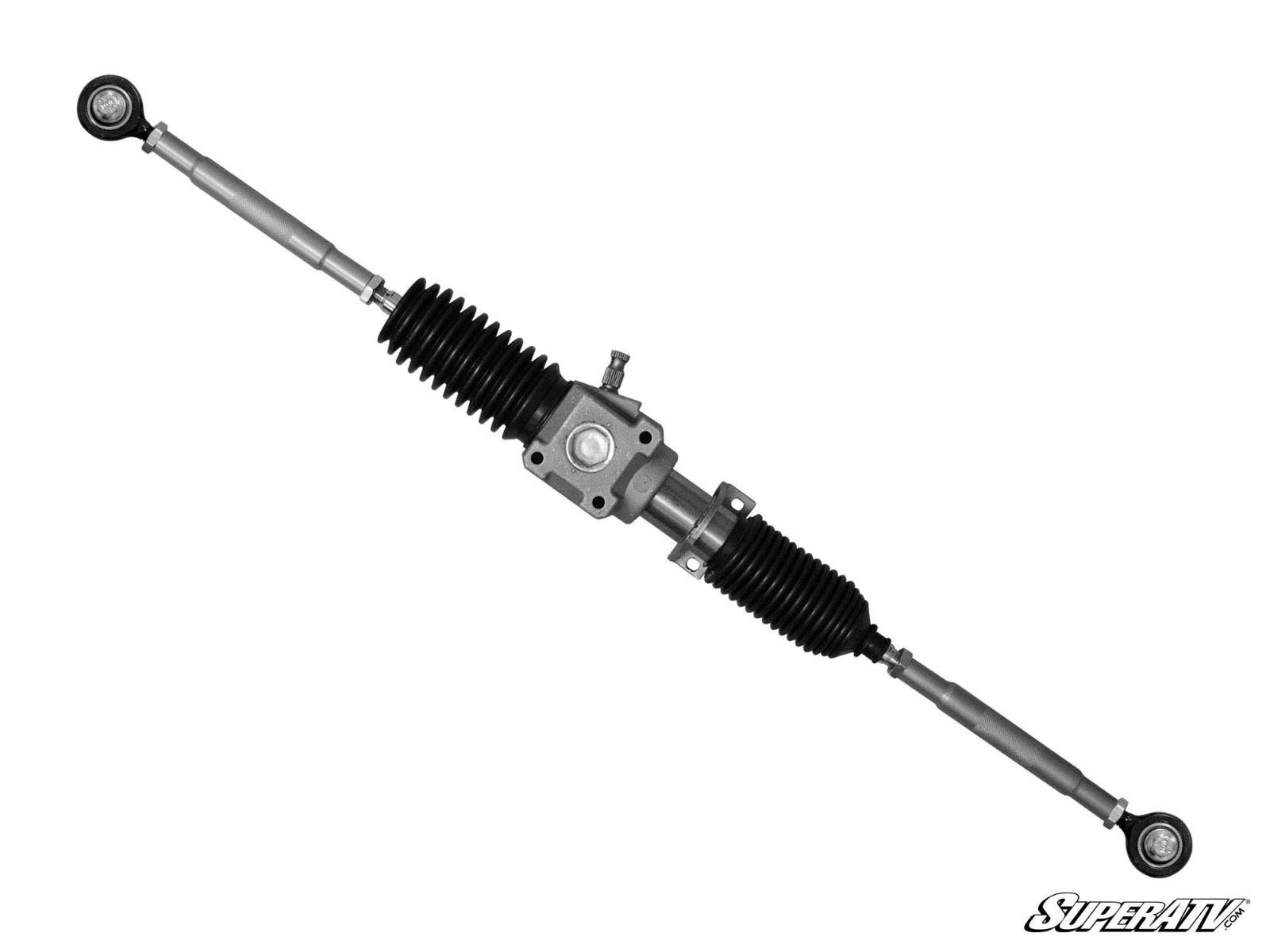

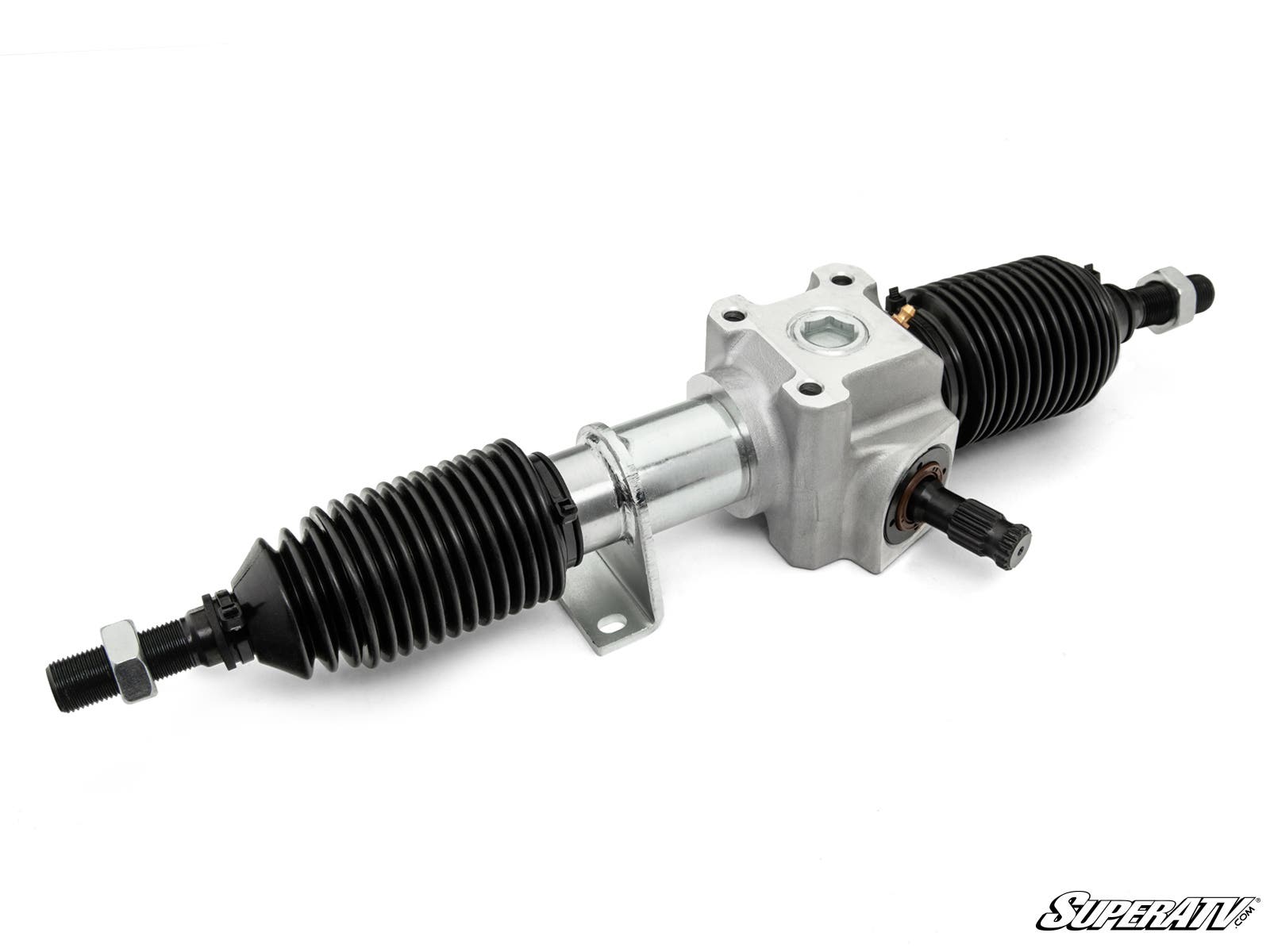

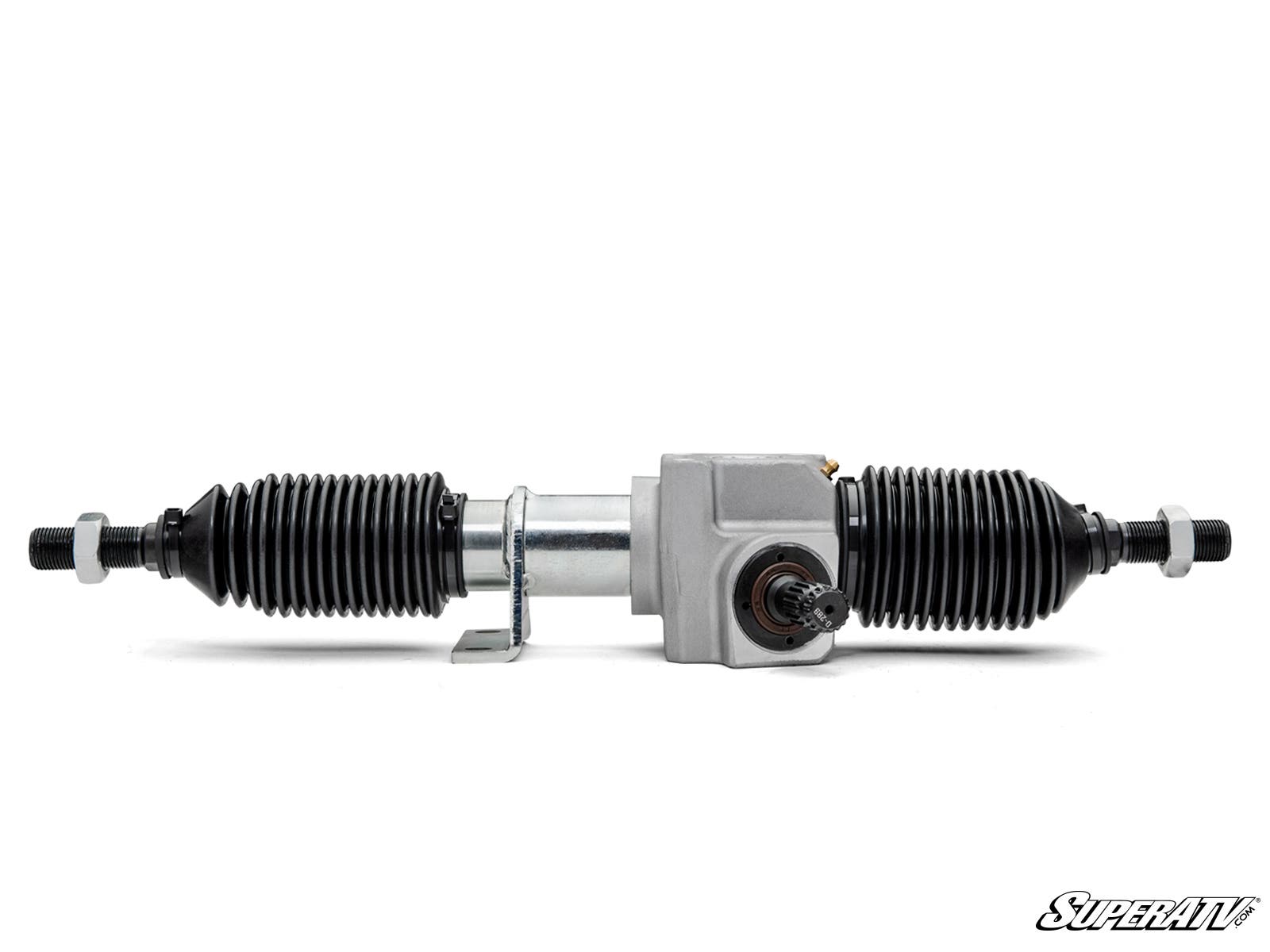

RackBoss 2.0 Lasts Longer No matter what rack you have,
it’s gonna wear out eventually. When it does, the sloppy steering will make it
tough to control your RZR. That’s why we made RackBoss 2.0. It’s an evolution
of our original RackBoss that uses X24 Tech to reduce wear by over 50%. Put
SuperATV’s RackBoss 2.0 Rack and Pinion on your Polaris RZR 900 to ride hard
and get silly without ruining your steering system. It’s built for big lifts,
big tires, and treacherous rides.

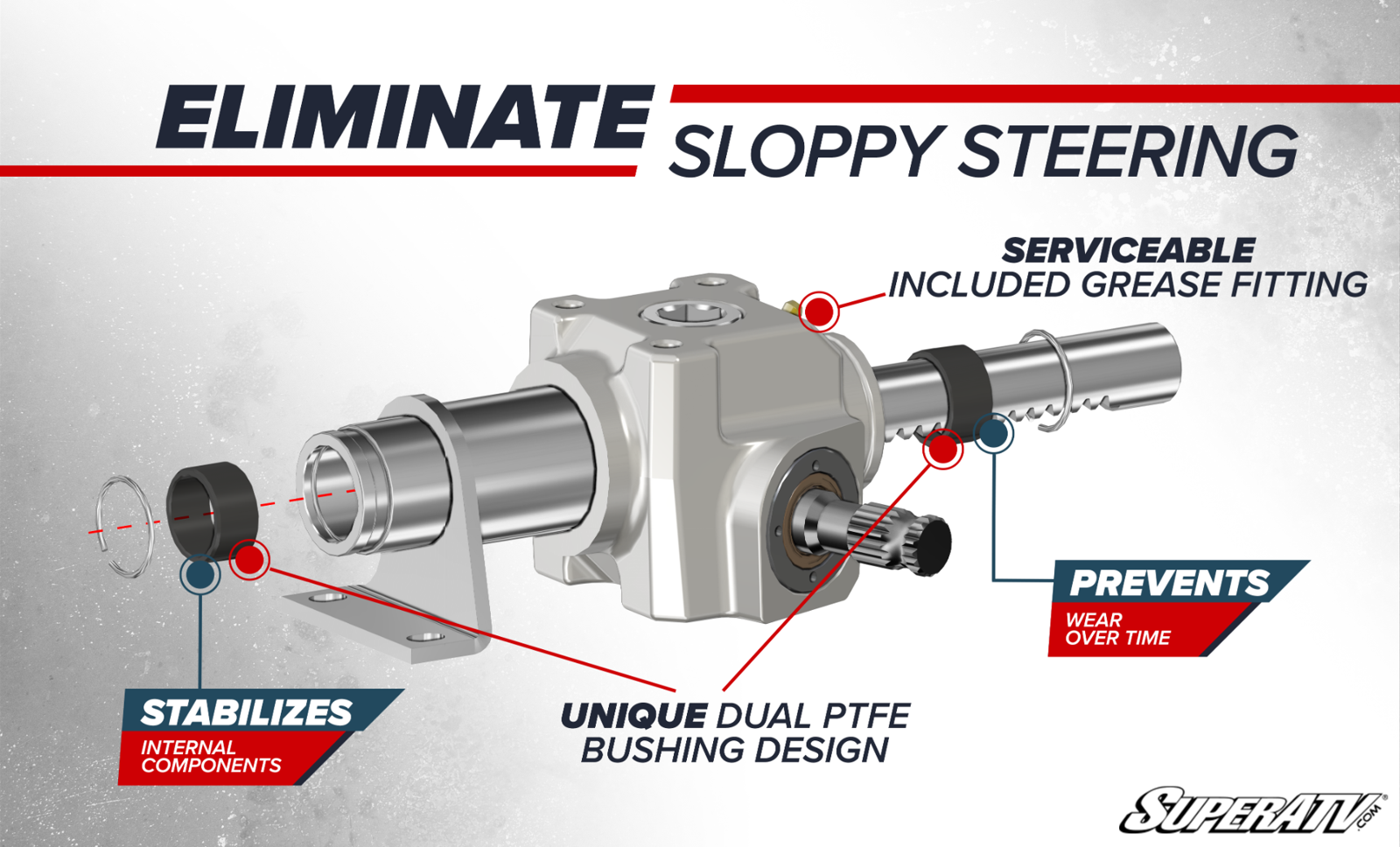

Less Wear and Tear with

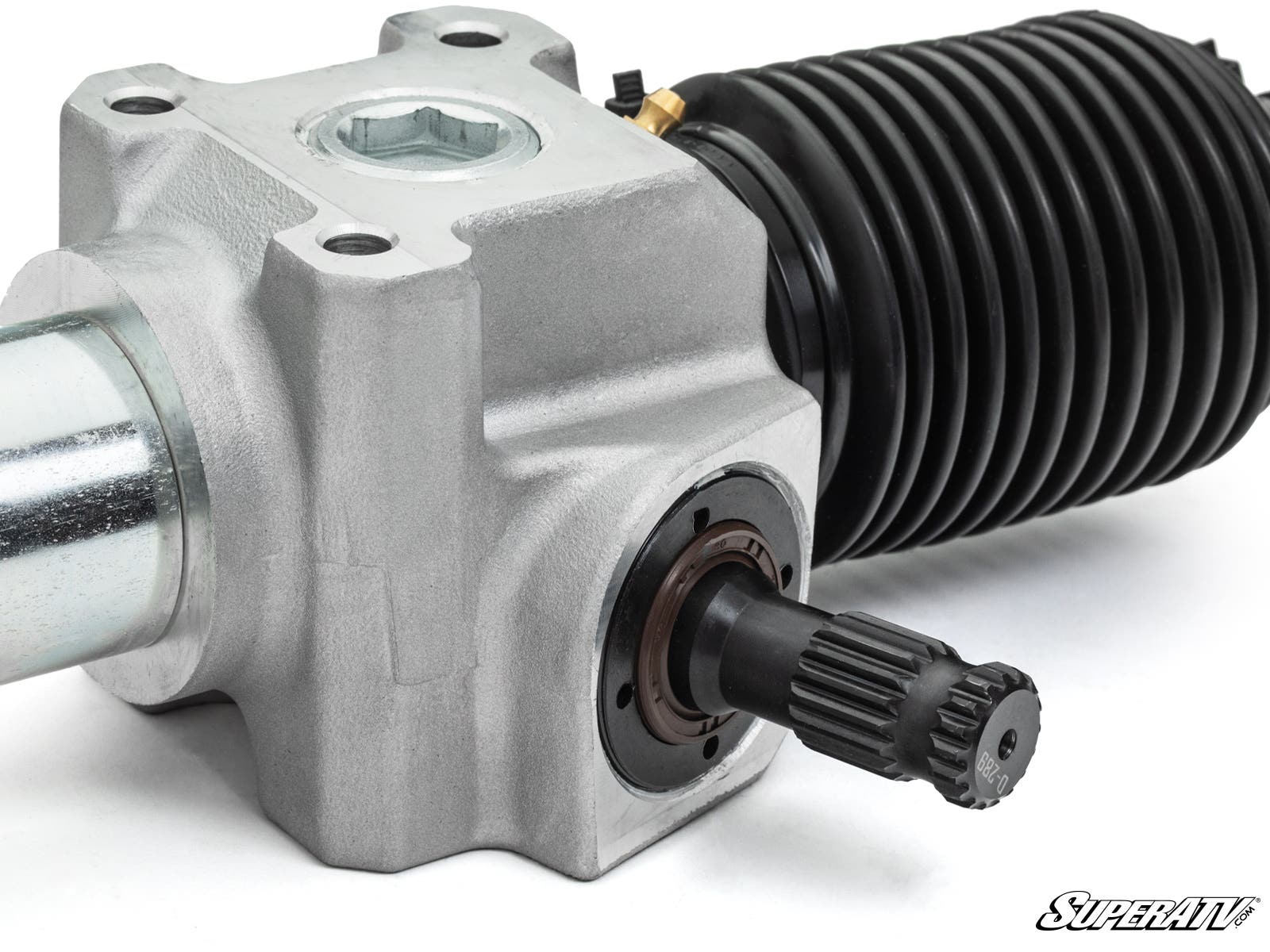

Our Dual-Bushing Design What makes RackBoss 2.0 so good at
preventing slop? It’s engineered with X24 Tech—heavy-duty PTFE bushings at
both ends of the rack that remove play from the internals. Reducing play also
keeps the tension spring nearly motionless. With little to no unintended
internal movement, this rack can turn massive tires through heavy rides and
hard hits and still stay in like-new condition for years longer than the next
best rack. And with the built-in grease fitting, you can push fresh grease
through after you go deep in mud or water.

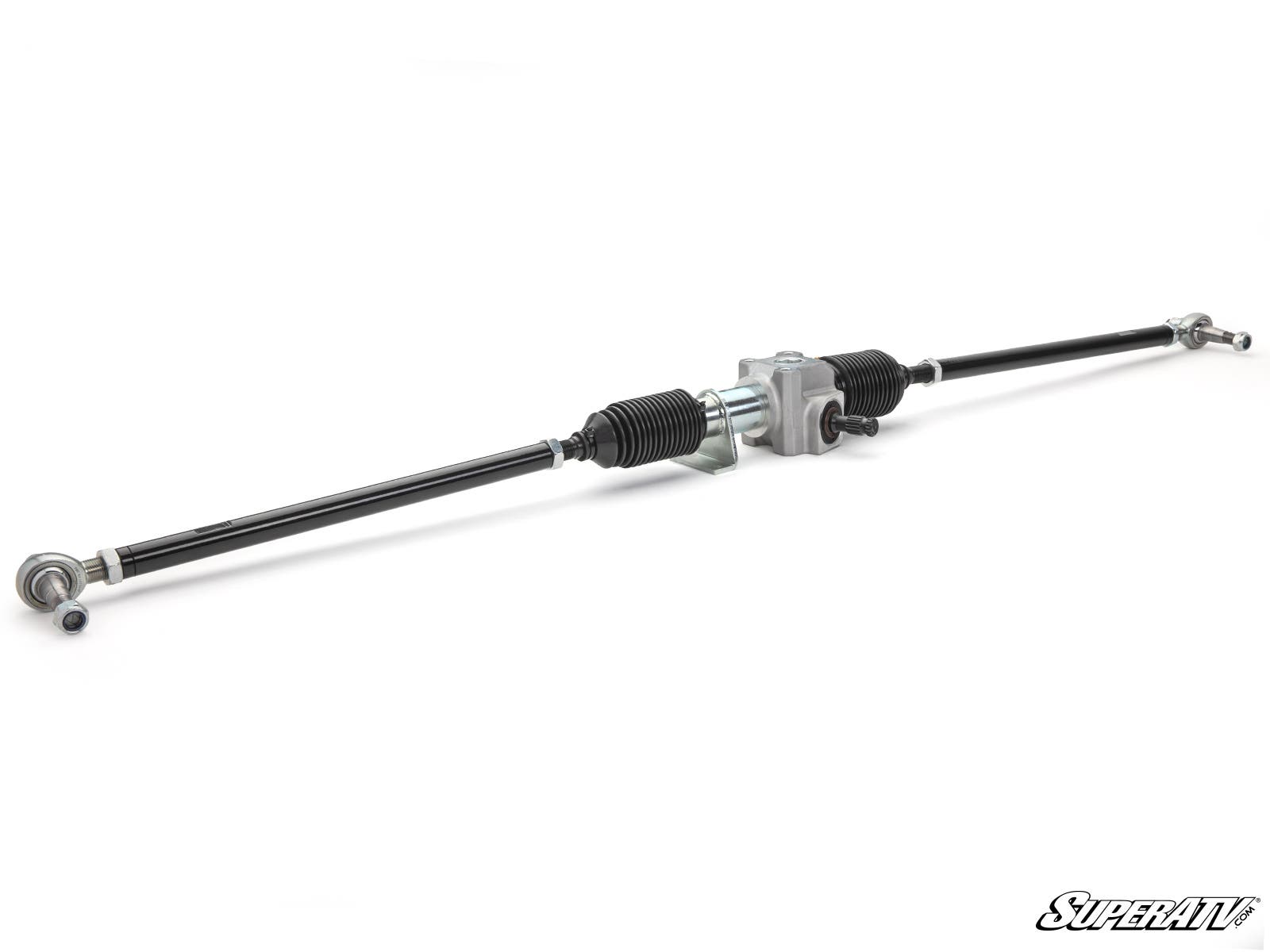

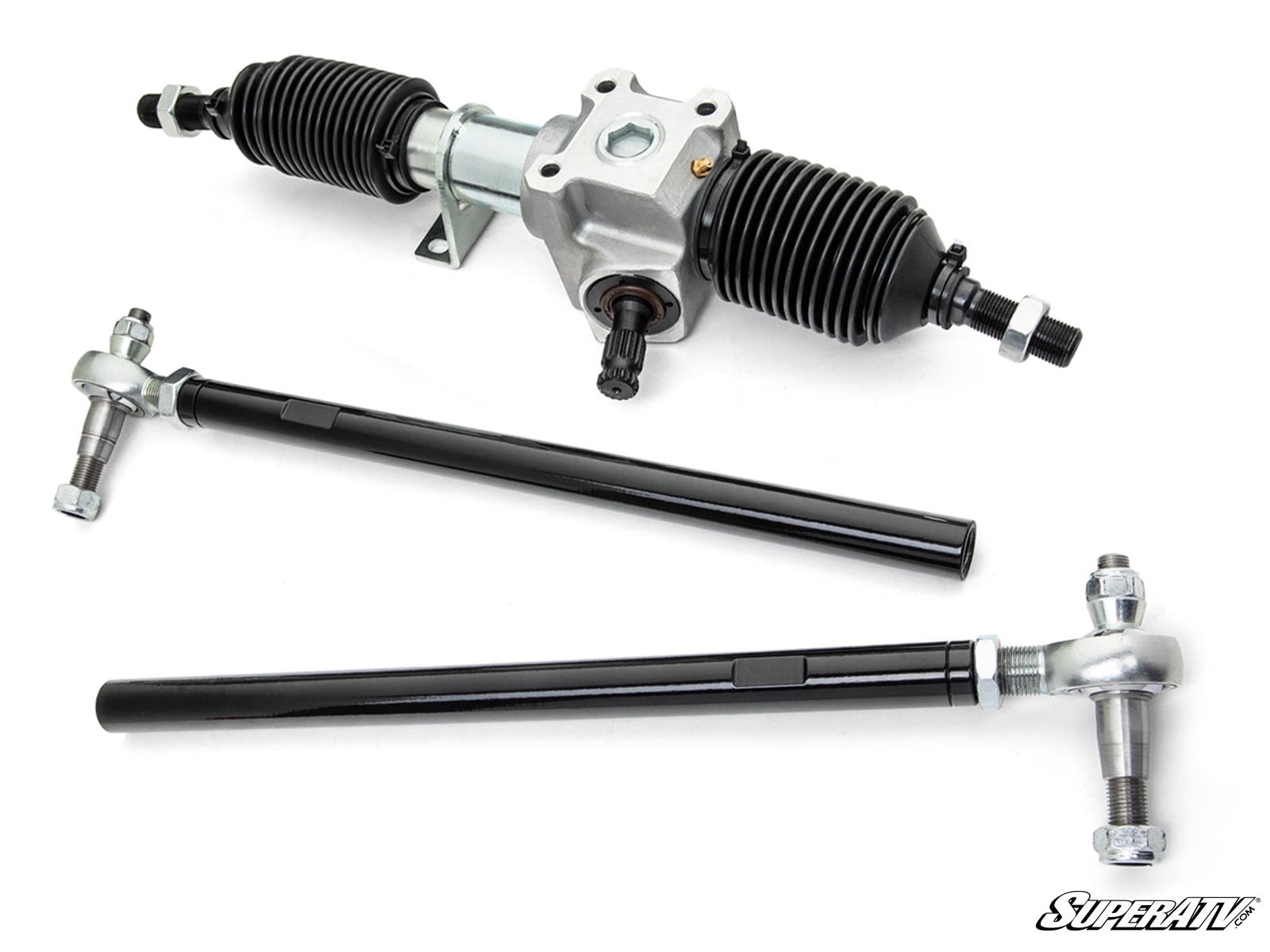

Solid Steel Bar

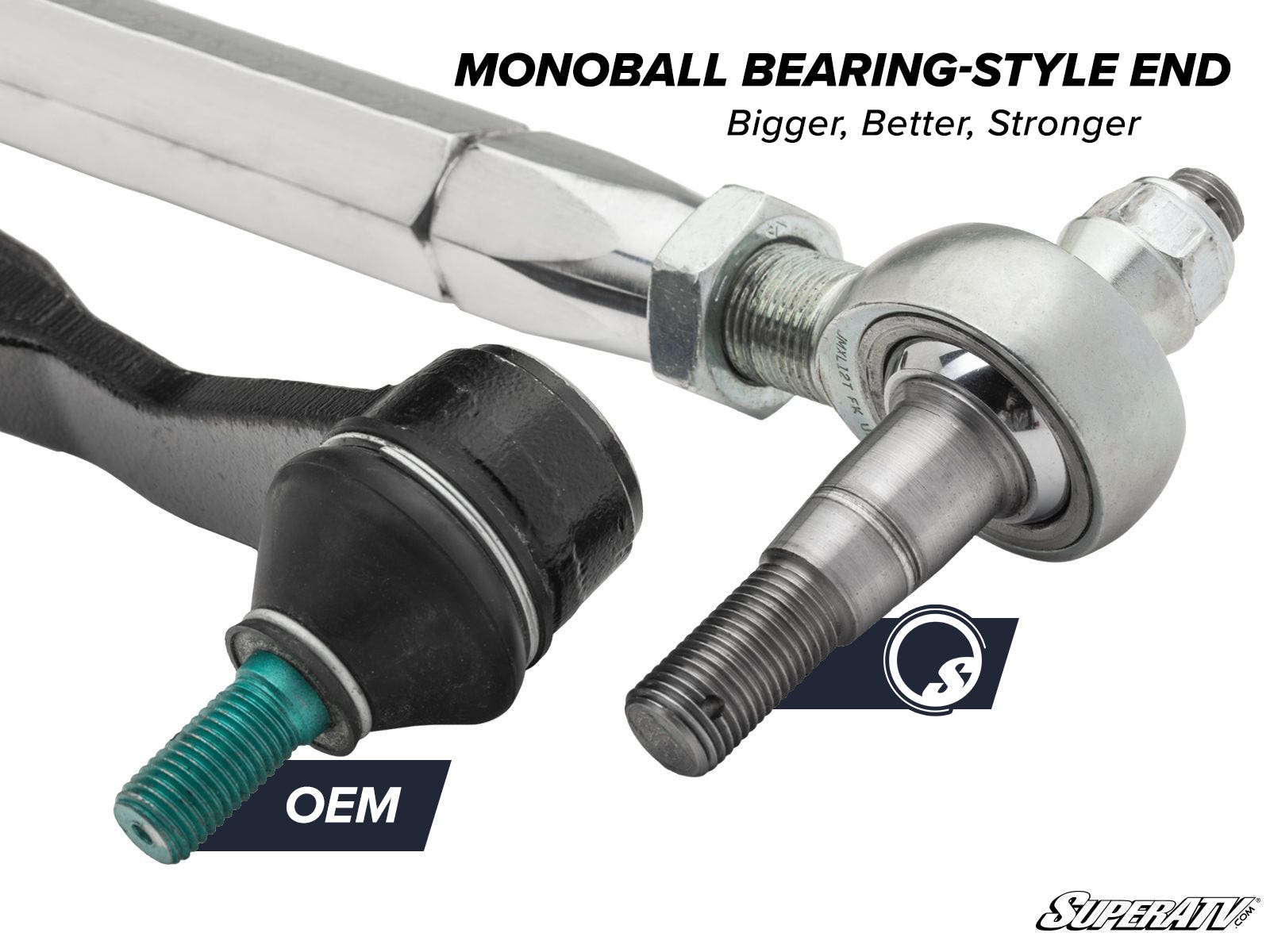

Tie Rods For a beefy tie rod setup, you want to go with solid
steel bar tie rods. They’re made with 1” diameter steel bars that are paired
with bigger, better tie rods you’ll love—3/4” outer heim joint tie rods and
rebuildable inner tie rods that use 3/4” rod threads and 16 mm rack threads.
Altogether, they’re built for hard hits, big tires, and wild rides.
Swaged Tube Tie Rods Our swaged tube tie rods are super
sturdy but lightweight. The 7/8” diameter tubing flares out to boost its
strength even more and comes paired with tougher tie rod ends. They have huge
16 mm rack threads and 14 mm rod threads that are the toughest you can get.
This kit will keep you in control.
| | RackBoss 2.0
Swaged Tie Rod | RackBoss 2.0 Solid Steel Tie Rod |
| X24 Tech Dual-Bushing Design | ✔ | ✔ |
Inner Ball and Socket Thread
Diameter | 14 mm rod threads, 16 mm rack
threads | 3/4” rod threads, 16 mm rack threads |
Outer Tie Rod End Thread
Diameter | 14 mm | 3/4” |
Tie Rod
Material | Steel tube | Solid steel bar |
| Greasable | ✔ | ✔ |
Inner
Boots | ✔ | ✔ |
Steering Stop
Kit | ✔ | ✔ |
Misalignment Bushings,
Tie Rod Studs, & Hardware | ✔ | ✔ |
Patent No. 11,345,393
FEATURE
- Heavy-duty dual PTFE bushings:
- Designed with X24 Tech
- Prevents wear
- Reduces slop
- Improves overall
durability
- Solid steel tie rods use:
- 3/4” outer
tie rod ends - Rebuildable inner tie rod ends that use 3/4” rod threads
and 16 mm rack threads
- Swaged tube tie rods use:
- 14 mm outer tie rod ends
- Rebuildable inner tie rod ends that use
14 mm rod threads and 16 mm rack threads
- 65% larger
housing than stock - Over 50% less wear than OEM after 15,000
cycles - Grease fitting for rack gears
Fitment
- Polaris RZR 4 900 : 2015-2018
- Polaris RZR S4 900 : 2018
Replaces OEM Part # : 1824349 and 1823994
