RackBoss 2.0 Changes the Game Every rack gets soft
eventually. It can take years or longer, but eventually your steering
responsiveness is going to go to crap, and controlling your RZR is going to

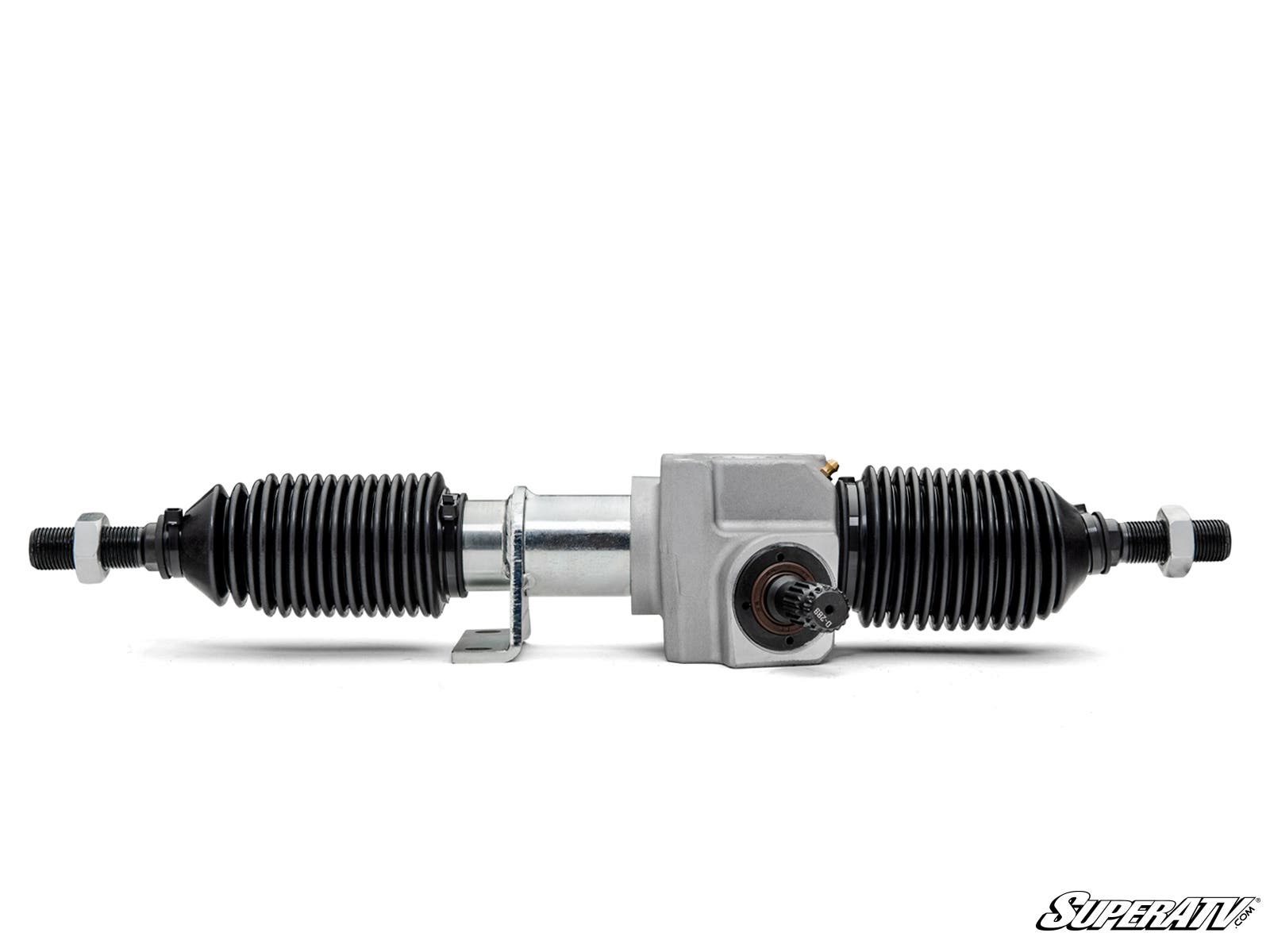

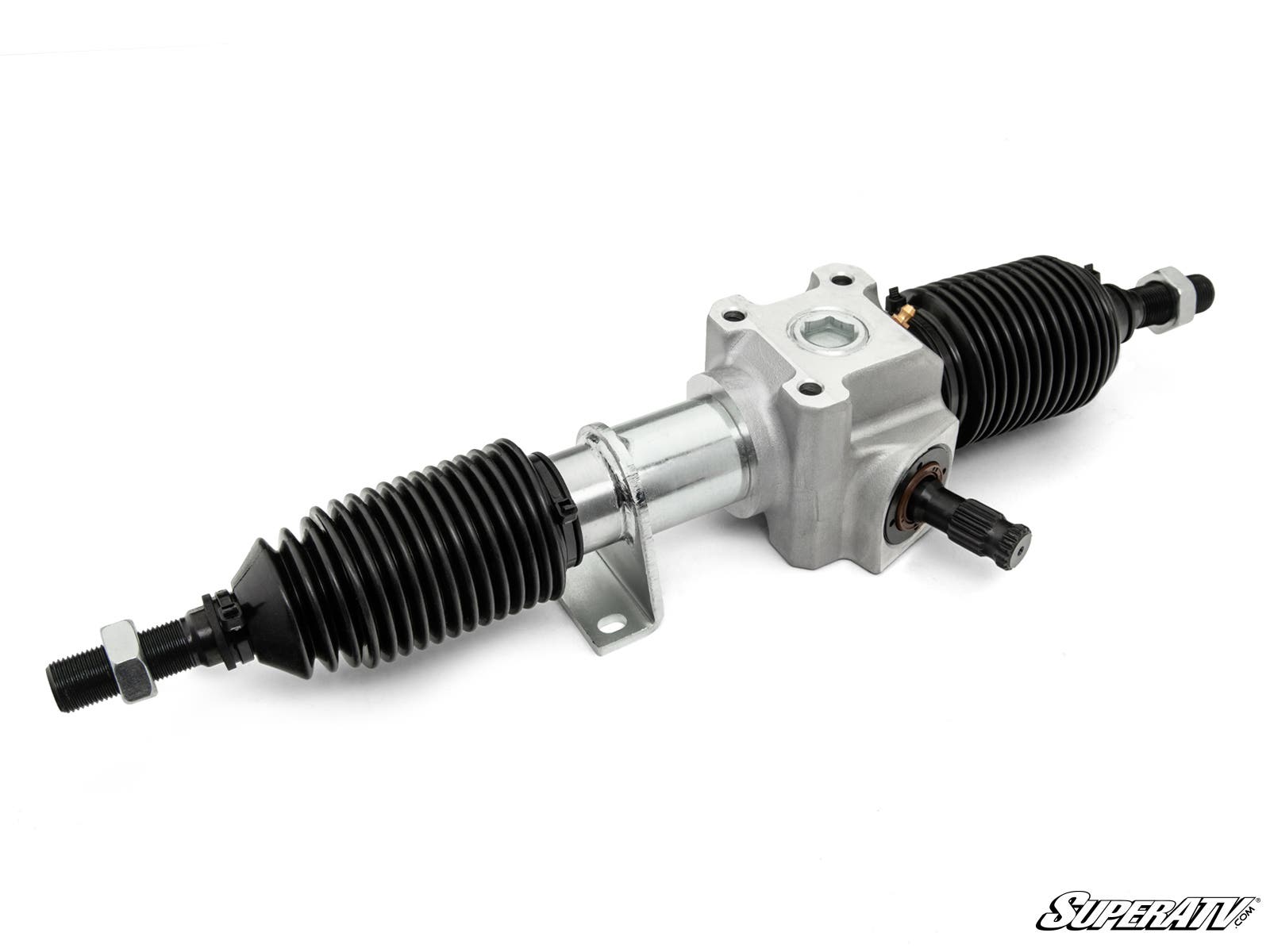

get tough. That’s where SuperATV’s RackBoss 2.0 Rack and Pinion for the
Polaris RZR Trail 900 changes the game. It’s an upgraded version of our
original RackBoss that uses our X24 Tech to boost durability like never
before. X24 is a dual-bushing design that reduces wear by over 50% compared to
stock, and you can’t get it anywhere else. Install RackBoss 2.0 on your ride,
and control your machine no matter what.
Boosted Durability

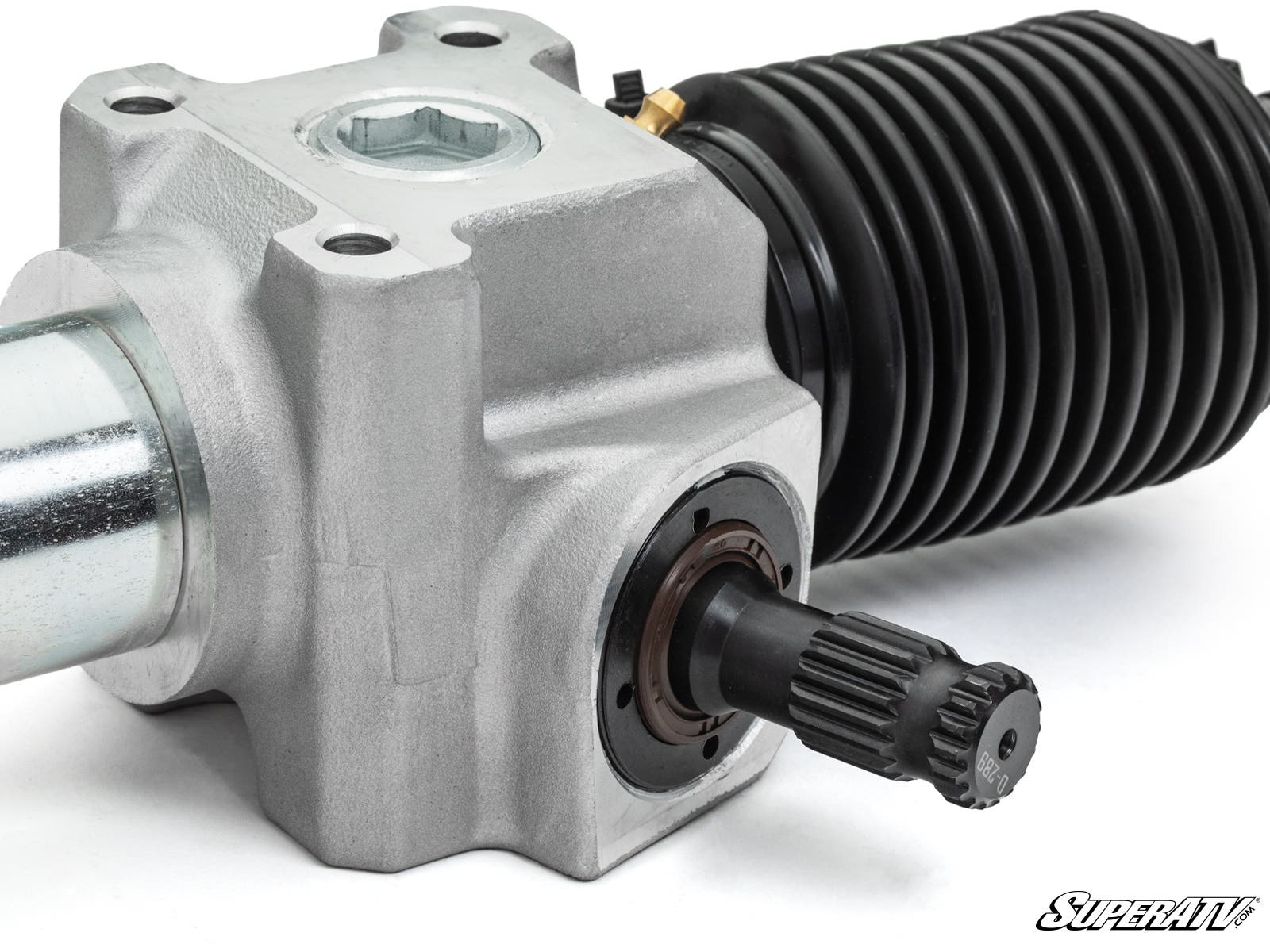

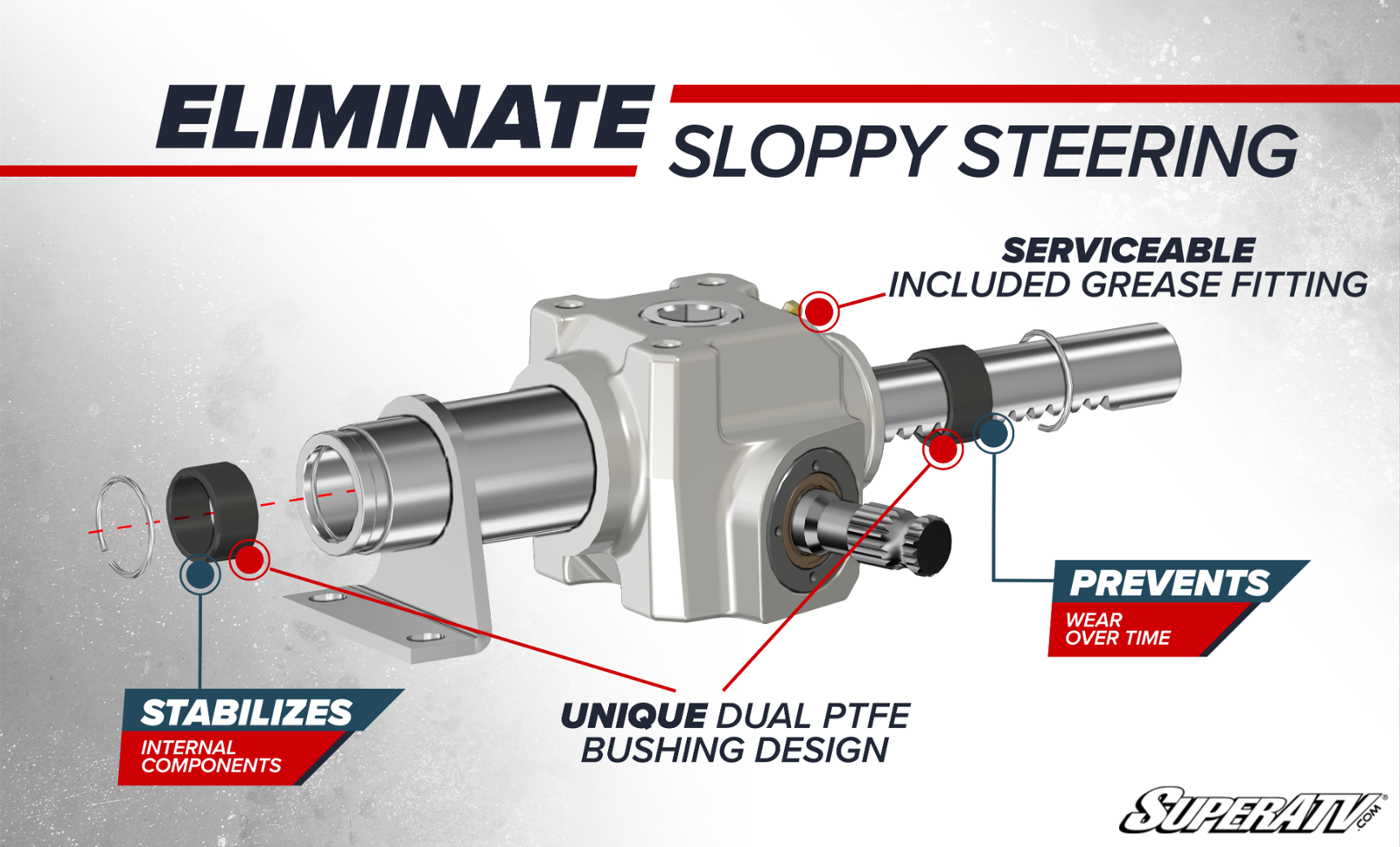

with Our Dual-Bushing Design The secret sauce behind RackBoss
2.0’s unbeatable durability is our unique X24 Tech. It puts heavy-duty PTFE
bushings at both ends of the rack to reduce internal play and keep the tension
spring nearly motionless. That makes it easy to run massive tires on huge
lifts across the most treacherous terrain without wrecking your rack. Plus,
the built-in grease fitting makes it easy to keep everything running smooth.

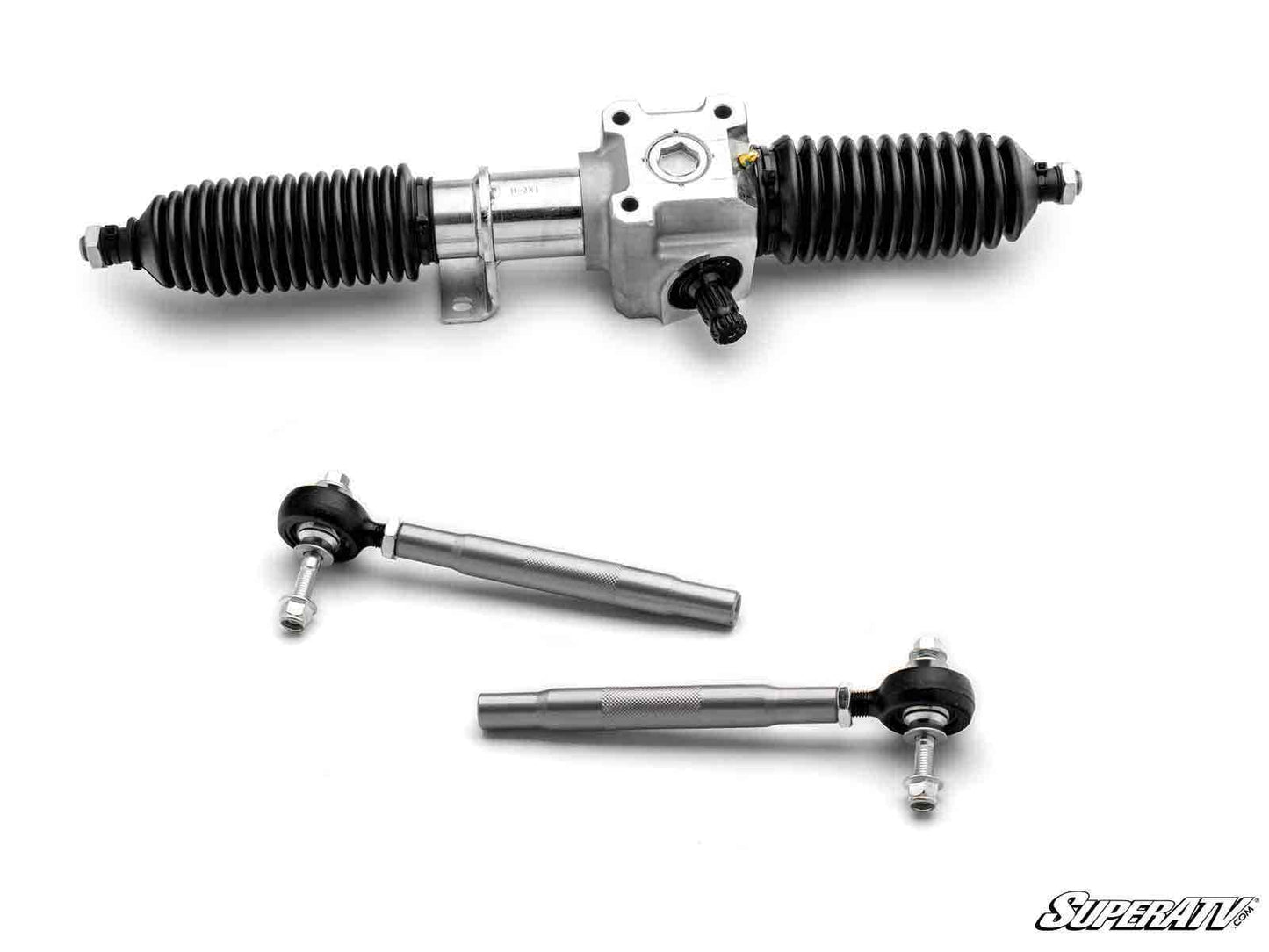

Swaged Tube Tie Rods Our swaged tube tie rods
are lightweight but tough. Their signature flare-out design boosts their
strength beyond what the 7/8” diameter tubing could achieve otherwise. They’re

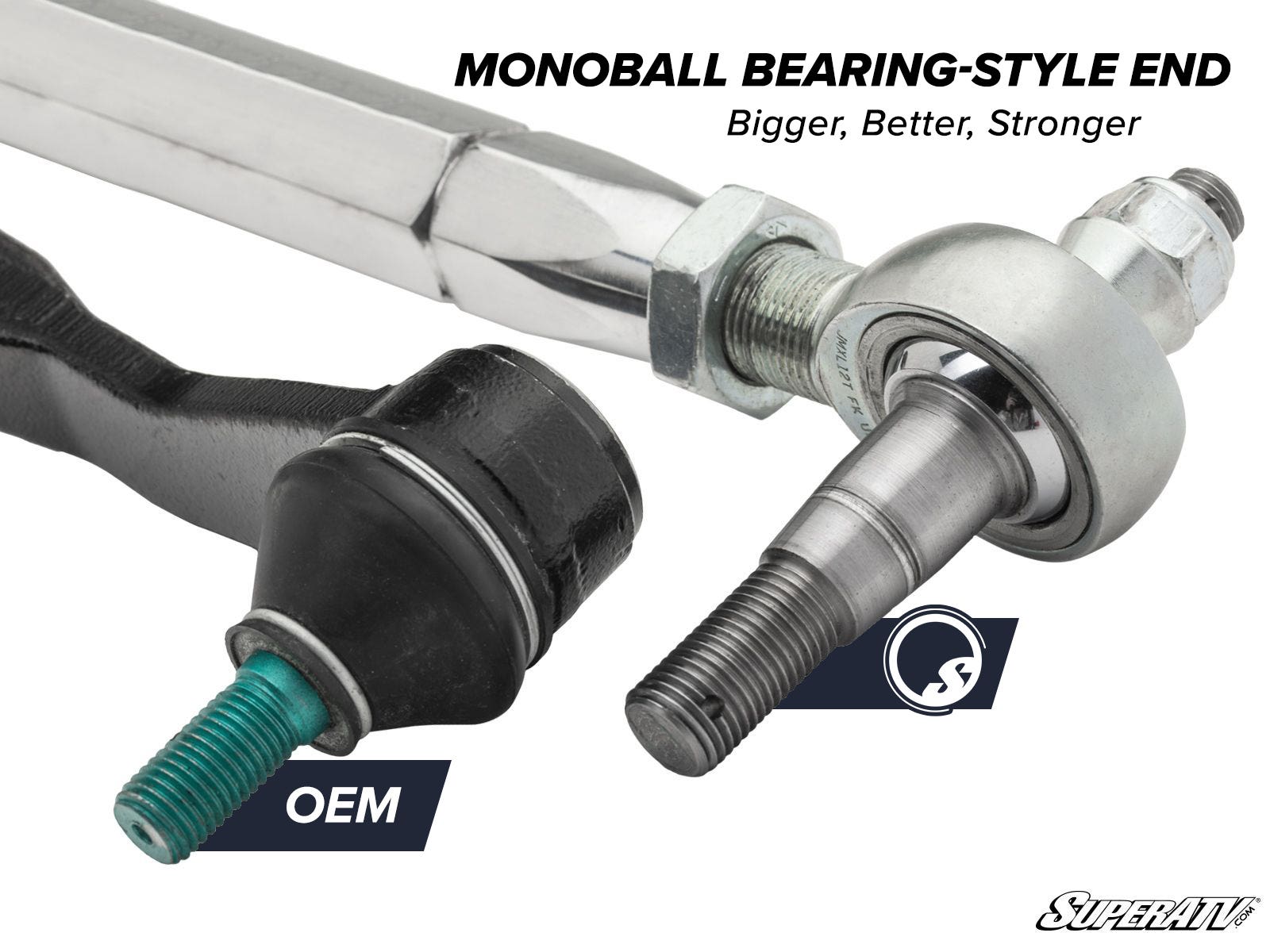

made even tougher with our beefed-up tie rod ends. Our heim joint outer tie
rod ends use 3/4” rod threads, and our rebuildable inner ball and sockets use
3/4” rod threads along with 16 mm rack threads. They’re as tough as they come.

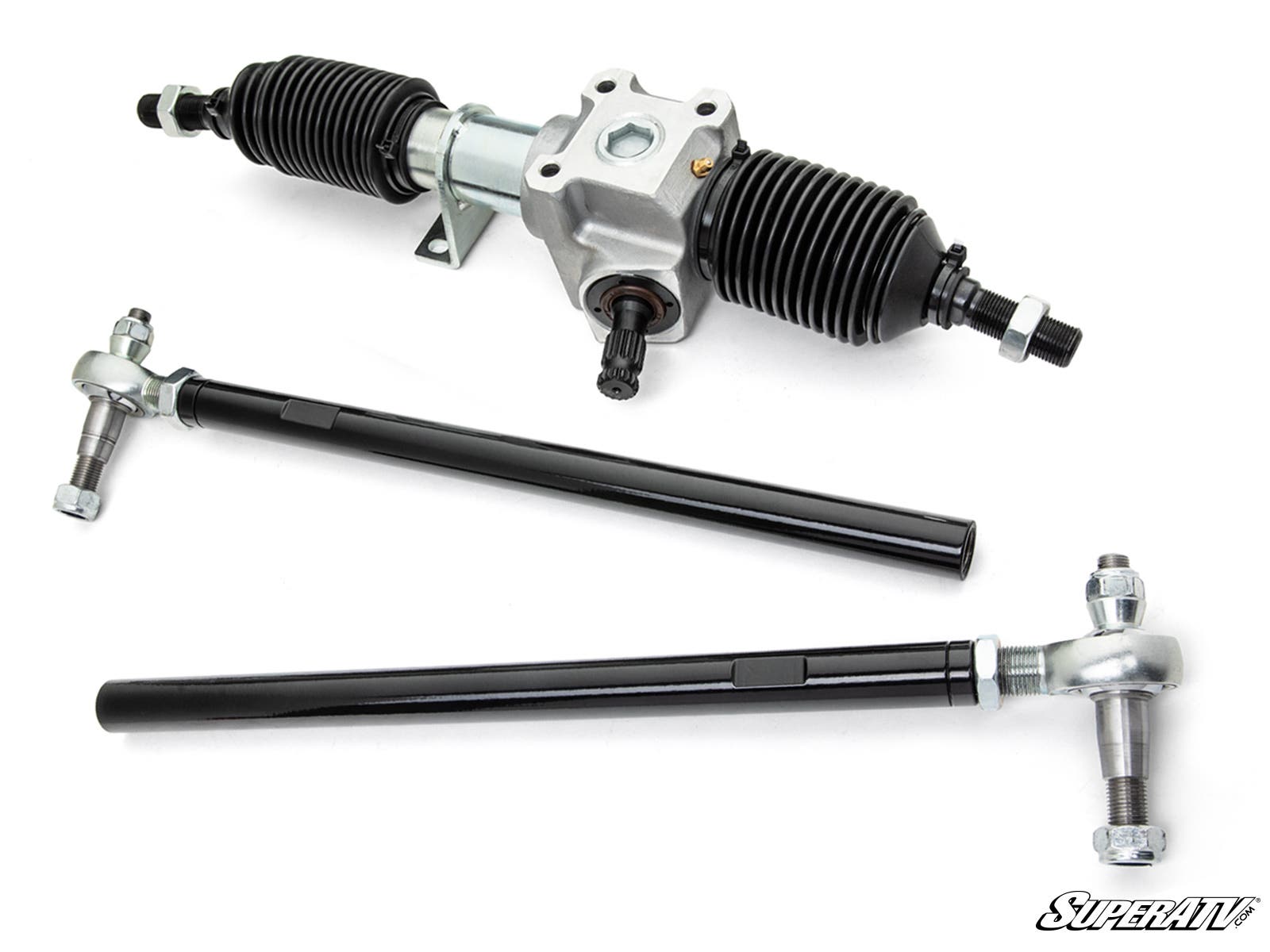

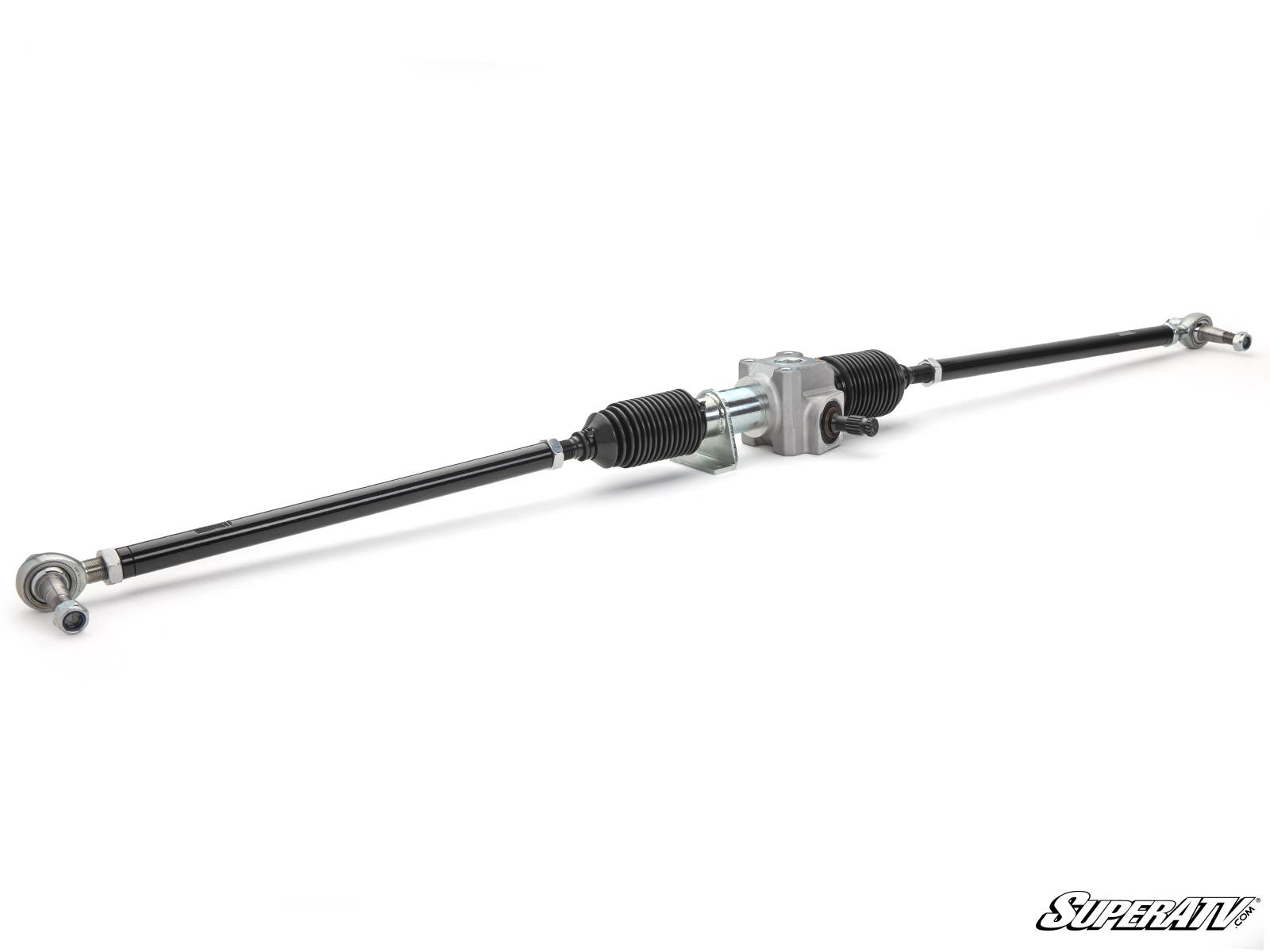

Solid Steel Bar Tie Rods For a beefy tie rod
setup, you want to go with solid steel bar tie rods. They’re made with 1”
diameter steel bars that are paired with bigger, better tie rods you’ll
love—3/4” outer heim joint tie rods and rebuildable inner tie rods that use
3/4” rod threads and 16 mm rack threads. Altogether, they’re built for hard
hits, big tires, and wild rides.
| | RackBoss 2.0
Swaged Tie Rod | RackBoss 2.0 Solid Steel Tie Rod |
| X24 Tech Dual-Bushing Design | ✔ | ✔ |
Inner Ball and Socket Thread
Diameter | 14 mm rod threads, 16 mm rack
threads | 3/4” rod threads, 16 mm rack threads |
Outer Tie Rod End Thread
Diameter | 14 mm | 3/4” |
Tie Rod
Material | Steel tube | Solid steel bar |
| Greasable | ✔ | ✔ |
Inner
Boots | ✔ | ✔ |
Steering Stop
Kit | ✔ | ✔ |
Misalignment Bushings,
Tie Rod Studs, & Hardware | ✔ | ✔ |
Patent No. 11,345,393
FEATURE
- Heavy-duty dual PTFE bushings:
- Designed with X24 Tech
- Prevents wear
- Reduces slop
- Improves overall
durability
- Available tie rod options:
- Steel
swaged tube - Solid steel bar
- Solid steel tie rods
use: - 3/4” outer tie rod ends
- Rebuildable inner tie rod ends
that use 3/4” rod threads and 16 mm rack threads
- Swaged
tube tie rods use: - 14 mm outer tie rod ends
- Rebuildable
inner tie rod ends that use 3/4” rod threads and 16 mm rack threads
- 65% larger housing than stock
- Over 50% less wear than
OEM after 15,000 cycles - Grease fitting for rack gears
Fitment
- Polaris RZR Trail 900 : 2021+
Replaces OEM
Part # : 1823993, 1824259
