Take Your Control Back with RackBoss 2.0 You're bound to
do a number on your steering when you hit the trail as hard as we do. Don't
settle for sloppy and unresponsive—install SuperATV's Kawasaki Teryx RackBoss
2.0 Rack and Pinion. It will help you keep control and dominate the roughest
terrain. Our design gives you the strongest, most durable rack out there. How?
It uses an X24 Tech dual-bushing design and reduces wear by over 50%. Take
your control back with RackBoss 2.0.

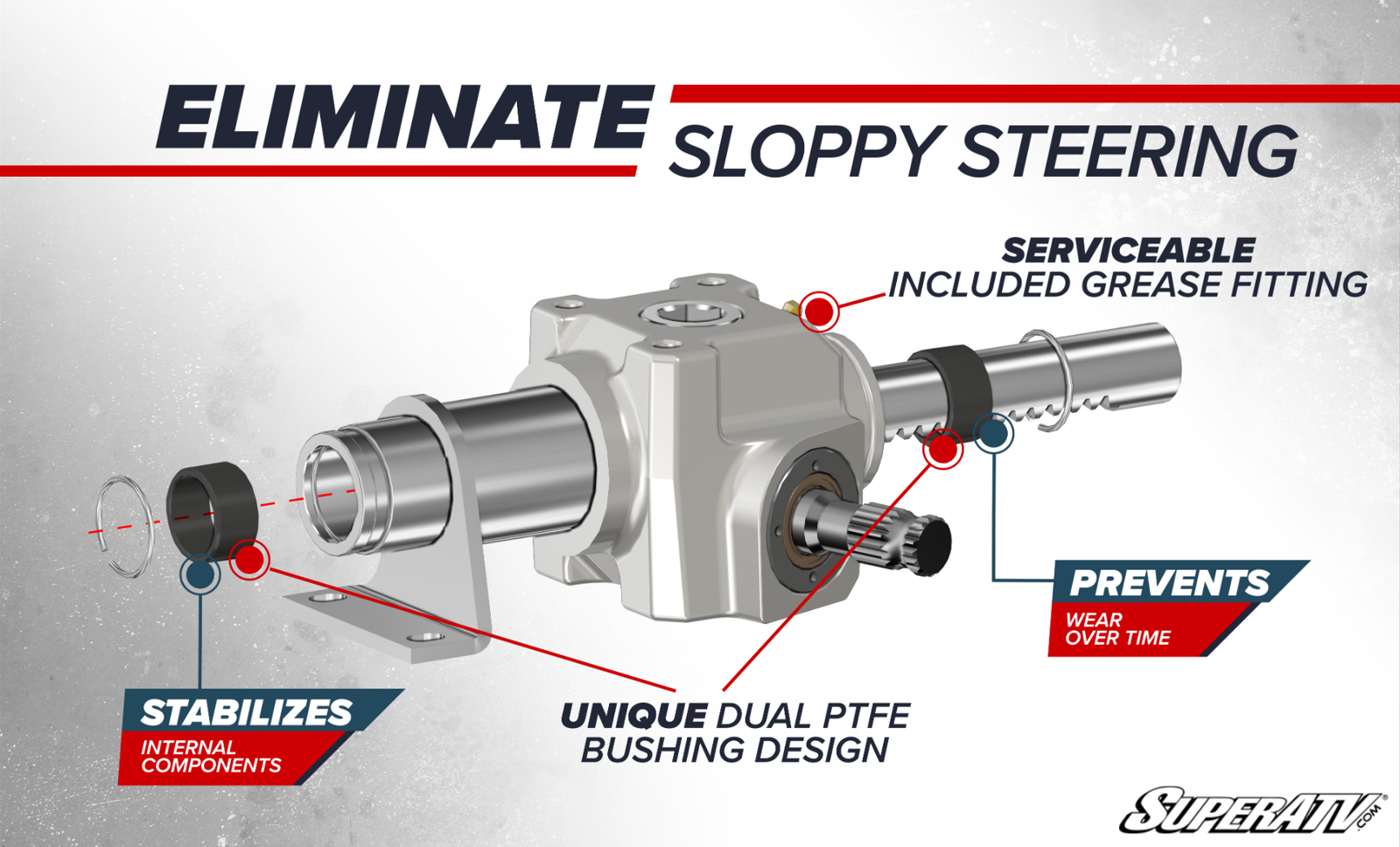

Dual-Bushing Design for
the Win What sets RackBoss 2.0 apart from the rest? We've
engineered it with X24 Tech—our heavy-duty PTFE bushing at both ends of the
rack that remove play from the internals. This saves the tension spring,
making it nearly motionless. With little internal movement, the rack can
dominate harsh terrain with big tires, taking on hard hits without
compromising its condition. Plus, our clever design includes a built-in grease
fitting, so you can grease all your parts after you've been in the mud and
water all day.

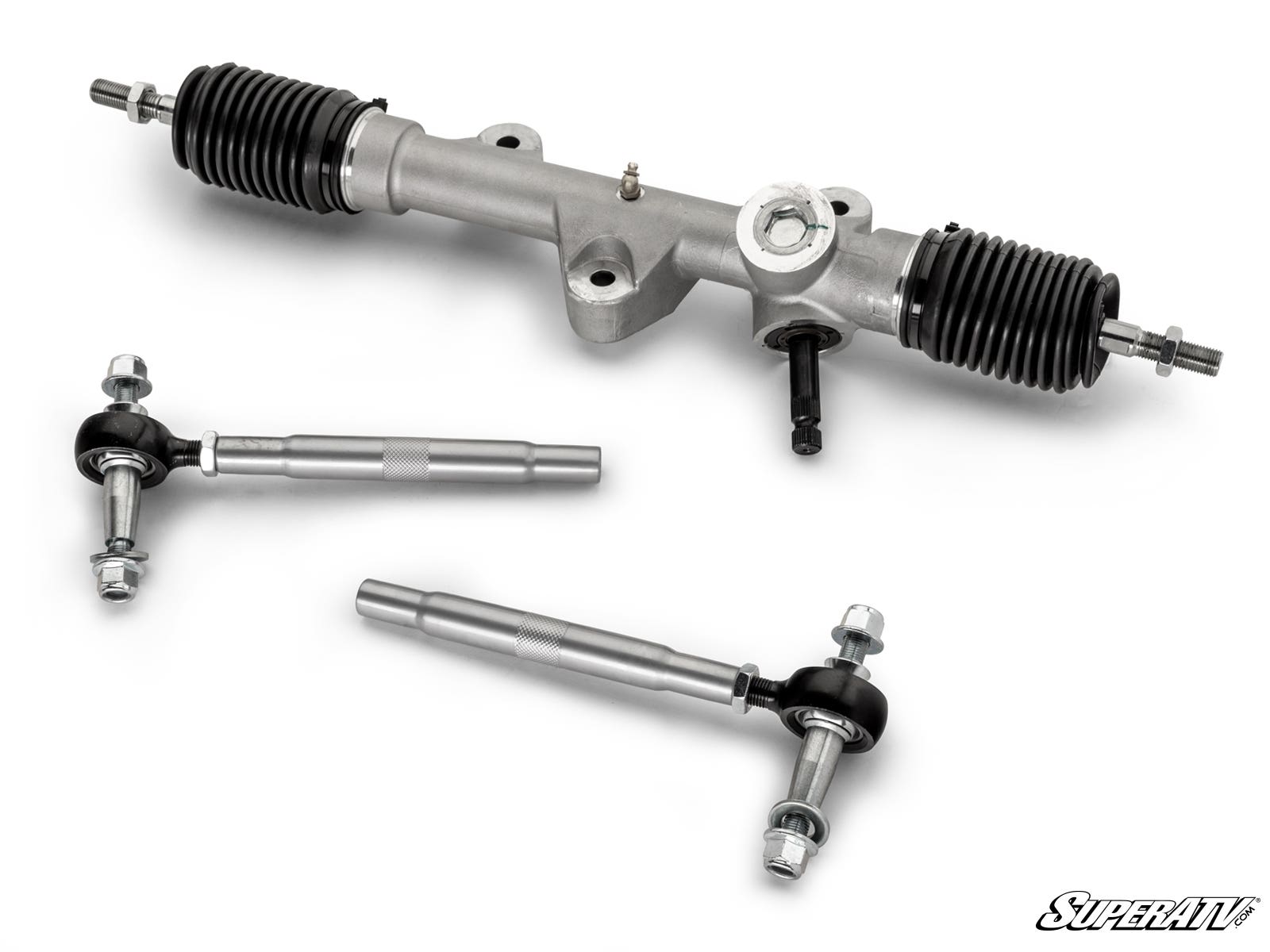

Swaged Tube Tie Rods Swaged
tube tie rods give you robust strength in a lightweight tube. They flare out
for significantly improved durability and use 7/8” diameter tubing. They
feature massive 16 mm inner ball and sockets along with 14 mm outer tie rod
ends to strengthen the OEM weak spots. They give the casual rider the
confidence to ride harder.
Solid Steel Bar Tie Rods You want to make sure you have a tie rod that can withstand how you
ride—our solid steel bar tie rods are the way way to go. They're made with 1"
diameter steel bars. And they’re paired with bigger and better 3/4" outer heim
joint tie rod ends. That’s not all—they also have rebuildable inner tie rod
ends that use 3/4" rod threads and 16 mm rack threads. What does all that
mean? They're built for hard rides and can handle heavy hits.
| | RackBoss 2.0 Swaged Tie Rod | RackBoss 2.0 Solid Steel Tie Rod |
X24 Tech Dual-Bushing
Design | ✔ | ✔ |
Inner Ball and Socket
Thread Diameter | 14 mm rod threads, 16 mm
rack threads | 3/4” rod threads, 16 mm rack
threads |
Outer Tie Rod End
Thread Diameter | 14 mm | 3/4” |
Tie
Rod Material | Steel tube | Solid steel bar |
| Greasable | ✔ | ✔ |
Inner
Boots | ✔ | ✔ |
Steering Stop
Kit | ✔ | ✔ |
Misalignment Bushings,
Tie Rod Studs, & Hardware | ✔ | ✔ |
Patent No. 11,345,393
FEATURE
- Heavy-duty dual PTFE bushings:
- Designed with X24 Tech
- Prevents wear
- Reduces slop
- Improves overall
durability
- Available tie rod options:
- Solid steel
bar - Swaged tube
- Swaged tube tie rods use:
- 14 mm outer tie rod ends
- Rebuildable inner tie rod ends that use
14 mm rod threads and 16 mm rack threads
- Solid steel tie
rods use: - 3/4” outer tie rod ends
- Rebuildable inner tie rod
ends that use 3/4” rod threads and 16 mm rack threads
- 65%
larger housing than stock - Over 50% less wear than OEM after 15,000
cycles - Grease fitting for rack gears
Fitment
- Kawasaki Teryx 4 750 : 2012-2013
- Kawasaki Teryx 800 :
2014+ - Kawasaki Teryx 4 800 : 2014+
Replaces
OEM Part#: 39191-0018, 39191-0036, 39191-0038
